2022 CAT D6N XL D5 NEXT GEN-SOLD
Price $435,000
Call Today: 916.933.6050
Short Description

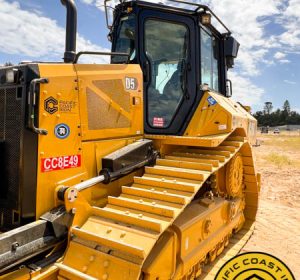

2022 CAT D5 NEXT GEN DOZER
FEATURES:
- EROPS
- HEAT/AC

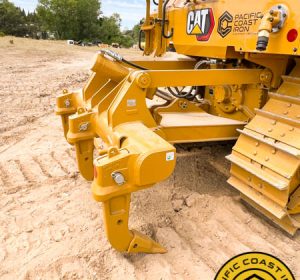

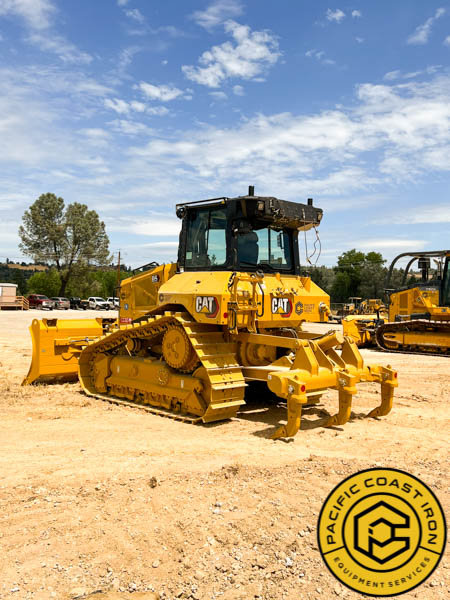

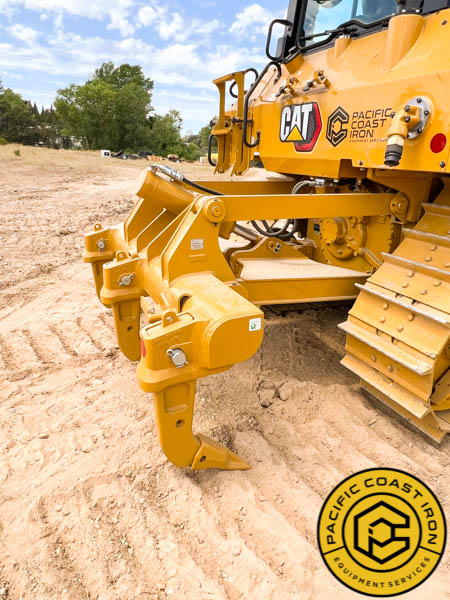

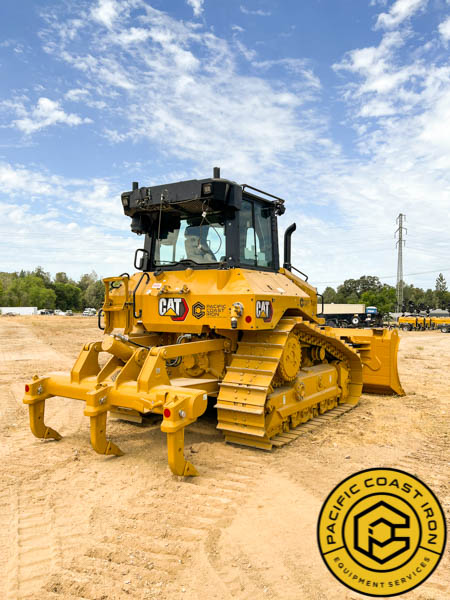

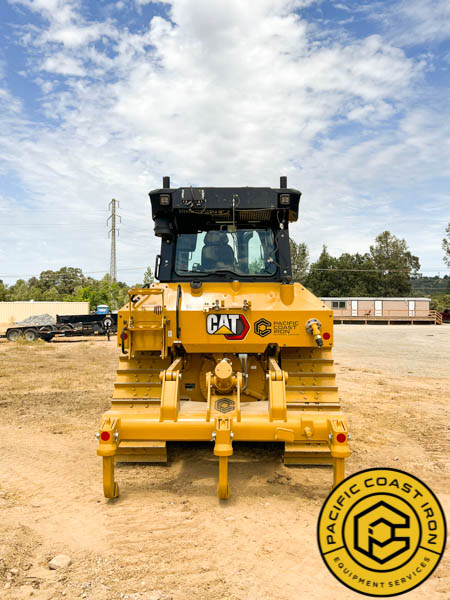

- MS RIPPER

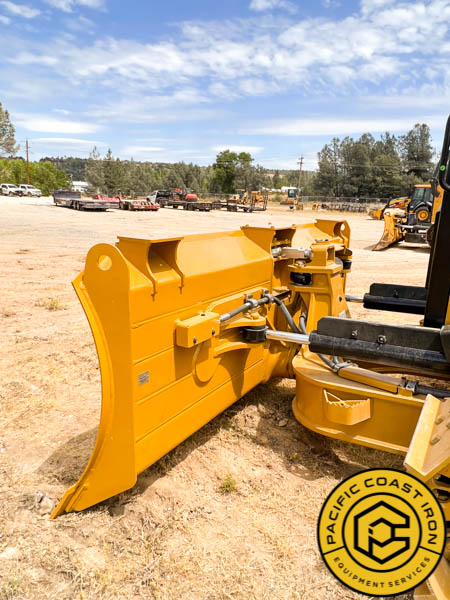

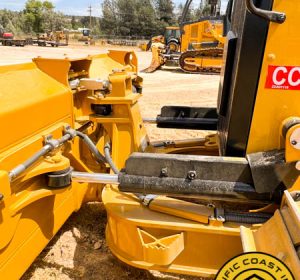

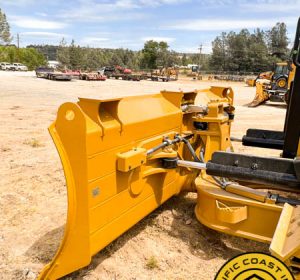

- PAT BLADE
- ACUGRADE READY
- BLADE SHAKE
- PRODUCT LINK
- AUTO REVERSING FAN
Long Description

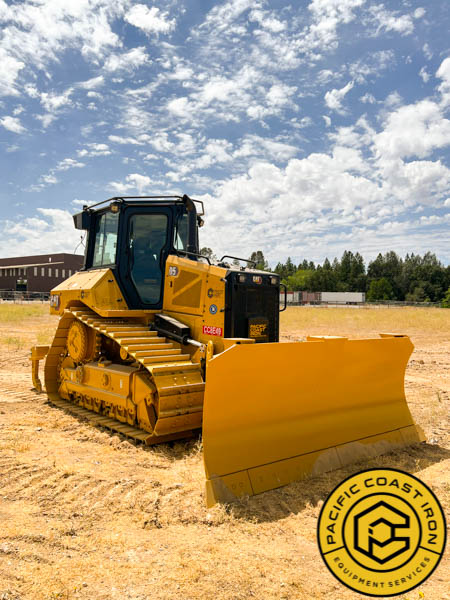

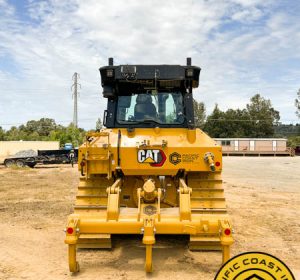

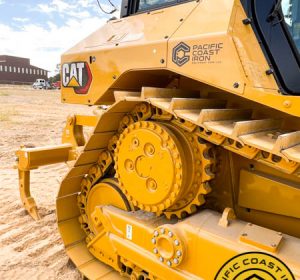

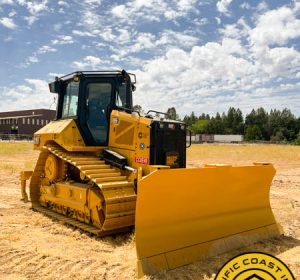

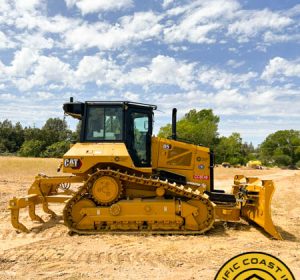

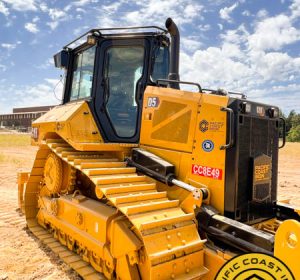

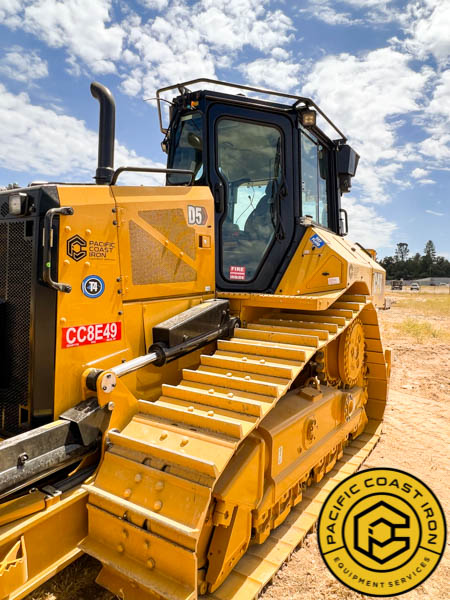

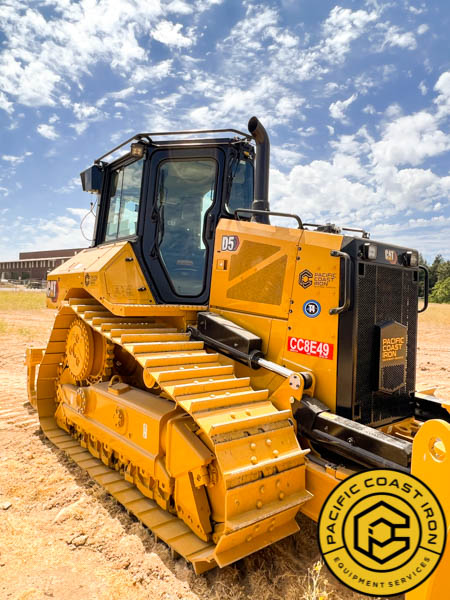

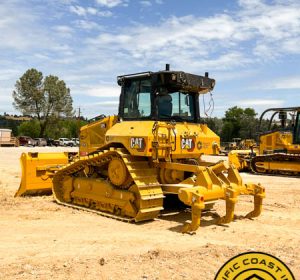

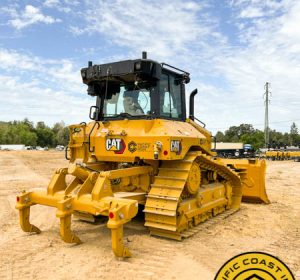

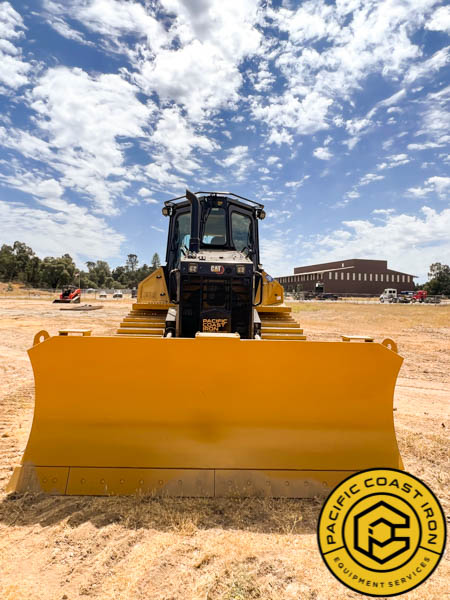

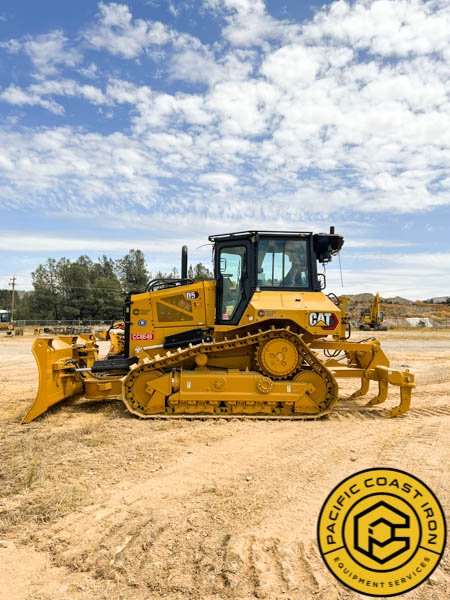

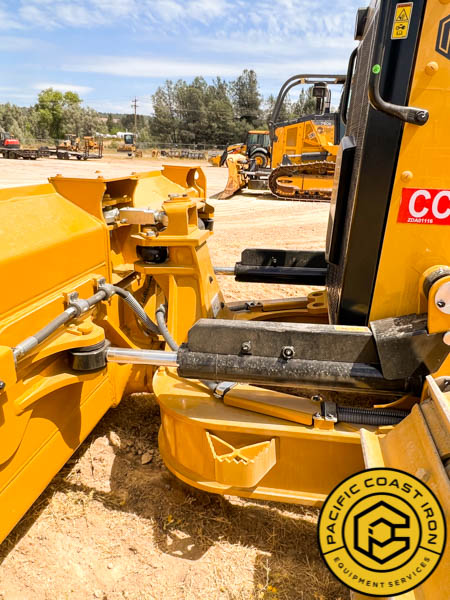

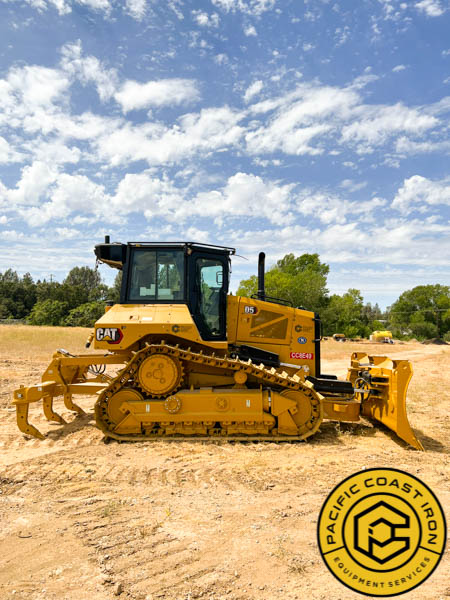

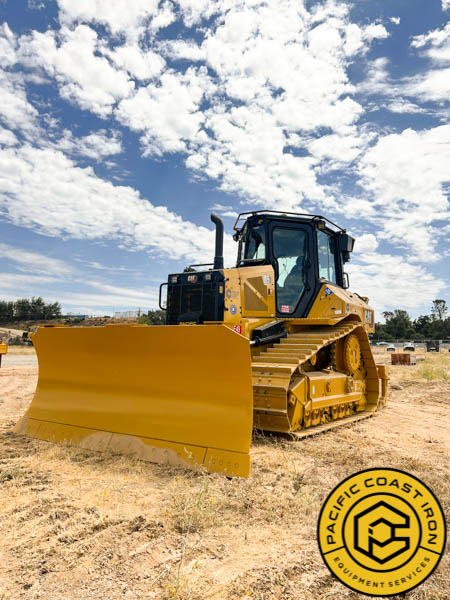

2022 CAT D5 NEXT GEN

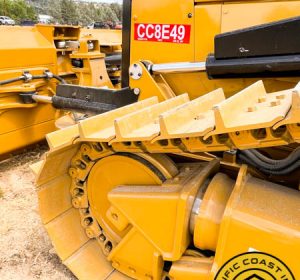

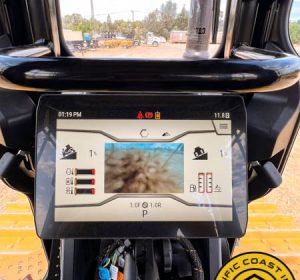

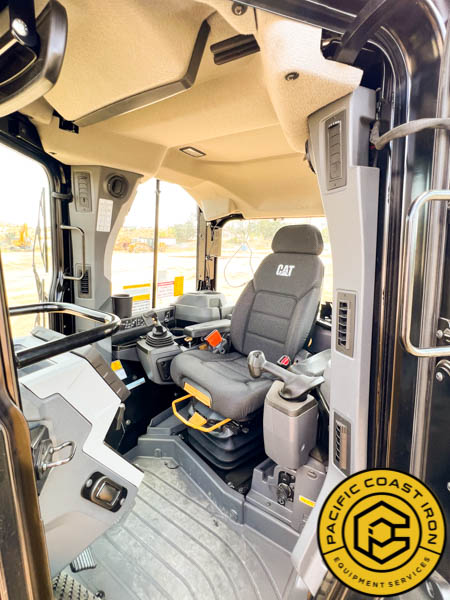

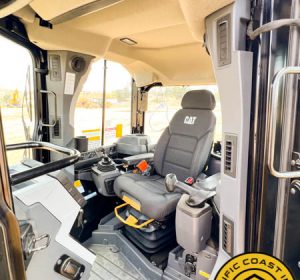

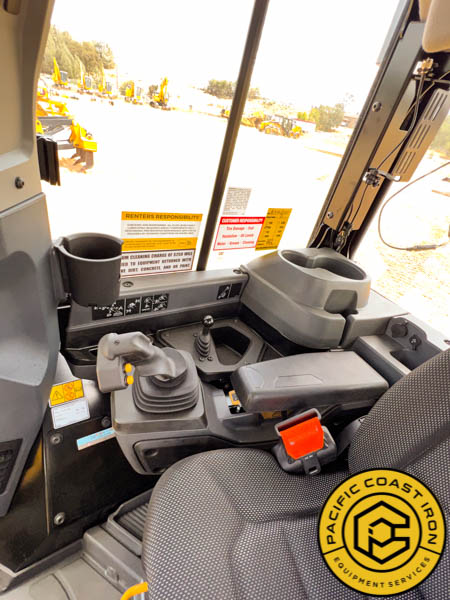

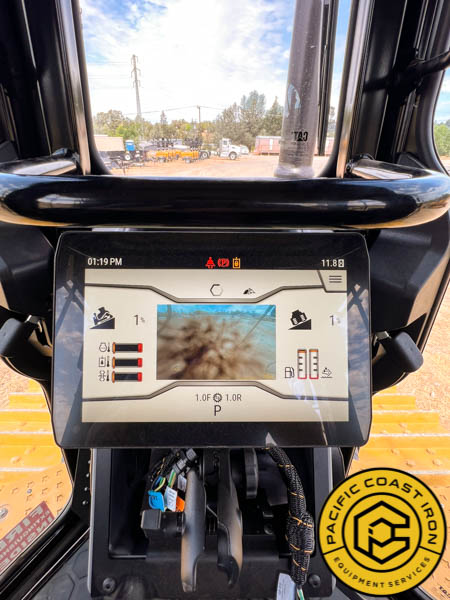

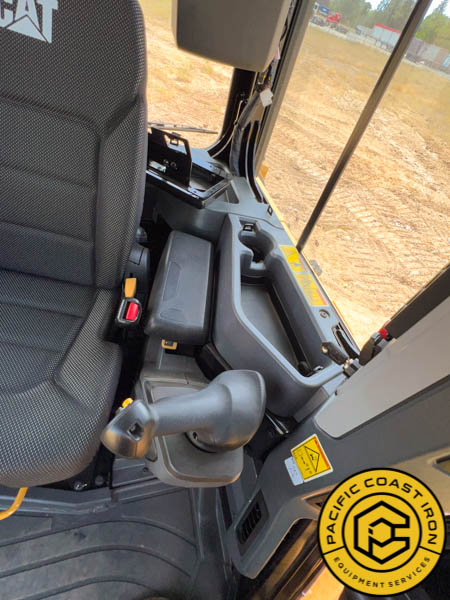

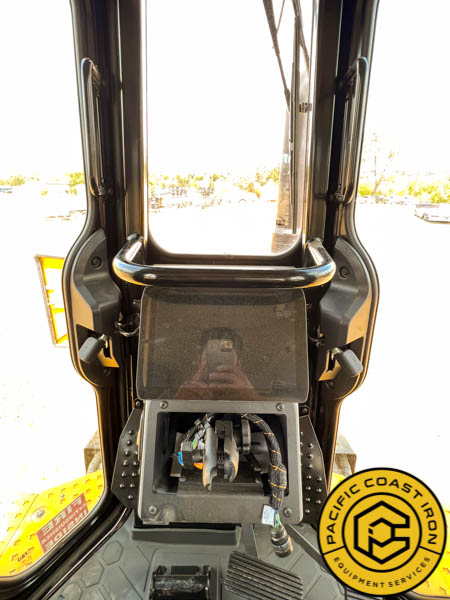

BRAND NEW 2022 CAT D5 (D6NXL) DOZER. THIS UNIT IS LOADED WITH ABOUT EVERY OPTION. PRE-WIRED FOR TRIMBLE/ACUGRADE, CAB HEAT/AC, REVERSING FAN, PAT BLADE, MS RIPPER, CAT PRODUCT LINK, REAR CAMERA, 24″ PADS, PREMIUM CAB, FAST FUEL, AND 36MONTH CAT POWERTRAIN/HYDRAULIC WARRANTY. VERY NICE HARD TO FIND MACHINE!
SPECIFACATIONS:

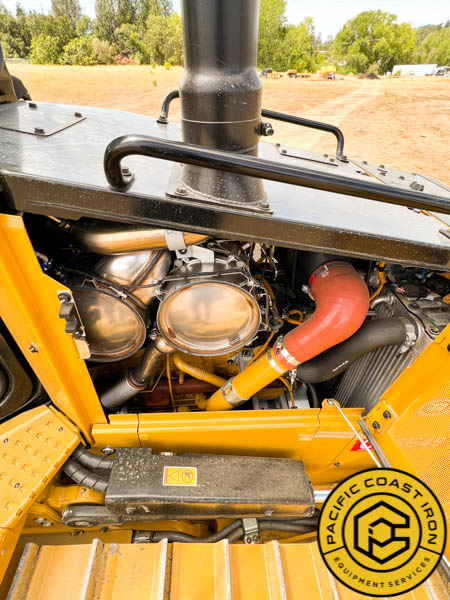

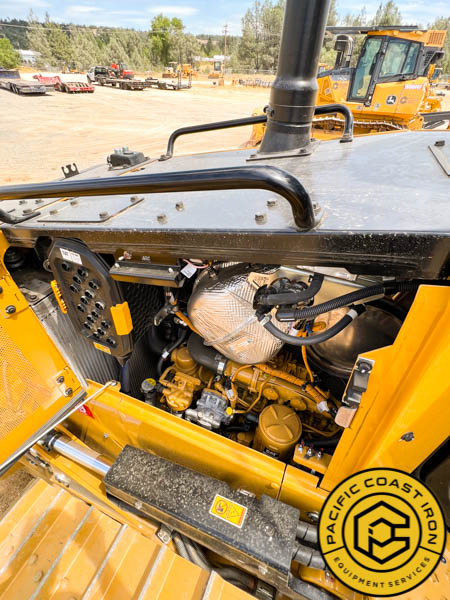

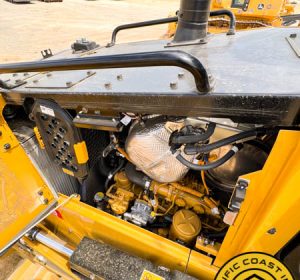

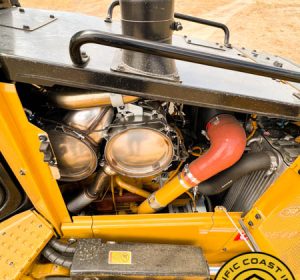

| Engine Model | Cat C7.1 |
| Power – Net | 170 HP |
| Net Power – Rated – ISO 9249/SAE J1349 | 170 HP |
| Net Power – Rated – ISO 9249/SAE J1349 (DIN) | 172 mhp |
| Build Number | 17B |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final |
| Note (1) | Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | All non-road Tier 4 Interim and Final, Stage IIIB, IV and V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Note (3) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Note (4) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
WEIGHTS
| Operating Weight | 42263 lb |
TRANSMISSION
| Power Train | Fully Automatic 3-Speed |
SERVICE REFILL CAPACITIES
| Fuel Tank | 83.2 gal (US) |
| DEF Tank | 4.2 gal (US) |
AIR CONDITIONING SYSTEM
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
VPAT
| Operating Weight | 37875 lb |
| Ground Pressure | 6.9 psi |
| Width of Standard Shoe | 24 in |

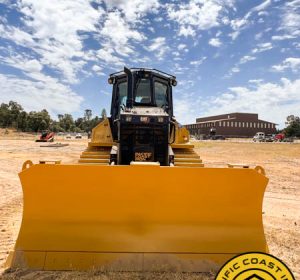

| Blade | VPAT |
| Blade Capacity | 4.6 yd³ |
LGP VPAT
| Operating Weight | 42263 lb |
| Ground Pressure | 4.7 psi |
| Width of Standard Shoe | 33 in |
| Blade | LGP VPAT |
| Blade Capacity | 5.5 yd³ |
FINE GRADING VPAT
| Operating Weight | 39198 lb |
| Ground Pressure | 6 psi |
| Width of Standard Shoe | 24 in |
| Blade | VPAT |
| Blade Capacity | 4.6 yd³ |
PUSH ARM
| Operating Weight | 38228 lb |
| Ground Pressure | 7 psi |
| Width of Standard Shoe | 24 in |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 5.6 yd³ |
| Note (1) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
