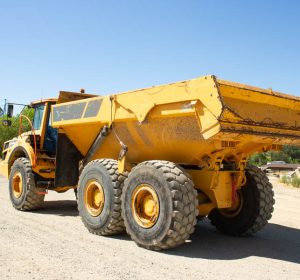

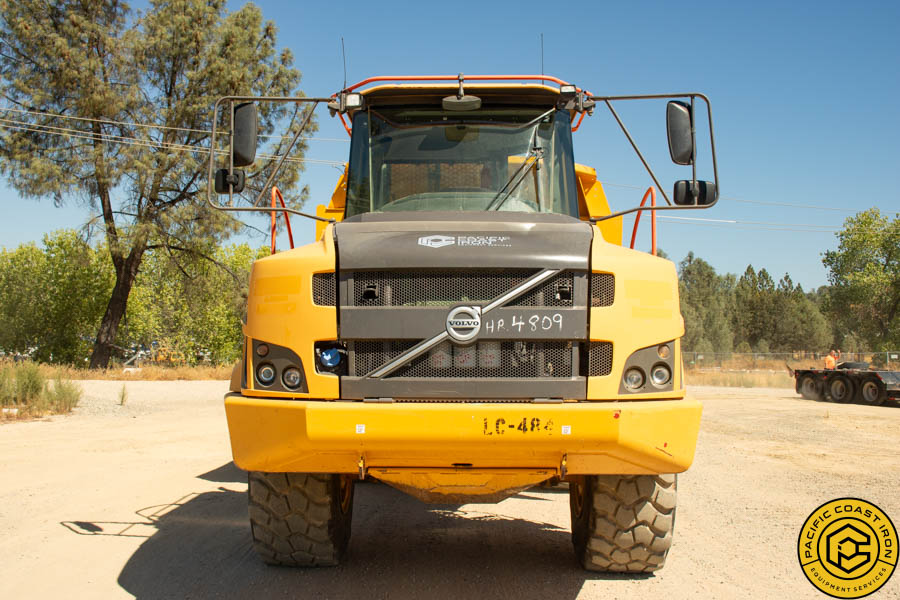

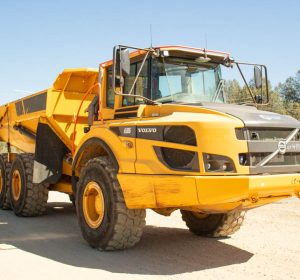

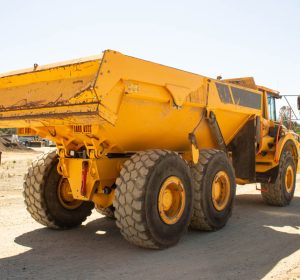

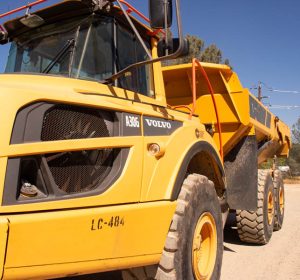

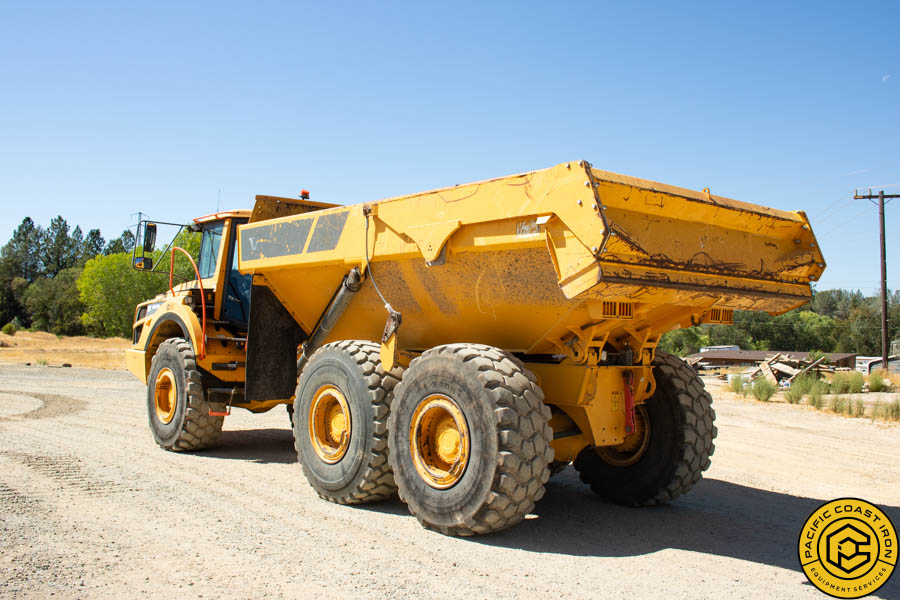

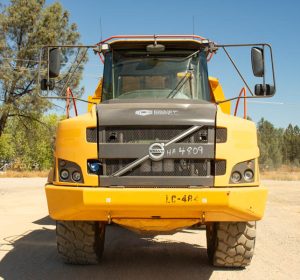

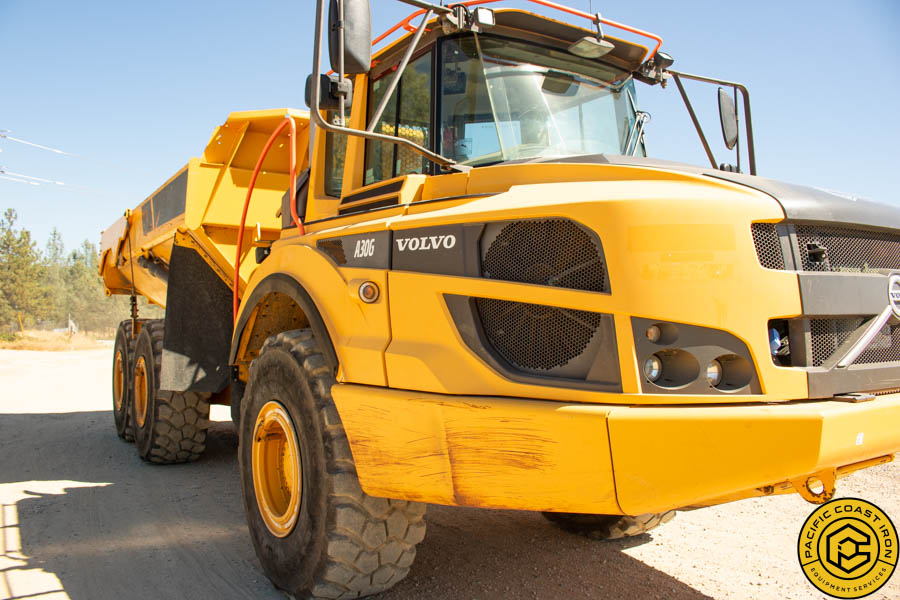

2019 VOLVO A30G ARTICULATING HAUL TRUCK
Price $199,900
Call Today: 916.933.6050
Short Description
2019 VOLVO A30G HAUL TRUCK FOR SALE
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

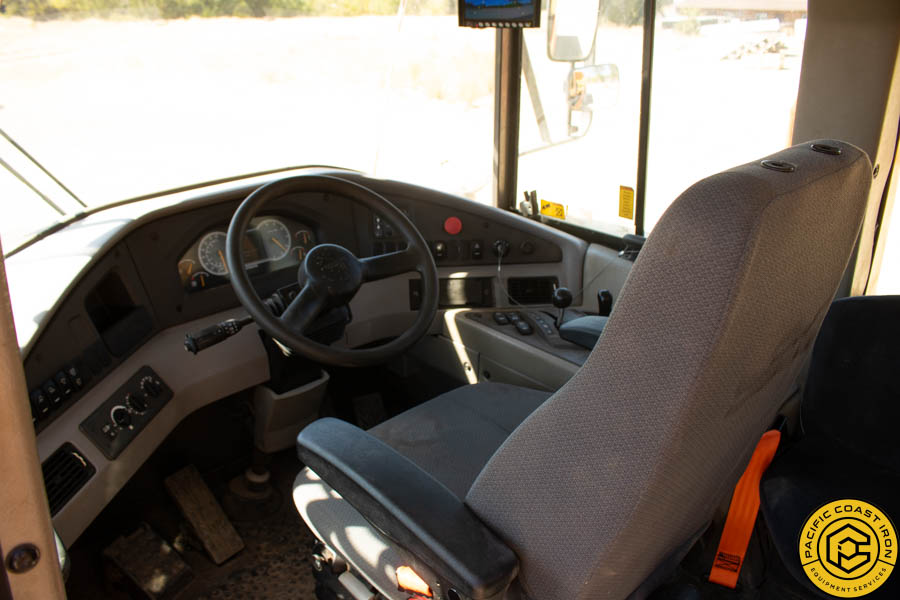

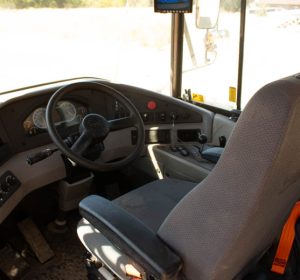

- EROPS HEAT/AC
- RETARDER
- DIFF-LOCK
- TIER 4 FINAL COMPLIANT

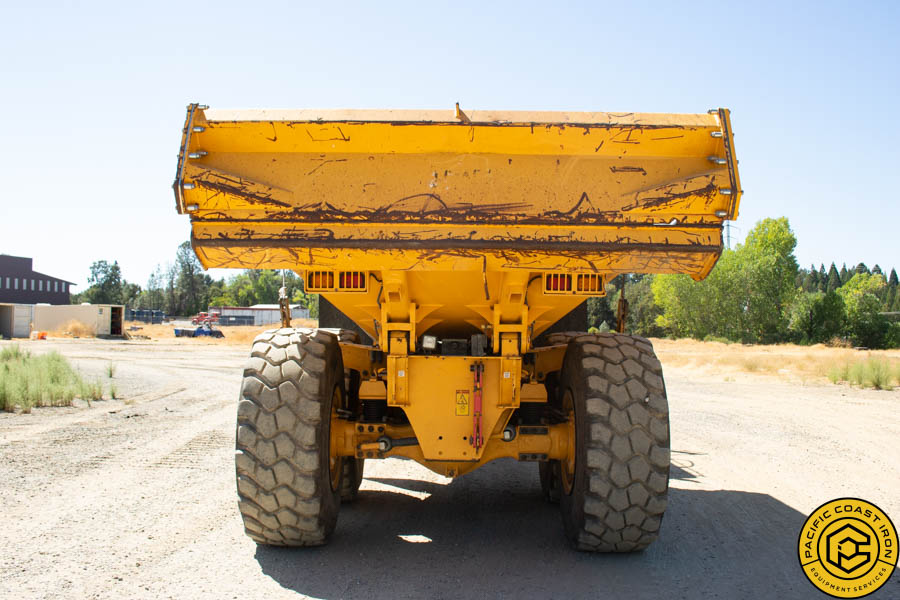

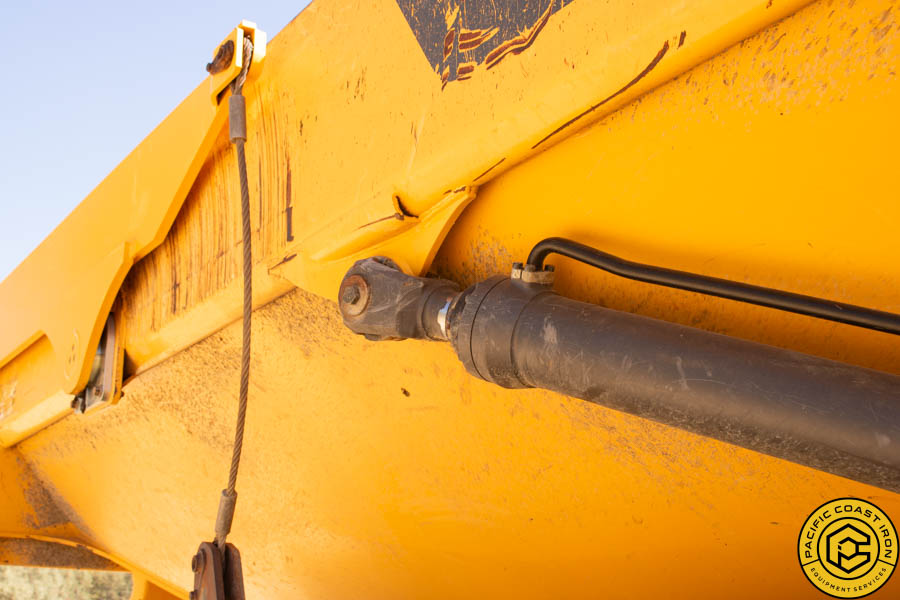

- TAILGATE
Long Description

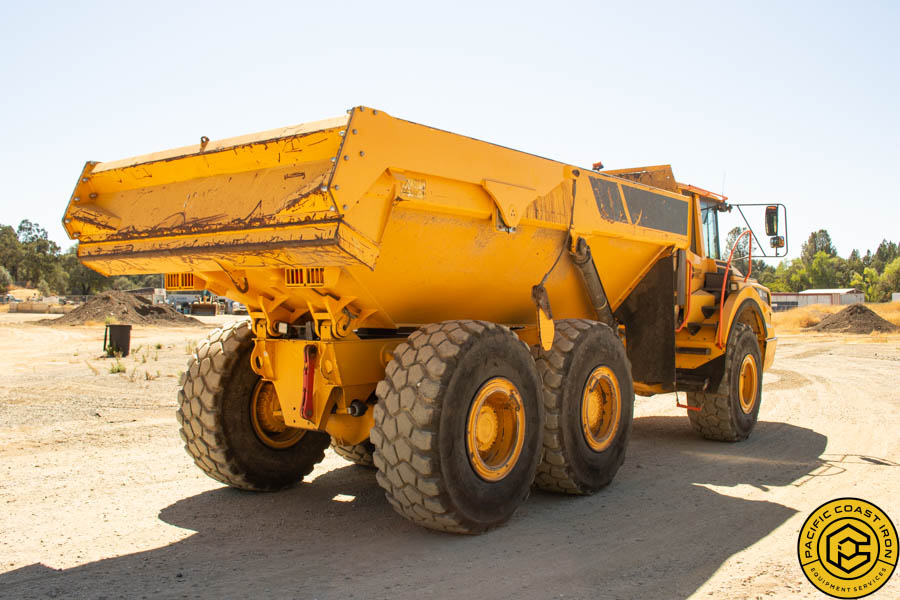

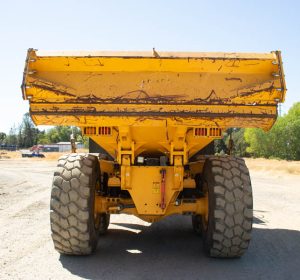

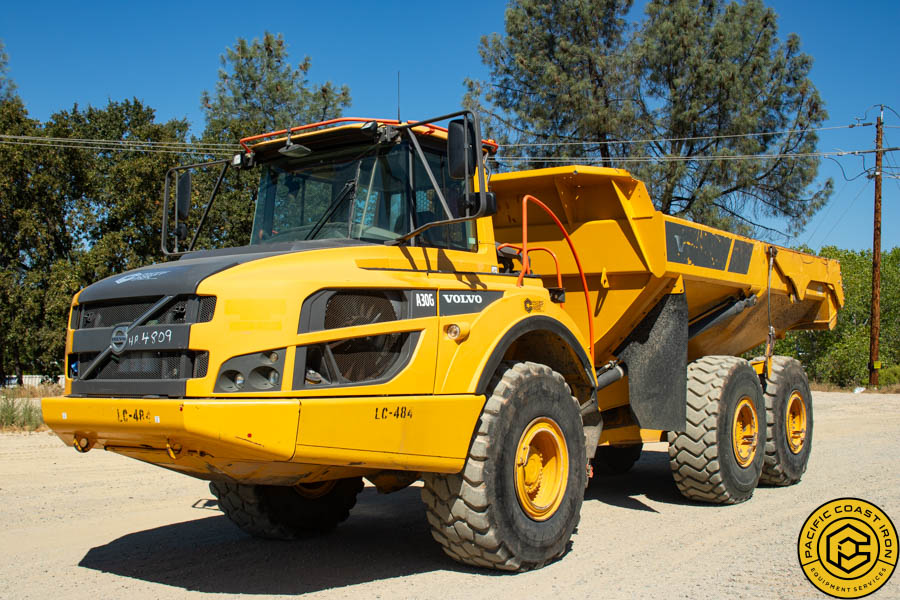

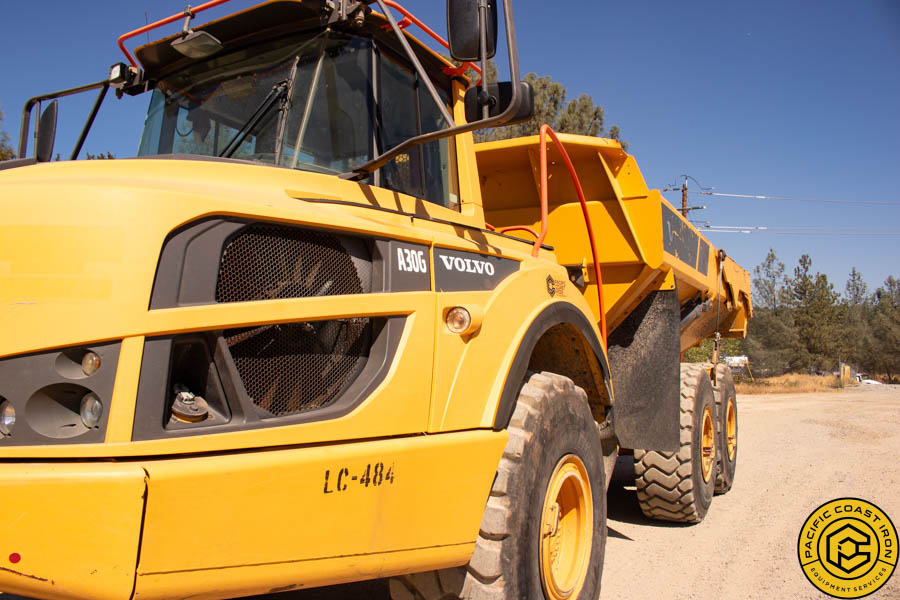

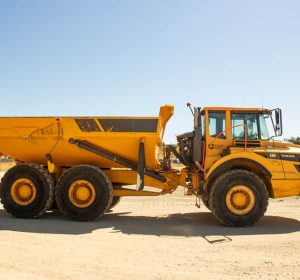

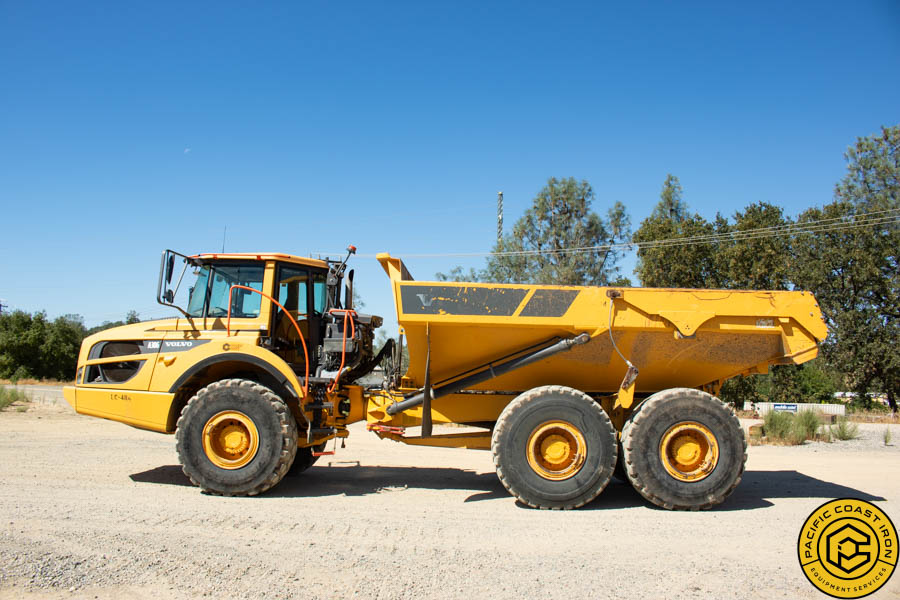

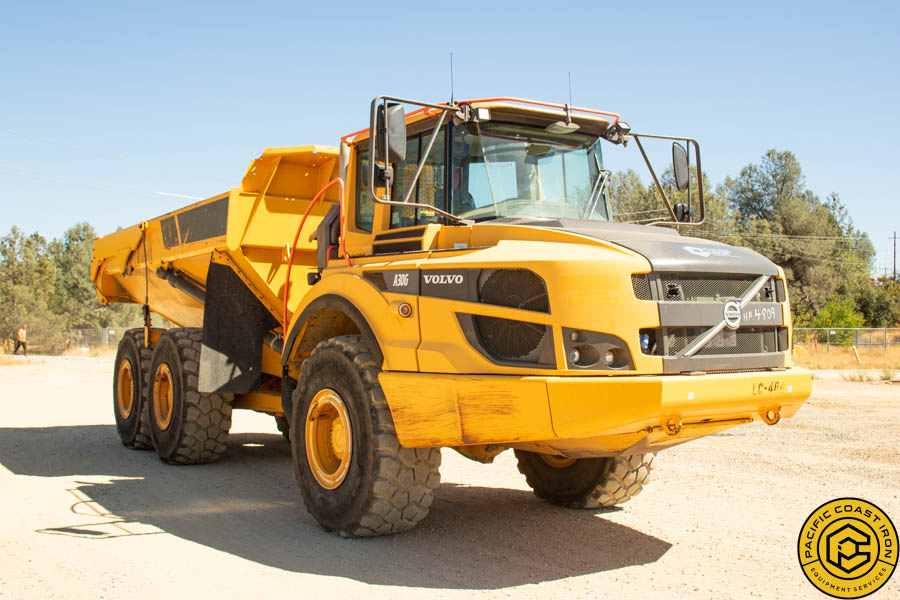

2019 VOLVO A30G ARTICULATING HAUL TRUCK

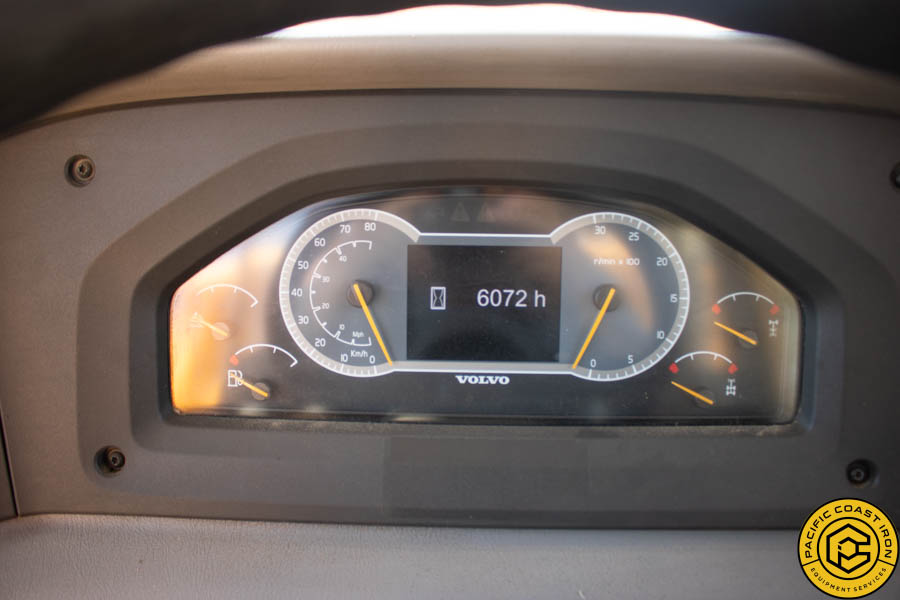

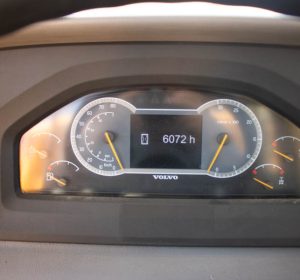

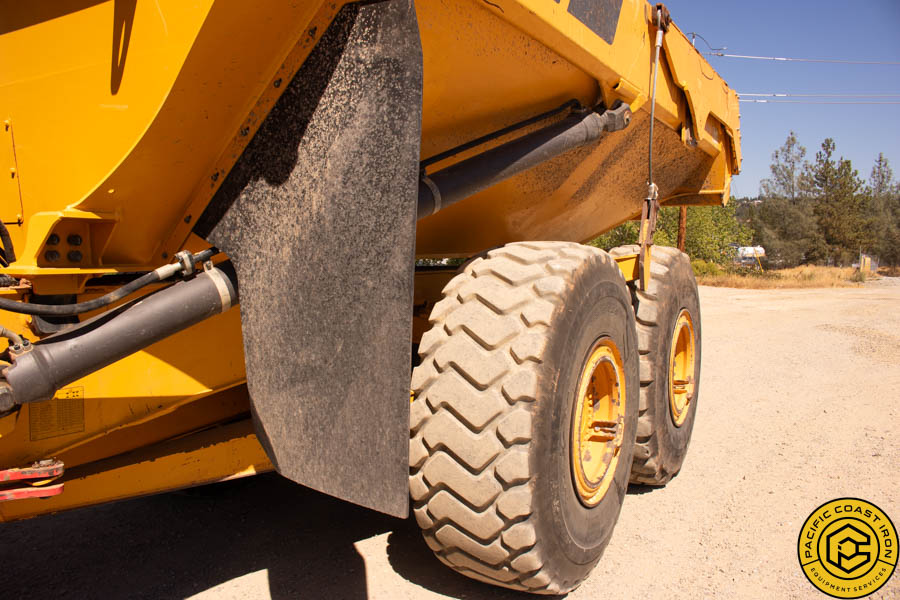

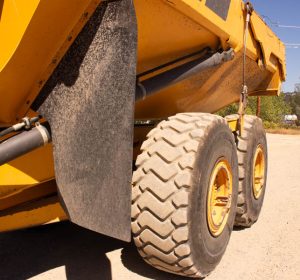

2019 VOLVO A30G 30-TON ARTICULATING HAUL TRUCK. UNIT HAS ONLY 6000HRS. EQUIPPED WITH DIFF-LOCK, RETARDER, TAIL GATE, RADIAL TIRES, TIER 4 FINAL VOLVO ENGINE, FLEET SERVICED SINCE NEW. VERY CLEAN HAUL TRUCK.
SPECIFACATIONS:
Dimensions
A
Overall Length
33.78ft in
B
Overall Width
17.67ft in
C
Overall Height
11.05ft in
D
Wheelbase
9.07ft in
E
Ground Clearance
1.72ft in
F
Dump Height
21.53ft in
G
Dump Ground Clearance
2.26ft in
Dump
H
Dump Angle
70degrees
Lower Time
10sec
Rated Payload
31lb
Capacity – Struck
18.19yd3
Raise Time
22sec
Capacity – Heaped
23.29yd3
Specifications
Electrical System
Battery Capacity
2×170
Alternator
3.396/120
Voltage
24V
Starter Motor
9
Battery
2×12

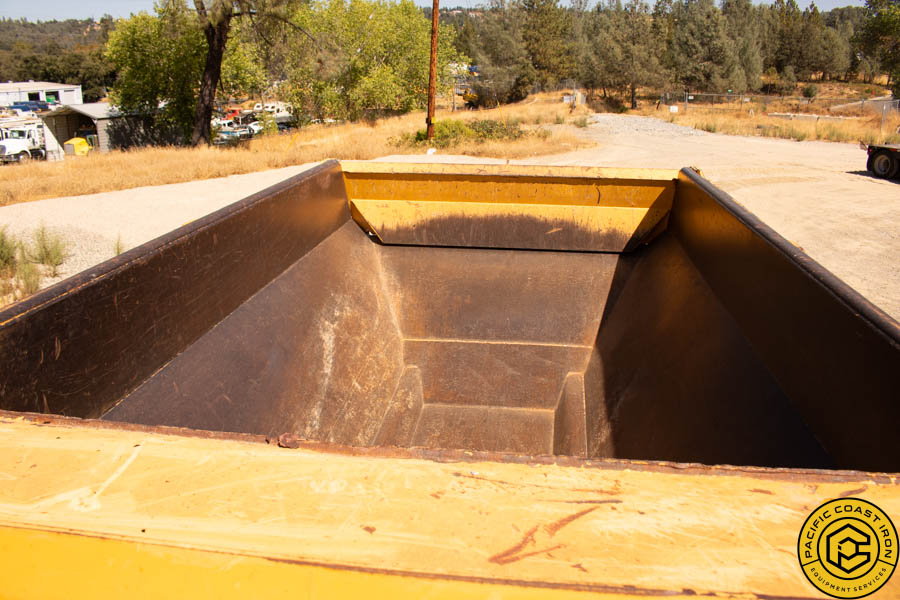

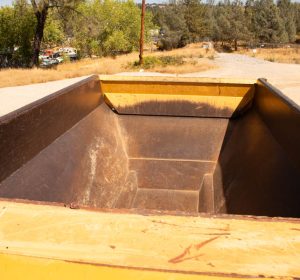

Body
Plate Thickness-Front
0.3in
Plate Thickness-Sides
0.4in
Plate Thickness-Bottom
0.6in
Plate Thickness-Chute
0.6in
Engine
Max Engine Speed
2000
Engine Make
Volvo
Engine Model
D11L
Gross Power
355hp
Net Power
354hp
Max Torque
1300lb ft
Torque Measured @
1200rpm
Displacement
659cu in
Drive Train
Torque Converter
2.37:1
Dropbox
IL1 ATC
Axles
AHW64
Transmission
PT 2116
Capacities
Fuel Tank
100.4gal
Hydraulic Tank
36.2gal
Cooling System
12.7gal
Def Tank
10.4gal
Transmission
10.9gal
Crankcase
9.3gal
Brake Cooling System
9.3gal
Dropbox
2.4gal
Operational
Fuel Capacity
100gal
Tire Size
23.5R25
Transmission
Transmission Type
Auto
Number Of Forward Gears
6
Number Of Reverse Gears
2
Max Speed
32.8mph
Weights
Total Empty
51367.8lb
Total Loaded
115301.8lb
Hydraulic System
Maximum System Pressure
3626psi
