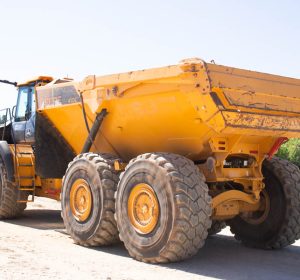

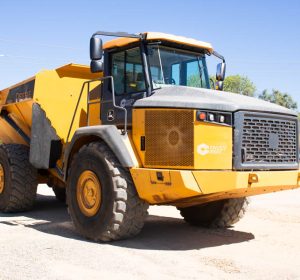

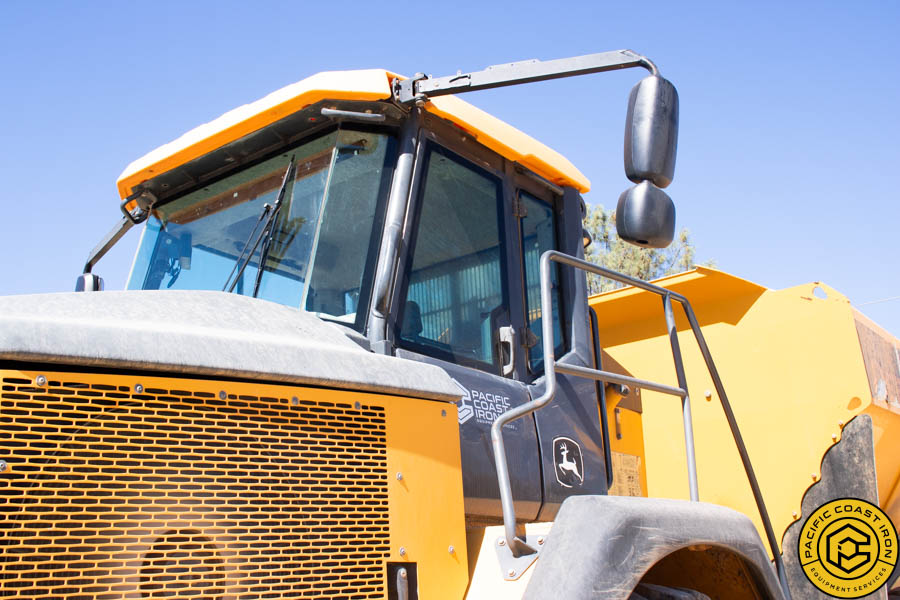

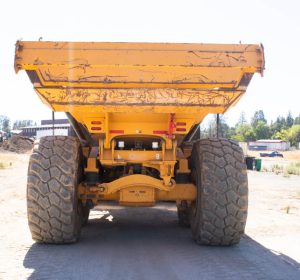

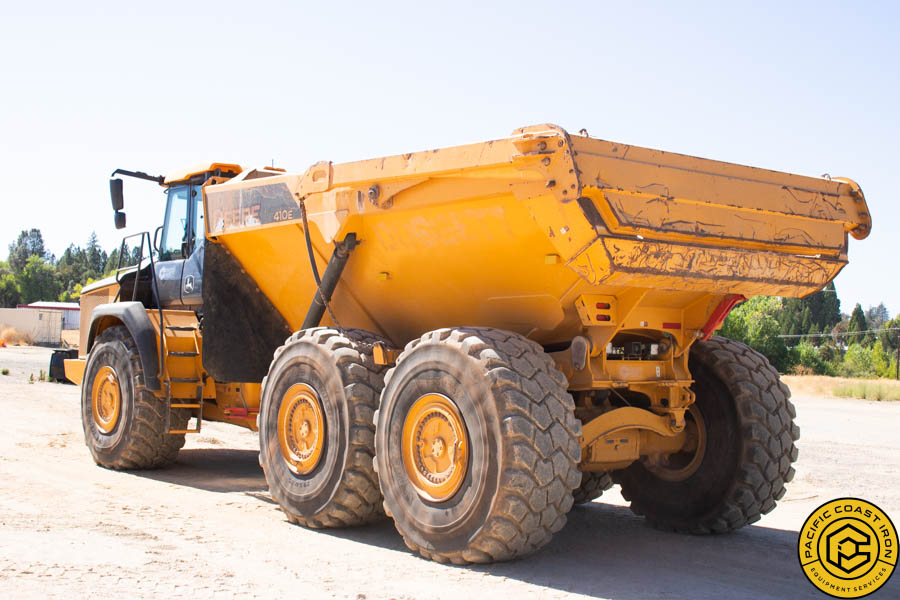

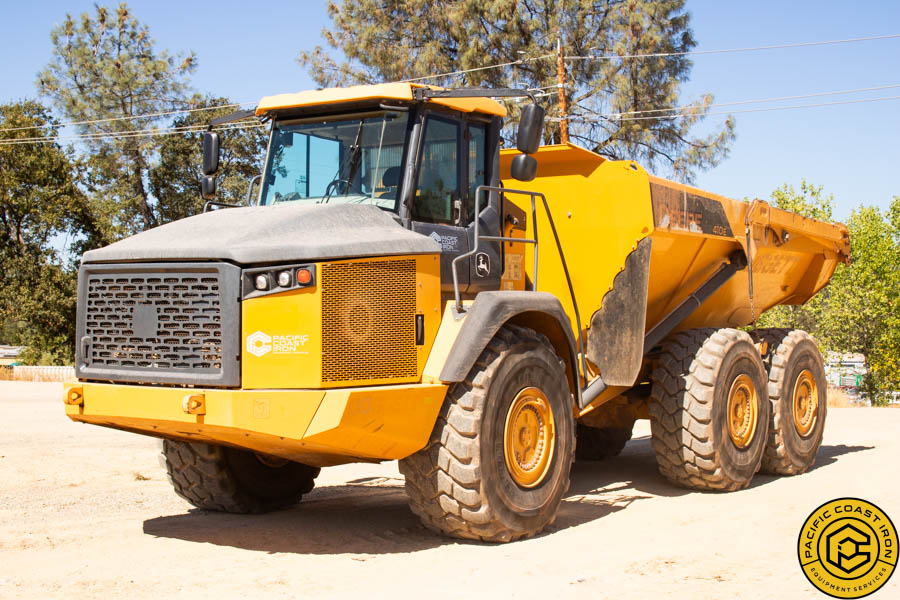

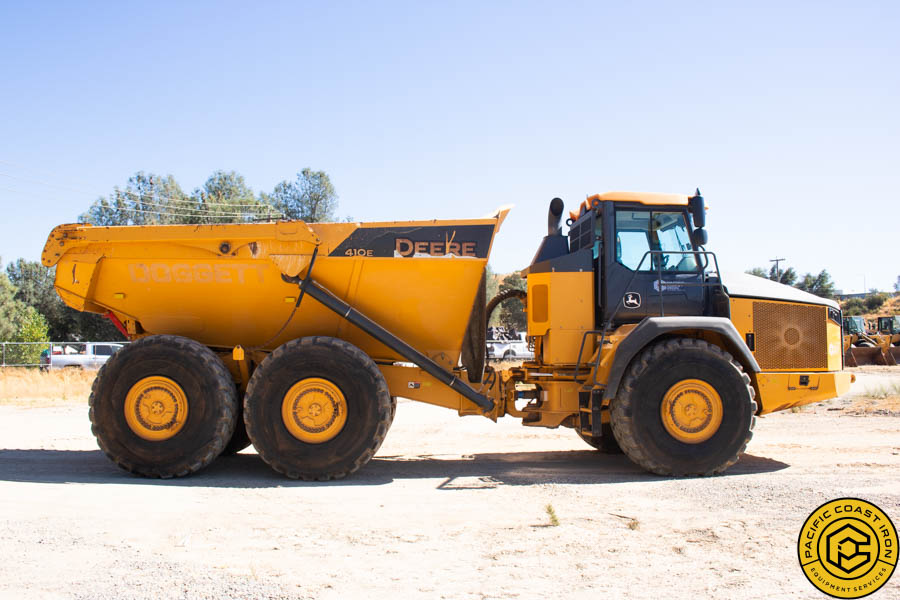

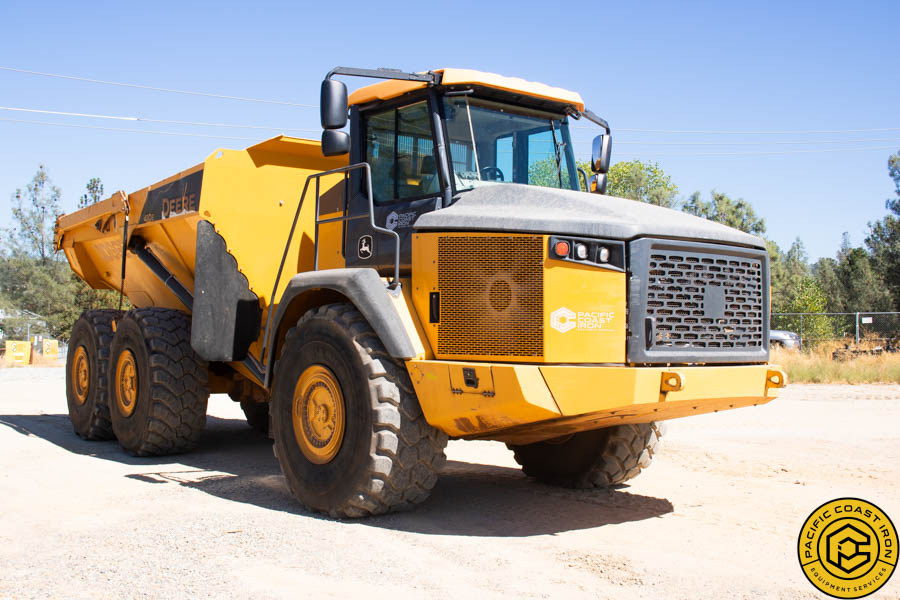

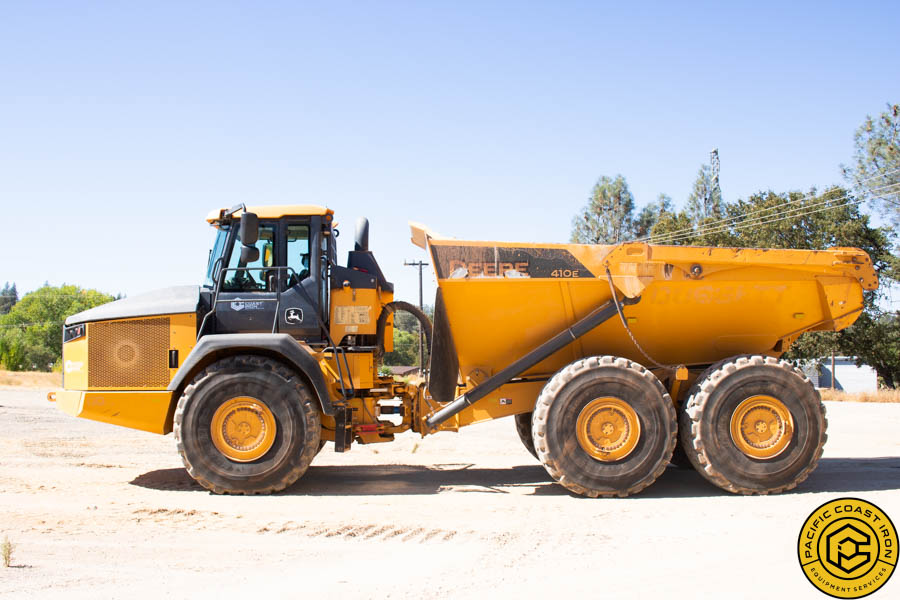

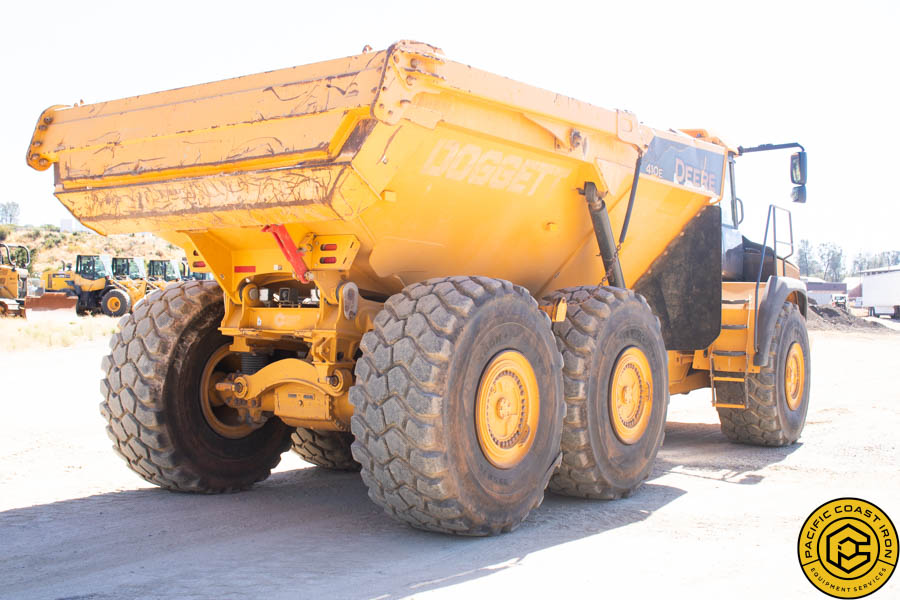

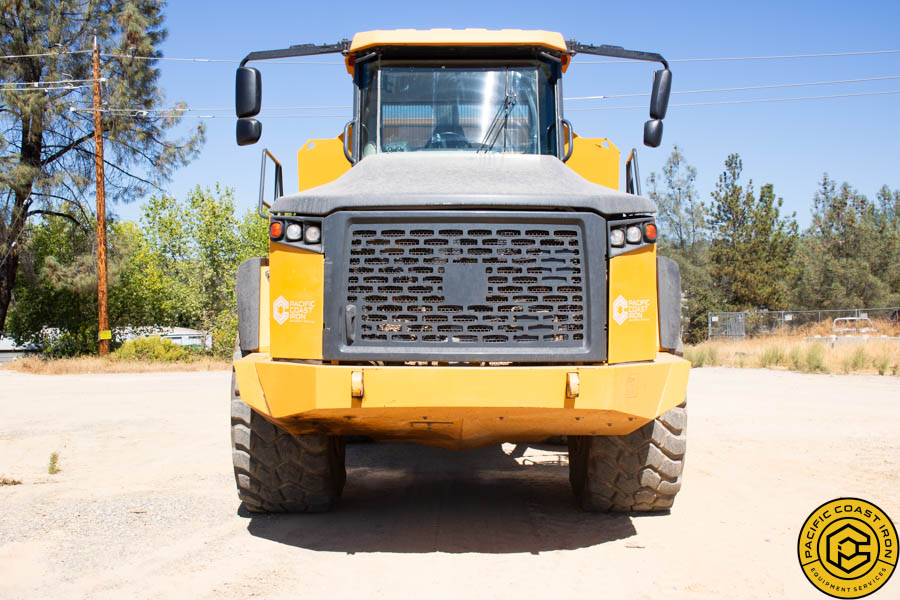

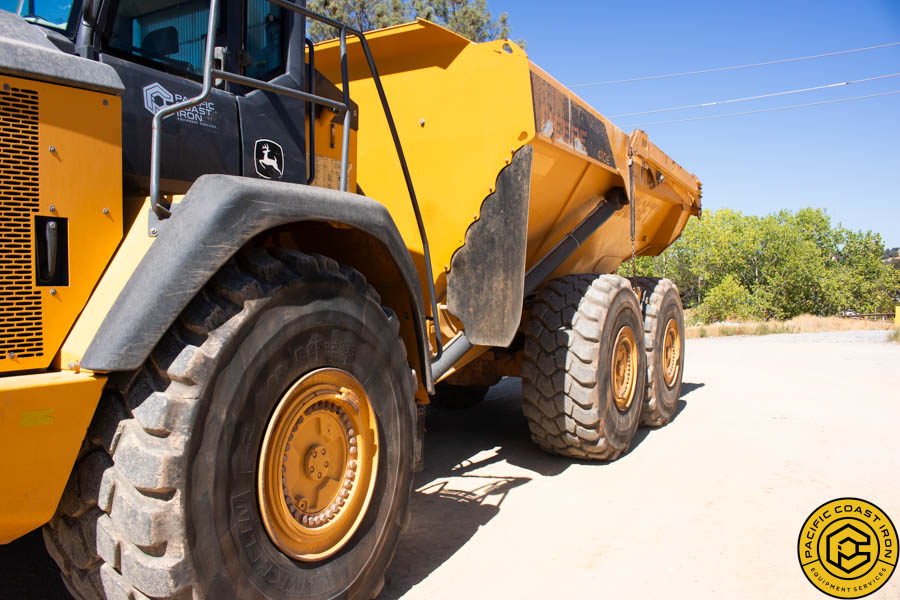

2019 DEERE 410E HAUL TRUCK FOR SALE

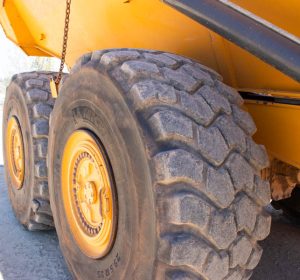

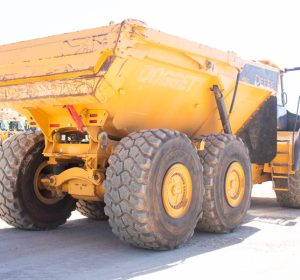

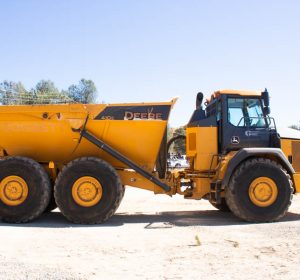

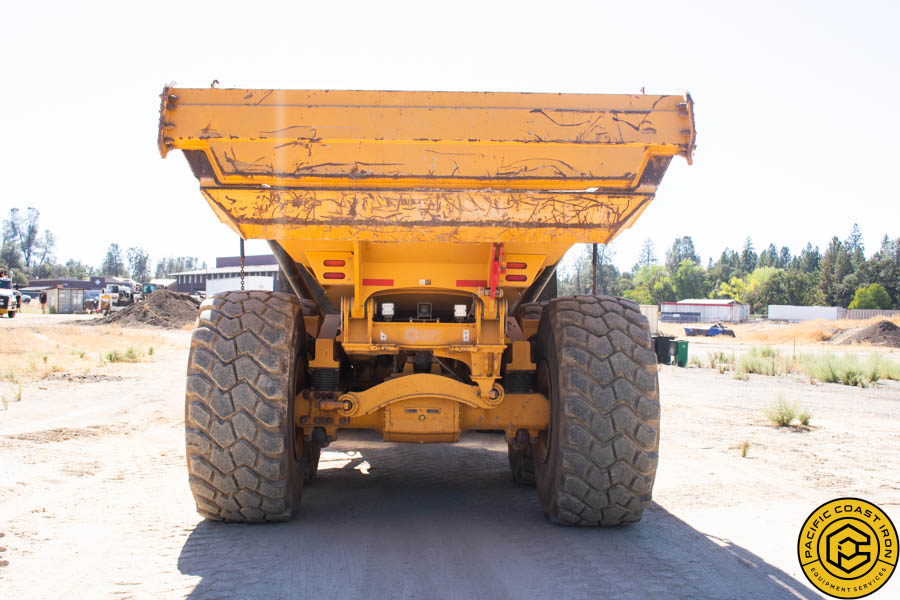

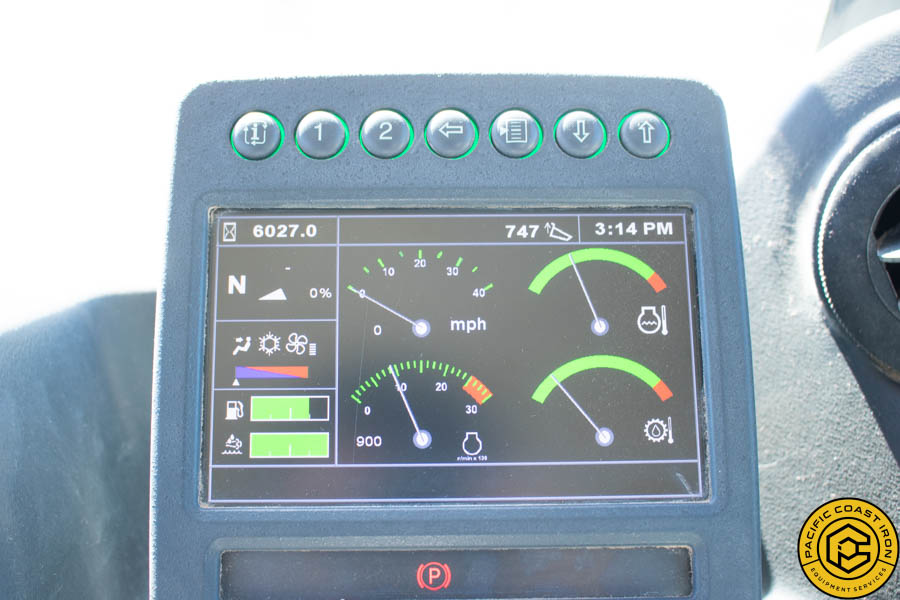

2019 DEERE 410E 40-TON ARTICULATING HAUL TRUCK. UNIT HAS ONLY 6000HRS. EQUIPPED WITH DIFF-LOCK, RETARDER, TAILGATE, RADIAL TIRES, TIER 4 FINAL DEERE ENGINE, FLEET SERVICED SINCE NEW. VERY CLEAN HAUL TRUCK.
Dimensions
A
Overall Length
35.47ft in
B
Overall Width
11.3ft in
C
Overall Height
12.8ft in
D
Wheelbase
29.2ft in
F
Dump Height
10.1ft in
Width Over Tires
11.19ft in
Approach Angle
26–

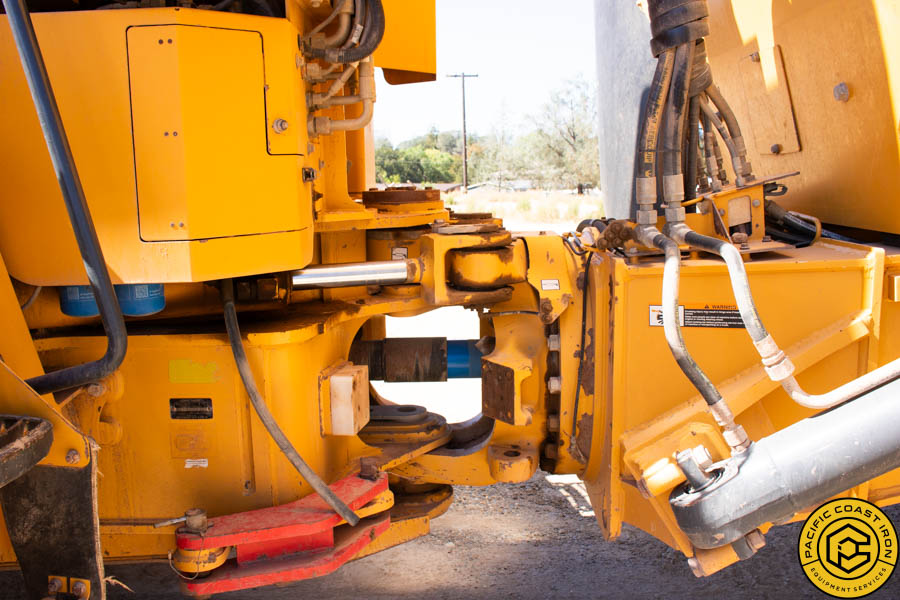

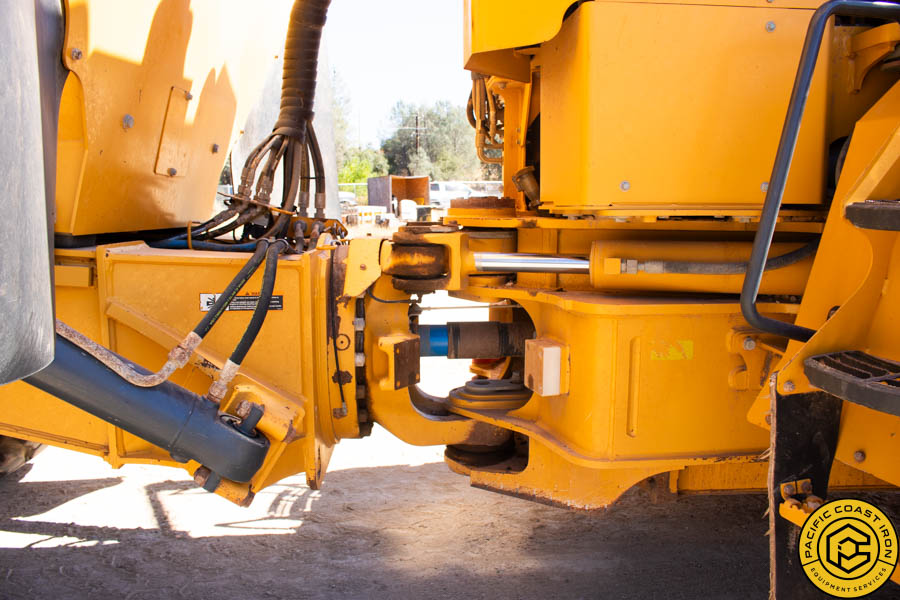

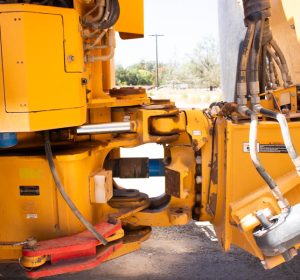

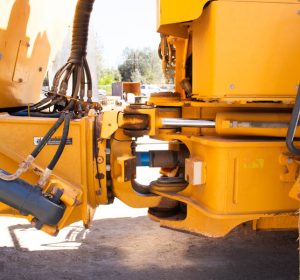

Articulation Angle
45

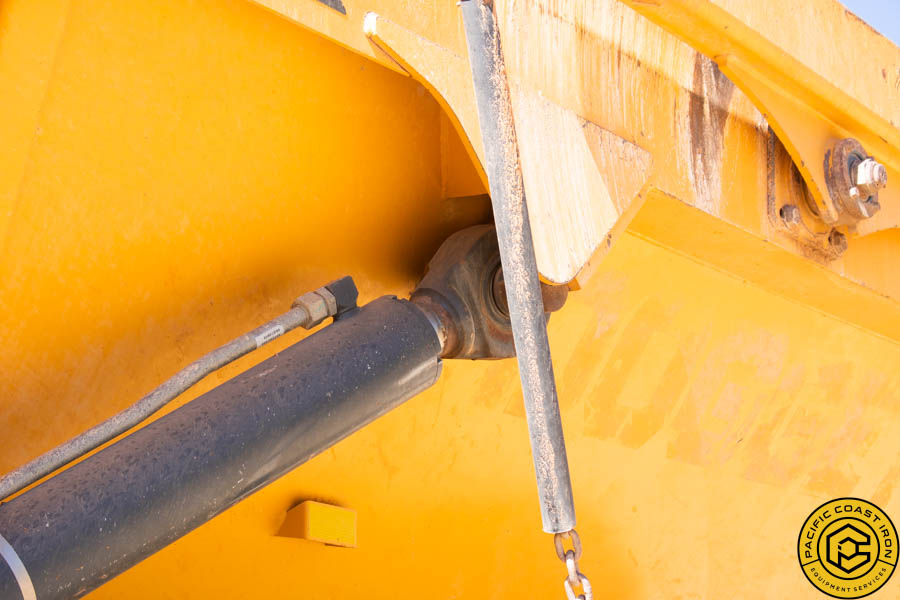

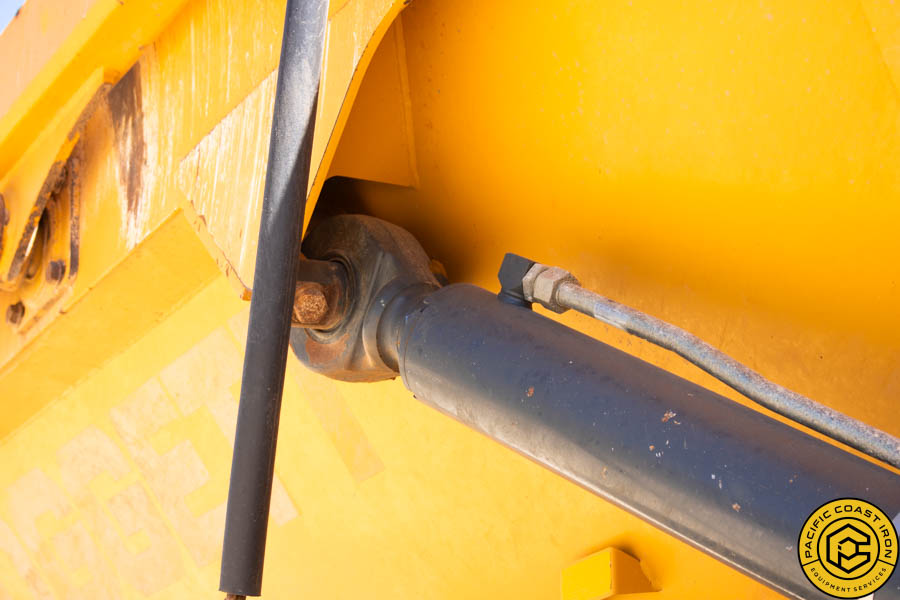

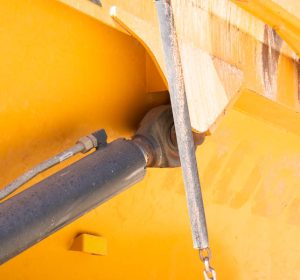

Hoist – Type
Twin, 1-Stage
Max Height
12.67ft in
Power Down
Yes
Turning Radius – Inside
15.2ft in
Turning Radius – Outside
29.2ft in
Turns Lock To Lock
4.2
Dump
H
Dump Angle
70degrees
Raise Time
10sec
Rated Payload
41.1lb
Lower Time
10sec

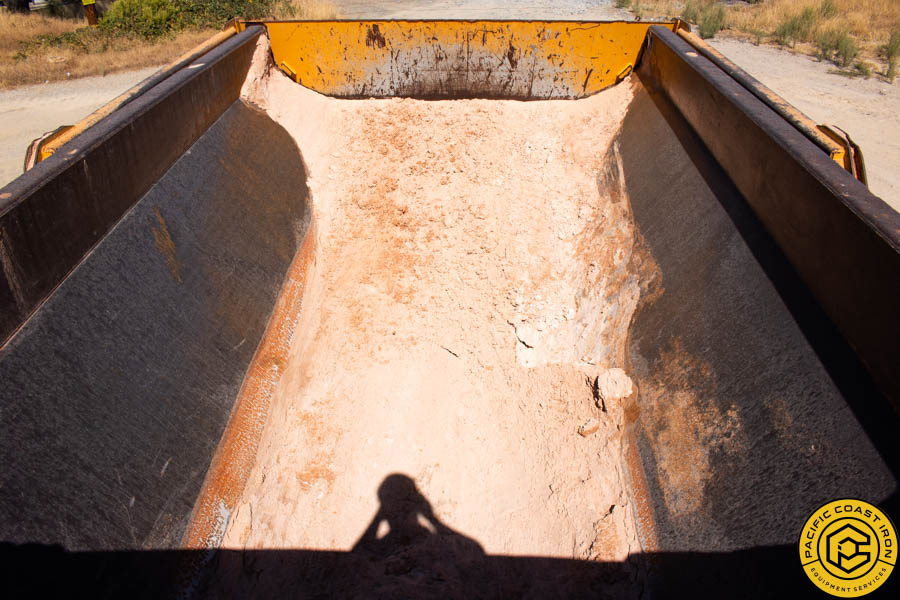

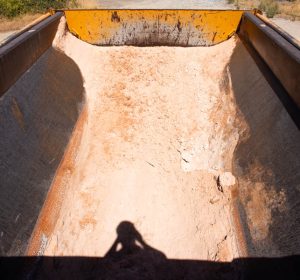

Capacity – Struck
23.3yd3
Capacity – Heaped
29.7yd3
Specifications
Engine
Engine Make
0
Engine Model
PowerTech 6135
Net Power
443hp
Max Torque
1685lb ft
Driveline
Engine Model
PowerTech 6135
Displacement
823.9cu in
Engine Manufacturer
John Deere
Emission Rating
Tier 4
Rated Speed
1900rpm
Parking Brake Type
Disc – Transmission
Transmission Type
Countershaft
Differential Lock
F: 100 / R: 100
Service Brake Actuation
Hydraulic

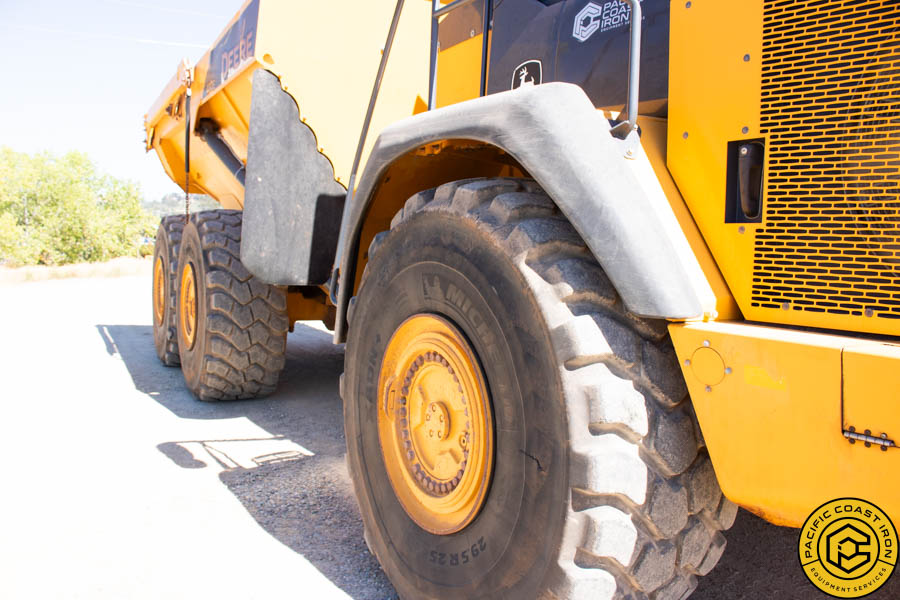

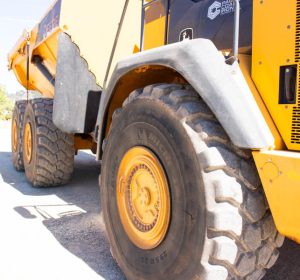

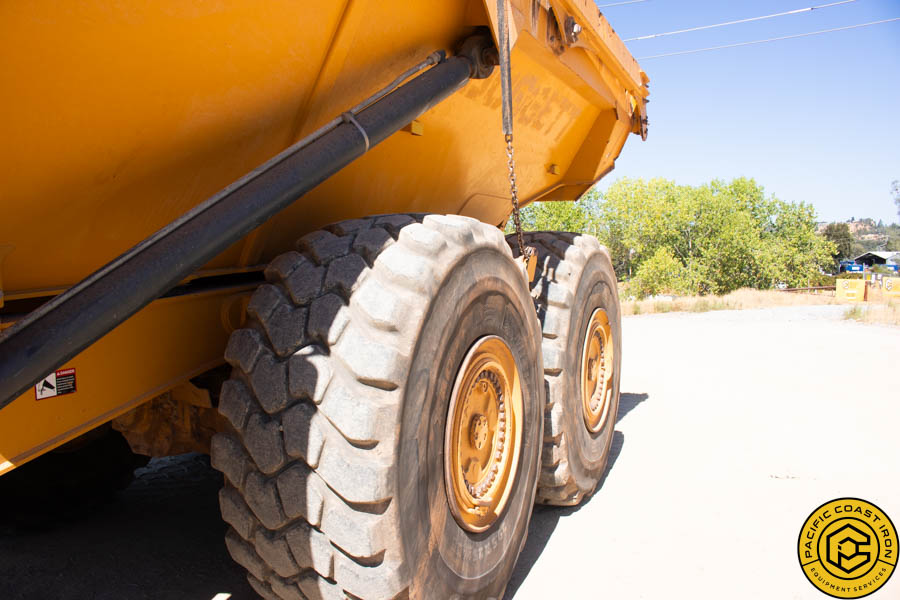

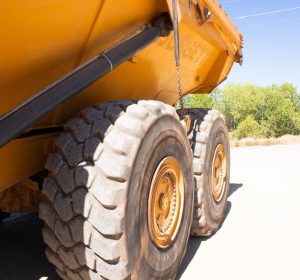

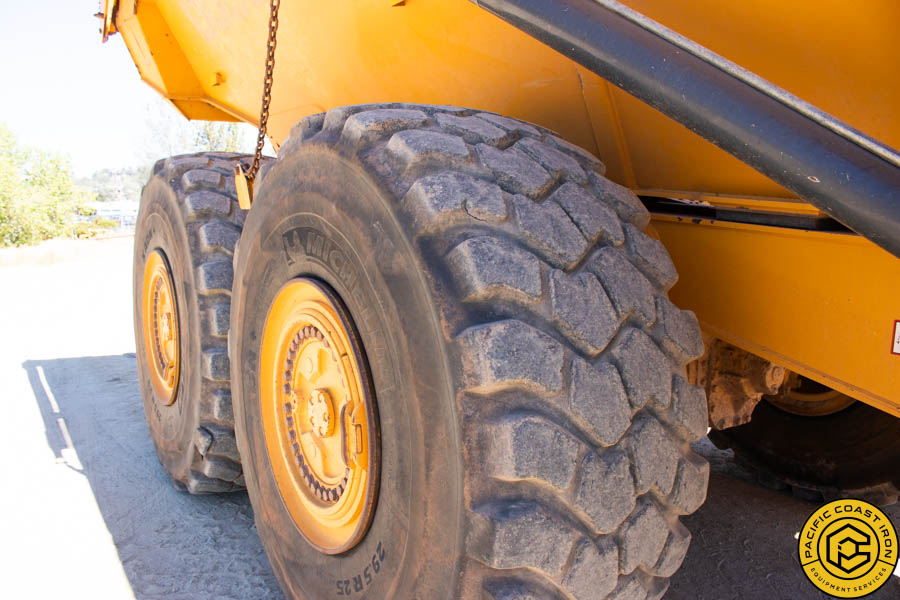

Tire Size – Standard
29.5 R25
Rear Suspension – Type
Pivoting Walking Beam
Final Drive
Planetary – Outboard
Retarder – Type
Hydraulic – Transmission
Transmission Manufacturer
ZF
Secondary Steering Type
Ground Driven Pump
Rear Suspension
Rubber Suspension Blocks
Front Suspension – Type
A-Frame
Front Suspension
Nitrogen/Oil-Filled Struts – Auto Levelling
Steering Type
Articulated
Capacities
Fuel Tank – Diesel
160.9gal
Struck Capacity
23.3yd3
Heaped Capacity
29.7yd3
Operational
Fuel Capacity
161gal
Tire Size
29.5R25
Description
Fleet Management
Yes

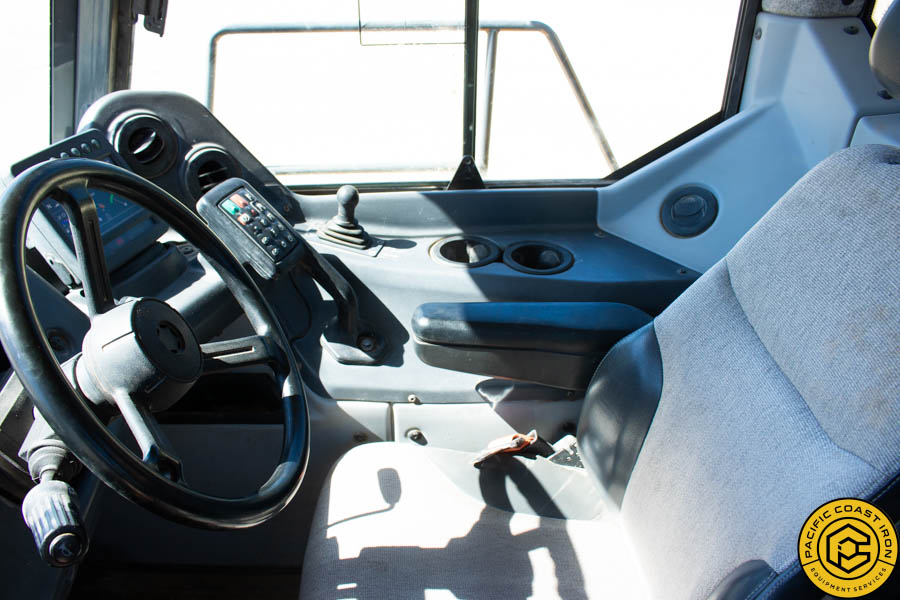

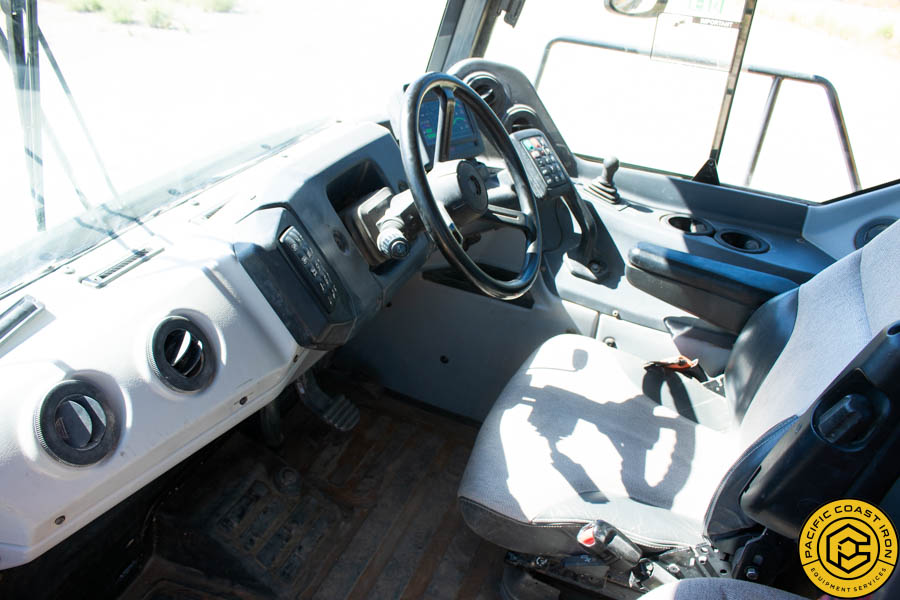

Steering Wheel Adjustment
Fully Adjustable
Telematics Available
Yes
Air Conditioner
Yes
Performance
Gears – Forward / Reverse
8F – 4R
Transmission
Transmission Type
Auto
Number Of Forward Gears
8
Number Of Reverse Gears
4
Max Speed
34mph
Weights
Payload
82157.5lb
Gross Weight
152381.4lb
Net Weight
70223.9lb
Total Empty
70224lb
Total Loaded
152381lb
