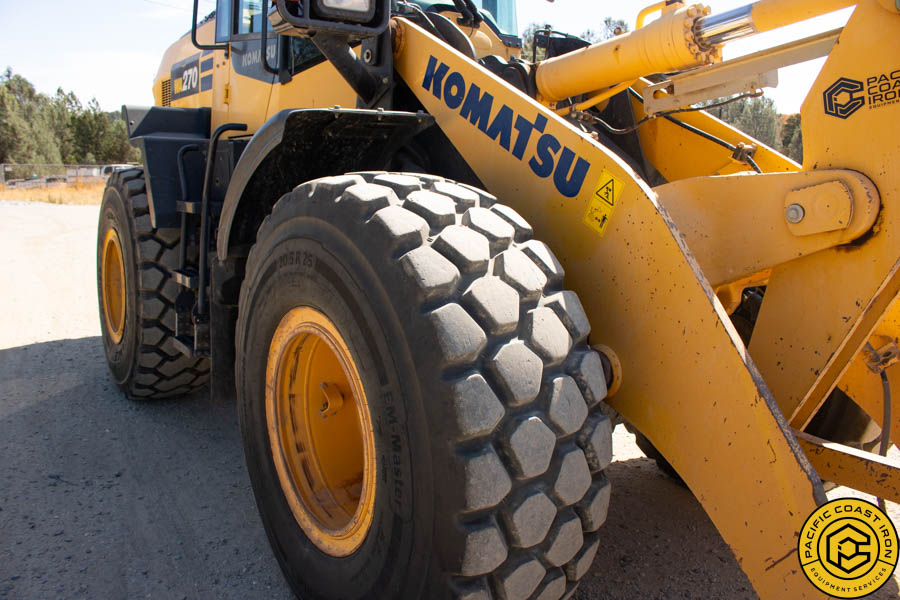

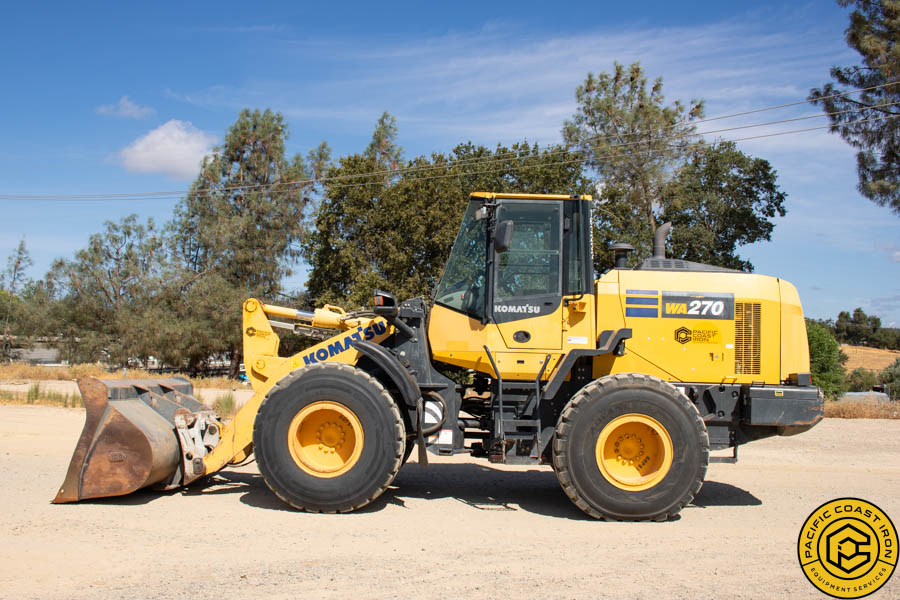

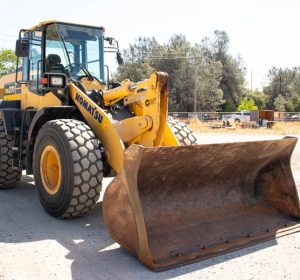

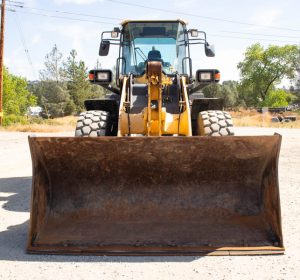

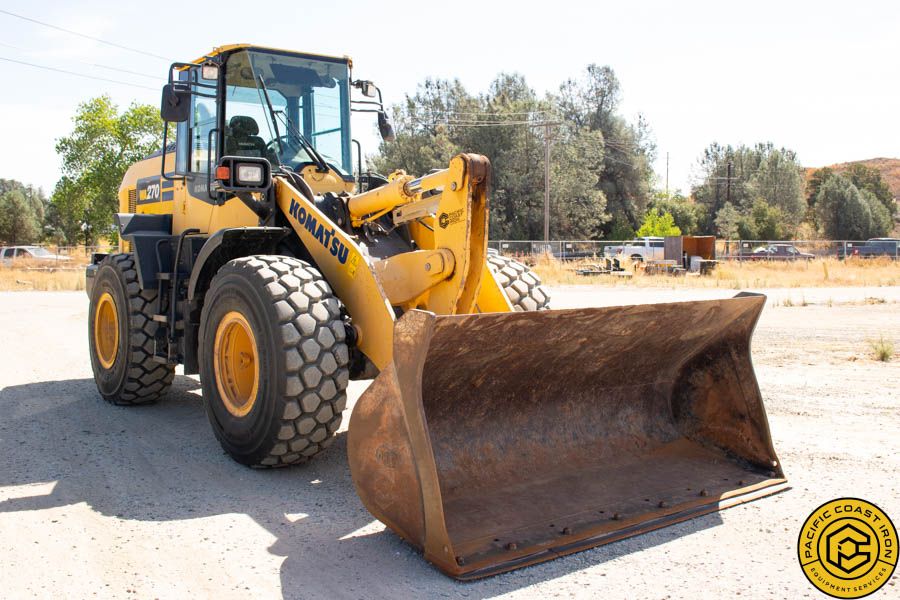

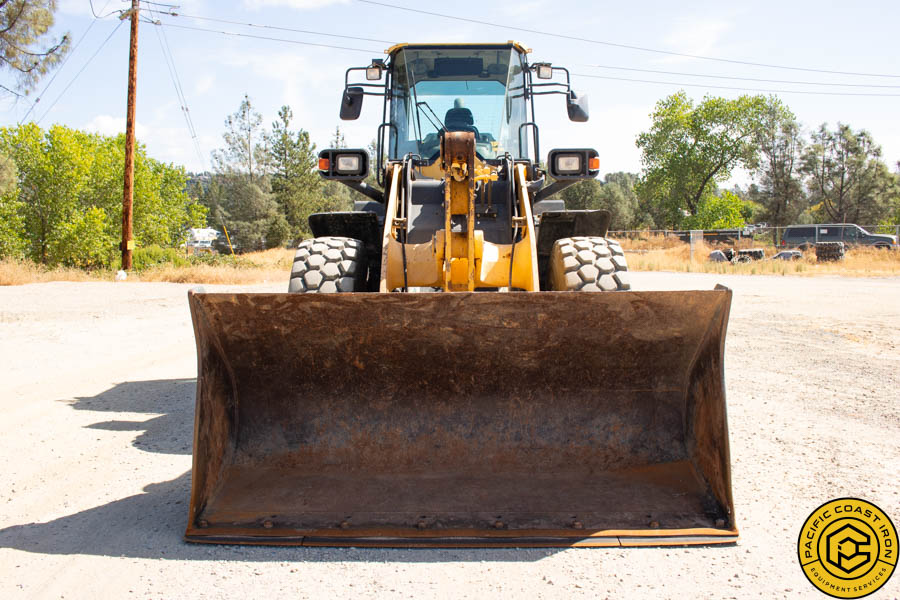

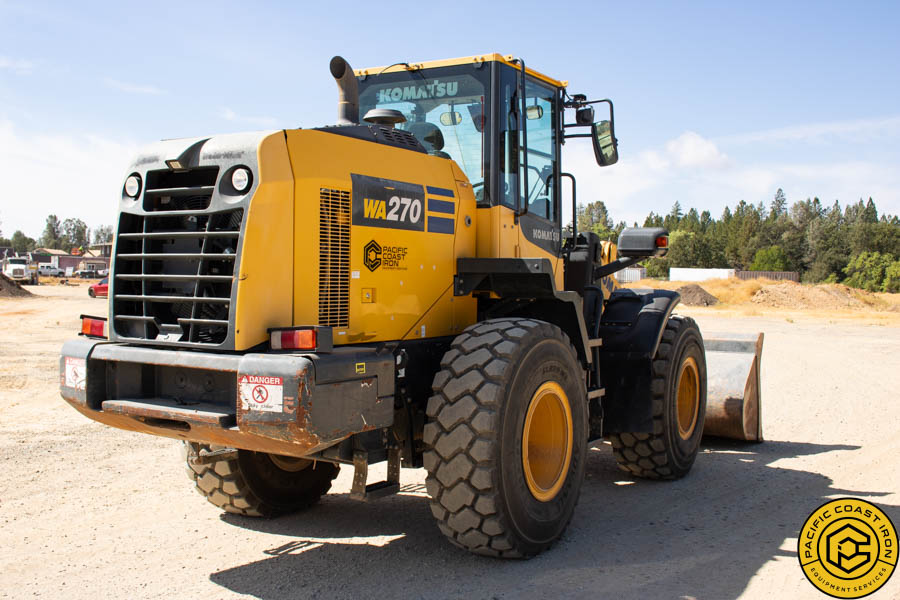

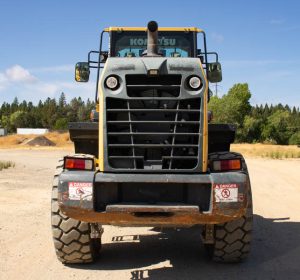

2017 KOMATSU WA270-8 WHEEL LOADER
Price $85,900
Call Today: 916.933.6050
Short Description
MACHINE FEATURES:
- EROPS
- HEAT/AC
- TIER 4 FINAL ENGINE
- 3 YD BUCKET
- RIDE CONTROL
- AUTO SHIFT

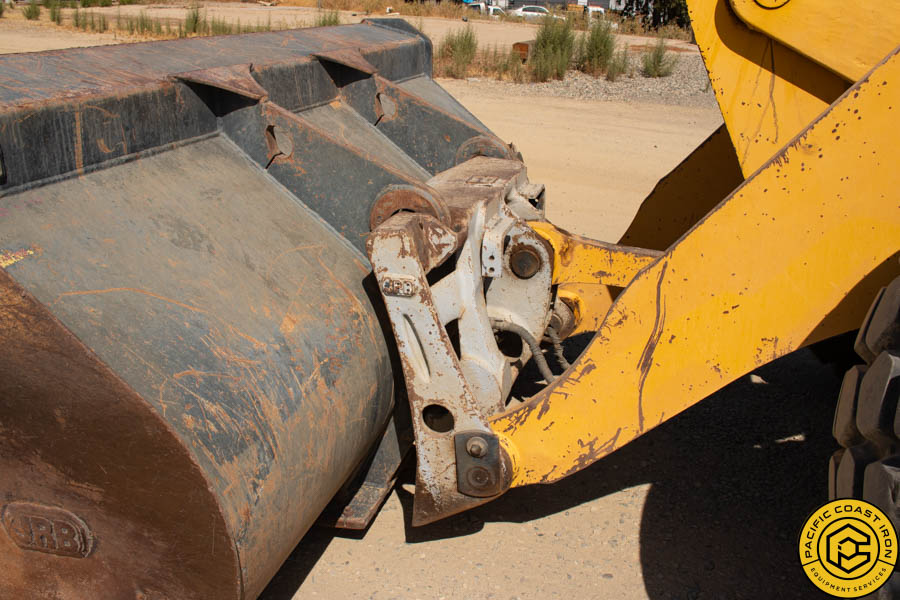

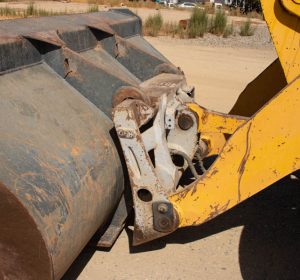

- JRB COUPLER
Long Description

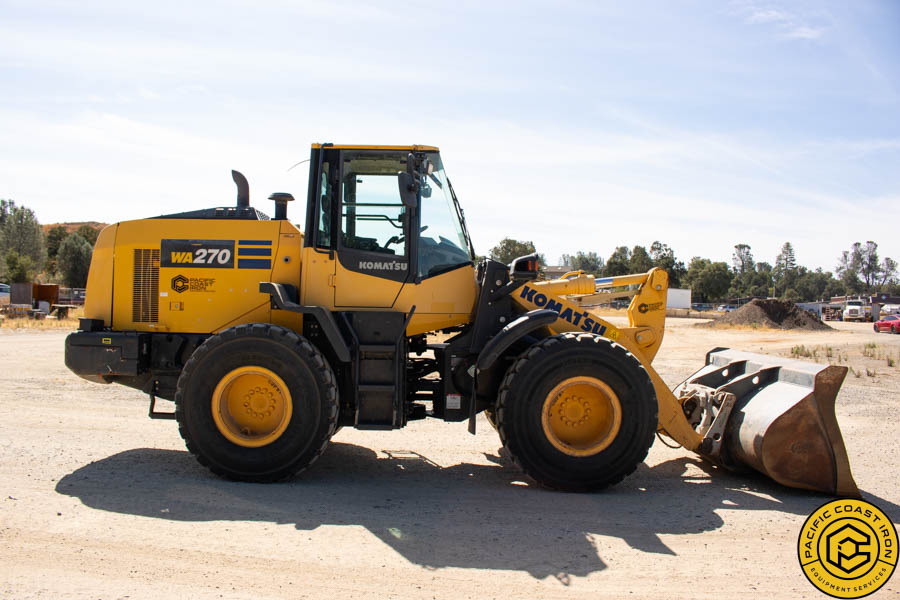

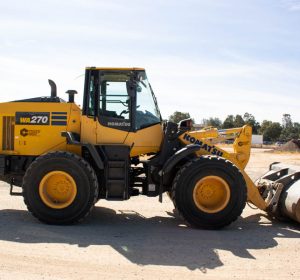

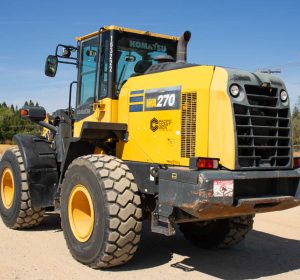

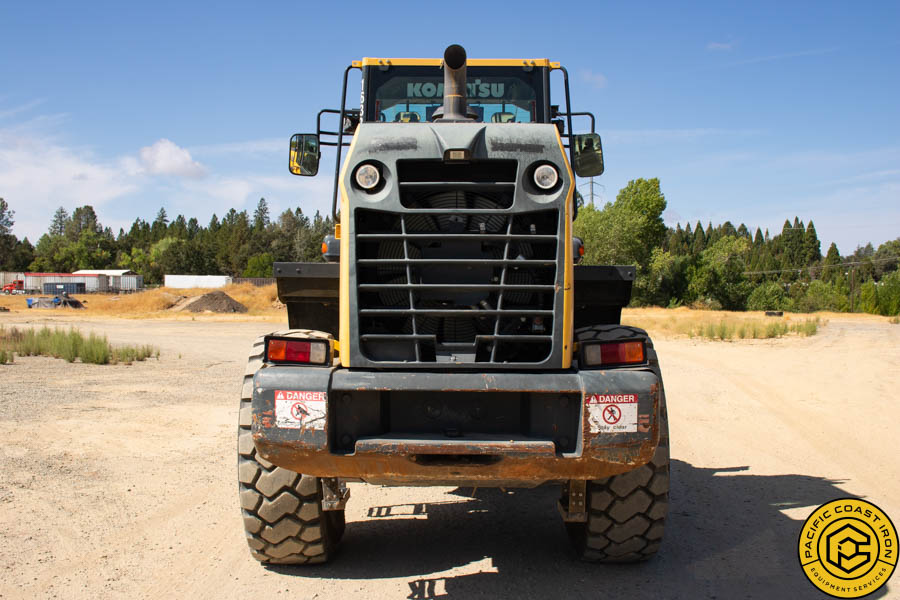

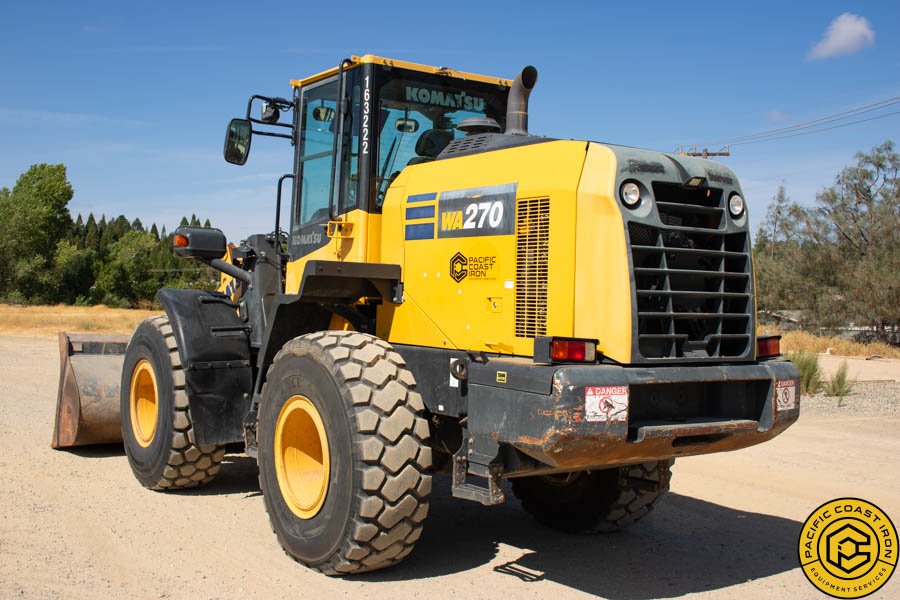

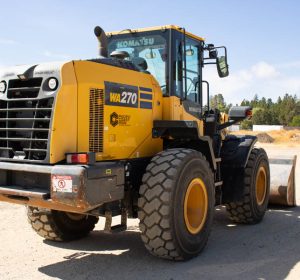

2017 KOMATSU WA270-8 WHEEL LOADER

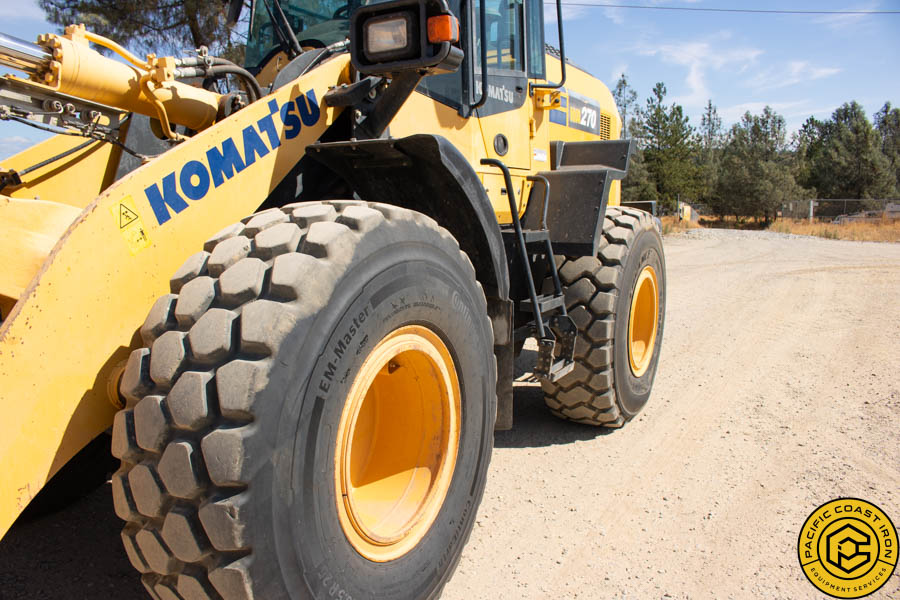

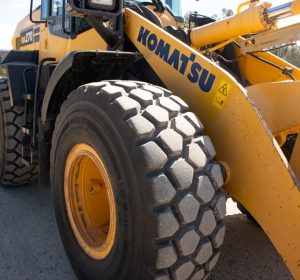

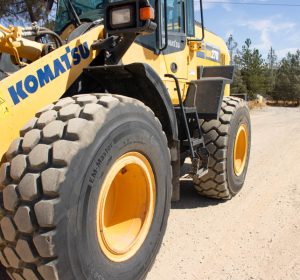

2017 KOMATSU WA270-8 WHEEL LOADER FOR SALE.UNIT HAS ONLY 4300HRS. EQUIPPED WITH A CAB HEAT/AC, JRB COUPLER, RIDE CONTROL, TIER 4 FINAL KOMATSU ENGINE, AND RADIAL TIRES.
Specifications for WA270-8
Axles and Final Drives
| Drive system | Four-wheel drive |
| Front | Fixed, semi-floating |
| Rear | Center-pin support, semi-floating, 24° total oscillation |
| Reduction gear | Spiral bevel gear |
| Differential gear | Torque proportioning |
| Final reduction gear | Planetary gear, single reduction |
Brakes
| Service brakes | Hydraulically actuated, wet disc brakes actuate on four wheels |
| Parking brake | Wet, multi-disc brake on transfer output shaft |
| Secondary brake | Parking brake is commonly used |

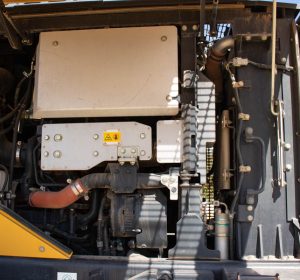

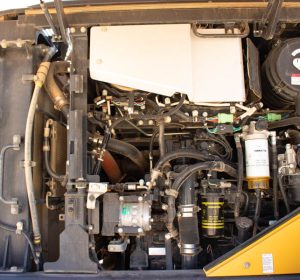

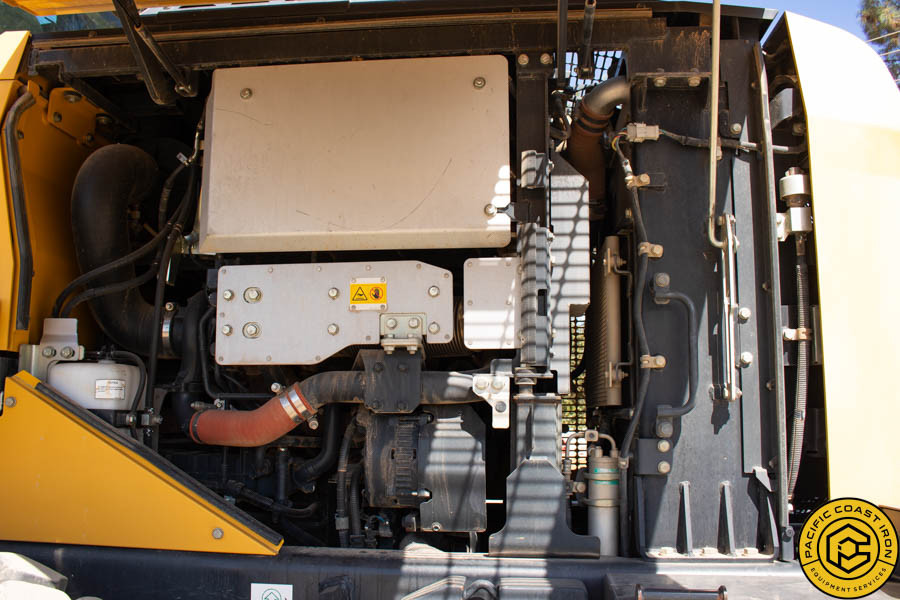

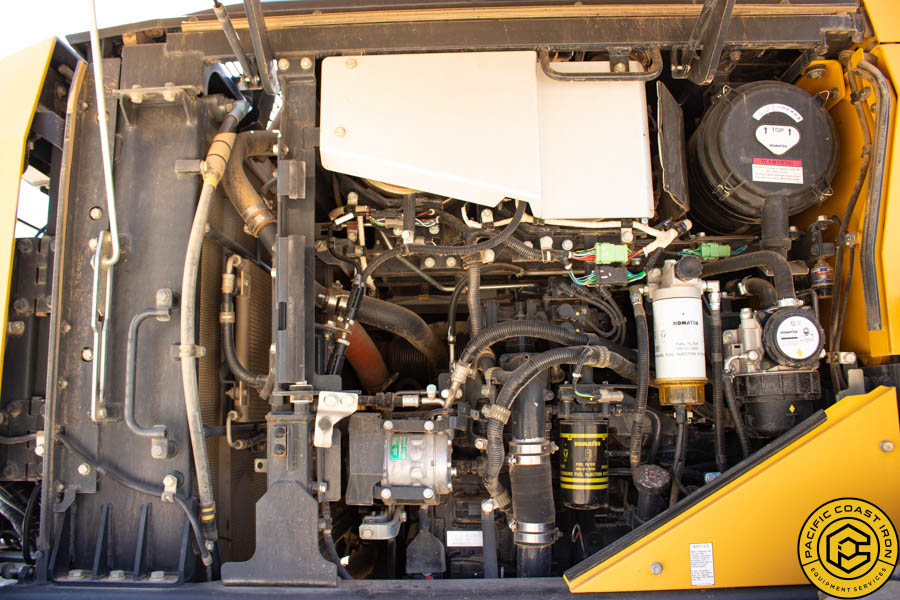

Engine
| Model | Komatsu SAA6D107E-3* |
| Type | Water-cooled, 4-cycle |
| Aspiration | Variable geometry turbo-charged, after-cooled, cooled EGR |
| Number of cylinders | 6 |
| Bore x stroke | 4.21 x 4.88 in |
| Piston displacement | 408 in³ |
| Governor | All-speed, electronic |
| Horsepower: | |
| Gross – SAE J1995 | 153 HP |
| Net – ISO 9249/SAE J1349 | 149 HP |
| Rated rpm | 2,000 rpm |
| Max power – ISO 14396 @ 1,650 rpm | 149 HP |
| Fan drive method for radiator cooling | Hydraulic |
| Fuel system | Direct injection |
| Lubrication system: | |
| Method | Gear pump, force-lubrication |
| Filter | Full-flow type |
| Air cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
| *EPA Tier 4 Final emissions certified |
Hydraulic System
| Steering system: | |
| Hydraulic pump | Piston pump, in common with loader control |
| Capacity (at rated rpm) | 39.6 US gpm |
| Relief valve setting | 3,000 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders | 2 |
| Bore x stroke | 2.76 x 17.8 in |
| Loader control: | |
| Hydraulic pump | Piston pump, in common with steering system |
| Capacity (at rated rpm) | 39.6 US gpm |
| Relief valve setting | 4,554 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders: | bore x stroke: |
| Lift cylinder / 2 | 4.3 x 28.2 in |
| Bucket cylinder / 1 | 5.5 x 18.9 in |
| Control valve | 2-spool type |
| Control positions: | |
| Boom | Raise, hold, lower, and float |
| Bucket | Tilt-back, hold, and dump |
| Hydraulic cycle time (rated load in bucket): | |
| Raise | 6.0 s |
| Dump | 2.0 s |
| Lower (empty) | 3.2 s |
Service Refill Capacities
| Cooling system | 8.8 US gal |
| Fuel tank | 49.1 US gal |
| Engine | 6.1 US gal |
| Hydraulic system | 21.1 US gal |
| Axle front | 4.9 US gal |
| Axle rear | 4.8 US gal |
| Transfer case | 1.8 US gal |
| DEF tank | 3.7 US gal |
Steering System
| Type | Articulated type, fully-hydraulic power steering |
| Steering angle | 38° each direction (40° to max end stop) |
| Minimum turning radius at the center of outside tire |
17 ft. 0 in |
Transmission
Transmission: Hydrostatic, 1 pump, 2 motors with speed range select
| Travel Speed: | Forward | Reverse |
| 1st | 0.6 – 8.1 mph | 0.6 – 8.1 mph |
| 2nd | 8.1 mph | 8.1 mph |
| 3rd | 11.8 mph | 11.8 mph |
| 4th | 23.6 mph | 23.6 mph |
Measured with 20.5-R25 tires
