2017 CAT D6NXL DOZER-SOLD
Price $229,000
Call Today: 916.933.6050
Short Description
2017 CAT D6NXL DOZER
FEATURES:
- EROPS

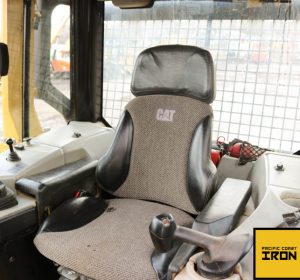

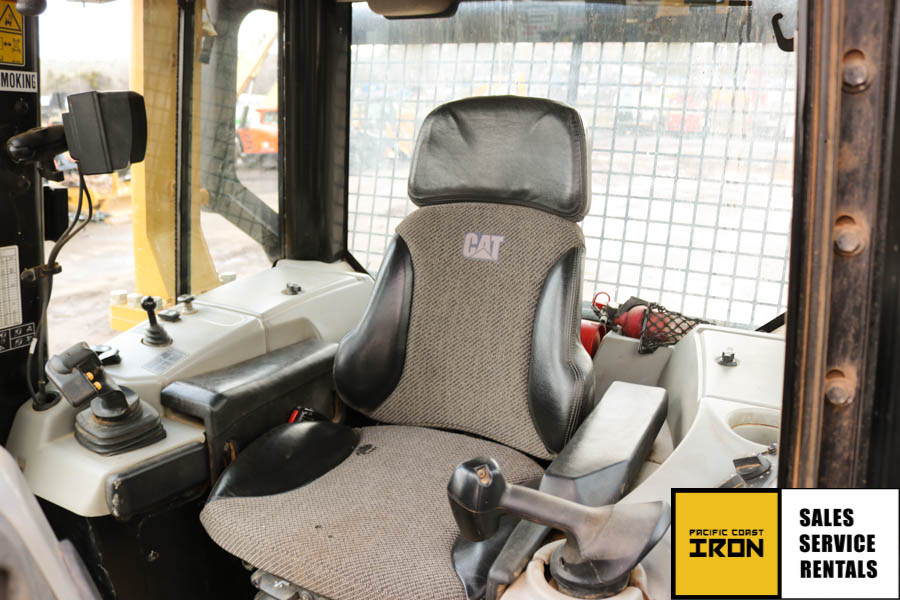

- HEAT/AC

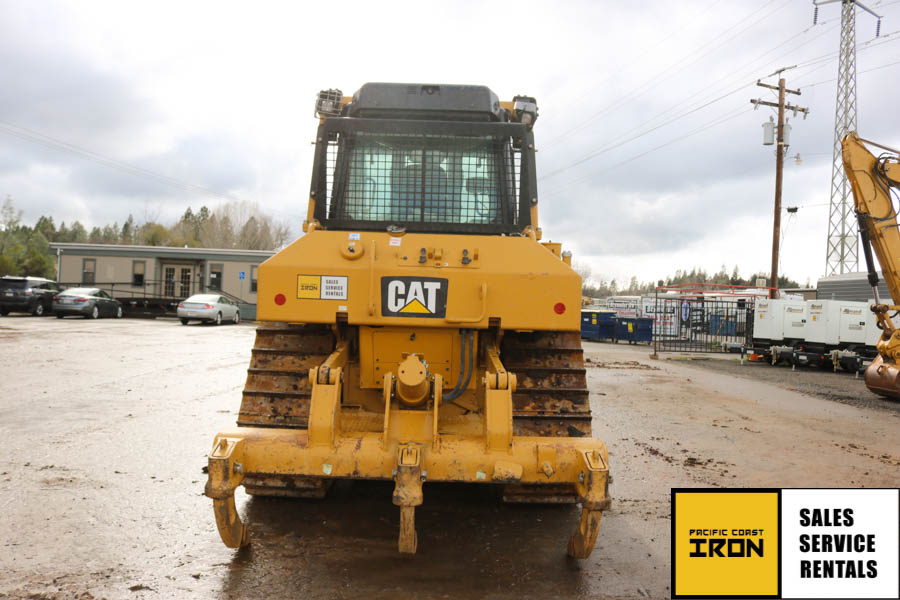

- MS RIPPER

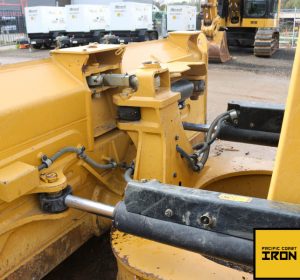

- PAT BLADE
- ACUGRADE READY
- BLADE SHAKE
- PRODUCT LINK
- AUTO REVERSING FAN
Long Description

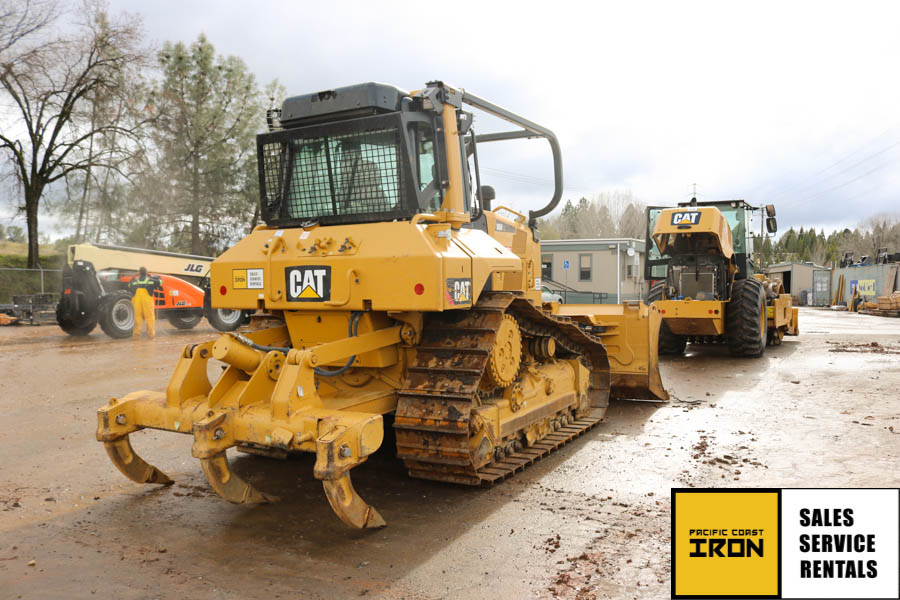

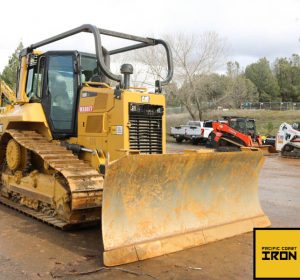

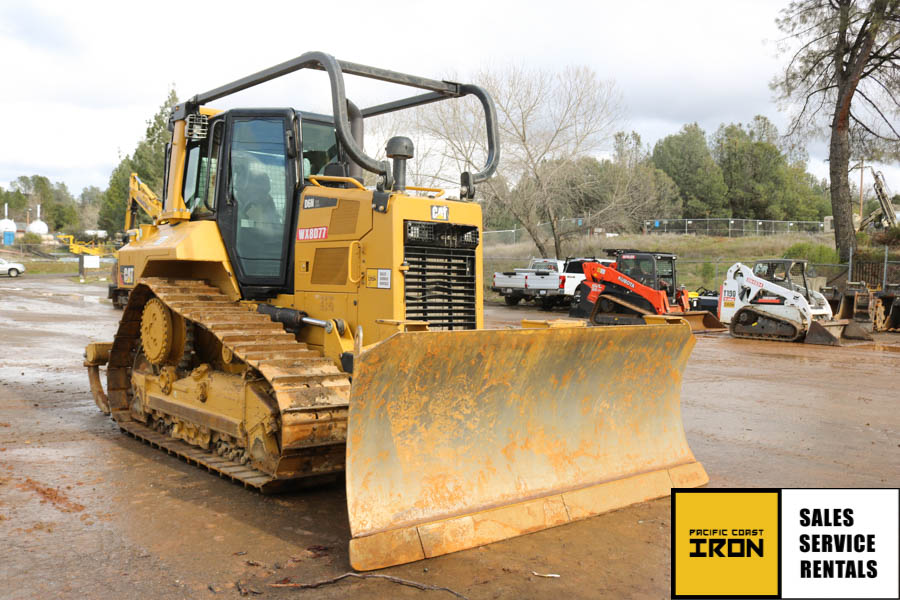

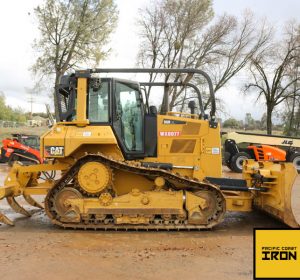

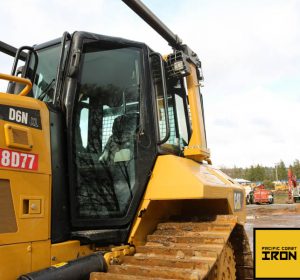

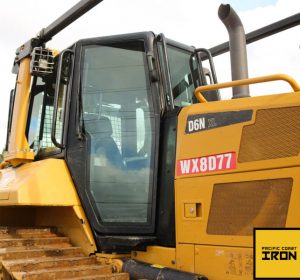

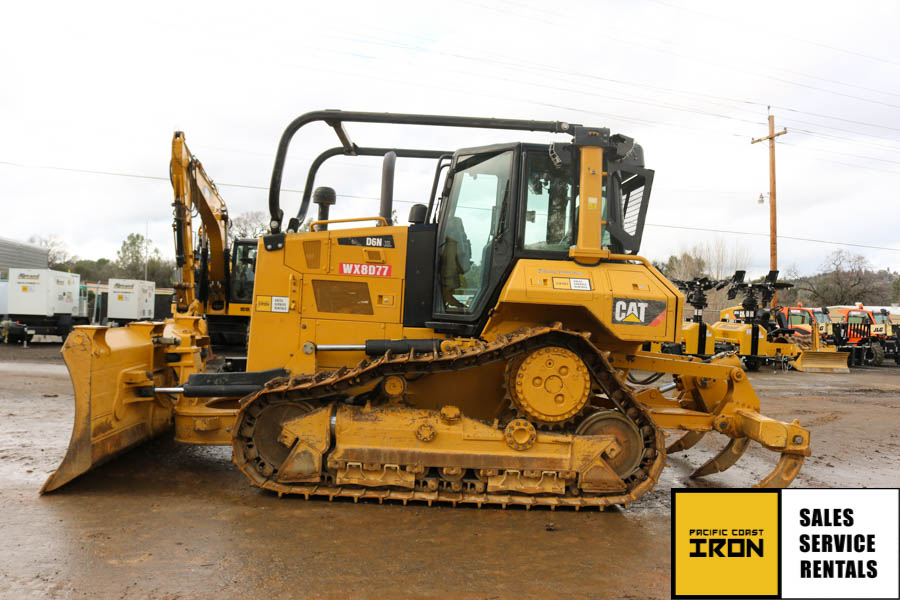

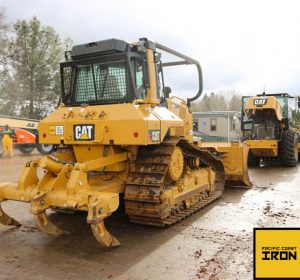

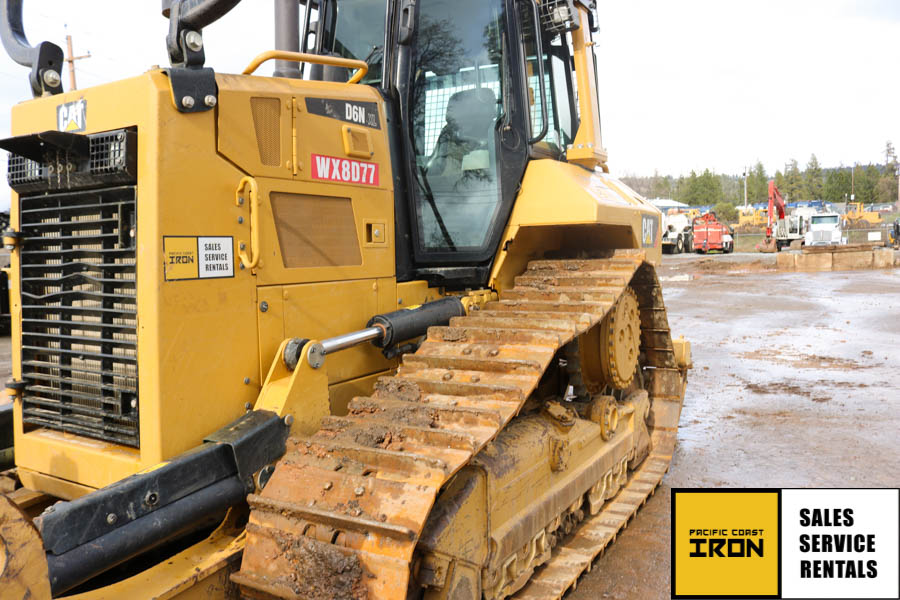

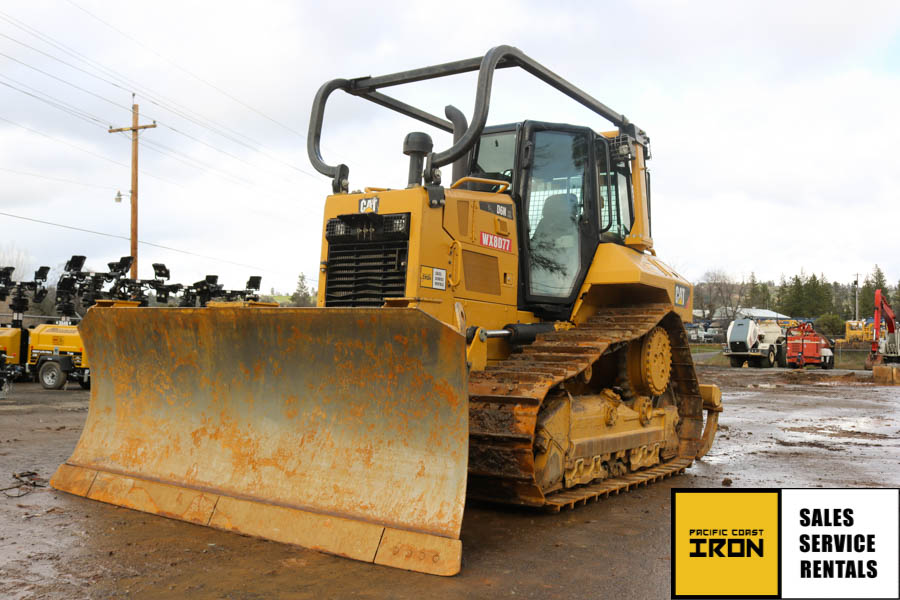

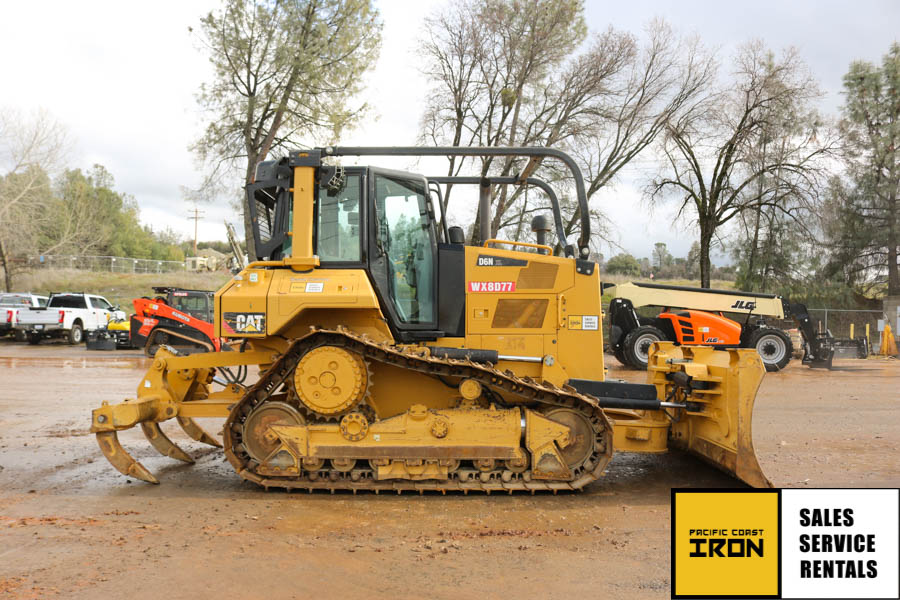

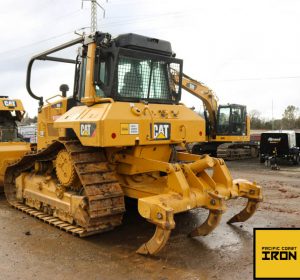

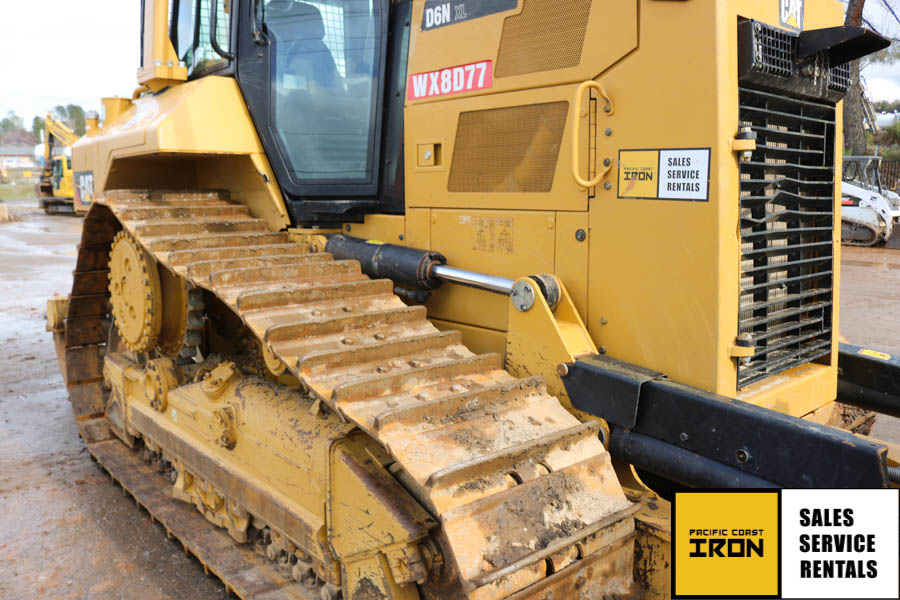

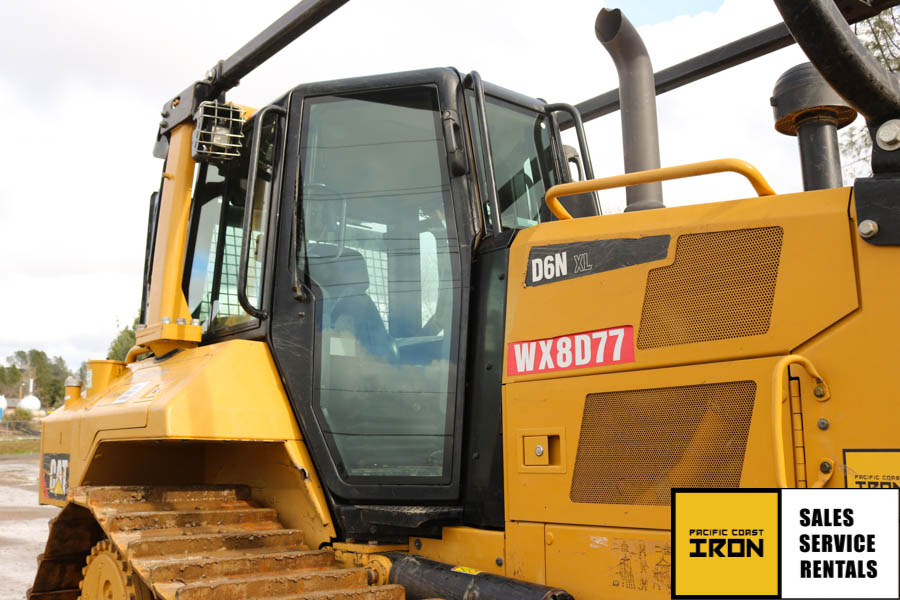

2017 CAT D6NXL DOZER
2017 CAT D6T XL DOZER WITH ONLY 2800HRS! UNIT IS EQUIPPED WITH A PAT BLADE, MS RIPPER, CAB HEAT/AC, TIER 4 FINAL ENGINE, HD UC, AUTO REVERSIBLE FAN, ACUGRADE READY, FORRESTRY PACKAGE AND A CAT POWERTRAIN/HYDRAUIC WARRANTY UNTIL 2022. UNIT HAS BEEN FLEET MAINTAINED SINCE NEW. READY TO GO TO WORK!
Dimensions

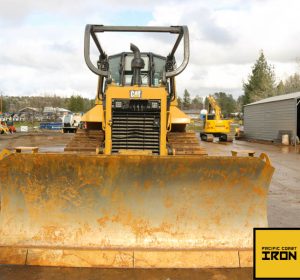

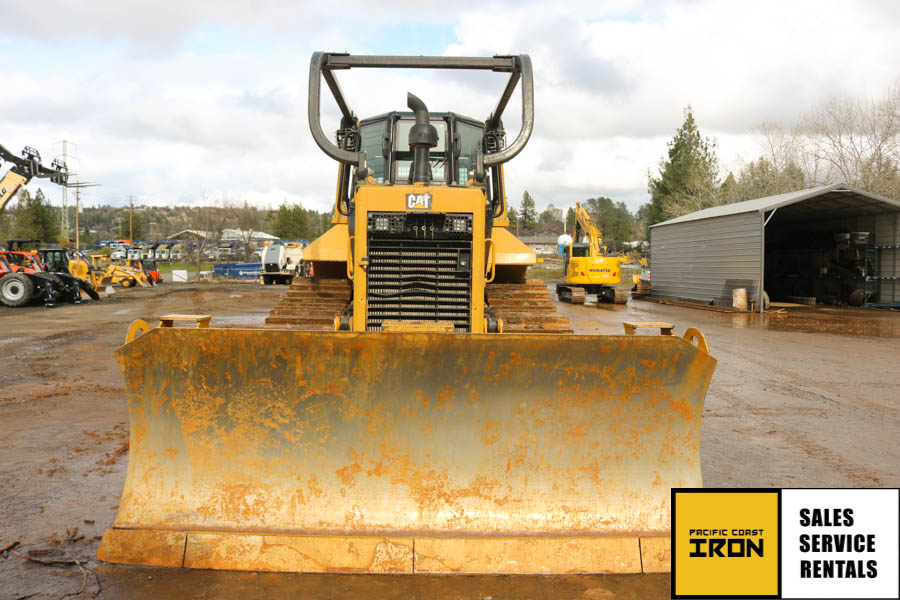

Blades
Blade Type
VPAT, SU
Xl Su – Blade Capacity
5.6yd3
Xl Su – Blade Width
10.46ft in
Xl Vpat – Blade Capacity
4.16yd3
Xl Vpat – Blade Width
10.73ft in
Dimensions
Width Over Tracks
8.2ft in
Height To Top Of Cab
10.2ft in
Length Of Track On Ground
8.48ft in
Ground Clearance
1.4ft in
Track Gauge
6.21ft in
Length W/O Blade
12.27ft in
Length – Track On Ground
100.39in
Height
9.48ft in
Height – Rops/Canopy
9.91ft in
Overall Length – Basic Tractor – With Drawbar
12.27ft in
Width – Without Blade
98.11in
Drawbar Height (Center Of Clevis) From Ground Face Of Shoes
23.43in

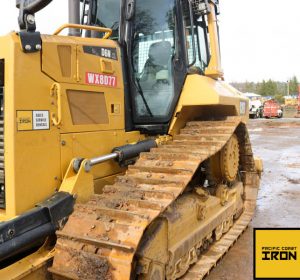

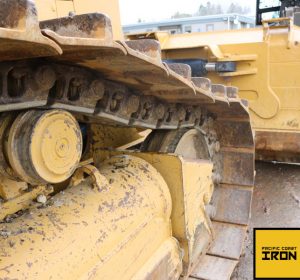

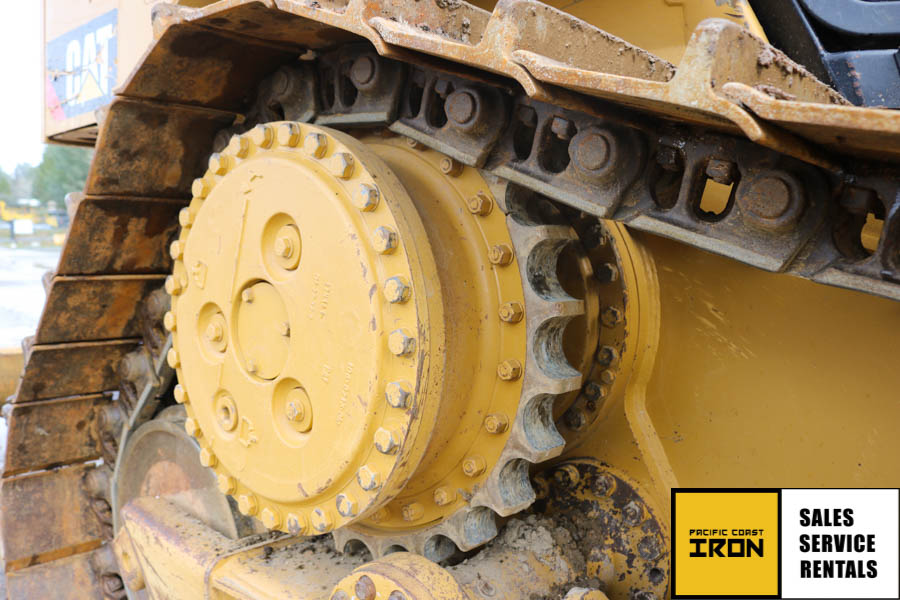

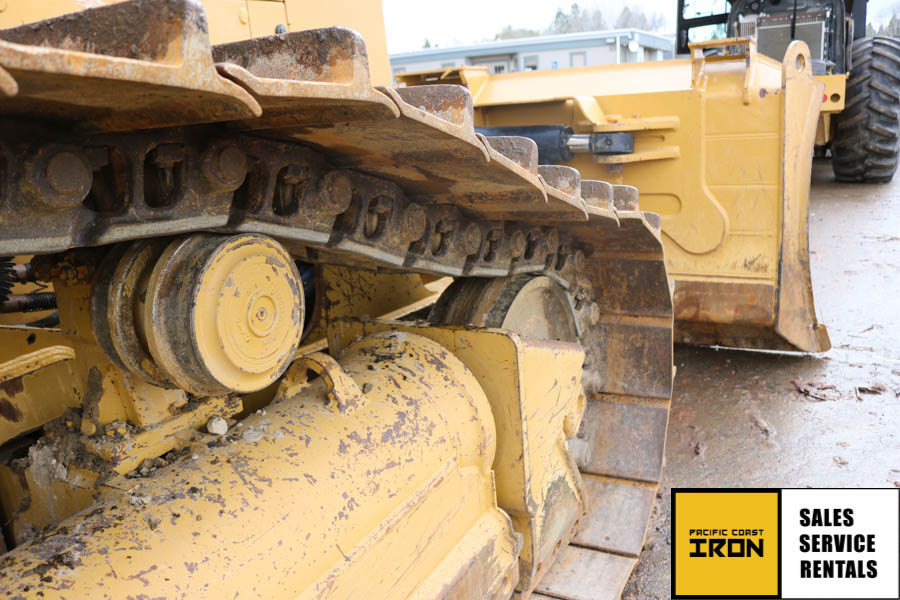

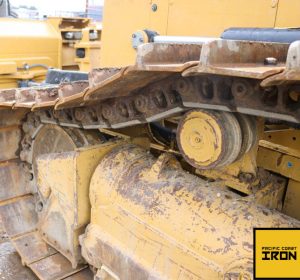

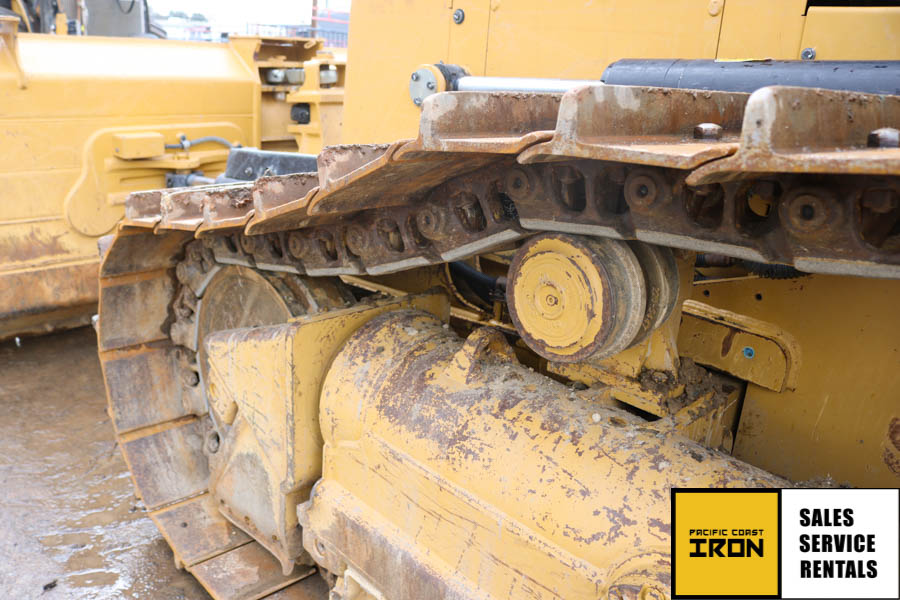

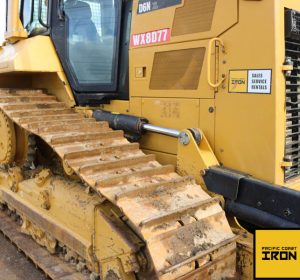

Undercarriage
Track Gauge
6.21ft in
Standard Shoe Size
24.01in
Ground Pressure
7.37psi
Ground Contact Area – Xl
4822in2
Ground Pressure – Xl Ds
7.37 psi
Ground Pressure – Xl Ftc
7.24 psi
Grouser Height
2.25in
Number Of Shoes Per Side
40
Number Of Track Rollers Per Side
7
Shoes/Side – Lgp
46
Shoes/Side – Xl
40
Track Gauge – Xl
74in
Track On Ground – Xl
100in
Track Rollers/Side – Lgp
8
Track Rollers/Side – Xl
7
Width – Shoe – Xl
24in
Ground Contact Area
4882in2
Specifications

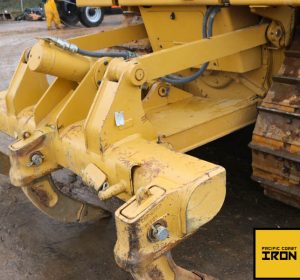

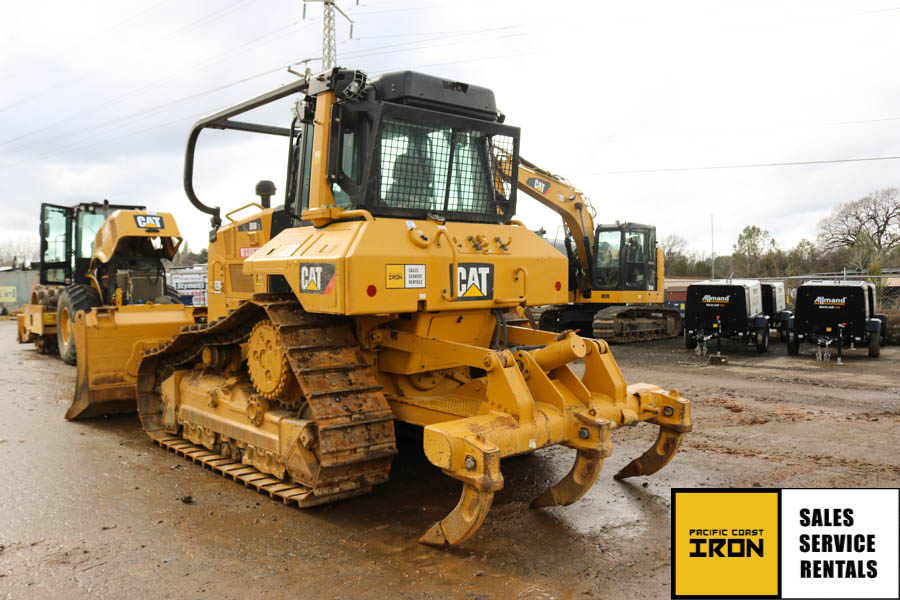

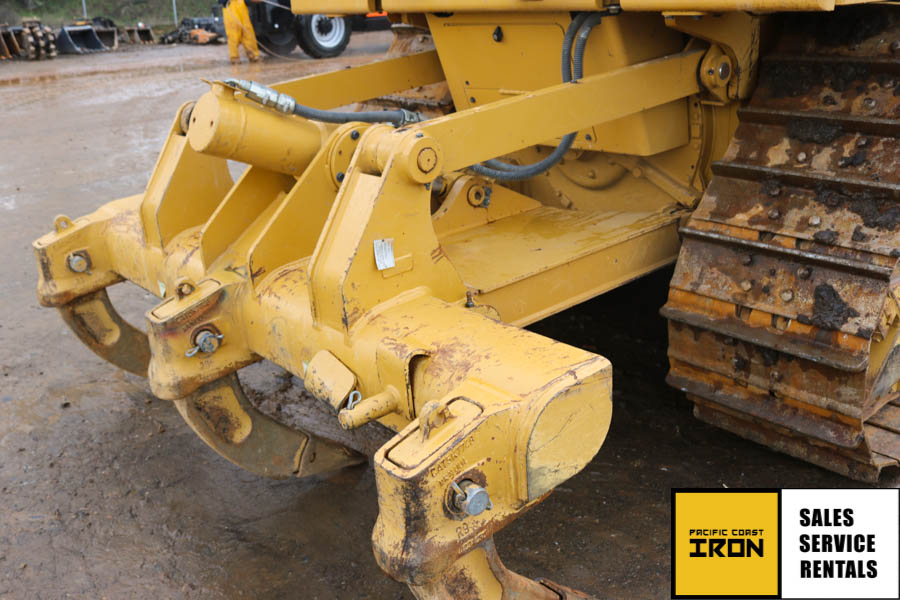

Ripper
Beam Cross Section
216×254 mm 8.5×10.0 in
Number Of Pockets
3
Maximum Penetration – Xl
18.6in
Ripper Type
Fixed Parallelogram
Overall Beam Width
86.7in
Weight – Each Additional Shank
172lb

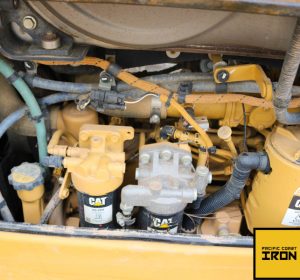

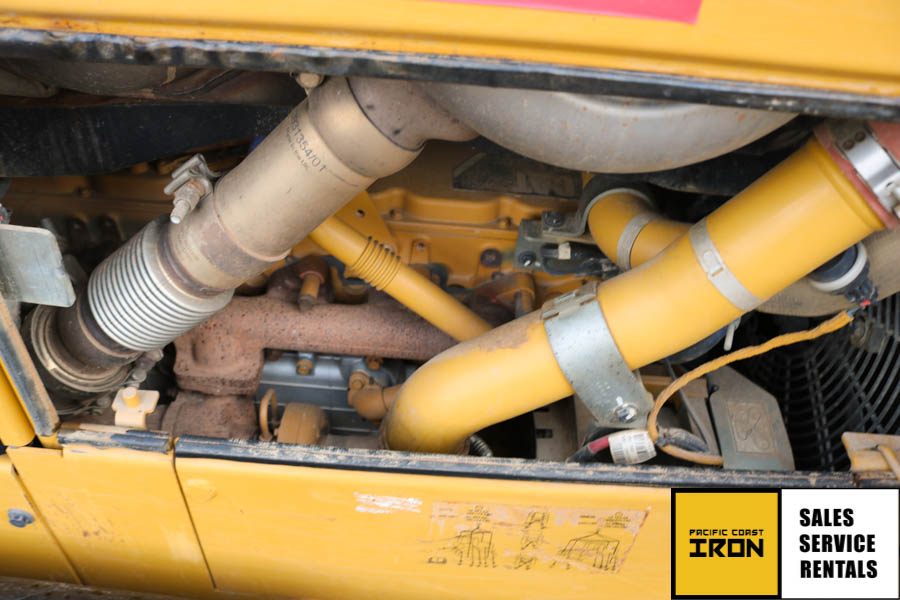

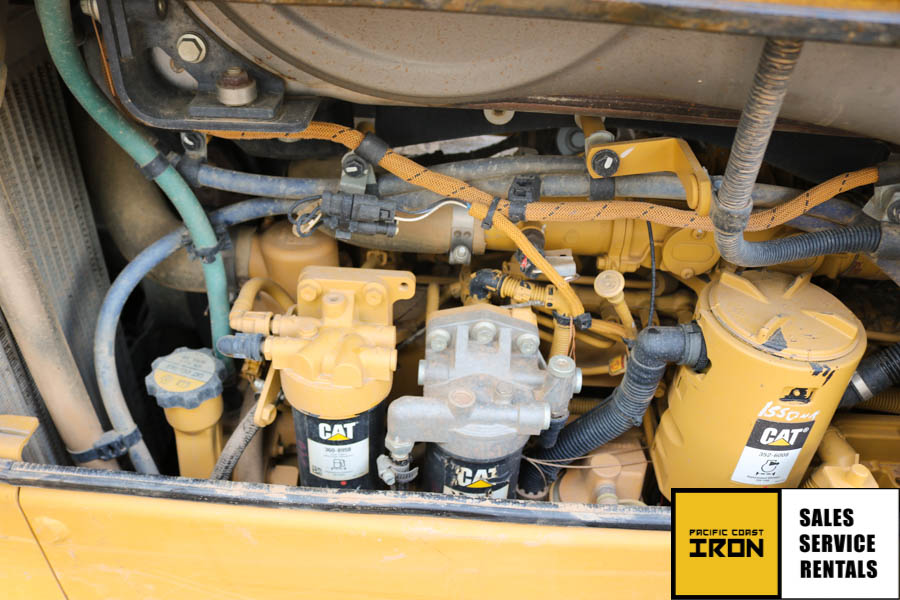

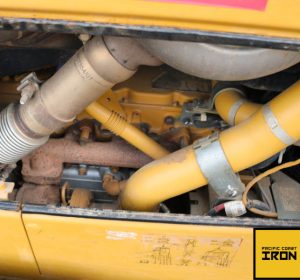

Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C6.6 ACERT
Net Power
145hp
Power Measured @
2200rpm
Displacement
439cu in
Bore
4.4in
Stroke
5in
Net Power – Iso 9249
145hp
Net Power – Sae J1349
143hp
Engine Model
Cat 3126B DITAAC
Flywheel Power
145hp
Net Power – Eu 80/1269
145hp
Operational
Operating Weight
36610lb
Fuel Capacity
79gal
Cooling System Fluid Capacity
9.3gal
Hydraulic Fluid Capacity
7.8gal

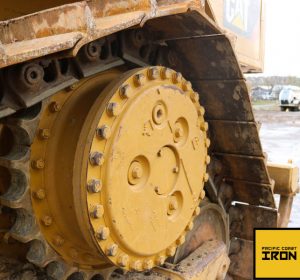

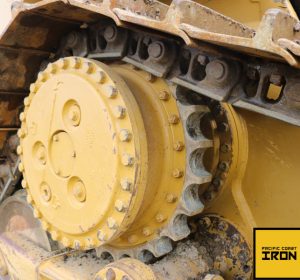

Final Drives Fluid Capacity
1.9gal
Operating Voltage
12V
Alternator Supplied Amperage
70amps
Transmission
Transmission Type
powershift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed – Forward
6.3mph
Max Speed – Reverse
7.5mph
1.0 Forward
2.1mph
2.0 Forward
3.6mph
3.0 Forward
6.3mph
1.0 Reverse
2.5mph
2.0 Reverse
4.3mph
3.0 Reverse
7.4mph
Drawbar Pull – 2.0 Forward
38800lb
Drawbar Pull – 3.0 Forward
21500lb
Drawbar Pull – 1.0 Forward
71000lb
Weights
Operating Weight
35020.4lb
Operating Weight – Power Shift Ftc – Xl
34361lb
Operating Weight – Xl-Ds
35020lb
Shipping Weight – Xl Ftc
33703lb
Shipping Weight – Xl Ds
34362lb
Standard Blade
Width
10.8ft in
Height
49in
Capacity
4.2yd3
Cutting Depth
20.5in
Service Refill Capacities
Cooling System
10.8gal
Fuel Tank
79gal
Final Drive – Each
1.8gal
Hydraulic Tank
7.8gal
Winch
Flange Diameter
19.8in
Oil Capacity
19.6gal
Winch Model
PA55
Winch And Bracket Length
45.1in
Drum Diameter
10in
Drum Width
12.4in
Winch Case – Width
38.4in
Weight*
2814lb
