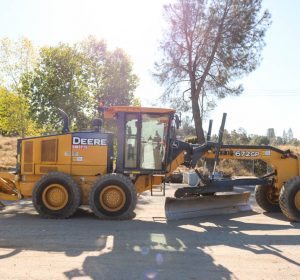

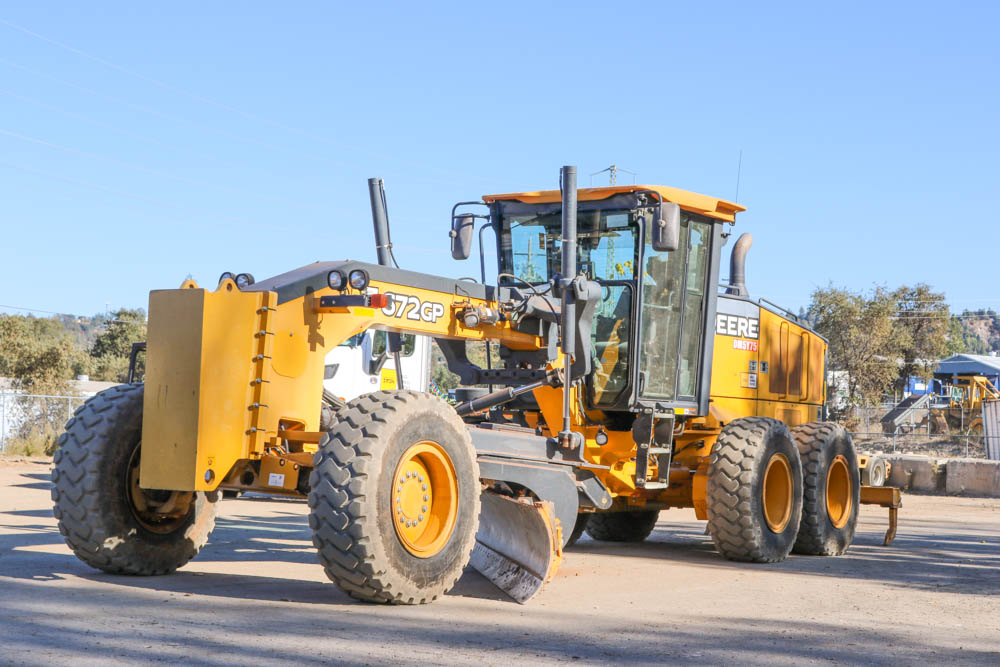

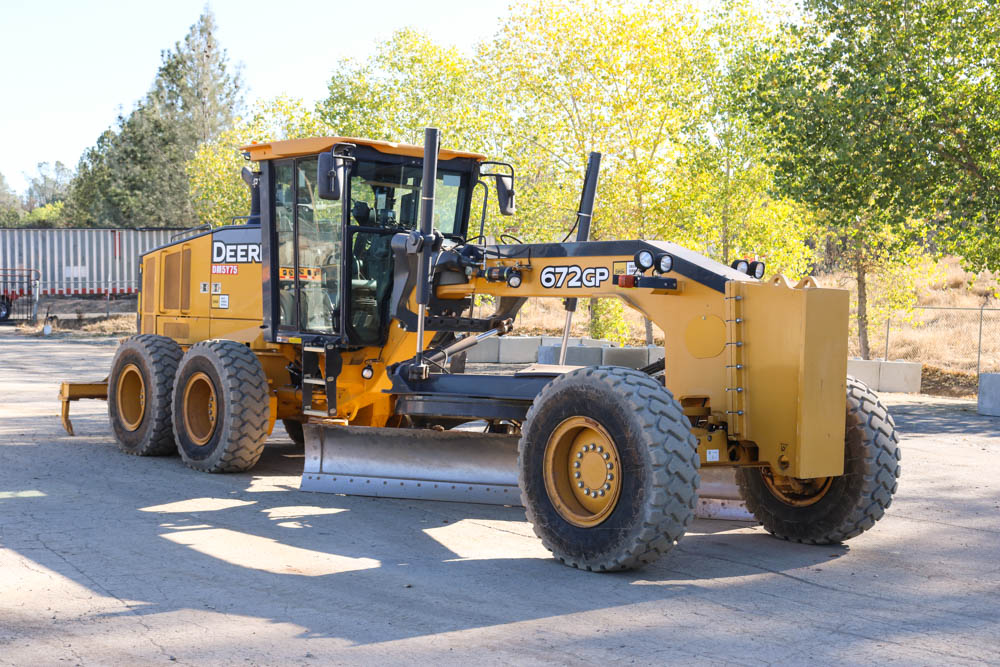

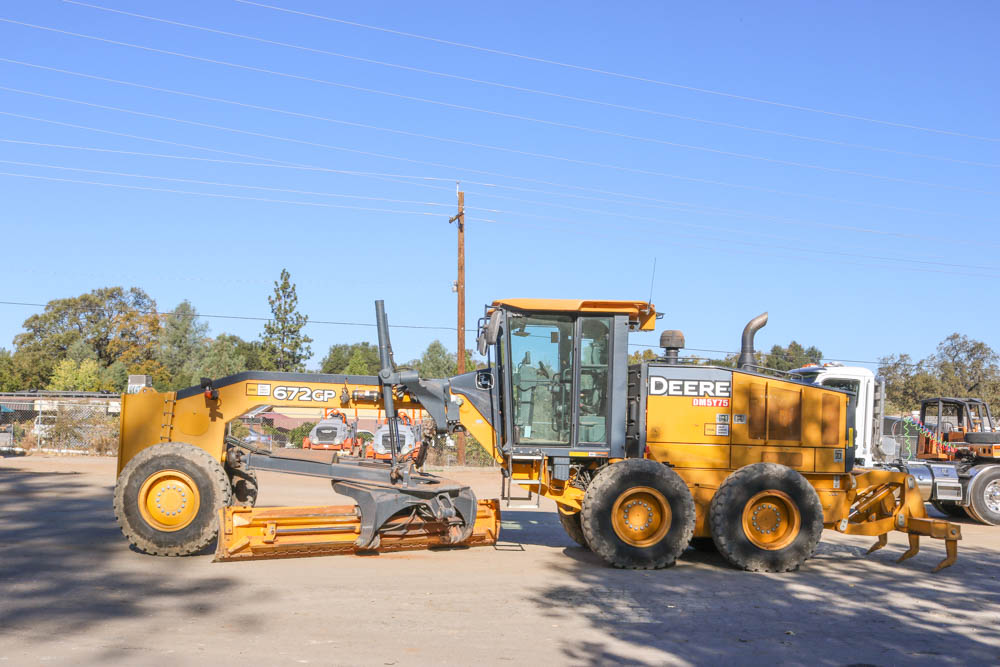

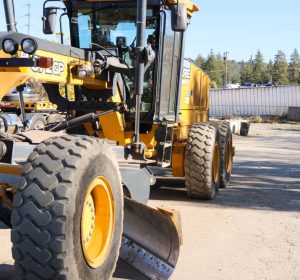

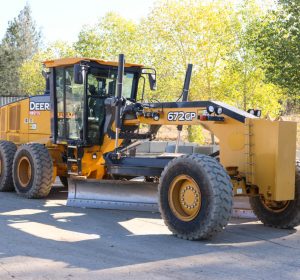

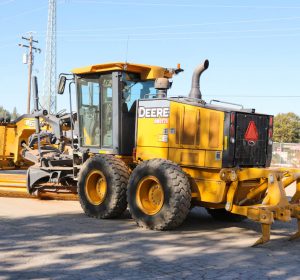

2015 DEERE 672GP MOTOR GRADER-SOLD
Price $229,900
Call Today: 916.933.6050
Short Description
2015 DEERE 672GP MOTOR GRADER FOR SALE
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

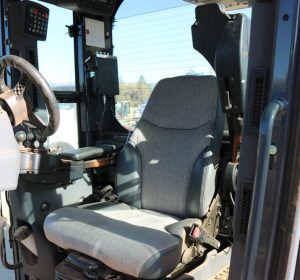

- EROPS HEAT/AC
- DEERE LINK
- 14 FT MOLDBOARD

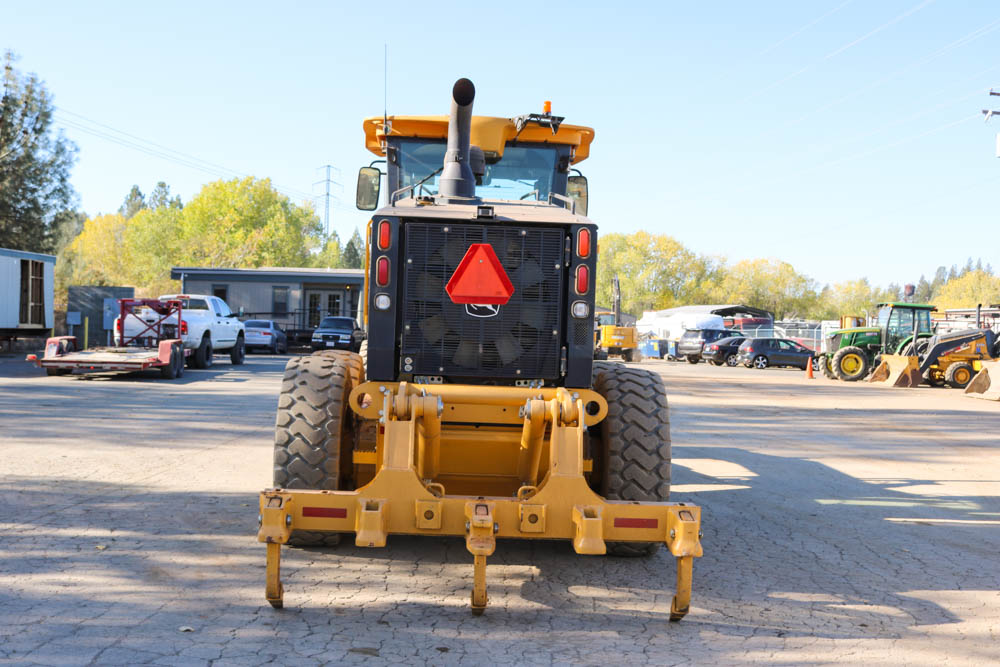

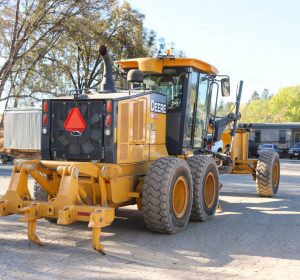

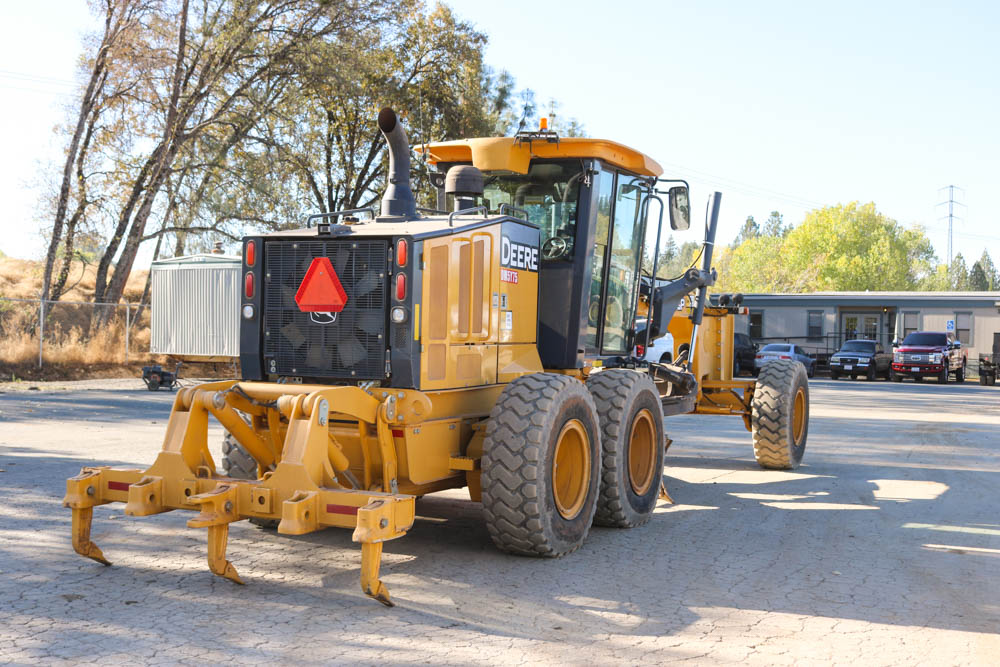

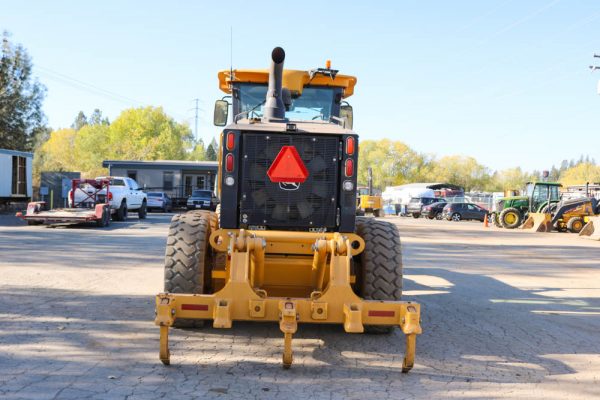

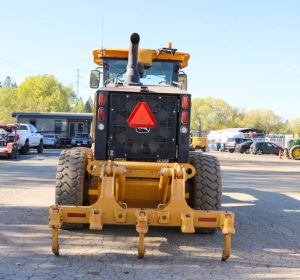

- MS RIPPER

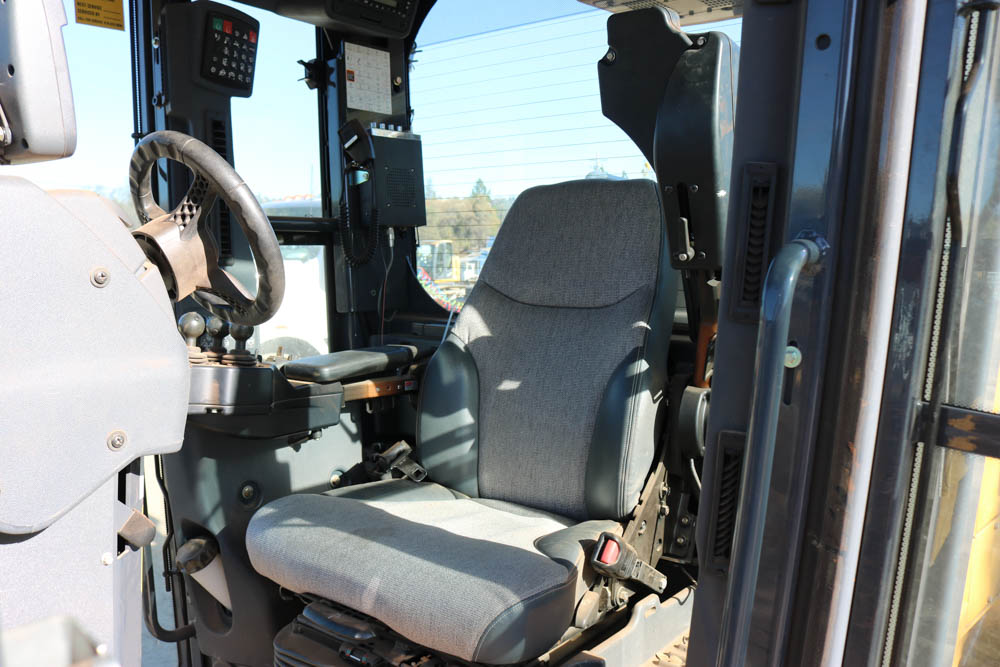

- JOYSTICK CONTROLS
- TIER 4 INTERIM ENGINE
Long Description

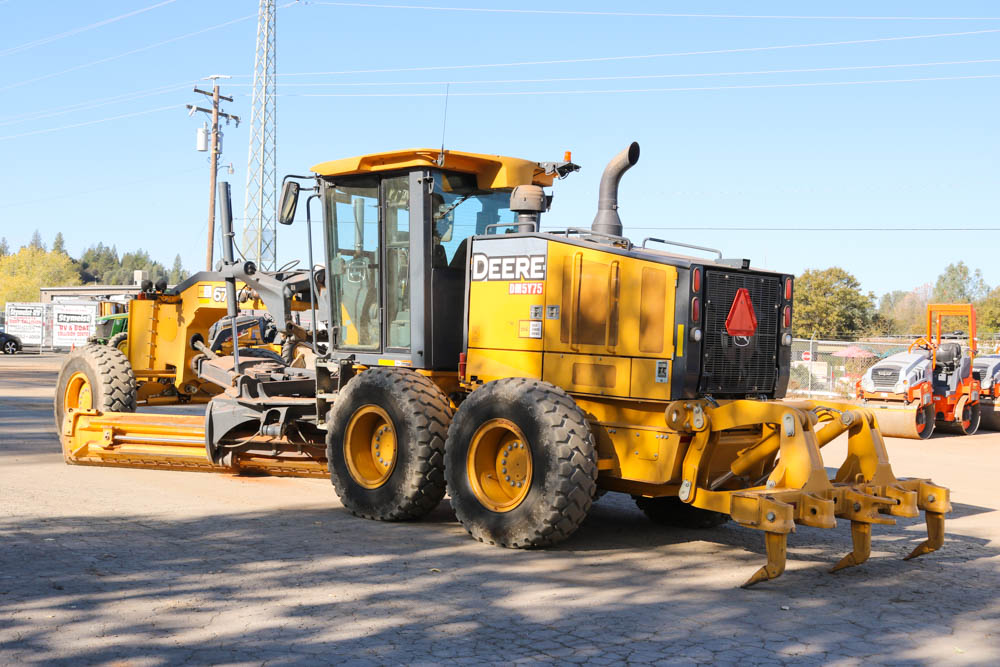

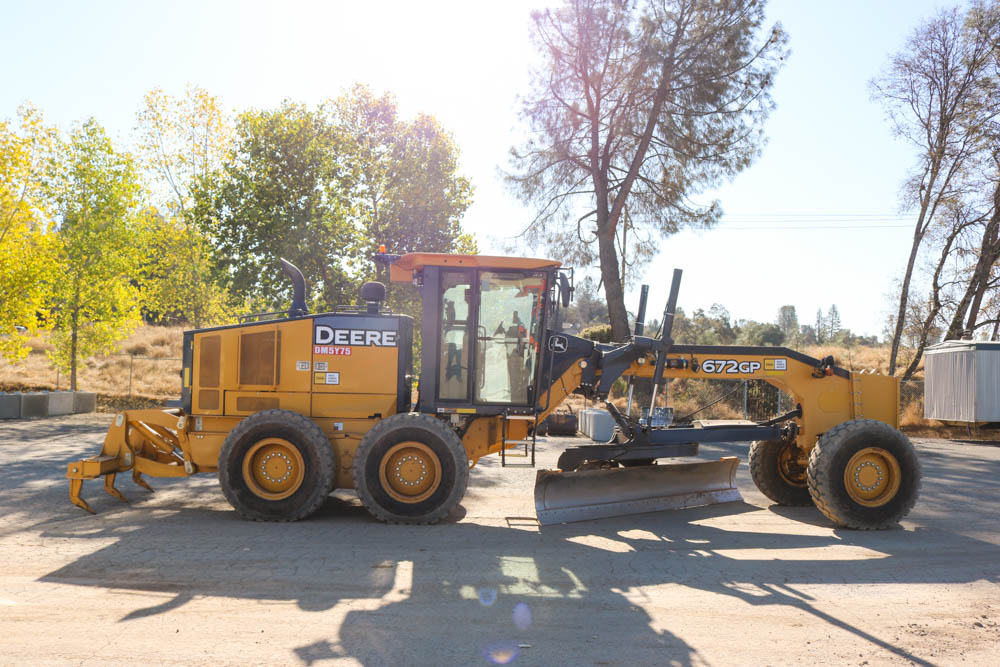

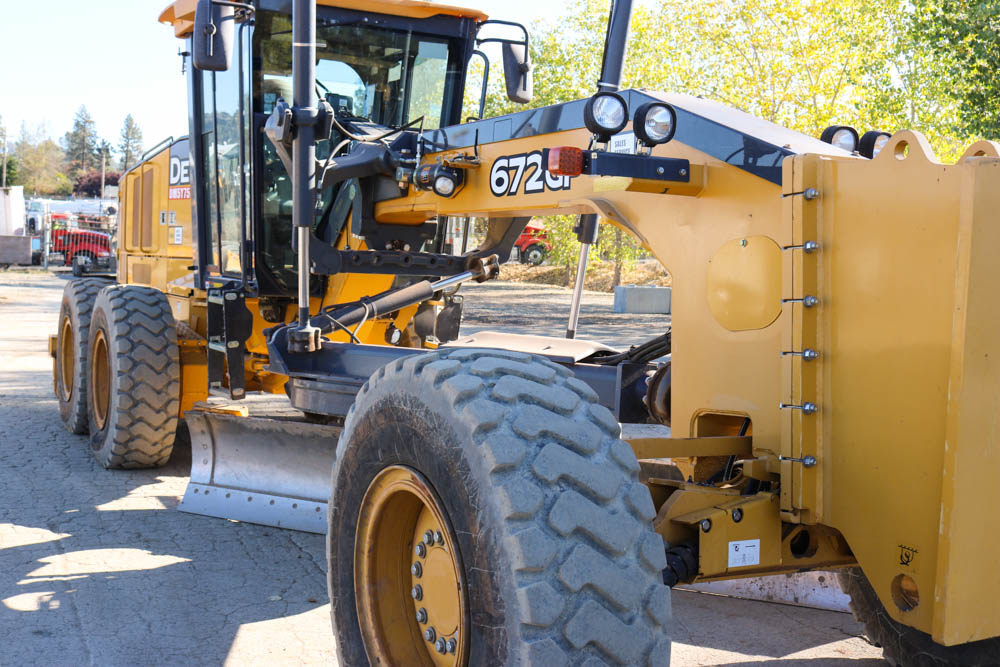

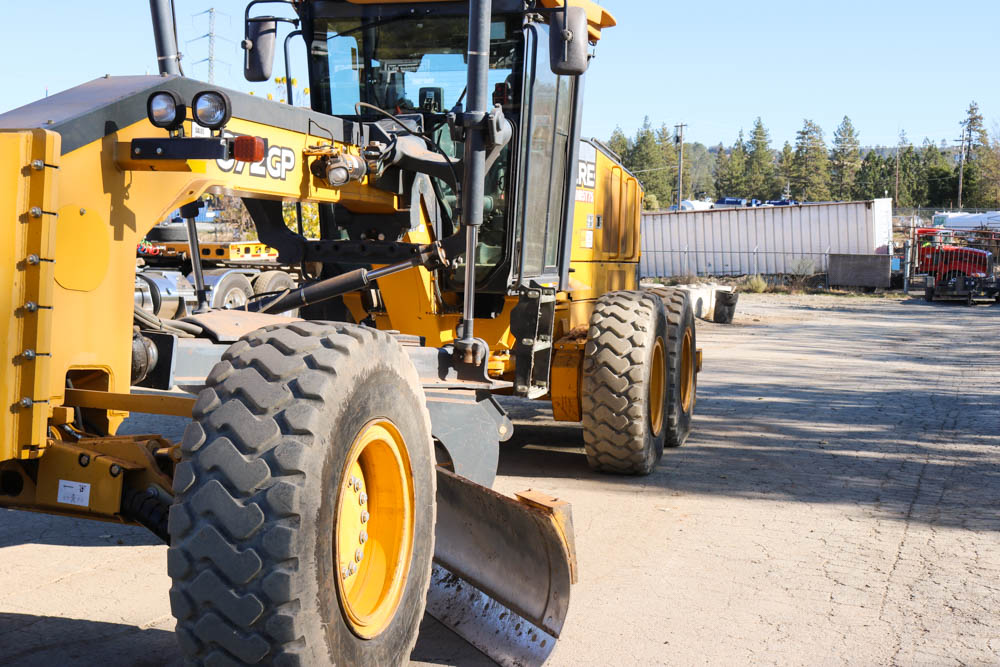

2015 DEERE 672GP MOTOR GRADER
2015 672GP MOTOR GRADER WITH ONLY 2000HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, MS RIPPER, 14FT MOLDBOARD, DEERE LINK, BLADE FLOAT, REVERSING FAN, TOPCON READY SYSTEM, AND A DEERE POWERTRAIN HYDRAULIC EXTENDED WARRANTY. UNIT HAS BEEN FLEET MAINTAINED SINCE NEW.
Specifications:

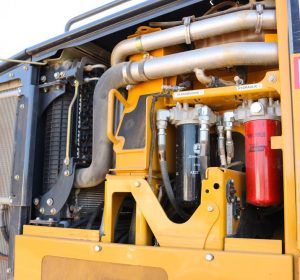

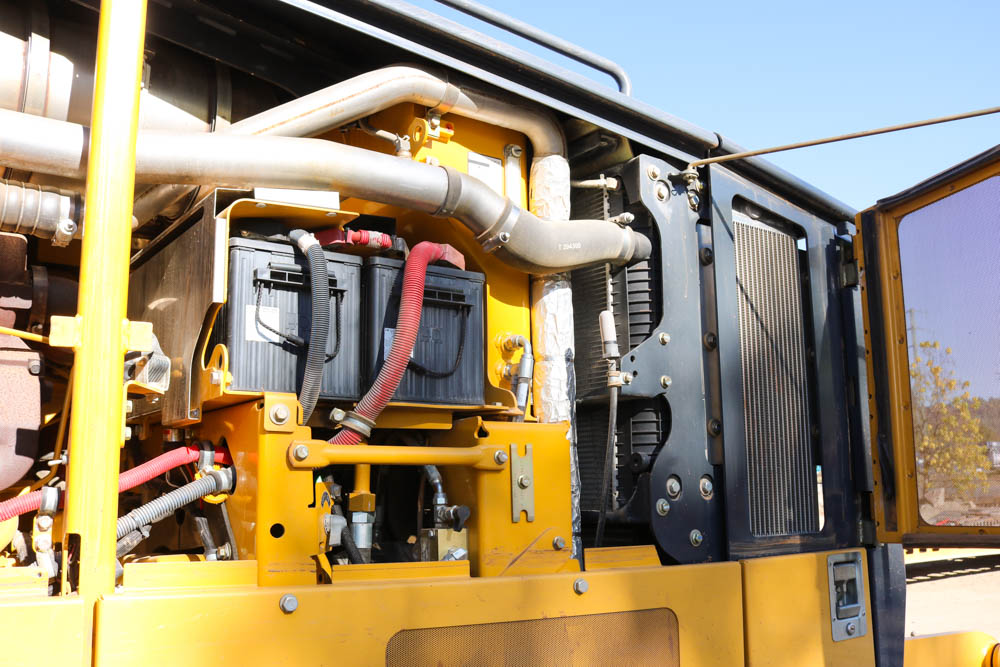

| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|

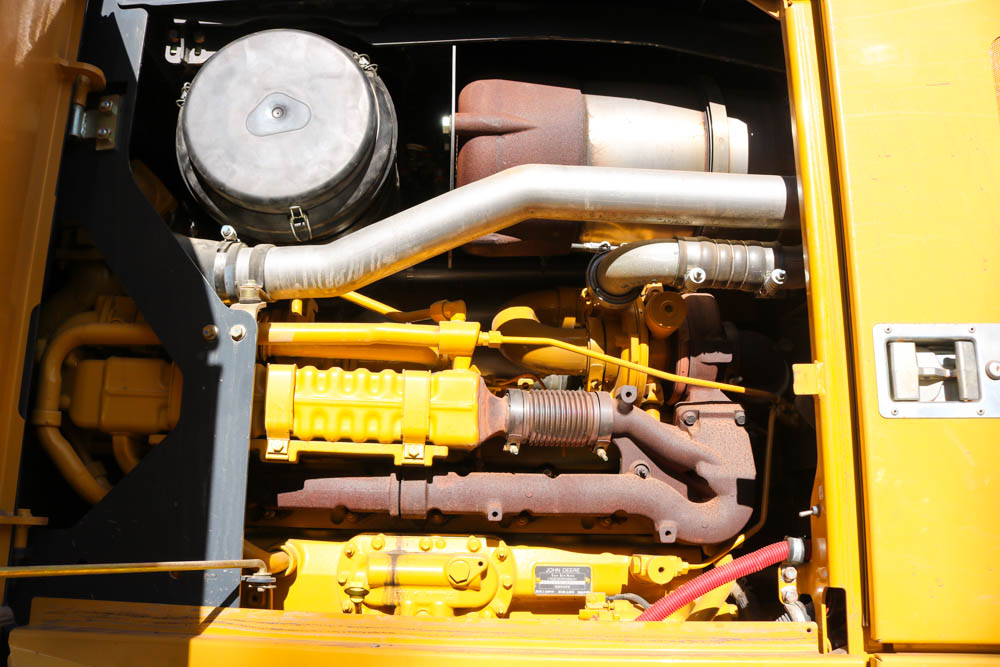

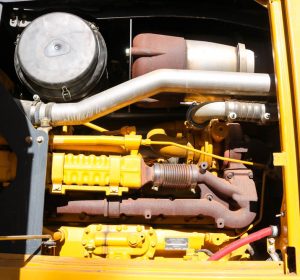

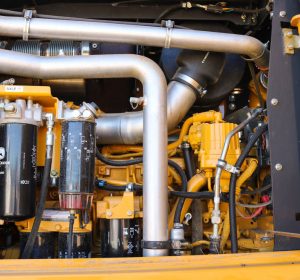

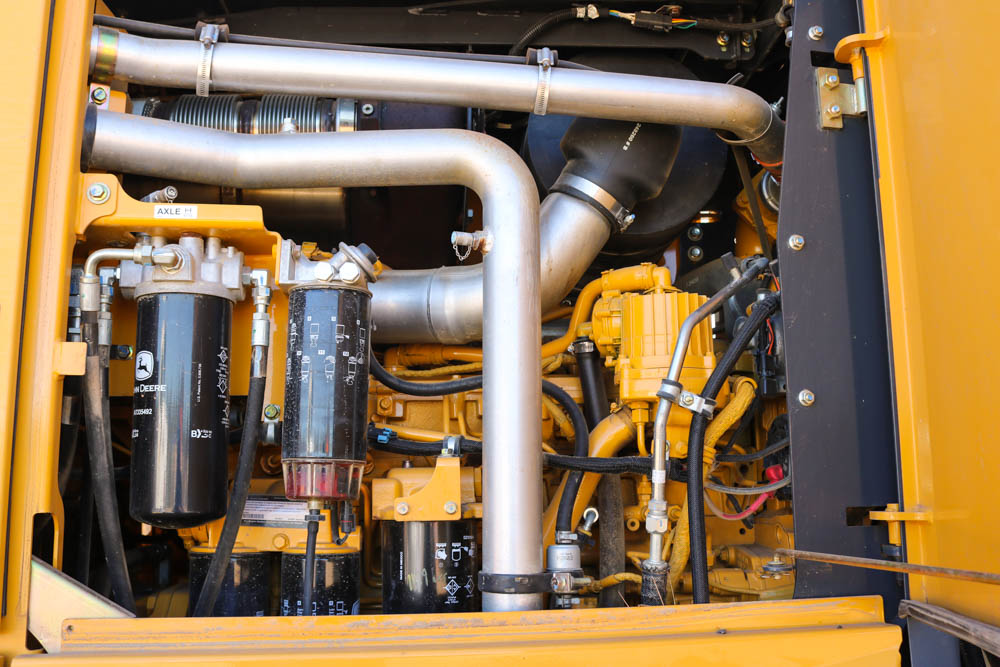

| Engine Model | PowerTech PSS 9.0L | |||
| Number Of Cylinders | 6 | |||
| Displacement, ltr (Inches³) | 9 (548) | |||
| Engine Output – Net, kW (hp) | 190 (255) | |||
| Peak Engine Torque, Nm (lbf / ft) | 1292 (963) | |||
| Torque Rise, % | 50 | |||
| Net Power – Gear 1, kW (hp) | 149 (200) | |||
| Net Power – Gear 2, kW (hp) | 157 (210) | |||
| Net Power – Gear 3, kW (hp) | 168 (225) | |||
| Net Power – Gear 4, kW (hp) | 172 (230) | |||
| Net Power – Gear 5, kW (hp) | 179 (240) | |||
| Net Power – Gear 6, kW (hp) | 187 (250) | |||
| Net Power – Gear 7, kW (hp) | 190 (255) | |||
| Net Power – Gear 8, kW (hp) | 190 (255) – No 6WD | |||
| Transmission Manufacturer | John Deere | |||
| Number Of Speeds – Forward | 8 | |||
| Number Of Speeds – Reverse | 8 | |||
| Front Wheel Drive | Yes | |||
| Axle Oscillation, ± Degrees | 32 | |||
| Front Wheel Lean, ± Degrees | 20 | |||
| Service Brake Type | Multiple Wet Discs | |||
| Service Brake Actuation | Hydraulic |
| Overall Length, mm (ft/in) | 8890 (29 ft 2 in) | |||
|---|---|---|---|---|
| Height Over ROPS, mm (ft/in) | 3180 (10 ft 5 in) | |||
| Transport Width, mm (inches) | 2490 (98) | |||
| Wheelbase, mm (ft/in) | 6160 (20 ft 3 in) | |||
| Bladebase, mm (ft/in) | 2570 (8 ft 5 in) | |||
| Moldboard Sideshift – Right, mm (inches) | 683 (26.9) | |||
| Moldboard Sideshift – Left, mm (inches) | 683 (26.9) | |||
| Shoulder Reach – Right, mm (ft/in) | 2083 (6 ft 10 in) | |||
| Shoulder Reach – Left, mm (ft/in) | 2083 (6 ft 10 in) | |||

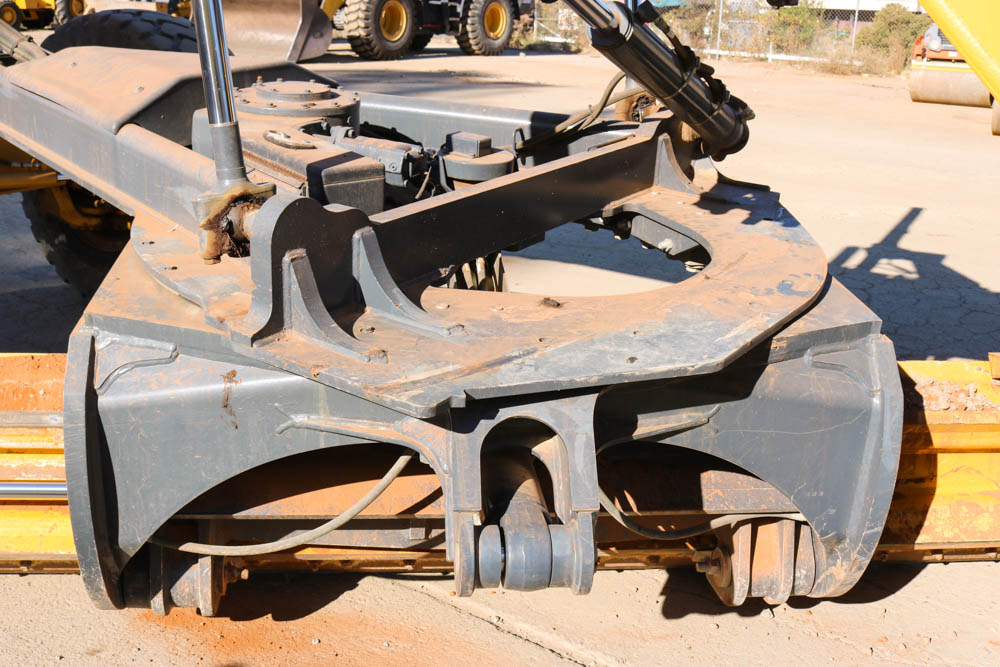

| Circle Rotation, Degrees | 360 | |||
| Turning Radius – Minimum, m (ft/in) | 7.21 (23 ft 8 in) | |||
| Frame Articulation, ± Degrees | 22 |
| Operating Weight, kg (lbs) | 17140 (37788) | |||
|---|---|---|---|---|
| Weight With Push Block & Ripper, kg (lbs) | 20000 (44092) | |||
| Operating Weight – Maximum, kg (lbs) | 24948 (55000) |
