Bucket
|
||
| G. Dump Clearance at Max Raise | 10.2 ft in | 3110 mm |
|
Dimensions
|
||
| A. Length with Bucket on Ground | 25.4 ft in | 7750 mm |
| B. Width Over Tires | 8.4 ft in | 2546 mm |
| C. Height to Top of Cab | 10.6 ft in | 3240 mm |
| D. Wheelbase | 9.6 ft in | 2930 mm |
| E. Ground Clearance | 1.3 ft in | 400 mm |
| F. Hinge Pin – Max Height | 13.7 ft in | 4170 mm |
| H. Reach at Max Lift and Dump | 3.2 ft in | 990 mm |

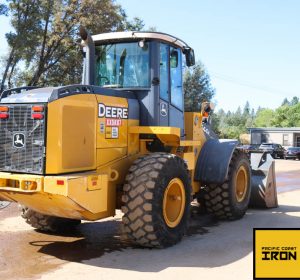

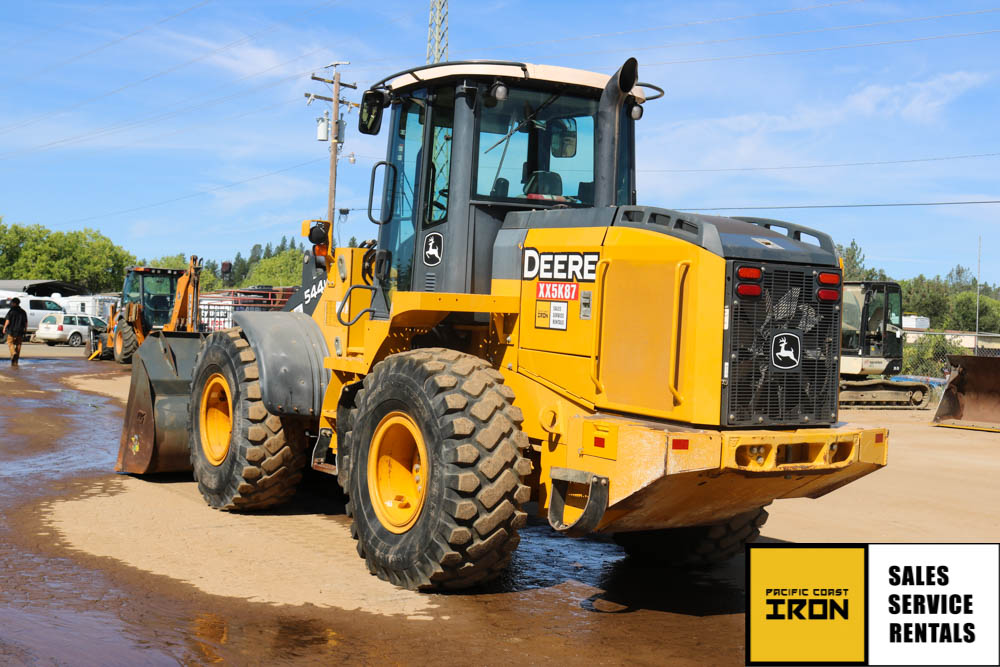

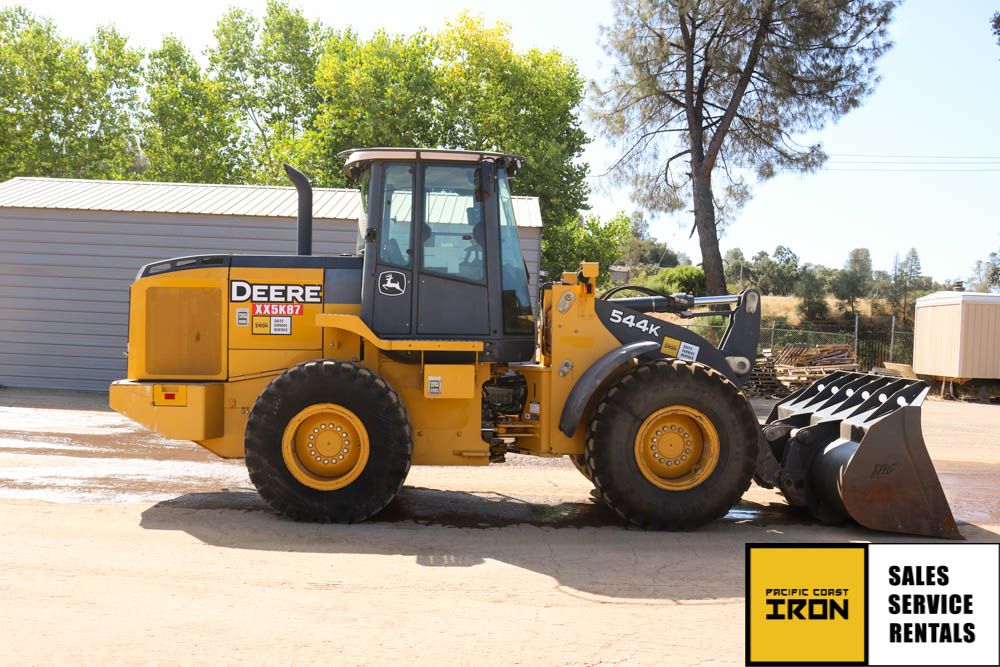

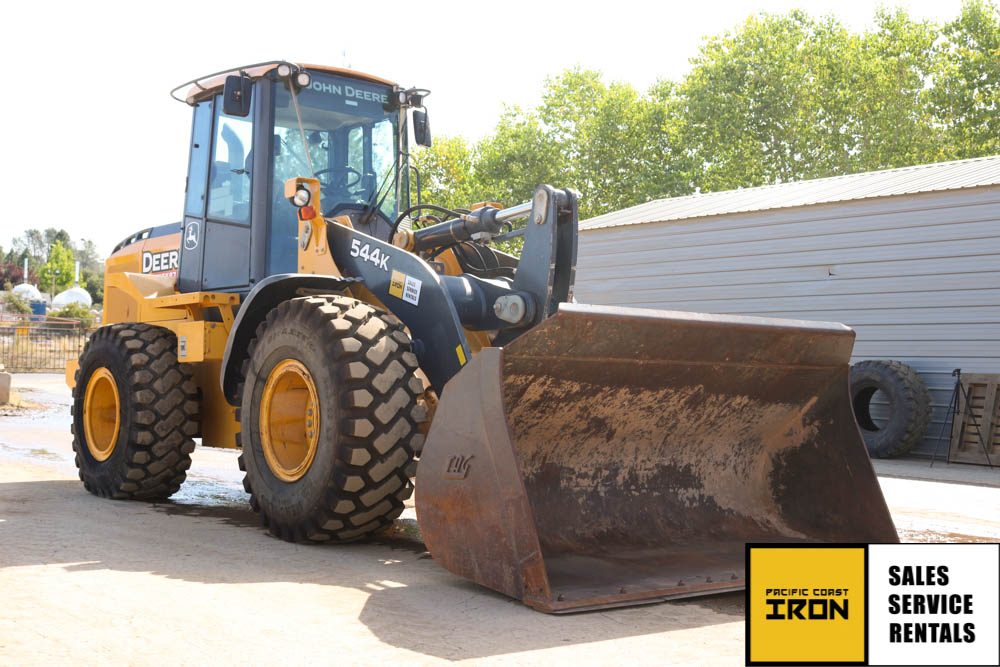

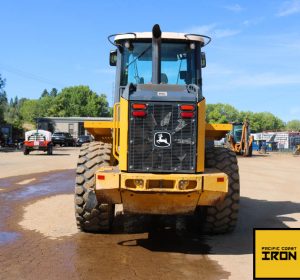

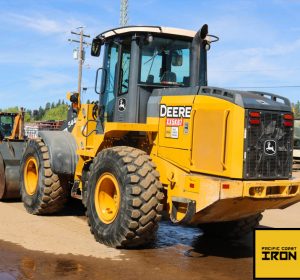

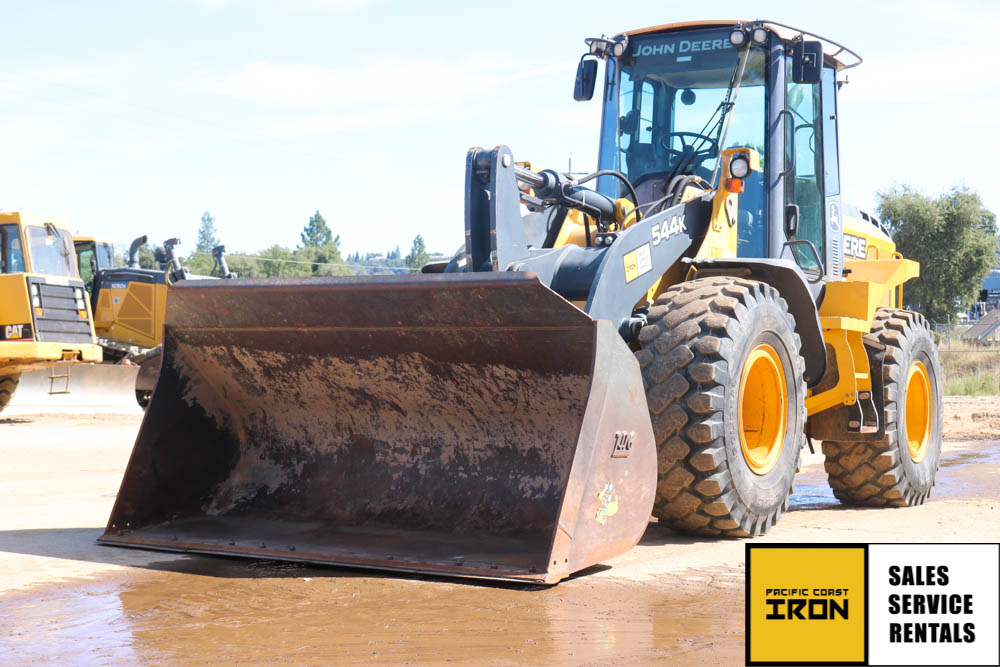

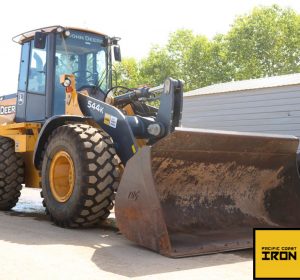

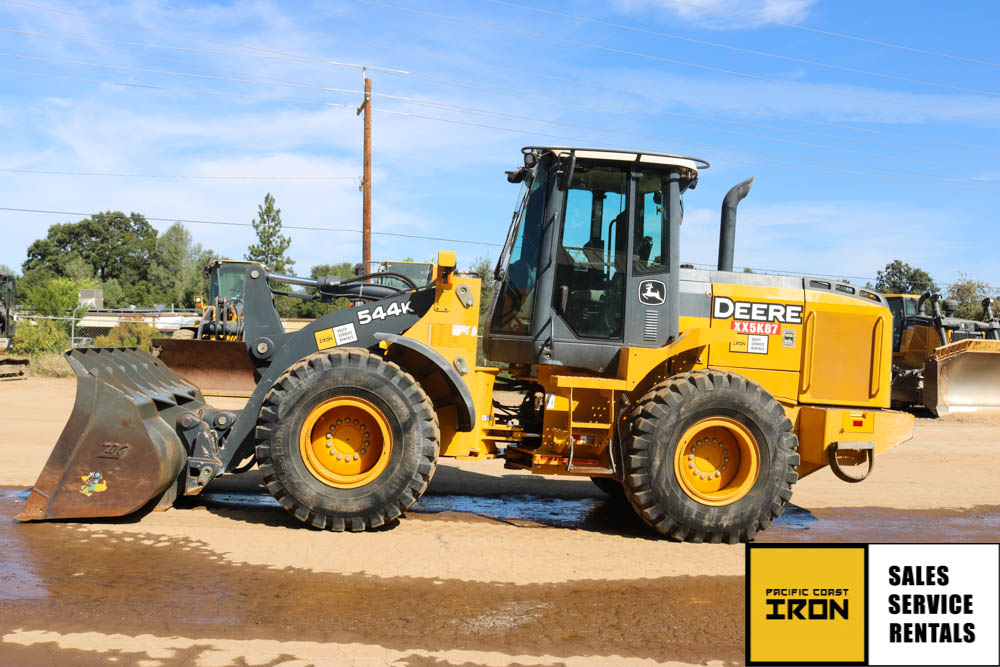

2014 DEERE 544K WHEEL LOADER-SOLD
Price $89,900
Call Today: 916.933.6050
Short Description

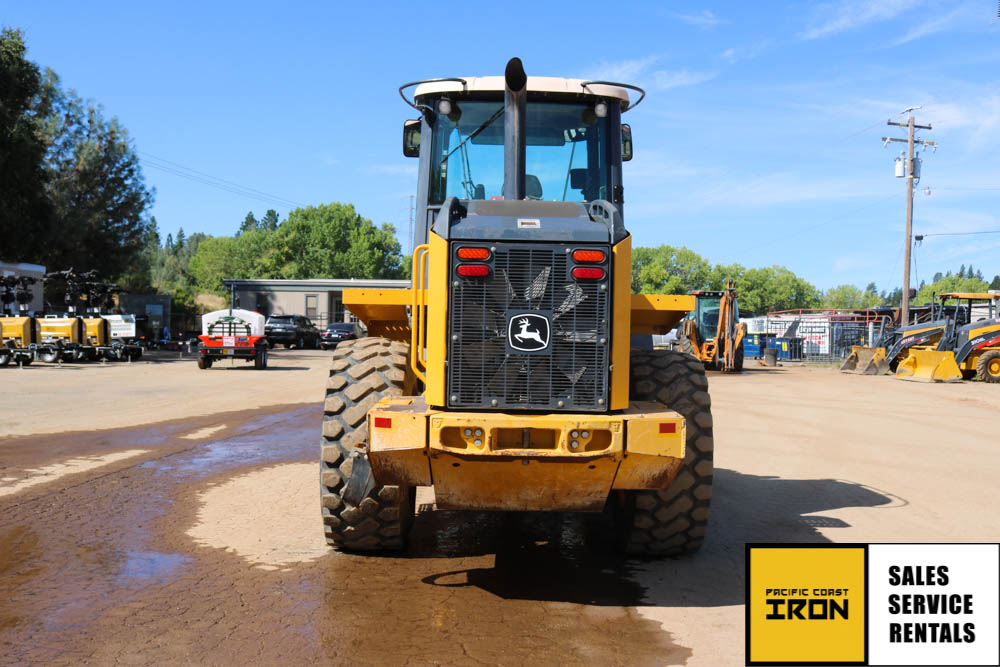

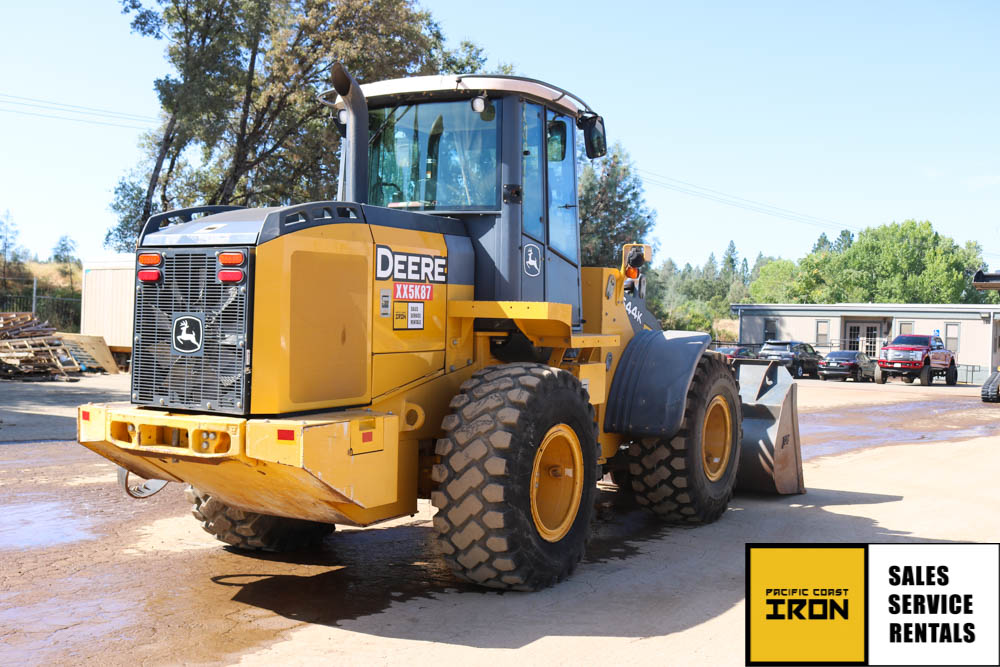

2014 DEERE 544K WHEEL LOADER
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:
- EROPS

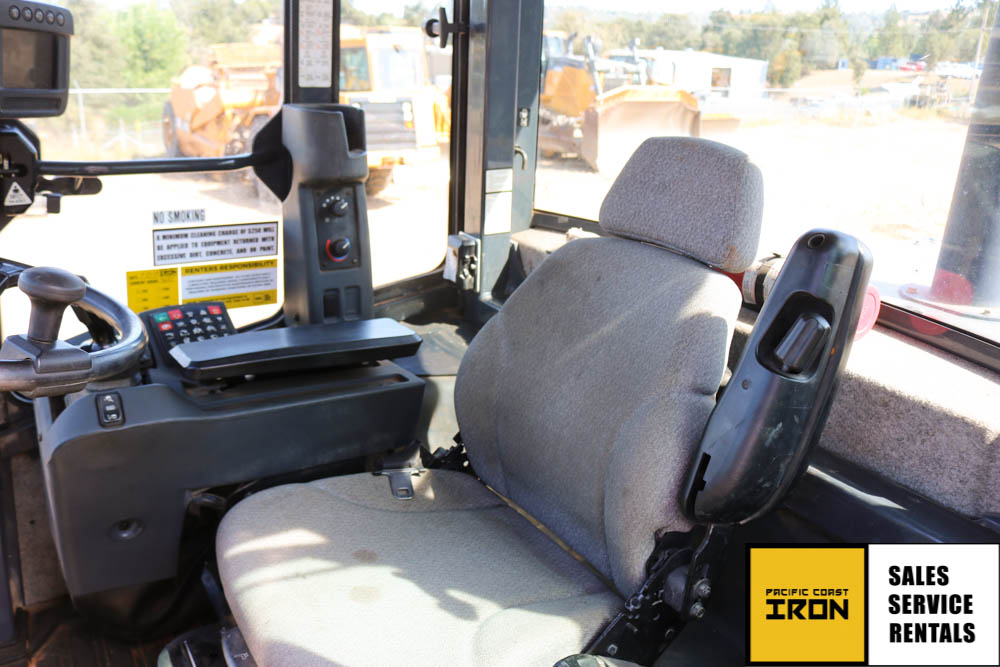

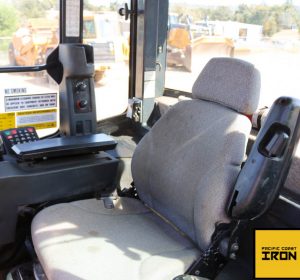

- HEAT/AC
- TIER 3 ENGINE

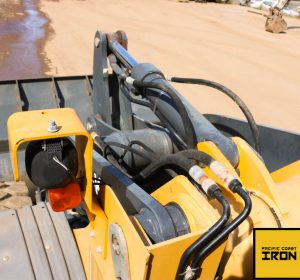

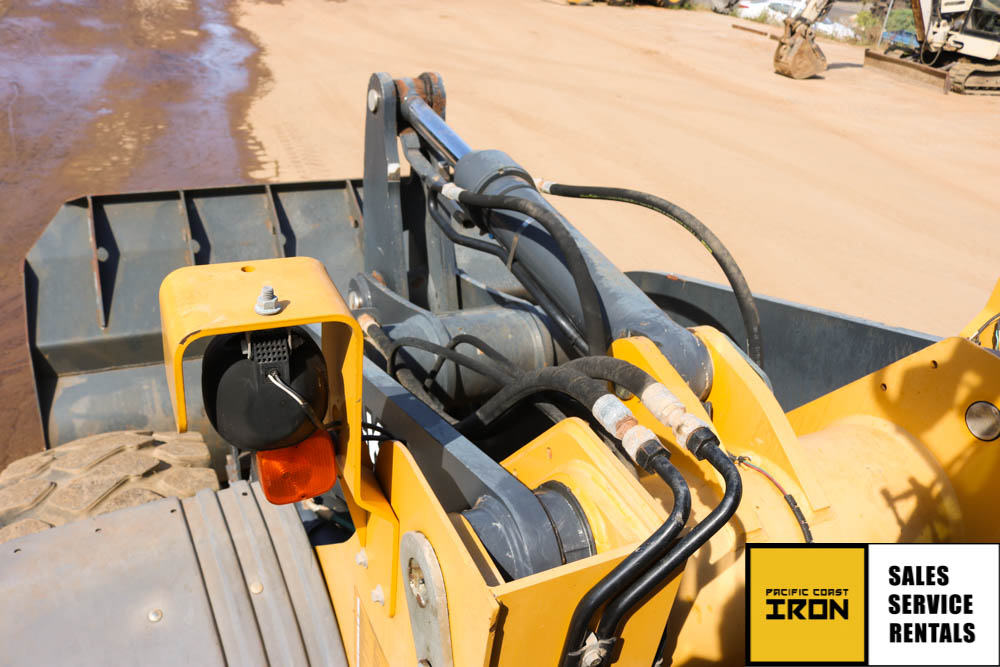

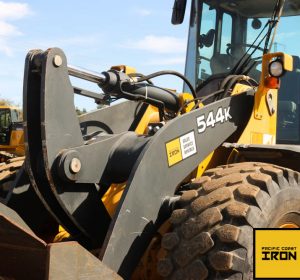

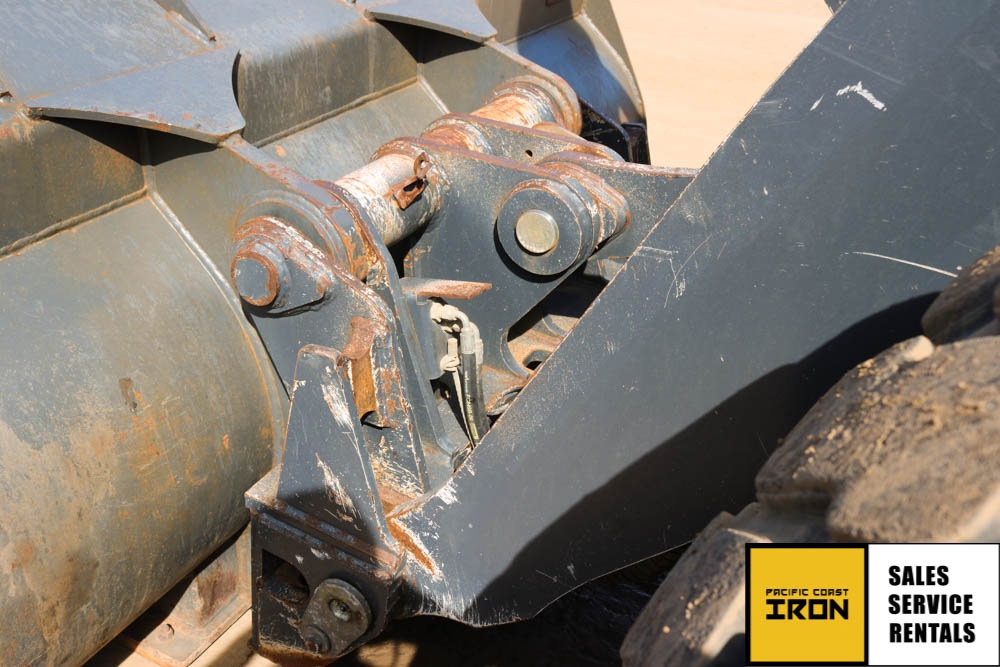

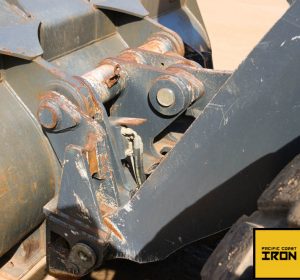

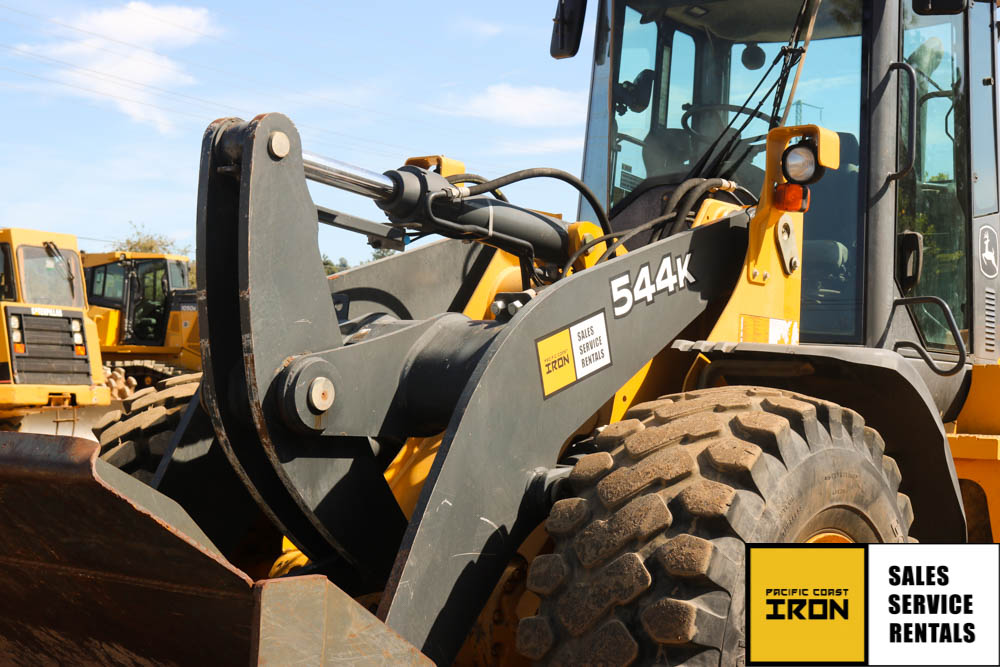

- DEERE QC

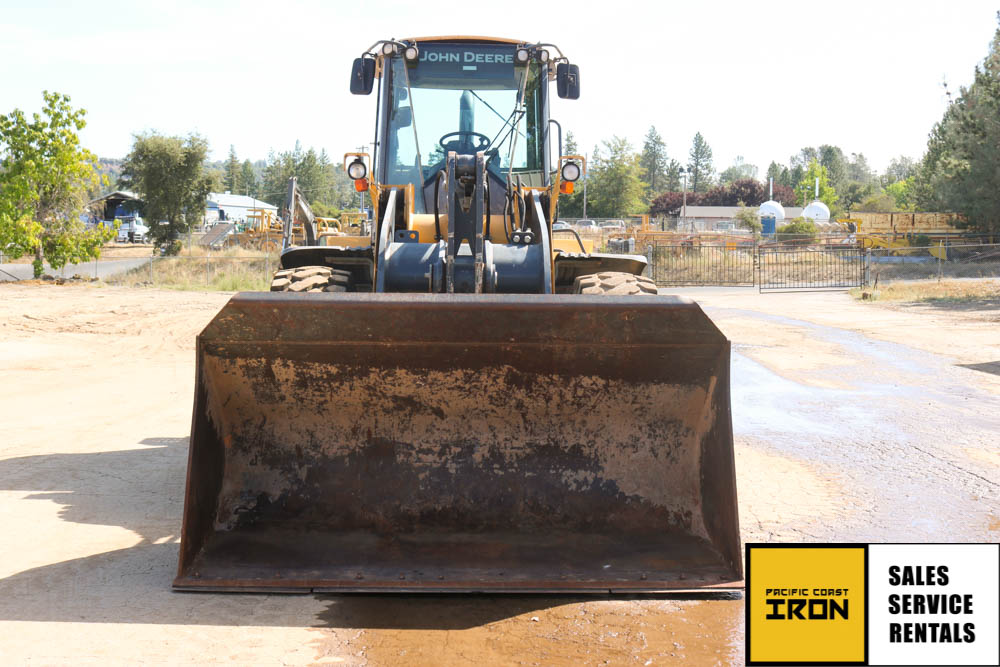

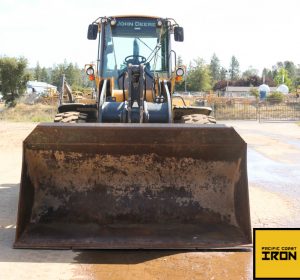

- 3 YD BUCKET

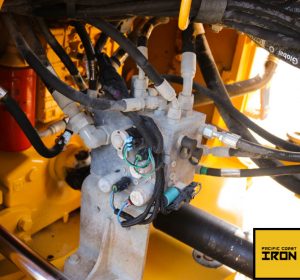

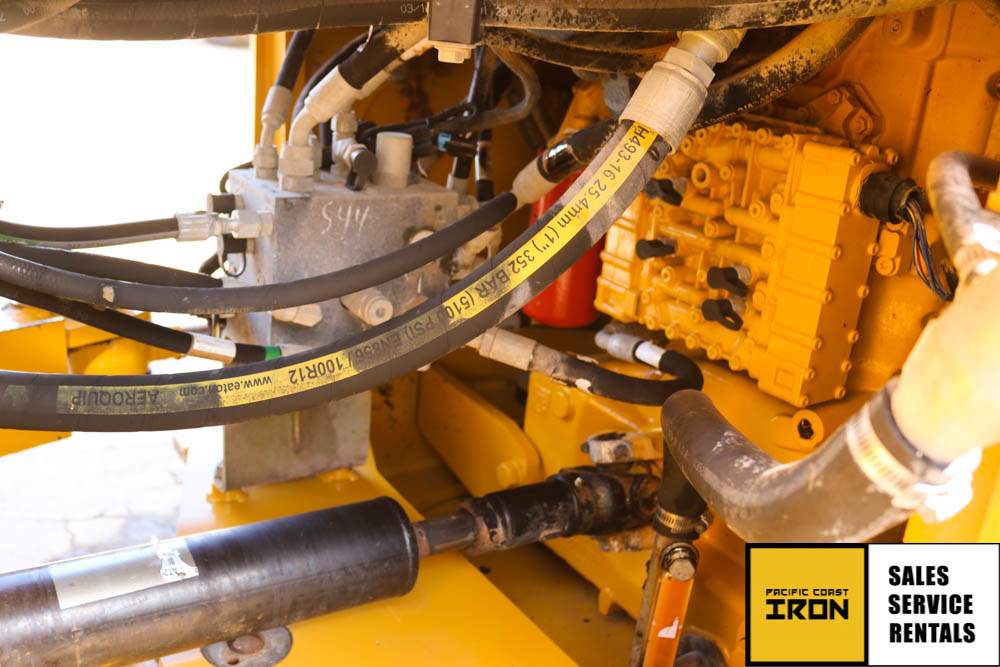

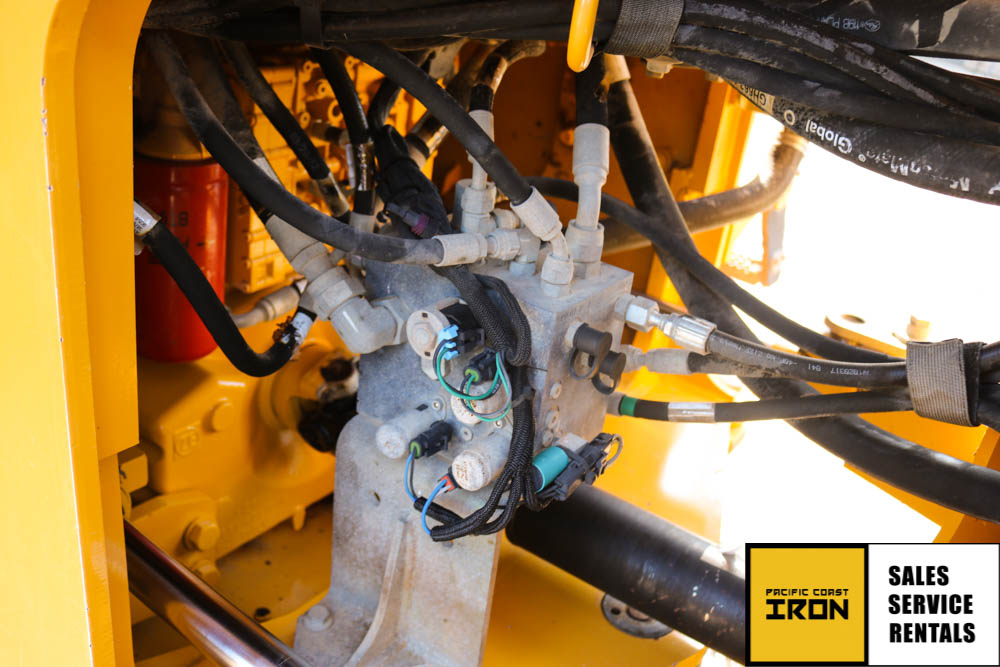

- 3RD VALVE
Long Description

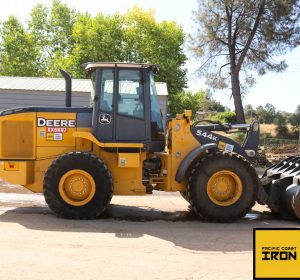

2014 DEERE 544K WHEEL LOADER- $89,900
2014 DEERE 544K WHEEL LOADER WITH ONLY 3700HRS! CAB WITH HEAT/AC, QUICK COUPLER, THIRD VALVE, 3YD GP BUCKET, PINS AND BUSHINGS ARE TIGHT, TIER 4 DEERE ENGINE, PROFESSIONALLY MAINTAINED ITS ENTIRE LIFE. READY TO GO TO WORK. PRICED TO MOVE!
SPECIFACATIONS:
Selected Dimensions
Specification

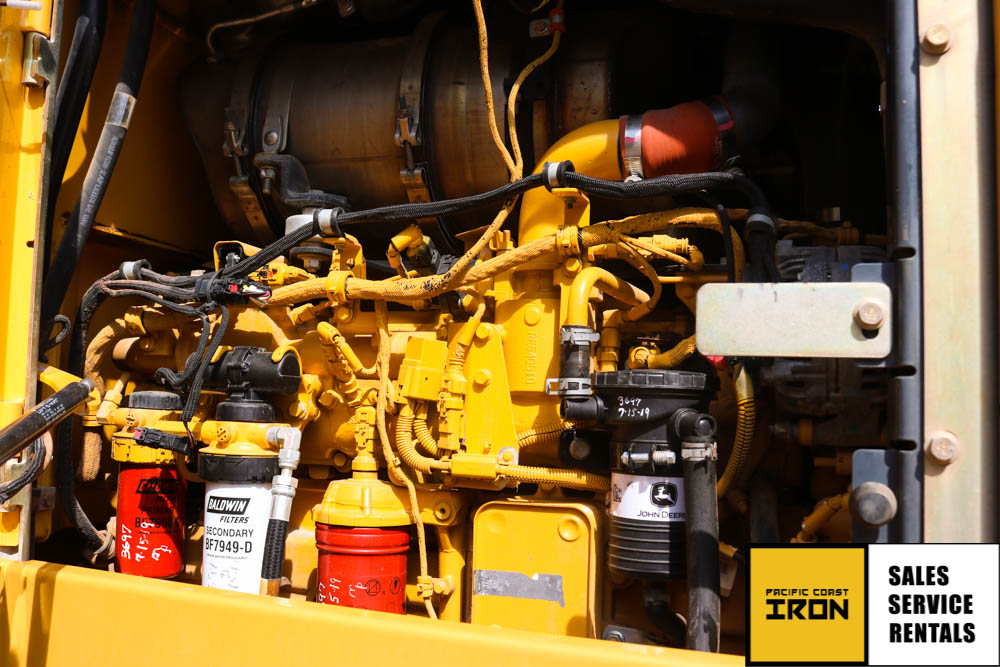

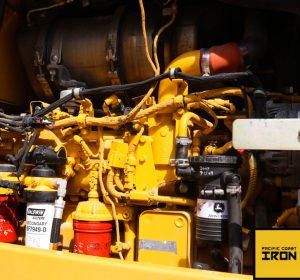

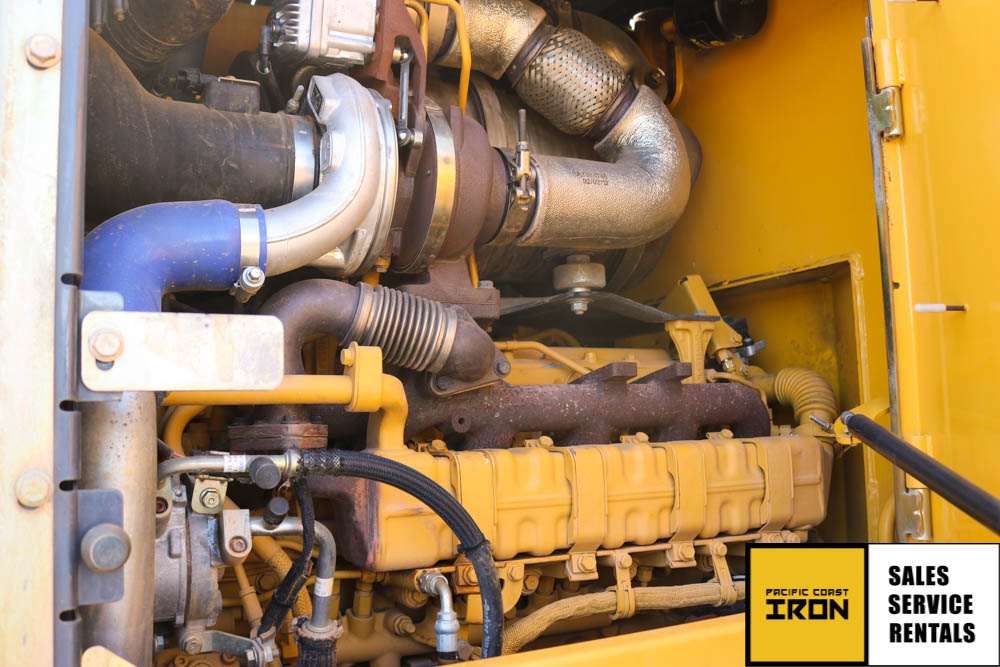

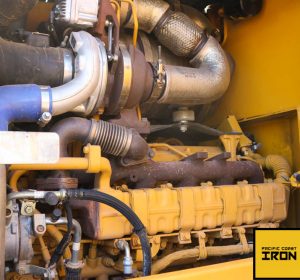

| Engine | ||
| Make | John Deere | |
| Model | E 6068H, Tier III certified | |
| Net Power | 167 hp | 124.5 kw |
| Power Measured @ | 1900 rpm | |
| Displacement | 414 cu in | 6.8 L |
| Torque Measured @ | 1600 rpm | |
| Number of Cylinders | 6 | |
| Max Torque | 496 lb ft | 672.5 Nm |
| Torque Rise | 38 % | |
| Aspiration | Turbocharged charge air cooled | |
| Operational | ||
| Operating Weight | 28463.9 lb | 12911 kg |
| Fuel Capacity | 85.9 gal | 325 L |
| Hydrauilc System Fluid Capacity | 24 gal | 91 L |
| Engine Oil Fluid Capacity | 5 gal | 19 L |
| Cooling System Fluid Capacity | 6.1 gal | 23 L |
| Transmission Fluid Capacity | 4.9 gal | 18.5 L |
| Front Axle/Diff Fluid Capacity | 4.5 gal | 17 L |
| Rear Axle/Diff Fluid Capacity | 4.5 gal | 17 L |
| Static Tipping Weight | 20480.9 lb | 9290 kg |
| Turning Radius | 16.4 ft in | 5000 mm |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 80 amps | |
| Rear Axle Oscillation | 24 degrees | |
| Tire Size | 20.5 R 25 | |
| Transmission | ||
| Type | Countershaft, powershift | |
| Number of Forward Gears | 4 | |
| Number of Reverse Gears | 3 | |
| Max Speed – Forward | 22.2 mph | 35.7 km/h |
| Max Speed – Reverse | 15 mph | 24.1 km/h |

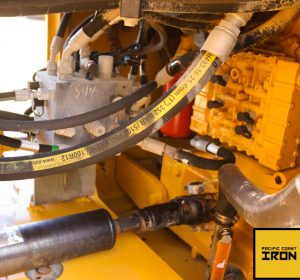

| Hydraulic System | ||
| Pump Type | variable displacement, axial piston | |
| Relief Valve Pressure | 3650 psi | 25165.8 kPa |
| Pump Flow Capacity | 49.9 gal/min | 189 L/min |
| Raise Time | 5.8 sec | |
| Dump Time | 1.2 sec | |
| Lower Time | 3.2 sec | |
| Bucket | ||
| Breakout Force | 20940 lb | 93.1 kN |
| Dump Clearance at Max Raise | 10.2 ft in | 3110 mm |
| Bucket Width | 8.3 ft in | 2540 mm |
| Bucket Capacity – heaped | 3 yd3 | 2.3 m3 |
| Bucket Capacity – struck | 2.6 yd3 | 2 m3 |
| Dimensions | ||
| Length with Bucket on Ground | 25.4 ft in | 7750 mm |
| Width Over Tires | 8.4 ft in | 2546 mm |
| Height to Top of Cab | 10.6 ft in | 3240 mm |
| Ground Clearance | 1.3 ft in | 400 mm |
| Wheelbase | 9.6 ft in | 2930 mm |
| Hinge Pin – Max Height | 13.7 ft in | 4170 mm |
| Reach at Max Lift and Dump | 3.2 ft in | 990 mm |
