2014 CAT CP56B COMPACTOR-(SOLD)

Price $115,900

Call Today: 916.933.6050

Short Description

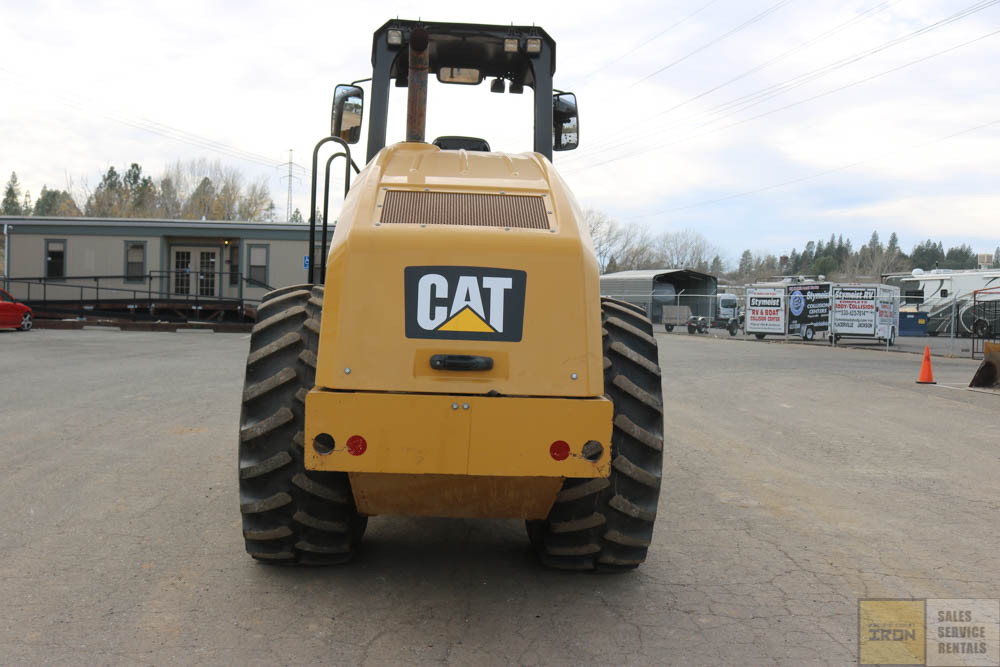

2014 CAT CP56B PADFOOT COMPACTOR FOR SALE

FEATURES:

  • TIER 4
  • KNOCK DOWN BLADE
  • HIGH/LOW VIBRATORY
  • OROPS
  • PRODUCT LINK
Category:

Long Description

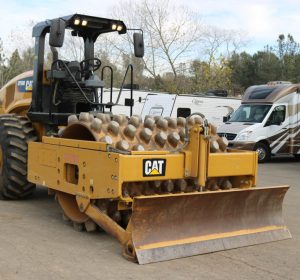

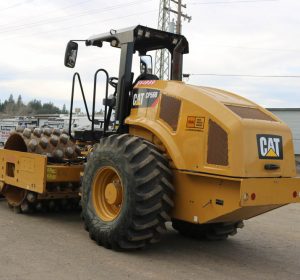

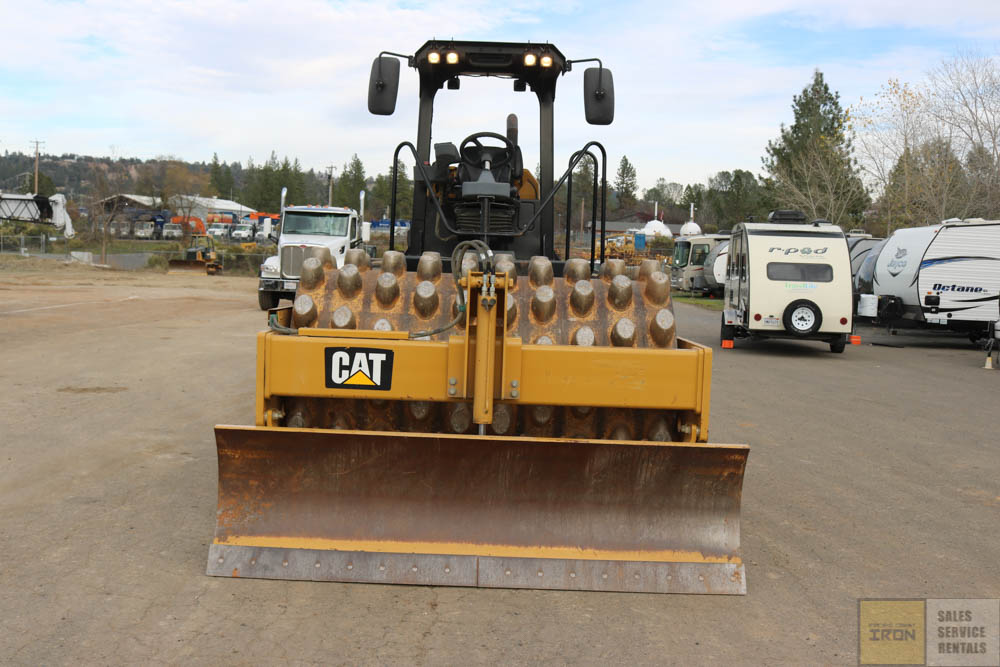

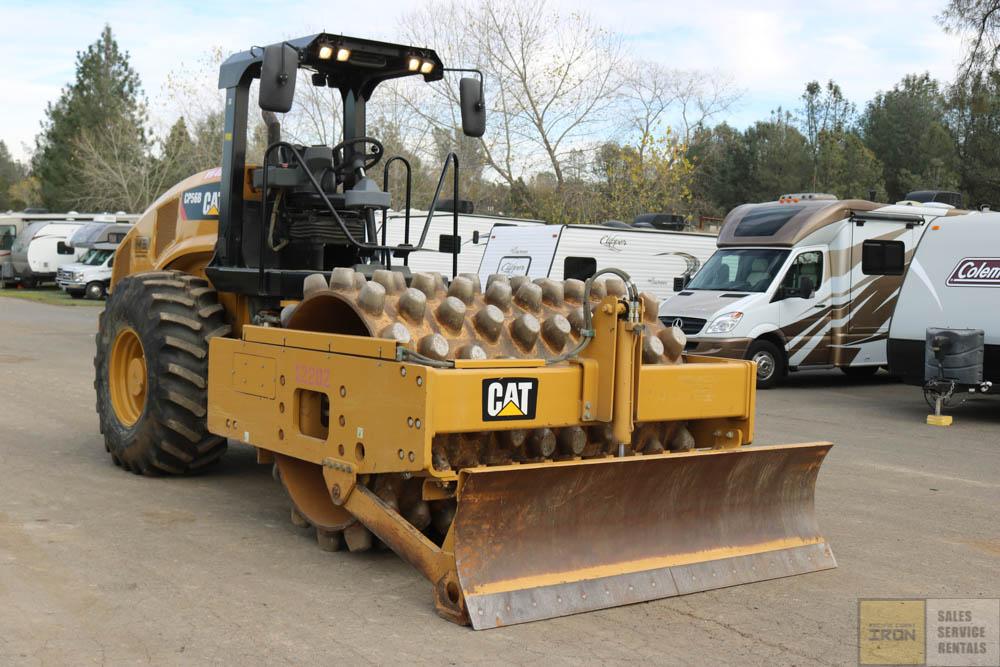

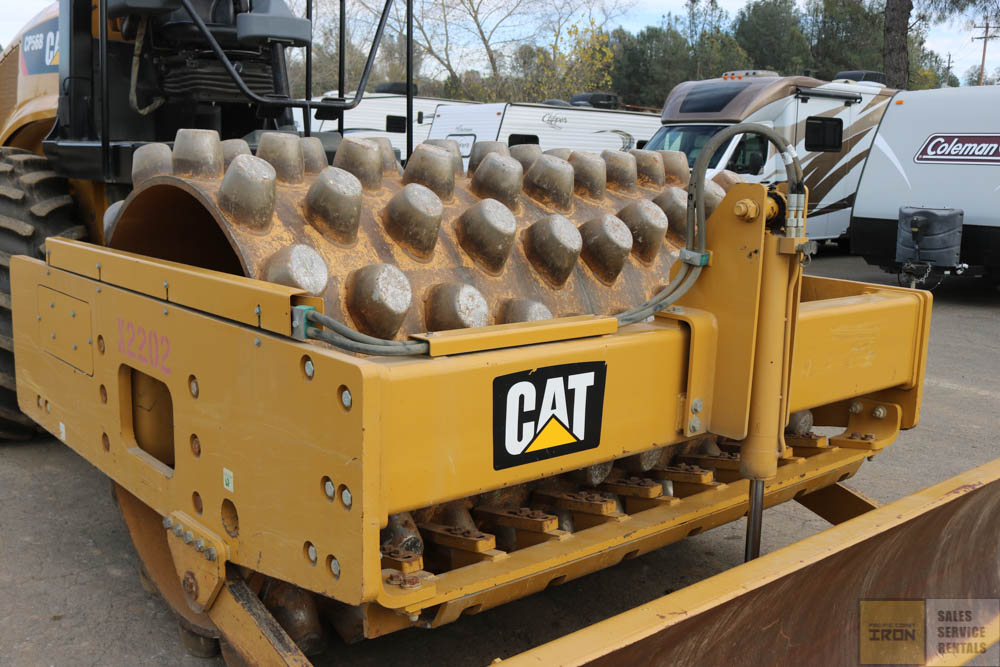

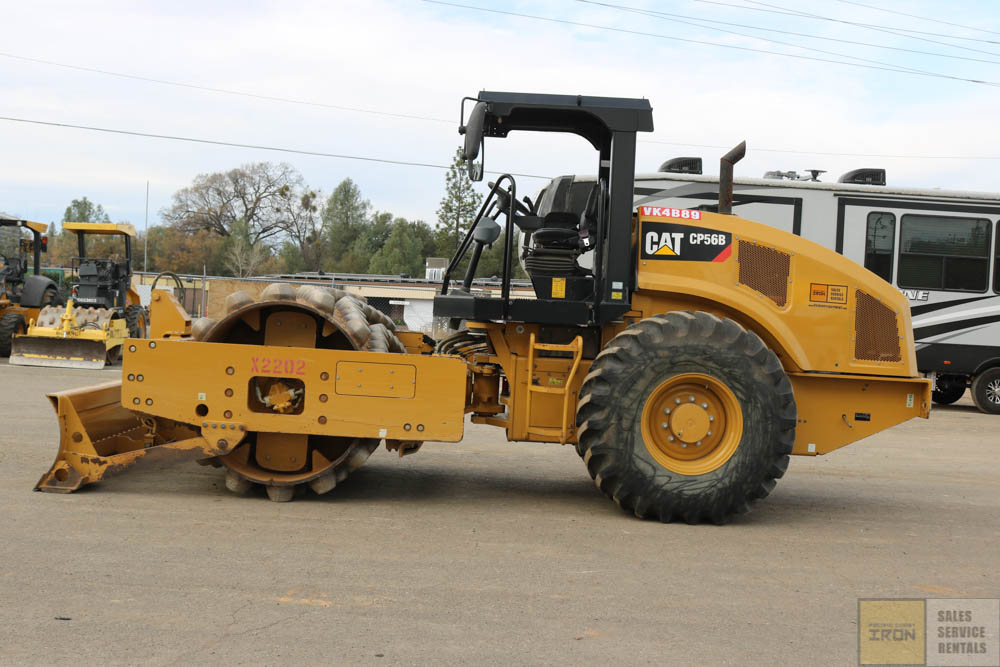

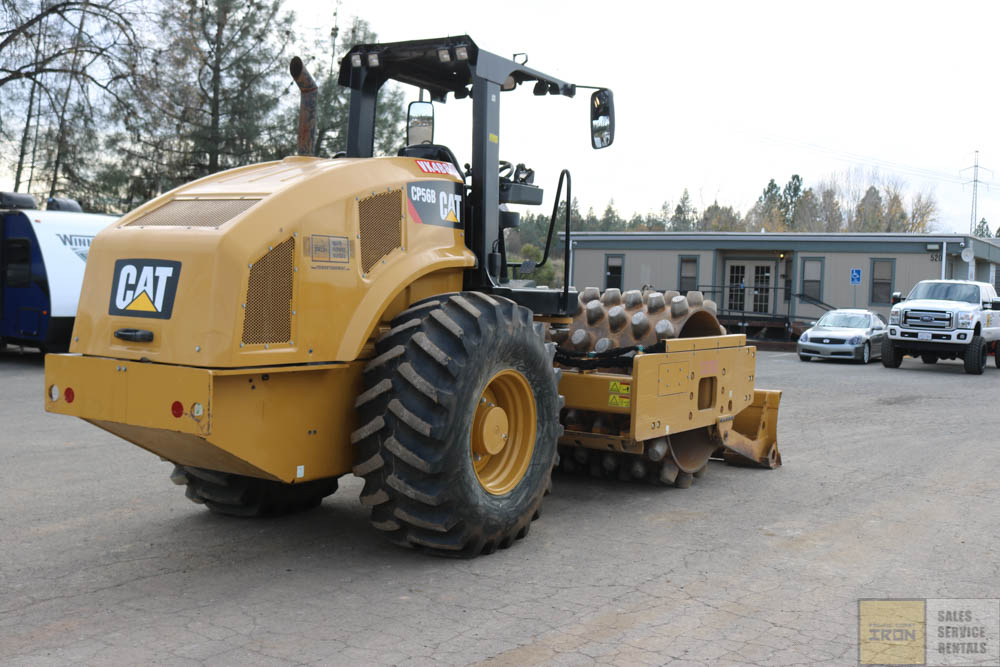

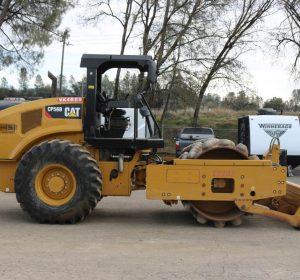

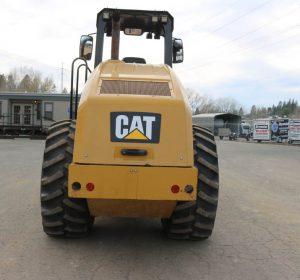

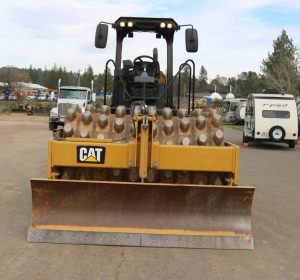

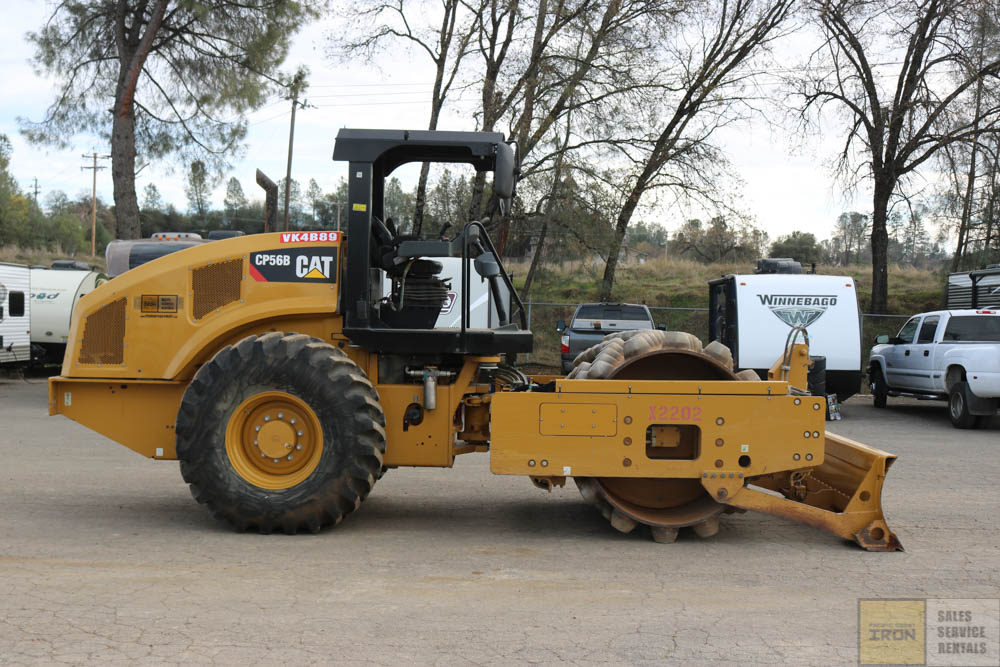

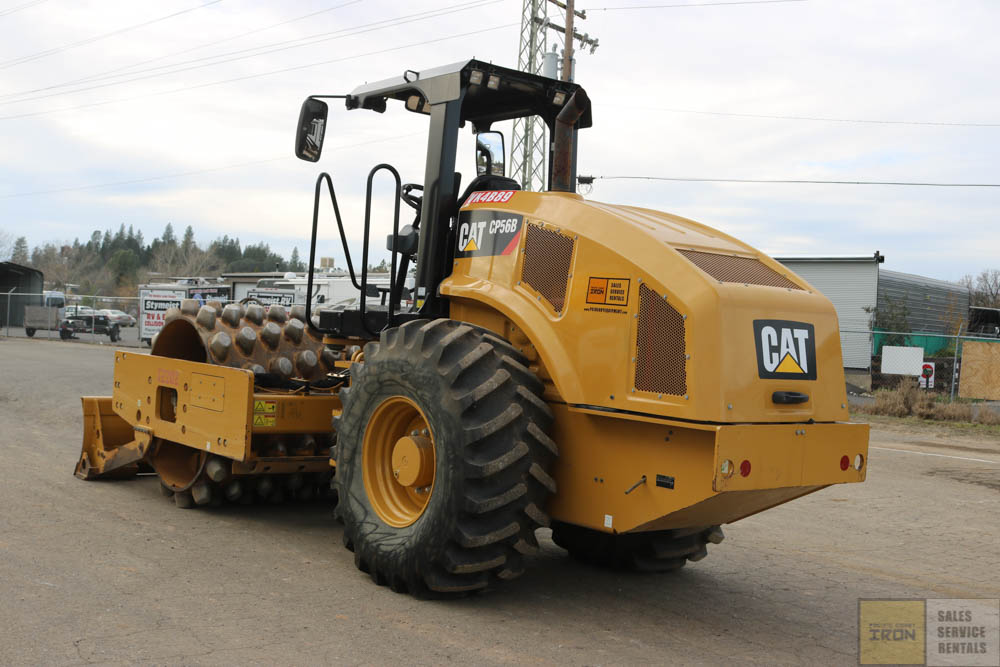

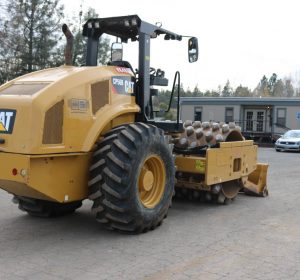

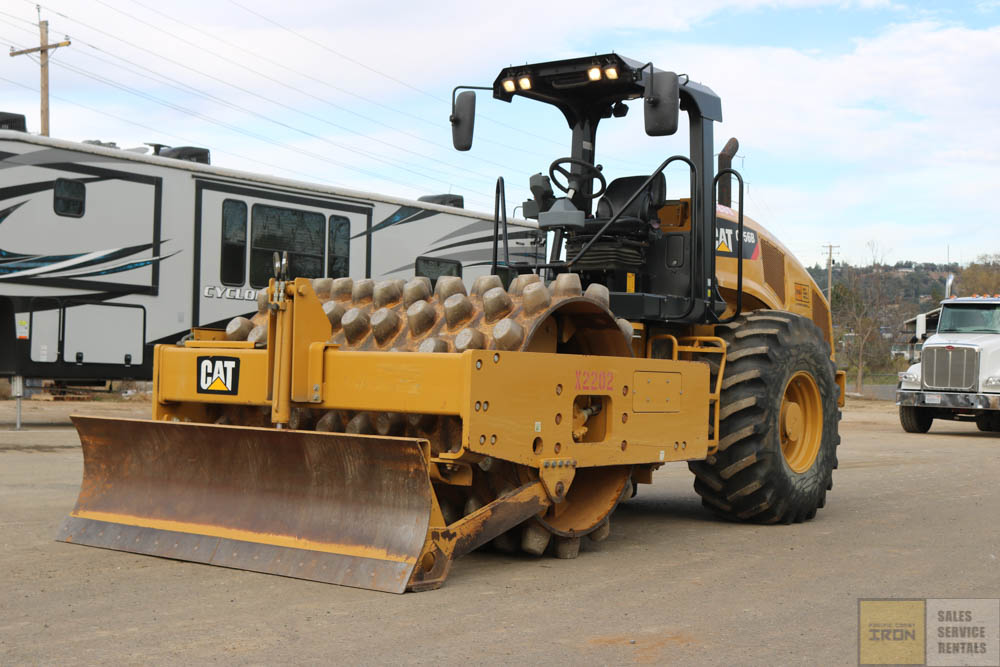

2014 CAT CP56B PADFOOT COMPACTOR FOR SALE

2014 CAT CP56B PADFOOT COMPACTOR WITH 500HRS! UNIT IS EQUIPPED WITH KNOCK DOWN BLADE, HIGH/LOW VIB, TIER 4 INTERIM ENGINE, AND PRODUCT LINK. CAT HYDRAULIC AND POWERTRAIN WARRENTY UNTIL 2020. VERY NICE LIKE NEW UNIT! READY TO GO TO WORK!

SPECIFACTIONS:

Weights

Operating Weight with Cab 25707.0 lb 11665.0 kg
Operating Weight with ROPS/FOPS 25264.0 lb 11465.0 kg
Weight at Drum with Cab 14231.0 lb 6455.0 kg
Weight at Drum with ROPS/FOPS 14026.0 lb 6365.0 kg

Operating Specifications

Compaction Width 84.0 in 2134.0 mm
Ground Clearance 17.9 in 454.0 mm
Travel Speed – Maximum 7.0 mph 11.4 km/h
Turning Radius Inside Drum Edge 12.08 ft 3.68 m

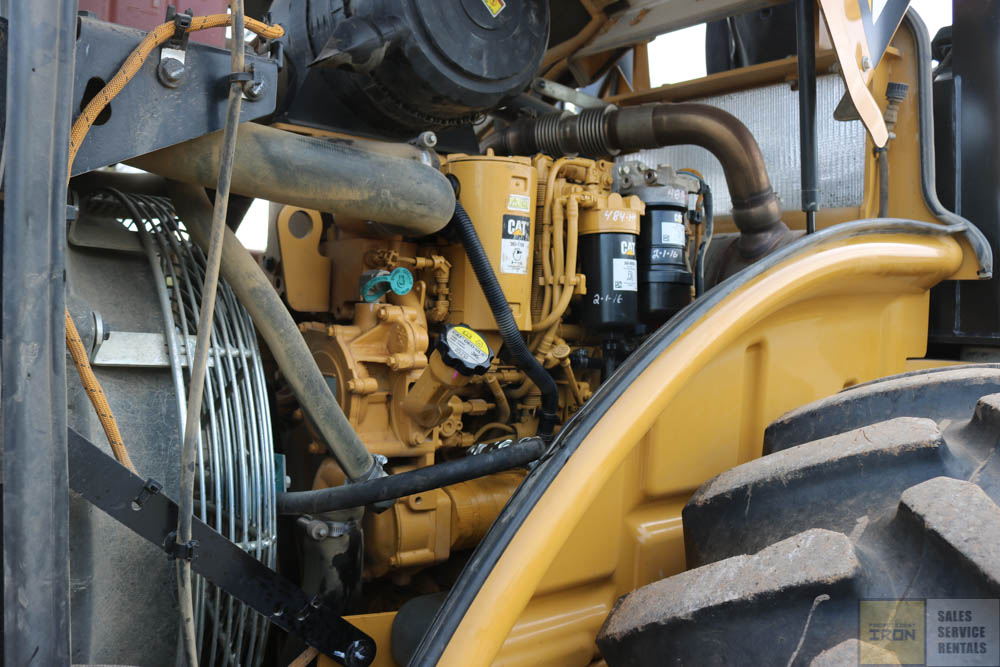

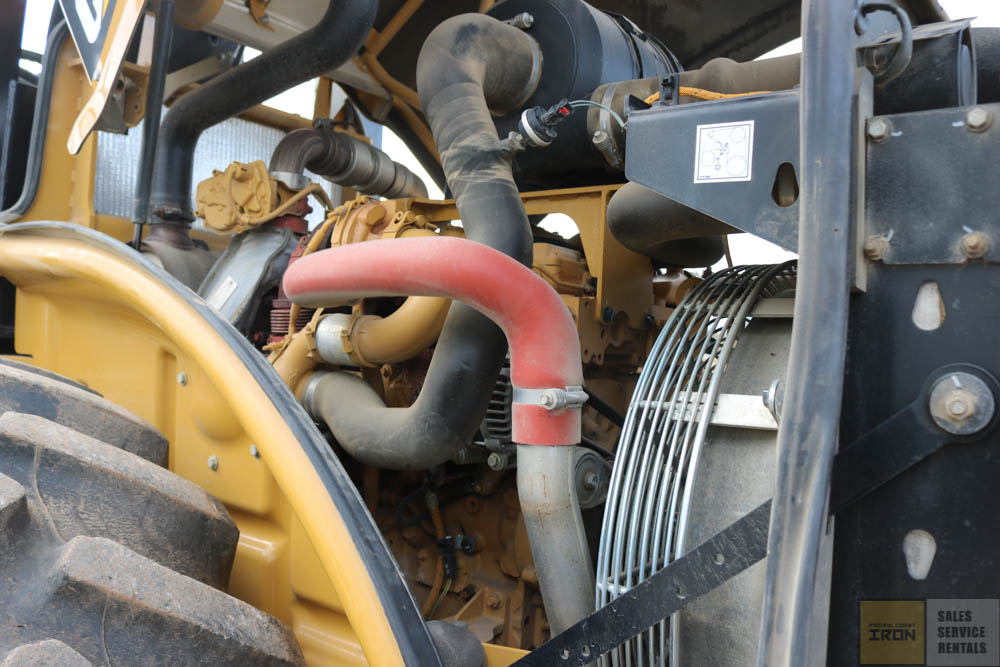

Engine

Gross Power 157.0 hp 117.0 kW

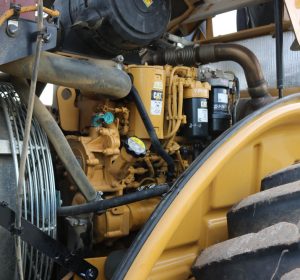

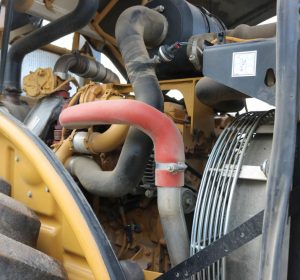

Engine Model Cat C4.4 with ACERT Cat C4.4 with ACERT

Dimensions

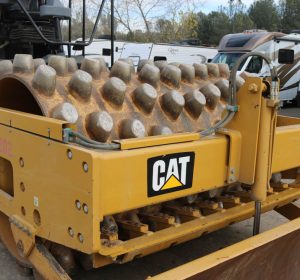

Drum Diameter 51.0 in 1295.0 mm
Drum Diameter – Over Pads 61.0 in 1549.0 mm
Drum Width 84.0 in 2134.0 mm
Height with ROPS/FOPS or Cab 10.25 ft 3.11 m
Optional Blade Height 27.1 in 688.0 mm
Overall Length 19.25 ft 5.86 m
Overall Length with Blade Option 21.0 ft 6.4 m
Overall Width 7.58 ft 2.3 m
Overall Width with Blade Option 8.25 ft 2.5 m
Wheelbase 9.58 ft 2.9 m

Vibratory System

Centrifugal Force – Maximum 67600.0 lb 301.0 kN
Centrifugal Force – Minimum 31670.0 lb 141.0 kN
Nominal Amplitude – High 0.083 in 2.1 mm
Nominal Amplitude – Low 0.039 in 0.98 mm
Variable Frequency Option Range 23.3 – 30.5 Hz (1400-1830 vpm) 23.3 – 30.5 Hz (1400-1830 vpm)
Vibratory Frequency – Standard 30.5 Hz (1830 vpm) 30.5 Hz (1830 vpm)

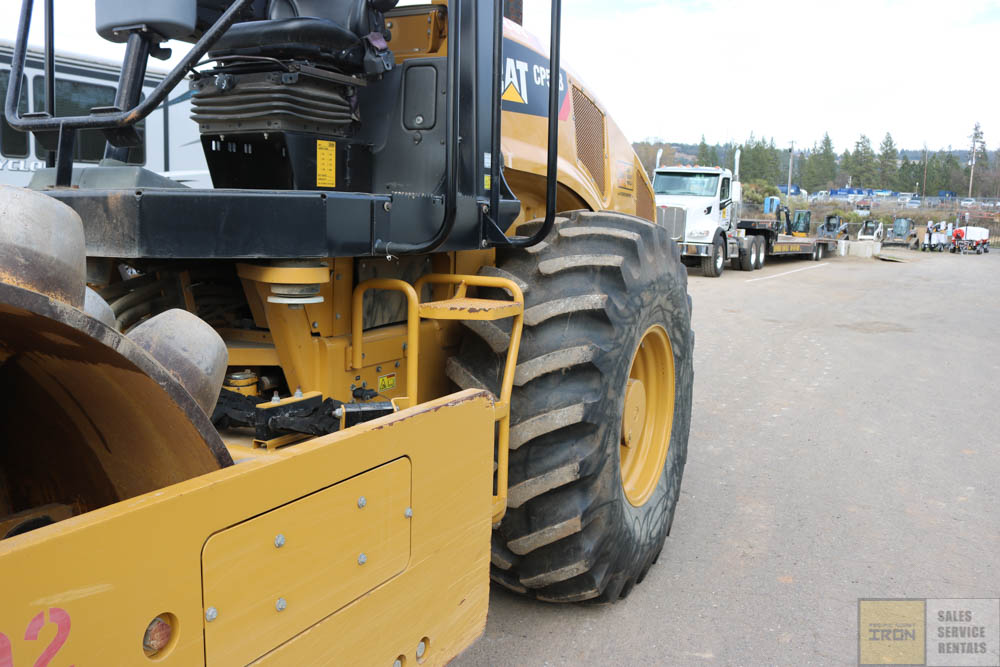

Tires

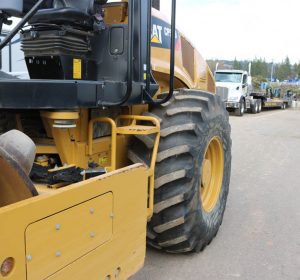

Tires 23.1 x 26 23.1 x 26

Service Refill Capacities

Fuel Tank Capacity 64.0 gal
