Bucket
|
||
| G. Dump Clearance at Max Raise | 8.8 ft in | 2670 mm |
|
Dimensions
|
||
| A. Length with Bucket on Ground | 22.5 ft in | 6860 mm |
| B. Width Over Tires | 7.9 ft in | 2415 mm |
| C. Height to Top of Cab | 10.4 ft in | 3170 mm |
| D. Wheelbase | 9.1 ft in | 2760 mm |
| E. Ground Clearance | 1.3 ft in | 393 mm |
| F. Hinge Pin – Max Height | 11.8 ft in | 3600 mm |
| H. Reach at Max Lift and Dump | 3.4 ft in | 1040 mm |

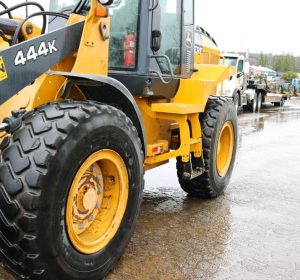

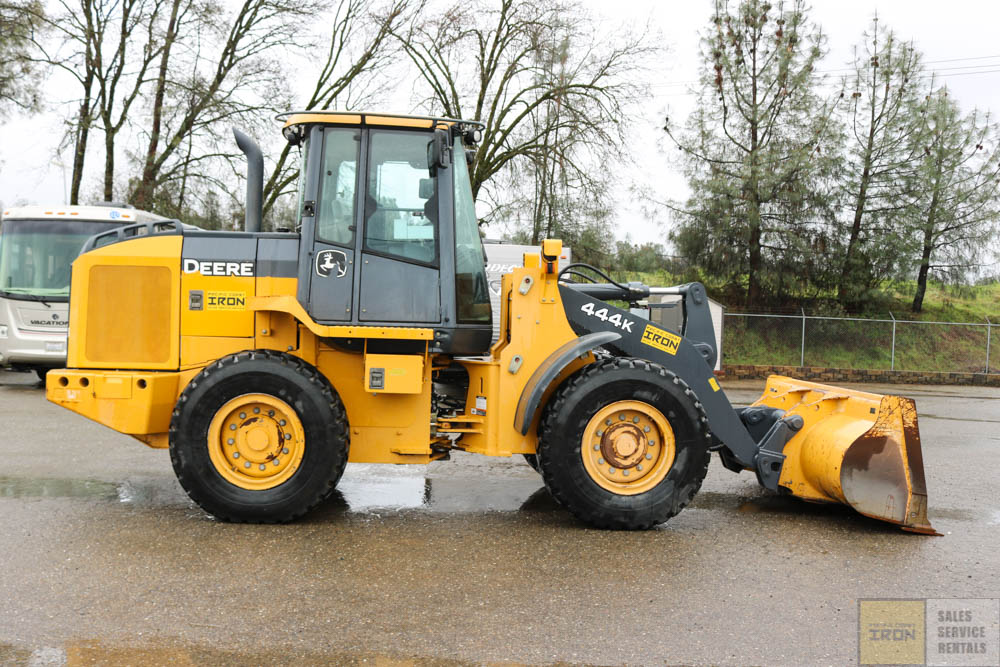

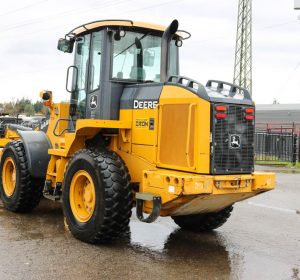

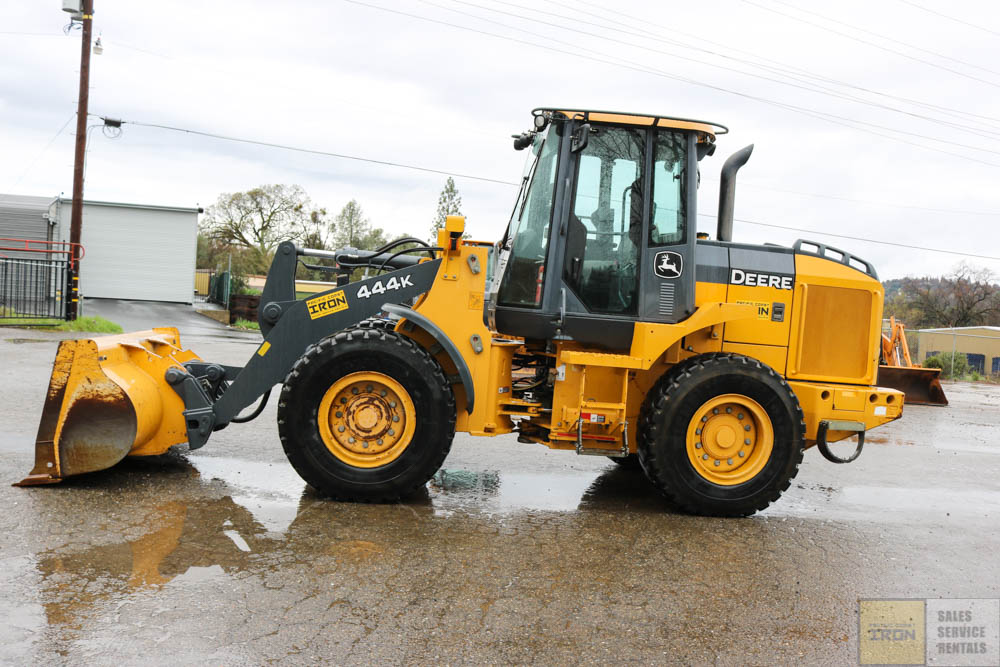

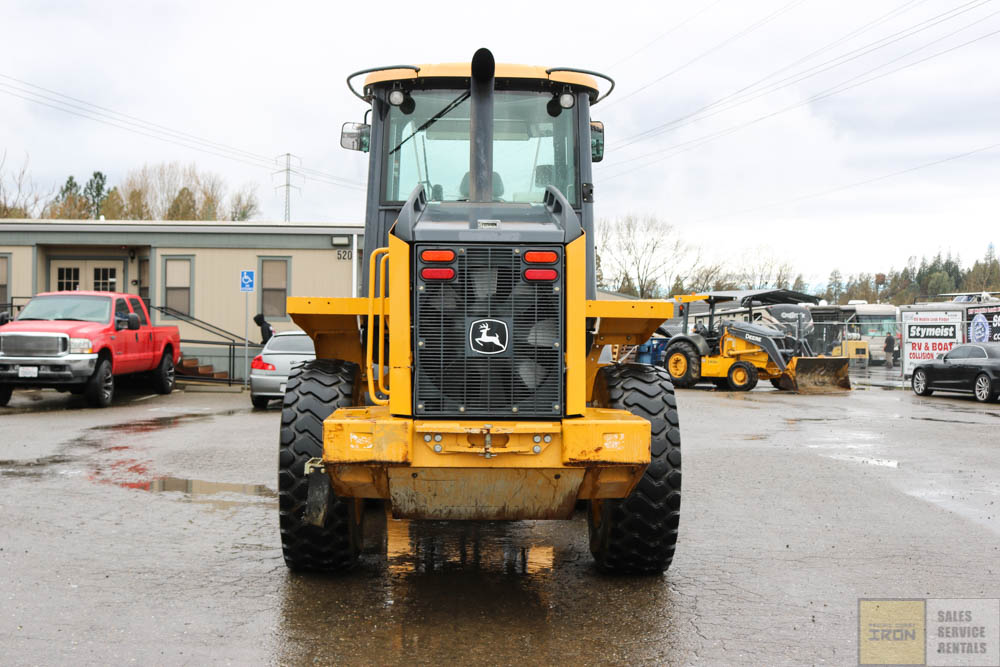

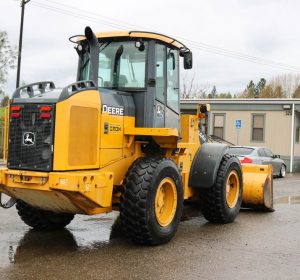

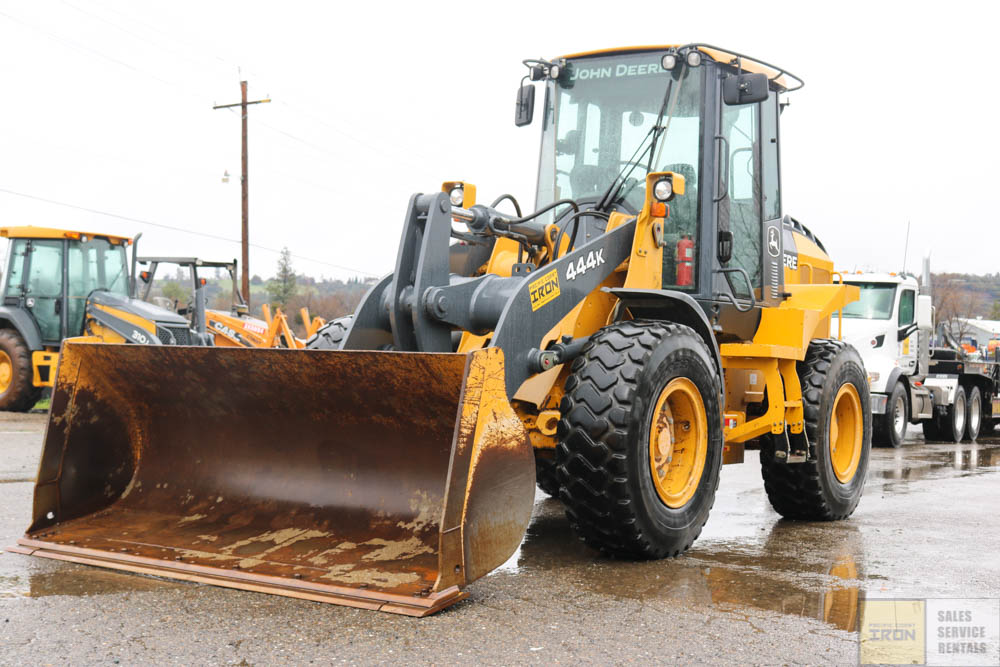

2012 DEERE 444K WHEEL LOADER-(SOLD)
Price $89,900
Call Today: 916.933.6050
Short Description

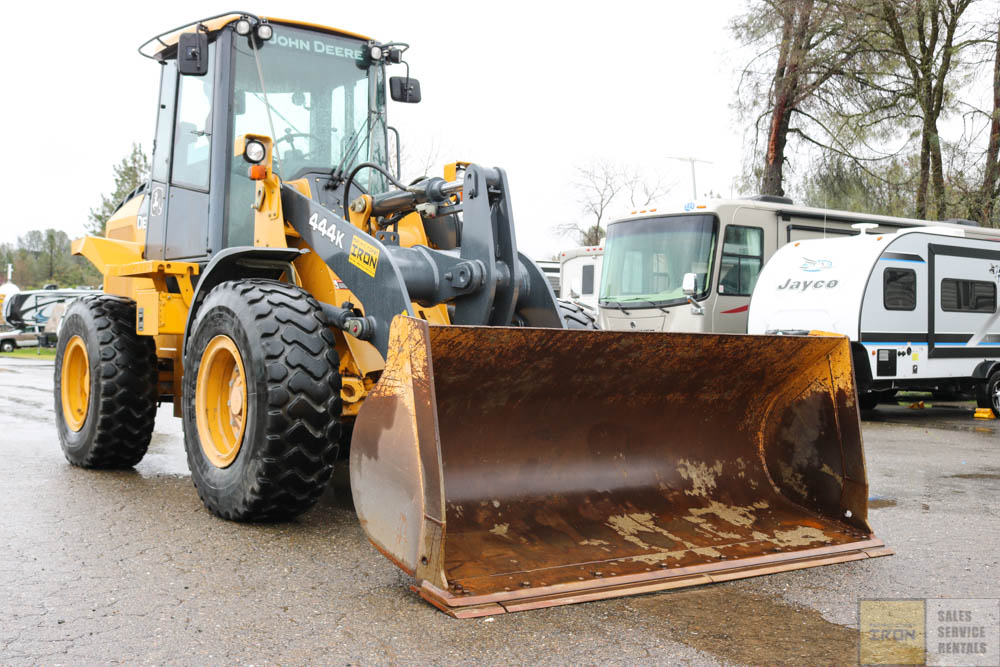

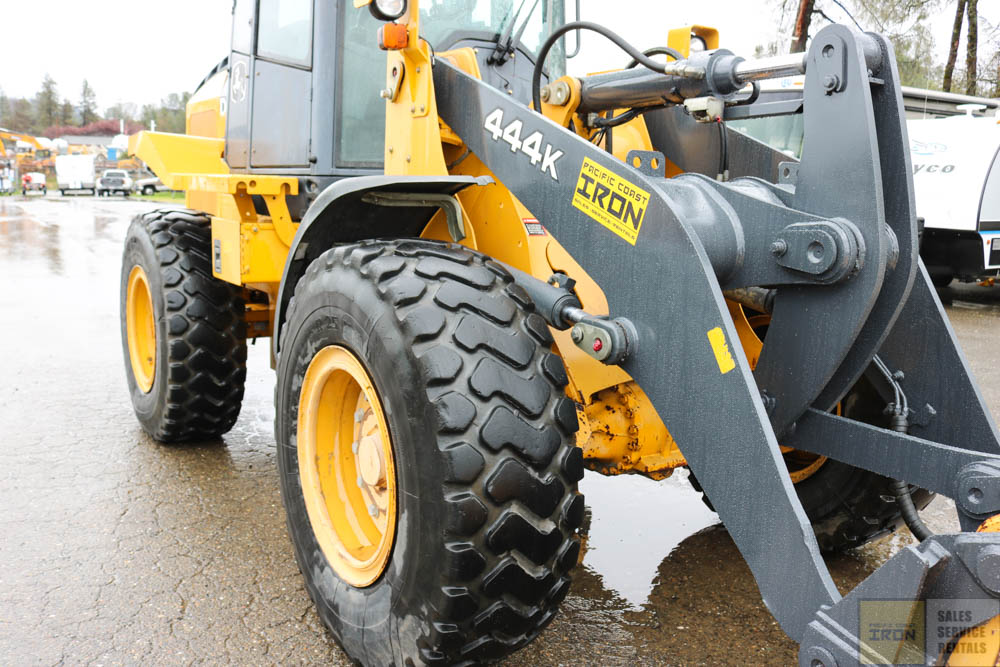

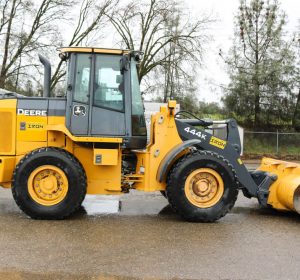

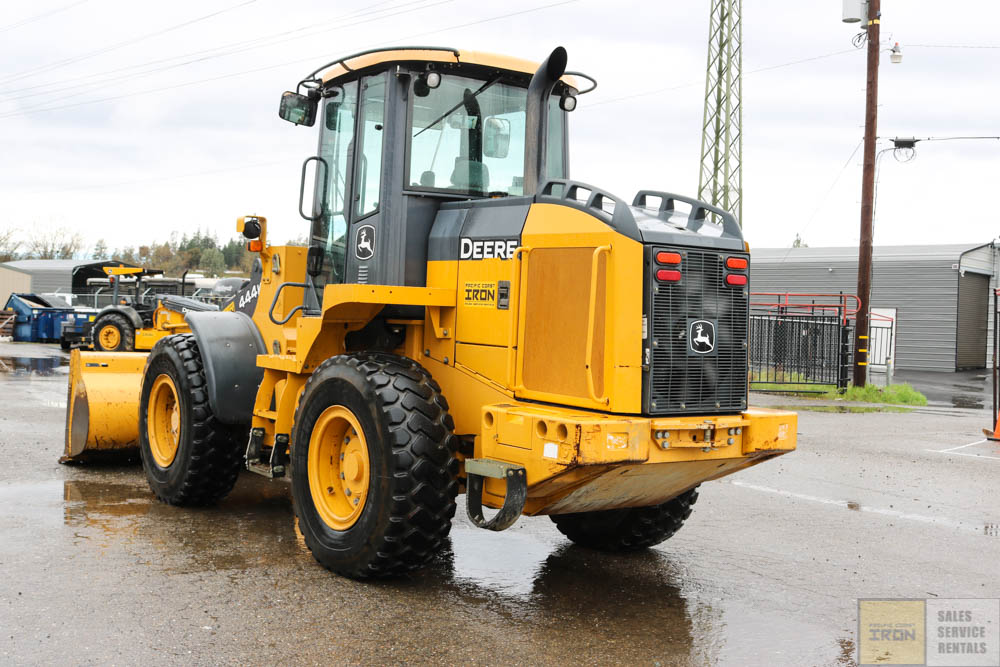

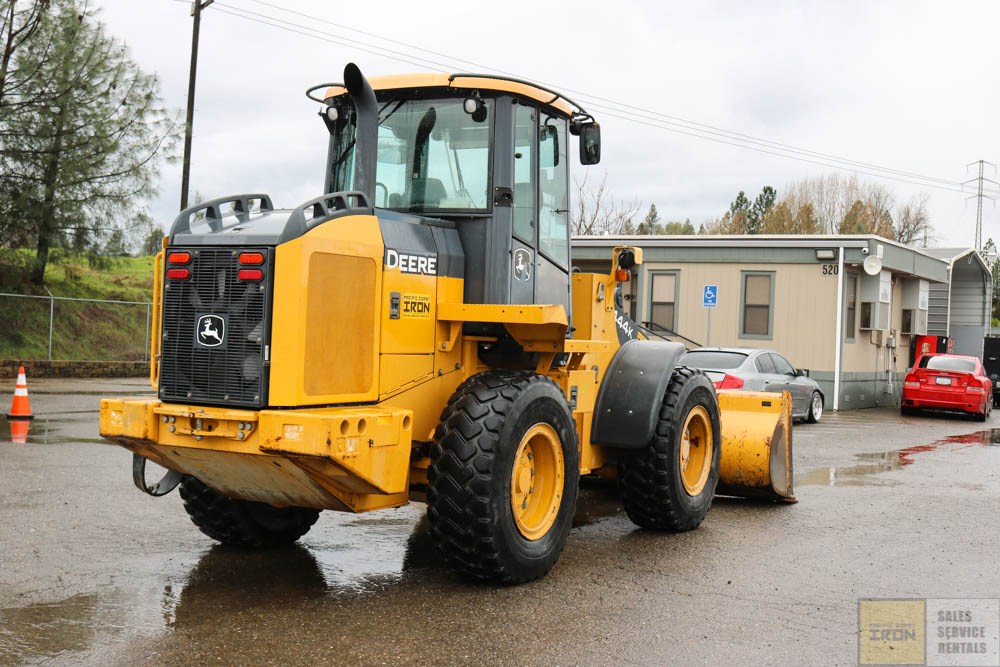

2012 DEERE 444K WHEEL LOADER
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

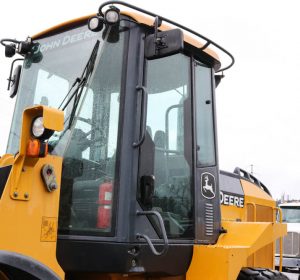

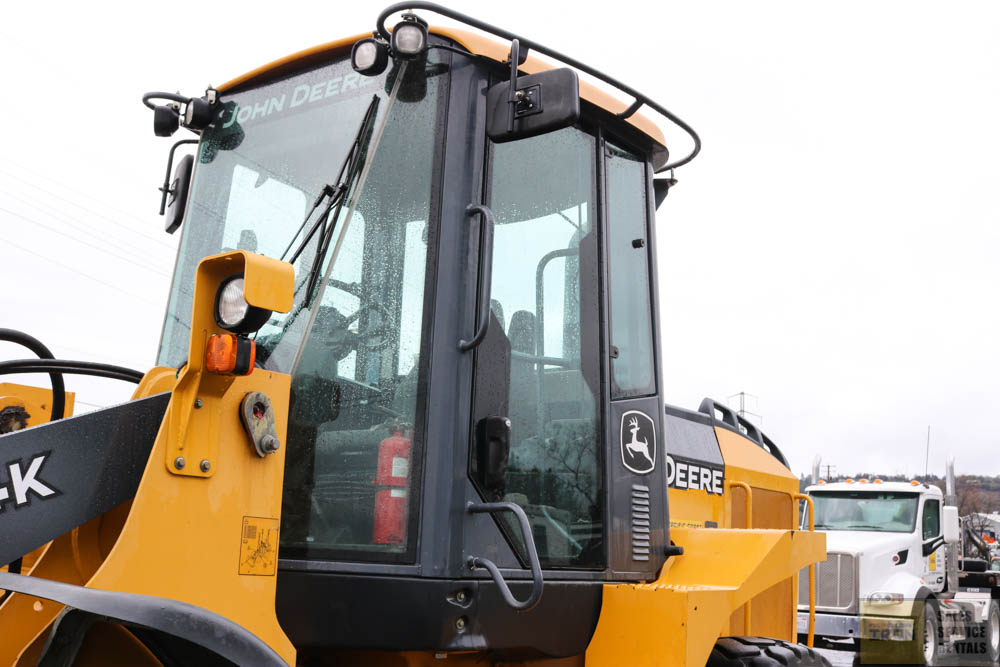

- EROPS

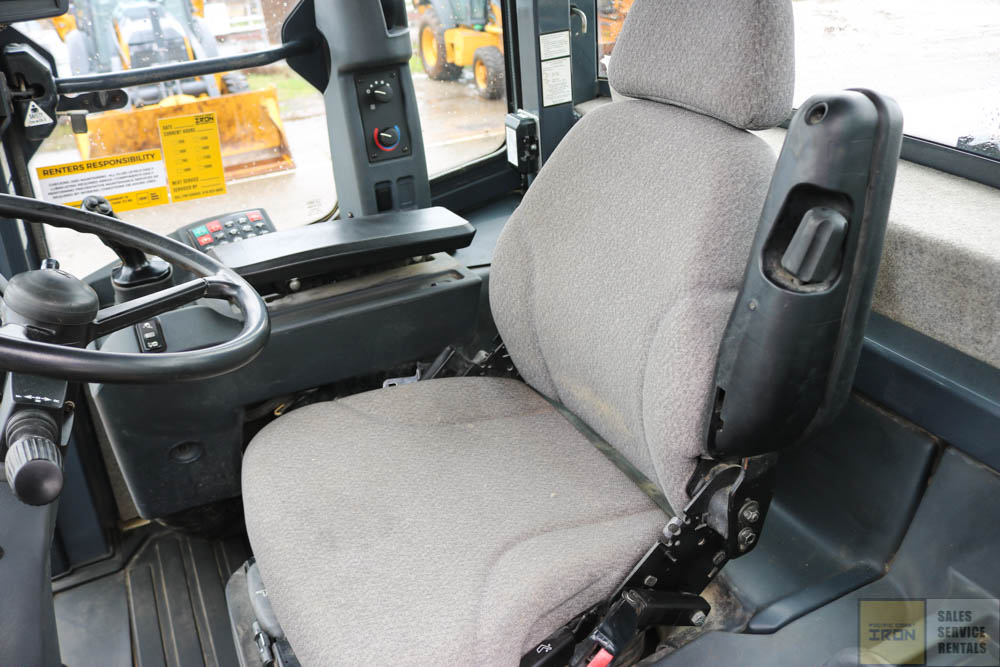

- HEAT/AC
- TIER 3 ENGINE

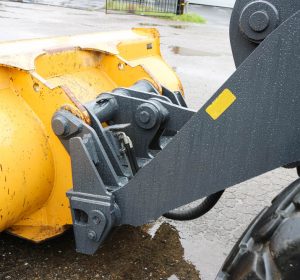

- DEERE QC

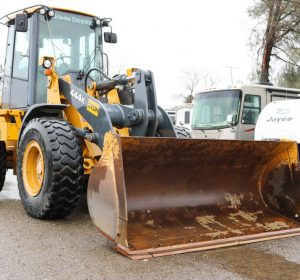

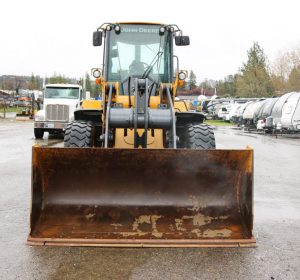

- 3 YD BUCKET
- RIDE CONTROL
Long Description
2012 DEERE 444K WHEEL LOADER

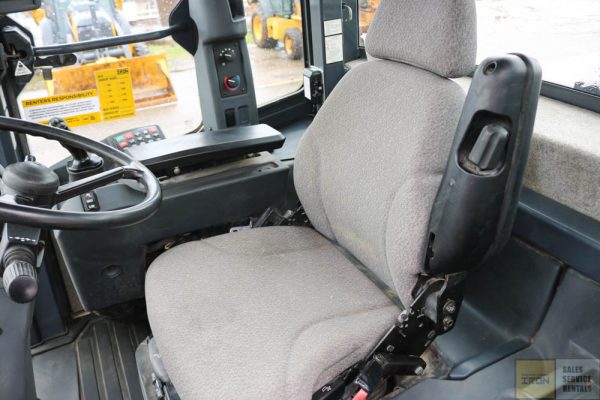

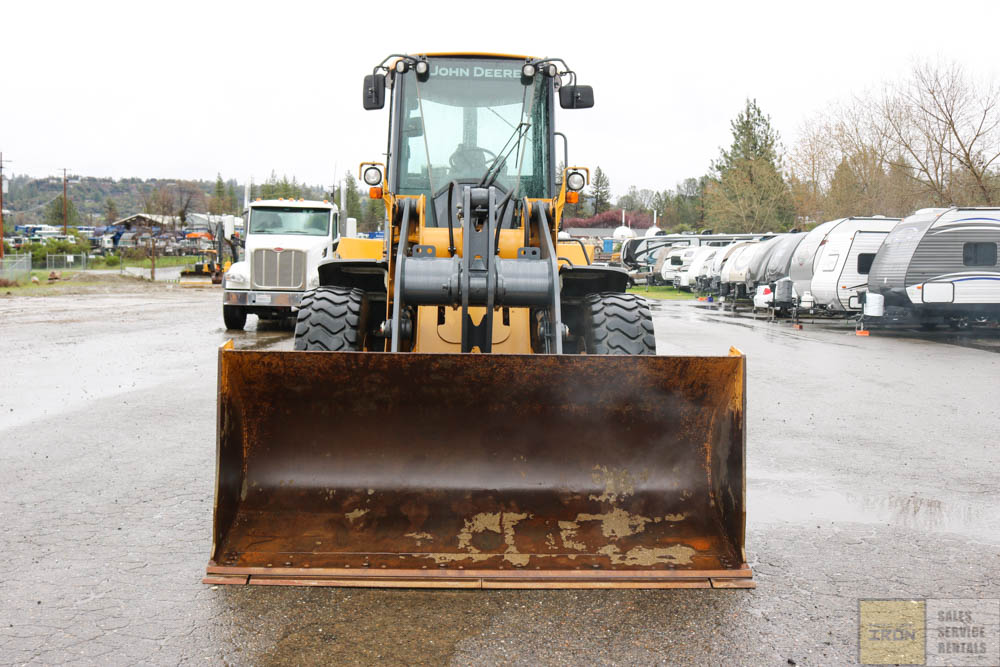

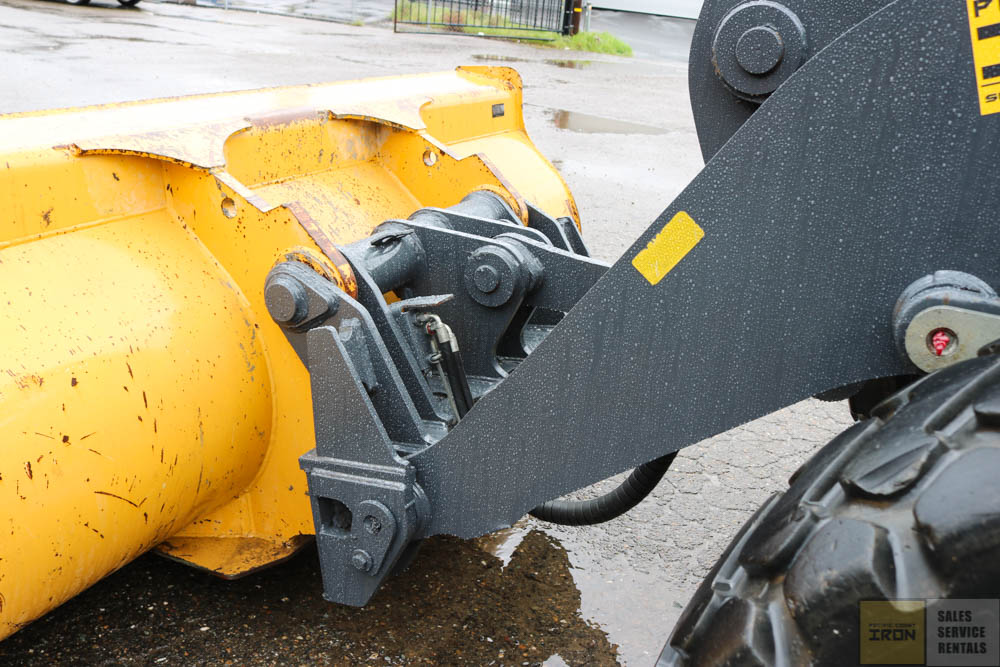

2012 DEERE 444K WHEEL LOADER WITH ONLY 1800HRS! CAB WITH HEAT/AC, QUICK COUPLER, RIDE CONTROL, 2.5YD GP BUCKET, PINS AND BUSHINGS ARE TIGHT, TIER 3 DEERE ENGINE, PROFESSIONALLY MAINTAINED ITS ENTIRE LIFE. READY TO GO TO WORK. PRICED TO MOVE!
SPECIFACATIONS:
Selected Dimensions
Specification

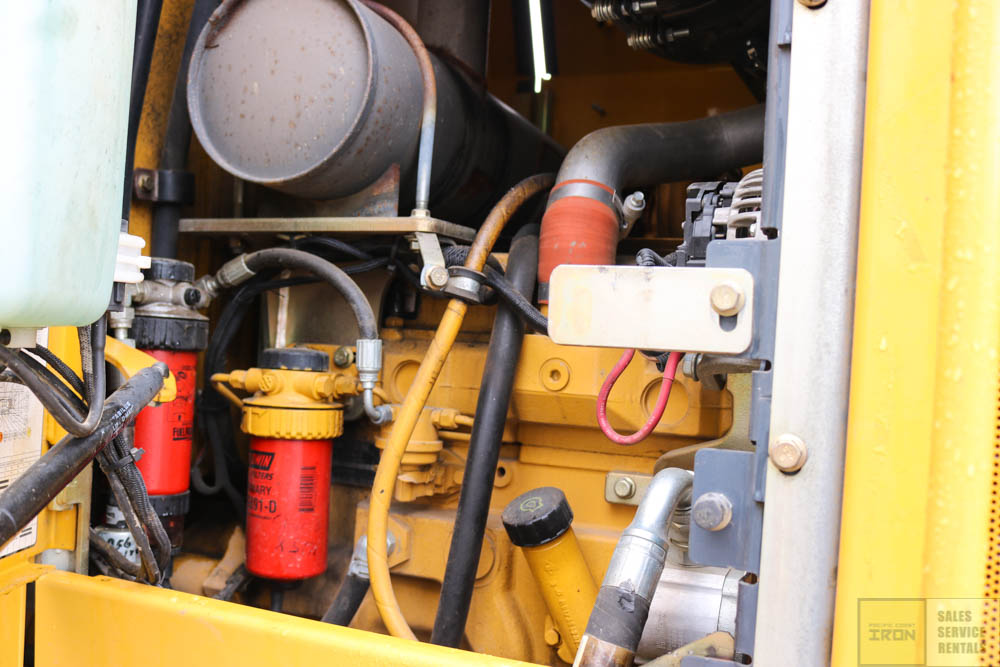

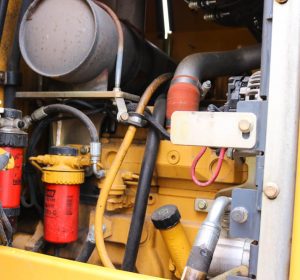

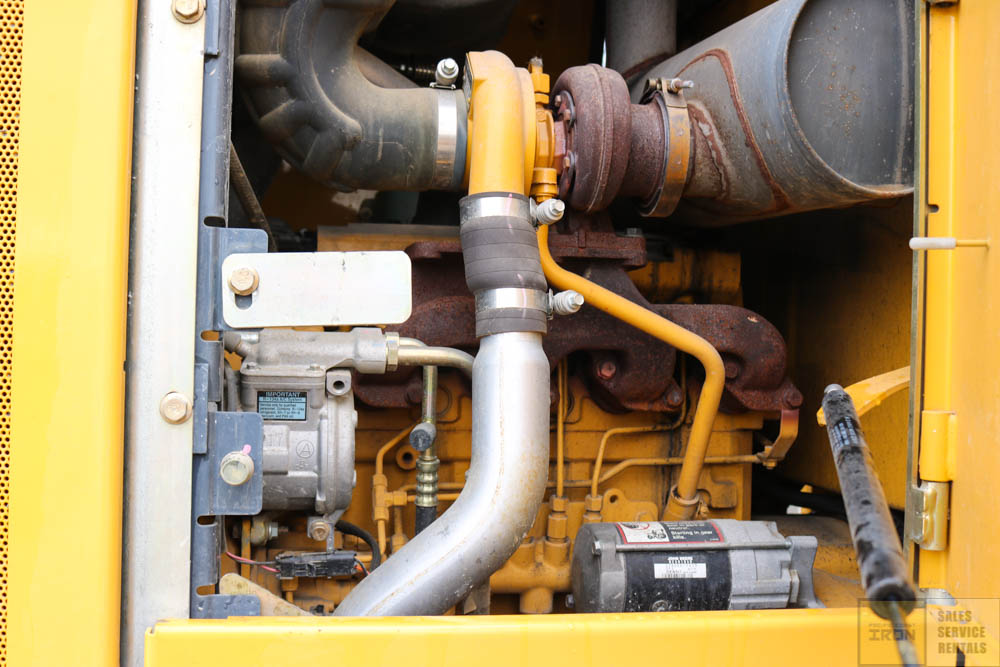

| Engine | ||
| Make | John Deere | |
| Model | E 4045H, Tier III certified | |
| Net Power | 128 hp | 95.4 kw |
| Power Measured @ | 2100 rpm | |
| Displacement | 276 cu in | 4.5 L |
| Torque Measured @ | 1400 rpm | |
| Number of Cylinders | 4 | |
| Max Torque | 380 lb ft | 515.2 Nm |
| Torque Rise | 32 % | |
| Aspiration | Turbocharged charge air cooled | |
| Operational | ||
| Operating Weight | 24372.1 lb | 11055 kg |
| Fuel Capacity | 63.9 gal | 242 L |
| Hydrauilc System Fluid Capacity | 24 gal | 91 L |
| Engine Oil Fluid Capacity | 4.6 gal | 17.5 L |
| Cooling System Fluid Capacity | 5 gal | 19 L |
| Transmission Fluid Capacity | 4.9 gal | 18.5 L |
| Front Axle/Diff Fluid Capacity | 5.8 gal | 22 L |
| Rear Axle/Diff Fluid Capacity | 5.8 gal | 22 L |
| Static Tipping Weight | 20447.9 lb | 9275 kg |
| Turning Radius | 15.6 ft in | 4740 mm |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 80 amps | |
| Rear Axle Oscillation | 24 degrees | |

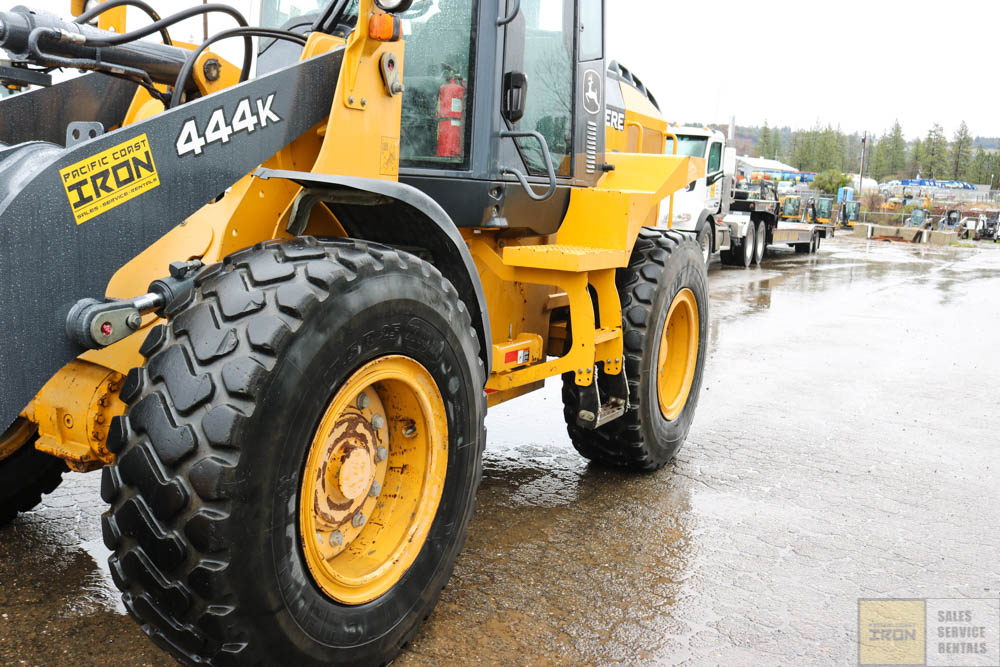

| Tire Size | 17.5 R 25 | |
| Transmission | ||
| Type | Countershaft, powershift | |
| Number of Forward Gears | 4 | |
| Number of Reverse Gears | 3 | |
| Max Speed – Forward | 22.4 mph | 36 km/h |
| Max Speed – Reverse | 15.7 mph | 25.3 km/h |

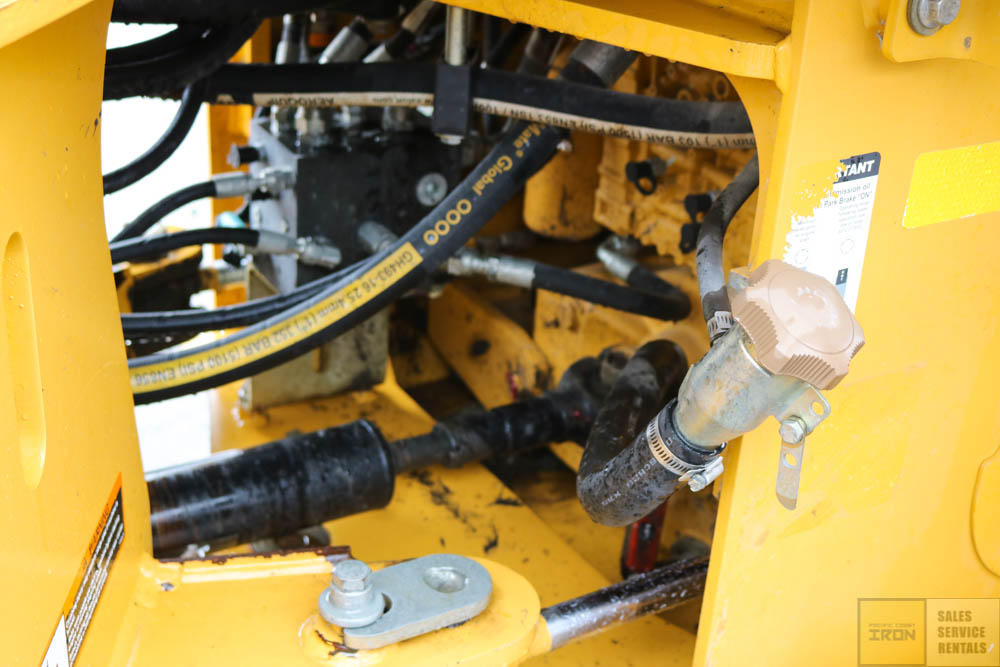

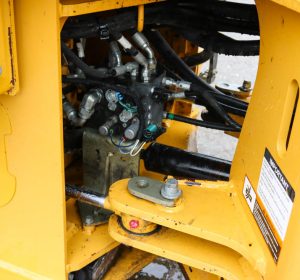

| Hydraulic System | ||
| Pump Type | variable displacement, axial piston | |
| Relief Valve Pressure | 3600 psi | 24821.1 kPa |
| Pump Flow Capacity | 37 gal/min | 140 L/min |
| Raise Time | 5.9 sec | |
| Dump Time | 1 sec | |
| Lower Time | 2.4 sec | |
| Bucket | ||
| Breakout Force | 18104 lb | 80.5 kN |
| Dump Clearance at Max Raise | 8.8 ft in | 2670 mm |
| Bucket Width | 8.3 ft in | 2540 mm |
| Bucket Capacity – heaped | 2.5 yd3 | 1.9 m3 |
| Bucket Capacity – struck | 2.1 yd3 | 1.6 m3 |
| Dimensions | ||
| Length with Bucket on Ground | 22.5 ft in | 6860 mm |
| Width Over Tires | 7.9 ft in | 2415 mm |
| Height to Top of Cab | 10.4 ft in | 3170 mm |
| Ground Clearance | 1.3 ft in | 393 mm |
| Wheelbase | 9.1 ft in | 2760 mm |
| Hinge Pin – Max Height | 11.8 ft in | 3600 mm |
| Reach at Max Lift and Dump | 3.4 ft in | 1040 mm |
