Backhoe
|
||
| J. Load Height – Std | 10.9 ft in | 3330 mm |
| K. Reach From Swivel – Std | 17.8 ft in | 5440 mm |
| L. Dig Depth – Std | 14.3 ft in | 4340 mm |
|
Dimensions
|
||
| A. Transport Length | 23.3 ft in | 7086.6 mm |
| B. Transport Width | 7.2 ft in | 2180 mm |
| C. Transport Height | 11.3 ft in | 3430 mm |
| D. Wheelbase | 6.9 ft in | 2110 mm |
| E. Ground Clearance | 1 ft in | 305 mm |
| F. Height to Top of Cab | 9 ft in | 2743.2 mm |
|
Loader
|
||
| G. Clearance at Max Dump Height | 8.8 ft in | 2690 mm |
| H. Reach at Max Dump Height | 2.6 ft in | 785 mm |
| I. Dig Depth | 6.3 in | 160 mm |

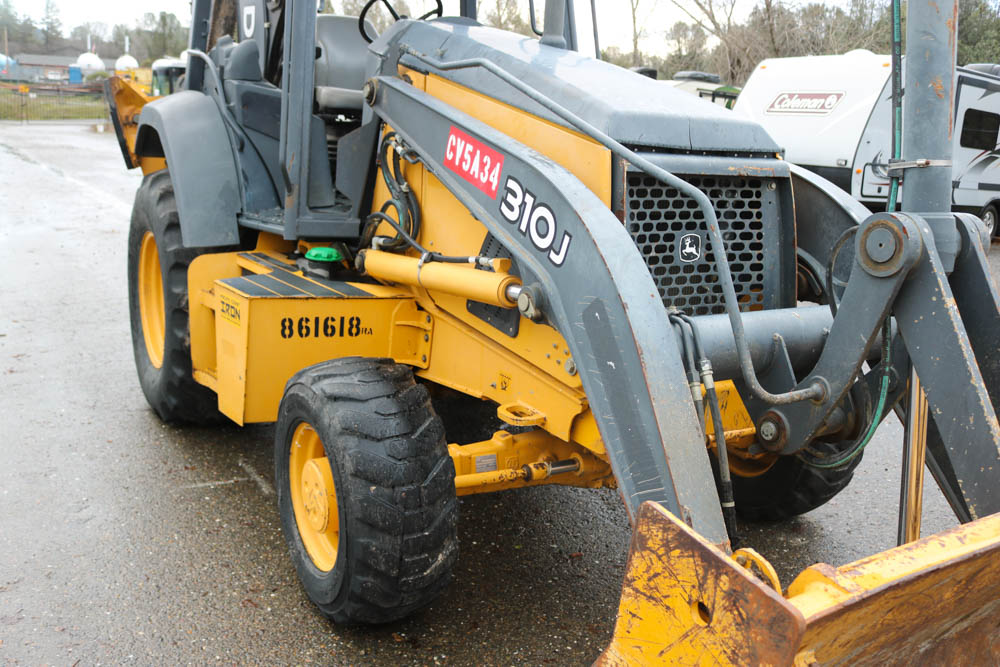

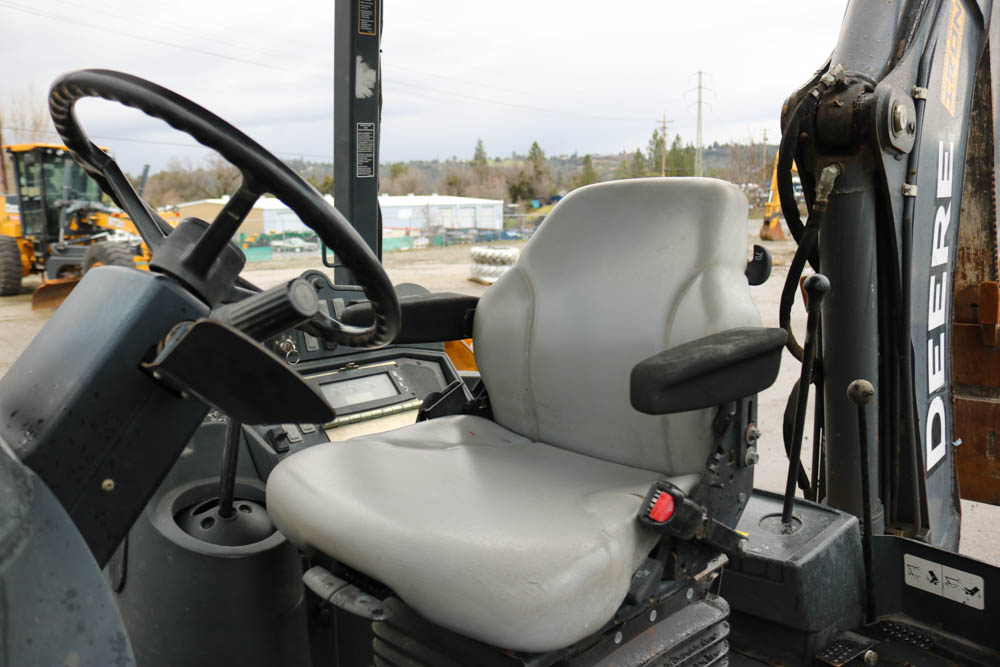

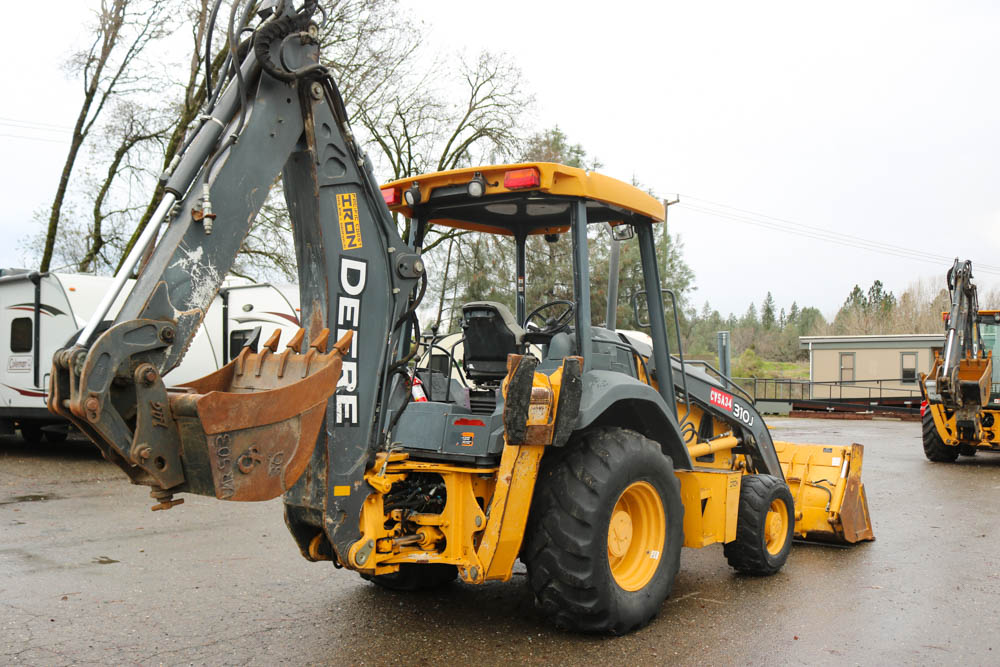

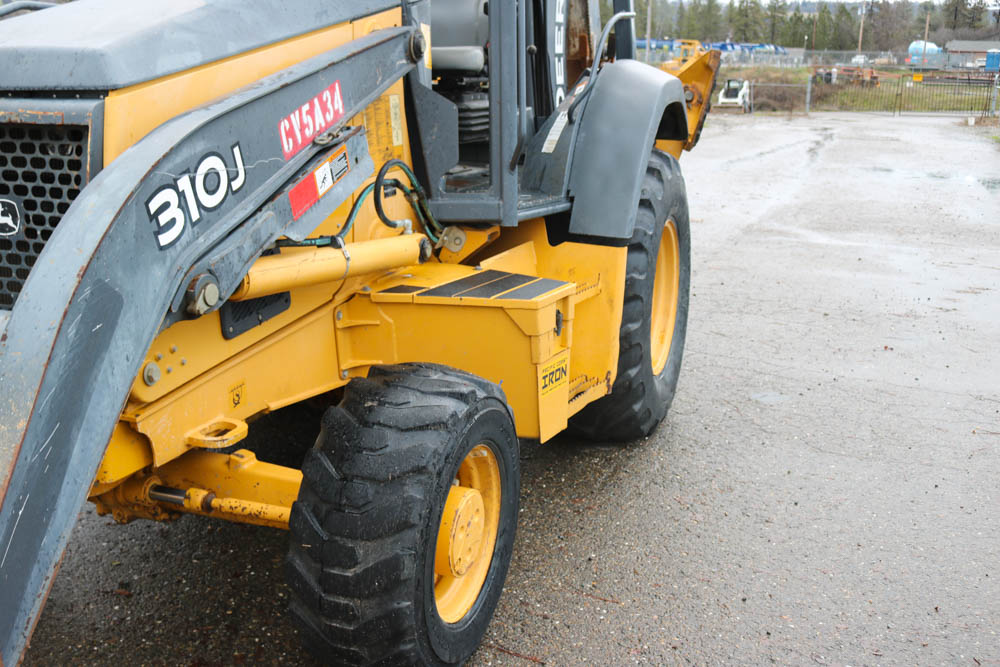

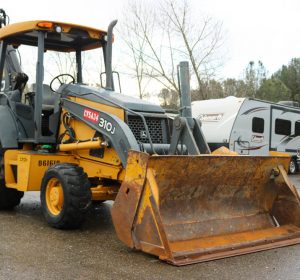

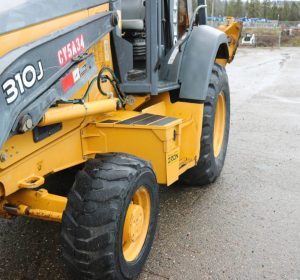

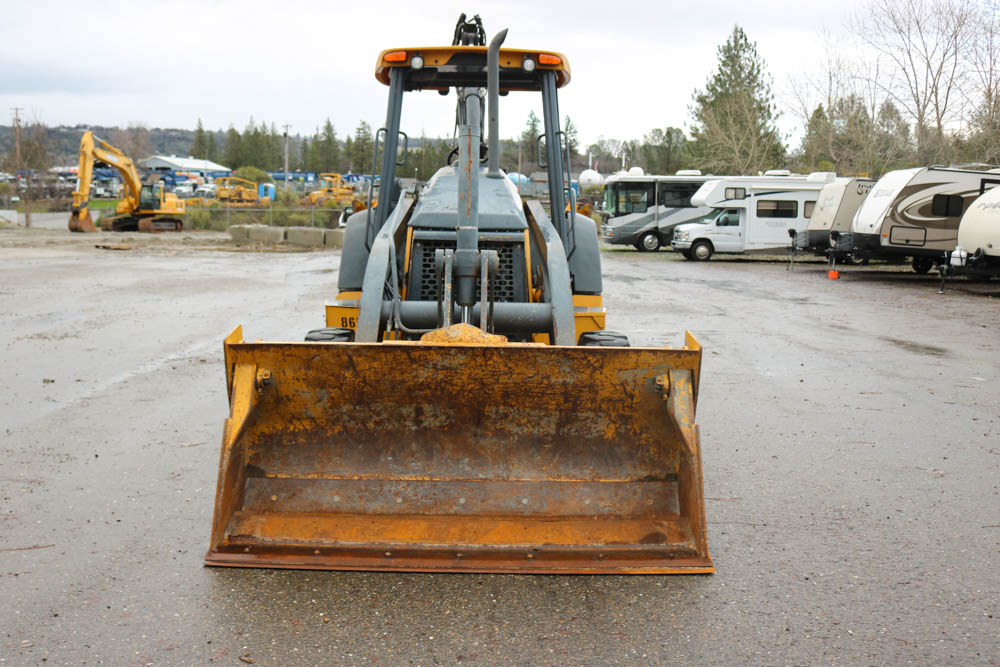

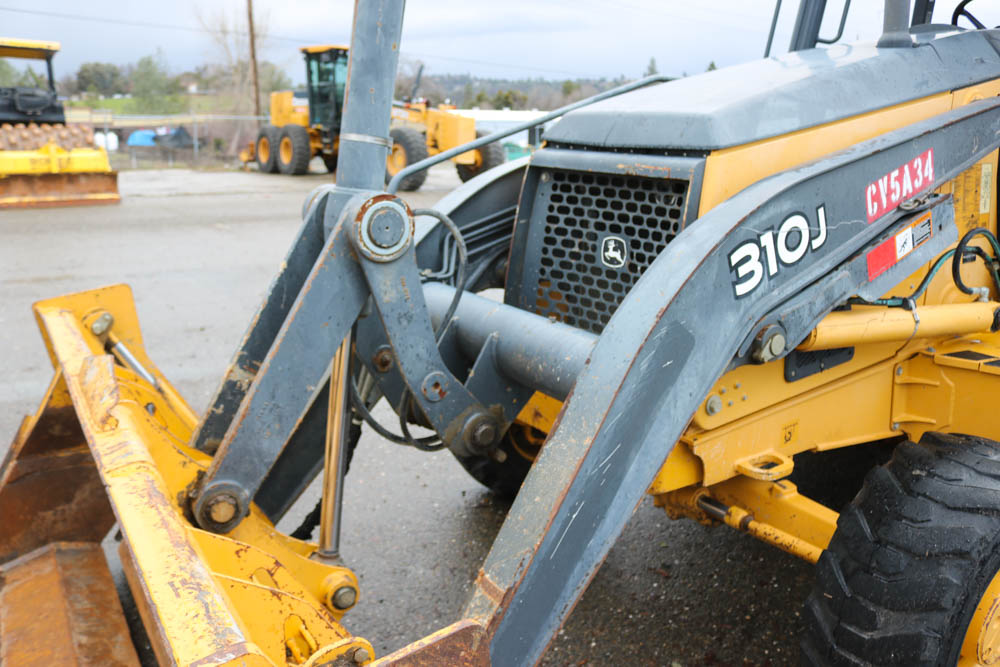

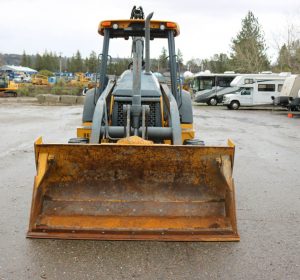

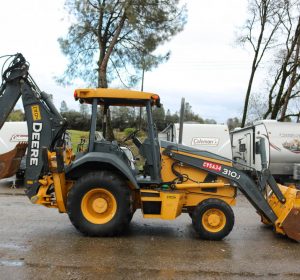

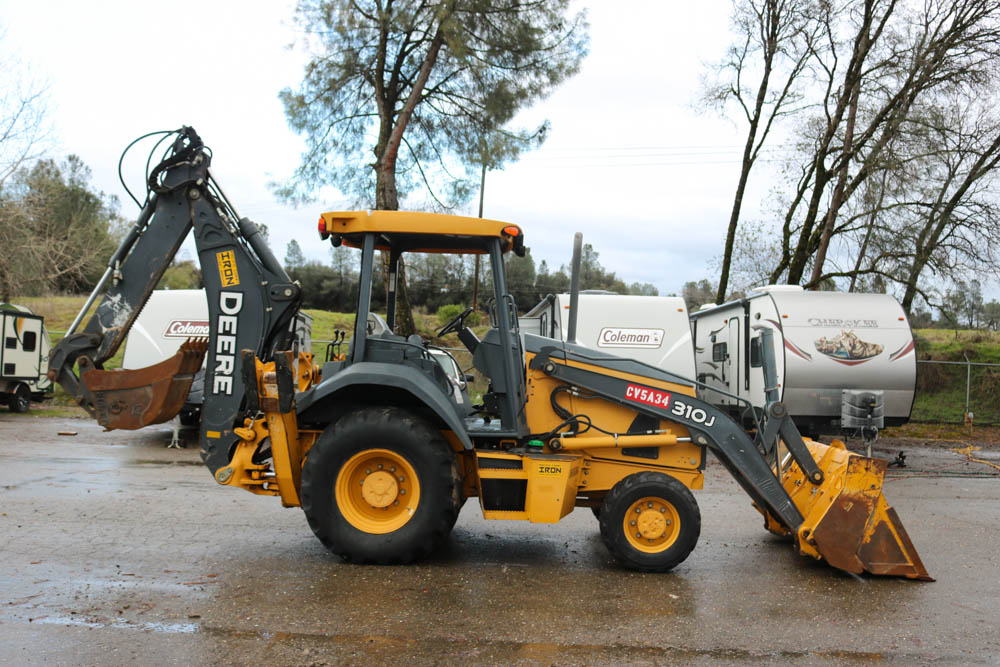

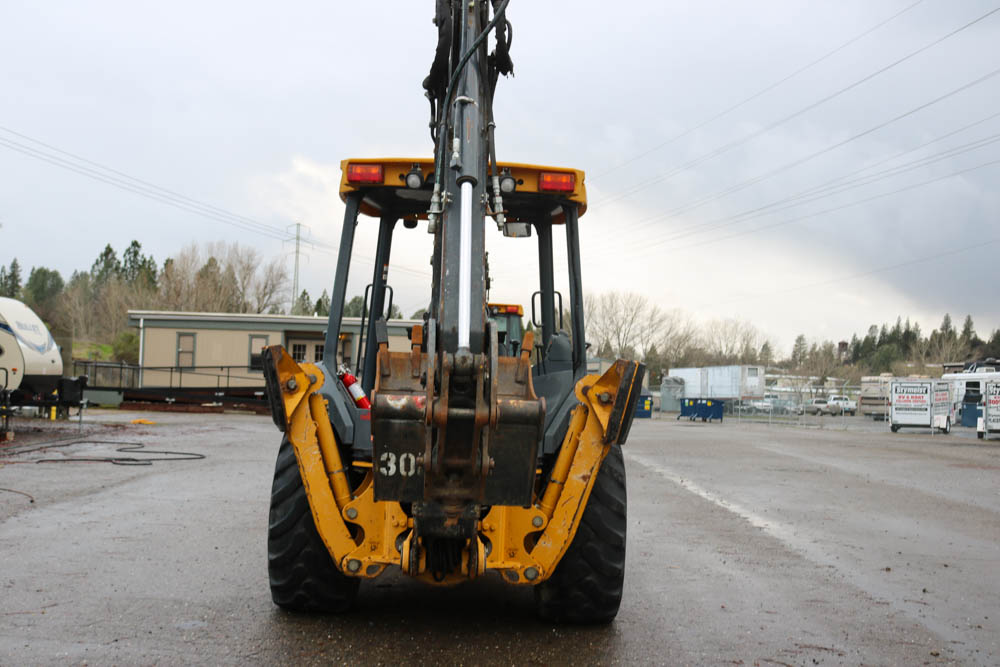

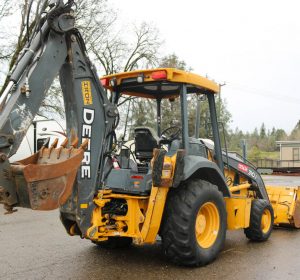

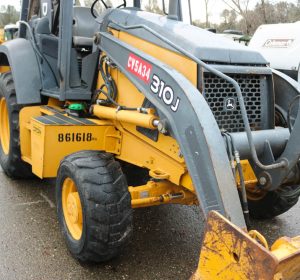

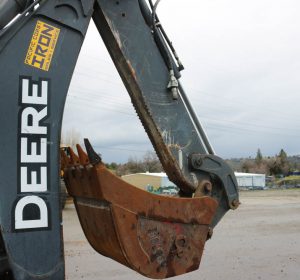

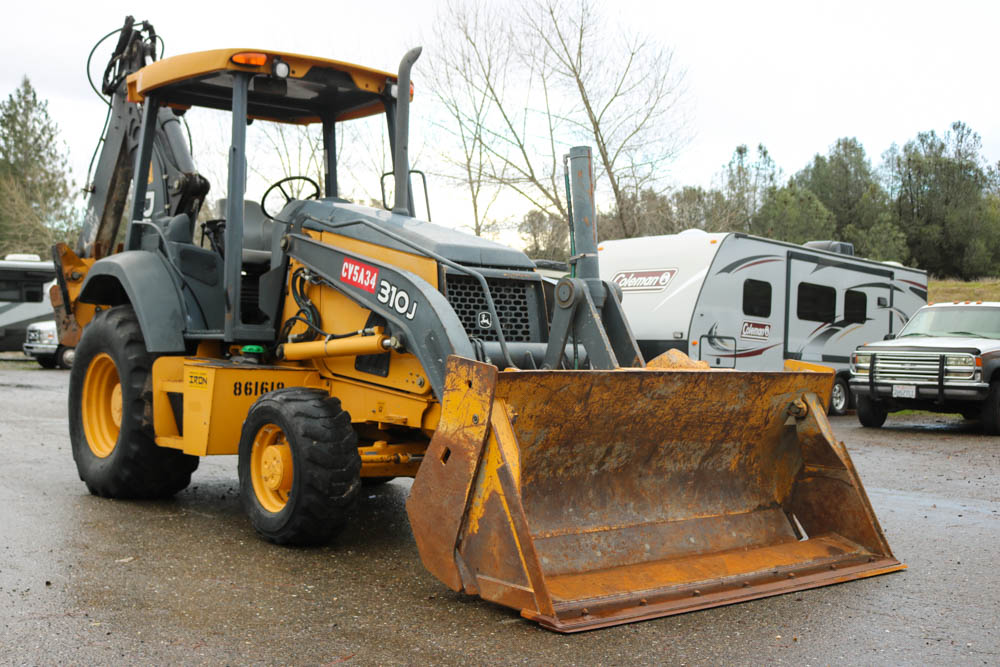

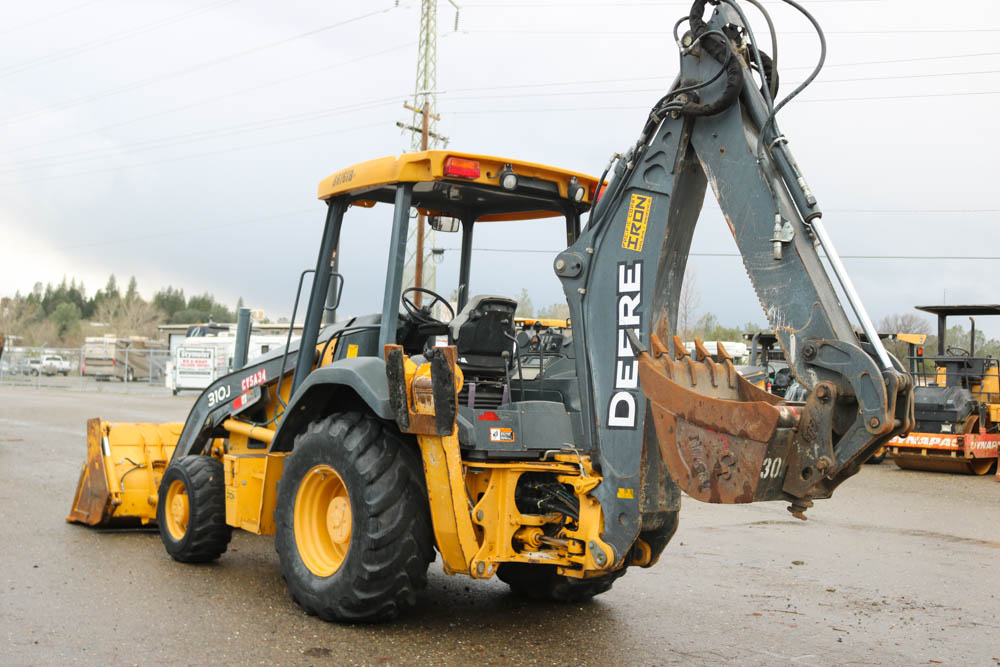

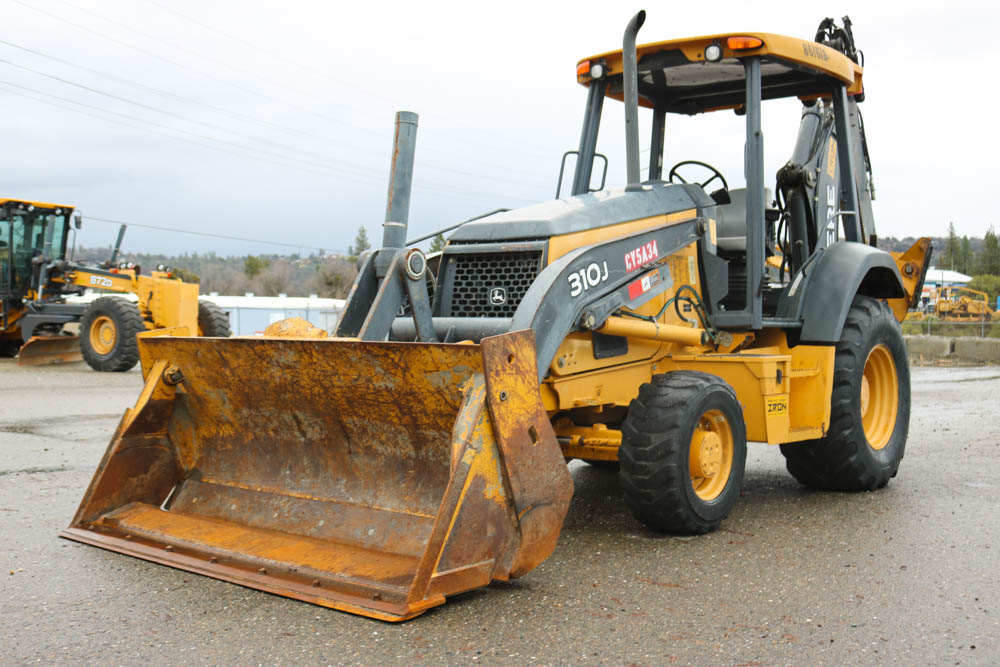

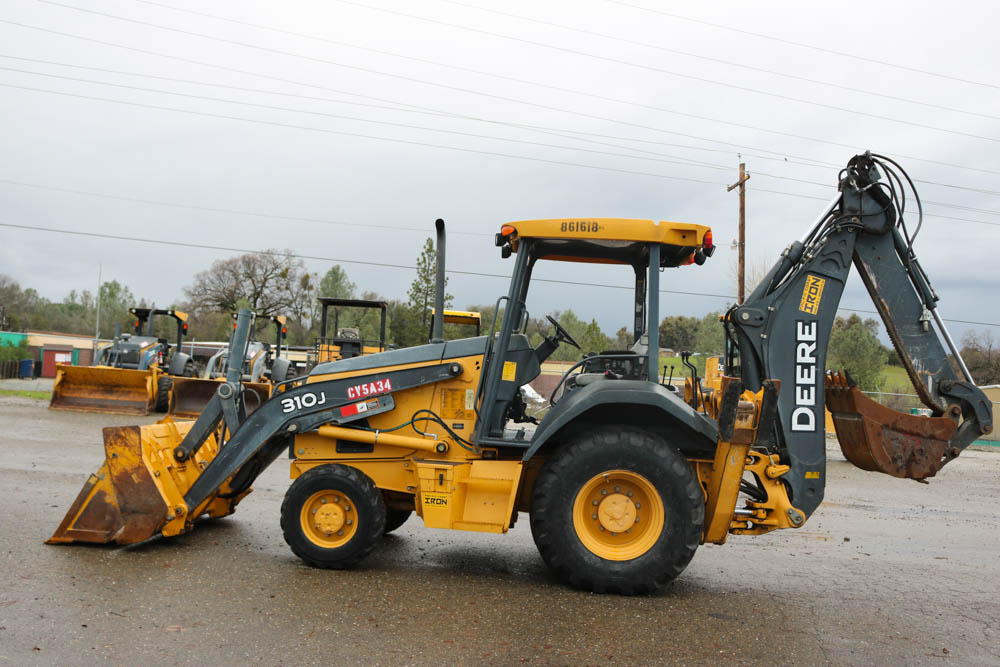

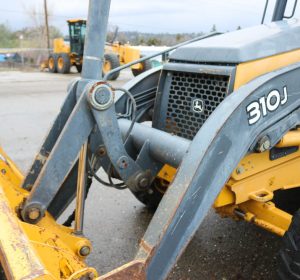

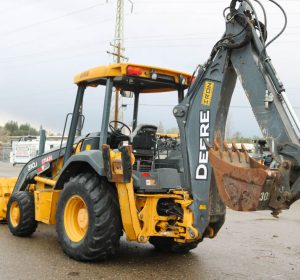

2012 DEERE 310J LOADER BACKHOE
Price $49,900
Call Today: 916.933.6050
Short Description
2012 DEERE 310J LOADER BACKHOE
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:
- OROPS
- TIER 3 DEERE ENGINE
- 4X4
- MP BUCKET

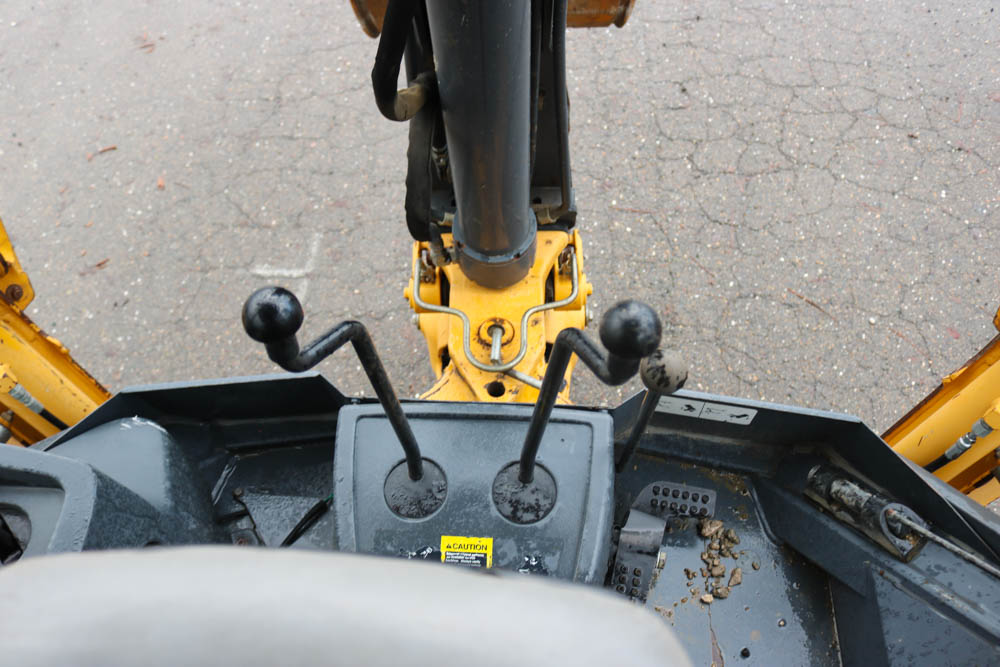

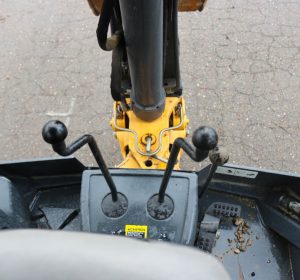

- DEERE CONTROLS

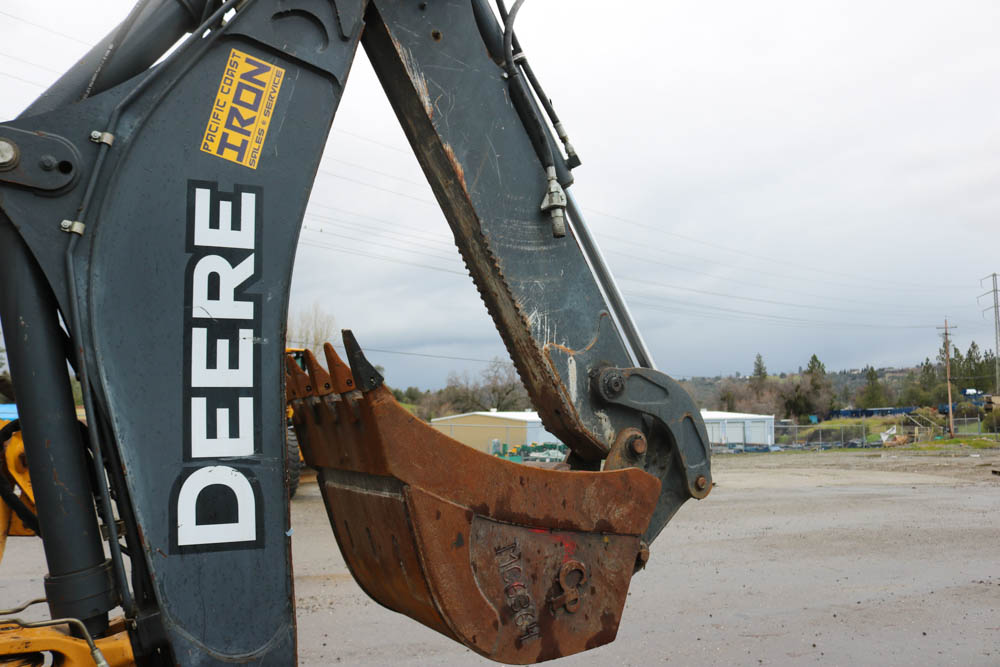

- E-STICK
- WR COUPLER

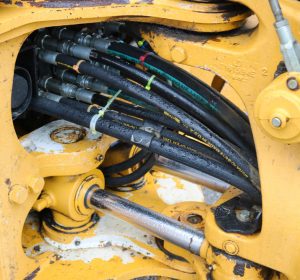

- AUX HYDRAULICS
Long Description
2012 DEERE 310J LOADER BACKHOE -$49,900
2012 DEERE 310J LOADER BACKHOE WITH ONLY 2900HRS! UNIT IS EQUIPPED WITH E-STICK, 4X4, AUX HYDRAULICS, DEERE CONTROLS, OROPS, TIER 3 DEERE ENGINE, AND AN MP BUCKET. FRONT TIRES 40%, REAR TIRES 70%. NICE TIGHT UNIT READY TO GO TO WORK!
SPECIFICATIONS:
Specification
| Engine | ||
| Make | John Deere | |
| Model | 4045D | |
| Net Power | 72 hp | 54 kw |
| Displacement | 276 cu in | 4.5 L |
| Power Measured @ | 2000 rpm | |
| Number of Cylinders | 4 | |
| Net Torque Rise | 36 % | |
| Net Max Torque | 209 lb ft | 284 Nm |
| Aspiration | Natural | |
| Operational | ||
| Operating Weight 2wd | 13800 lb | 6260 kg |
| Operating Weight 4wd | 16140 lb | 7321 kg |
| Max Weight | 1750 lb | 795 kg |
| Fuel Capacity | 41 gal | 155 L |
| Hydraulic System Fluid Capacity | 24 gal | 91 L |
| Oil System Fluid Capacity | 3.4 gal | 13 L |
| Cooling System Fluid Capacity | 5.5 gal | 21 L |
| Transmission Fluid Capacity | 4 gal | 15 L |
| Front Axle Fluid Capacity | 1.7 gal | 6.5 L |
| Rear Axle Fluid Capacity | 4.8 gal | 18 L |
| Tire Size Front – 2wd / 4wd | 11L-15 SL F-3(8)(12)/12-16.5 NHS SS-1(8) | |
| Rear Tires Size 2wd/4wd | 19.5L-24 R-4(10) | |
| Operating Voltage | 12 V | |
| Alternator Supplied Amperage | 90 amps | |
| Transmission | ||
| Type | Powershift | |
| Number of Forward Gears | 4 | |
| Number of Reverse Gears | 4 | |
| Max Speed – Forward | 22.4 mph | 36.1 km/h |
| Max Speed Reverse | 8.2 mph | 13.2 km/h |
| Backhoe | ||
| Dig Depth – Std | 14.3 ft in | 4340 mm |
| Dig Depth – Ext | 17.9 ft in | 5460 mm |
| Reach From Swivel – Std | 17.8 ft in | 5440 mm |
| Reach From Swivel – Ext | 21.4 ft in | 6530 mm |
| Load at Max Lift – Std | 2545 lb | 1154 kg |
| Load at Max Lift – Ext | 2227 lb | 1010 kg |
| Load Height – Std | 10.9 ft in | 3330 mm |
| Load Height – Ext | 13.9 ft in | 4240 mm |
| Loader | ||
| Bucket Capacity | 1 yd3 | 0.77 m3 |
| Bucket Width | 86 in | 2184.4 mm |
| Bucket Breakout Force | 8497.8 lb | 37.8 kN |
| Lift Capacity at Full Height | 6206 lb | 2815 kg |
| Clearance at Max Dump Height | 8.8 ft in | 2690 mm |
| Reach at Max Dump Height | 2.6 ft in | 785 mm |
| Dig Depth | 6.3 in | 160 mm |
| Hydraulic | ||
| Pump Type | Gear | |
| Pump Flow Capacity | 28 gal/min | 106 L/min |
| Relief Valve Pressure | 3625 psi | 24993.5 kPa |
| Dimensions | ||
| Transport Length | 23.3 ft in | 7086.6 mm |
| Transport Width | 7.2 ft in | 2180 mm |
| Transport Height | 11.3 ft in | 3430 mm |
| Height to Top of Cab | 9 ft in | 2743.2 mm |
| Wheelbase | 6.9 ft in | 2110 mm |
| Ground Clearance | 1 ft in | 305 mm |
