| A. Shipping Length of Unit | 32 ft in | 9740 mm |
| C. Shipping Height of Unit | 10.5 ft in | 3200 mm |
| I. Max Cutting Height | 34.7 ft in | 10560 mm |
| J. Max Loading Height | 25.1 ft in | 7640 mm |
| K. Max Reach Along Ground | 30.6 ft in | 9320 mm |
| L. Max Vertical Wall Digging Depth | 17.2 ft in | 5230 mm |
| M. Max Digging Depth | 20.4 ft in | 6210 mm |
| A. Shipping Length of Unit | 31.6 ft in | 9620 mm |
| C. Shipping Height of Unit | 9.8 ft in | 2980 mm |
| I. Max Cutting Height | 36 ft in | 10980 mm |
| J. Max Loading Height | 26.4 ft in | 8050 mm |
| K. Max Reach Along Ground | 32.3 ft in | 9830 mm |
| L. Max Vertical Wall Digging Depth | 19.4 ft in | 5920 mm |
| M. Max Digging Depth | 22 ft in | 6700 mm |
|
Dimensions
|
||
| B. Width to Outside of Tracks | 10.5 ft in | 3200 mm |
| D. Length of Track on Ground | 12 ft in | 3660 mm |
| E. Ground Clearance | 1.5 ft in | 450 mm |
| G. Height to Top of Cab | 9.8 ft in | 2950 mm |
| H. Tail Swing Radius | 5.5 ft in | 1680 mm |
| O. Counterweight Clearance | 3.2 ft in | 975 mm |
|
Undercarriage
|
||
| F. Track Gauge | 9.2 ft in | 2790 mm |
| N. Shoe Size | 32 in | 800 mm |

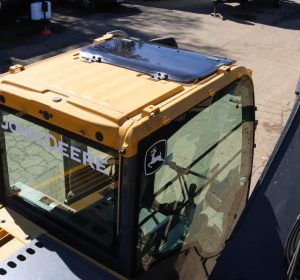

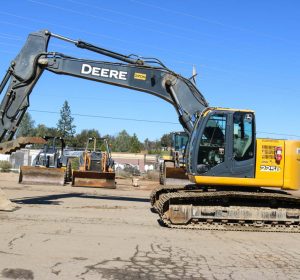

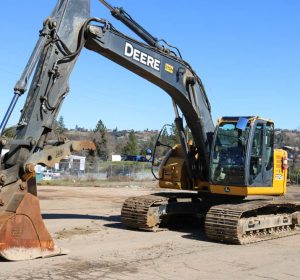

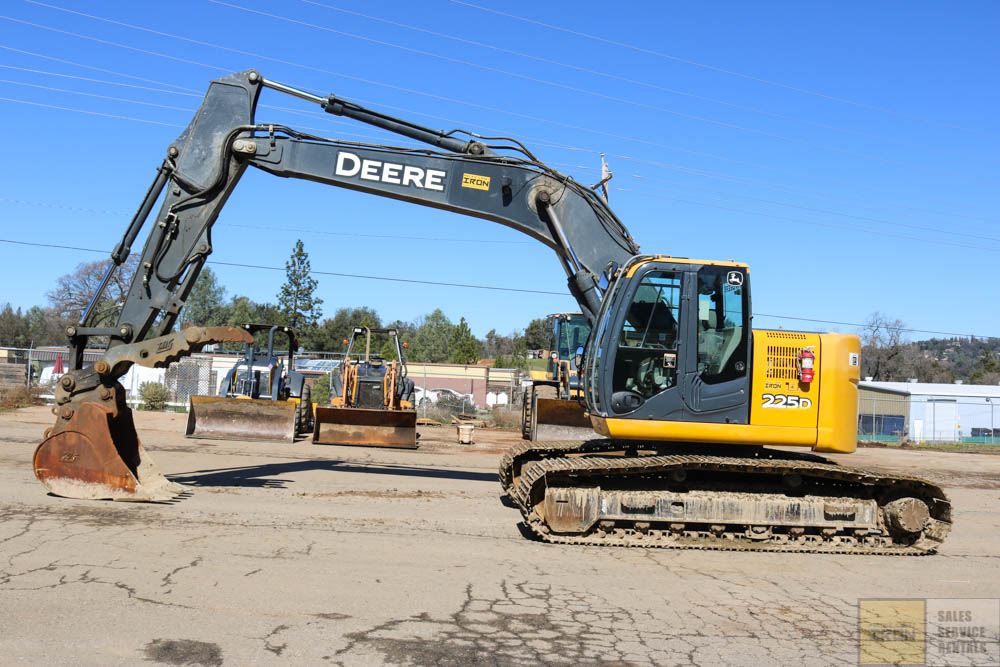

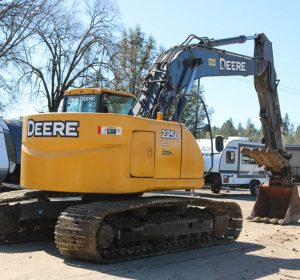

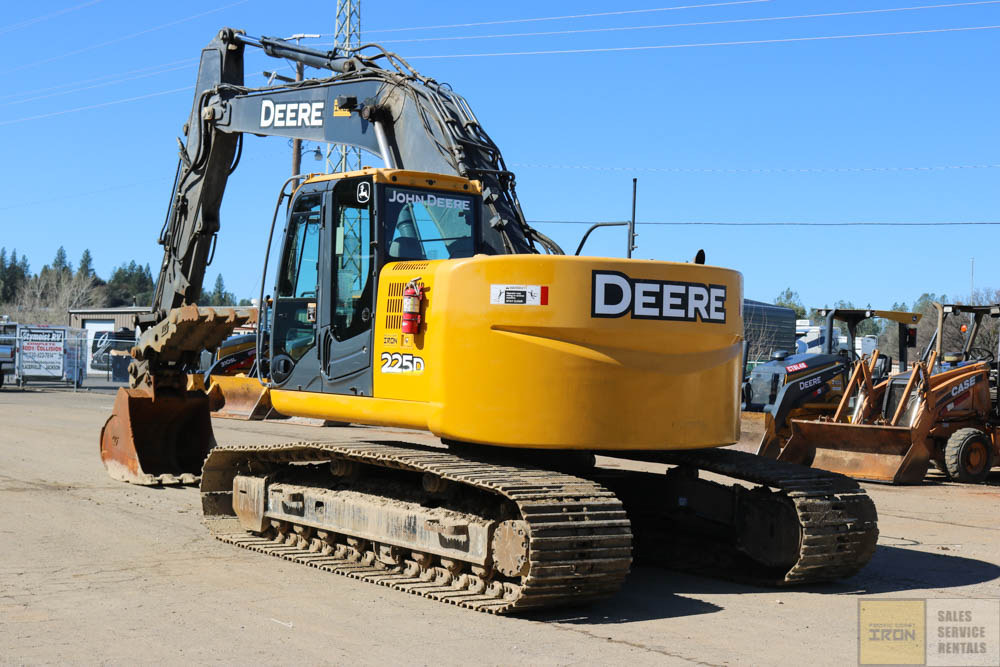

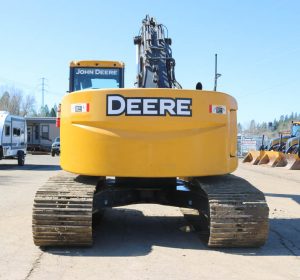

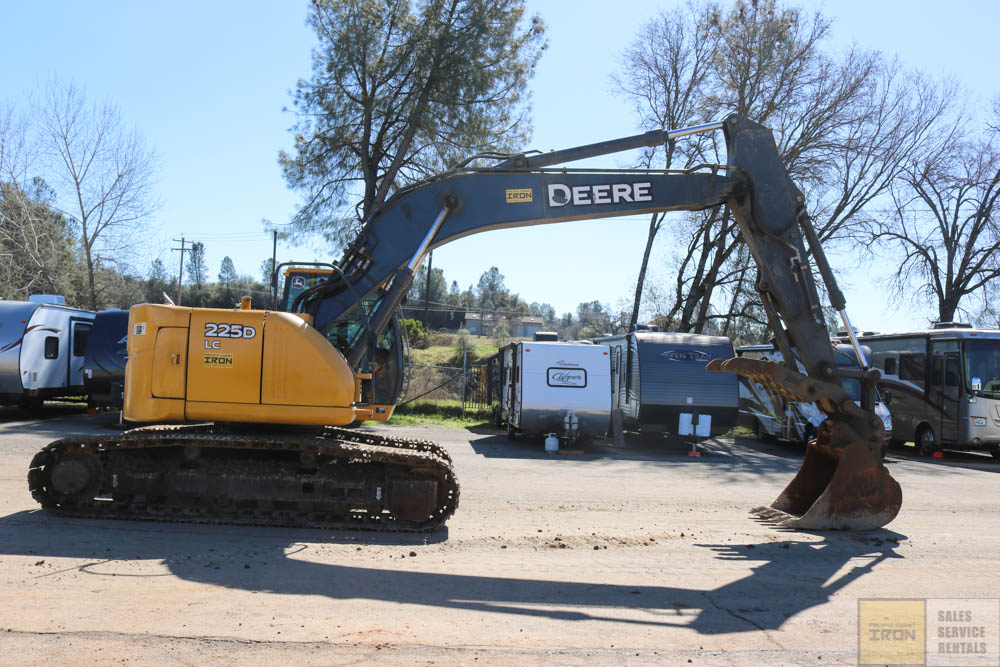

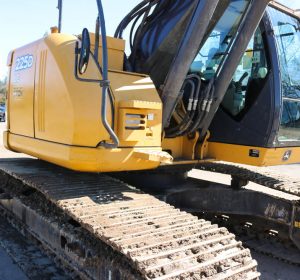

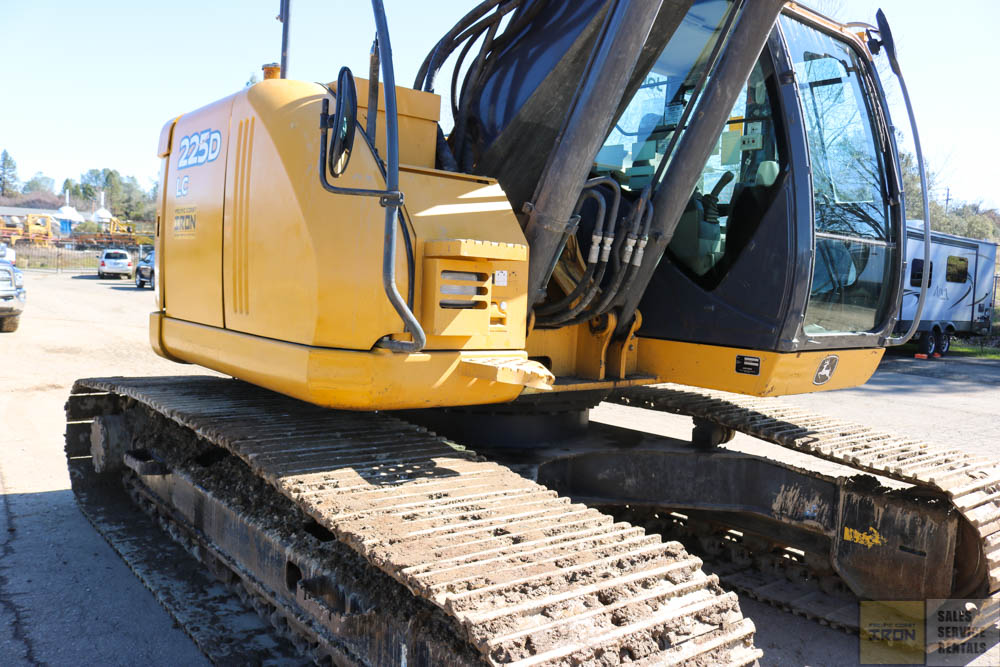

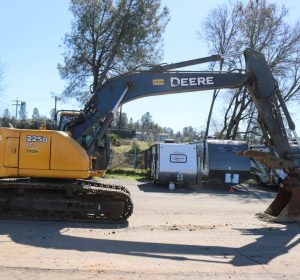

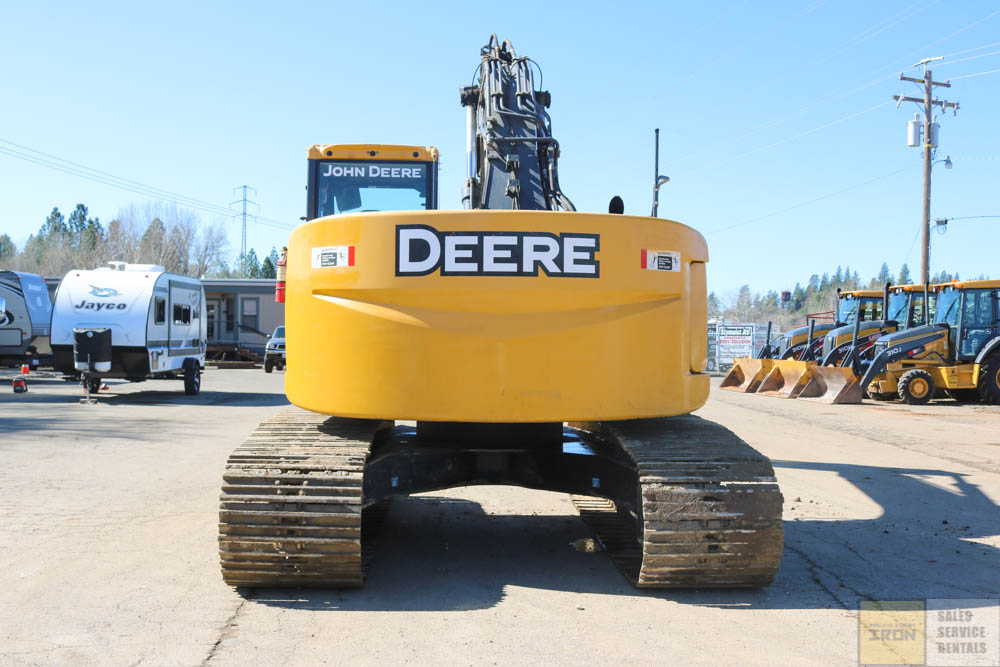

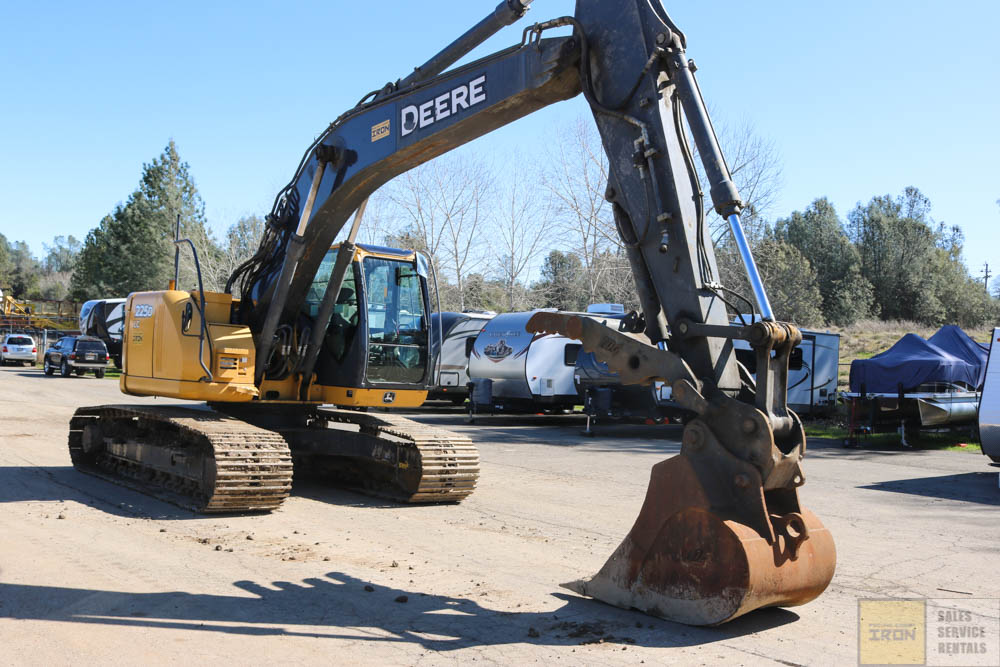

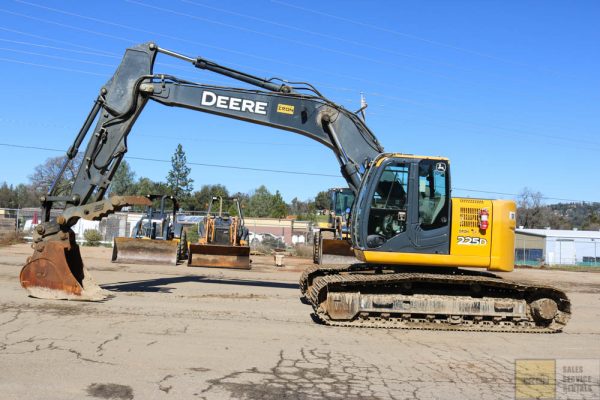

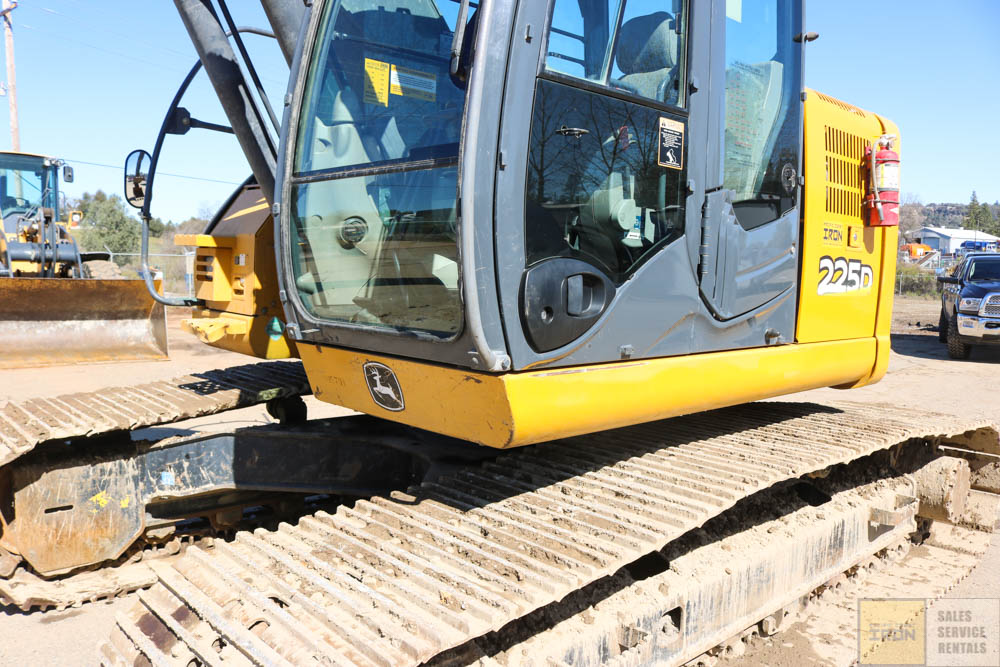

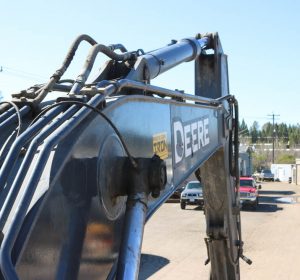

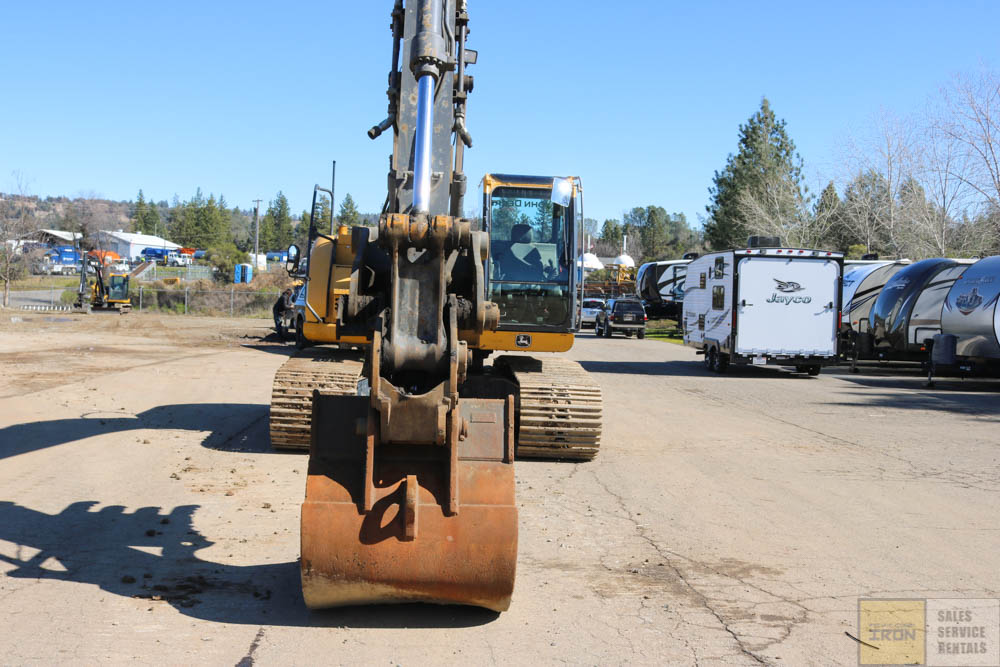

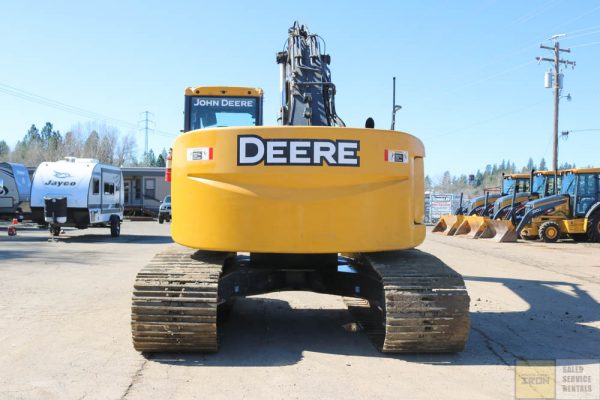

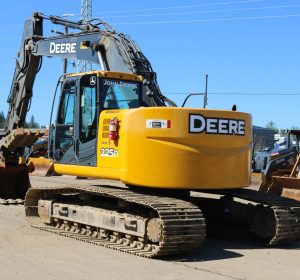

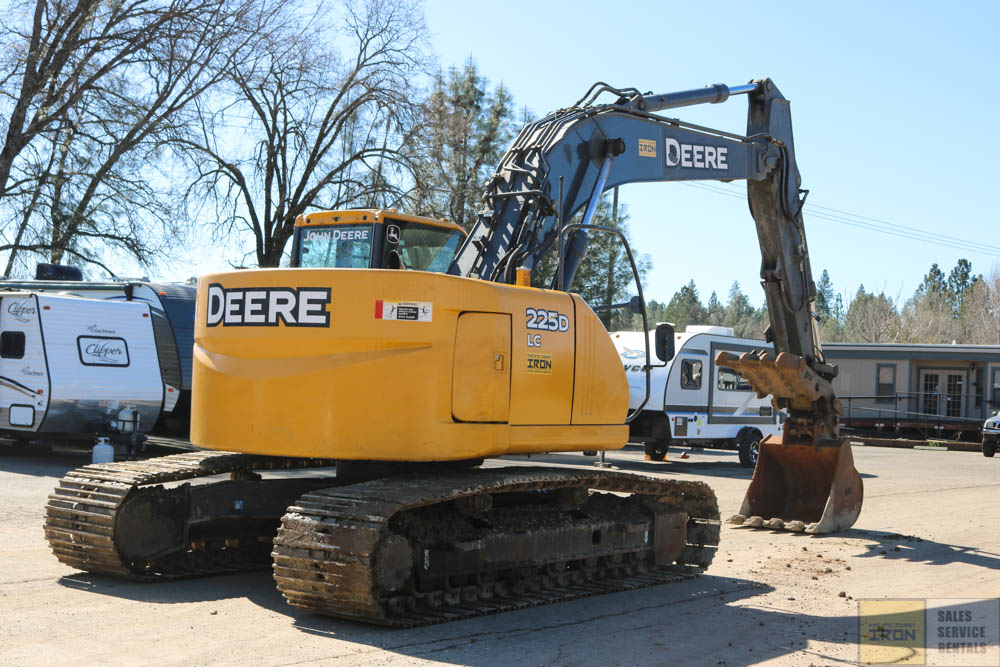

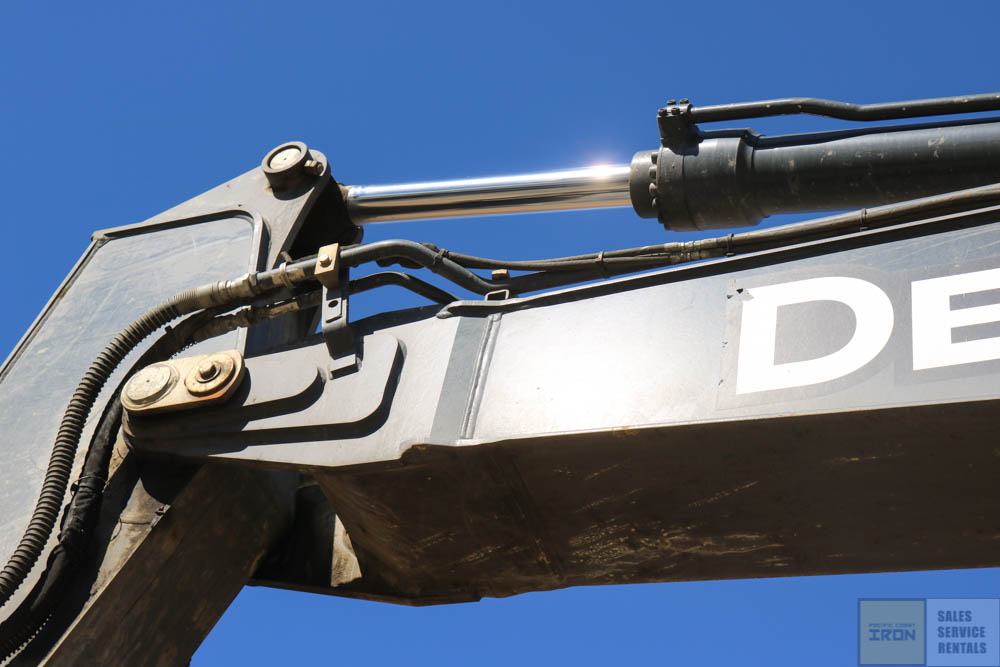

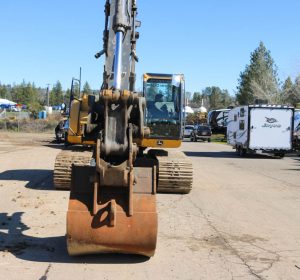

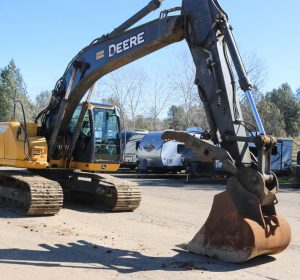

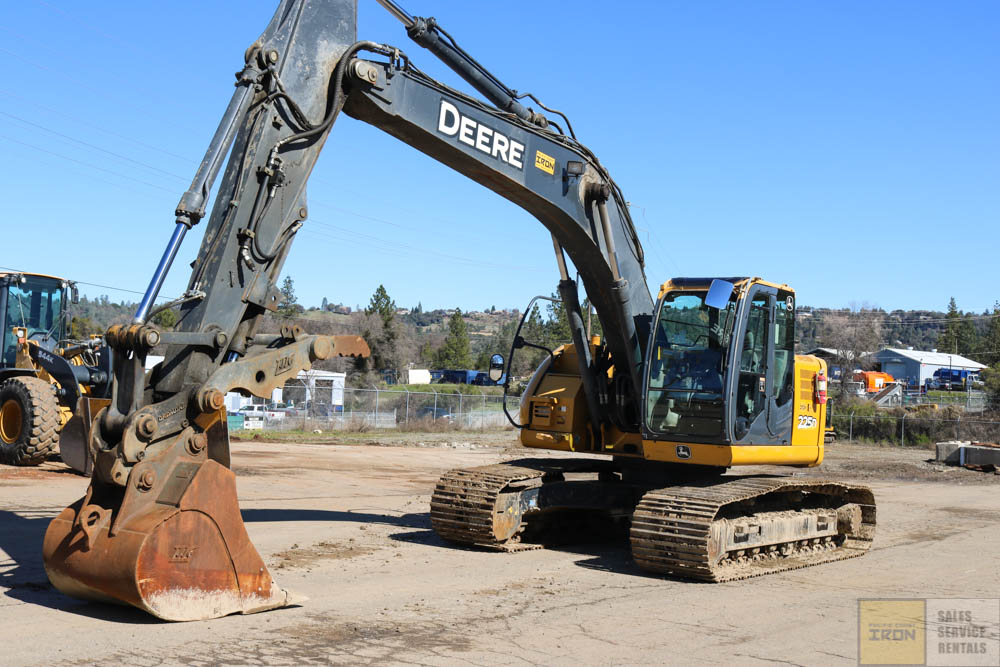

2012 DEERE 225D LC EXCAVATOR
Price $95,900
Call Today: 916.933.6050
Short Description
2012 DEERE 225D LC EXCAVATOR FOR SALE
PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK.
FEATURES:

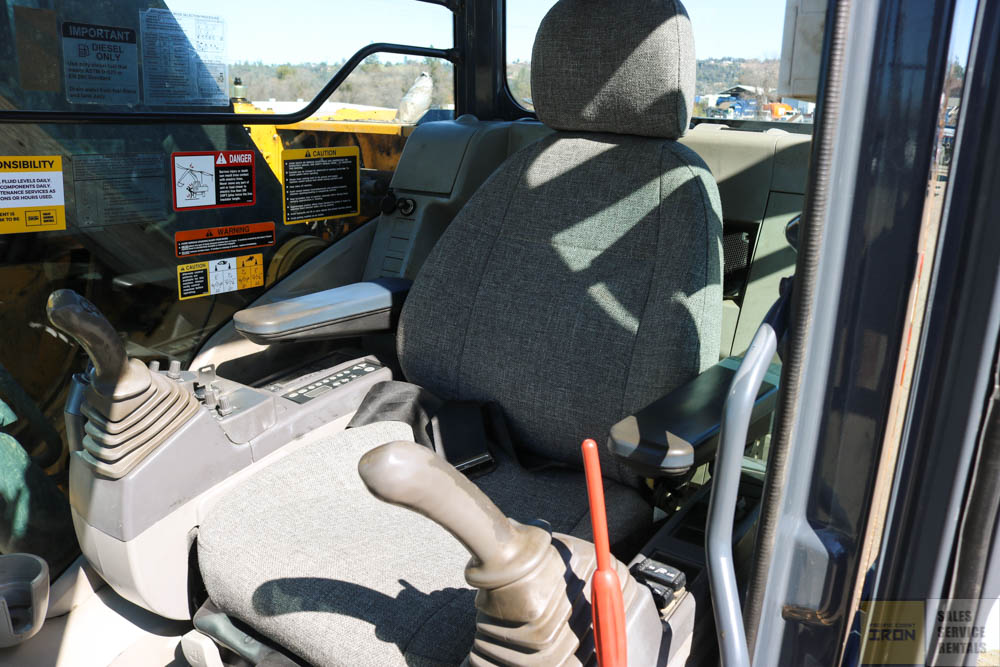

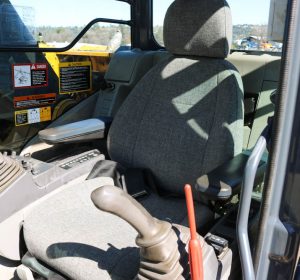

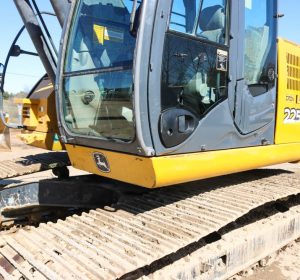

- HEAT/AC
- AM/FM RADIO

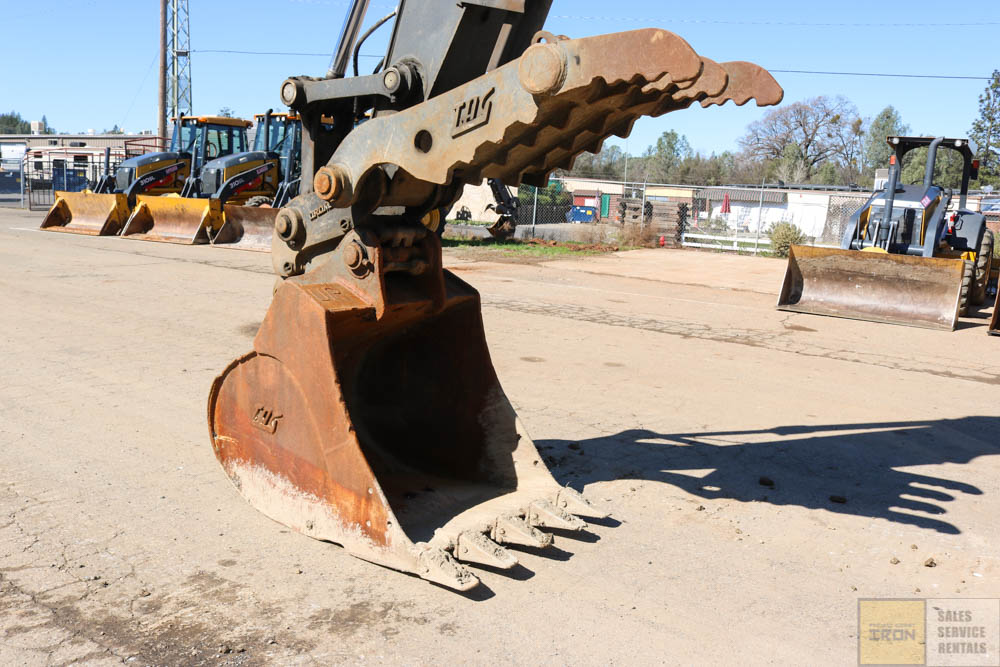

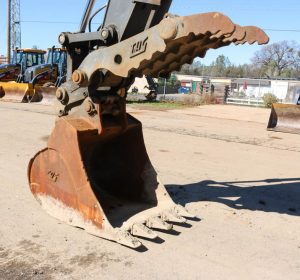

- HYDRAULIC THUMB
- DROMONE HYD Q/C

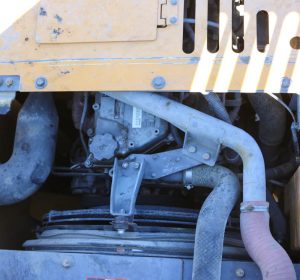

- TIER 3 ISUZU ENGINE
- 31″ PADS
- ZERO SWING
Long Description
2012 DEERE 225D LC EXCAVATOR FOR SALE

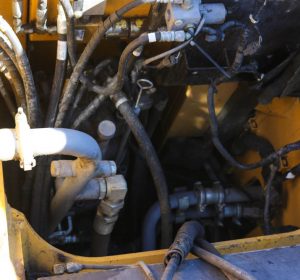

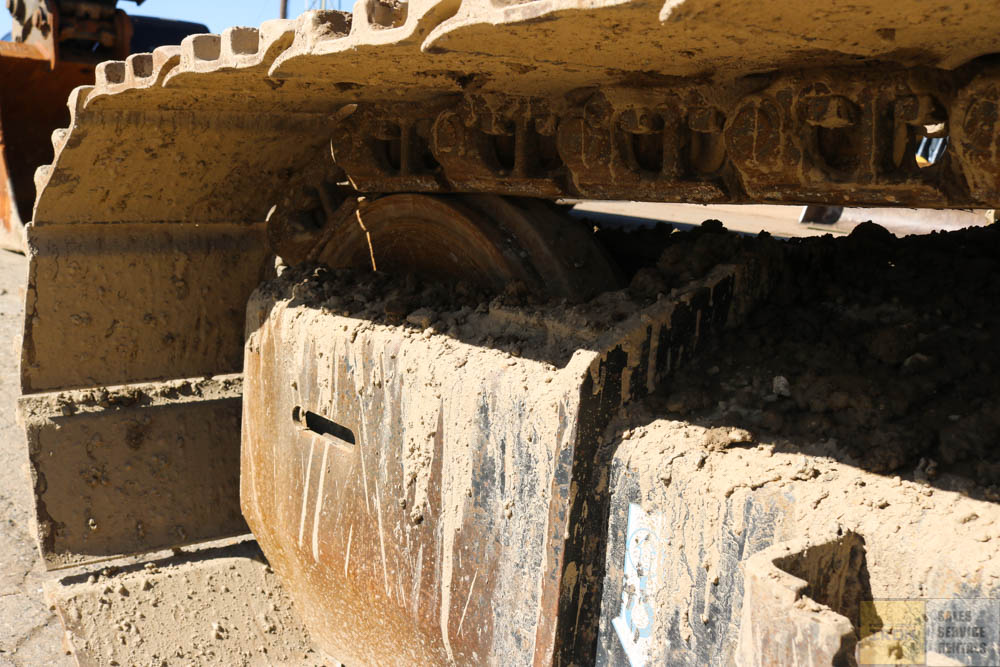

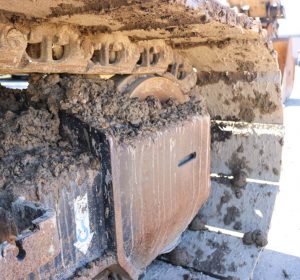

2012 DEERE 225D LC EXCAVATOR WITH 5500HRS! UNIT IS EQUIPPED WITH A DROMONE HYDRAULIC QUICK COUPLER, HYDRAULIC THUMB, AUX HYD, AND A TIER 3 ISUZU ENGINE. UNIT HAS JUST BEEN SERVICED AND READY TO WORK. COMES WITH 36″ BUCKET.
DEERE 225D LC SPECFACATIONS:
Specification

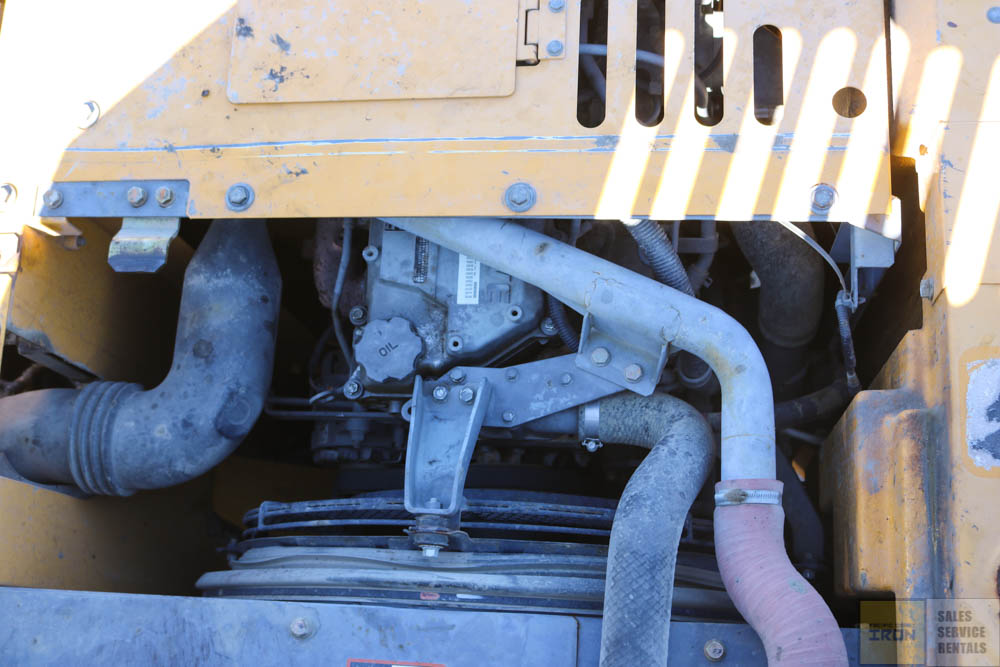

| Engine | ||
| Make | Isuzu | |
| Model | AI-4HK1XYSA-02 | |
| Net Power | 159 hp | 119 kw |
| Power Measured @ | 2000 rpm | |
| Displacement | 325 cu in | 5.2 L |
| Aspiration | Turbocharged and intercooled | |
| Number of Cylinders | 4 | |
| Operational | ||
| Operating Weight | 53936 lb | 24465 kg |
| Fuel Capacity | 84.5 gal | 320 L |
| Cooling System Fluid Capacity | 6.9 gal | 26 L |
| Hydrauilc System Fluid Capacity | 60.8 gal | 230 L |
| Engine Oil Capacity | 6.1 gal | 23 L |
| Swing Drive Fluid Capacity | 1.8 gal | 6.9 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 50 amps | |
| Hydraulic System Relief Valve Pressure | 4980 psi | 34336 kPa |
| Hydraulic Pump Flow Capacity | 112 gal/min | 424 L/min |

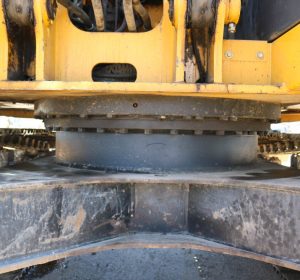

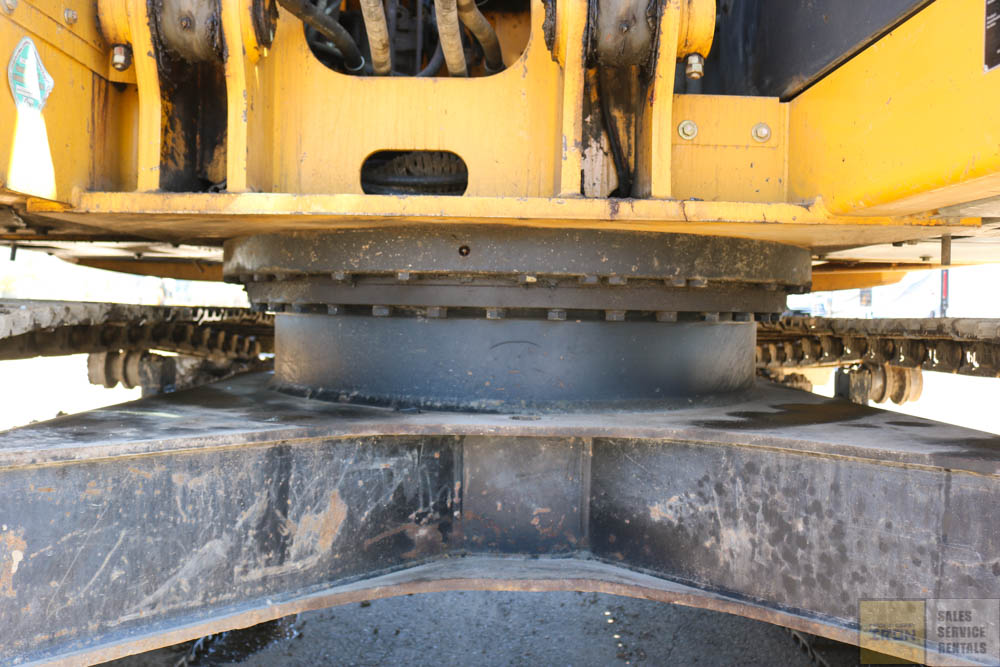

| Swing Mechanism | ||
| Swing Speed | 13.3 rpm | |
| Swing Torque | 50662 lb ft | 68900 Nm |

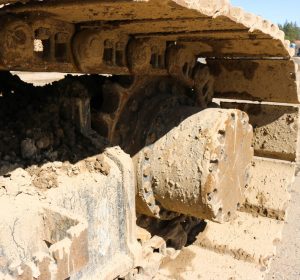

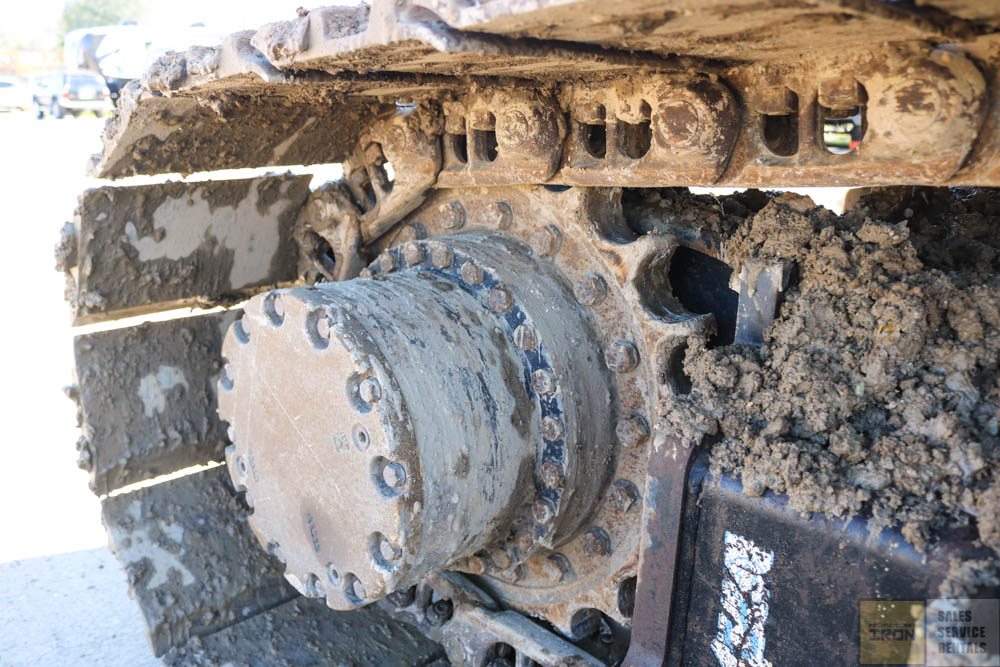

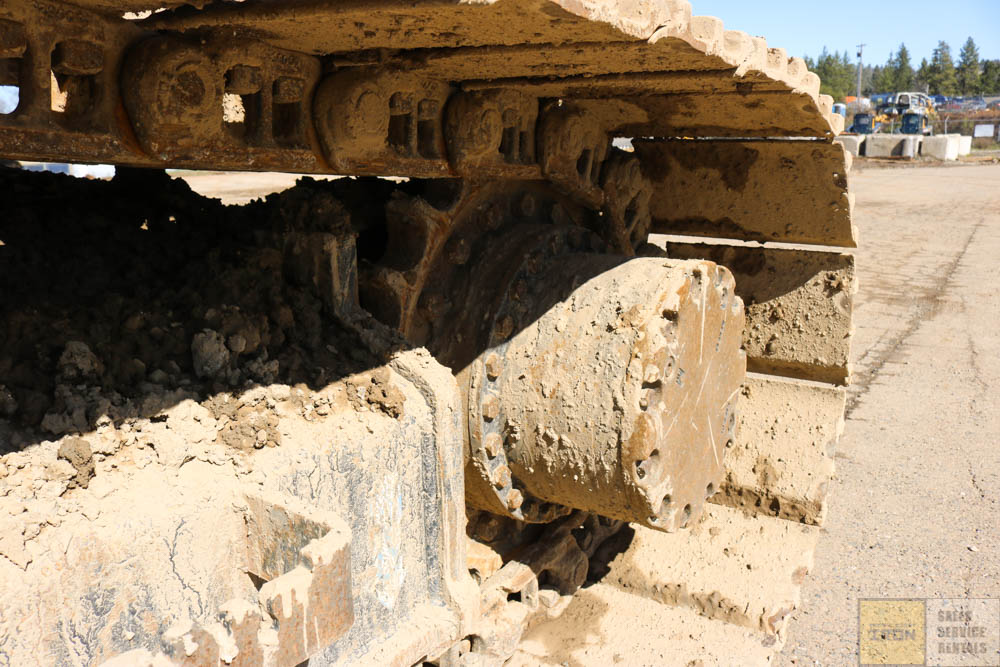

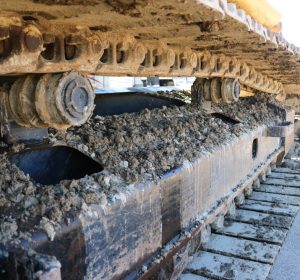

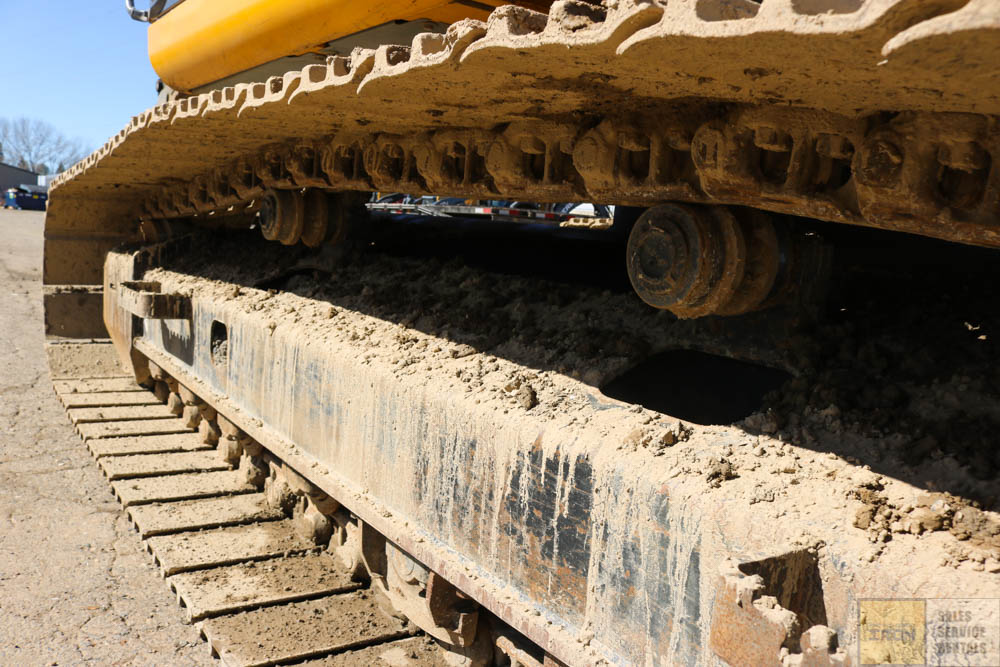

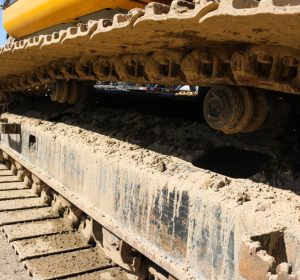

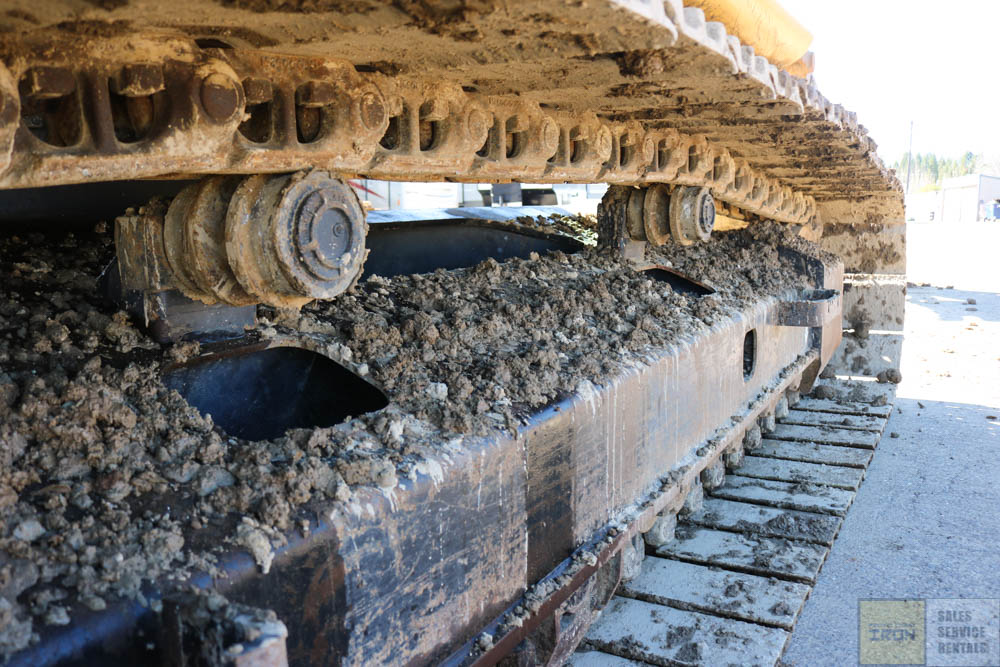

| Undercarriage | ||
| Number of Shoes per Side | 49 | |
| Shoe Size | 32 in | 800 mm |
| Number of Carrier Rollers per Side | 2 | |
| Number of Track Rollers per Side | 8 | |
| Ground Pressure | 5.5 psi | 38 kPa |
| Max Travel Speed | 3.4 mph | 5.5 km/h |
| Drawbar Pull | 45636 lb | 203 kN |
| Track Gauge | 9.2 ft in | 2790 mm |
| Buckets | ||
| Reference Bucket Capacity | 1.1 yd3 | 0.83 m3 |
| Minimum Bucket Capacity | 0.78 yd3 | 0.6 m3 |
| Maximum Bucket Capacity | 1.4 yd3 | 1.1 m3 |
| Boom/Stick Option (HEX) 1 | ||
| Boom/Stick Option (HEX) 1 | Arm Length 7ft. 11in. 2.42m | |
| Shipping Height of Unit | 10.5 ft in | 3200 mm |
| Shipping Length of Unit | 32 ft in | 9740 mm |
| Max Digging Depth | 20.4 ft in | 6210 mm |
| Max Reach Along Ground | 30.6 ft in | 9320 mm |
| Max Cutting Height | 34.7 ft in | 10560 mm |
| Max Loading Height | 25.1 ft in | 7640 mm |
| Max Vertical Wall Digging Depth | 17.2 ft in | 5230 mm |
| Boom/Stick Option (HEX) 2 | ||
| Boom/Stick Option (HEX) 2 | Arm Length 9ft.7in. 2.91m | |
| Shipping Height of Unit | 9.8 ft in | 2980 mm |
| Shipping Length of Unit | 31.6 ft in | 9620 mm |
| Max Digging Depth | 22 ft in | 6700 mm |
| Max Reach Along Ground | 32.3 ft in | 9830 mm |
| Max Cutting Height | 36 ft in | 10980 mm |
| Max Loading Height | 26.4 ft in | 8050 mm |
| Max Vertical Wall Digging Depth | 19.4 ft in | 5920 mm |
| Dimensions | ||
| Width to Outside of Tracks | 10.5 ft in | 3200 mm |
| Height to Top of Cab | 9.8 ft in | 2950 mm |
| Ground Clearance | 1.5 ft in | 450 mm |
| Counterweight Clearance | 3.2 ft in | 975 mm |
| Tail Swing Radius | 5.5 ft in | 1680 mm |
| Length of Track on Ground | 12 ft in | 3660 mm |
