Boom/Stick Option
|
||
| A. Shipping Length of Unit | 31.3 ft in | 9530 mm |
| C. Shipping Height of Unit | 9.7 ft in | 2950 mm |
| I. Max Cutting Height | 32.9 ft in | 10040 mm |
| J. Max Loading Height | 23.6 ft in | 7180 mm |
| K. Max Reach Along Ground | 32 ft in | 9750 mm |
| L. Max Vertical Wall Digging Depth | 19.7 ft in | 5990 mm |
| M. Max Digging Depth | 21.9 ft in | 6680 mm |
| A. Shipping Length of Unit | 31.5 ft in | 9600 mm |
| C. Shipping Height of Unit | 10.4 ft in | 3180 mm |
| I. Max Cutting Height | 31.7 ft in | 9670 mm |
| J. Max Loading Height | 22.4 ft in | 6830 mm |
| K. Max Reach Along Ground | 30.3 ft in | 9250 mm |
| L. Max Vertical Wall Digging Depth | 17.4 ft in | 5300 mm |
| M. Max Digging Depth | 20.3 ft in | 6180 mm |
|
Dimensions
|
||
| B. Width to Outside of Tracks | 10.5 ft in | 3190 mm |
| D. Length of Track on Ground | 12 ft in | 3670 mm |
| E. Ground Clearance | 1.5 ft in | 450 mm |
| G. Height to Top of Cab | 9.7 ft in | 2950 mm |
| H. Tail Swing Radius | 9 ft in | 2750 mm |
| O. Counterweight Clearance | 3.4 ft in | 1031 mm |
|
Undercarriage
|
||
| F. Track Gauge | 7.8 ft in | 2390 mm |
| N. Shoe Size | 31.5 in | 800 mm |

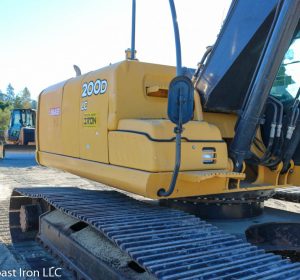

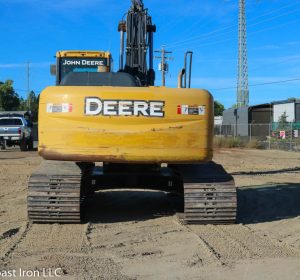

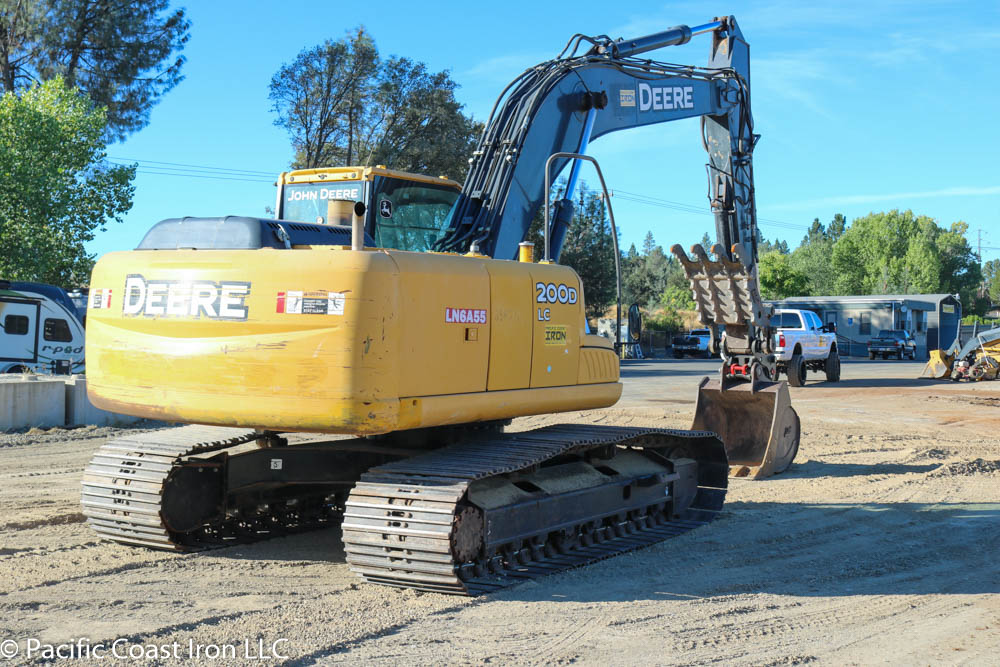

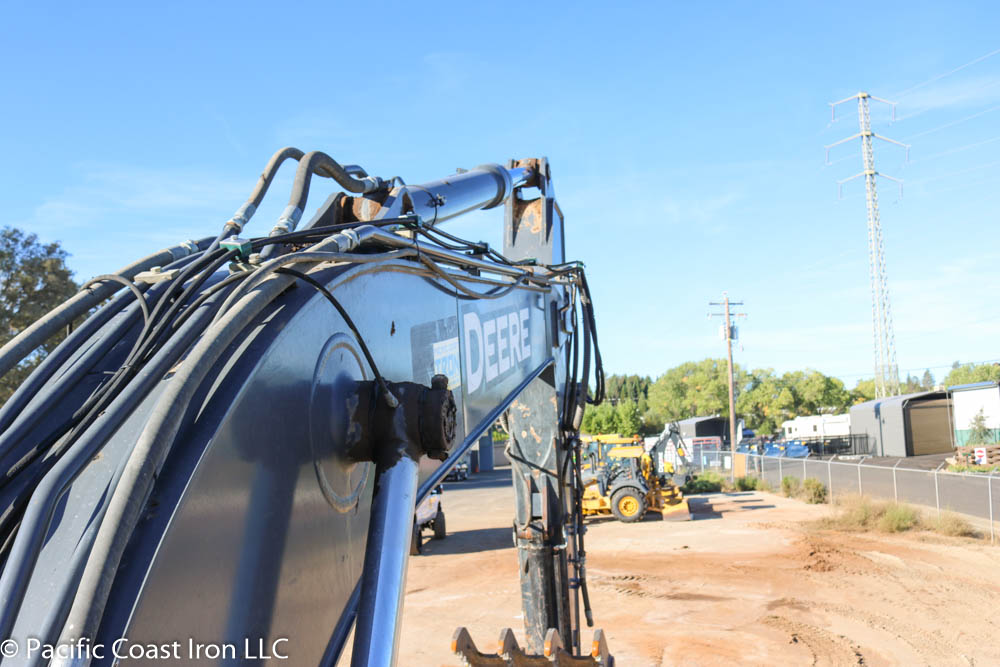

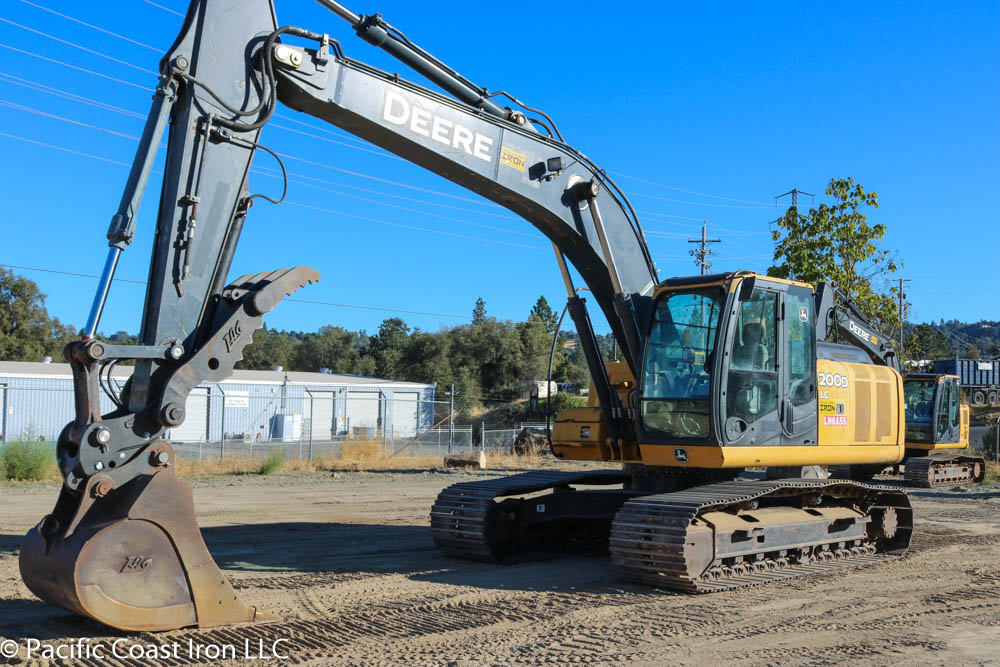

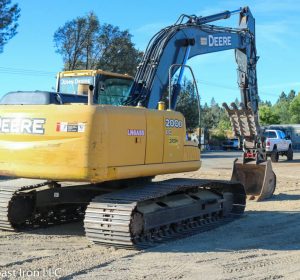

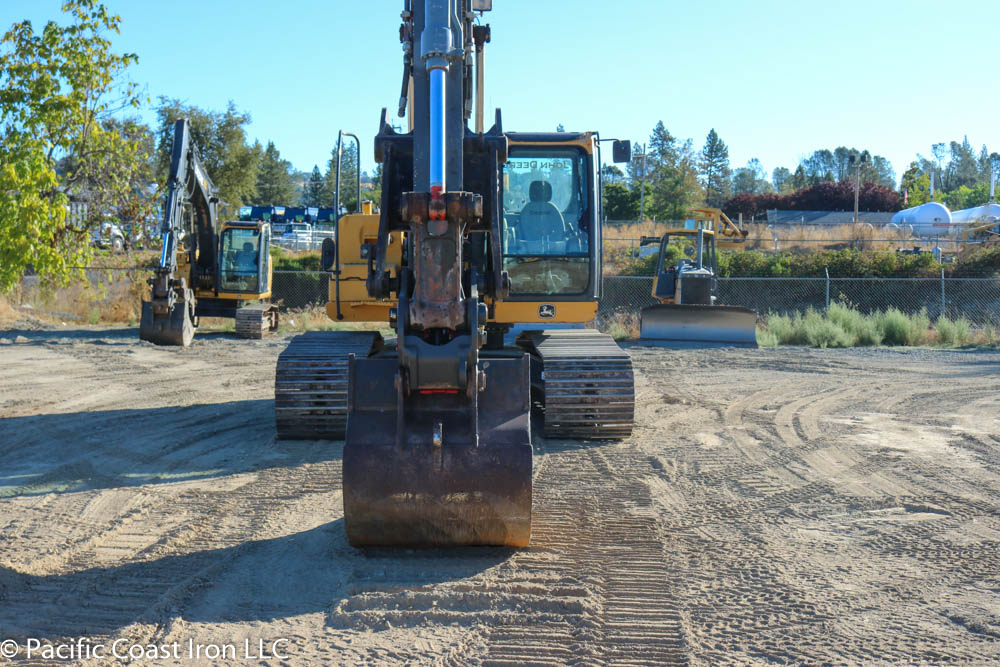

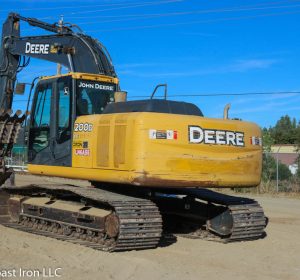

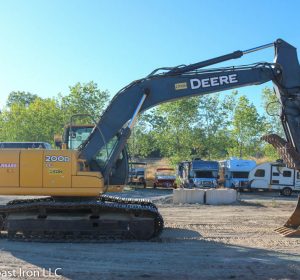

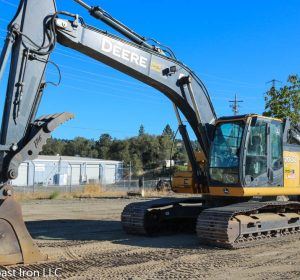

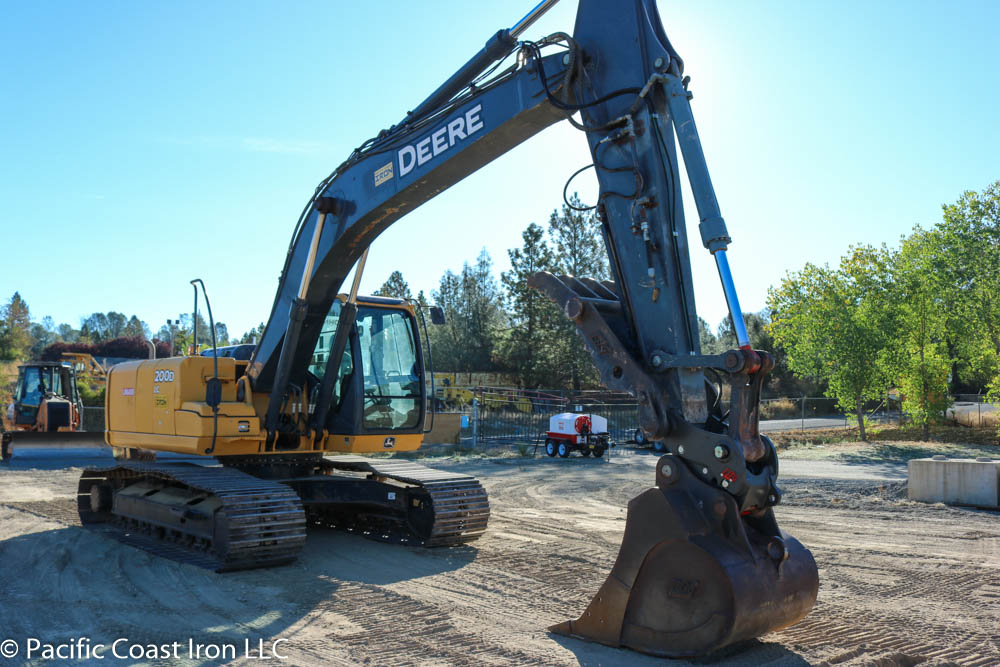

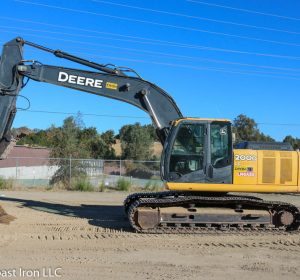

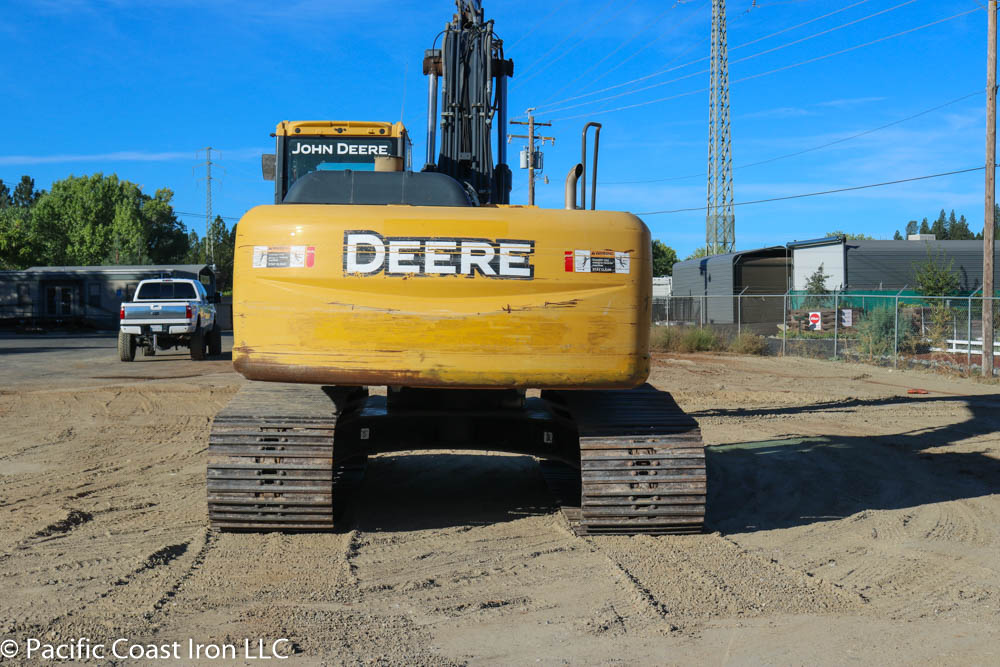

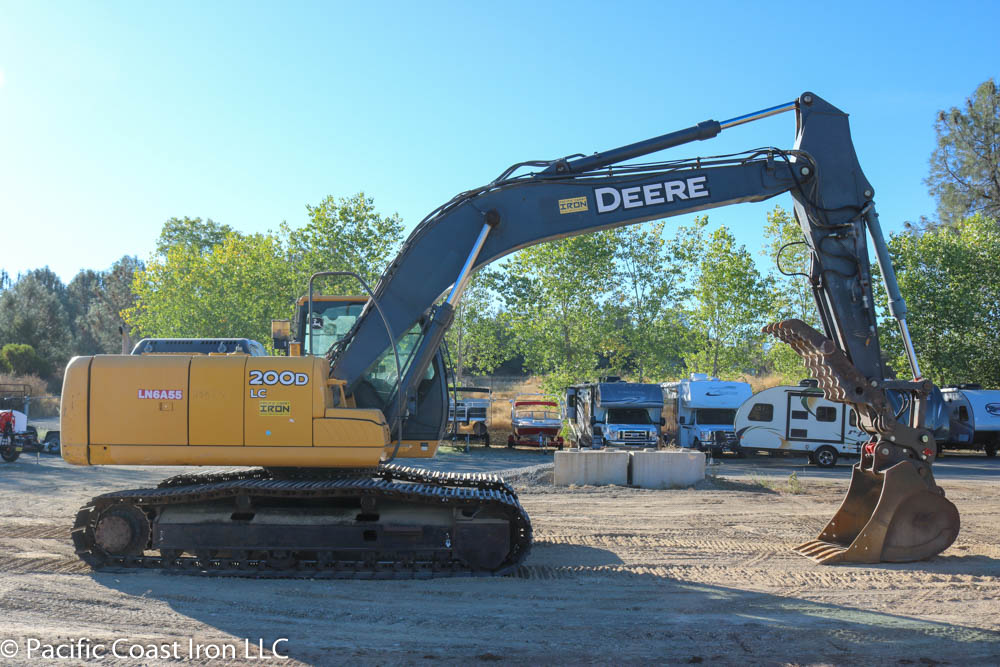

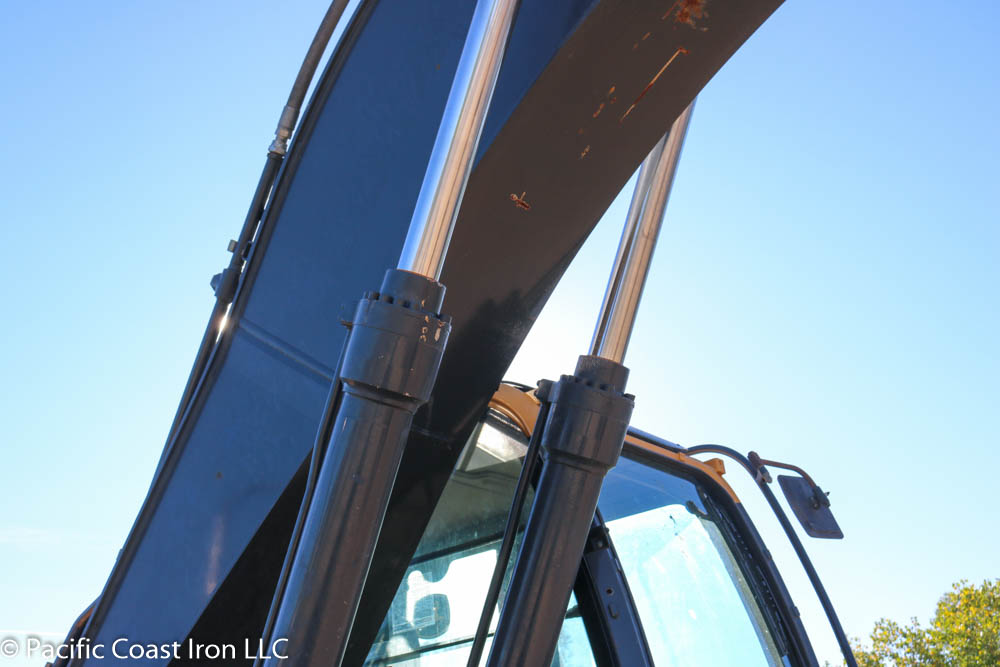

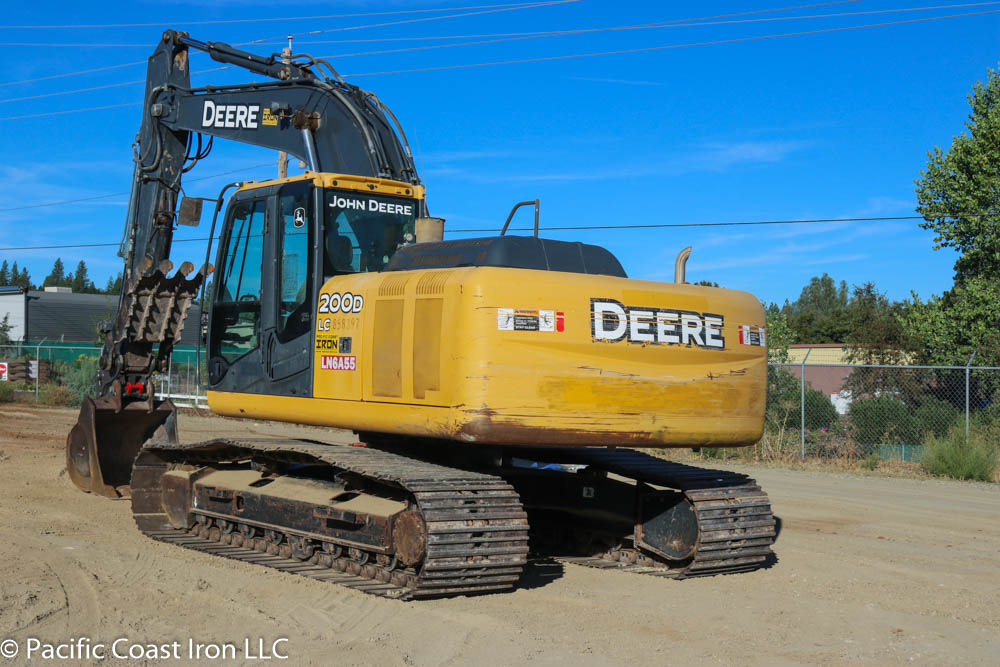

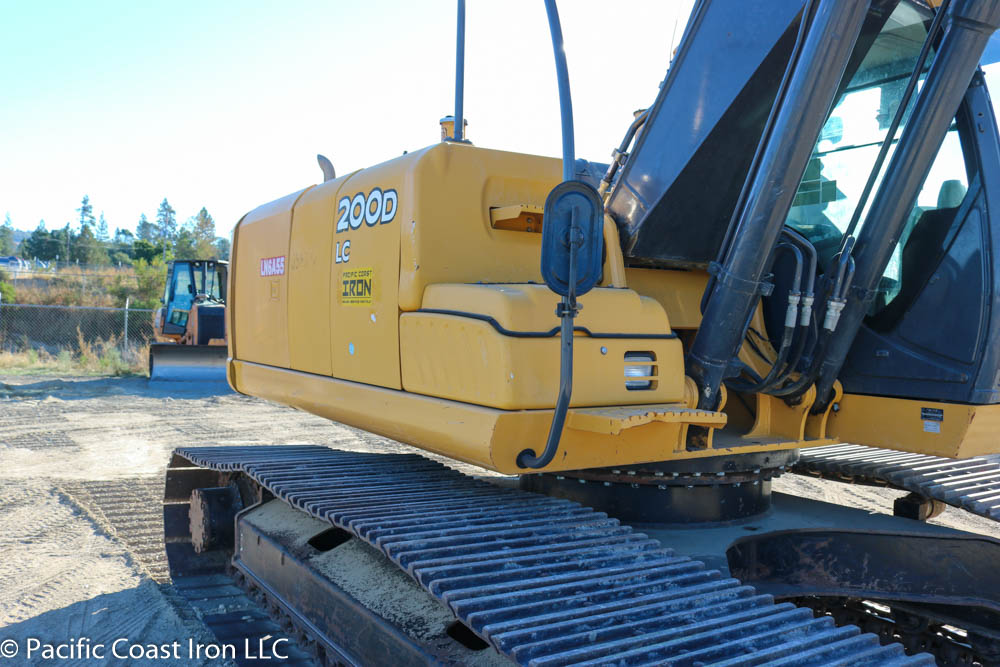

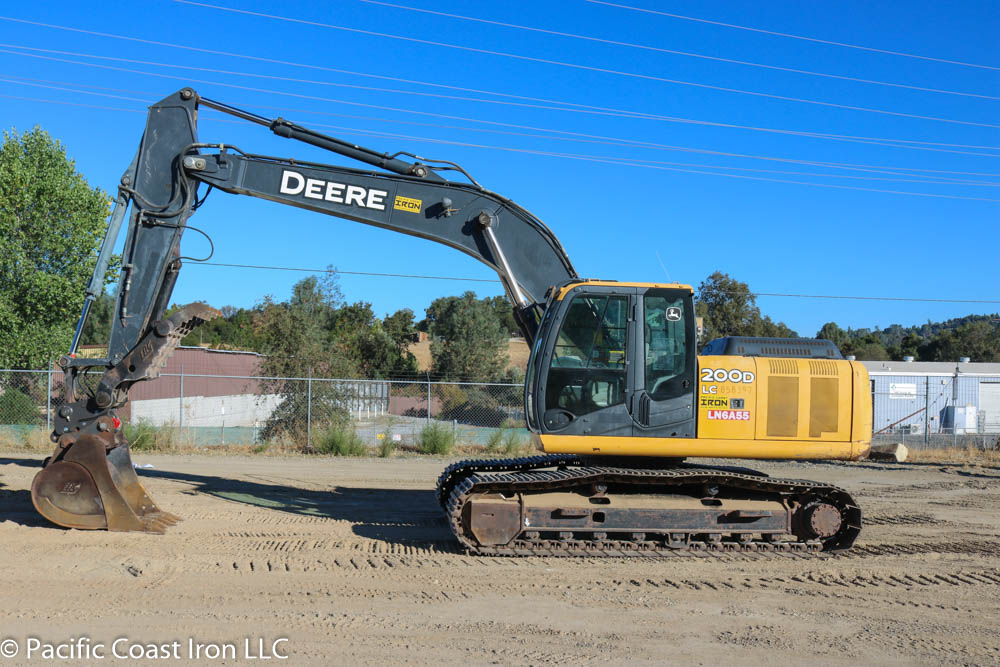

2012 DEERE 200D LC EXCAVATOR
Price $99,900
Call Today: 916.933.6050
Short Description
2012 DEERE 200D LC EXCAVATOR- $99,900
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

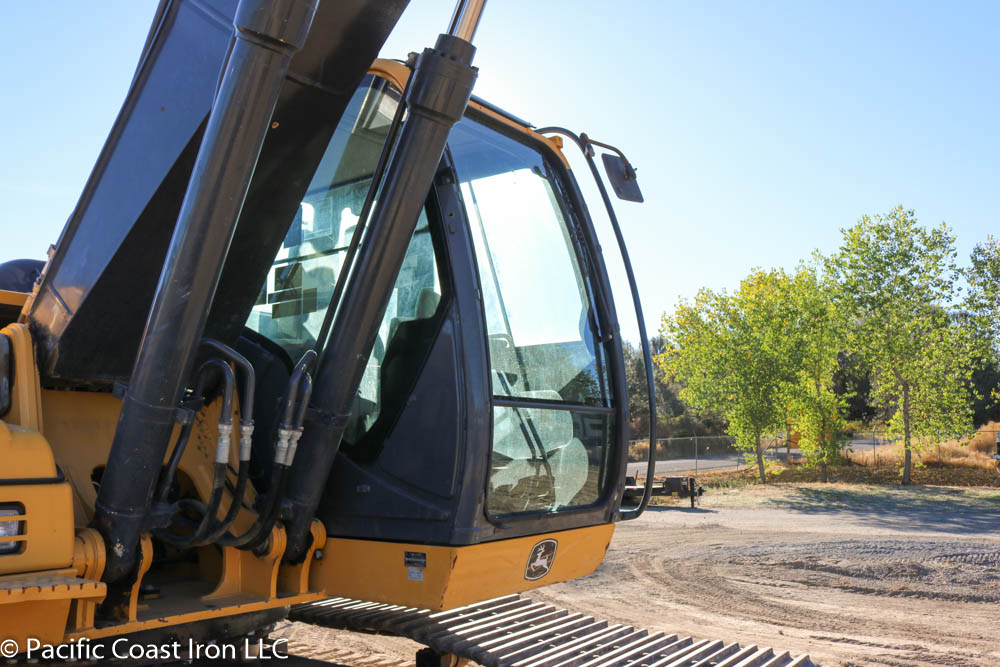

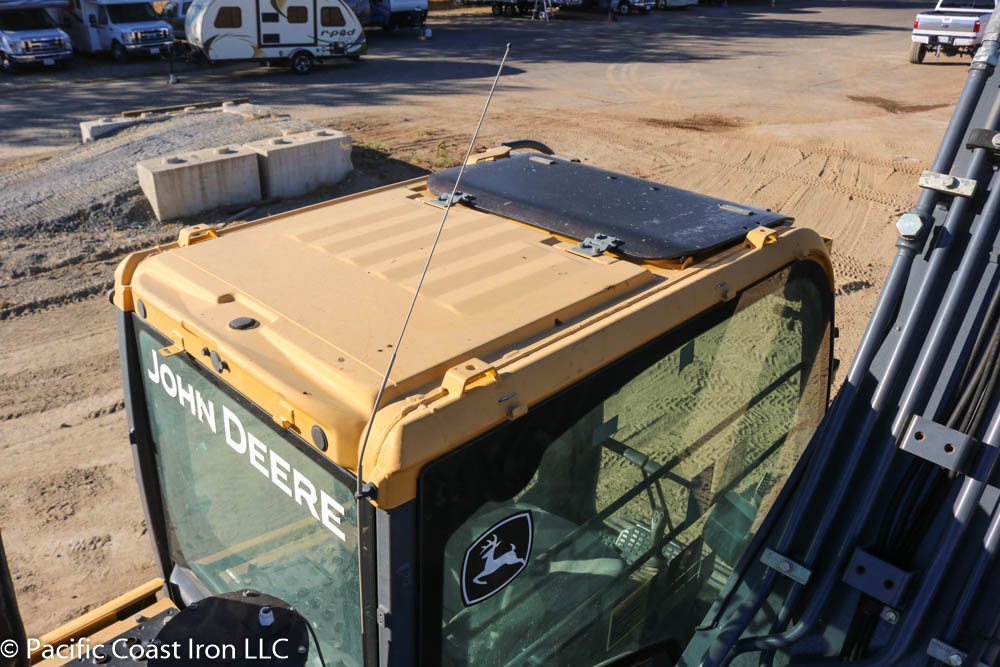

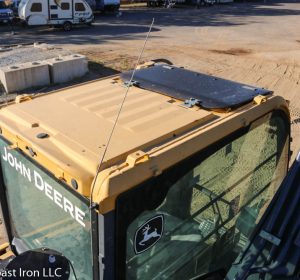

- EROPS
- TIER 3 DEERE ENGINE

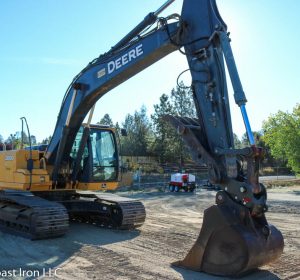

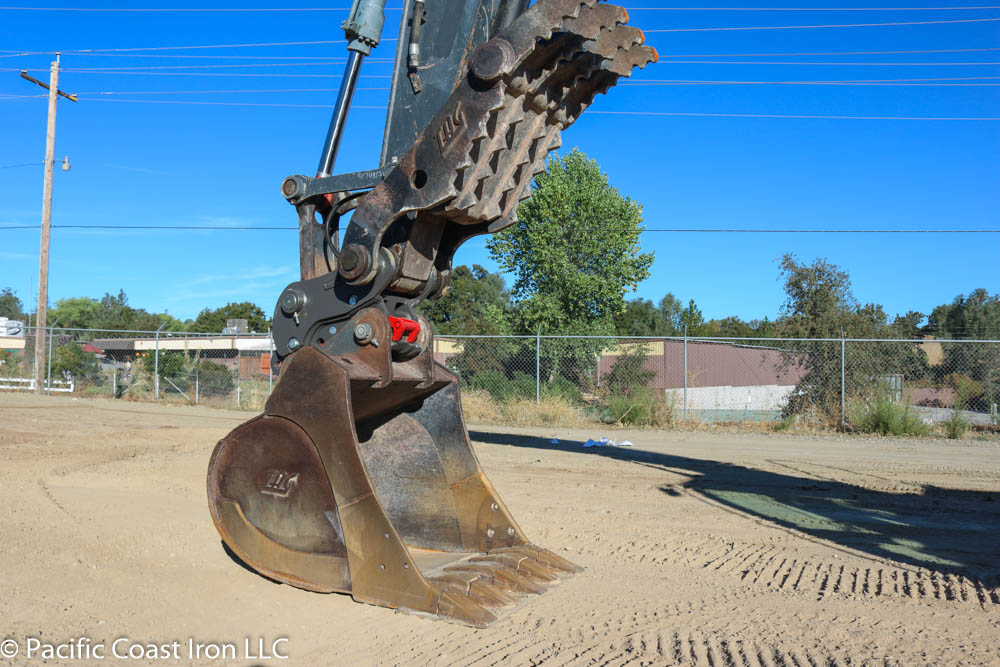

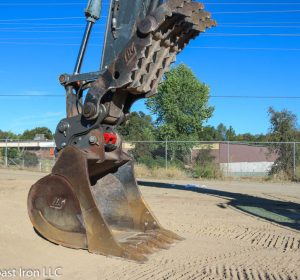

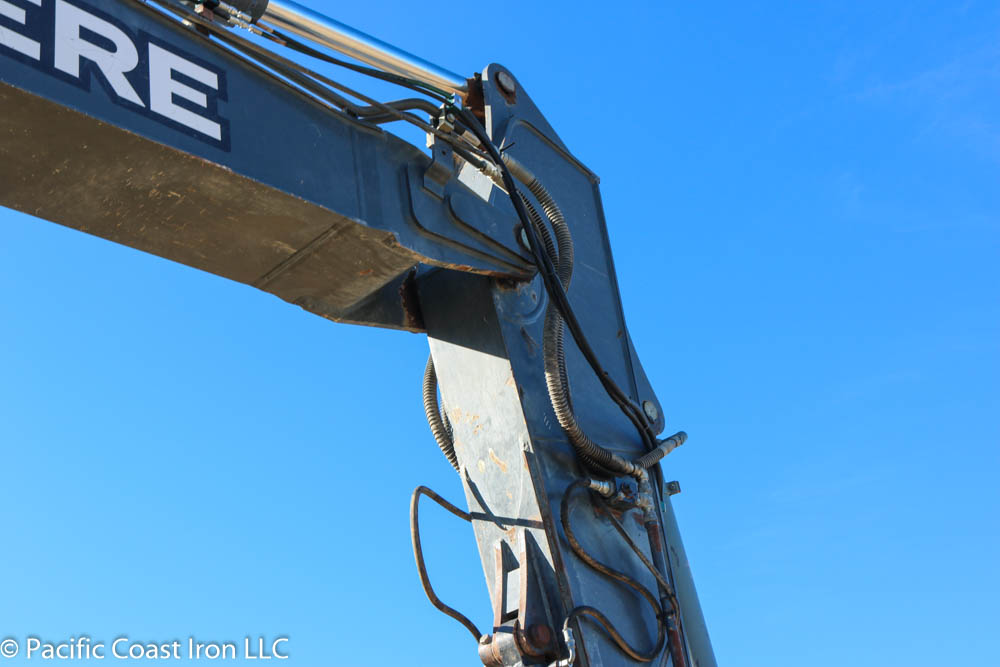

- HYDRAULIC THUMB
- DROMONE HYD COUPLER
- PATTERN CHANGER
- AUX HYDRAULICS
Long Description
2012 DEERE 200D LC EXCAVATOR- $99,900

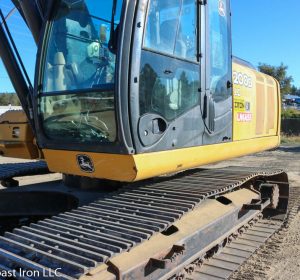

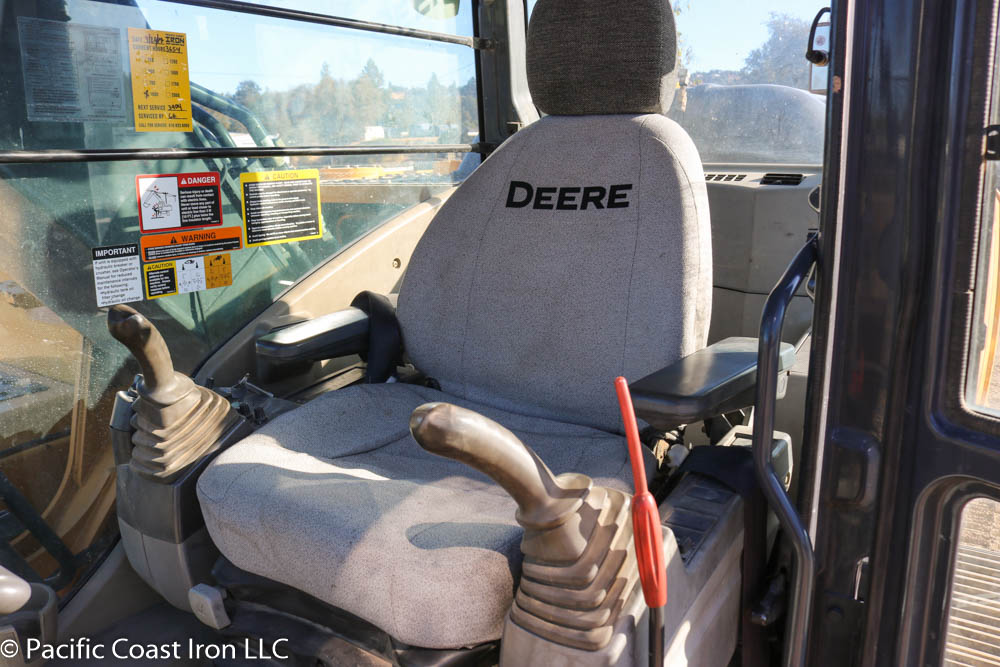

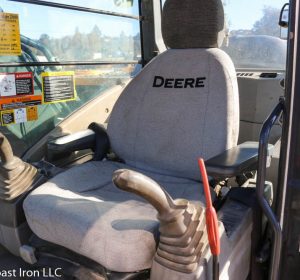

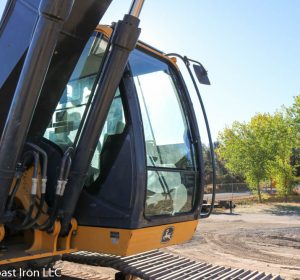

2012 DEERE 200D LC EXCAVATOR WITH ONLY 3700HRS! UNIT IS EQUIPPED WITH HYDRAULIC THUMB, HYD COUPLER,(NEW) AUX HYDRAULICS, CAB W/ HEAT/AC, AND A TIER 3 DEERE ENGINE. UNIT RUNS GREAT!
Selected Dimensions
Specification

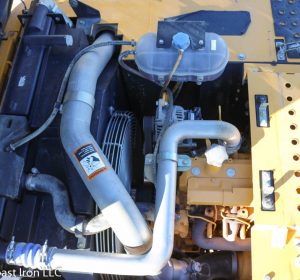

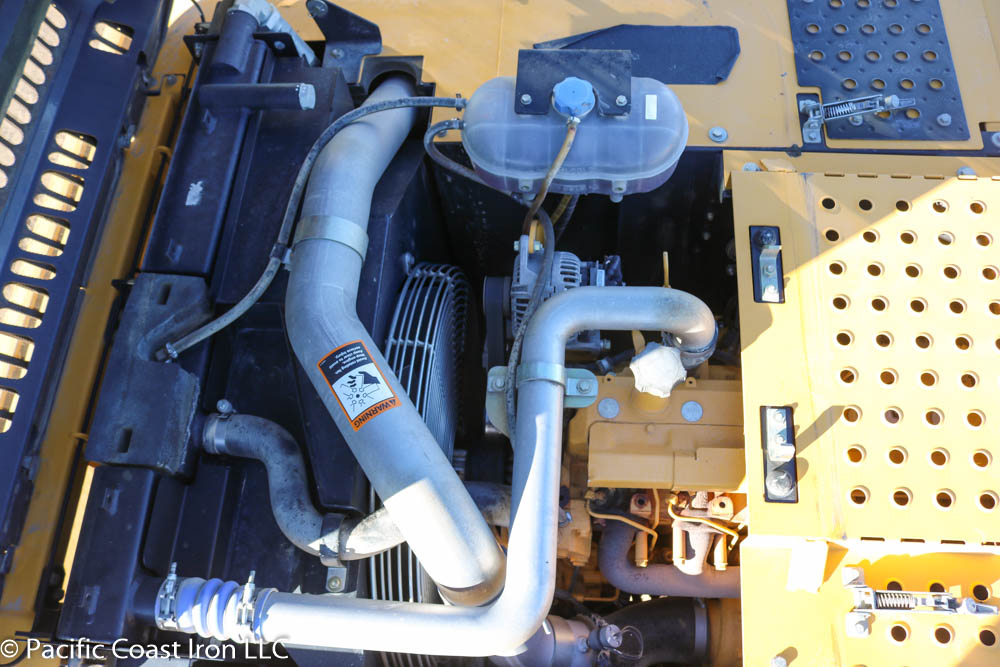

| Engine | ||
| Make | John Deere | |
| Model | 6068H | |
| Net Power | 159 hp | 118.6 kw |
| Power Measured @ | 2000 rpm | |
| Displacement | 414 cu in | 6.8 L |
| Aspiration | Turbocharged air to air charge cooler | |
| Number of Cylinders | 6 | |
| Operational | ||
| Operating Weight | 49985.4 lb | 22673 kg |
| Fuel Capacity | 105.7 gal | 400 L |

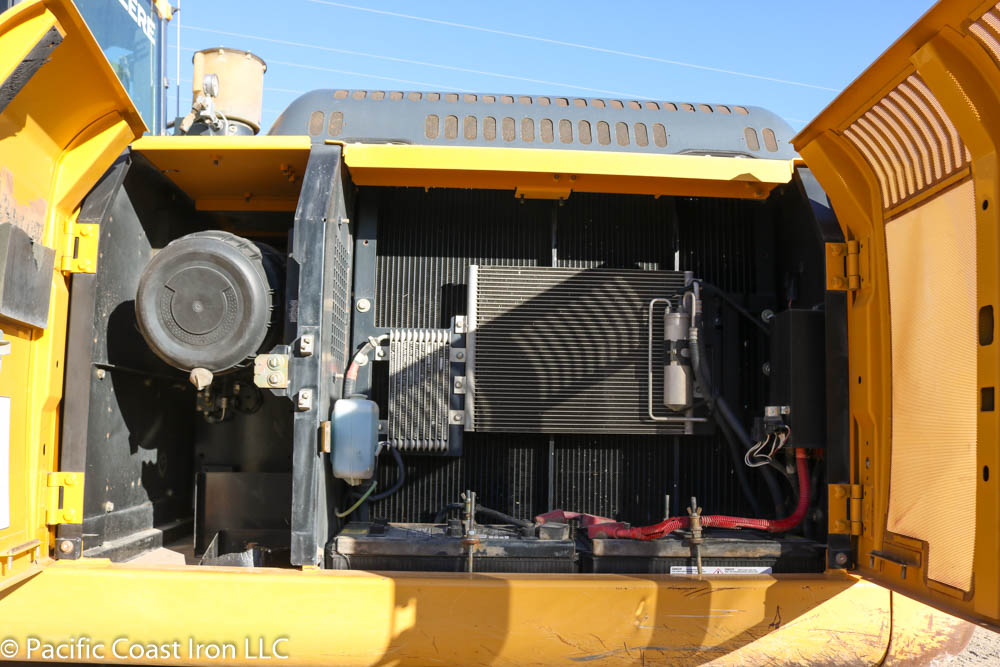

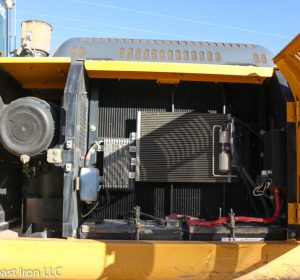

| Cooling System Fluid Capacity | 6.9 gal | 26.1 L |
| Hydrauilc System Fluid Capacity | 63.4 gal | 240 L |
| Engine Oil Capacity | 6.1 gal | 23 L |
| Swing Drive Fluid Capacity | 1.6 gal | 6.2 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 80 amps | |
| Hydraulic System Relief Valve Pressure | 4980 psi | 34335.9 kPa |

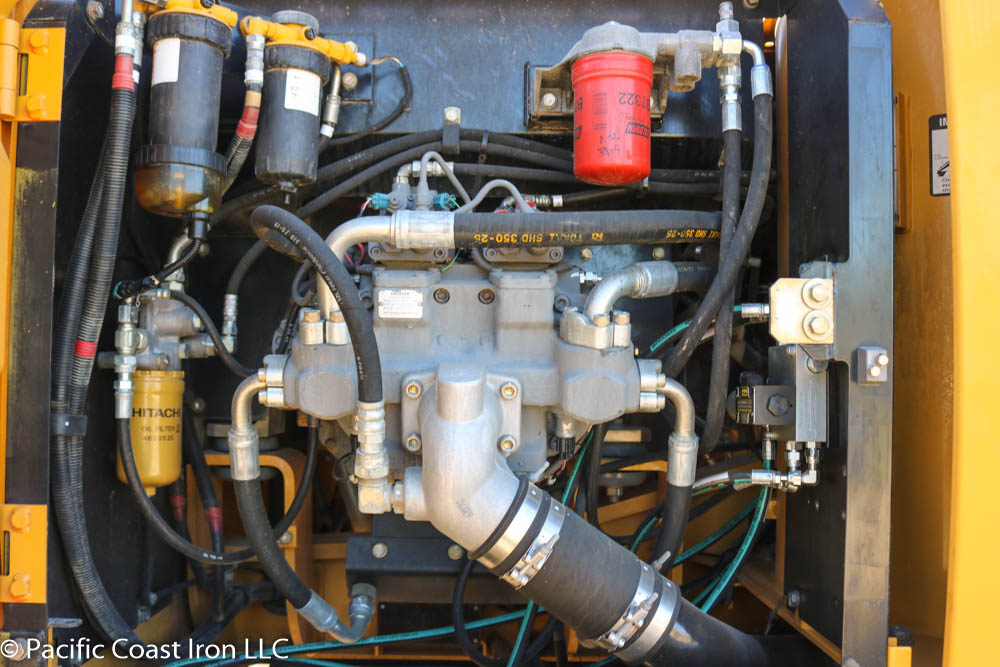

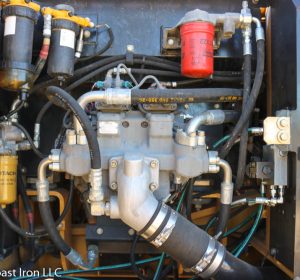

| Hydraulic Pump Flow Capacity | 112 gal/min | 424 L/min |

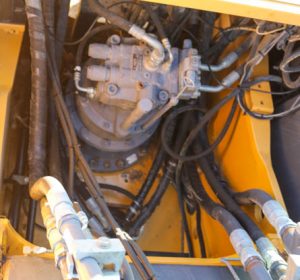

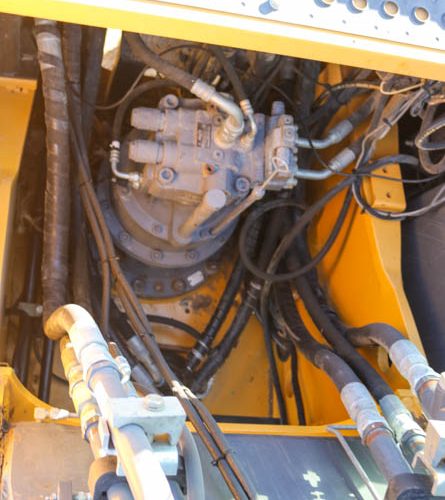

| Swing Mechanism | ||
| Swing Speed | 13.3 rpm | |
| Swing Torque | 50662 lb ft | 68688.5 Nm |

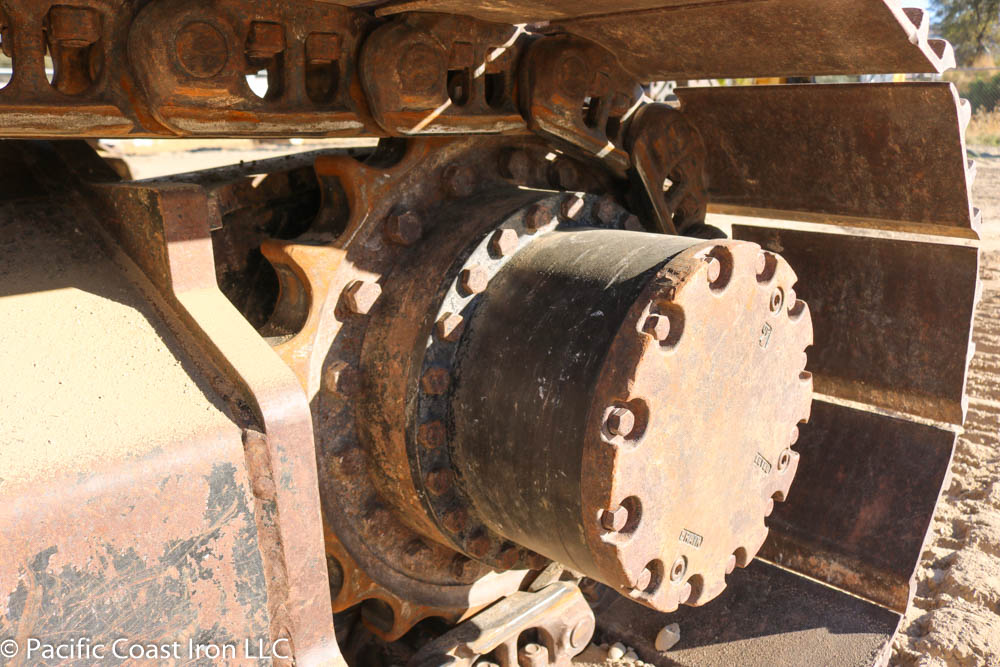

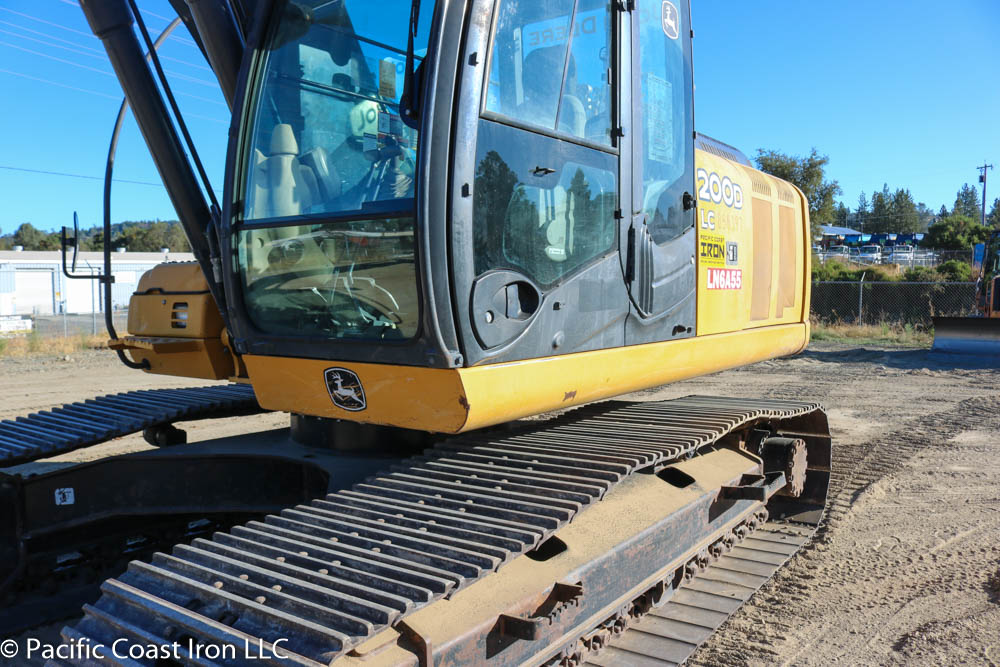

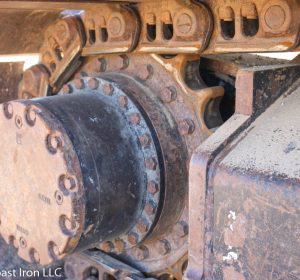

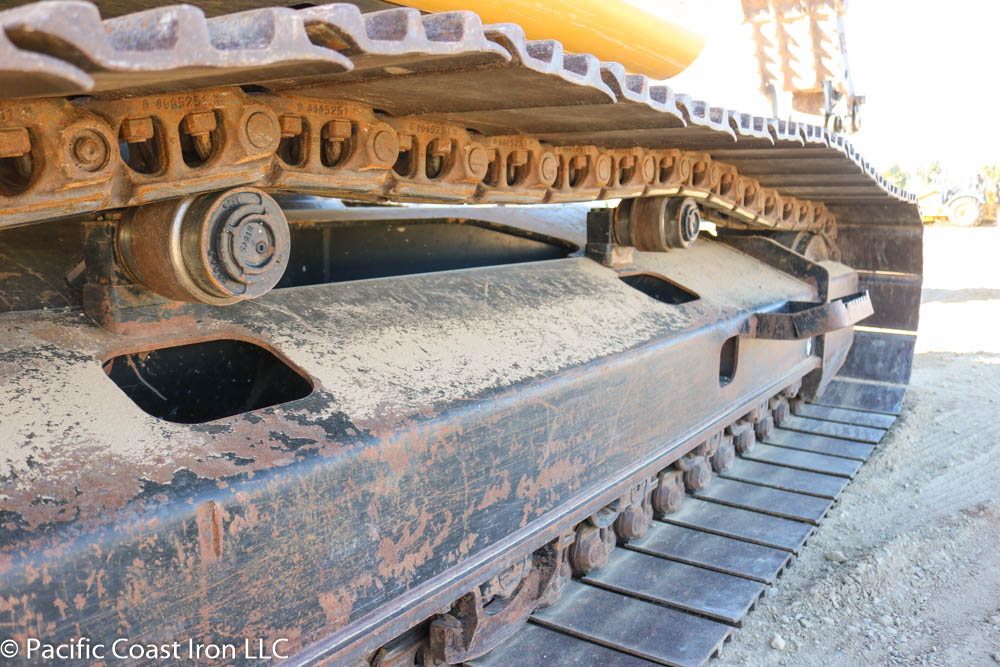

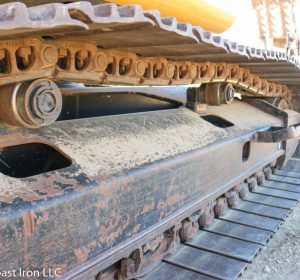

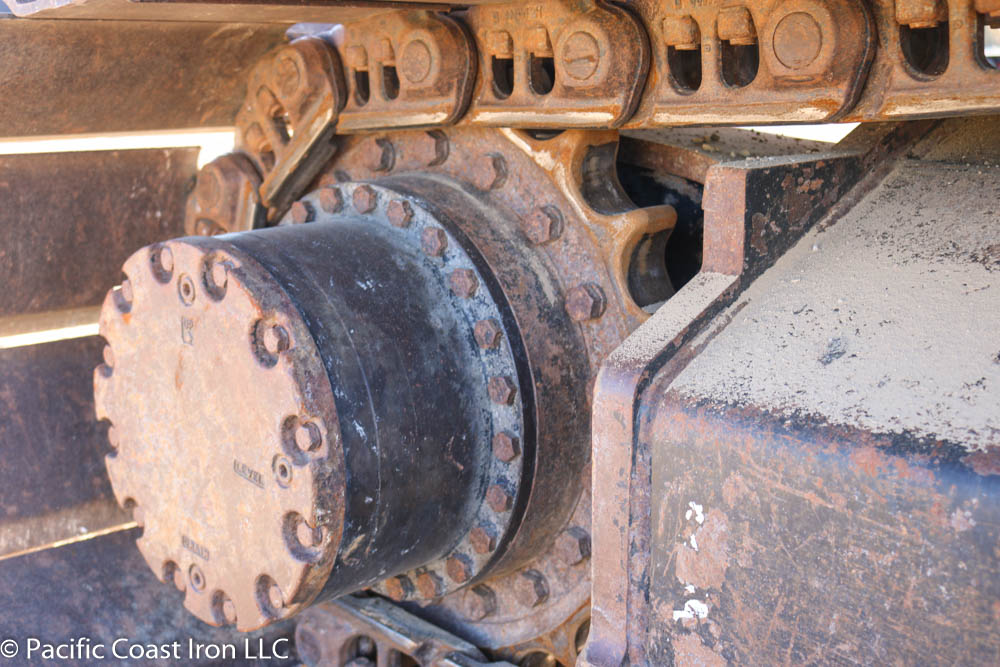

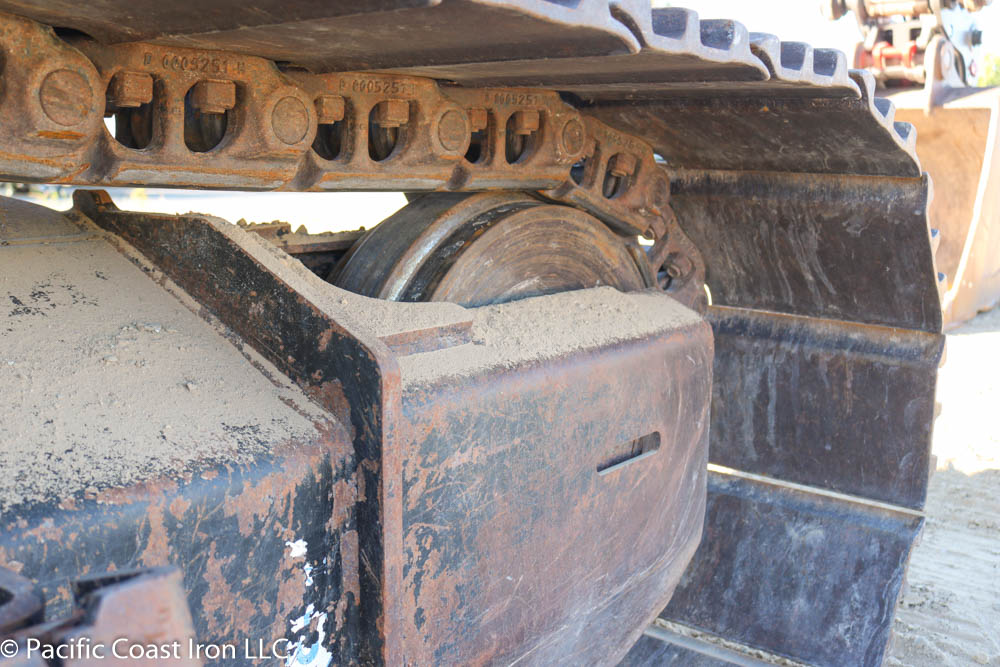

| Undercarriage | ||
| Number of Shoes per Side | 49 | |
| Shoe Size | 31.5 in | 800 mm |

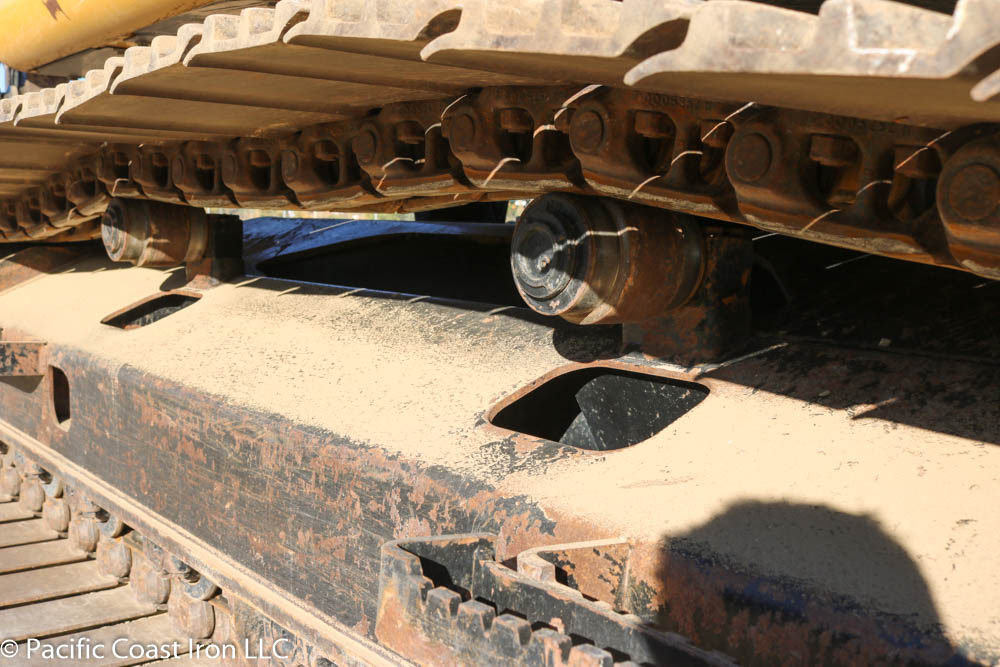

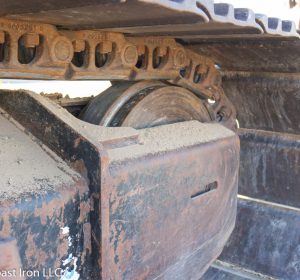

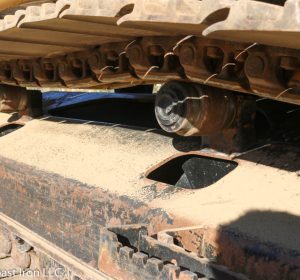

| Number of Carrier Rollers per Side | 2 | |
| Number of Track Rollers per Side | 8 | |
| Ground Pressure | 5.3 psi | 36.5 kPa |
| Max Travel Speed | 3.4 mph | 5.5 km/h |
| Drawbar Pull | 45620 lb | 202.9 kN |
| Track Gauge | 7.8 ft in | 2390 mm |
| Buckets | ||
| Reference Bucket Capacity | 1.2 yd3 | 0.91 m3 |
| Minimum Bucket Capacity | 0.78 yd3 | 0.6 m3 |
| Maximum Bucket Capacity | 1.4 yd3 | 1.1 m3 |
| Boom/Stick Option (HEX) 1 | ||
| Boom/Stick Option (HEX) 1 | 9’7″ (2910mm) stick | |
| Shipping Height of Unit | 9.7 ft in | 2950 mm |
| Shipping Length of Unit | 31.3 ft in | 9530 mm |
| Max Digging Depth | 21.9 ft in | 6680 mm |
| Max Reach Along Ground | 32 ft in | 9750 mm |
| Max Cutting Height | 32.9 ft in | 10040 mm |
| Max Loading Height | 23.6 ft in | 7180 mm |
| Max Vertical Wall Digging Depth | 19.7 ft in | 5990 mm |
| Boom/Stick Option (HEX) 2 | ||
| Boom/Stick Option (HEX) 2 | 7’11” (2420mm) stick | |
| Shipping Height of Unit | 10.4 ft in | 3180 mm |
| Shipping Length of Unit | 31.5 ft in | 9600 mm |
| Max Digging Depth | 20.3 ft in | 6180 mm |
| Max Reach Along Ground | 30.3 ft in | 9250 mm |
| Max Cutting Height | 31.7 ft in | 9670 mm |
| Max Loading Height | 22.4 ft in | 6830 mm |
| Max Vertical Wall Digging Depth | 17.4 ft in | 5300 mm |
| Dimensions | ||
| Width to Outside of Tracks | 10.5 ft in | 3190 mm |
| Height to Top of Cab | 9.7 ft in | 2950 mm |
| Ground Clearance | 1.5 ft in | 450 mm |
| Counterweight Clearance | 3.4 ft in | 1031 mm |
| Tail Swing Radius | 9 ft in | 2750 mm |
| Length of Track on Ground | 12 ft in | 3670 |
