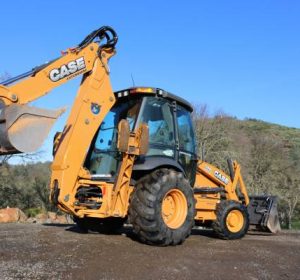

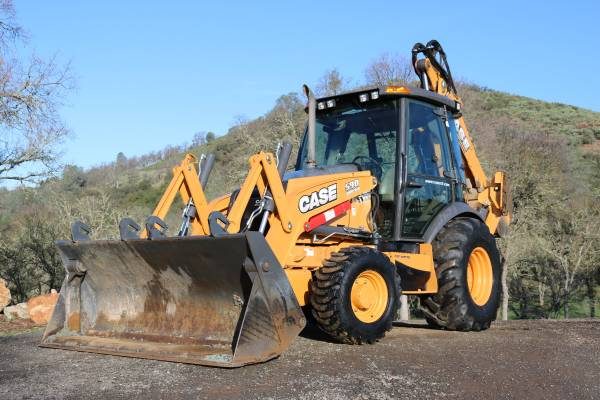

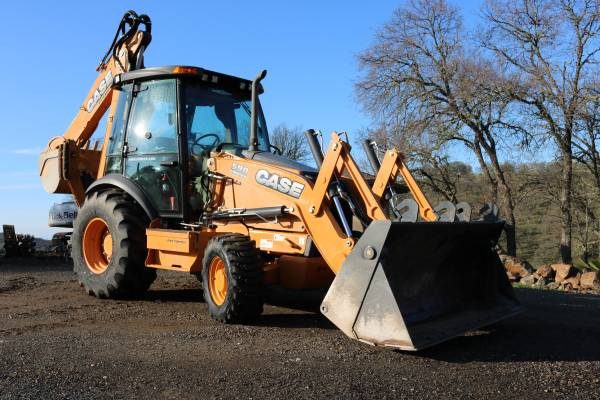

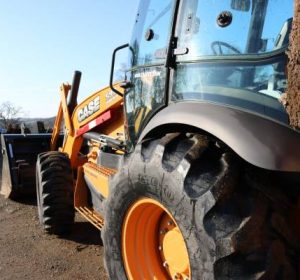

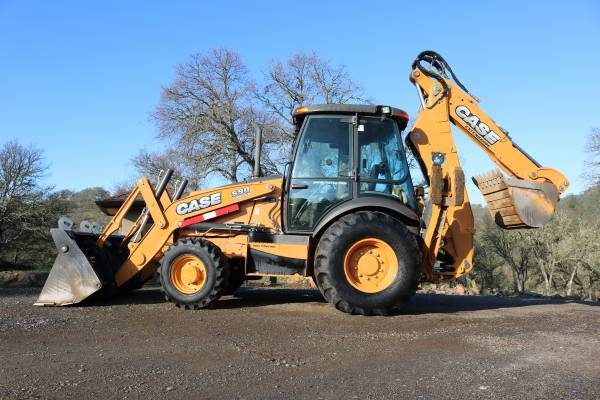

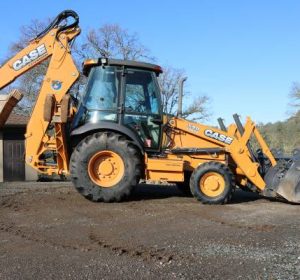

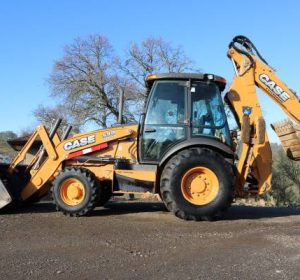

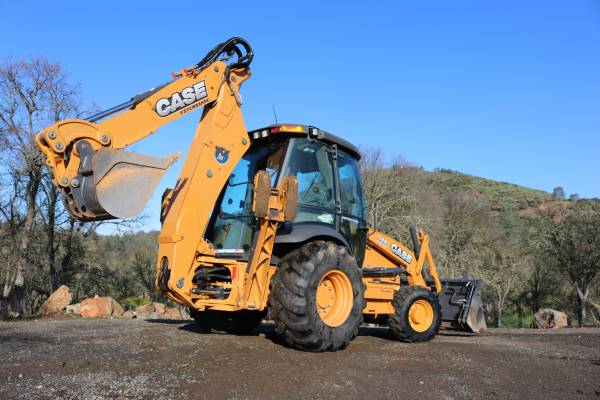

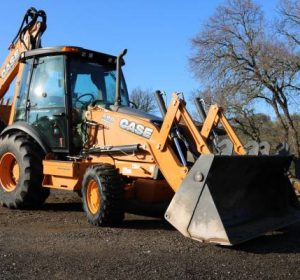

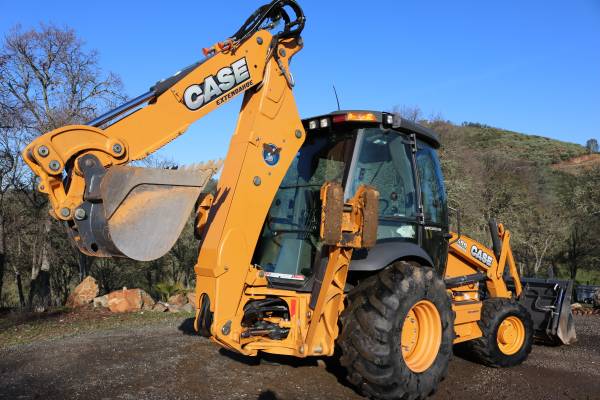

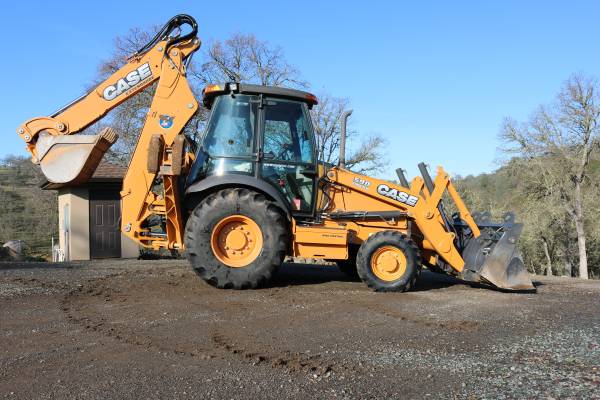

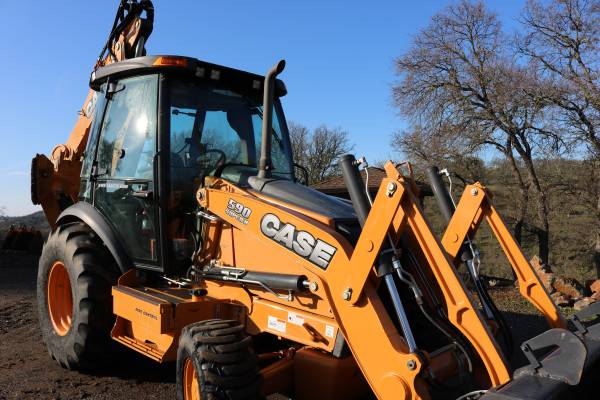

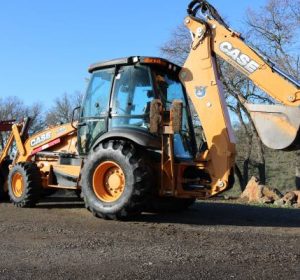

2012 Case 590 Super N Backhoe(sold)

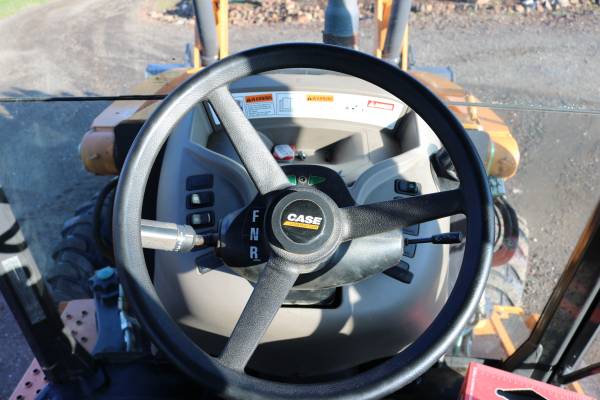

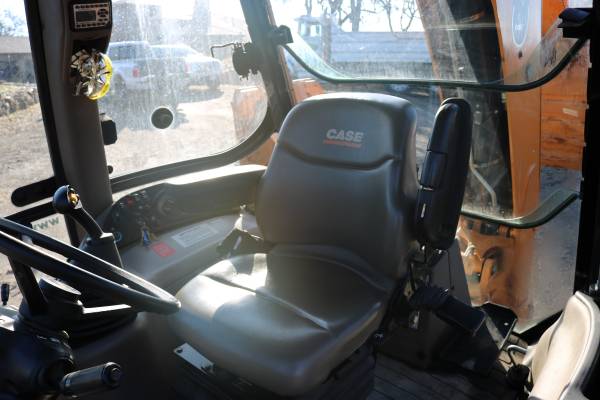

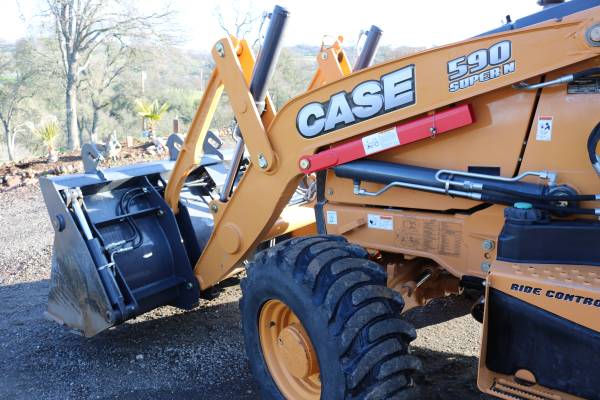

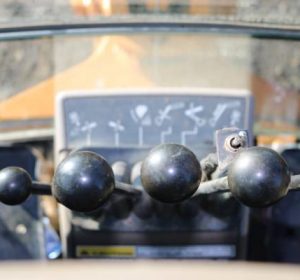

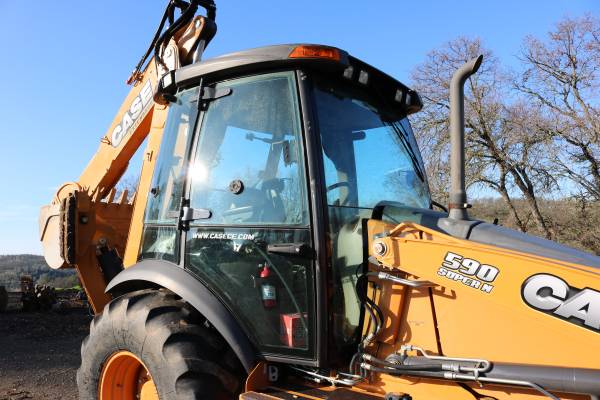

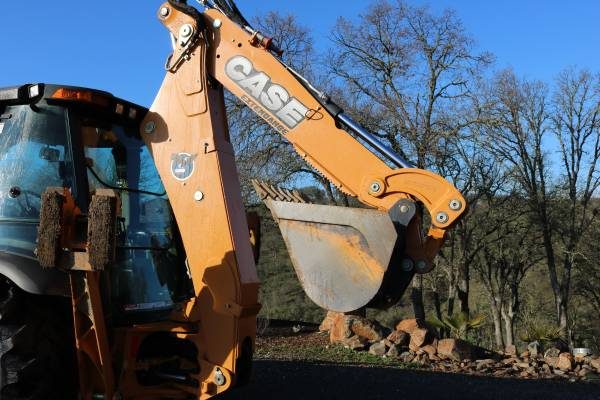

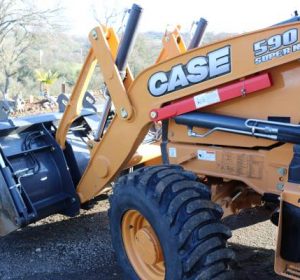

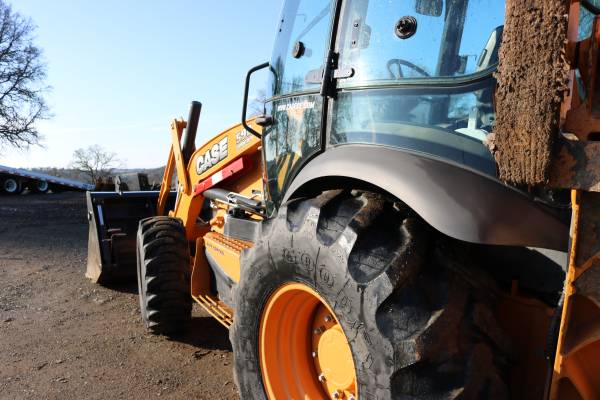

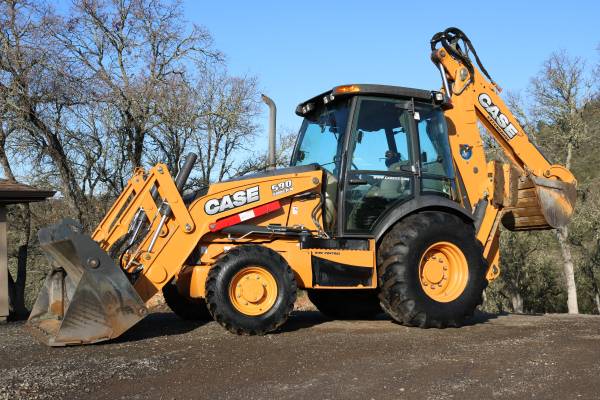

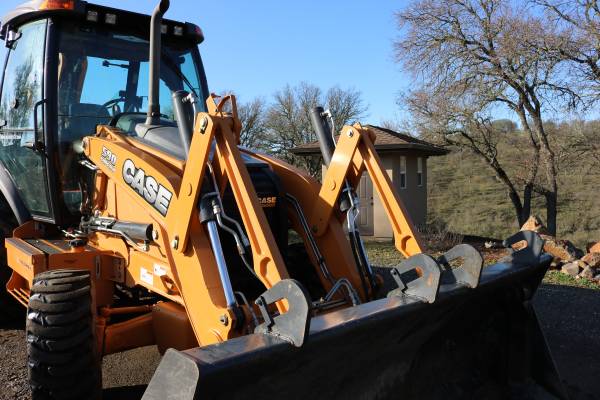

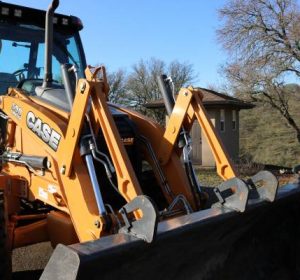

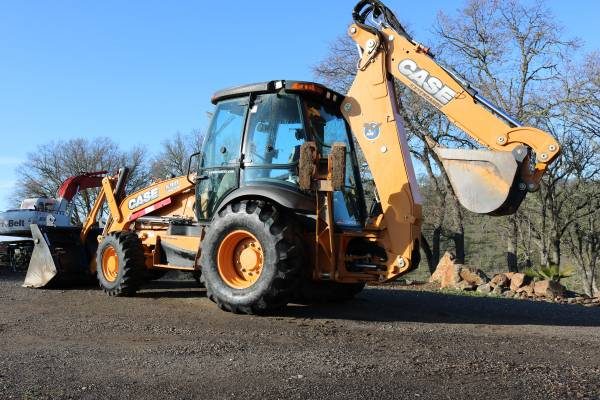

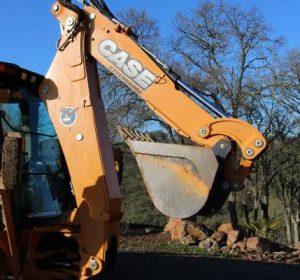

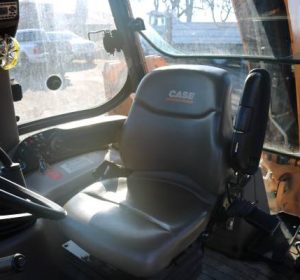

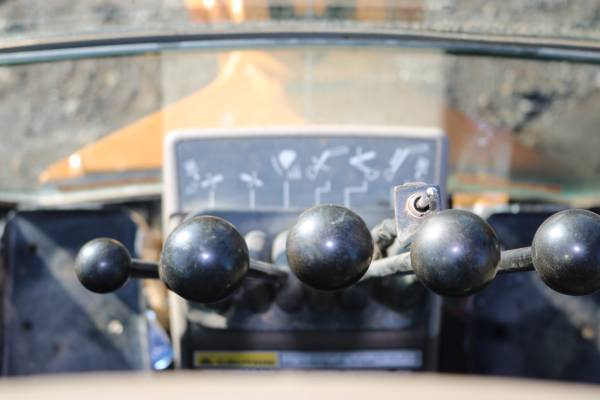

VERY CLEAN ONE OWNER CASE 590 SUPER N LOADER BACKHOE WITH ONLY 1400HRS ON IT. IT HAS AN MP BUCKET, RIDE CONTROL, EXT HOE, AUX HYDRAULICS, QUICK COUPLER THAT IS CONTROLLED FROM INSIDE CAB, CASE STYLE CONTROLS, 4X4, CAB W/HEAT/AC AND RADIO. OWNER OPERATED SINCE NEW! VERY CLEAN AND TIGHT UNIT! COMES WITH FOUR BUCKETS.

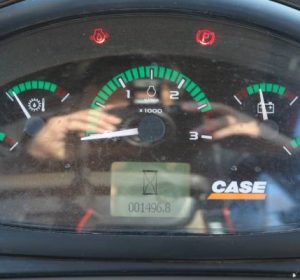

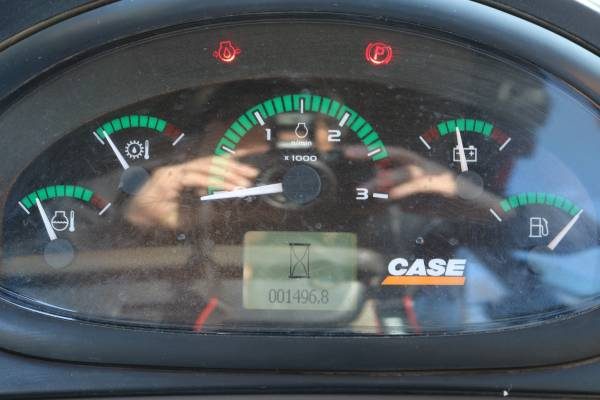

Hours: 1,400

Location: El Dorado Hills, CA 95762

Price: 85,900

Backhoe
J. LOAD HEIGHT – STD 13.1 ft in 4000 mm
K. REACH FROM SWIVEL – STD 19.6 ft in 5980 mm
L. DIG DEPTH – STD 15.5 ft in 4720 mm
M. REACH AT LOAD HEIGHT – STD 5.1 ft in 1560 mm
Dimensions
A. TRANSPORT LENGTH 23.8 ft in 7250 mm
B. TRANSPORT WIDTH 7.7 ft in 2360 mm
C. TRANSPORT HEIGHT 11.6 ft in 3540 mm
D. WHEELBASE 7.1 ft in 2150 mm
E. GROUND CLEARANCE 1.2 ft in 360 mm
F. HEIGHT TO TOP OF CAB 8.9 ft in 2710 mm
Loader
G. CLEARANCE AT MAX DUMP HEIGHT 8.9 ft in 2720 mm
H. REACH AT MAX DUMP HEIGHT 2.4 ft in 741 mm
I. DIG DEPTH 6.2 in 157 mm
Specification
Engine
MAKE Case
MODEL 445TA/E3
NET POWER 108 hp 80.5 kw
GROSS POWER 110 hp 82 kw
DISPLACEMENT 274 cu in 4.5 L
POWER MEASURED @ 2200 rpm
TORQUE MEASURED @ 1400 rpm
NUMBER OF CYLINDERS 4
NET TORQUE RISE 45 %
NET MAX TORQUE 380 lb ft 515.2 Nm
ASPIRATION Turbocharged
Operational
OPERATING WEIGHT 4WD 20458 lb 9279.6 kg
FUEL CAPACITY 42 gal 159 L
HYDRAULIC SYSTEM FLUID CAPACITY 34.9 gal 132 L
OIL SYSTEM FLUID CAPACITY 3.6 gal 13.6 L
COOLING SYSTEM FLUID CAPACITY 4.8 gal 18 L
TRANSMISSION FLUID CAPACITY 5.1 gal 19.4 L
FRONT AXLE FLUID CAPACITY 2.3 gal 8.6 L
REAR AXLE FLUID CAPACITY 3.6 gal 13.6 L
TURNING RADIUS 12.5 ft in 3810 mm
TIRE SIZE FRONT – 2WD / 4WD 14×17.5
REAR TIRES SIZE 2WD/4WD 21Lx24
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 120 amps
Transmission
TYPE Powershift
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 3
MAX SPEED – FORWARD 24.2 mph 38.9 km/h
MAX SPEED REVERSE 15.9 mph 25.6 km/h
Backhoe
DIG DEPTH – STD 15.5 ft in 4720 mm
DIG DEPTH – EXT 19.5 ft in 5940 mm
REACH FROM SWIVEL – STD 19.6 ft in 5980 mm
REACH FROM SWIVEL – EXT 23.5 ft in 7170 mm
LOAD HEIGHT – STD 13.1 ft in 4000 mm
LOAD HEIGHT – EXT 15.8 ft in 4810 mm
REACH AT LOAD HEIGHT – STD 5.1 ft in 1560 mm
REACH AT LOAD HEIGHT – EXT 8.1 ft in 2470 mm
Loader
BUCKET CAPACITY 1.3 yd3 0.99 m3
BUCKET WIDTH 93 in 2362.2 mm
CLEARANCE AT MAX DUMP HEIGHT 8.9 ft in 2720 mm
REACH AT MAX DUMP HEIGHT 2.4 ft in 741 mm
DIG DEPTH 6.2 in 157 mm
Hydraulic
PUMP FLOW CAPACITY 43 gal/min 162.8 L/min
RELIEF VALVE PRESSURE 3450 psi 23786.9 kPa
Dimensions
TRANSPORT LENGTH 23.8 ft in 7250 mm
TRANSPORT WIDTH 7.7 ft in 2360 mm
TRANSPORT HEIGHT 11.6 ft in 3540 mm
HEIGHT TO TOP OF CAB 8.9 ft in 2710 mm
WHEELBASE 7.1 ft in 2150 mm
GROUND CLEARANCE 1.2 ft in 360 mm
