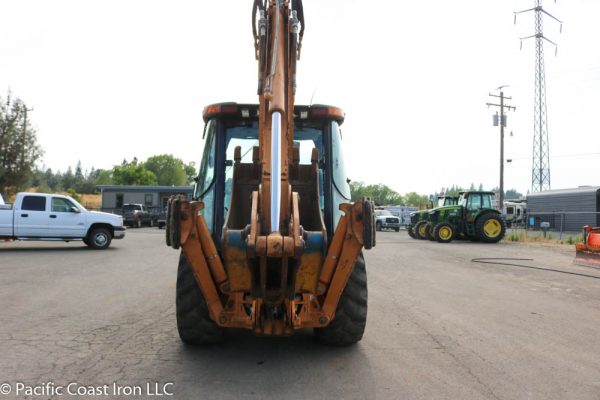

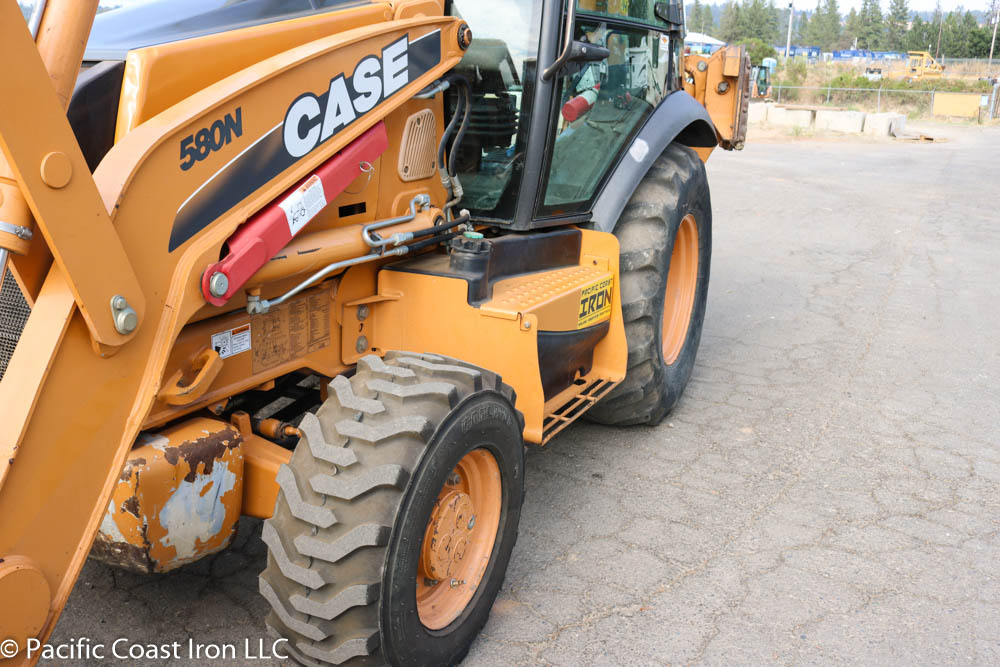

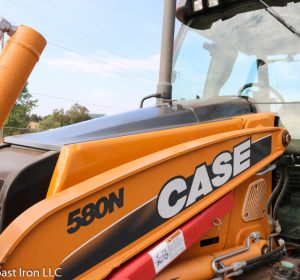

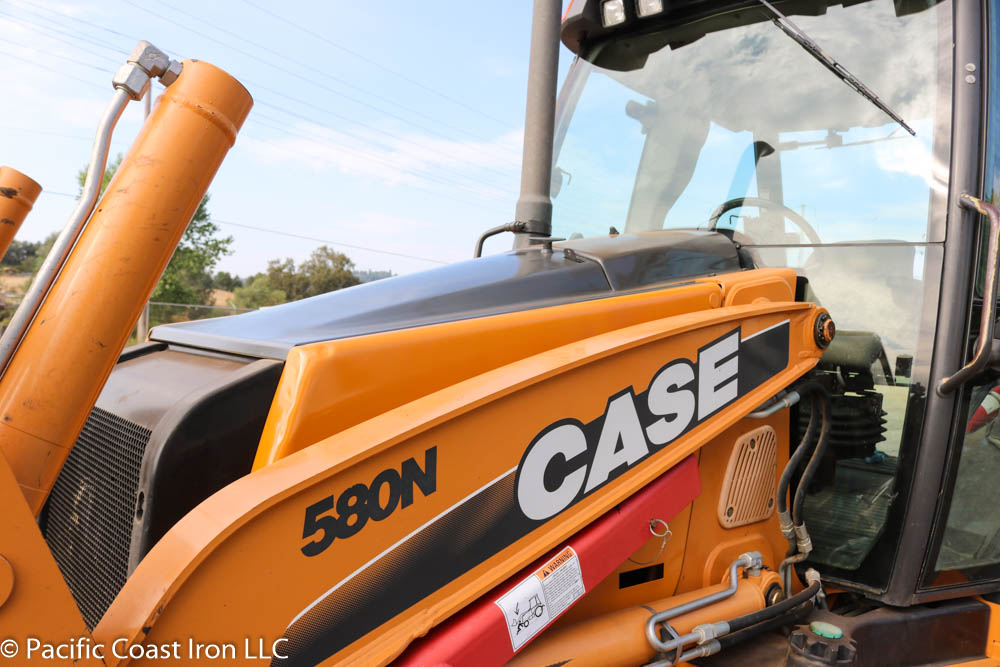

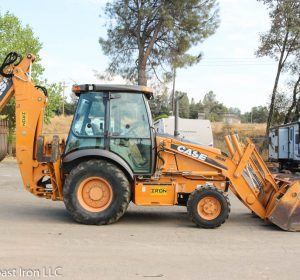

2012 CASE 580N BACKHOE-(SOLD)

Price $49,900

Call Today: 916.933.6050

Short Description

2012 CASE 580N BACKHOE

UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW! READY TO GO TO WORK.

FEATURES:

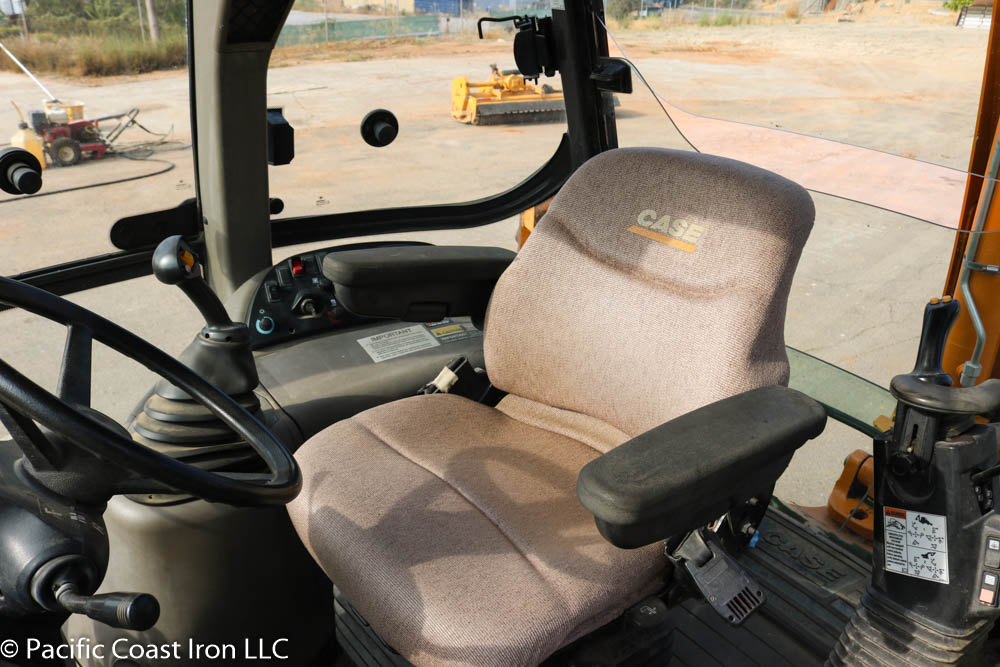

CAB HEAT/AC
TIER 3 ENGINE
E-STICK
AUX HYDRAULICS
MP BUCKET
WR COUPLER
PILOT CONTROLS
4X4

Category: Loader Backhoes

Long Description

Description

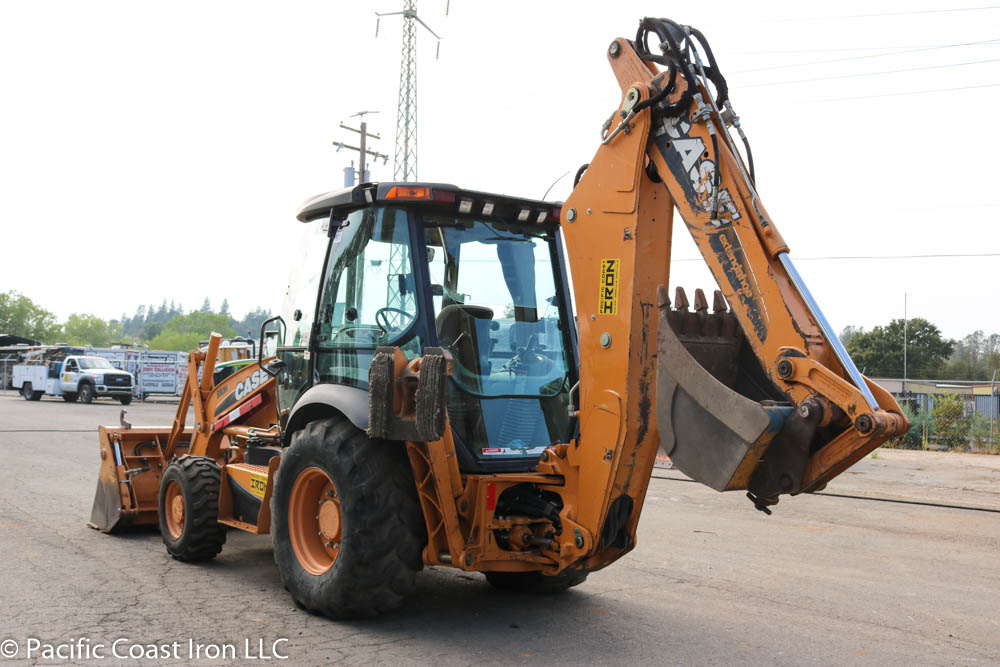

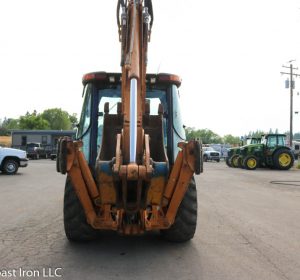

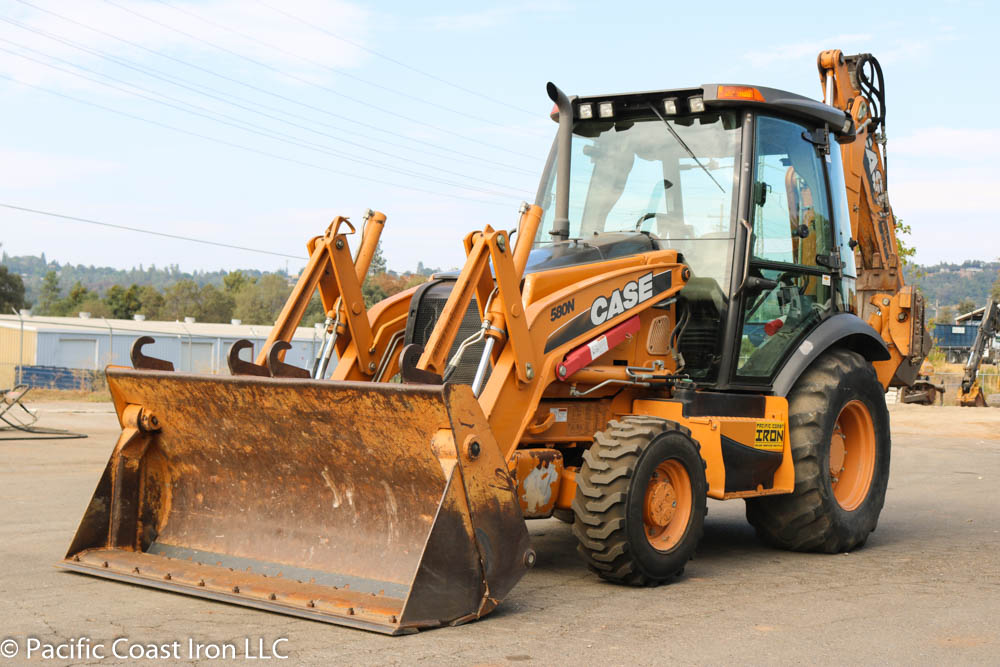

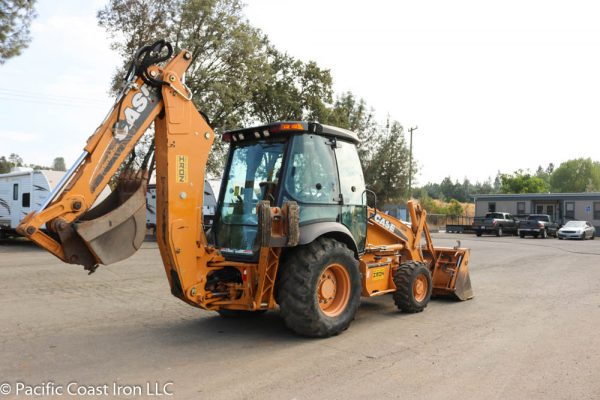

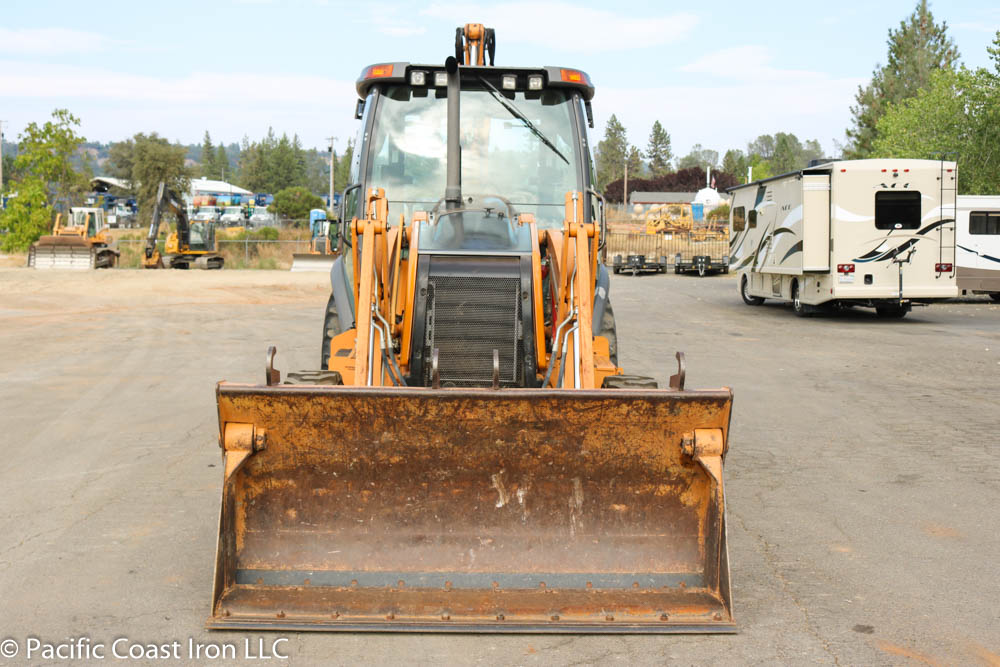

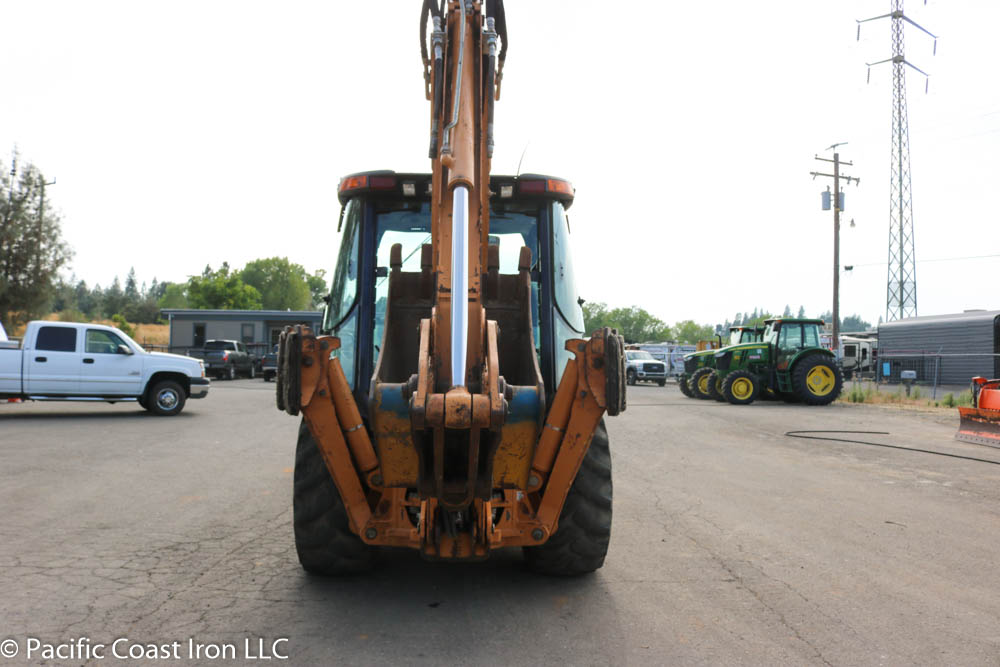

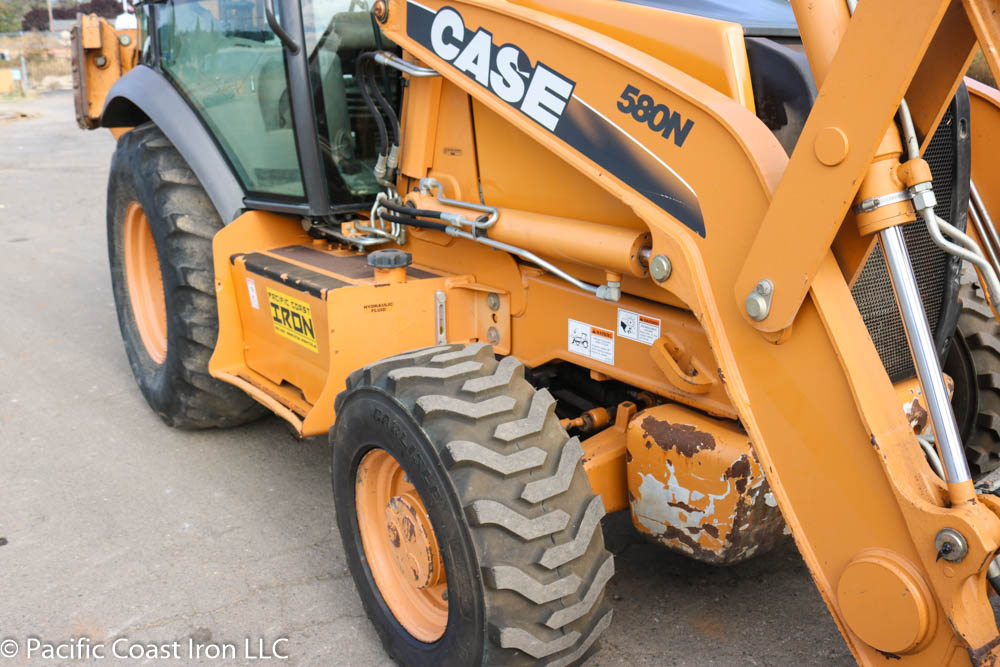

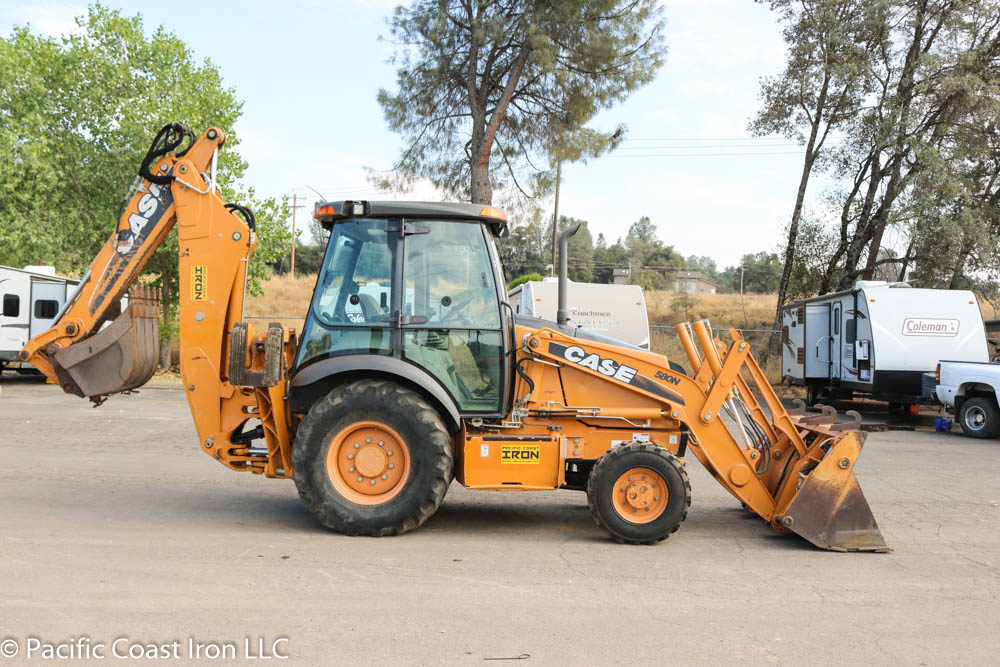

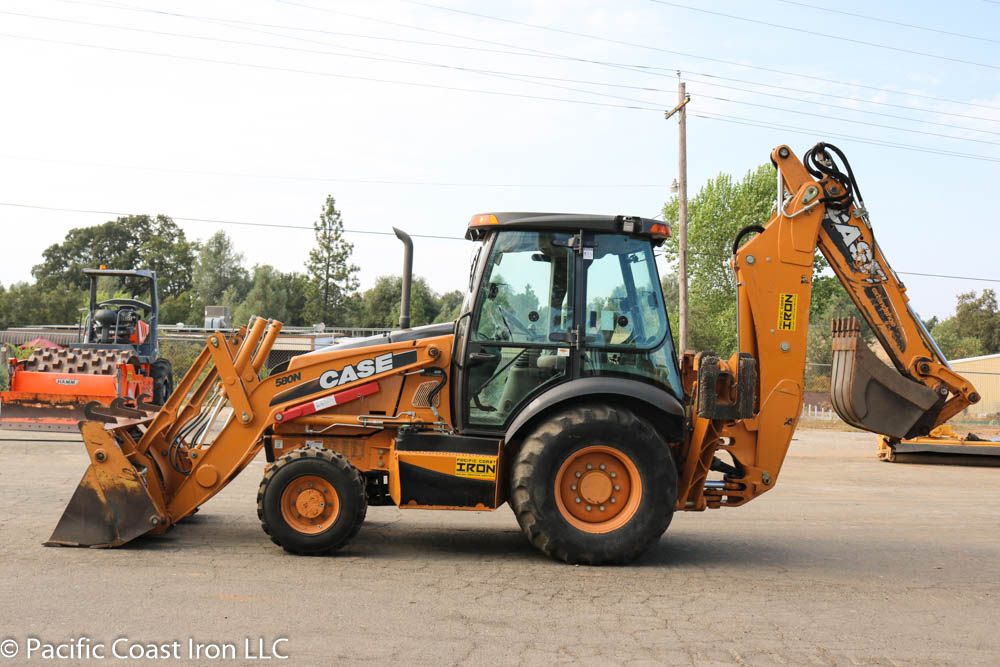

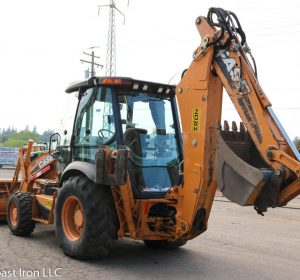

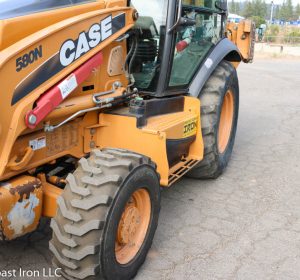

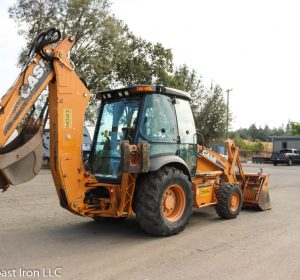

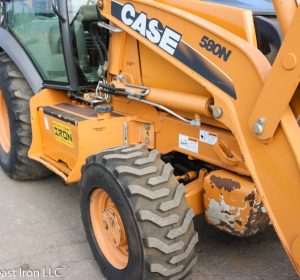

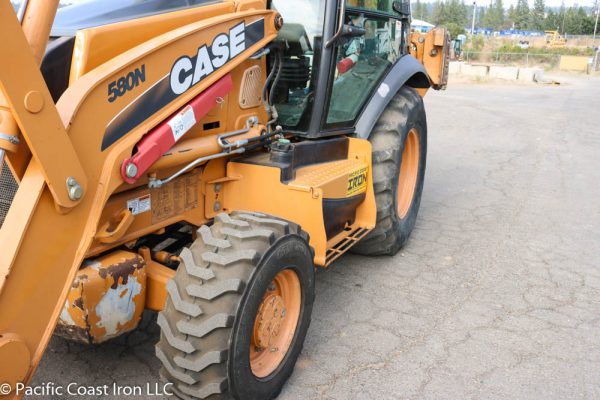

2012 CASE 580N BACKHOE

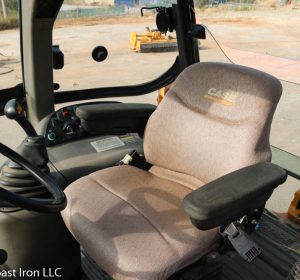

2012 CASE 580N LOADER BACKHOE WITH ONLY 2500HRS. UNIT HAS 4X4, EROPS WITH HEAT/AC, MP BUCKET, E-STICK, AUX HYDRAULICS, PILOT CONTROLS, AND A TIER 3 ENGINE.

SPECIFACATIONS:

Selected Dimensions

Backhoe
J. Load Height – Std	11.8 ft in	3590 mm
K. Reach From Swivel – Std	18.3 ft in	5570 mm
L. Dig Depth – Std	14.8 ft in	4500 mm
M. Reach at Load Height – Std	6.7 ft in	2040 mm
Dimensions
A. Transport Length	23.4 ft in	7140 mm
B. Transport Width	6.8 ft in	2070 mm
C. Transport Height	10.8 ft in	3300 mm
D. Wheelbase	7 ft in	2130 mm
E. Ground Clearance	1.2 ft in	380 mm
F. Height to Top of Cab	8.9 ft in	2720 mm
Loader
G. Clearance at Max Dump Height	8.8 ft in	2690 mm
H. Reach at Max Dump Height	2.6 ft in	801 mm
I. Dig Depth	6.1 in	155 mm

Specification

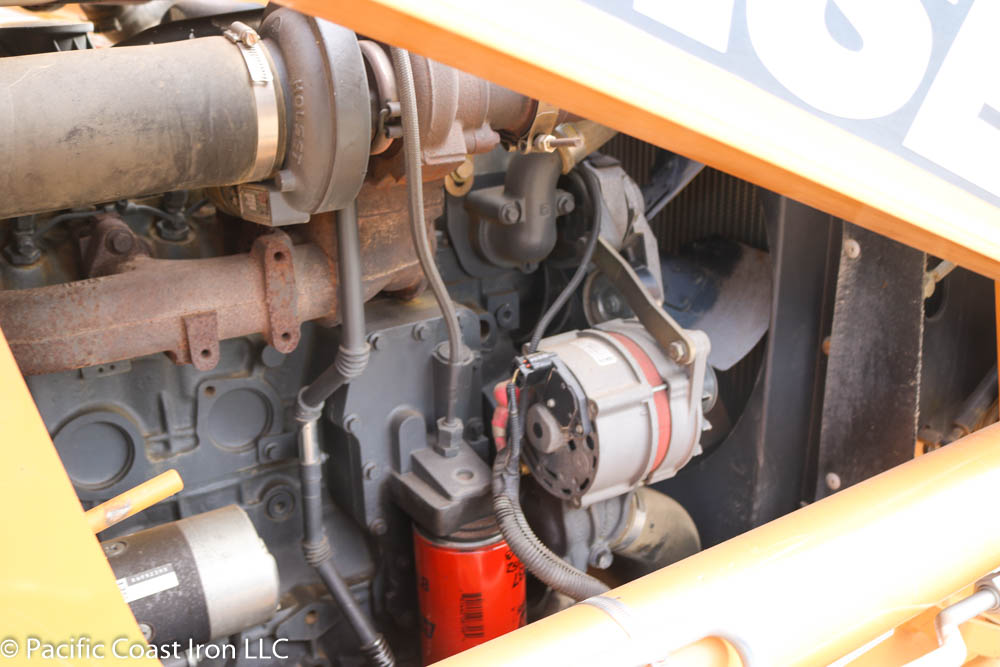

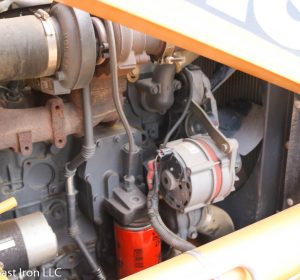

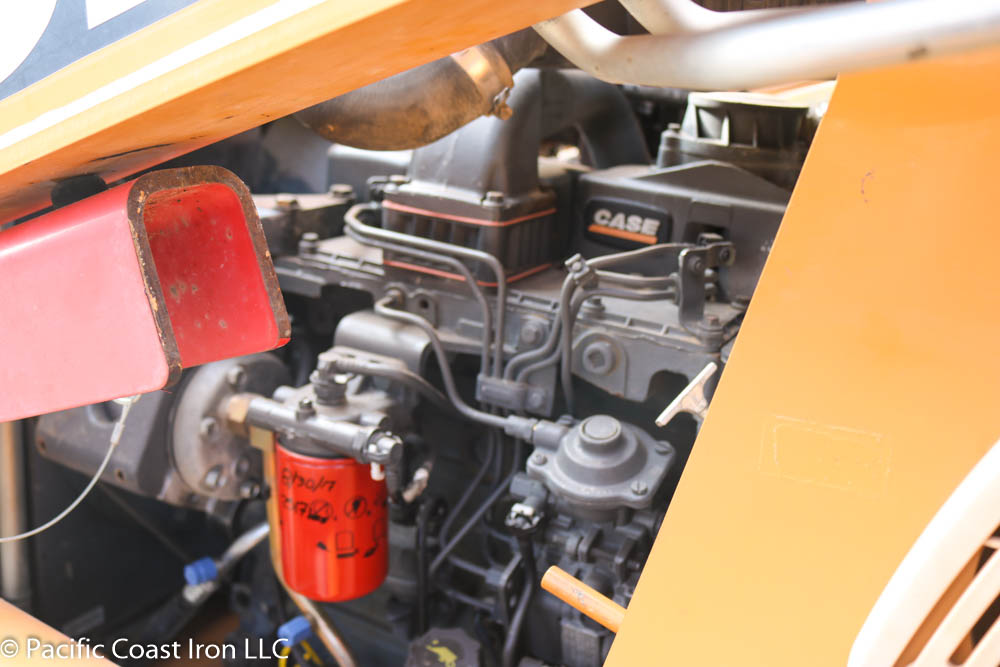

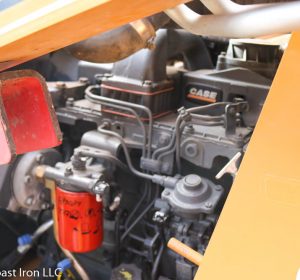

Engine
Make	Case
Model	445T/M3
Net Power	79 hp	58.9 kw
Gross Power	85 hp	63.4 kw
Displacement	274 cu in	4.5 L
Power Measured @	2200 rpm
Torque Measured @	1400 rpm
Number of Cylinders	4
Net Max Torque	270 lb ft	366.1 Nm
Aspiration	Turbocharged
Operational
Operating Weight 2wd	14564 lb	6606.1 kg
Operating Weight 4wd	15862 lb	7194.9 kg
Max Weight	17454 lb	7917 kg
Fuel Capacity	42 gal	159 L
Hydraulic System Fluid Capacity	28 gal	106 L
Oil System Fluid Capacity	3.6 gal	13.6 L
Cooling System Fluid Capacity	4.4 gal	16.8 L
Transmission Fluid Capacity	5 gal	19 L
Front Axle Fluid Capacity	2 gal	7.7 L
Rear Axle Fluid Capacity	3.6 gal	13.6 L
Turning Radius	11.3 ft in	3450 mm
Tire Size Front – 2wd / 4wd	11L x 16 / 12x 16.5
Rear Tires Size 2wd/4wd	19.5L x 24
Operating Voltage	12 V
Alternator Supplied Amperage	120 amps
Transmission
Type	Power shuttle syncromesh
Number of Forward Gears	4
Number of Reverse Gears	4
Max Speed – Forward	24.3 mph	39.1 km/h
Max Speed Reverse	29.1 mph	46.8 km/h

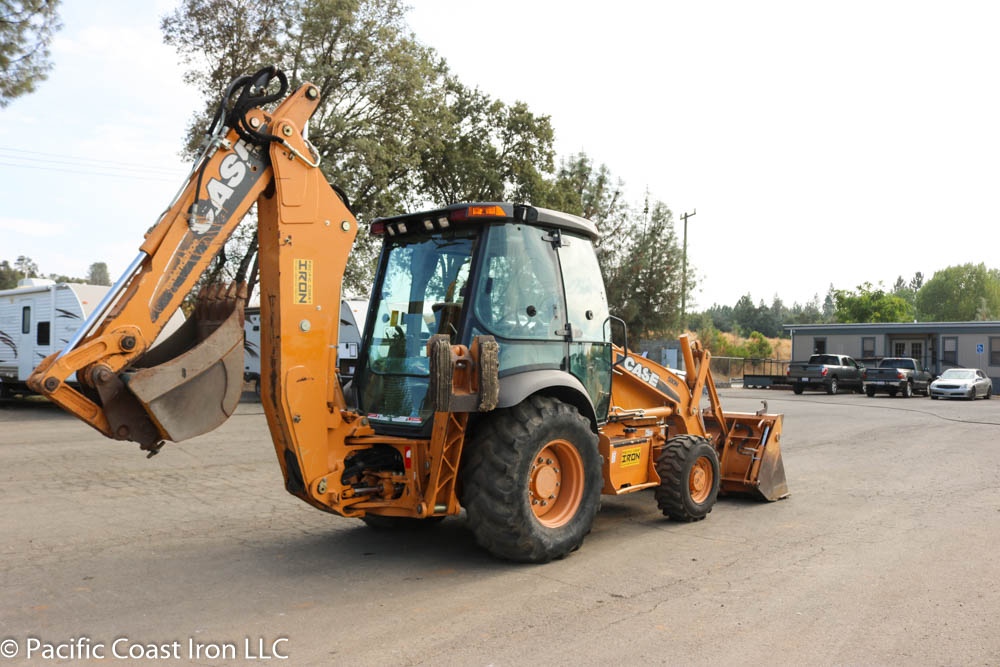

Backhoe
Dig Depth – Std	14.8 ft in	4500 mm
Dig Depth – Ext	18.2 ft in	5550 mm
Reach From Swivel – Std	18.3 ft in	5570 mm
Reach From Swivel – Ext	21.7 ft in	6600 mm
Load Height – Std	11.8 ft in	3590 mm
Load Height – Ext	14.1 ft in	4300 mm
Reach at Load Height – Std	6.7 ft in	2040 mm
Reach at Load Height – Ext	9.3 ft in	2840 mm

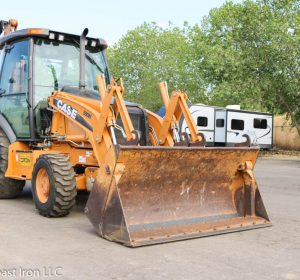

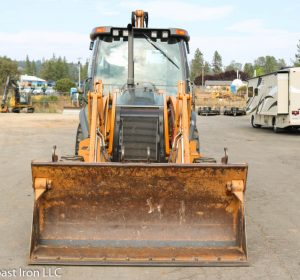

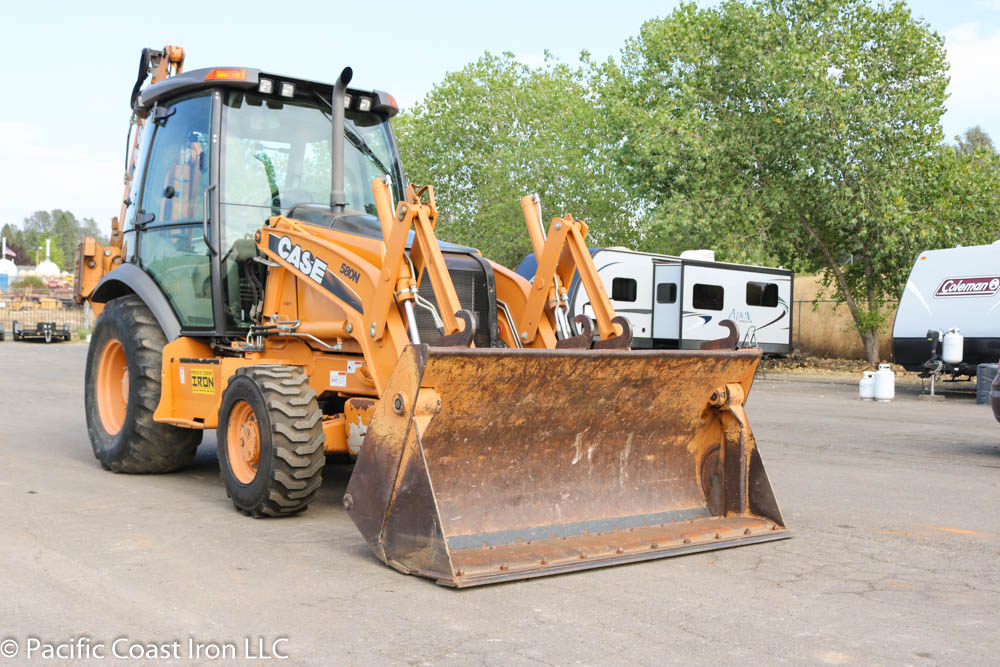

Loader
Bucket Capacity	0.88 yd3	0.67 m3
Bucket Width	82 in	2082.8 mm
Clearance at Max Dump Height	8.8 ft in	2690 mm
Reach at Max Dump Height	2.6 ft in	801 mm
Dig Depth	6.1 in	155 mm

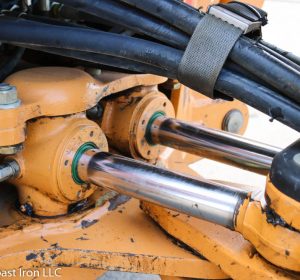

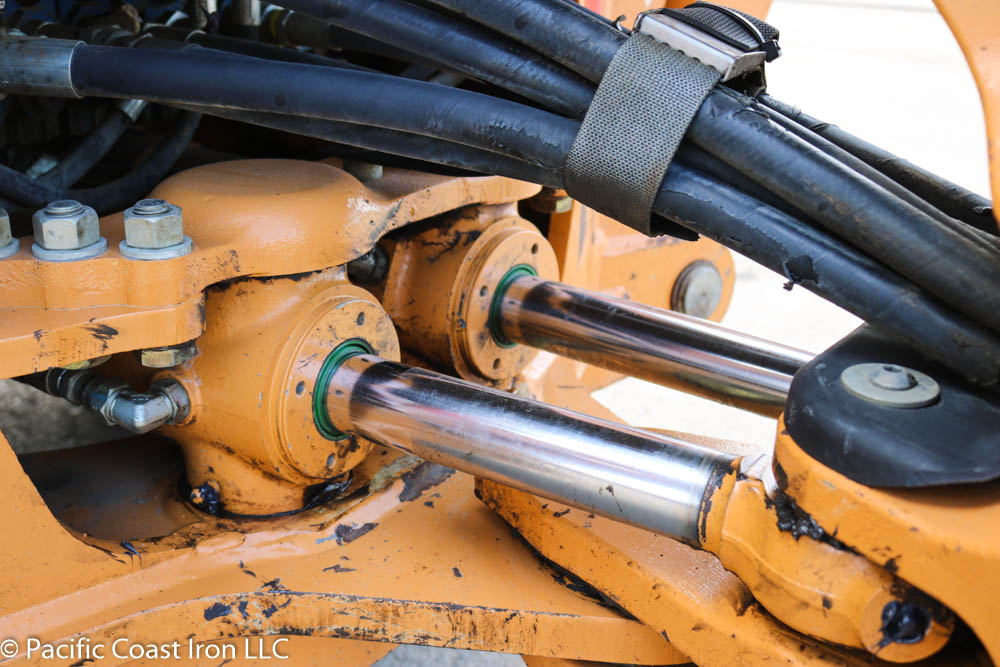

Hydraulic
Pump Type	Gear
Pump Flow Capacity	28.5 gal/min	107.9 L/min
Relief Valve Pressure	3350 psi	23097.4 kPa
Dimensions
Transport Length	23.4 ft in	7140 mm
Transport Width	6.8 ft in	2070 mm
Transport Height	10.8 ft in	3300 mm
Height to Top of Cab	8.9 ft in	2720 mm
Wheelbase	7 ft in	2130 mm
Ground Clearance	1.2 ft in	380 mm
