Dimensions
|
||
| A. Length w/ Blade | 13.3 ft in | 4040 mm |
| B. Width Over Tracks | 6.6 ft in | 2006 mm |
| C. Height to Top of Cab | 9 ft in | 2743 mm |
| D. Length of Track on Ground | 7.2 ft in | 2184 mm |
| E. Ground Clearance | 1.1 ft in | 345 mm |
|
Undercarriage
|
||
| G. Track Gauge | 5.1 ft in | 1550 mm |
| H. Standard Shoe Size | 18 in | 457 mm |

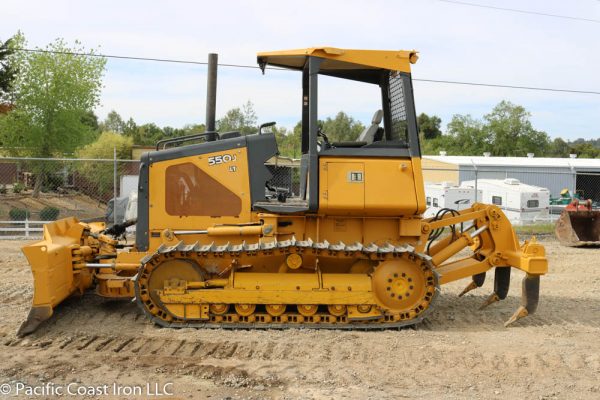

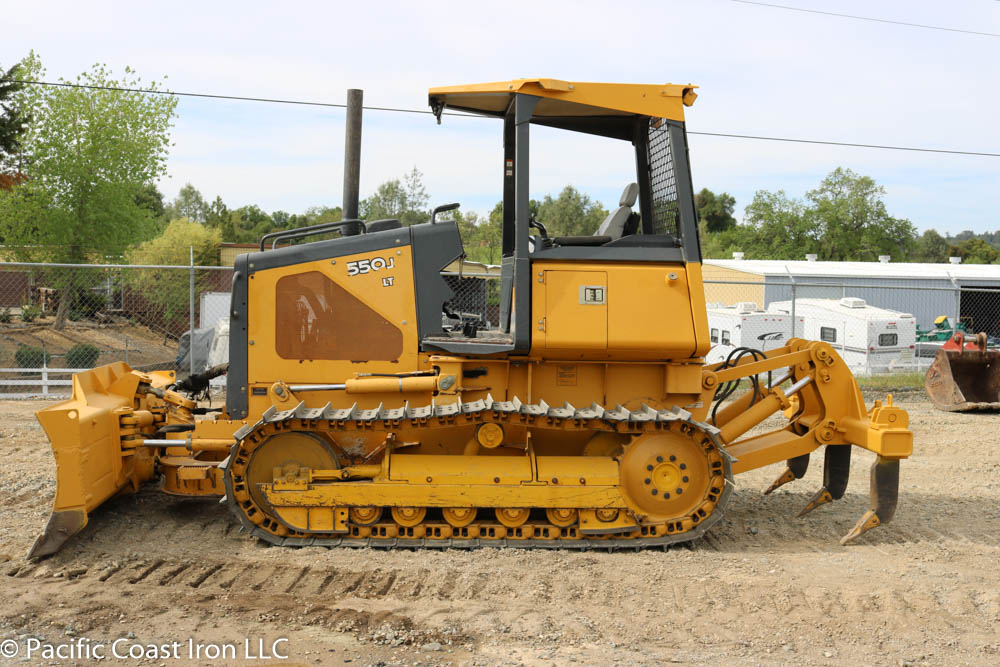

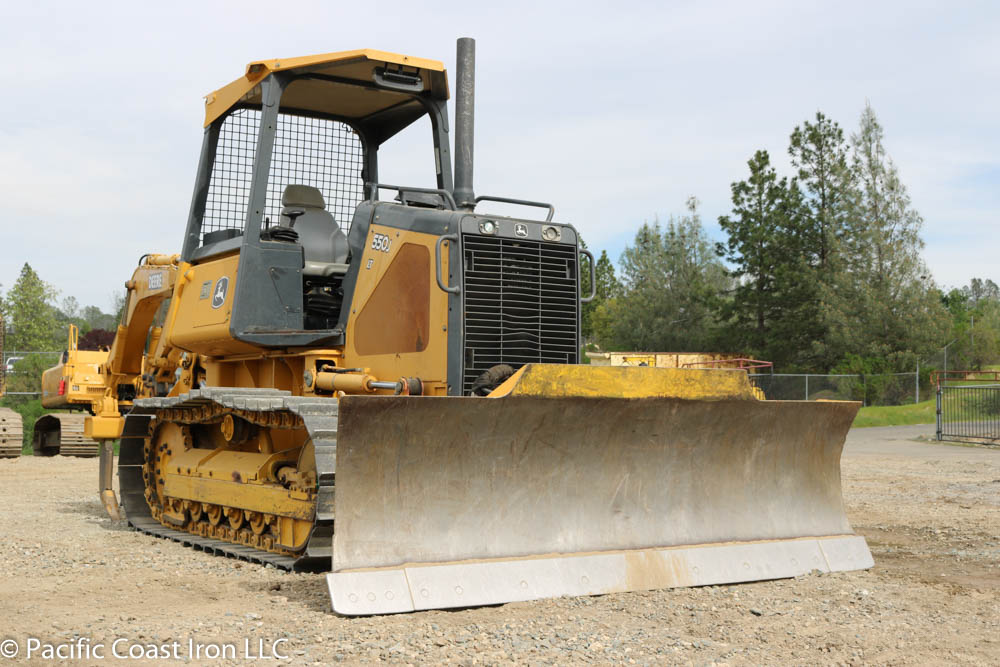

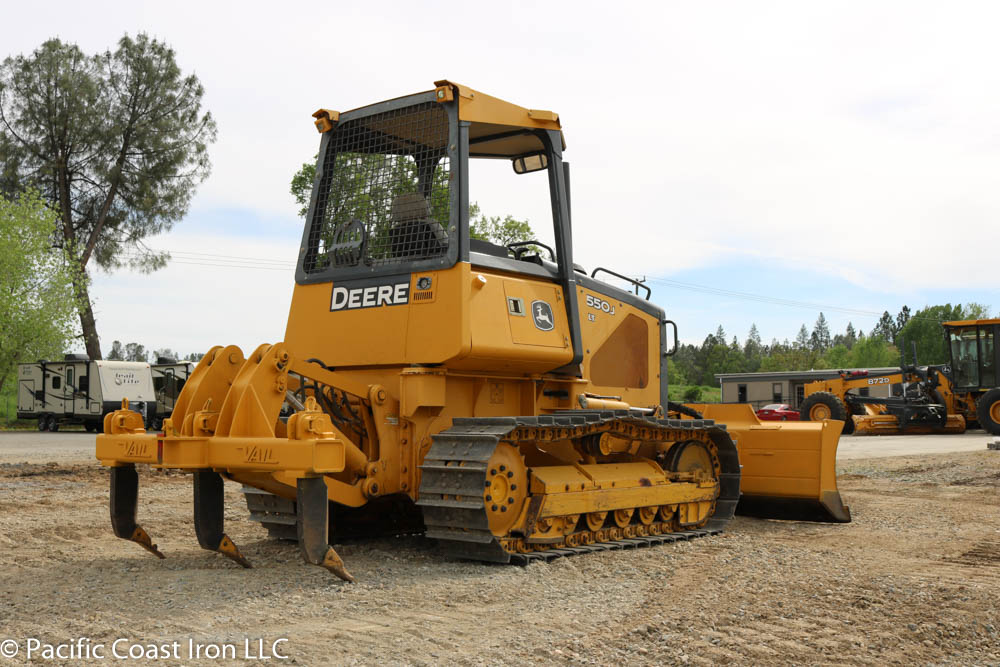

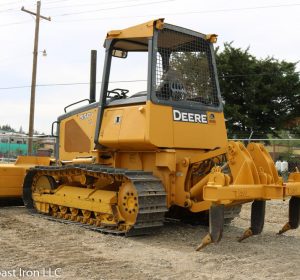

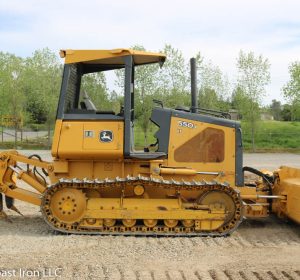

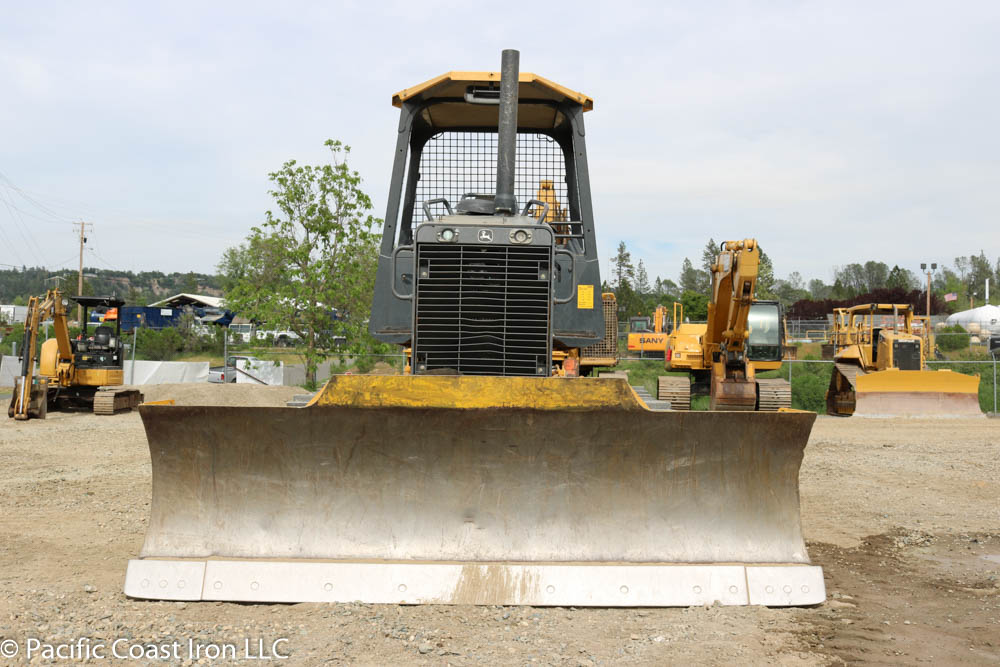

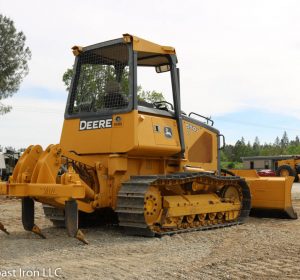

2011 DEERE 550J LT DOZER-(SOLD)
Price $59,900
Call Today: 916.933.6050
Short Description

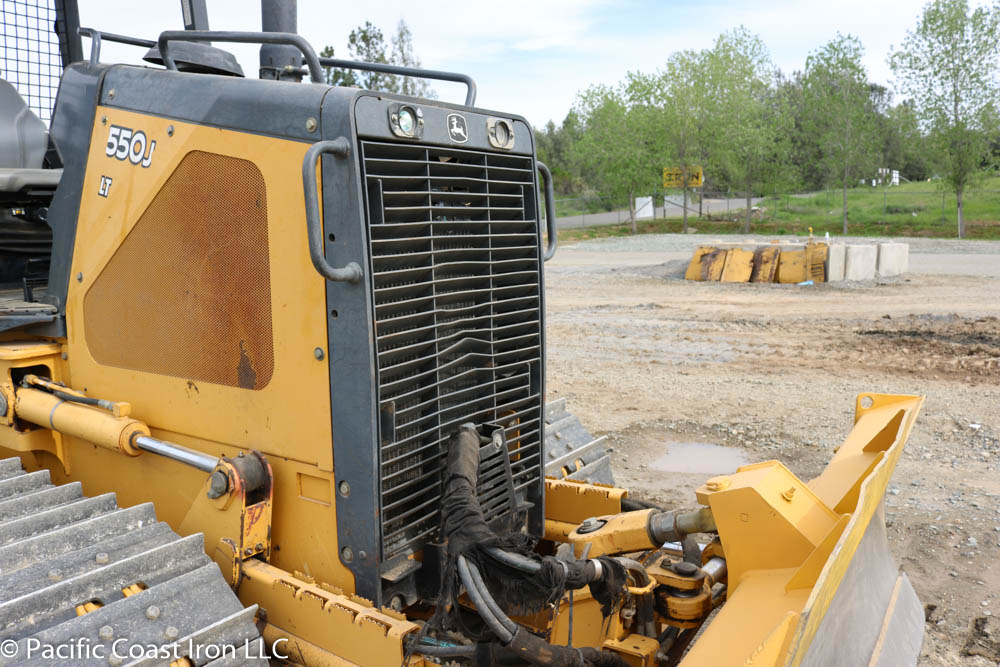

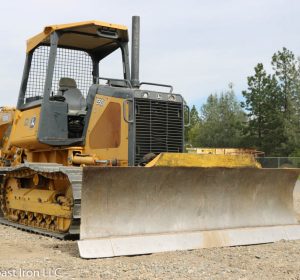

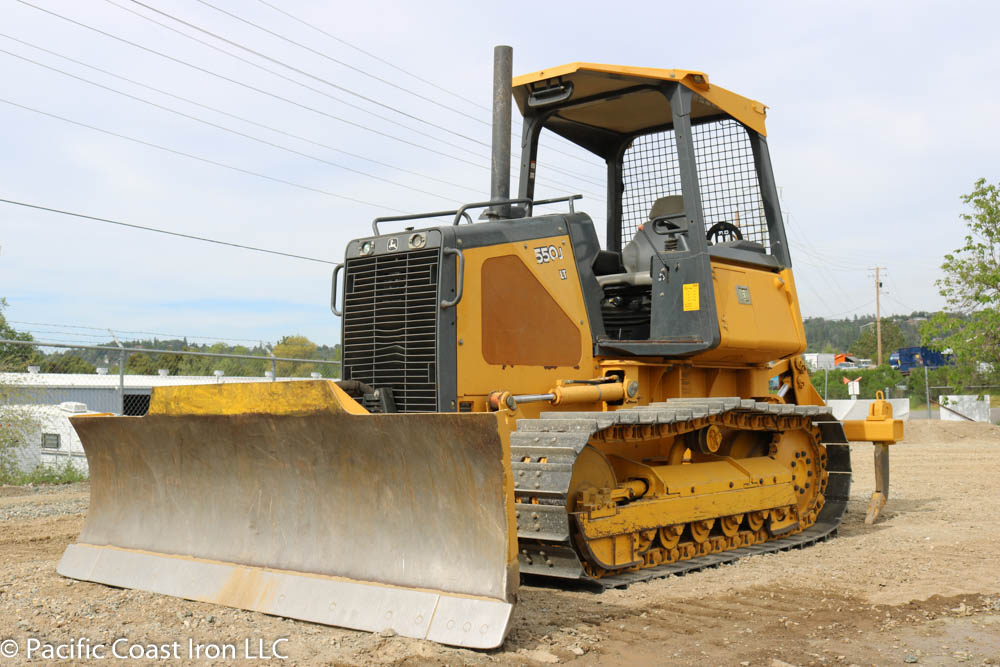

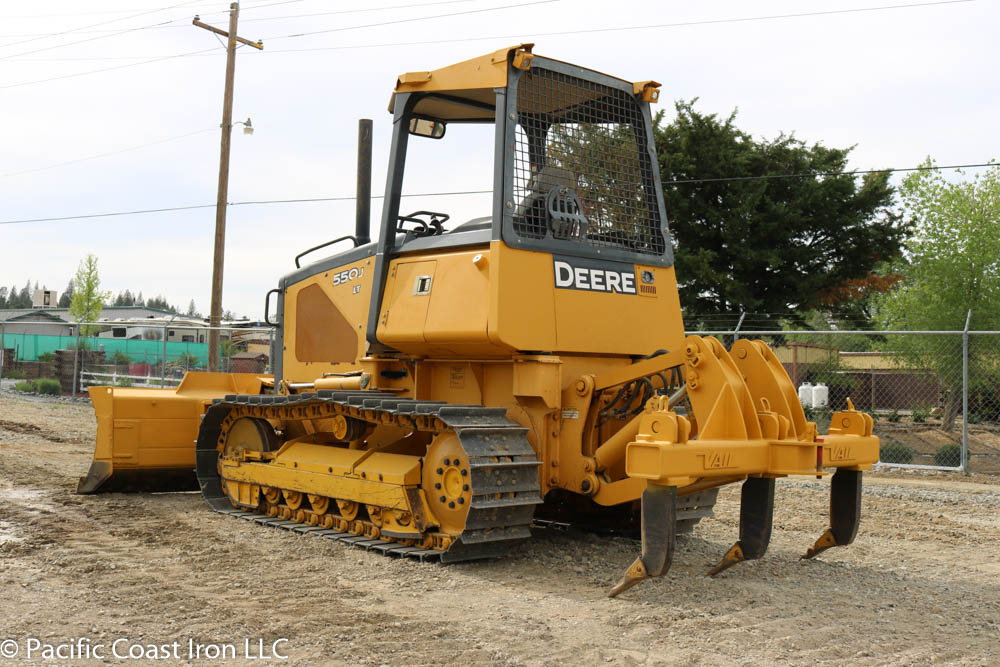

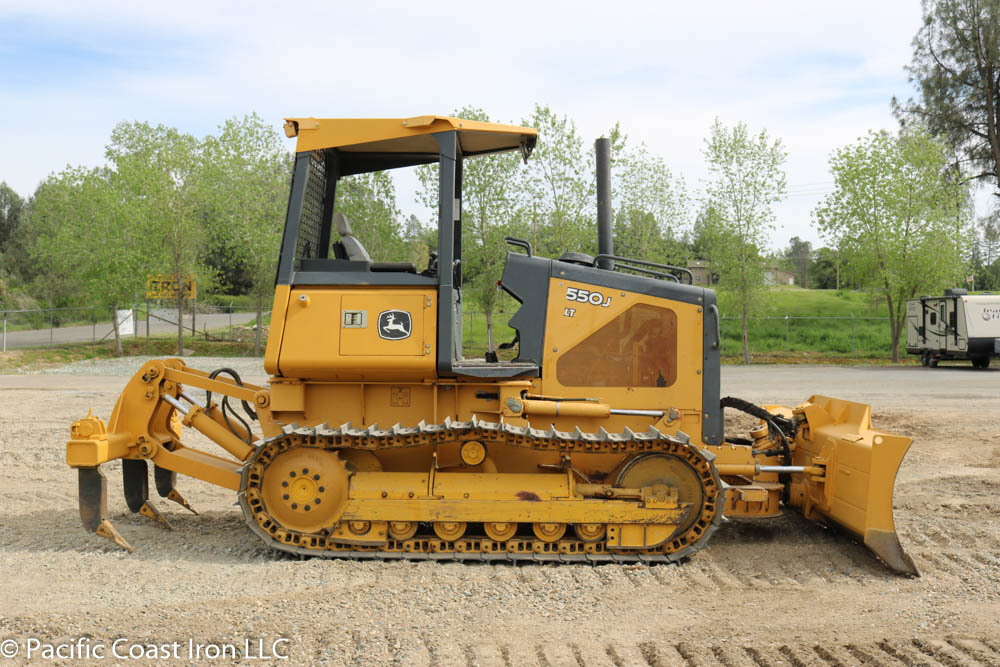

2011 DEERE 550J LT DOZER
UNIT HAS BEEN FLEET MAINTAINED SINCE NEW! READY TO GO TO WORK.
FEATURES:
- OROPS

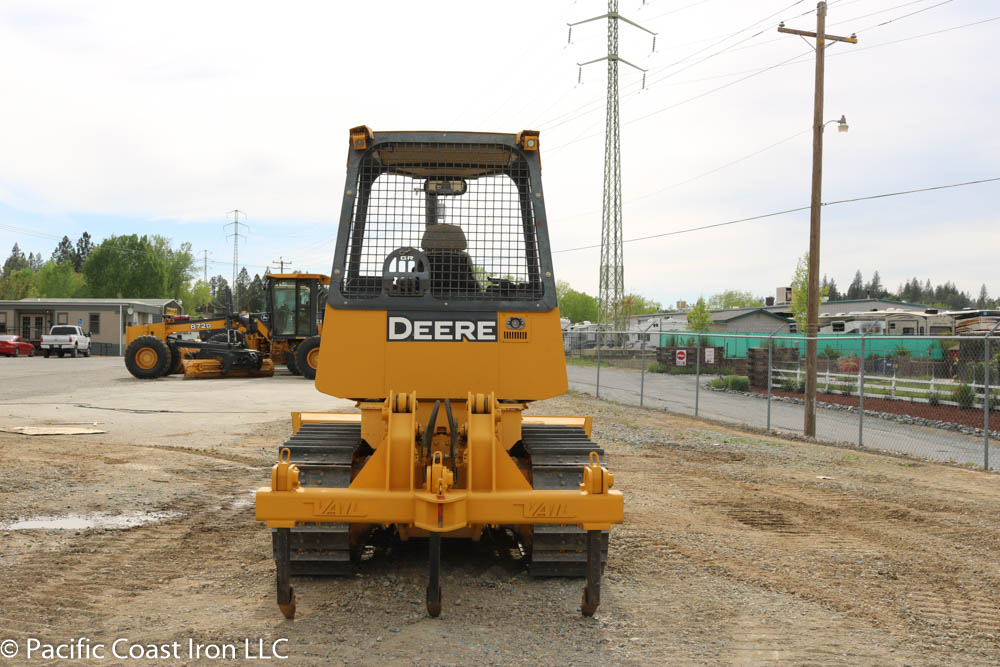

- MS RIPPER

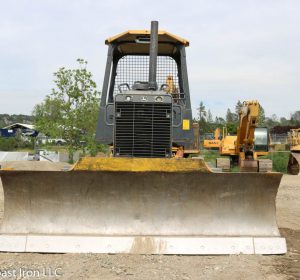

- PAT BLADE
- TIER 3 DEERE ENGINE
- NEW UC
Long Description
2011 DEERE 550J LT DOZER

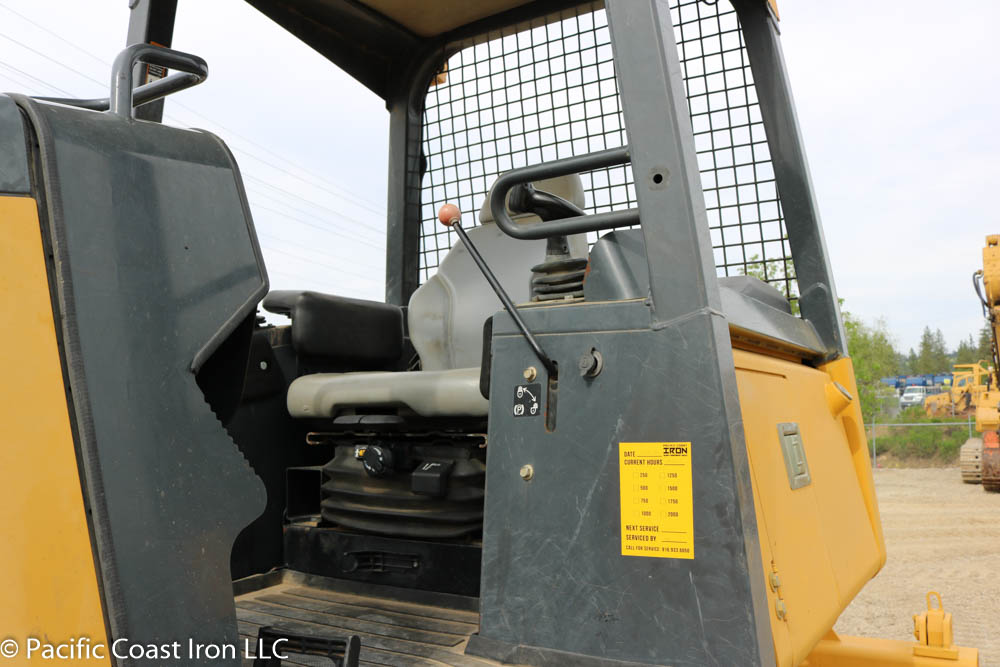

2011 DEERE 550J LT DOZER WITH ONLY 2500HRS! UNIT IS EQUIPPED WITH PAT BLADE, MS RIPPER, TIER 3 ENGINE, OROPS, AND JOYSTICK CONSTROLS. UNIT HAS BEEN PROFESSIOANLLY MAINTAINED SINCE NEW. BRAND NEW UC!
Selected Dimensions
Specification
| Engine | ||
| Make | John Deere | |
| Model | 4045T | |
| Net Power | 80Â hp | 60Â kw |
| Power Measured @ | 2200Â rpm | |
| Max Torque | 263Â lb ft | 358Â Nm |
| Displacement | 276Â cu in | 4.5Â L |
| Torque Measured @ | 1200Â rpm | |
| Aspiration | Altitude-compensating turbocharger | |
| Number of Cylinders | 4 | |
| Operational | ||
| Operating Weight | 17013.1Â lb | 7717Â kg |
| Fuel Capacity | 47Â gal | 178Â L |
| Cooling System Fluid Capacity | 4.2Â gal | 16Â L |
| Engine Oil Capacity | 3.7Â gal | 14Â L |
| Hydraulic Fluid Capacity | 8.5Â gal | 32.2Â L |
| Powertrain Fluid Capacity | 11.3Â gal | 42.7Â L |
| Final Drives Fluid Capacity | 1.7Â gal | 6.6Â L |
| Operating Voltage | 12Â V | |
| Alternator Supplied Amperage | 65Â amps | |
| Transmission | ||
| Type | Hydrostatic | |
| Max Speed – Forward | 5Â mph | 8Â km/h |
| Max Speed – Reverse | 5Â mph | 8Â km/h |

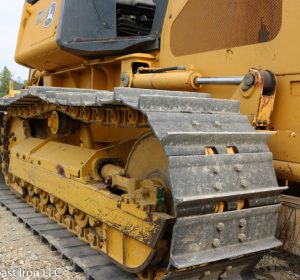

| Undercarriage | ||
| Ground Pressure | 5.5Â psi | 37.9Â kPa |
| Ground Contact Area | 3096Â in2 | 2Â m2 |
| Standard Shoe Size | 18Â in | 457Â mm |
| Number of Shoes per Side | 40 | |
| Number of Track Rollers per Side | 6 | |
| Track Pitch | 6.3Â in | 160Â mm |
| Track Gauge | 5.1Â ft in | 1550Â mm |
| Hydraulic System | ||
| Pump type | Gear | |
| Relief Valve Pressure | 3000Â psi | 20684.3Â kPa |
| Pump Flow Capacity | 15Â gal/min | 56.8Â L/min |
| Standard Blade | ||
| Width | 8.8Â ft in | 2667Â mm |
| Height | 32.5Â in | 826Â mm |
| Capacity | 2.1Â yd3 | 1.6Â m3 |
| Blade Angle (both directions) | 22.2Â degrees | |
| Cutting Depth | 21Â in | 523Â mm |
| Dimensions | ||
| Length w/ Blade | 13.3Â ft in | 4040Â mm |
| Width Over Tracks | 6.6Â ft in | 2006Â mm |
| Height to Top of Cab | 9Â ft in | 2743Â mm |
| Length of Track on Ground | 7.2Â ft in | 2184Â mm |
| Ground Clearance | 1.1Â ft in | 345Â mm |
