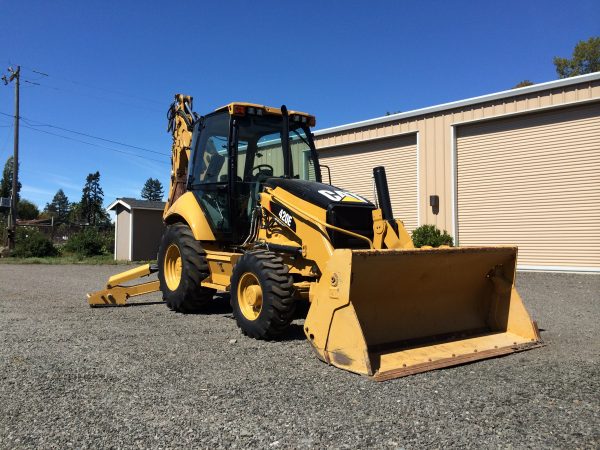

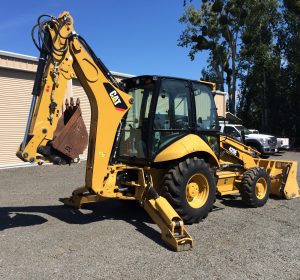

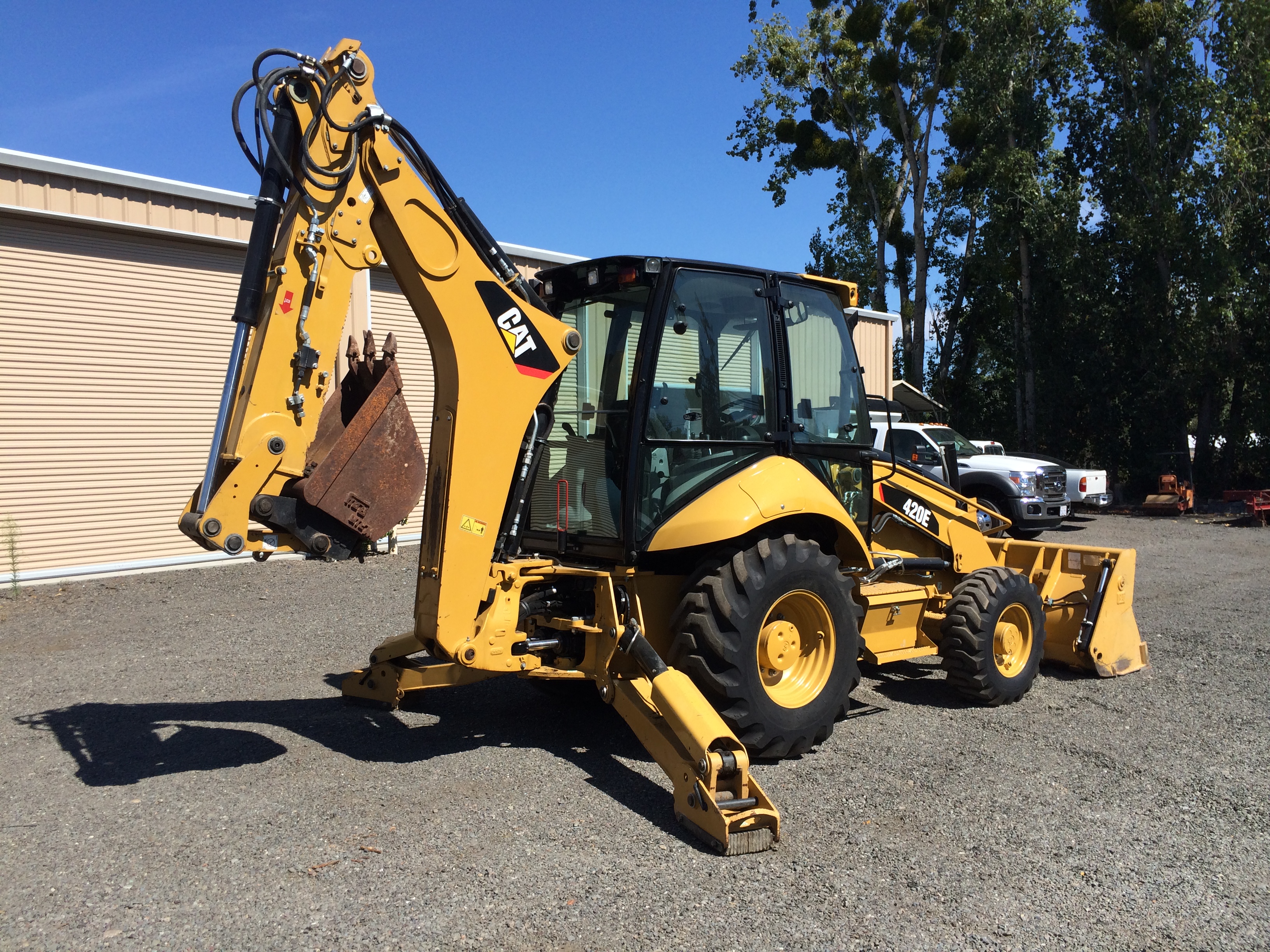

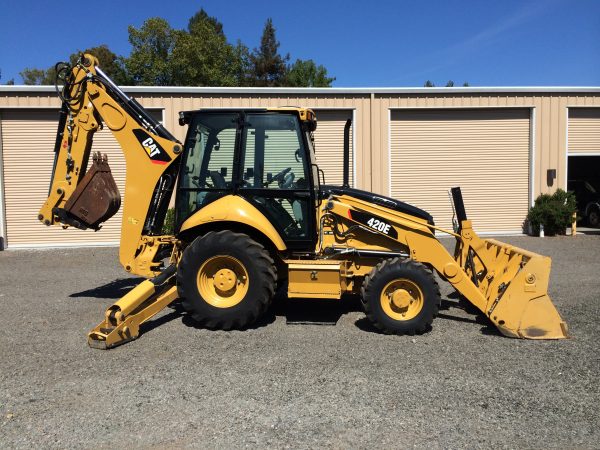

2011 CAT 420E Backhoe(sold)

VERY NICE ONE OWNER 2011 CAT 420E LOADER BACKHOE WITH ONLY 250HRS! WAS BOUGHT BRAND NEW AND NEVER USED. IT HAS AN MP BUCKET, EXTENDA-HOE, AUX HYDRAULICS, CAB WITH HEAT/AC, TIER 3 ACERT MOTOR, CAT QUICK COUPLER, 4X4, THIS THING IS THE CLOSEST YOU CAN GET TO NEW WITHOUT PAYING THE 120K PRICE TAG.

HOURS: 250
LOCATION: SANTA ROSA, CA
PRICE: 82,000

Backhoe
J. LOAD HEIGHT – STD 11.9 ft in 3636 mm
K. REACH FROM SWIVEL – STD 18.4 ft in 5618 mm
L. DIG DEPTH – STD 14.3 ft in 4360 mm
M. REACH AT LOAD HEIGHT – STD 5.8 ft in 1768 mm
Dimensions
A. TRANSPORT LENGTH 24.1 ft in 7343 mm
B. TRANSPORT WIDTH 8 ft in 2438 mm
C. TRANSPORT HEIGHT 11.8 ft in 3577 mm
D. WHEELBASE 7.3 ft in 2200 mm
E. GROUND CLEARANCE 1 ft in 320 mm
F. HEIGHT TO TOP OF CAB 9.3 ft in 2819 mm
Loader
G. CLEARANCE AT MAX DUMP HEIGHT 8.4 ft in 2573 mm
H. REACH AT MAX DUMP HEIGHT 2.8 ft in 853 mm
I. DIG DEPTH 4 in 106 mm
SPECIFICATION

Engine
MAKE Caterpillar
MODEL C4.4 DIT
GROSS POWER 101 hp 75.3 kw
NET POWER 93 hp 69.4 kw
DISPLACEMENT 268 cu in 4.4 L
POWER MEASURED @ 2200 rpm
TORQUE MEASURED @ 1400 rpm
NET TORQUE RISE 36 %
NET MAX TORQUE 301 lb ft 408.1 Nm
Operational
OPERATING WEIGHT 4WD 16115.8 lb 7310 kg
MAX WEIGHT 24250.8 lb 11000 kg
FUEL CAPACITY 38 gal 144 L
HYDRAULIC SYSTEM FLUID CAPACITY 20.9 gal 79 L
OIL SYSTEM FLUID CAPACITY 2 gal 7.6 L
COOLING SYSTEM FLUID CAPACITY 4.4 gal 16.7 L
TRANSMISSION FLUID CAPACITY 5 gal 19 L
FRONT AXLE FLUID CAPACITY 2.9 gal 11 L
REAR AXLE FLUID CAPACITY 4.4 gal 16.5 L
TURNING RADIUS 17.8 ft in 5420 mm
TIRE SIZE FRONT – 2WD / 4WD 11L-16 F-3/12.5/80-18 (10ply) 1-3 Super Traction
REAR TIRES SIZE 2WD/4WD 19.5L-24 (12 ply) R4 ATU/ 19.5L-24 (12 ply) IT 525
OPERATING VOLTAGE 12 V
Transmission
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED – FORWARD 24.9 mph 40.1 km/h
MAX SPEED REVERSE 24.9 mph 40.1 km/h
Backhoe
DIG DEPTH – STD 14.3 ft in 4360 mm
DIG DEPTH – EXT 17.9 ft in 5456 mm
REACH FROM SWIVEL – STD 18.4 ft in 5618 mm
REACH FROM SWIVEL – EXT 21.8 ft in 6666 mm
BUCKET DIG FORCE – STD 13875 lb 6293.6 kg
BUCKET DIG FORCE – EXT 13863 lb 6288.2 kg
LOAD AT MAX LIFT – STD 3511 lb 1596 kg
LOAD AT MAX LIFT – EXT 2288 lb 1040 kg
LOAD HEIGHT – STD 11.9 ft in 3636 mm
LOAD HEIGHT – EXT 13.6 ft in 4145 mm
REACH AT LOAD HEIGHT – STD 5.8 ft in 1768 mm
REACH AT LOAD HEIGHT – EXT 9.1 ft in 2771 mm
Loader
BUCKET CAPACITY 1.3 yd3 0.96 m3
BUCKET WIDTH 7.4 in 2262 mm
BUCKET BREAKOUT FORCE 10242 lb 45.6 kN
LIFT CAPACITY AT FULL HEIGHT 6457 lb 2929 kg
CLEARANCE AT MAX DUMP HEIGHT 8.4 ft in 2573 mm
REACH AT MAX DUMP HEIGHT 2.8 ft in 853 mm
DIG DEPTH 4 in 106 mm
Hydraulic
PUMP TYPE variable-flow, axial piston
PUMP FLOW CAPACITY 43 gal/min 163 L/min
RELIEF VALVE PRESSURE 3611 psi 24898 kPa
Dimensions
TRANSPORT LENGTH 24.1 ft in 7343 mm
TRANSPORT WIDTH 8 ft in 2438 mm
TRANSPORT HEIGHT 11.8 ft in 3577 mm
HEIGHT TO TOP OF CAB 9.3 ft in 2819 mm
WHEELBASE 7.3 ft in 2200 mm
GROUND CLEARANCE 1 ft in 320 mm
