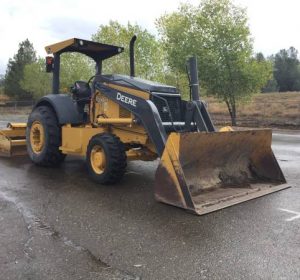

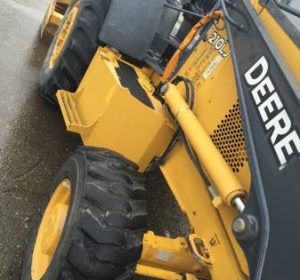

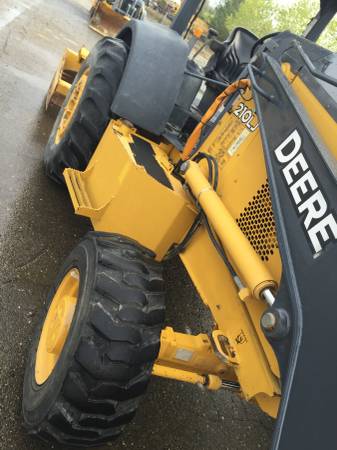

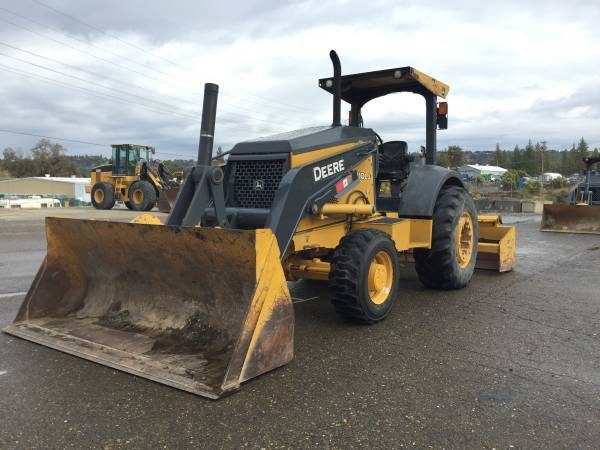

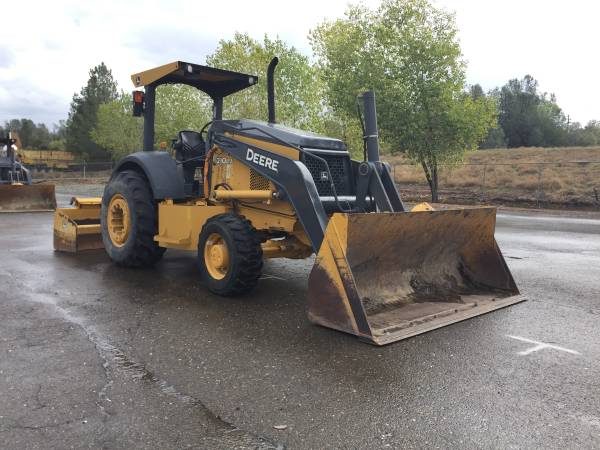

2010 Deere 210LJ Skip Loader(sold)

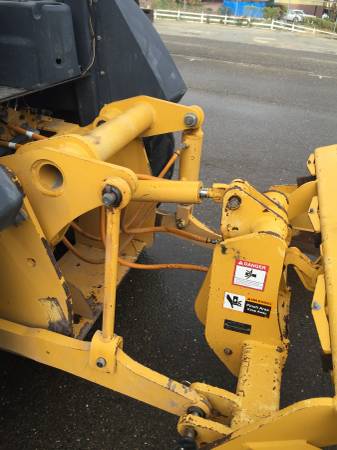

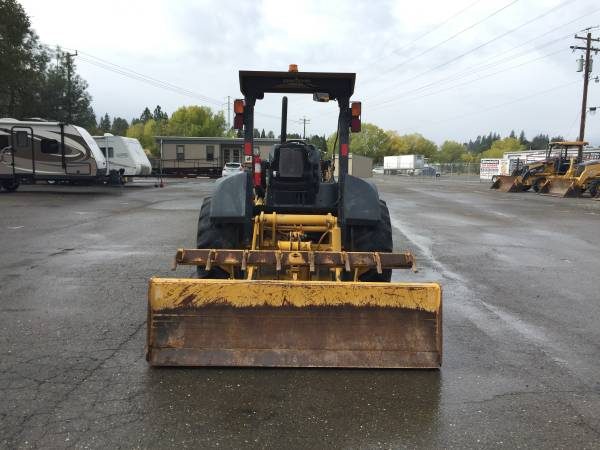

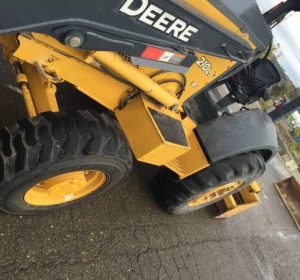

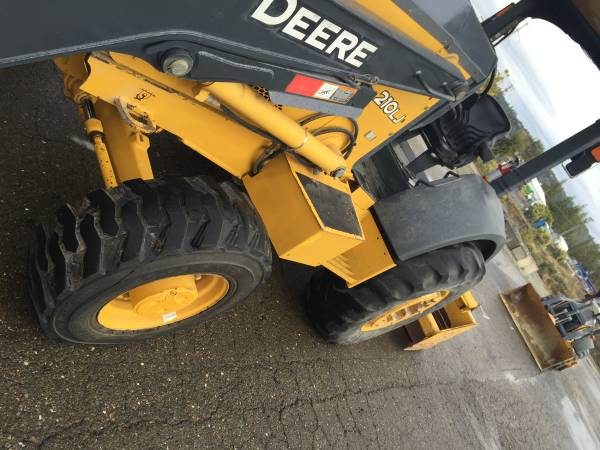

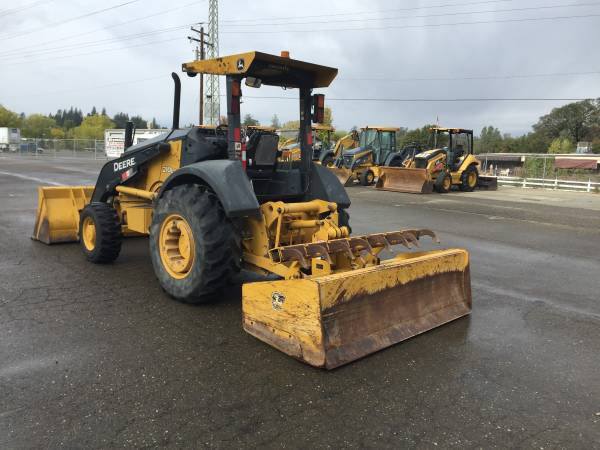

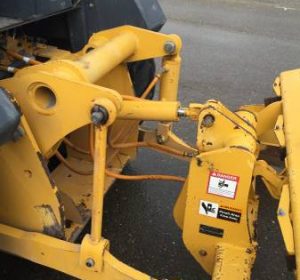

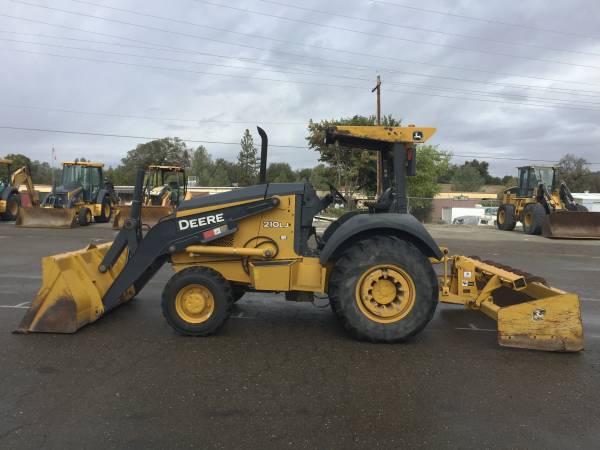

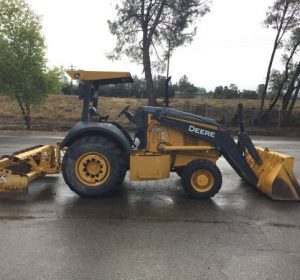

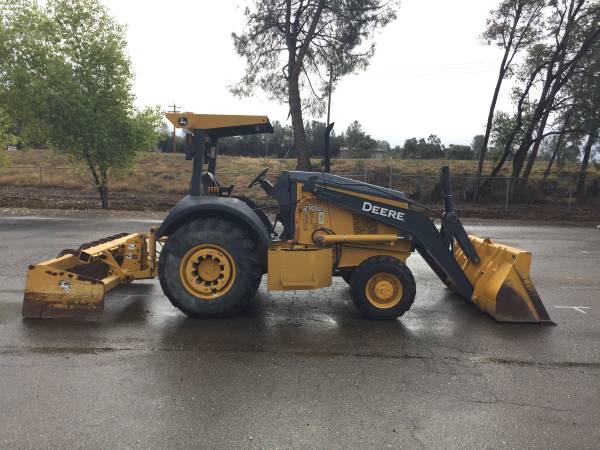

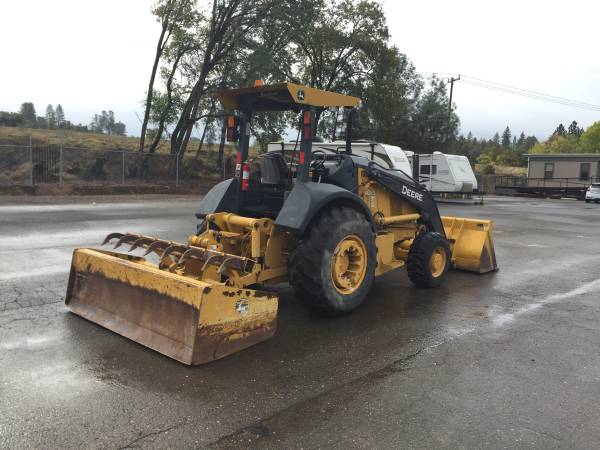

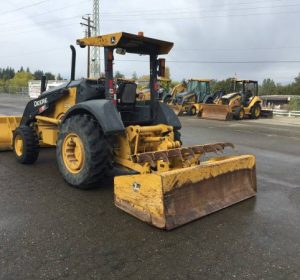

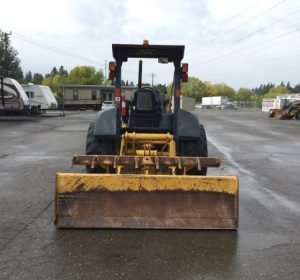

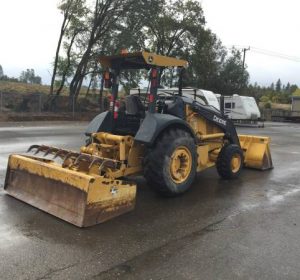

2010 DEERE 210LJ SKIP LOADER WITH ONLY 1600HRS! THIS UNIT HAS A GP BUCKET, GANNON SCRAPER BOX WITH 3 POINT HITCH AND RIPPERS, 4X4, E-STICK, FRONT TIRES 75%, REAR TIRES 45%, AND A TIER 3 DEERE ENGINE. THIS UNIT IS READY TO GO TO WORK.

Hours: 1,600

Price: 35,900

Location: Placerville, CA

Engine 210LJ
Manufacturer and Model. . . . . . . . . . . . . . . . . . . . . . . . . John Deere PowerTechTM E 4045HT turbocharged, standard
Non-Road Emission Standards. . . . . . . . . . . . . . . . . . . . EPA Tier 3/EU Stage IIIA
Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 L (276 cu. in.)
Net Peak Power (ISO 9249). . . . . . . . . . . . . . . . . . . . . . . 62.6 kW (84 hp) @ 2,000 rpm
Net Peak Torque (ISO 9249). . . . . . . . . . . . . . . . . . . . . . 367 Nm (270 lb.-ft.) @ 1,300 rpm
Net Torque Rise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47%
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with spin-on filter and cooler
Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and evacuator valve
Cooling
Fan Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . suction type
Engine Coolant Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . –37 deg. C (–34 deg. F)
Engine Oil Cooler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . oil-to-water
Powertrain
Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-speed, helical-cut gears, full PowerShiftTM with hydraulic reverser standard; electric clutch cutoff on loader lever
Torque Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . single stage, dual phase with 2.63:1 stall ratio; 280 mm (11 in.)
Travel Speeds Forward Reverse
Gear 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6 km/h (3.5 mph) 7.0 km/h (4.3 mph)
Gear 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2 km/h (6.3 mph) 12.9 km/h (8.0 mph)
Gear 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20.9 km/h (13.0 mph) N/A
Gear 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34.9 km/h (21.7 mph) N/A
Axles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . open differential (mechanical-front-wheel drive) front; electrohydraulic locking rear, foot actuated; optional front automatic; traction-control
limited slip
Axle Oscillations, Stop to Stop, Both Axles. . . . . . . . 22 deg.
Axle Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Static Dynamic Ultimate
Mechanical-Front-Wheel Drive. . . . . . . . . . . . . 12 000 kg (26,455 lb.) 5800 kg (12,787 lb.) 28 200 kg (62,170 lb.)
Rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 000 kg (28,660 lb.) 7000 kg (15,432 lb.) 30 600 kg (67,461 lb.)
Steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic power steering and emergency steering (ISO 5010)
Axle, Mechanical-Front-Wheel Drive. . . . . . . . . . . . . With Brakes Without Brakes
Curb-Turning Radius. . . . . . . . . . . . . . . . . . . . . 2.59 m (8 ft. 6 in.) 3.96 m (13 ft. 0 in.)
Bucket Clearance Circle. . . . . . . . . . . . . . . . . . 9.55 m (31 ft. 4 in.) 10.67 m (35 ft. 0 in.)
Steering Wheel Turns, Lock to Lock. . . . . . . . . 2.8
Final Drive, Mechanical Front Wheel. . . . . . . . . . . . . . heavy-duty, outboard planetary final drives distribute shock loads over 3 gears
Brakes (conform to ISO 3450)
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power assisted, hydraulic wet disc, mounted inboard, self-adjusting and self-equalizing
Parking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spring-applied, hydraulically released, wet, multi disc, independent of service brakes with electric switch control; self-engaging with engine shutdown

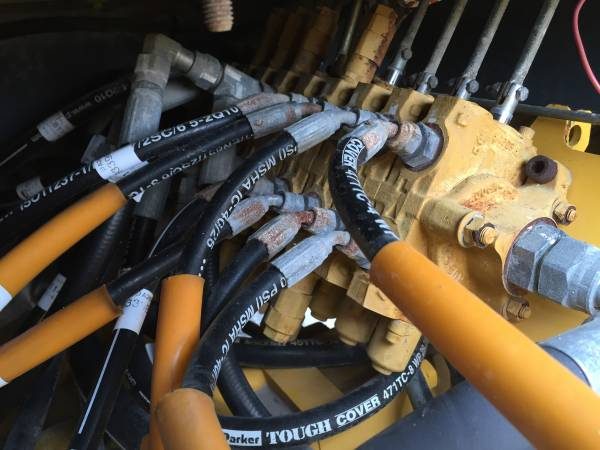

Hydraulics
Main Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . open-center, single-gear pump, integral priority valve
Rated rpm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,250
Pump Flow
Hitch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 L/m (11.0 gpm)
Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 L/m (25.3 gpm)
System Relief Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . 18 961 kPa (2,750 psi)
Hitch Controls
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-lever, single tilt cylinder
Optional. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-lever dual tilt (includes auxiliary)
Loader Controls
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever control with electric clutch cutoff switch
Optional. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . manual auxiliary function
Overall Dimensions
A Ground Clearance, Minimum. . . . . . . . . . . . . . . . . 287 mm (11.3 in.)
B Overall Length, Transport (without box blade). . . . . 5.23 m (17 ft. 2 in.)
C Transport Height
Canopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.54 m (8 ft. 4 in.)
Cab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.64 m (8 ft. 8 in.)
D Length From Axle To Axle (mechanical-front-
wheel-drive axle). . . . . . . . . . . . . . . . . . . . . . . 2.12 m (6 ft. 11 in.)
E Width Over Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.13 m (7 ft. 0 in.)
