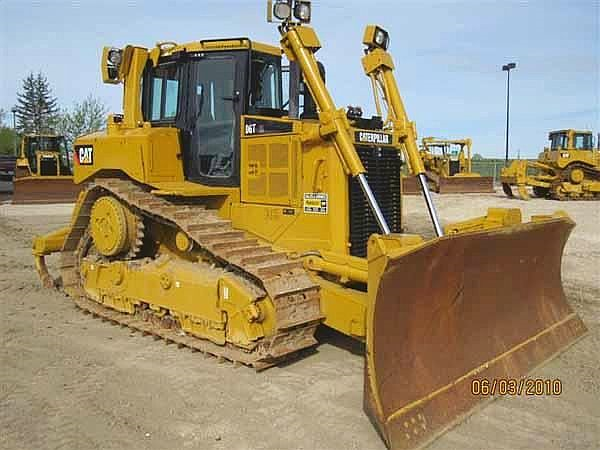

2008 CAT D6T XL Dozer(sold)

2008 CAT D6T XL, PAT BLADE, EROPS WITH AC, HEAT, MS Ripper, 20″ PADS, U/C 75%, 5800HRS, CAT C9 ACERT 215HP TIER 3 MOTOR
YEAR: 2008
MANUFACTURER: CATERPILLAR
MODEL: D6T XL
PRICE: $148000.00
LOCATION: SACRAMENTO, CA

SPECIFICATIONS CAT D6TXL

Dimensions

B. Width Over Tracks

8 ft in

2440 mm

C. Height to Top of Cab

10.5 ft in

3195 mm

D. Length of Track on Ground

9.4 ft in

2871 mm

E. Ground Clearance

1.3 ft in

383 mm

F. Length w/o Blade

12.7 ft in

3860 mm

Undercarriage

H. Standard Shoe Size

22 in

560 mm

Specification

Engine

Make

Caterpillar

Model

C9 ACERT

Gross Power

228 hp

170 kw

Net Power

199.8 hp

149 kw

Power Measured @

1850 rpm

Displacement

537 cu in

8.8 L

Number of Cylinders

6

Operational

Operating Weight

44795 lb

20319 kg

Fuel Capacity

112 gal

424 L

Cooling System Fluid Capacity

18.5 gal

76.8 L

Engine Oil Capacity

7.4 gal

28 L

Hydraulic Fluid Capacity

13.6 gal

51.5 L

Powertrain Fluid Capacity

38.5 gal

145.7 L

Final Drives Fluid Capacity

3.6 gal

13.6 L

Operating Voltage

24 V

Alternator Supplied Amperage

95 amps

Transmission

Type

Powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed – Forward

7.1 mph

11.4 km/h

Max Speed – Reverse

9 mph

14.6 km/h

Undercarriage

Ground Pressure

8.9 psi

61.4 kPa

Ground Contact Area

4972 in2

3.2 m2

Standard Shoe Size

22 in

560 mm

Number of Shoes per Side

41

Number of Track Rollers per Side

7

Track Pitch

8 in

203 mm

Hydraulic System

Relief Valve Pressure

2799 psi

19300 kPa

Pump Flow Capacity

49.9 gal/min

189 L/min

Standard Blade

Width

13.7 ft in

4165 mm

Height

45 in

1155 mm

Capacity

5.1 yd3

3.9 m3

Cutting Depth

21 in

524 mm

Dimensions

Length w/o Blade

12.7 ft in

3860 mm

Width Over Tracks

8 ft in

2440 mm

Height to Top of Cab

10.5 ft in

3195 mm

Length of Track on Ground

9.4 ft in

2871 mm

Ground Clearance

1.3 ft in

383 mm
