2008 CAT 305CCR Mini Excavator(sold)
Call Today: 916.933.6050
Short Description
2008 CAT 305CCR Mini Excavator(sold)
Long Description

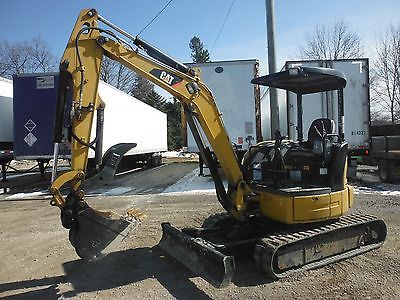

2008 CATERPILLAR 305CCR
2008 CATERPILLAR 305CCR, CAN W/AC/HEAT, 2100HRS, TRACKS IN GREAT SHAPE, COMES WITH 2 EXTRA BUCKETS, AUX HYDRAULICS, CLEAN UNIT
YEAR: 2008
MANUFACTURER: CATERPILLAR
MODEL: 305C CR
PRICE: $42000.00
LOCATION: SAN JOSE, CA
SPECIFICATIONS CAT 305C CR MINI EXCAVATOR
Specification
Engine
Make
Mitsubishi
Model
S4Q2-T
Gross Power
49.2 hp
36.7 kw
Net Power
47 hp
35 kw
Power Measured @
2400 rpm
Displacement
153 cu in
2.5 L
Number of Cylinders
4
Operational
Operating Weight
11725 lb
5320 kg
Fuel Capacity
19 gal
72 L
Cooling System Fluid Capacity
2.9 gal
11 L
Hydrauilc System Fluid Capacity
20.6 gal
78 L
Engine Oil Capacity
1.9 gal
7 L
Operating Voltage
12 V
Alternator Supplied Amperage
50 amps
Hydraulic System Relief Valve Pressure
3553 psi
24500 kPa
Hydraulic Pump Flow Capacity
34.3 gal/min
130 L/min
Swing Mechanism
Swing Speed
9 rpm
Undercarriage
Shoe Size
16 in
400 mm
Max Travel Speed
2.8 mph
4.6 km/h
Track Gauge
5.2 ft in
1580 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1
Standard Stick
Shipping Height of Unit
8.3 ft in
2550 mm
Shipping Length of Unit
17.5 ft in
5330 mm
Max Digging Depth
11.4 ft in
3490 mm
Max Reach Along Ground
18.6 ft in
5650 mm
Max Cutting Height
17.6 ft in
5370 mm
Max Loading Height
12.5 ft in
3800 mm
Max Vertical Wall Digging Depth
8.3 ft in
2530 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2
Long Stick
Shipping Height of Unit
8.3 ft in
2550 mm
Shipping Length of Unit
17.8 ft in
5460 mm
Max Digging Depth
12.8 ft in
3890 mm
Max Reach Along Ground
19.8 ft in
6050 mm
Max Cutting Height
18.5 ft in
5630 mm
Max Loading Height
13.3 ft in
4050 mm
Max Vertical Wall Digging Depth
9.6 ft in
2940 mm
Dimensions
Width to Outside of Tracks
6.5 ft in
1980 mm
Height to Top of Cab
8.3 ft in
2550 mm
Ground Clearance
1.1 ft in
340 mm
Counterweight Clearance
2 ft in
615 mm
Tail Swing Radius
3.2 ft in
990 mm
Length of Track on Ground
8.5 ft in
2580 mm
