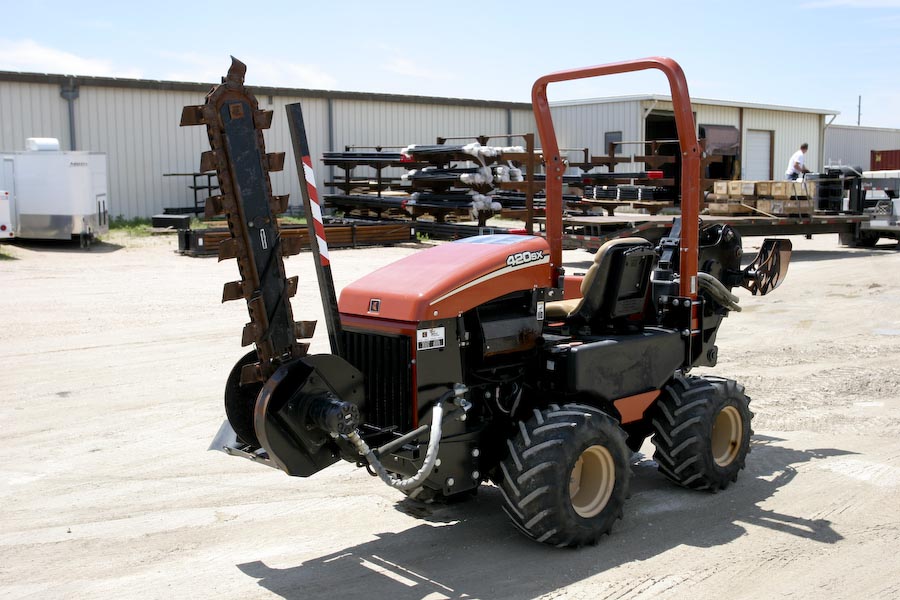

2007 Ditch Witch 420SX(sold)

Price: $17,900

Location: Placerville, CA

Hours: 400

41HP Duetz diesel engine Ride on Plow unit comes with production trencher with 50/50 combo chain. exclusive dual speed attachment drive & fold down ROPS reduces overall unit height to get into tight areas. Large capacity 11 gallon fuel tank

Ditch Witch 420SX Specs

DIMENSIONS
Overall height: 91″ (2.31 m)
Transport length –
With plow blade, no trencher: 137″ (3.48 m)
With plow blade and trencher: 192″ (4.87 m)
Overall length –
With plow blade, no trencher: 142″ (3.61 m)
With plow blade and trencher: 173″ (4.39 m)
Wheelbase: 46″ (1.17 m)
Width: 45″ (1.14 m)
Weight with plow blade, no trencher: 3,852 lbs (1,438 kg)
Ground clearance: 6″ (152 mm)

OPERATION
Ground drive speed, forward: 3.82 mph (6.15 km/h)
Ground drive speed, reverse: 2.72 mph (4.38 km/h)
Maximum pipe or cable diameter –
Pull-type plow blade:3″ (76 mm)
Feed-type plow blade:1″ (25 mm)
Maximum plow depth: 24″ (610 mm)
Turning diameter (wall-to-wall): 19.5 ft (5.9 m)
Angle of approach: 25°
Angle of departure: 25°

HYDRAULIC SYSTEM
Ground drive pump –
Flow rate: 24.7 gpm (93.5 L/min)
Pressure: 3,750 psi (258.5 bar)
Attachment pump –
Flow rate (low speed/high speed): 15.7 gpm/19.5 gpm (59.4 L/min/73.8 L/min)
Pressure: 3,000 psi (206.8 bar)

POWER
Engine: Deutz F3L2011
Cooling medium: Oil/integrated
Number of cylinders: 3
Displacement: 142 in3 (2.3 L)
Bore: 3.7″ (94 mm)
Stroke: 4.4″ (112 mm)
Net power rating per SAE J1349: 41 hp (30.5 kW)
Rated speed: 2,300 rpm
Emissions Compliance: EPA Tier 2 (EU Stage IIIa)

FLUID CAPACITIES
Fuel tank: 11.1 gal (42 L)
Engine oil with filter: 2 gal (7.6 L)
Hydraulic reservoir: 9.7 gal (36.7 L)

BATTERY
SAE reserve capacity rating: 110 min
SAE cold crank rating @ 0° F (-18° C): 800 amps

NOISE LEVELS
Operator sound pressure per ISO 6394: 89 dBA
Exterior sound power per ISO 6393: 105 dBA
