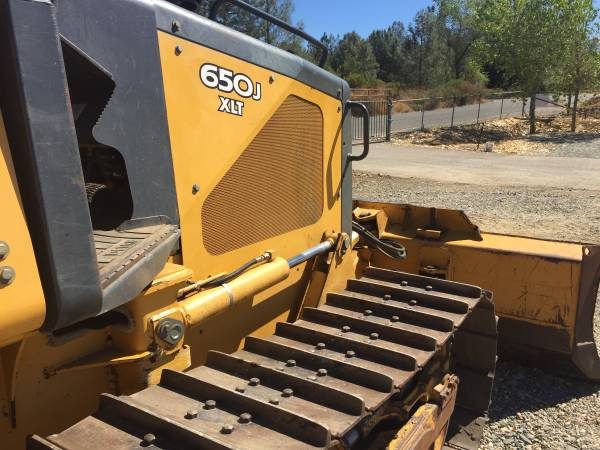

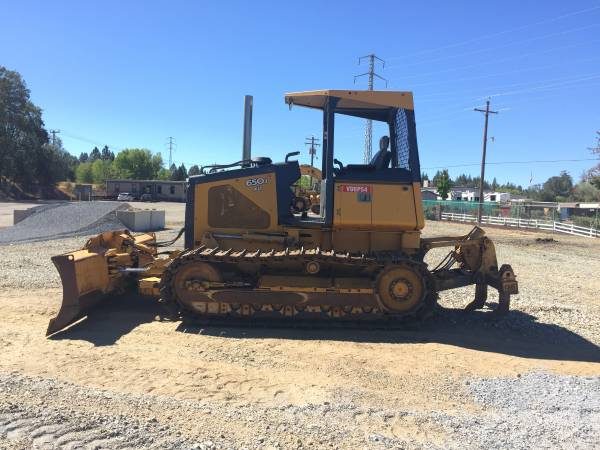

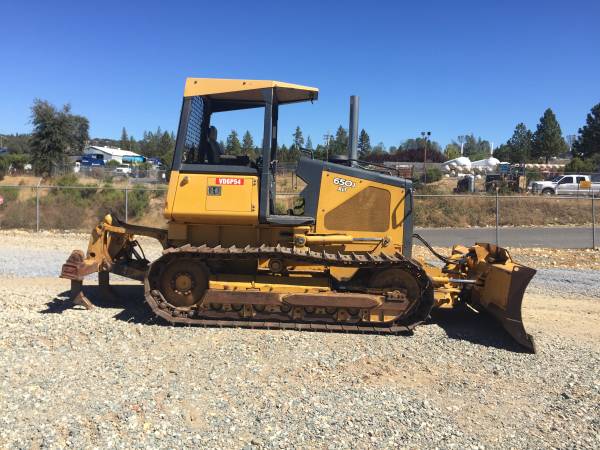

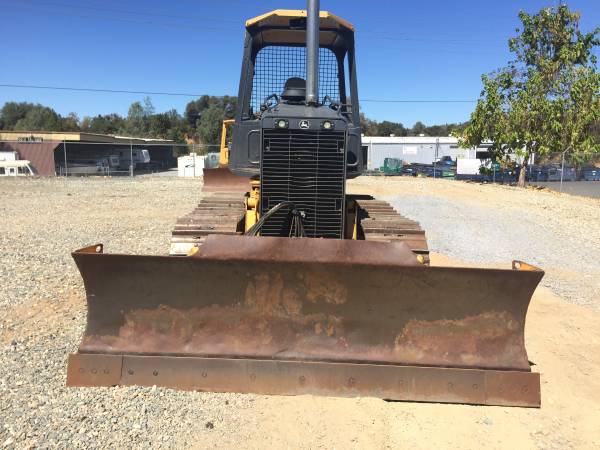

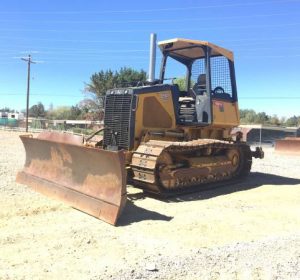

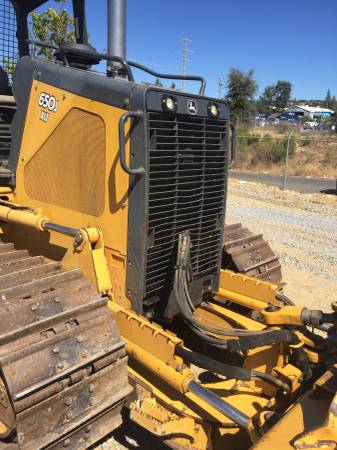

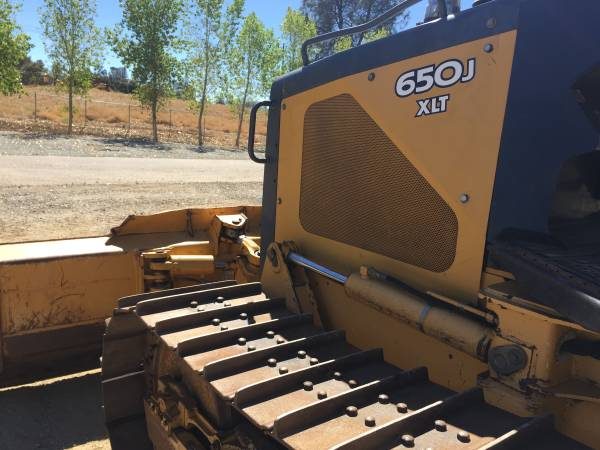

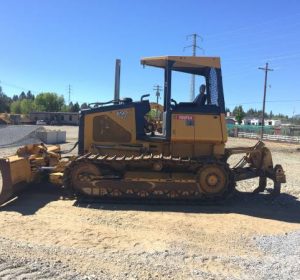

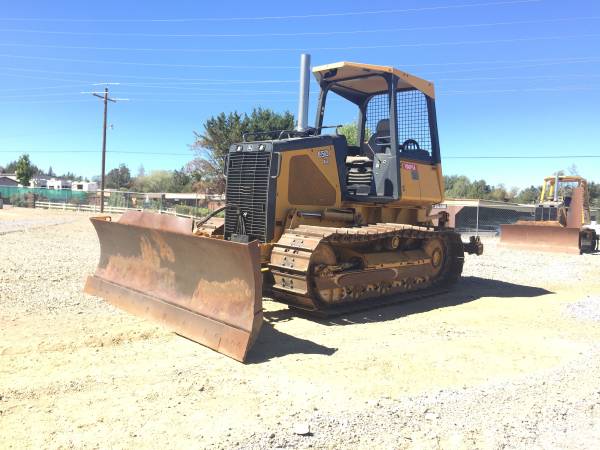

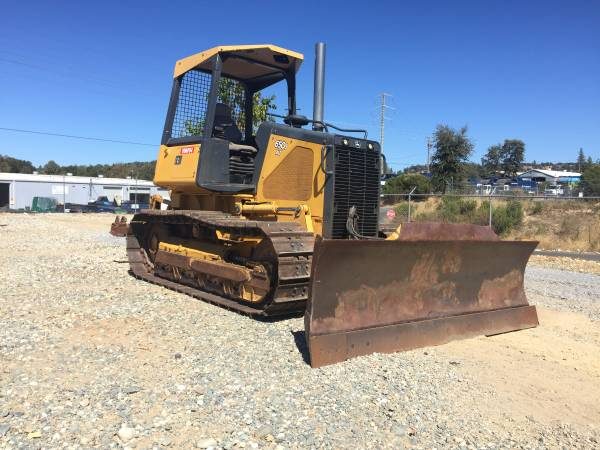

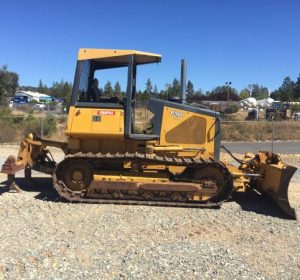

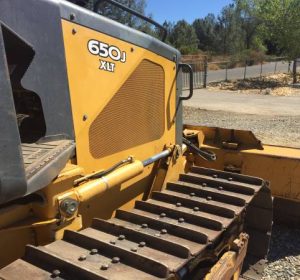

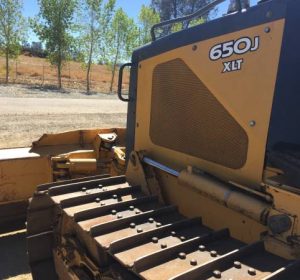

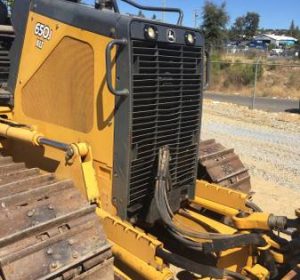

2007 Deere 650J XLT Dozer-(SOLD)

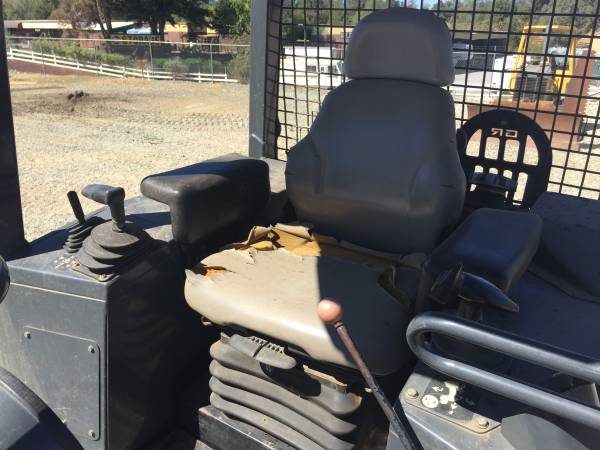

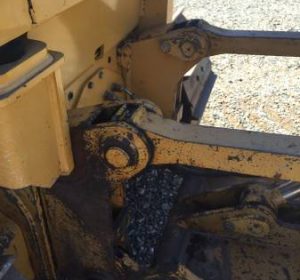

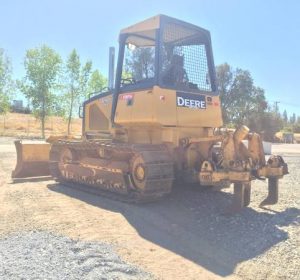

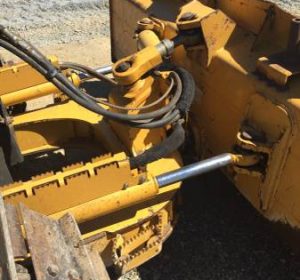

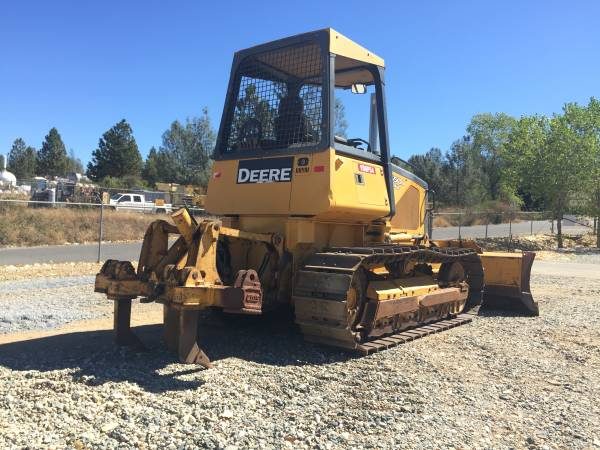

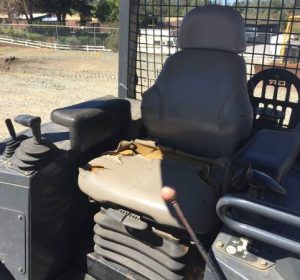

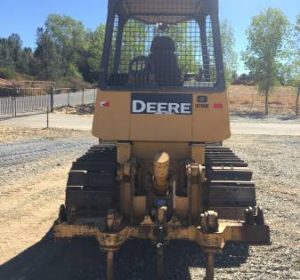

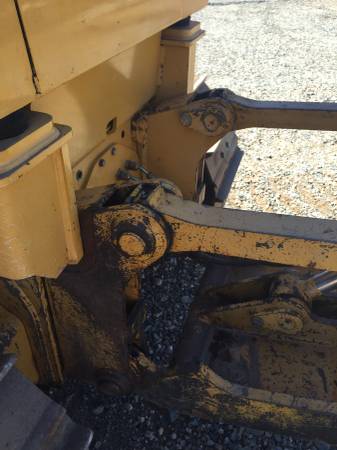

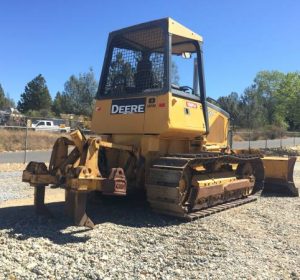

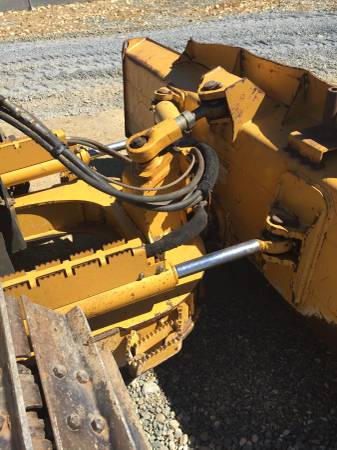

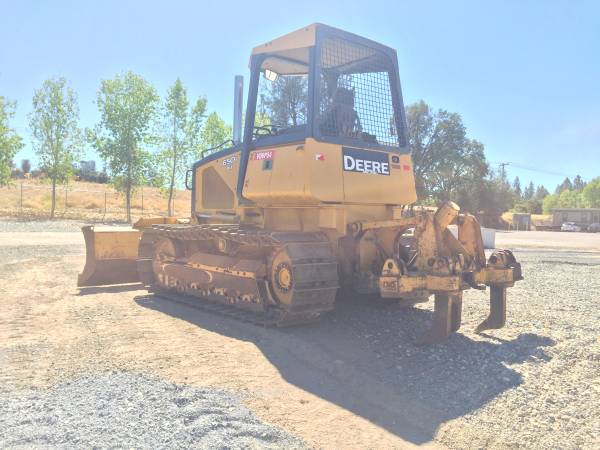

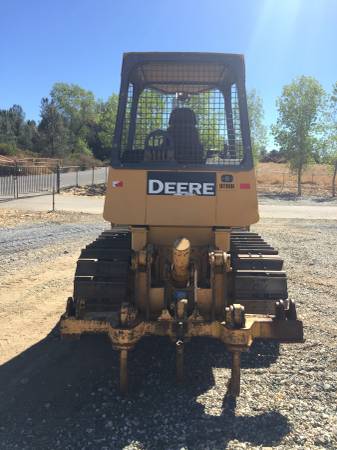

2007 DEERE 650J WITH ONLY 3400HRS ON IT! IT HAS A PAT BLADE, MS RIPPER, TIER 2 DEERE ENGINE, 75% UC, ROCK GUARDS, JOYSTICK CONTROLS, FRESHLY SERVICED, OVER $20K IN RECENT REPAIRS BY DEERE(RECEIPTS AVAILABLE) RUNS GREAT! TILT RAM HAS SOME SLOP IN IT.

Hours: 3300

Location: Stockton, CA

Price: 59,900

Dimensions
A. LENGTH W/ BLADE 14 ft in 4254 mm
B. WIDTH OVER TRACKS 6.6 ft in 2006 mm
C. HEIGHT TO TOP OF CAB 9.1 ft in 2768 mm
D. LENGTH OF TRACK ON GROUND 7.7 ft in 2337 mm
E. GROUND CLEARANCE 1.2 ft in 363 mm

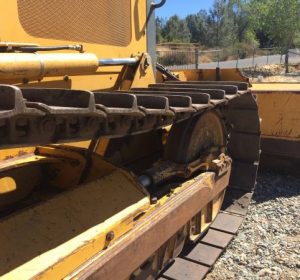

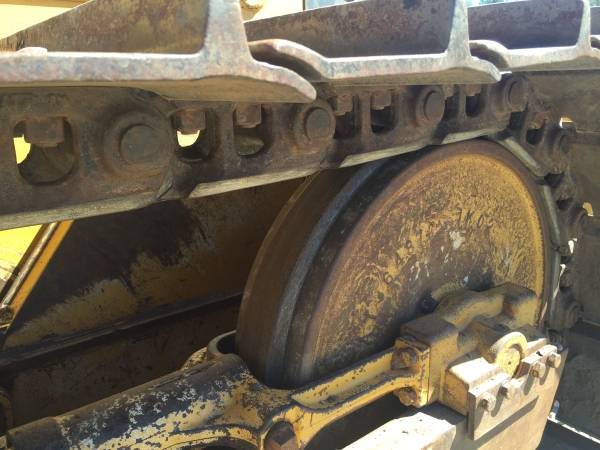

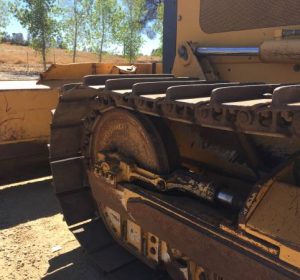

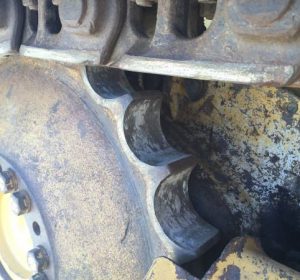

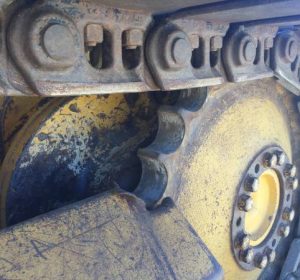

Undercarriage
G. TRACK GAUGE 5.1 ft in 1550 mm
H. STANDARD SHOE SIZE 18 in 457 mm
Specification
Engine
MAKE John Deere
MODEL 4045T
NET POWER 90 hp 67 kw
POWER MEASURED @ 2200 rpm
MAX TORQUE 306 lb ft 414 Nm
DISPLACEMENT 276 cu in 4.5 L
TORQUE MEASURED @ 1200 rpm
NUMBER OF CYLINDERS 4
ASPIRATION Altitude-compensating turbocharger
Operational
OPERATING WEIGHT 18640.1 lb 8455 kg
FUEL CAPACITY 47 gal 178 L
COOLING SYSTEM FLUID CAPACITY 4.2 gal 16 L
ENGINE OIL CAPACITY 3.7 gal 14 L
HYDRAULIC FLUID CAPACITY 8.5 gal 32.2 L
POWERTRAIN FLUID CAPACITY 11.3 gal 42.7 L
FINAL DRIVES FLUID CAPACITY 1.7 gal 6.6 L
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 65 amps
Transmission
TYPE Hydrostatic
MAX SPEED – FORWARD 5 mph 8 km/h
MAX SPEED – REVERSE 5 mph 8 km/h

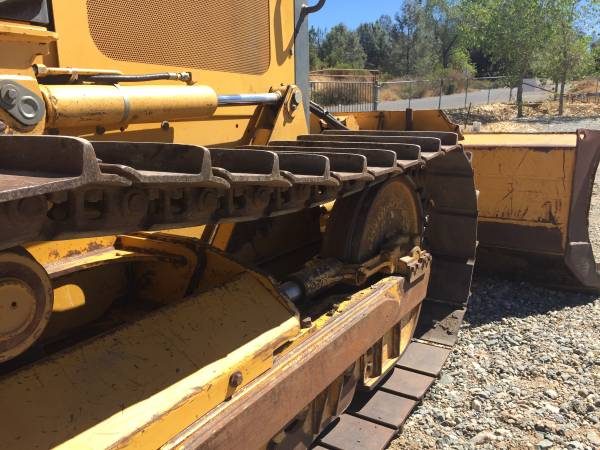

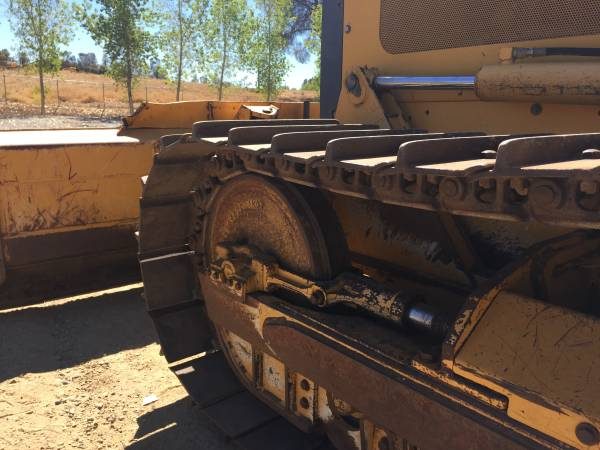

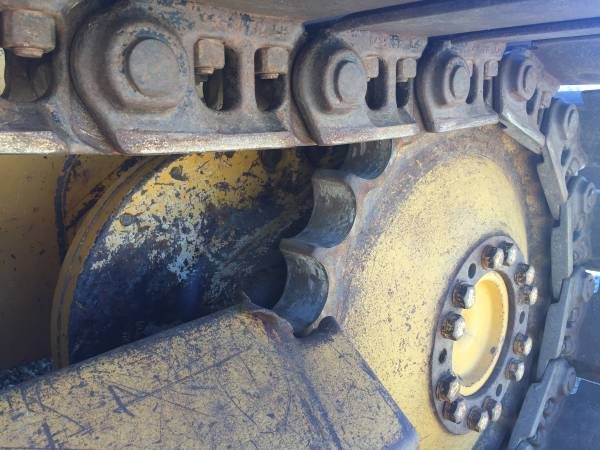

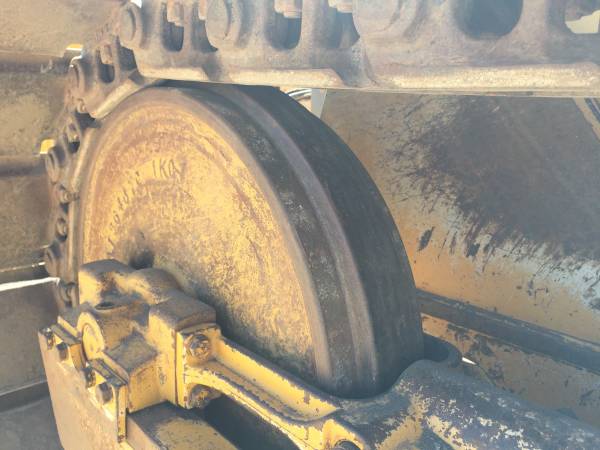

Undercarriage
GROUND PRESSURE 5.6 psi 38.6 kPa
GROUND CONTACT AREA 3312 in2 2.1 m2
STANDARD SHOE SIZE 18 in 457 mm
NUMBER OF SHOES PER SIDE 40
NUMBER OF TRACK ROLLERS PER SIDE 7
TRACK PITCH 6.7 in 170 mm
TRACK GAUGE 5.1 ft in 1550 mm

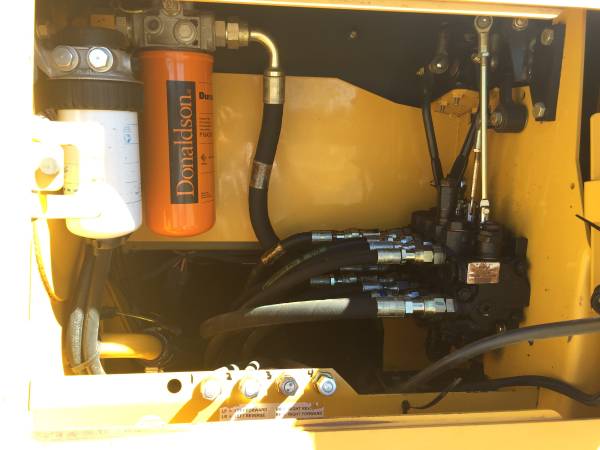

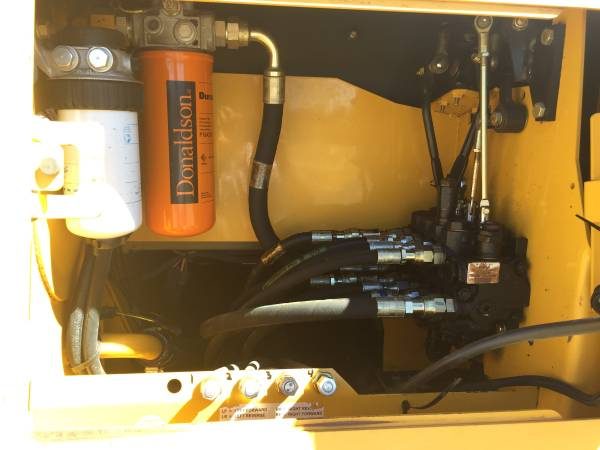

Hydraulic System
PUMP TYPE Gear
RELIEF VALVE PRESSURE 3000 psi 20670 kPa
PUMP FLOW CAPACITY 15 gal/min 57 L/min
Standard Blade
WIDTH 8.8 ft in 2667 mm
HEIGHT 36.7 in 933 mm
CAPACITY 2.6 yd3 2 m3
BLADE ANGLE (BOTH DIRECTIONS) 22.2 degrees
CUTTING DEPTH 19.7 in 500 mm
Dimensions
LENGTH W/ BLADE 14 ft in 4254 mm
WIDTH OVER TRACKS 6.6 ft in 2006 mm
HEIGHT TO TOP OF CAB 9.1 ft in 2768 mm
LENGTH OF TRACK ON GROUND 7.7 ft in 2337 mm
GROUND CLEARANCE 1.2 ft in 363 mm
