2007 CAT D6RXL Dozer(sold)

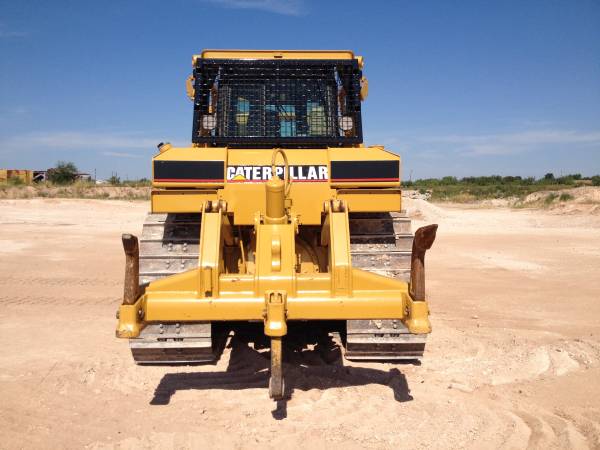

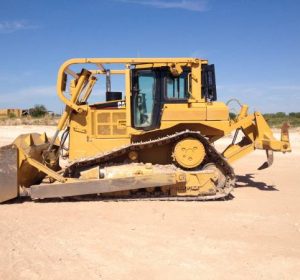

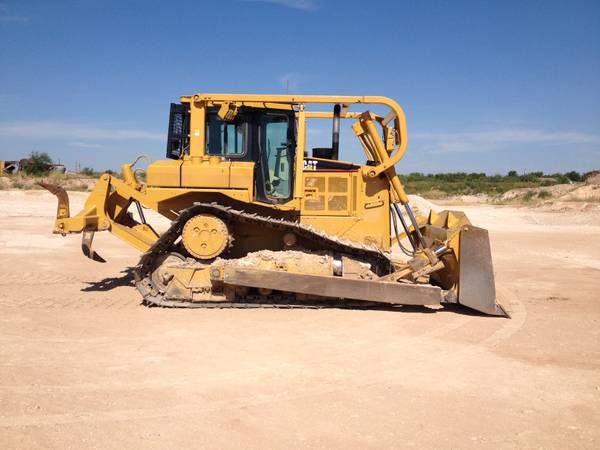

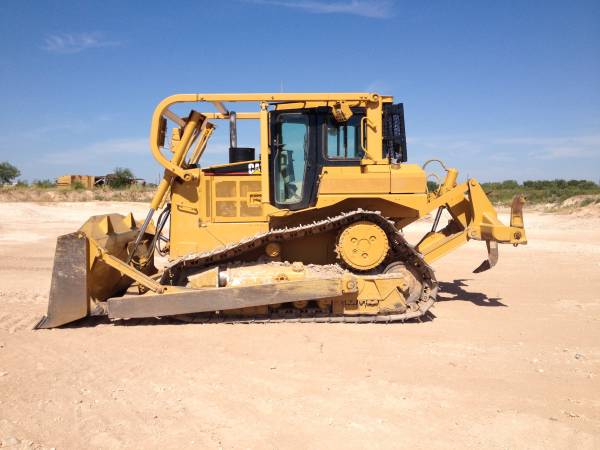

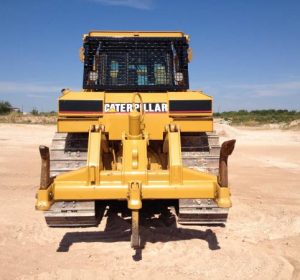

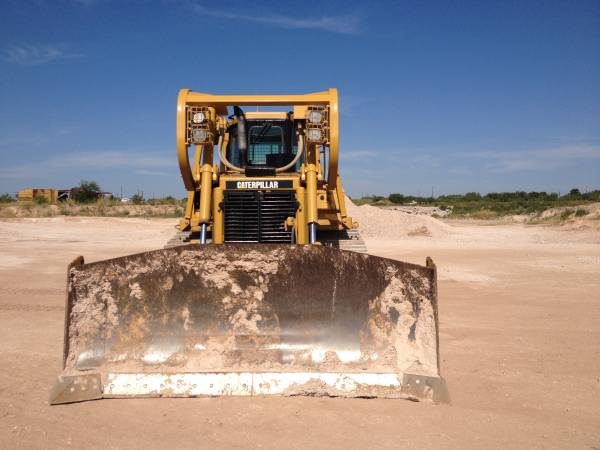

2007 CAT D6RXL XW SERIES 3 DOZER, ONLY 8500HRS, SU BLADE WITH SINGLE TILT,MS RIPPER, 70% UC, CAB WITH HEAT/AC, FORESTRY PACKAGE, VERY CLEAN UNIT!

SELECTED DIMENSIONS

Dimensions
A. Length w/ Blade 17.5 ft in 5332 mm
B. Width Over Tracks 8 ft in 2440 mm
C. Height to Top of Cab 10.5 ft in 3195 mm
D. Length of Track on Ground 9.3 ft in 2821 mm
E. Ground Clearance 1.3 ft in 383 mm
F. Length w/o Blade 12.7 ft in 3860 mm
Undercarriage
G. Track Gauge 6.2 ft in 1880 mm
H. Standard Shoe Size 22 in 560 mm
SPECIFICATION

Engine
Make Caterpillar
Model 3306
Gross Power 189 hp 140.9 kw
Net Power 175 hp 130.5 kw
Power Measured @ 1900 rpm
Displacement 638 cu in 10.5 L
Aspiration Turbocharged
Number of Cylinders 6
Operational
Operating Weight 41900 lb 19005.5 kg
Fuel Capacity 101.2 gal 383 L
Cooling System Fluid Capacity 19.5 gal 74 L
Engine Oil Capacity 7.3 gal 27.5 L
Hydraulic Fluid Capacity 20.1 gal 76 L
Powertrain Fluid Capacity 40.9 gal 155 L
Final Drives Fluid Capacity 3.6 gal 13.5 L
Operating Voltage 24 V
Alternator Supplied Amperage 70 amps
Transmission
Type Power Shift
Number of Forward Gears 3
Number of Reverse Gears 3
Max Speed – Forward 7.4 mph 11.9 km/h
Max Speed – Reverse 9.5 mph 15.3 km/h
Undercarriage
Ground Pressure 8.7 psi 59.6 kPa
Ground Contact Area 4888 in2 3.2 m2
Standard Shoe Size 22 in 560 mm
Number of Shoes per Side 41
Number of Track Rollers per Side 7
Track Pitch 8 in 203 mm
Track Gauge 6.2 ft in 1880 mm
Hydraulic System
Pump type Piston
Relief Valve Pressure 2800 psi 19305.3 kPa
Pump Flow Capacity 50.2 gal/min 190 L/min
Standard Blade
Width 10.7 ft in 3260 mm
Height 55.6 in 1412 mm
Capacity 7.3 yd3 5.6 m3
Cutting Depth 18.1 in 459 mm
Dimensions
Length w/o Blade 12.7 ft in 3860 mm
Length w/ Blade 17.5 ft in 5332 mm
Width Over Tracks 8 ft in 2440 mm
Height to Top of Cab 10.5 ft in 3195 mm
Length of Track on Ground 9.3 ft in 2821 mm
Ground Clearance 1.3 ft in 383 mm
