Dimensions
|
||
| A. Length w/ Blade | 13.2 ft in | 4035 mm |
| B. Width Over Tracks | 6.4 ft in | 1959 mm |
| C. Height to Top of Cab | 8.9 ft in | 2718 mm |
| D. Length of Track on Ground | 7.3 ft in | 2211 mm |
| E. Ground Clearance | 1.2 ft in | 374 mm |
| F. Length w/o Blade | 10.2 ft in | 3103 mm |
|
Undercarriage
|
||
| G. Track Gauge | 4.9 ft in | 1499 mm |
| H. Standard Shoe Size | 18 in | 460 mm |
2006 CAT D4G XL DOZER-(SOLD)
Call Today: 916.933.6050
Short Description
2006 CAT D4G XL DOZER FOR SALE
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:
- OROPS

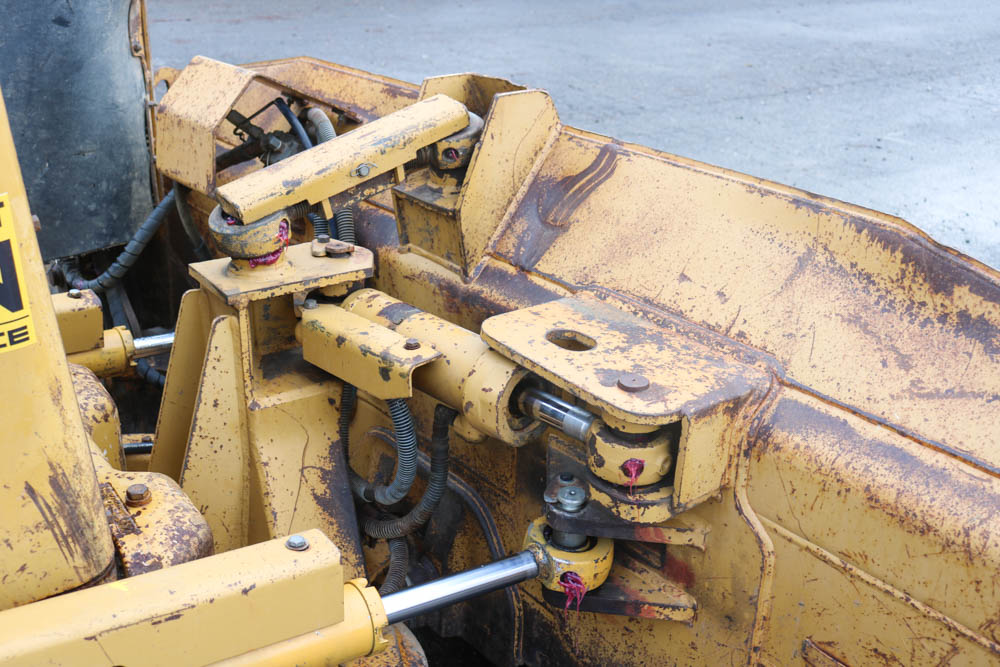

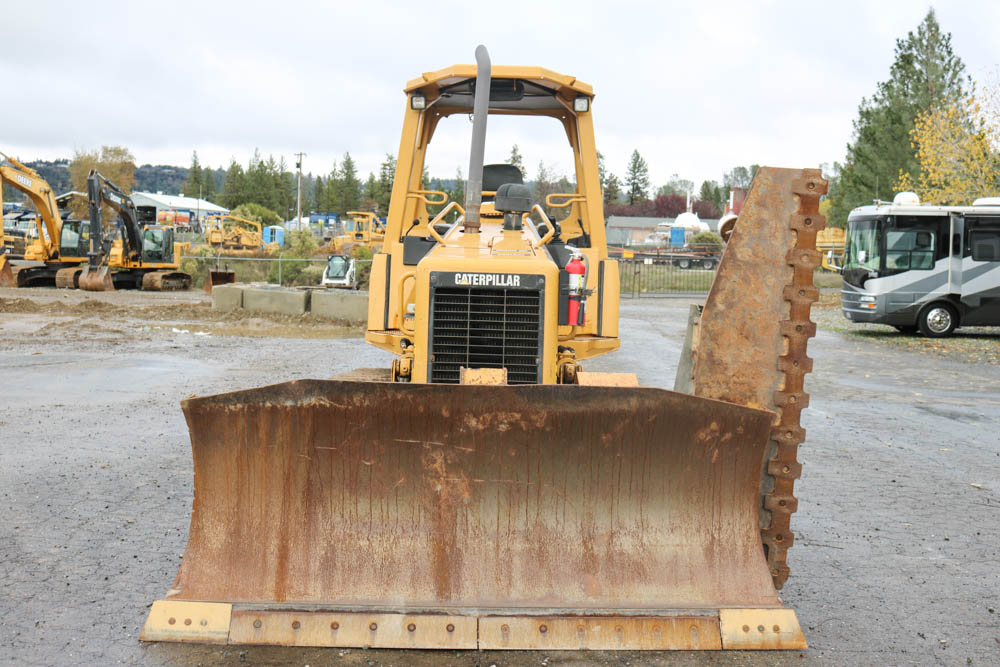

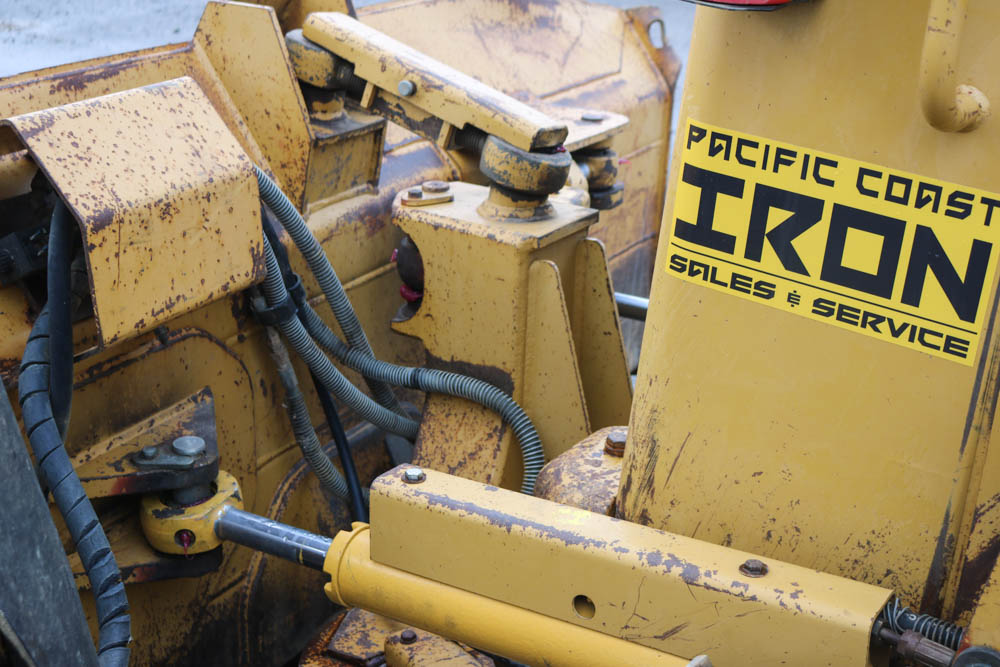

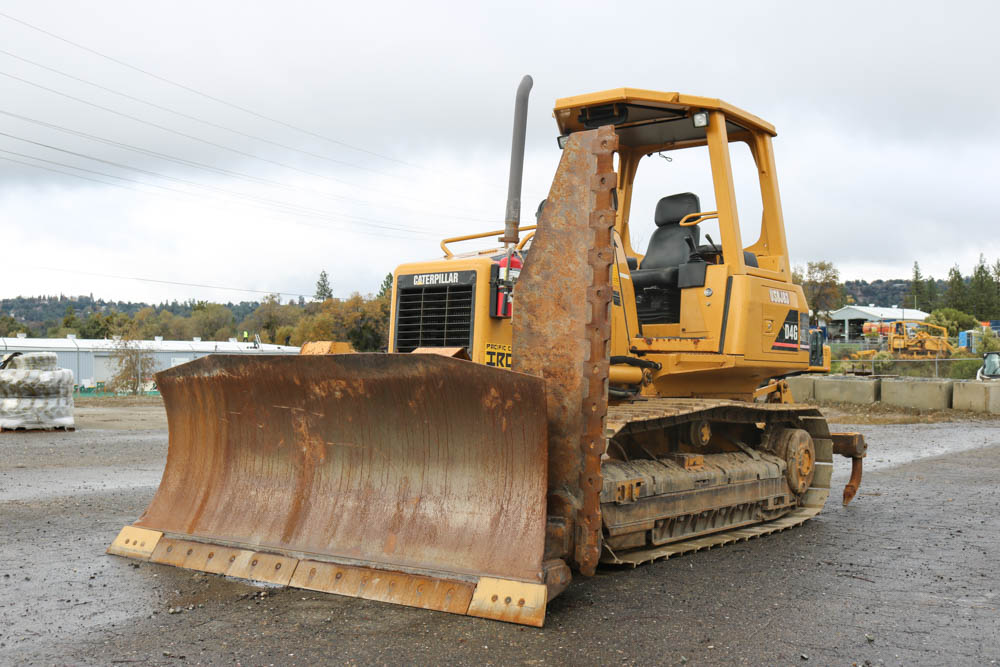

- PAT BLADE

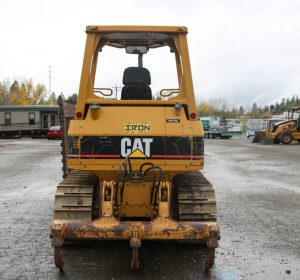

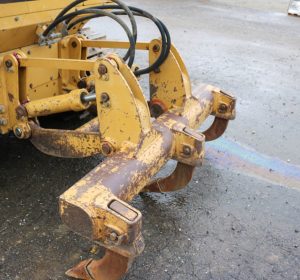

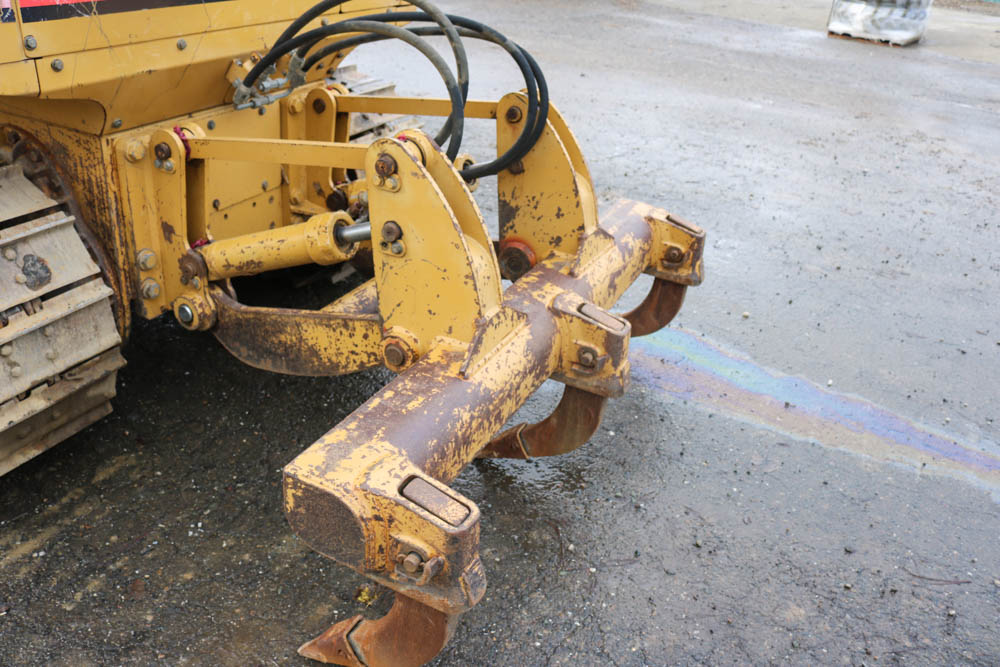

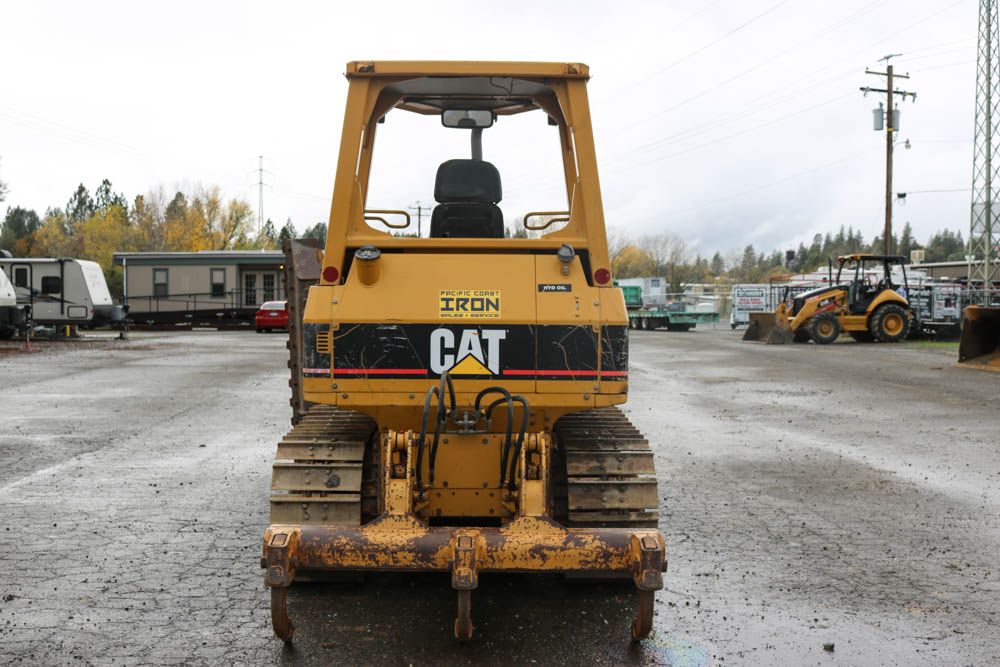

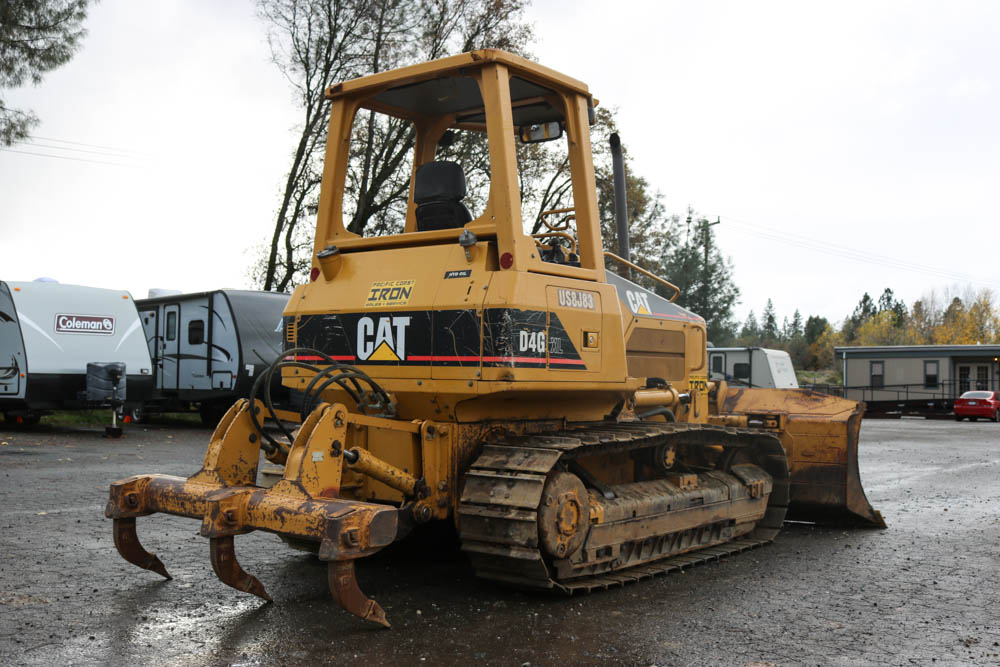

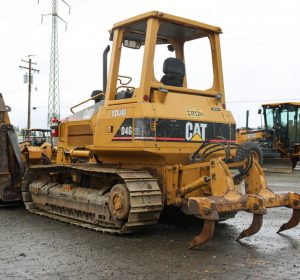

- MS RIPPER
- TIER 2 ENGINE

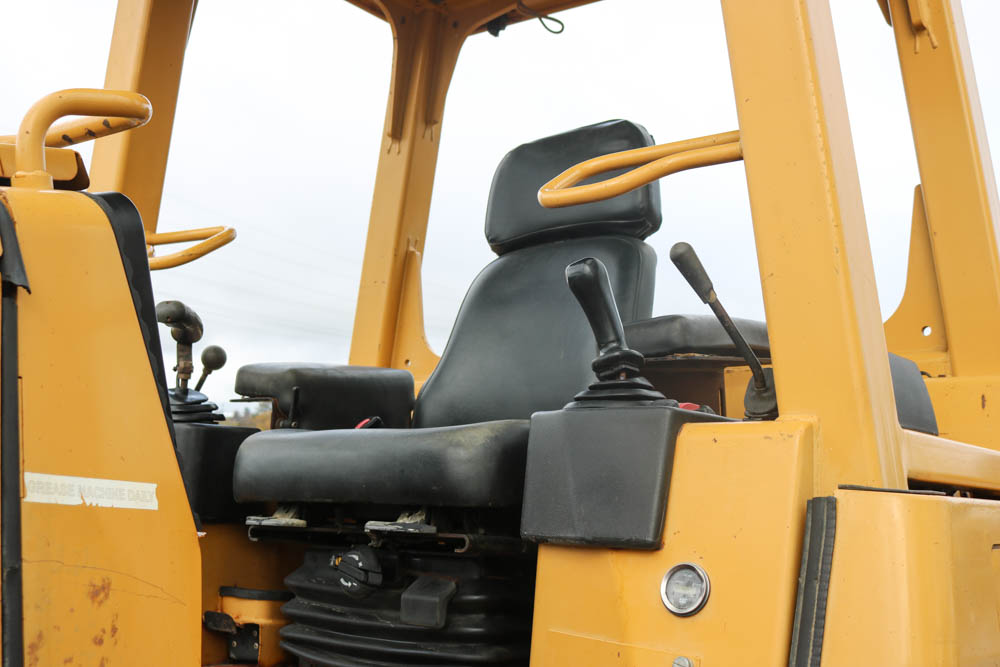

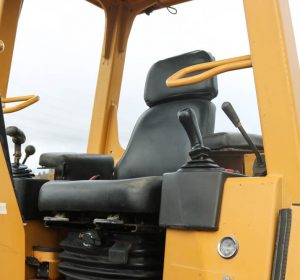

- JOYSTICK CONTROLS
- SLOPEBOARD

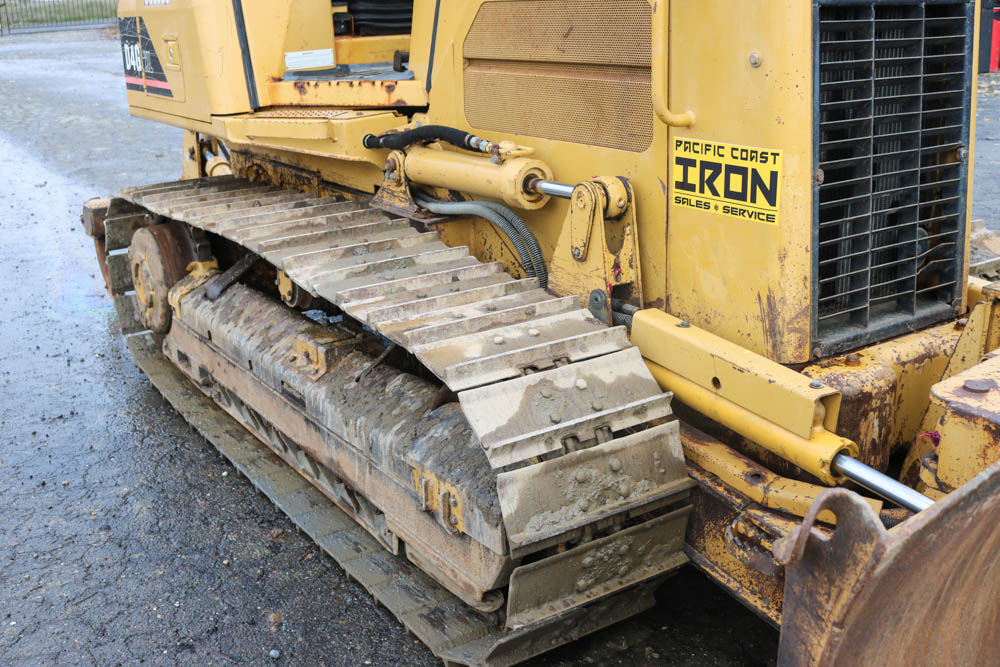

- ROCK GUARDS
Long Description

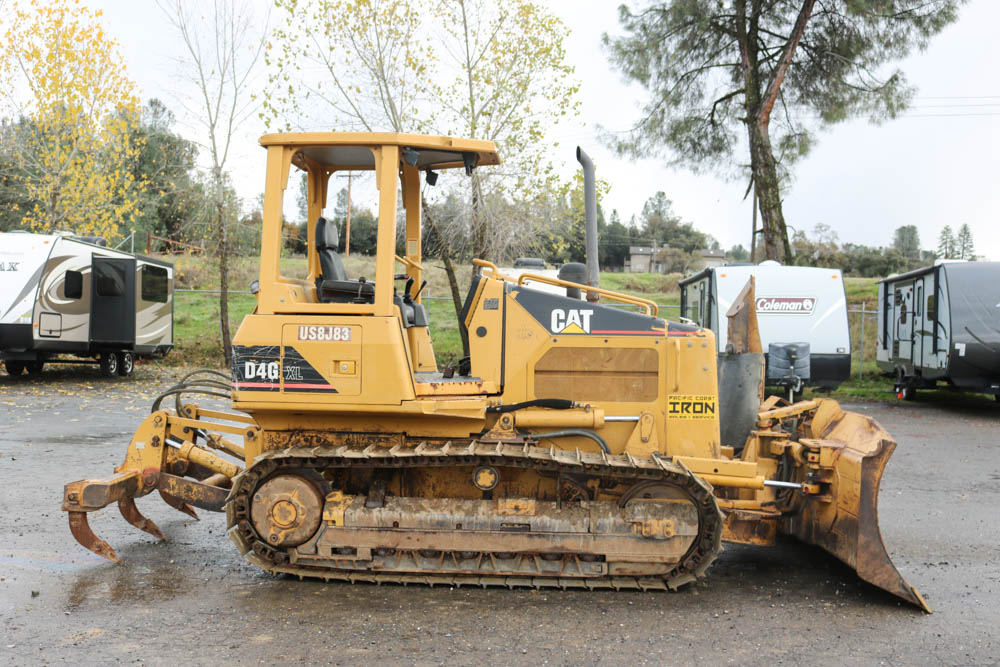

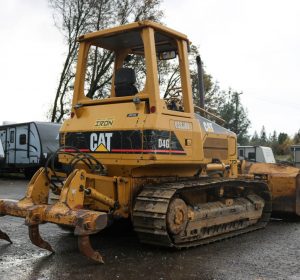

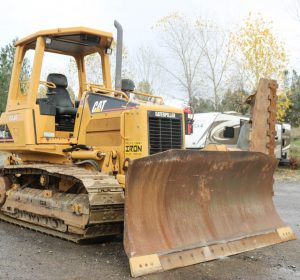

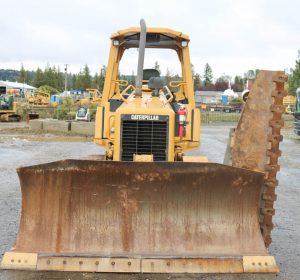

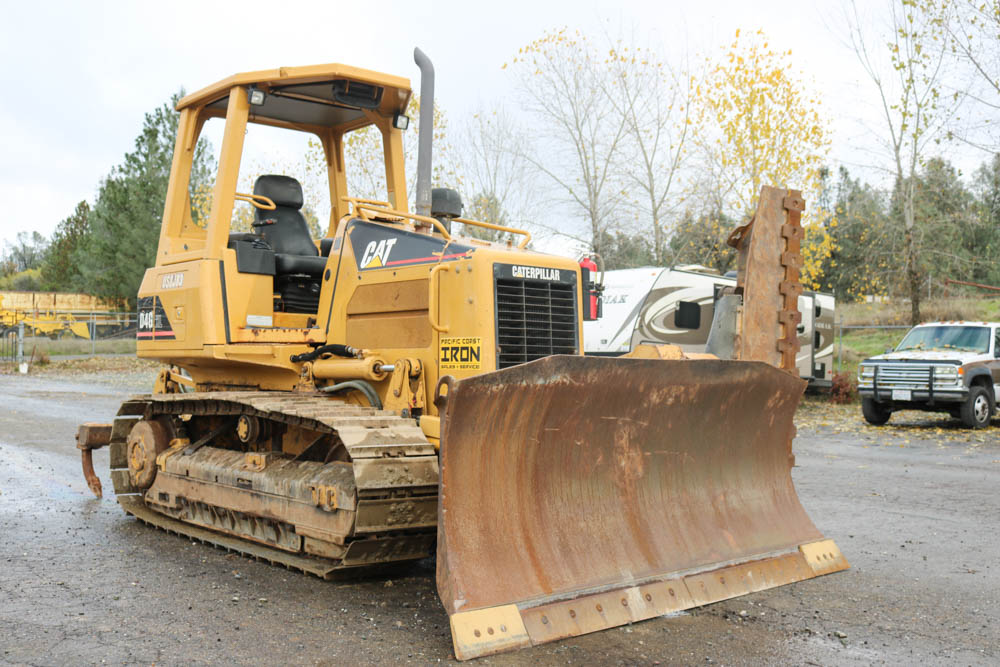

2006 CAT D4G XL DOZER FOR SALE

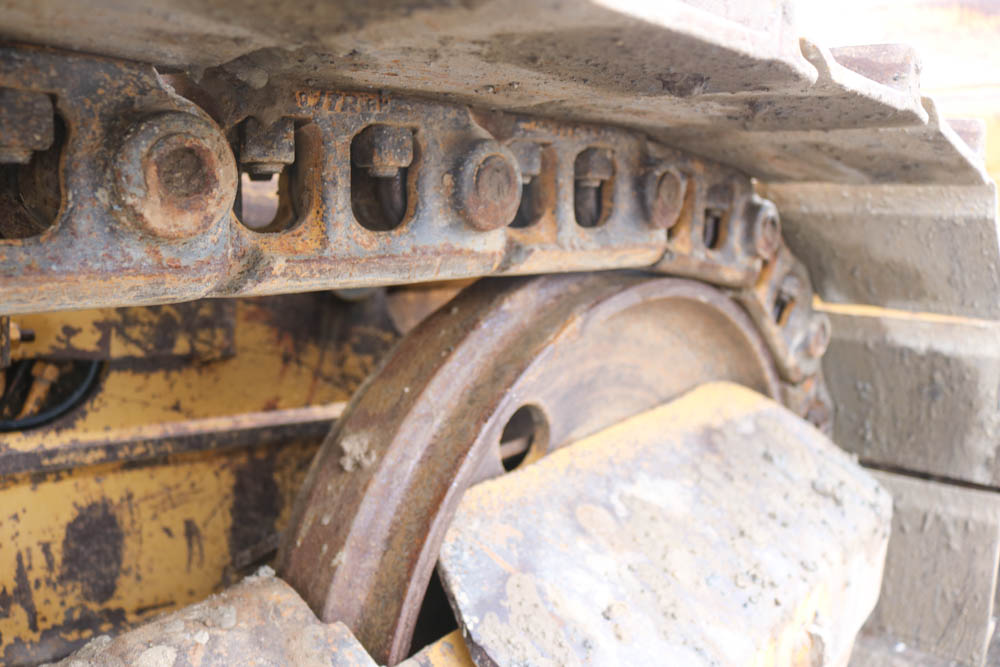

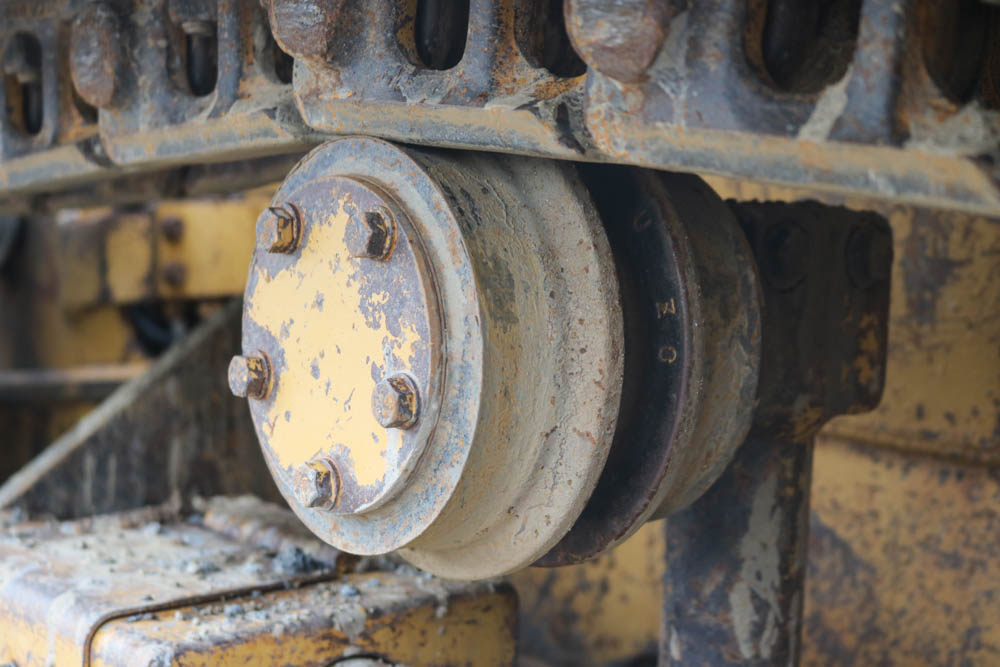

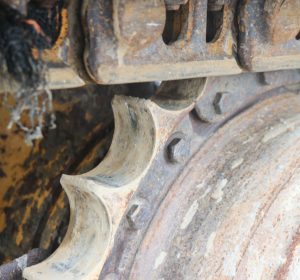

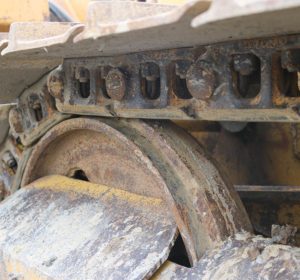

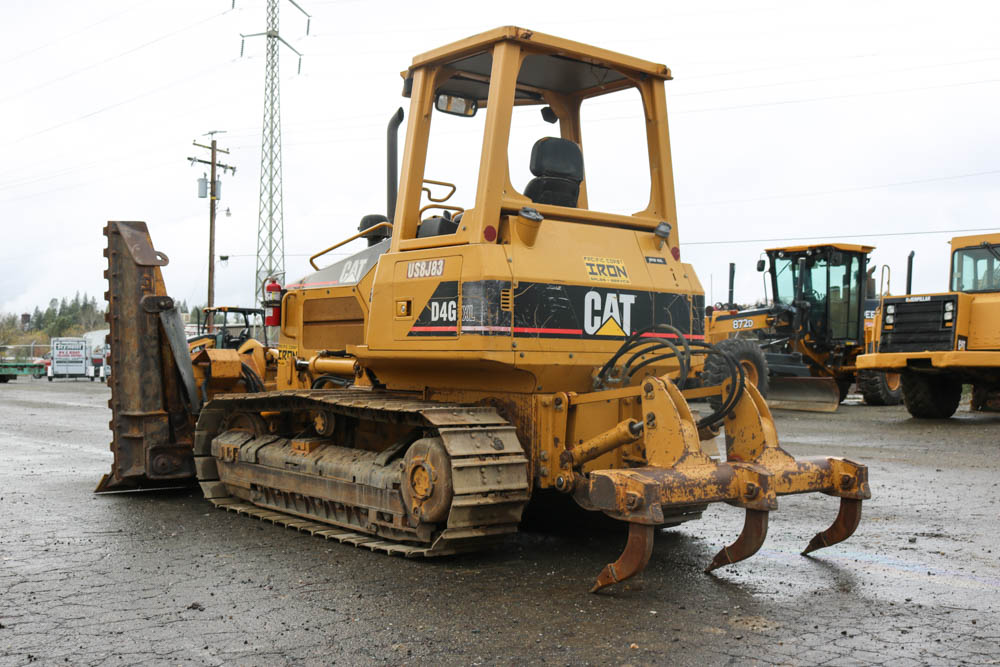

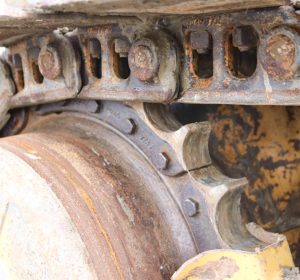

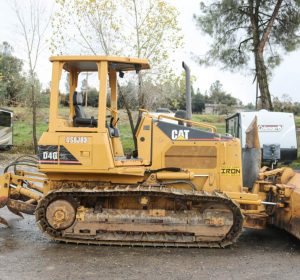

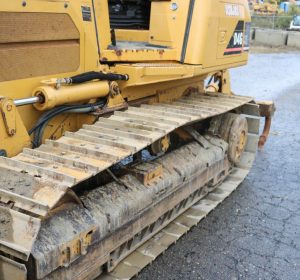

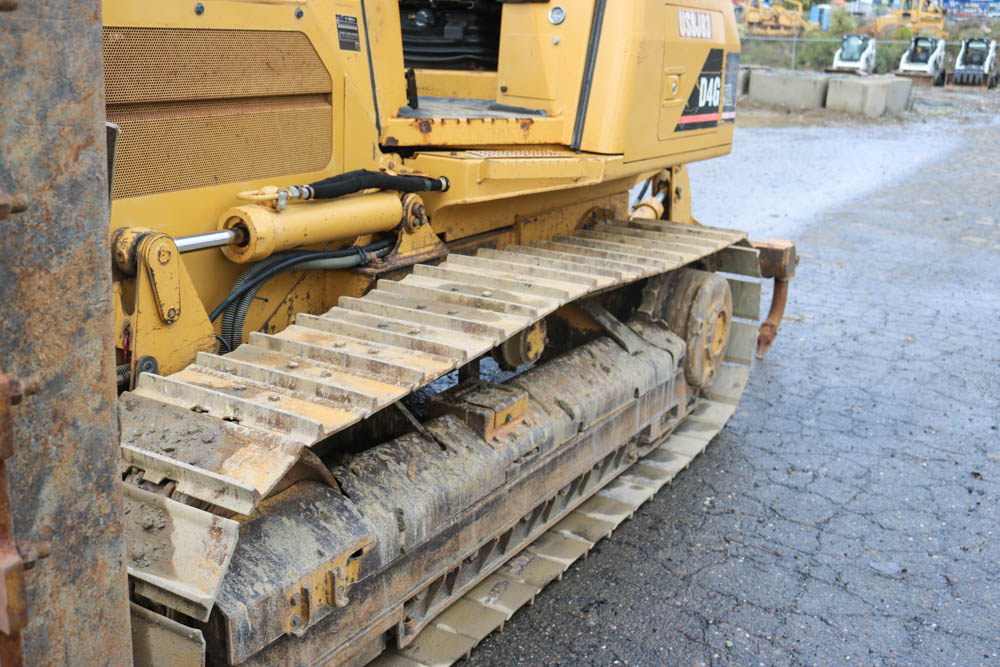

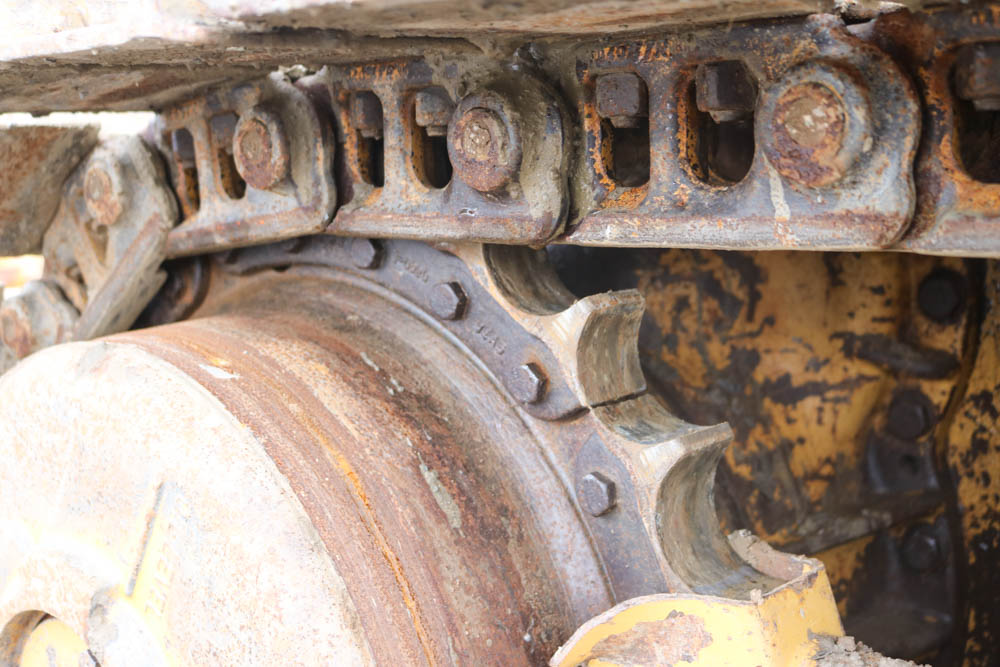

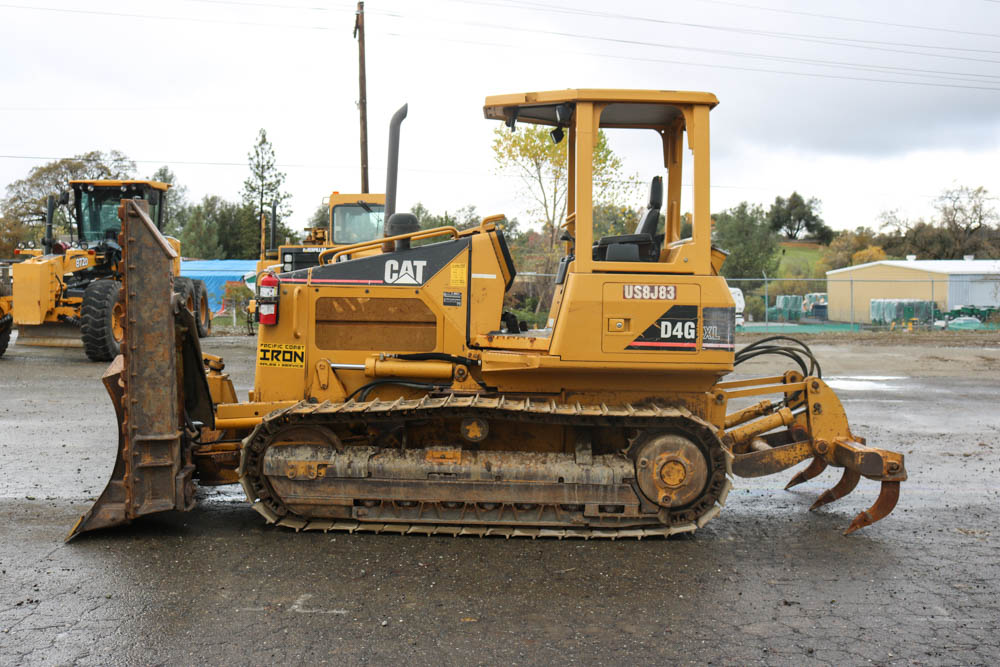

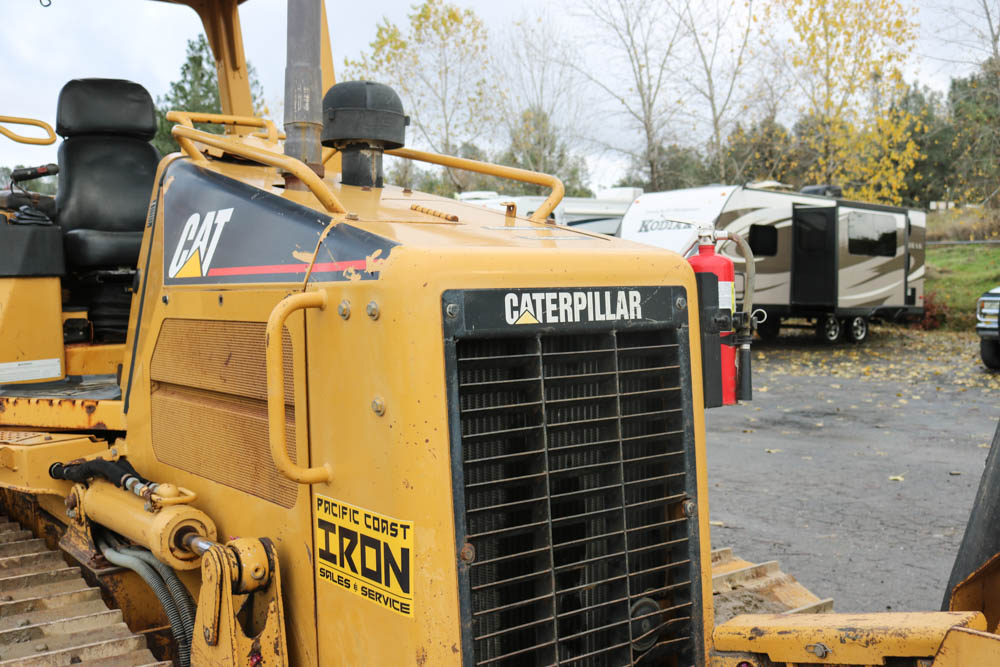

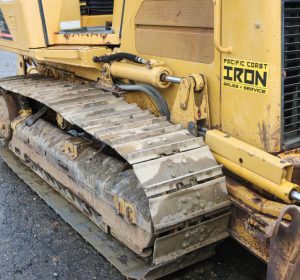

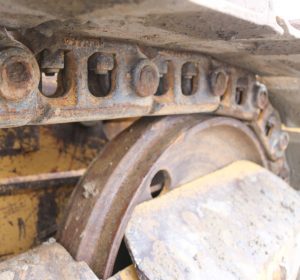

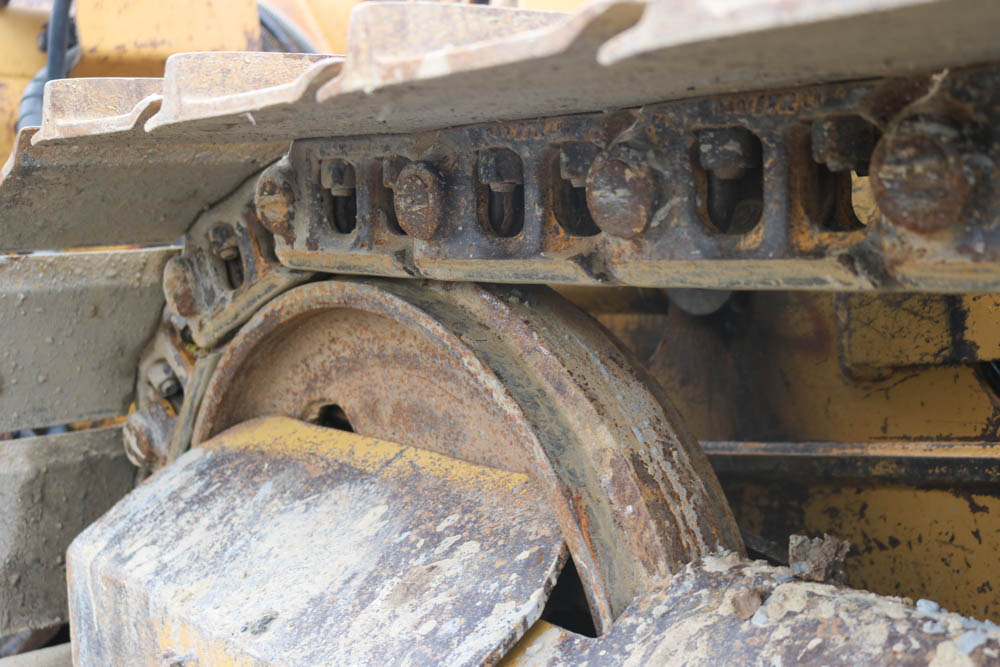

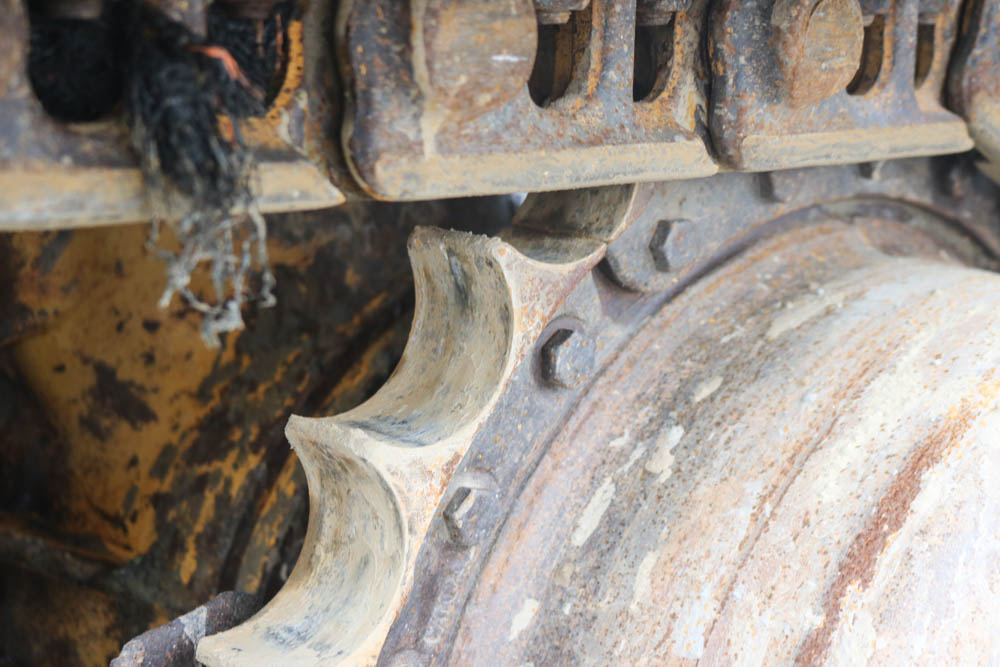

2006 CAT D4GXL CRAWLER DOZER WITH 4800HRS! UNIT IS EQUIPPED WITH PAT BLADE, MS RIPPER, OROPS, SLOPEBOARD, FULL ROCK GUARDS, AND A TIER 2 CAT ENGINE. JUST SERVICED. UC AT 70%. UNIT IS READY TO GO TO WORK.

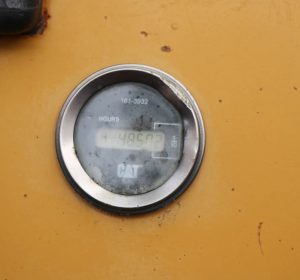

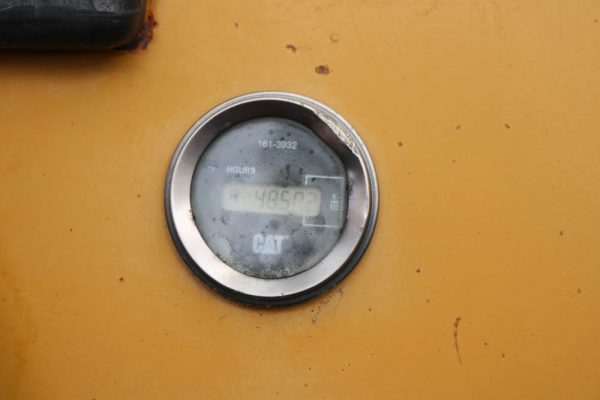

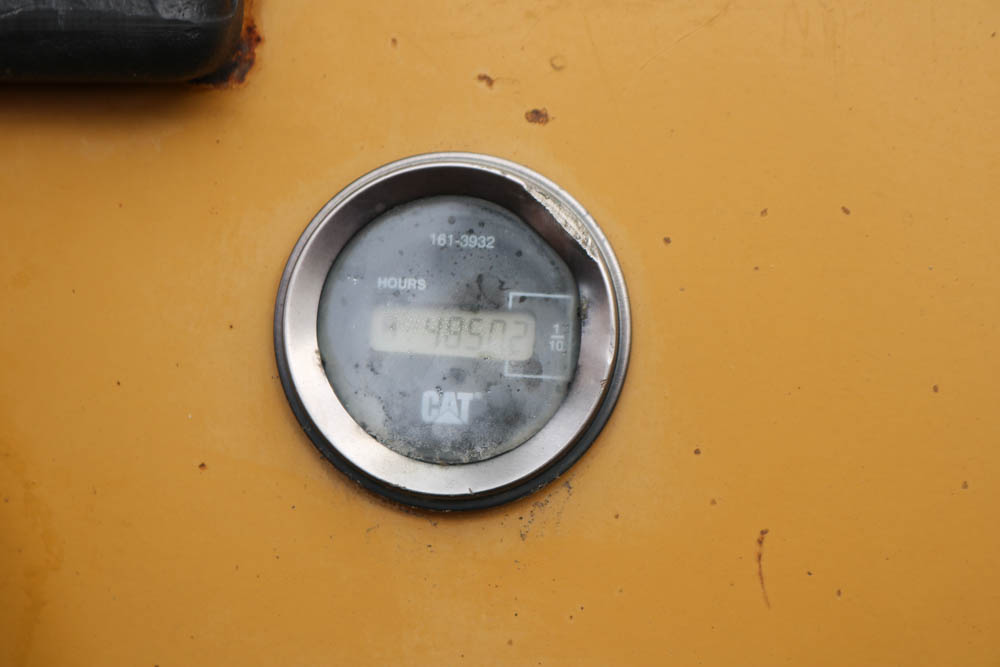

Hours: 4800
Price: $38,900.00
CAT D4G XL SPECIFACATIONS:
Selected Dimensions
Specification
| Engine | ||
| Make | Caterpillar | |
| Model | 3046T | |
| Gross Power | 87 hp | 65 kw |
| Net Power | 80 hp | 60 kw |
| Power Measured @ | 2200 rpm | |
| Displacement | 305 cu in | 5 L |
| Number of Cylinders | 6 | |
| Operational | ||
| Operating Weight | 17317 lb | 7855 kg |
| Fuel Capacity | 48.6 gal | 187 L |
| Cooling System Fluid Capacity | 5.5 gal | 21 L |
| Engine Oil Capacity | 3.4 gal | 13 L |
| Hydraulic Fluid Capacity | 12 gal | 46.5 L |
| Final Drives Fluid Capacity | 3.9 gal | 14.7 L |
| Operating Voltage | 12 V | |
| Alternator Supplied Amperage | 120 amps | |
| Transmission | ||
| Type | Hydrostatic | |
| Number of Forward Gears | 1 | |
| Number of Reverse Gears | 1 | |
| Max Speed – Forward | 5.6 mph | 9 km/h |
| Max Speed – Reverse | 6 mph | 9.6 km/h |
| Undercarriage | ||
| Ground Pressure | 5.5 psi | 38 kPa |
| Ground Contact Area | 3153 in2 | 2 m2 |
| Standard Shoe Size | 18 in | 460 mm |
| Number of Shoes per Side | 41 | |

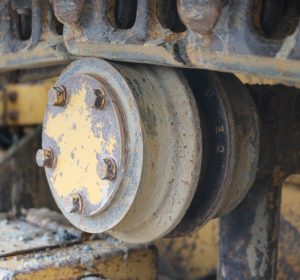

| Number of Track Rollers per Side | 7 | |
| Track Gauge | 4.9 ft in | 1499 mm |
| Hydraulic System | ||
| Relief Valve Pressure | 2900 psi | 20000 kPa |
| Pump Flow Capacity | 16.1 gal/min | 61.1 L/min |
| Standard Blade | ||
| Width | 8.8 ft in | 2671 mm |
| Height | 40.5 in | 1028 mm |
| Capacity | 2.5 yd3 | 1.9 m3 |
| Blade Angle (both directions) | 25 degrees | |
| Cutting Depth | 22.4 in | 568 mm |
| Dimensions | ||
| Length w/o Blade | 10.2 ft in | 3103 mm |
| Length w/ Blade | 13.2 ft in | 4035 mm |
| Width Over Tracks | 6.4 ft in | 1959 mm |
| Height to Top of Cab | 8.9 ft in | 2718 mm |
| Length of Track on Ground | 7.3 ft in | 2211 mm |
| Ground Clearance | 1.2 ft in | 374 mm |
