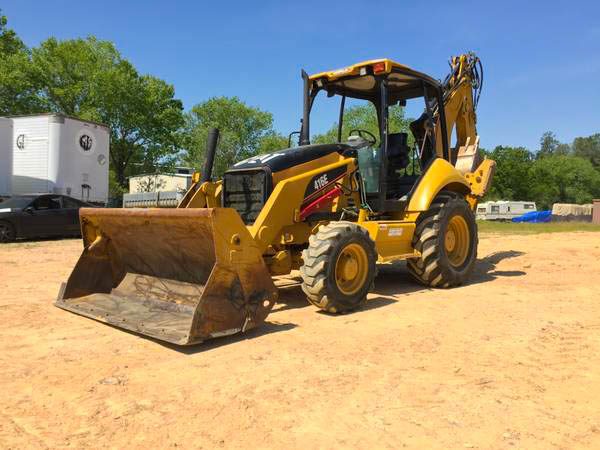

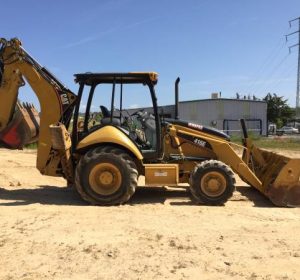

2006 CAT 416E Backhoe(sold)

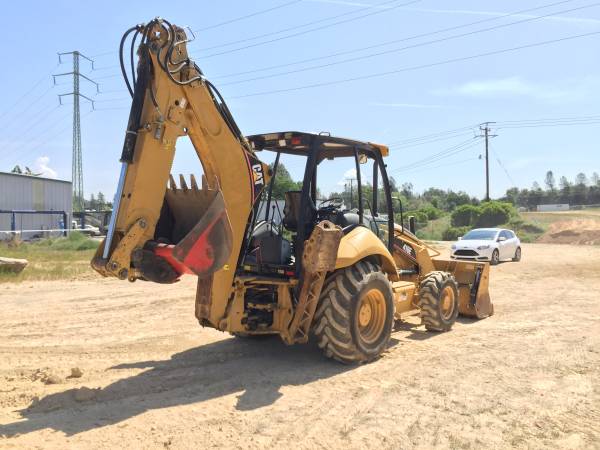

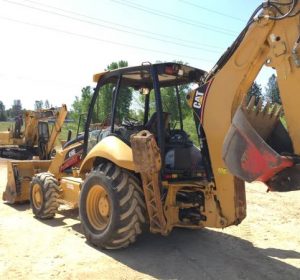

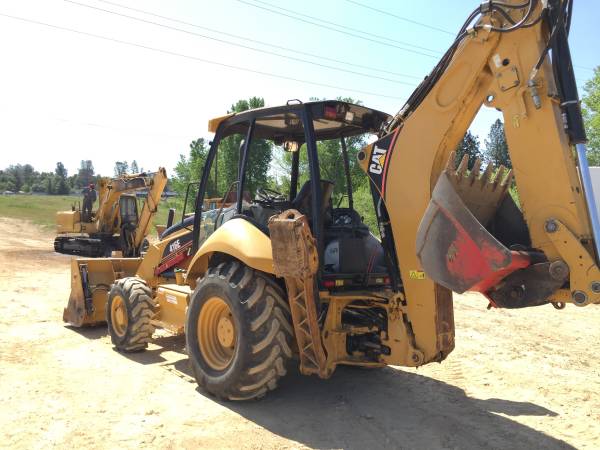

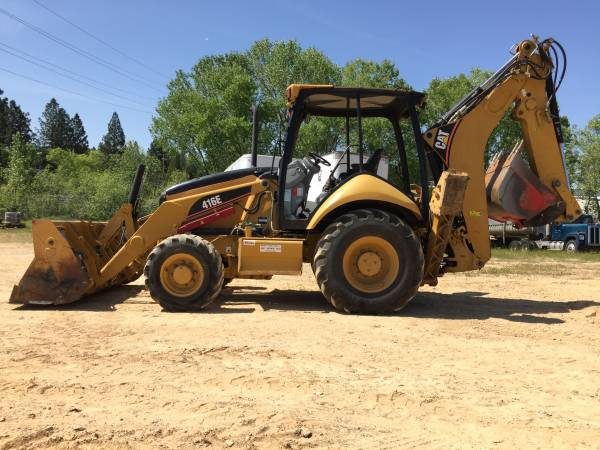

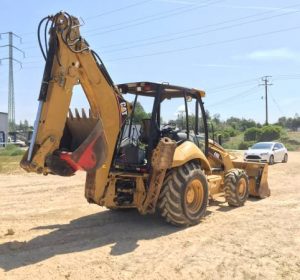

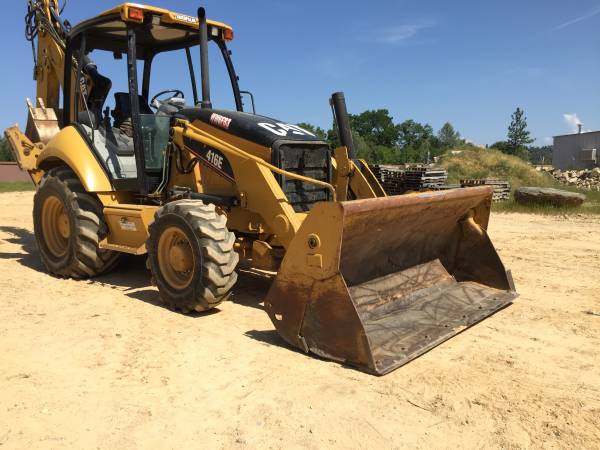

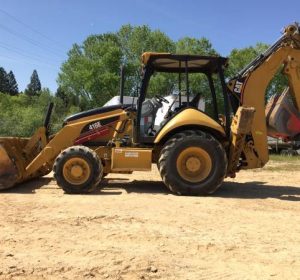

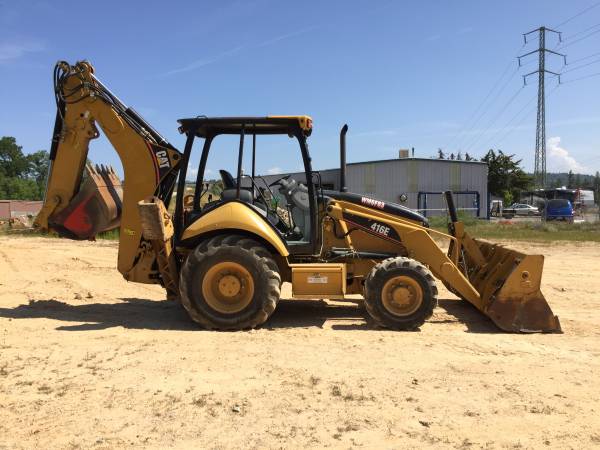

2006 CAT 416E LOADER BACKHOE WITH 2700HRS, EXT HOE, 4X4, MP BUCKET, CAT QUICK COUPLER, 36″ CAT BUCKET, TIER 2 CAT ENGINE, WOBBLE STICK CONTROLS, TIRES 50%, READY TO GO TO WORK!

Backhoe
J. Load Height – Std 11.9 ft in 3636 mm
K. Reach From Swivel – Std 18.4 ft in 5618 mm
L. Dig Depth – Std 14.3 ft in 4360 mm
M. Reach at Load Height – Std 5.8 ft in 1768 mm
Dimensions
A. Transport Length 23.6 ft in 7180 mm
B. Transport Width 8 ft in 2438 mm
C. Transport Height 11.8 ft in 3577 mm
D. Wheelbase 7.3 ft in 2200 mm
F. Height to Top of Cab 9.3 ft in 2819 mm
Loader
G. Clearance at Max Dump Height 8.7 ft in 2651 mm
H. Reach at Max Dump Height 2.5 ft in 772 mm
I. Dig Depth 4 in 106 mm
SPECIFICATION

Engine
Make Caterpillar
Model 3054C DINA
Net Power 74 hp 55 kw
Gross Power 78 hp 58 kw
Displacement 268 cu in 4.4 L
Power Measured @ 2200 rpm
Number of Cylinders 4
Net Torque Rise 27 %
Net Max Torque 219 lb ft 296 Nm
Operational
Operating Weight 2wd 14960 lb 6792 kg
Max Weight 22466 lb 10200 kg
Fuel Capacity 38 gal 144 L
Hydraulic System Fluid Capacity 21 gal 79.5 L
Oil System Fluid Capacity 2 gal 7.6 L
Cooling System Fluid Capacity 4.4 gal 16.7 L
Transmission Fluid Capacity 4.9 gal 18.5 L
Front Axle Fluid Capacity 2.9 gal 11 L
Rear Axle Fluid Capacity 4.4 gal 16.5 L
Turning Radius 17.6 ft in 5370 mm
Tire Size Front – 2wd / 4wd 11L-16 (12 ply) F-3 / 335/80R 18 XM37
Rear Tires Size 2wd/4wd 19.5L-24 (12 ply) R4 ATU / 19.5L-R24 XM37
Operating Voltage 12 V
Transmission
Type power-shuttle
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 24.8 mph 39.9 km/h
Max Speed Reverse 24.8 mph 39.9 km/h
Backhoe
Dig Depth – Std 14.3 ft in 4360 mm
Dig Depth – Ext 17.9 ft in 5456 mm
Reach From Swivel – Std 18.4 ft in 5618 mm
Reach From Swivel – Ext 21.8 ft in 6666 mm
Bucket Dig Force – Std 11655 lb 5286.6 kg
Bucket Dig Force – Ext 11491 lb 5212.2 kg
Load at Max Lift – Std 2838 lb 1290 kg
Load at Max Lift – Ext 1712 lb 778 kg
Load Height – Std 11.9 ft in 3636 mm
Load Height – Ext 13.6 ft in 4145 mm
Reach at Load Height – Std 5.8 ft in 1768 mm
Reach at Load Height – Ext 9.1 ft in 2771 mm
Loader
Bucket Capacity 1 yd3 0.76 m3
Bucket Width 7.4 in 2262 mm
Bucket Breakout Force 9185 lb 40.9 kN
Lift Capacity at Full Height 5615 lb 2547 kg
Clearance at Max Dump Height 8.7 ft in 2651 mm
Reach at Max Dump Height 2.5 ft in 772 mm
Dig Depth 4 in 106 mm
Hydraulic
Pump Type variable-flow, axial piston
Pump Flow Capacity 34.8 gal/min 132 L/min
Relief Valve Pressure 3292 psi 22700 kPa
Dimensions
Transport Length 23.6 ft in 7180 mm
Transport Width 8 ft in 2438 mm
Transport Height 11.8 ft in 3577 mm
Height to Top of Cab 9.3 ft in 2819 mm
Wheelbase 7.3 ft in 2200 mm
