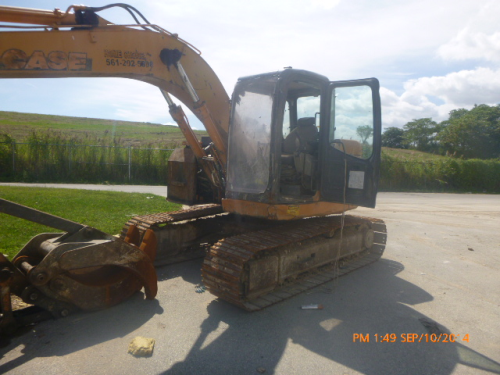

2006 Case CX135SR Excavator(sold)

Hours: 6,758
Location: New Castle, DE
Price: Auction Starting at $10,500 Sep. 30
http://www.auctiontime.com/OnlineAuctions/Details.aspx?OHID=10235389&lp=mat
Boom/Stick Option (HEX) 1
A. SHIPPING LENGTH OF UNIT 23.7 ft in 7230 mm
C. SHIPPING HEIGHT OF UNIT 9 ft in 2750 mm
J. MAX LOADING HEIGHT 22.7 ft in 6910 mm
K. MAX REACH ALONG GROUND 26.9 ft in 8210 mm
L. MAX VERTICAL WALL DIGGING DEPTH 15.9 ft in 4850 mm
M. MAX DIGGING DEPTH 17.9 ft in 5470 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 8.2 ft in 2490 mm
D. LENGTH OF TRACK ON GROUND 9.2 ft in 2790 mm
E. GROUND CLEARANCE 1.4 ft in 440 mm
H. TAIL SWING RADIUS 4.9 ft in 1480 mm
Undercarriage
N. SHOE SIZE 19.7 in 500 mm
SPECIFICATION

Engine
MAKE Isuzu
MODEL BB-4BG1T
GROSS POWER 88 hp 65.6 kw
POWER MEASURED @ 2100 rpm
DISPLACEMENT 268.5 cu in 4.4 L
NUMBER OF CYLINDERS 4
Operational
OPERATING WEIGHT 30864.7 lb 14000 kg
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4974.8 psi 34300 kPa
HYDRAULIC PUMP FLOW CAPACITY 35.4 gal/min 134 L/min
Undercarriage
SHOE SIZE 19.7 in 500 mm
MAX TRAVEL SPEED 3.1 mph 5 km/h
Buckets
REFERENCE BUCKET CAPACITY 0.65 yd3 0.5 m3
Boom/Stick Option (HEX) 1
SHIPPING HEIGHT OF UNIT 9 ft in 2750 mm
SHIPPING LENGTH OF UNIT 23.7 ft in 7230 mm
MAX DIGGING DEPTH 17.9 ft in 5470 mm
MAX REACH ALONG GROUND 26.9 ft in 8210 mm
MAX LOADING HEIGHT 22.7 ft in 6910 mm
MAX VERTICAL WALL DIGGING DEPTH 15.9 ft in 4850 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 8.2 ft in 2490 mm
GROUND CLEARANCE 1.4 ft in 440 mm
TAIL SWING RADIUS 4.9 ft in 1480 mm
LENGTH OF TRACK ON GROUND 9.2 ft in 2790 mm
