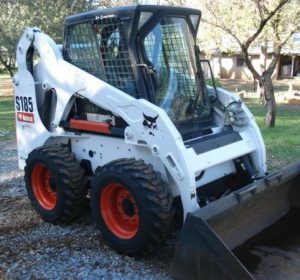

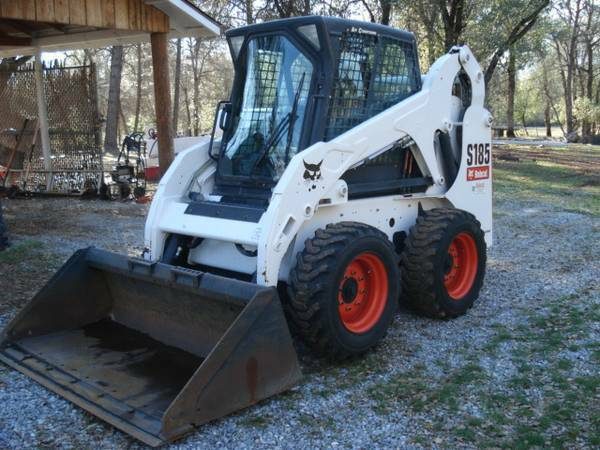

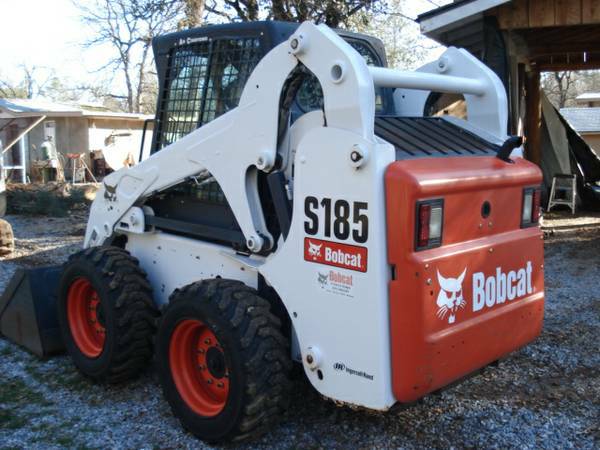

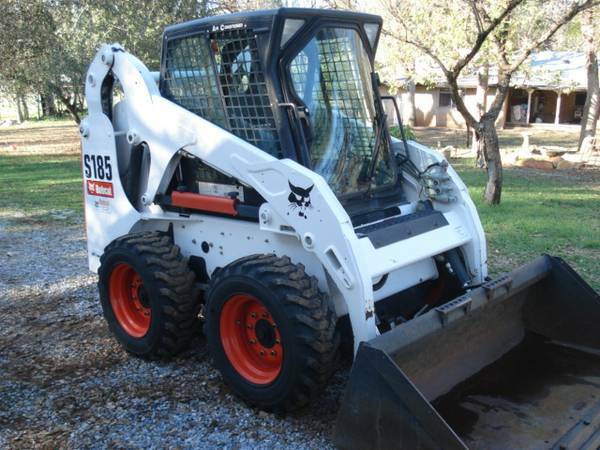

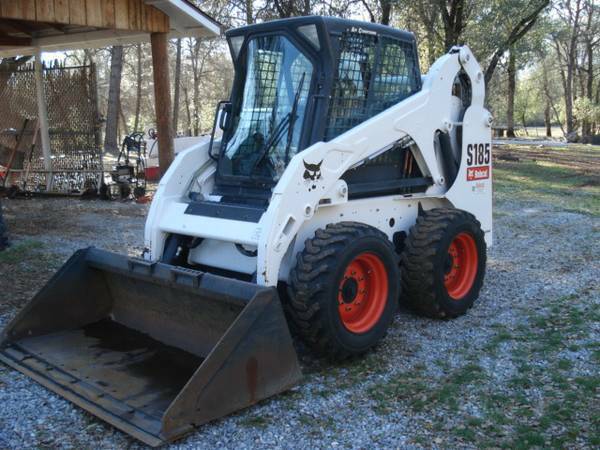

2006 Bobcat S185 Skid Steer(sold)

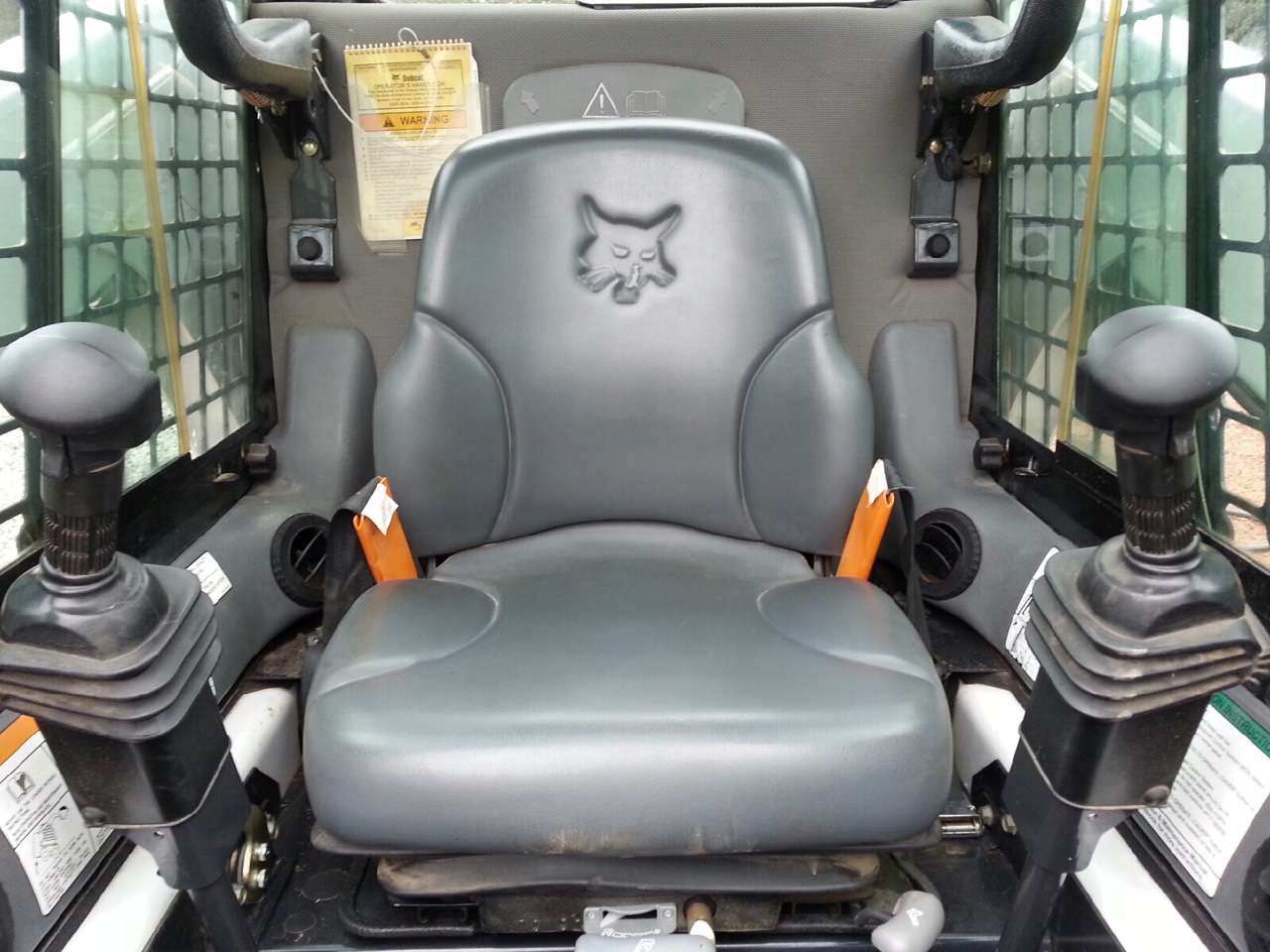

2006 BOBCAT S185 SKID STEER, ONLY 250 ORIGINAL HOURS, EROPS, HEAT/AC, HAND/FOOT STYLE CONTROLS, AUX HYDRAULICS THAT HAVE NEVER BEEN USED

LOCATION: REDDING, CA
PRICE: $28,999

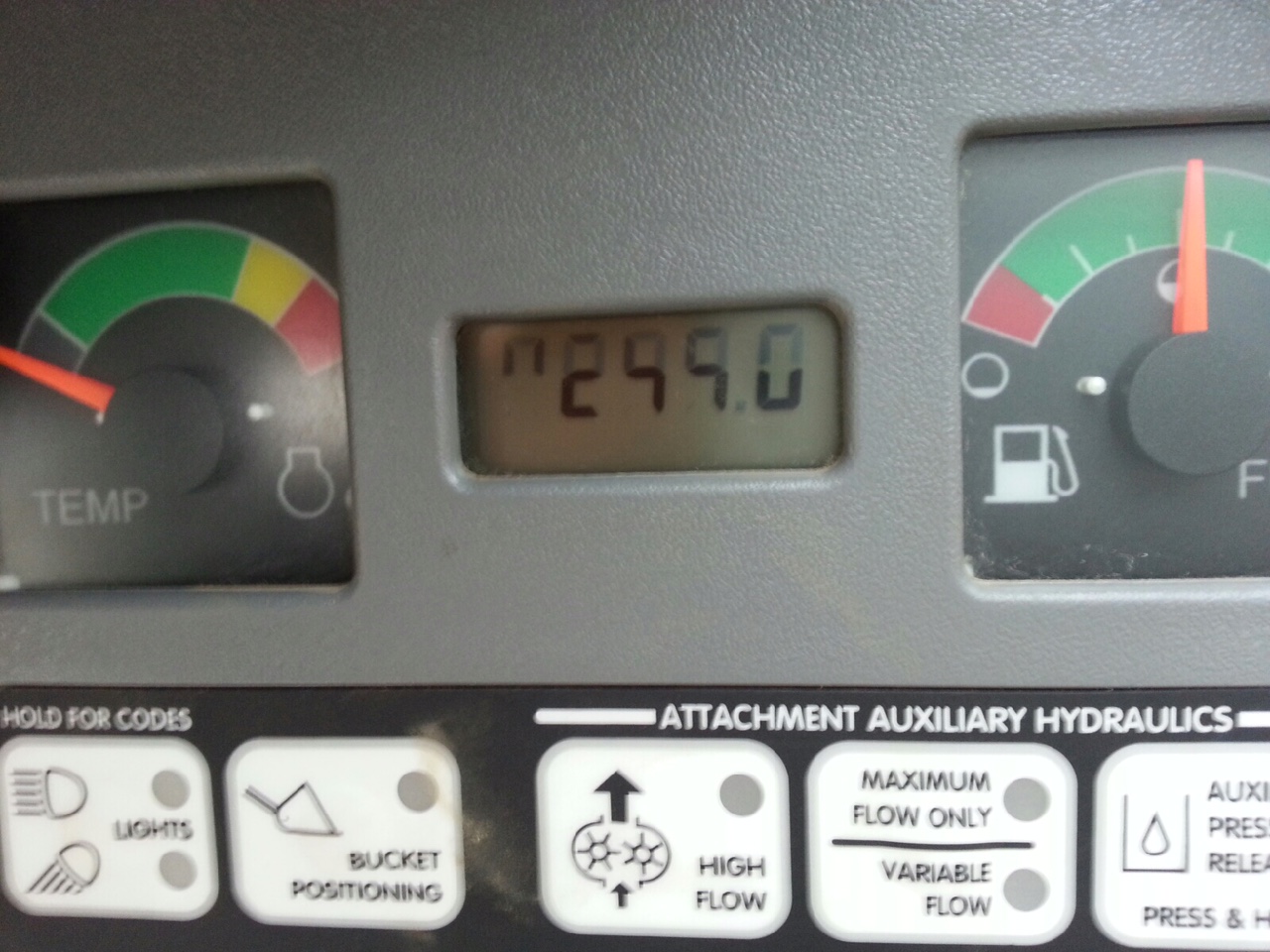

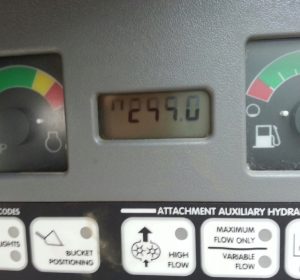

HOURS: 250

Dimensions
A. LENGTH WITH BUCKET 10.9 ft in 3310 mm
B. WIDTH OVER TIRES 5.5 ft in 1676 mm
C. HEIGHT TO TOP OF CAB 6.4 ft in 1938 mm
D. WHEELBASE 3.4 ft in 1030 mm
E. GROUND CLEARANCE 7.5 in 190 mm
F. LENGTH W/O BUCKET 8.5 ft in 2588 mm
G. CLEARANCE AT MAX LIFT AND DUMP 7.6 ft in 2310 mm
H. REACH AT MAX LIFT AND DUMP 29.6 in 753 mm
SPECIFICATION

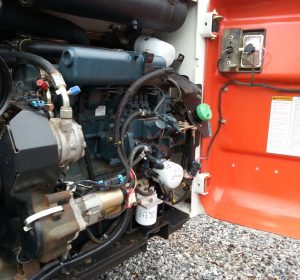

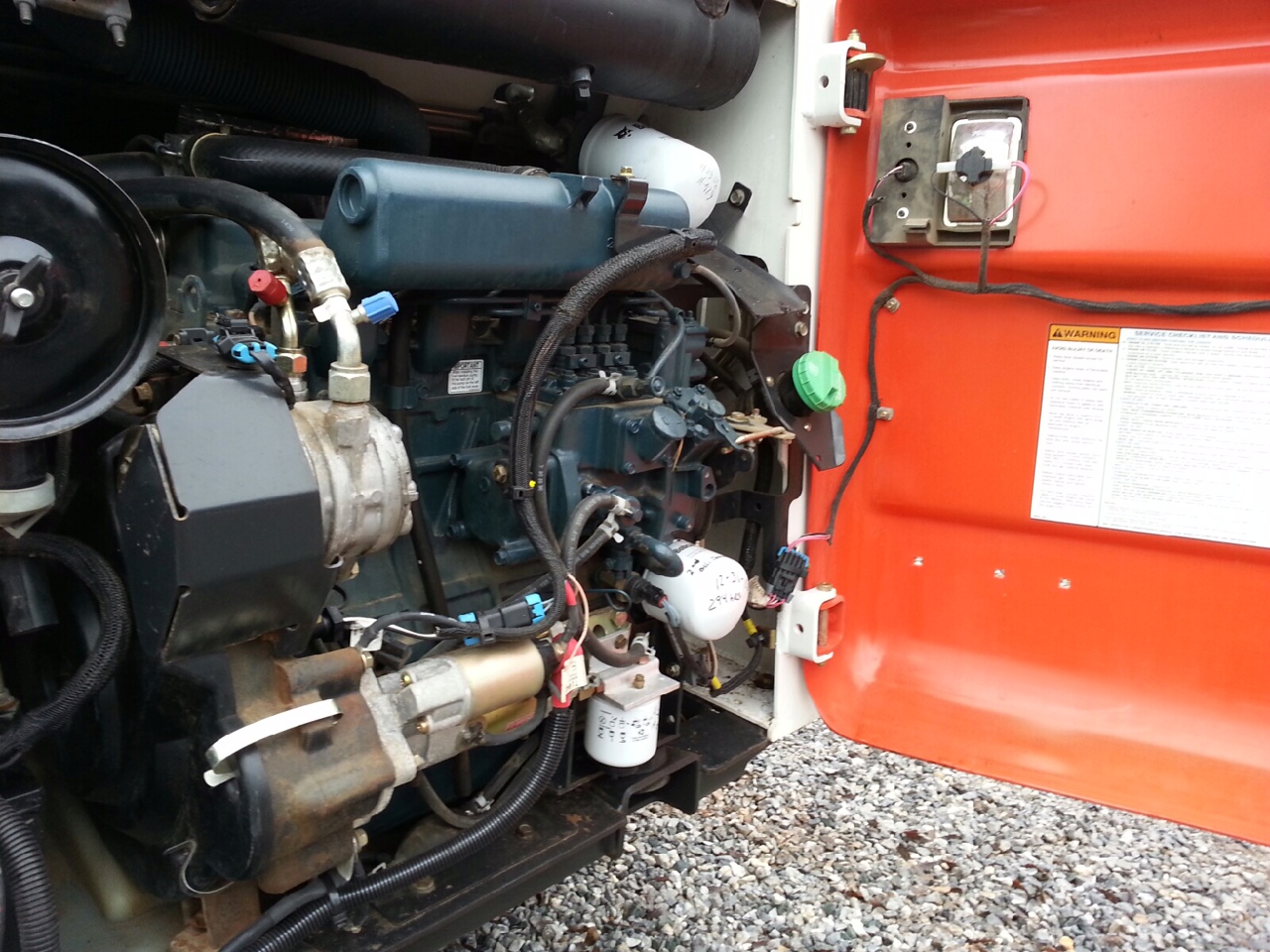

Engine
MAKE Kubota
MODEL V2003-M-DI-T
GROSS POWER 56 hp 41.8 kw
POWER MEASURED @ 2800 rpm
DISPLACEMENT 122 cu in 2 L
NUMBER OF CYLINDERS 4
Operational
OPERATIONAL WEIGHT 6220 lb 2821.3 kg
FUEL CAPACITY 24 gal 91 L
OPERATING SPEED 7.3 mph 11.7 km/h
MAX SPEED 11.1 mph 17.9 km/h
Loader
OPERATING LOAD RATING 1850 lb 839.1 kg
TIPPING LOAD 4076 lb 1848.8 kg
BUCKET CAPACITY 0.43 yd3 0.33 m3
Hydraulic
PUMP FLOW CAPACITY 16.9 gal/min 64 L/min
RELIEF VALVE PRESSURE 3300 psi 22752.7 kPa
Dimensions
LENGTH WITH BUCKET 10.9 ft in 3310 mm
LENGTH W/O BUCKET 8.5 ft in 2588 mm
WIDTH OVER TIRES 5.5 ft in 1676 mm
HEIGHT TO TOP OF CAB 6.4 ft in 1938 mm
CLEARANCE AT MAX LIFT AND DUMP 7.6 ft in 2310 mm
WHEELBASE 3.4 ft in 1030 mm
GROUND CLEARANCE 7.5 in 190 mm
REACH AT MAX LIFT AND DUMP 29.6 in 753 mm
TURNING RADIUS FROM CENTER – MACHINE REAR 78.8 in 2001.5 mm

mm
