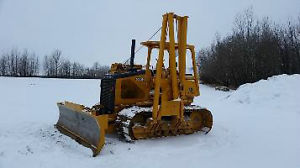

2005 Deere 650J Pipelayer(sold)

2005 Deere 650J Pipelayer

Price: $94,900

Location: Houston, TX

Hours: 4,000

6 Way Blade, Rippers with Side Boom, 30″ Pads

2005 Deere 650J Pipelayer SPECS

Engine
Make John Deere
Model 4045T
Net Power 99 hp 74 kw
Power Measured @ 2200 rpm
Max Torque 329 lb ft 447 Nm
Displacement 276 cu in 4.5 L
Torque Measured @ 1200 rpm
Number of Cylinders 4
Aspiration Altitude-compensating turbocharger
Operational
Operating Weight 19790.9 lb 8977 kg
Fuel Capacity 47 gal 178 L
Cooling System Fluid Capacity 4.2 gal 16 L
Engine Oil Capacity 3.7 gal 14 L
Hydraulic Fluid Capacity 8.5 gal 32.2 L
Powertrain Fluid Capacity 11.3 gal 42.7 L
Final Drives Fluid Capacity 1.7 gal 6.6 L
Operating Voltage 12 V
Alternator Supplied Amperage 65 amps
Transmission
Type Hydrostatic
Max Speed – Forward 5 mph 8 km/h
Max Speed – Reverse 5 mph 8 km/h
Undercarriage
Ground Pressure 3.8 psi 26.2 kPa
Ground Contact Area 5152 in2 3.3 m2
Standard Shoe Size 28 in 711 mm
Number of Shoes per Side 40
Number of Track Rollers per Side 7
Track Pitch 6.7 in 170 mm
Track Gauge 5.8 ft in 1753 mm
Hydraulic System
Pump type Gear
Relief Valve Pressure 3000 psi 20684.3 kPa
Pump Flow Capacity 15 gal/min 56.8 L/min
Standard Blade
Width 9.6 ft in 2921 mm
Height 32.5 in 826 mm
Capacity 2.3 yd3 1.8 m3
Blade Angle (both directions) 22.2 degrees
Cutting Depth 19.7 in 500 mm
Dimensions
Length w/ Blade 14 ft in 4254 mm
Width Over Tracks 8.1 ft in 2464 mm
Height to Top of Cab 9.1 ft in 2768 mm
Length of Track on Ground 7.7 ft in 2337 mm
Ground Clearance 1.2 ft in 363 mm
