2005 Case 570MXT Skip Loader(sold)

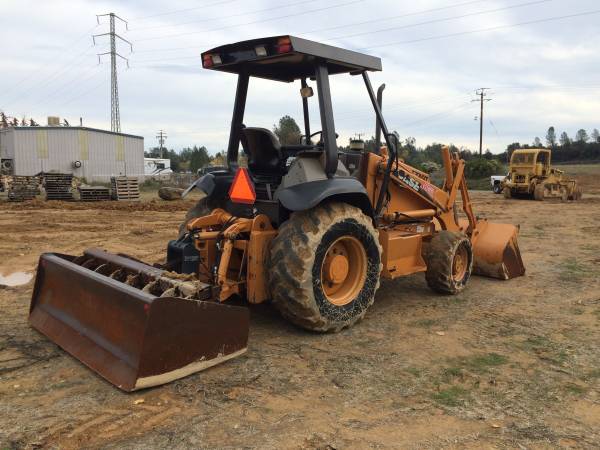

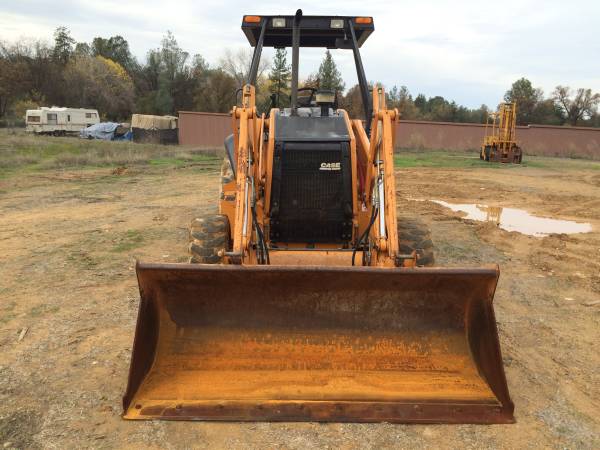

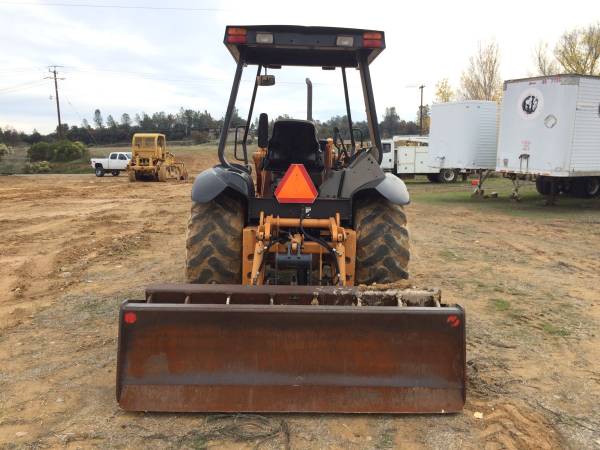

CASE 570MXT SKIPLOADER 2000 HOURS, GP BUCKET, GANNON BOX W/ RIPPERS, RECENT SERVICE
2 IDENTICAL UNITS AVAILABLE!

LOCATION: PLACERVILLE, CA
HOURS 2000
PRICE: $27,900

ENGINE
570M XT
Model Case Family III 445T/M3 diesel,
Tier III Certified
Type 4-stroke, turbocharged
Cylinders 4
Bore/Stroke 4.09 in x 5.19 in
(104 mm X 132 mm)
Displacement 274 in3 (4.5 L)
Fuel injection Direct
Fuel #2 Diesel
Fuel filter w/water trap
Air intake Cross-flow
Cooling Liquid
Engine speeds (rpm)
Rated speed, full load 2200
Low idle 850 – 1000
High idle, no load 2300 – 2450
Horsepower
Gross 85 (63 kW) @ 2200 rpm
Net 79 (59 kW) @ 2200 rpm
Maximum torque @ 1400 rpm
Gross 276 lb·ft (374 N·m)
Net 270 lb·ft (366 N·m)
Torque rise at rated speed 33%
ENGINE COOLING
Radiator
Core type Square wave
Core size area 486 in2 (.31 m2
)
Rows of tubes 3
Fan
Style 7 blade suction
Diameter 19.7 in (500 mm)
Ratio 1.1:1
Water pump
Style Integral
Engine oil
Pump Deep sump plate cooler
with pressurized
under-piston nozzles
Pump operating angle ratings
Side-to-side Rated 35°
Fore and aft Rated 35°
Oil filtration Replaceable,
full-flow cartridge
SERVICE CAPACITIES
Fuel tank 31.4 gal (119 L)
Optional tank 40.0 gal (151 L)
Hydraulic system
Total 20.25 gal (77 L)
Reservoir w/filter 14.5 gal (54.9 L)
Reservoir w/o filter 14.0 gal (53 L)
Transmission
2WD Total system 19.0 qt (18 L)
4WD Total system 22.0 qt (20.8 L)
4WD Front axle
Differential 5.8 qt (5.5 L)
Planetaries (each) 0.7 qt (0.66 L)
Rear axle
Differential 15.0 qt (14.2 L)
Planetaries (each) 1.6 qt (1.5 L)
Engine oil w/filter 14.4 qt (13.6 L)
Cooling system
w/heater 17.8 qt (16.8 L)
w/o heater 17 qt (16.1 L)
Window washer reservoir 2.5 qt (2.36 L)
