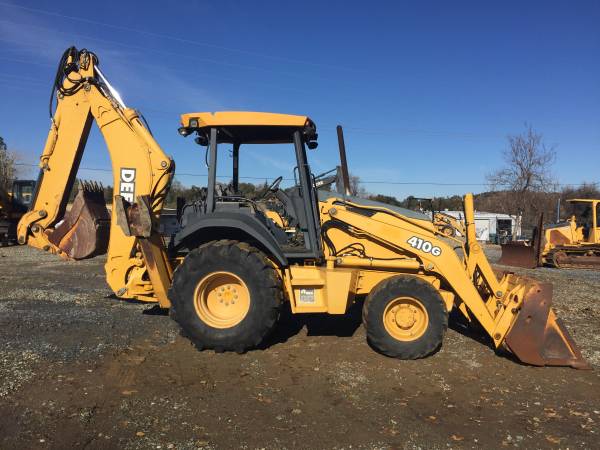

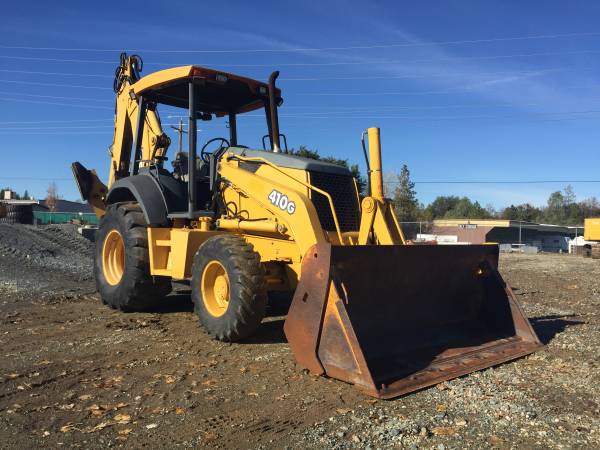

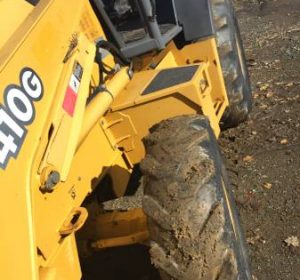

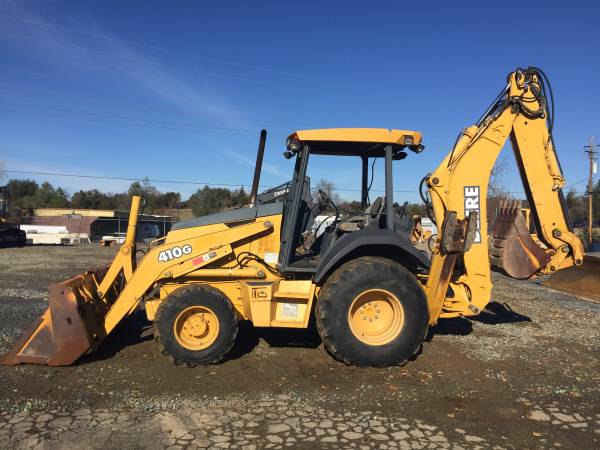

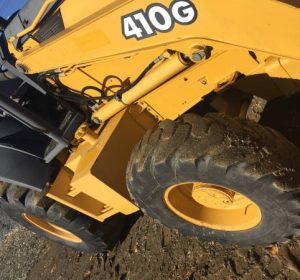

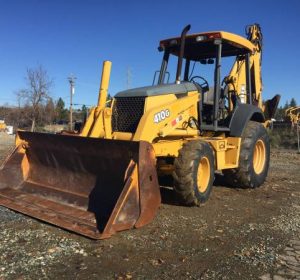

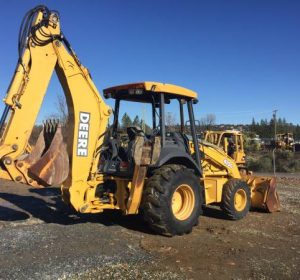

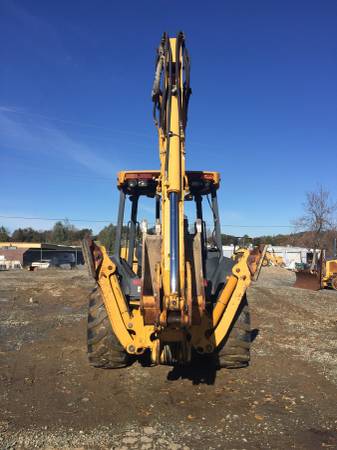

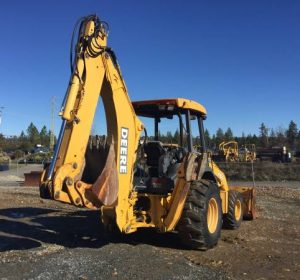

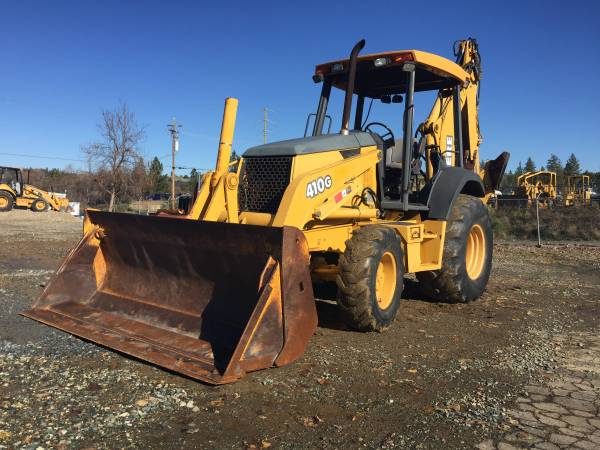

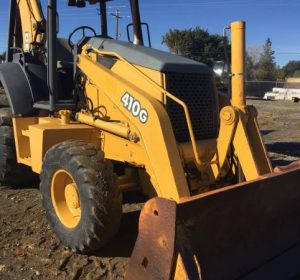

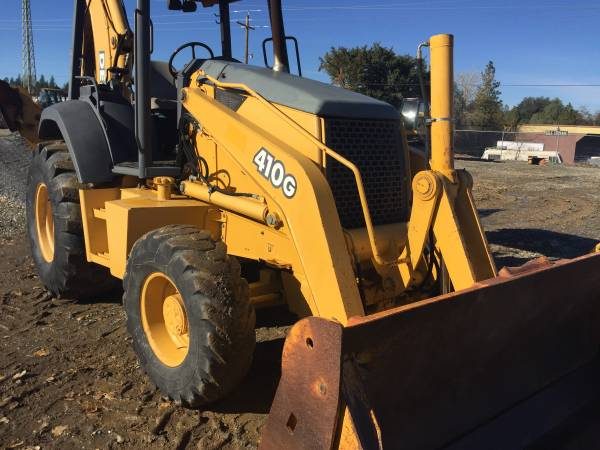

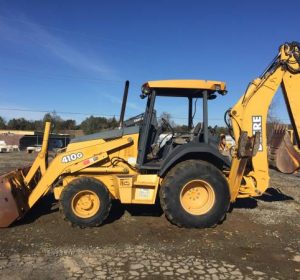

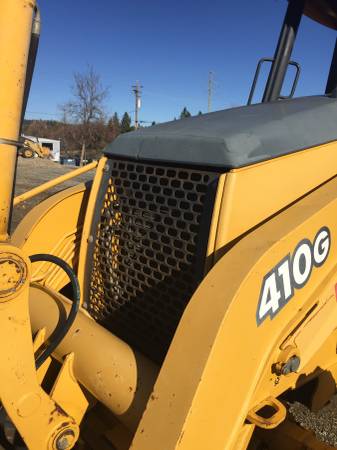

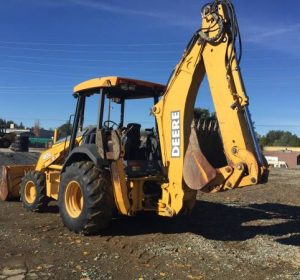

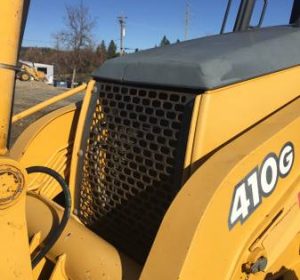

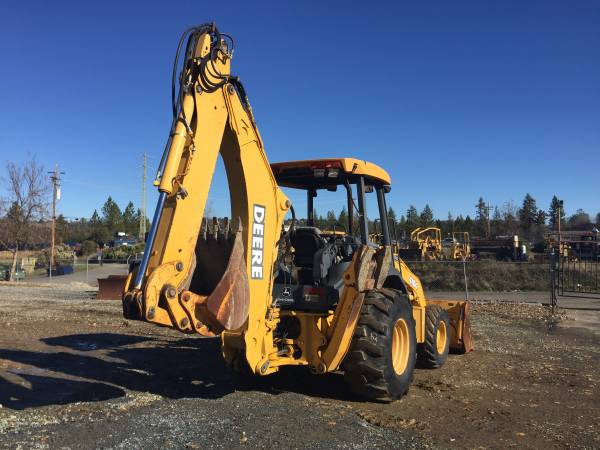

2004 DEERE 410G LOADER BACKHOE(sold)

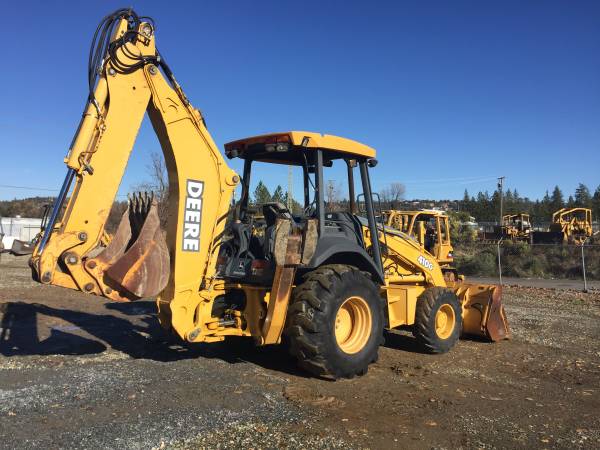

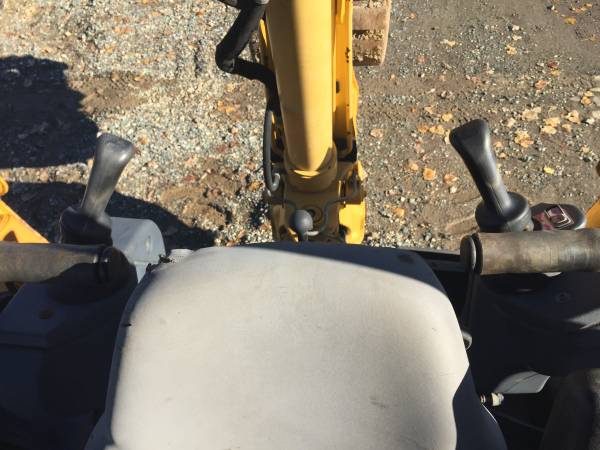

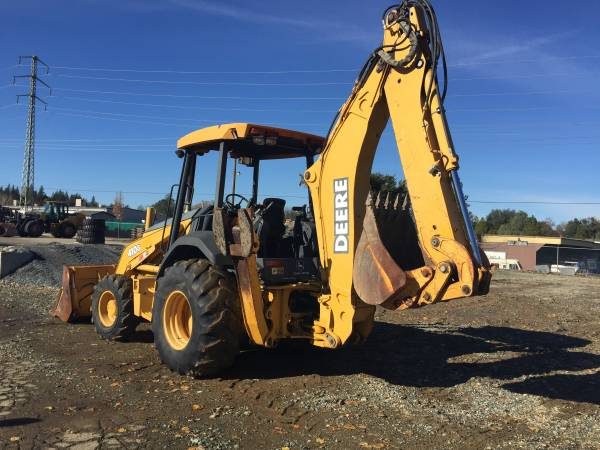

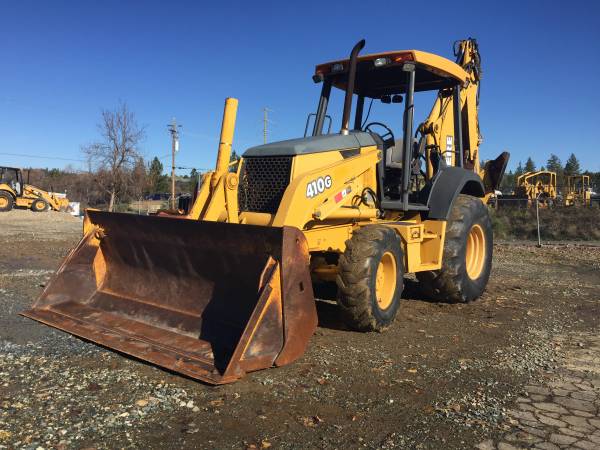

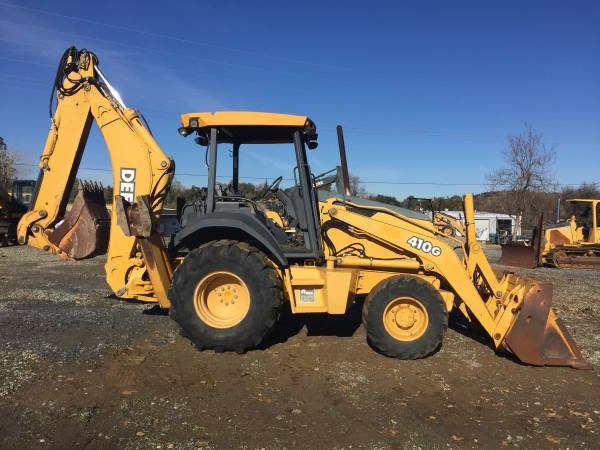

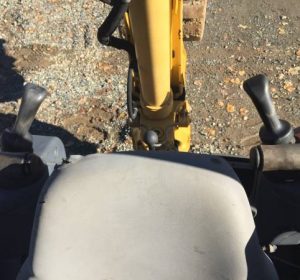

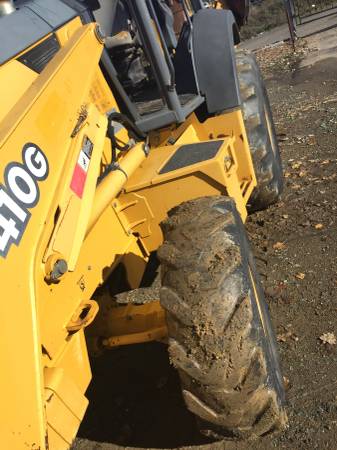

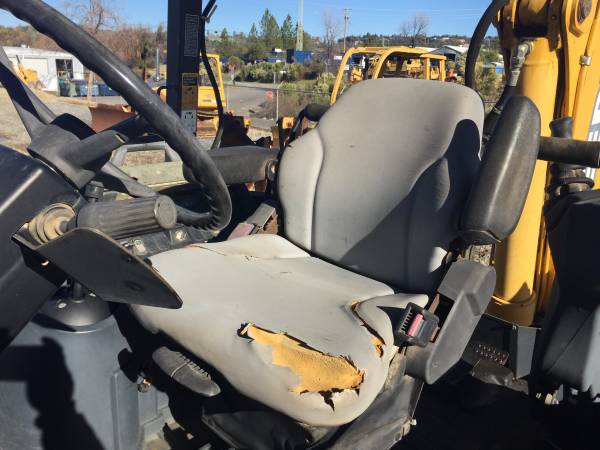

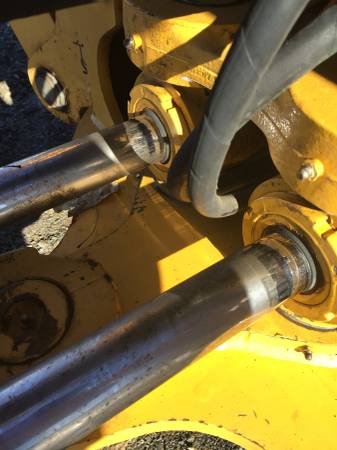

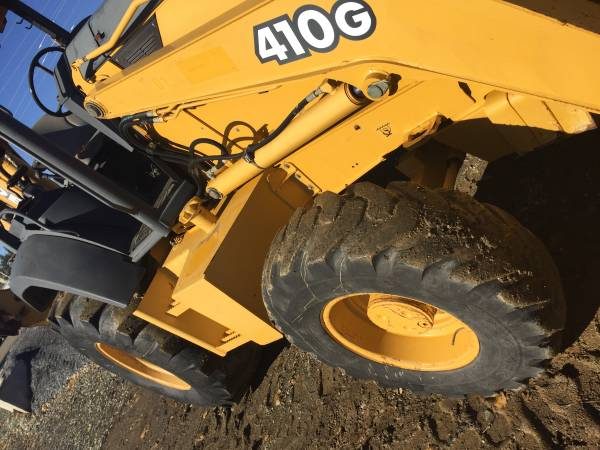

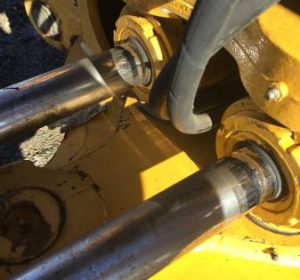

VERY CLEAN OWNER OPERATED SINCE NEW! 2004 DEERE 410G LOADER BACKHOE WITH ONLY 3300HRS. UNIT IS EQUIPPED WITH MP BUCKET, EXT HOE, 4X4, PILOT CONTROLS, RIDE CONTROL, AUX HYDRAULICS, TIER 2 COMPLIANT DEERE ENGINE, REAR TIRES 50%, WE ARE PUTTING BRAND NEW FRONT TIRES ON PRIOR TO SALE. PINS AND BUSHINGS ARE TIGHT! COMES WITH DEERE PIN GRABBER AND 24″ BUCKET. PRICED TO SELL! READY TO GO TO WORK.

Price: 39,900

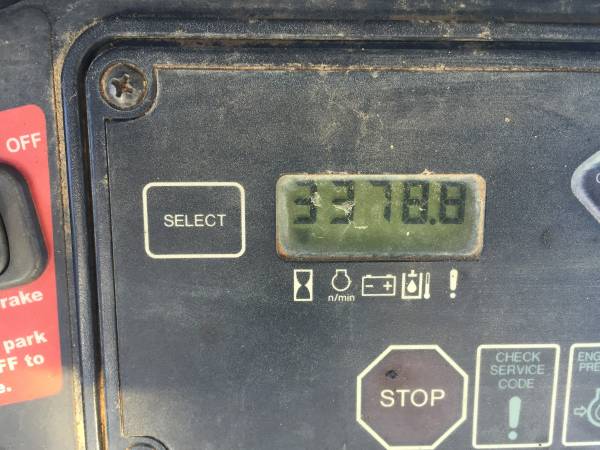

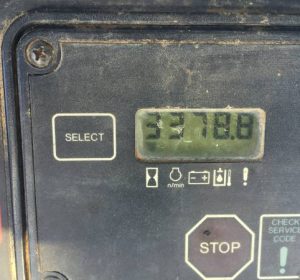

Hours: 3,288

Location: Placerville, CA

Backhoe
J. LOAD HEIGHT – STD 12.5 ft in 3810 mm
K. REACH FROM SWIVEL – STD 19.7 ft in 5990 mm
L. DIG DEPTH – STD 15.8 ft in 4830 mm
M. REACH AT LOAD HEIGHT – STD 23.3 ft in 7110 mm
Dimensions
A. TRANSPORT LENGTH 23.9 ft in 7290 mm
B. TRANSPORT WIDTH 7.5 ft in 2300 mm
C. TRANSPORT HEIGHT 12.8 ft in 3910 mm
D. WHEELBASE 6.9 ft in 2100 mm
E. GROUND CLEARANCE 1.2 ft in 356 mm
F. HEIGHT TO TOP OF CAB 9.3 ft in 2820 mm
Loader
G. CLEARANCE AT MAX DUMP HEIGHT 12.3 ft in 3758.2 mm
H. REACH AT MAX DUMP HEIGHT 3 ft in 902 mm
I. DIG DEPTH 4.2 in 107 mm
Specification
Engine
MAKE John Deere
MODEL 4045T
NET POWER 96 hp 71.6 kw
POWER MEASURED @ 2100 rpm
TORQUE MEASURED @ 1400 rpm
NET TORQUE RISE 23 %
NET MAX TORQUE 279 lb ft 378.3 Nm
ASPIRATION Turbocharged
Operational
OPERATING WEIGHT 2WD 1628 lb 738 kg
OPERATING WEIGHT 4WD 1262 lb 572 kg
MAX WEIGHT 15000 lb 6804 kg
FUEL CAPACITY 36 gal 136 L
HYDRAULIC SYSTEM FLUID CAPACITY 26 gal 98 L
OIL SYSTEM FLUID CAPACITY 3.4 gal 13 L
COOLING SYSTEM FLUID CAPACITY 4.2 gal 16 L
TRANSMISSION FLUID CAPACITY 4 gal 15 L
FRONT AXLE FLUID CAPACITY 2 gal 7.6 L
REAR AXLE FLUID CAPACITY 4.2 gal 16 L
TURNING RADIUS 11.7 ft in 3560 mm
TIRE SIZE FRONT – 2WD / 4WD 11L-16 F3
REAR TIRES SIZE 2WD/4WD 19.5L-24 R4
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 90 amps
Transmission
TYPE 4-speed, helical cut gear, full power shifted transmission with hydraulic reverser
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 3
MAX SPEED – FORWARD 20.5 mph 33 km/h
MAX SPEED REVERSE 16.1 mph 25.9 km/h

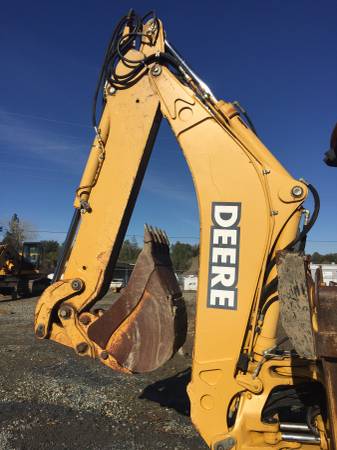

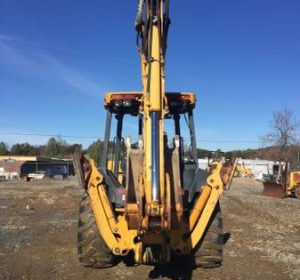

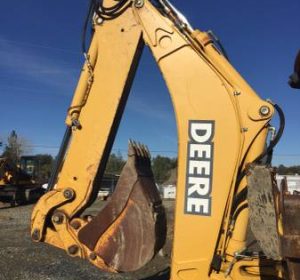

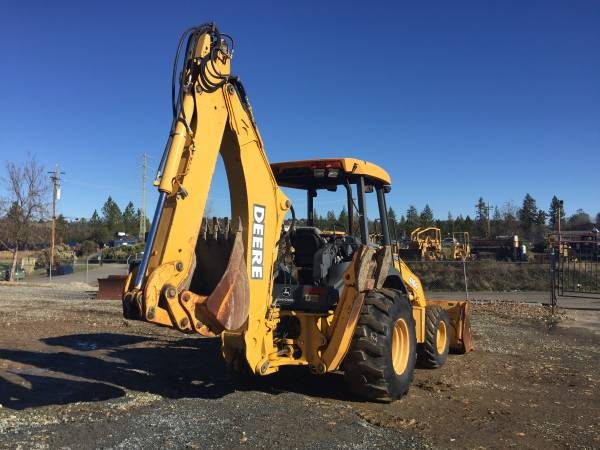

Backhoe
DIG DEPTH – STD 15.8 ft in 4830 mm
DIG DEPTH – EXT 20.5 ft in 6100 mm
REACH FROM SWIVEL – STD 19.7 ft in 5990 mm
REACH FROM SWIVEL – EXT 23.7 ft in 7210 mm
BUCKET DIG FORCE – STD 14801 lb 6713.6 kg
BUCKET DIG FORCE – EXT 14801 lb 6713.6 kg
LOAD HEIGHT – STD 12.5 ft in 3810 mm
LOAD HEIGHT – EXT 15.5 ft in 4720 mm
REACH AT LOAD HEIGHT – STD 23.3 ft in 7110 mm
REACH AT LOAD HEIGHT – EXT 27.3 ft in 8330 mm

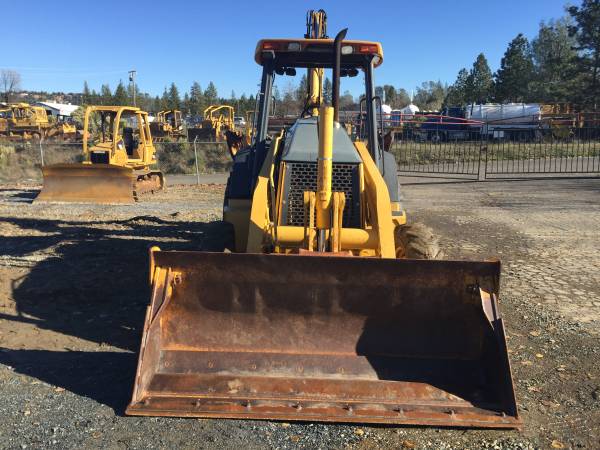

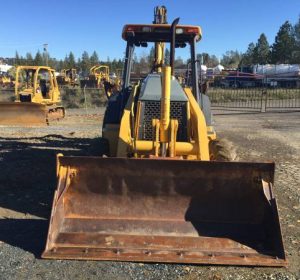

Loader
BUCKET CAPACITY 1.3 yd3 0.96 m3
BUCKET WIDTH 36 in 914 mm
BUCKET BREAKOUT FORCE 10210 lb 45.4 kN
LIFT CAPACITY AT FULL HEIGHT 7340 lb 3332 kg
CLEARANCE AT MAX DUMP HEIGHT 12.3 ft in 3758.2 mm
REACH AT MAX DUMP HEIGHT 3 ft in 902 mm
DIG DEPTH 4.2 in 107 mm

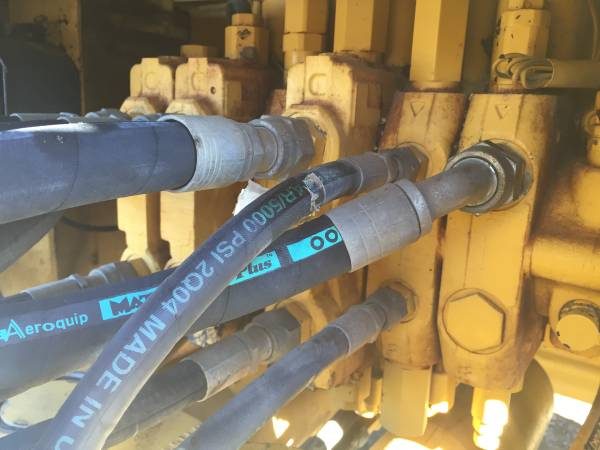

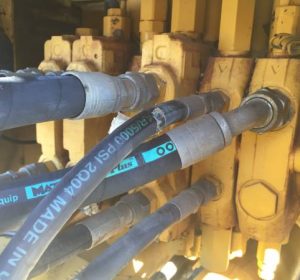

Hydraulic
PUMP TYPE Axial-piston, PCLS system
PUMP FLOW CAPACITY 43 gal/min 163 L/min
RELIEF VALVE PRESSURE 3625 psi 25000 kPa
Dimensions
TRANSPORT LENGTH 23.9 ft in 7290 mm
TRANSPORT WIDTH 7.5 ft in 2300 mm
TRANSPORT HEIGHT 12.8 ft in 3910 mm
HEIGHT TO TOP OF CAB 9.3 ft in 2820 mm
WHEELBASE 6.9 ft in 2100 mm
GROUND CLEARANCE 1.2 ft in 356 mm
