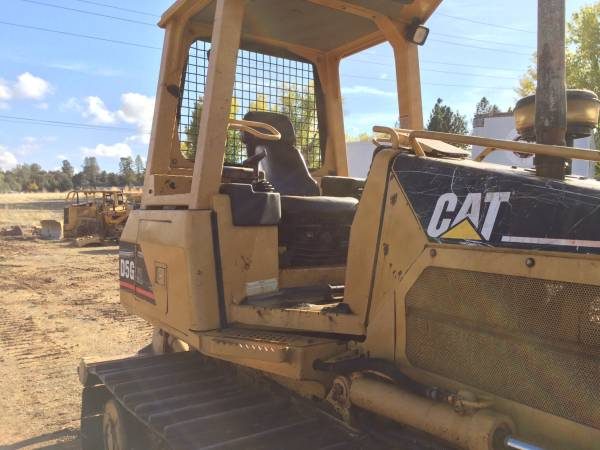

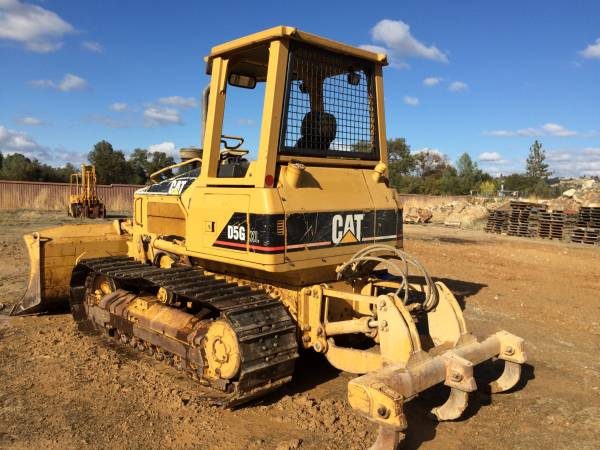

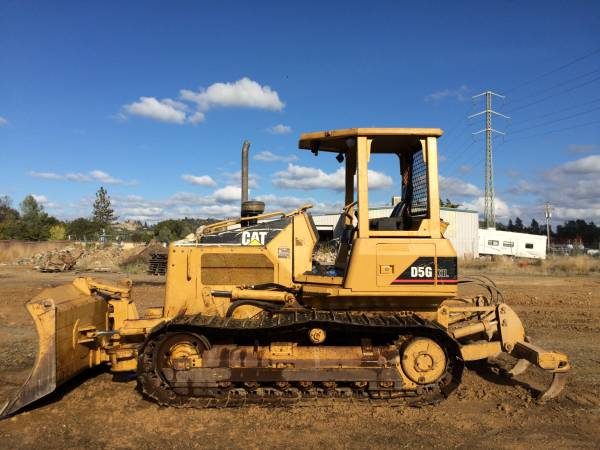

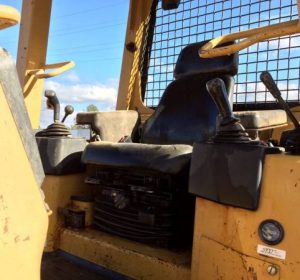

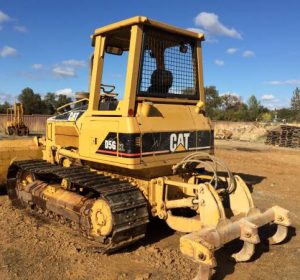

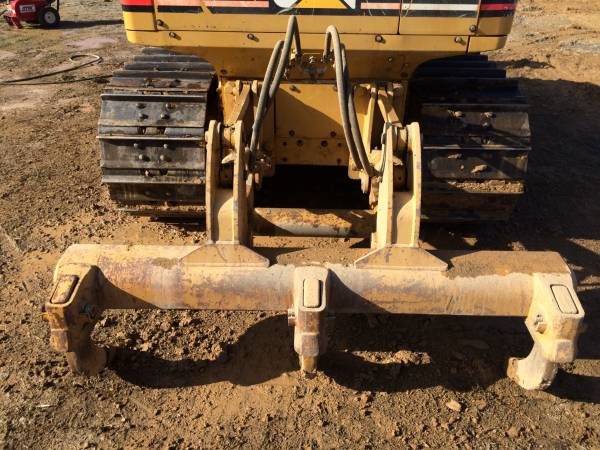

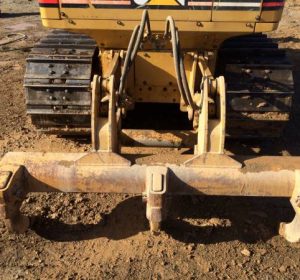

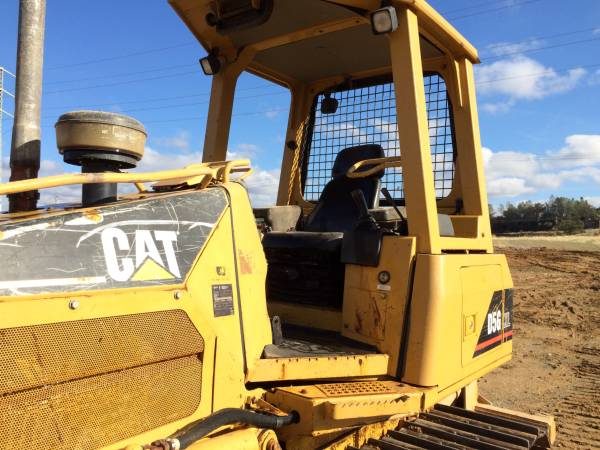

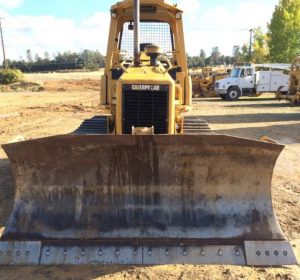

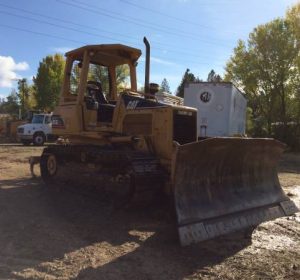

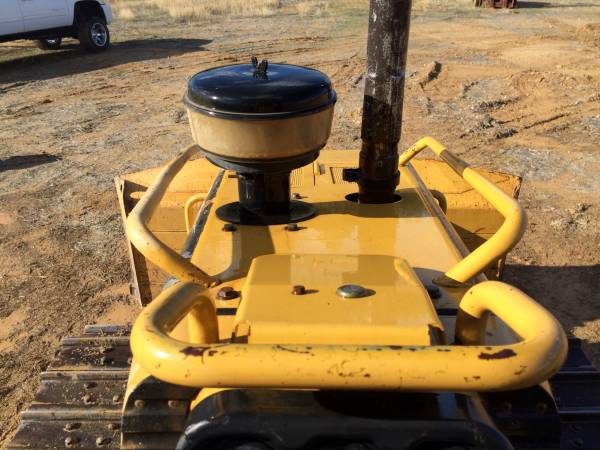

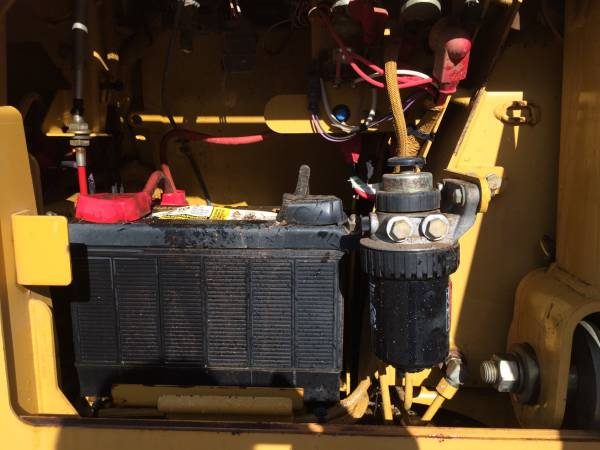

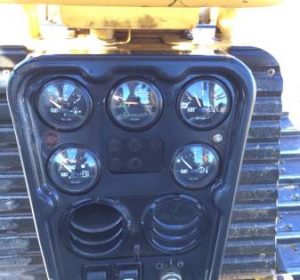

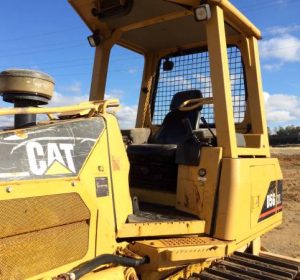

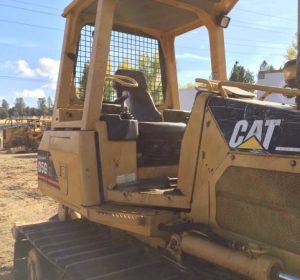

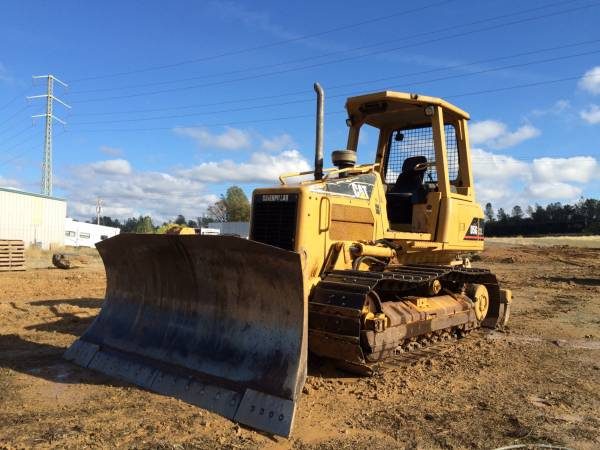

2004 CAT D5GXL CRAWLER DOZER, 3 SHANK RIPPER, 60% UC, PAT BLADE, HEATER, OROPS, JOYSTICK CONTROLS, WE PURCHASED THIS UNIT FROM PETERSON CAT. WAS USED ON A MOTORCROSS TRACK ALMOST ITS ENTIRE LIFE. VERY CLEAN.
Hours: 3900
Price: 49,900
Location: Placerville, CA
Dimensions
A. LENGTH W/ BLADE 14.2 ft in 4336 mm
B. WIDTH OVER TRACKS 6.8 ft in 2059 mm
C. HEIGHT TO TOP OF CAB 9 ft in 2728 mm
D. LENGTH OF TRACK ON GROUND 7.6 ft in 2317 mm
E. GROUND CLEARANCE 1.3 ft in 384 mm
F. LENGTH W/O BLADE 10.5 ft in 3184 mm

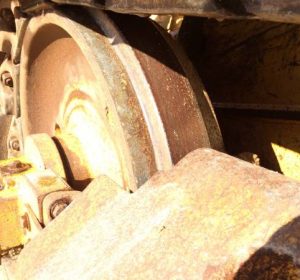

Undercarriage
G. TRACK GAUGE 5.1 ft in 1549 mm
H. STANDARD SHOE SIZE 20 in 510 mm
SPECIFICATIONEngine
MAKE Caterpillar
MODEL 3046T
GROSS POWER 99 hp 74 kw
NET POWER 90 hp 67 kw
POWER MEASURED @ 2200 rpm
DISPLACEMENT 305 cu in 5 L
Operational
OPERATING WEIGHT 19662 lb 8919 kg
FUEL CAPACITY 48.6 gal 187 L
COOLING SYSTEM FLUID CAPACITY 4.3 gal 16.1 L
ENGINE OIL CAPACITY 3.4 gal 13 L
HYDRAULIC FLUID CAPACITY 12 gal 46.5 L
FINAL DRIVES FLUID CAPACITY 3.9 gal 14.7 L

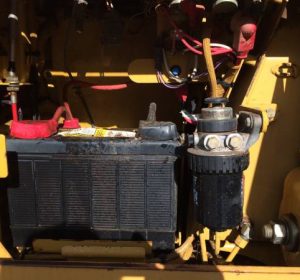

OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 120 amps
Transmission
TYPE Hydrostatic
NUMBER OF FORWARD GEARS 1
NUMBER OF REVERSE GEARS 1
MAX SPEED – FORWARD 5.6 mph 9 km/h
MAX SPEED – REVERSE 6 mph 9.6 km/h

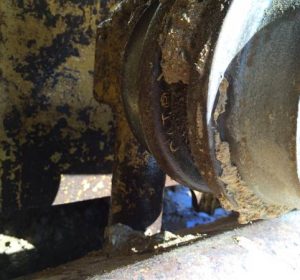

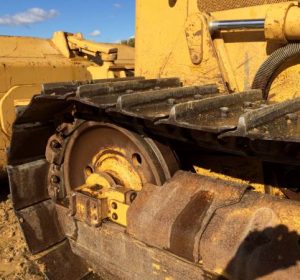

Undercarriage
GROUND PRESSURE 5.4 psi 37.1 kPa
GROUND CONTACT AREA 3663 in2 2.4 m2
STANDARD SHOE SIZE 20 in 510 mm
NUMBER OF SHOES PER SIDE 39
NUMBER OF TRACK ROLLERS PER SIDE 7
TRACK GAUGE 5.1 ft in 1549 mm

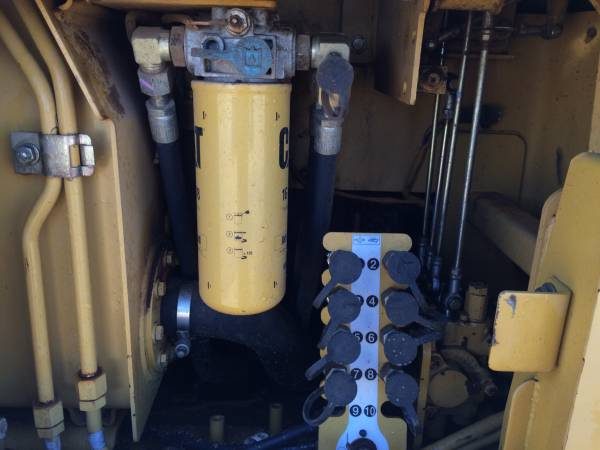

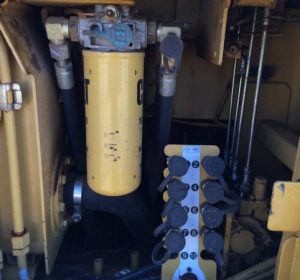

Hydraulic System
RELIEF VALVE PRESSURE 2900 psi 20000 kPa
PUMP FLOW CAPACITY 16.1 gal/min 61.1 L/min

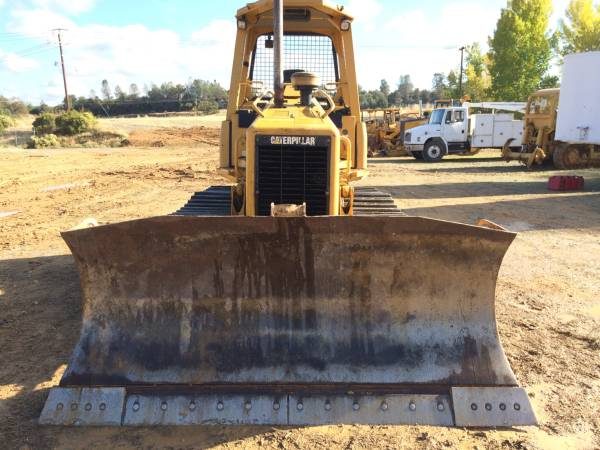

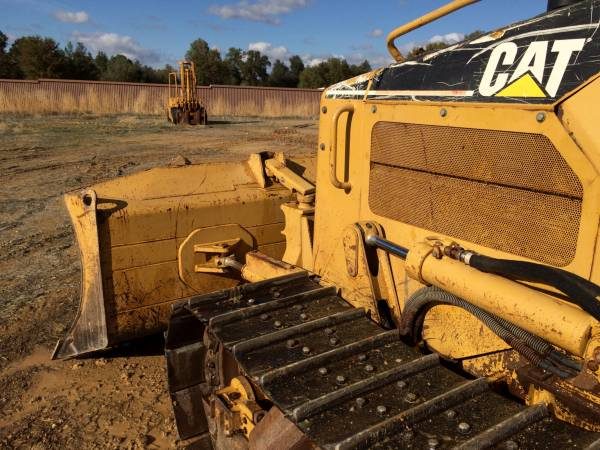

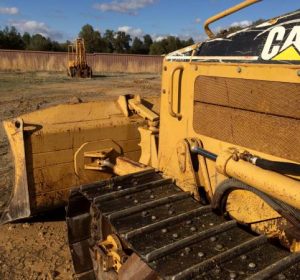

Standard Blade
WIDTH 8.8 ft in 2690 mm
HEIGHT 3.6 in 1101 mm
CAPACITY 2.9 yd3 2.2 m3
BLADE ANGLE (BOTH DIRECTIONS) 25 degrees
CUTTING DEPTH 24.8 in 630 mm
Dimensions
LENGTH W/O BLADE 10.5 ft in 3184 mm
LENGTH W/ BLADE 14.2 ft in 4336 mm
WIDTH OVER TRACKS 6.8 ft in 2059 mm
HEIGHT TO TOP OF CAB 9 ft in 2728 mm
LENGTH OF TRACK ON GROUND 7.6 ft in 2317 mm
GROUND CLEARANCE 1.3 ft in 384 mmhttps://www.youtube.com/watch?v=KjRLZ6Yrc9Q
2004 CAT D5GXL Dozer(sold)
Call Today: 916.933.6050
