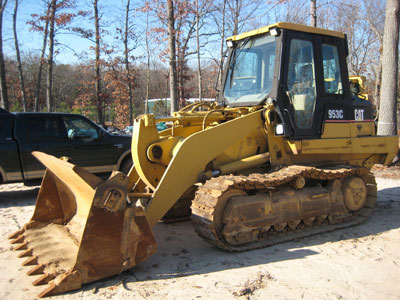

2004 CAT 953C Crawler Loader(sold)

2004 CAT 953C Crawler Loader

Gp bucket, only 3,500 hours,

Price: $64,900

Location: placerville, CA

Engine
Make Caterpillar
Model 3126B ATAAC
Net Power 128 hp 95.4 kw
Displacement 442 cu in 7.2 L
Power Measured @ 2000 rpm
Aspiration Turbocharged
Number of Cylinders 6
Operational
Operating Weight 32895.2 lb 14921 kg
Fuel Capacity 63.7 gal 241 L
Cooling System Fluid Capacity 6.9 gal 26 L
Engine Oil Capacity 4.8 gal 18 L
Final Drive Fluid Capacity – each 4.1 gal 15.5 L
Hydraulic System Fluid Capacity 29.1 gal 110 L
Static Tipping Load 23565.2 lb 10689 kg
Breakout Force – Std Bucket 21400 lb 95.2 kN
Bucket Capacity – struck 1.6 yd3 1.3 m3
Bucket Capacity – heaped 2 yd3 1.5 m3
Operating Voltage 12 V
Alternator Supplied Amperage 70 amps
Max Speed 5.7 mph 9.2 km/h
Undercarriage
Track Shoe Width 19.7 in 500 mm
Number of Shoes per Side 37
Number of Track Rollers per Side 6
Length of Track on Ground 7.7 ft in 2345 mm
Ground Contact Area 3565 in2 2.3 m2
Ground Pressure 9.5 psi 65.5 kPa
Track Gauge 70.9 in 1800 mm
Hydraulic
Pump Type VANE
Pump Flow Capacity 31.7 gal/min 120 L/min
Relief Valve Pressure 3481 psi 24000.6 kPa
Raise Time 6.9 sec
Dump Time 1.3 sec
Lower Time 2.6 sec
Dimensions
Length to Front of Track 14.3 ft in 4350 mm
Length with Bucket on Ground 19.3 ft in 5879 mm
Width to Outside of Tracks 7.5 ft in 2300 mm
Height to Top of Cab 10.3 ft in 3150 mm
Ground Clearance 1.2 ft in 377 mm
Clearance at Full Height and Dump 9.5 ft in 2903 mm
Reach at Dump Height 3.2 ft in 974 mm
