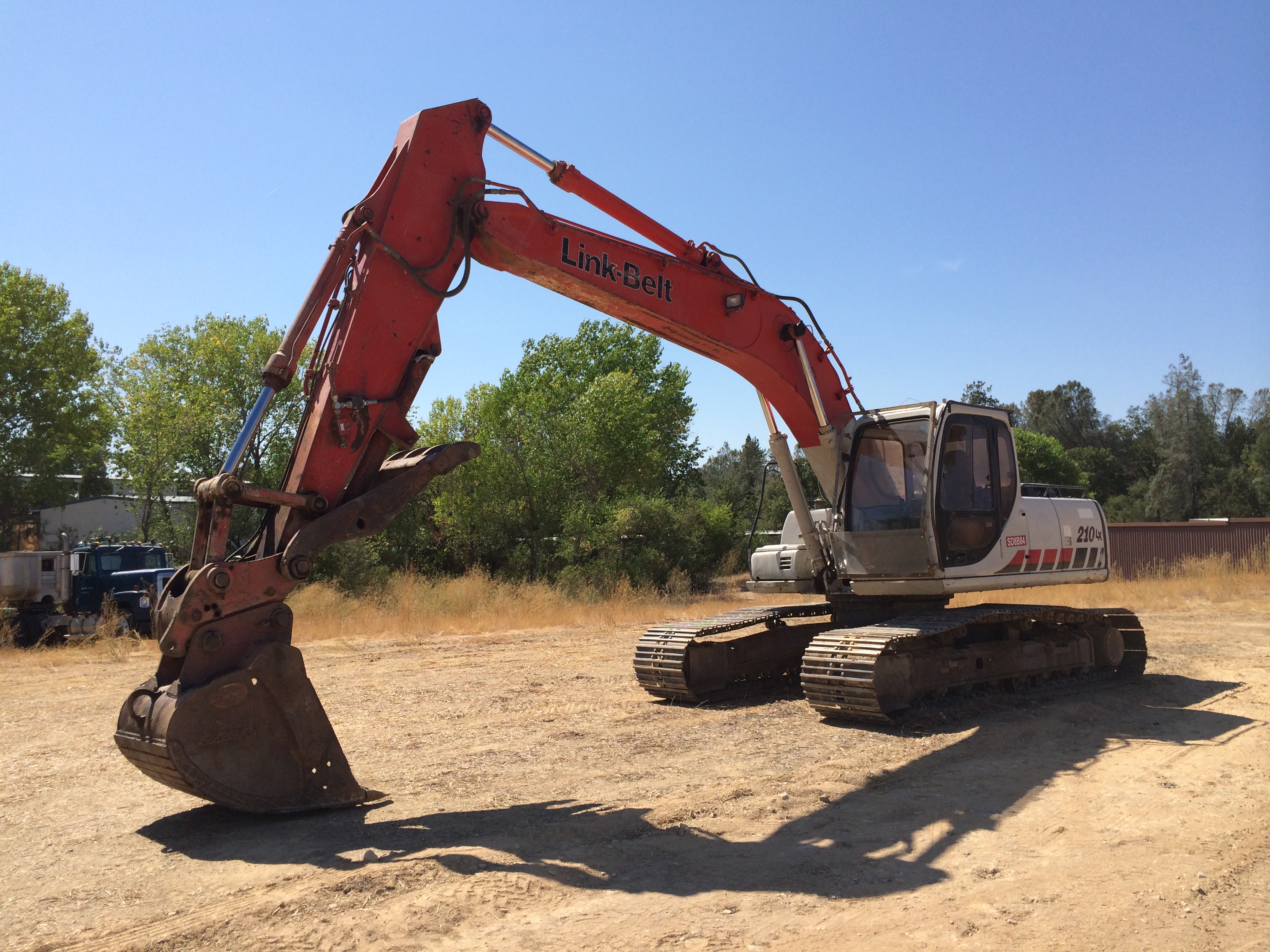

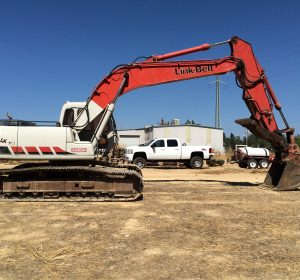

2003 Link Belt 210LX Excavator(sold)

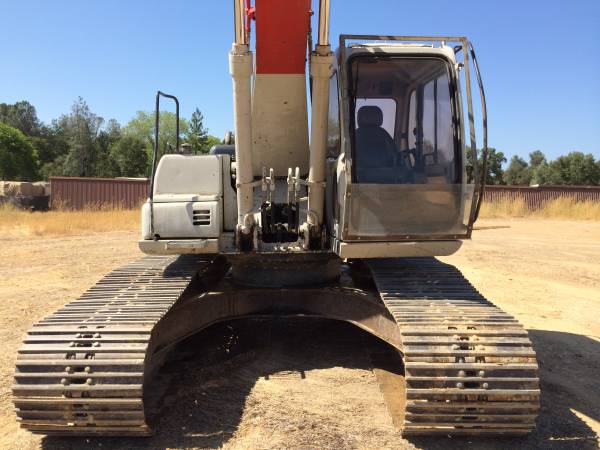

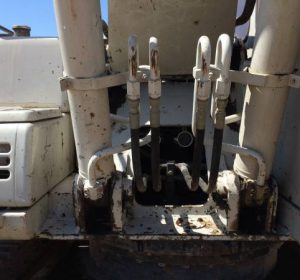

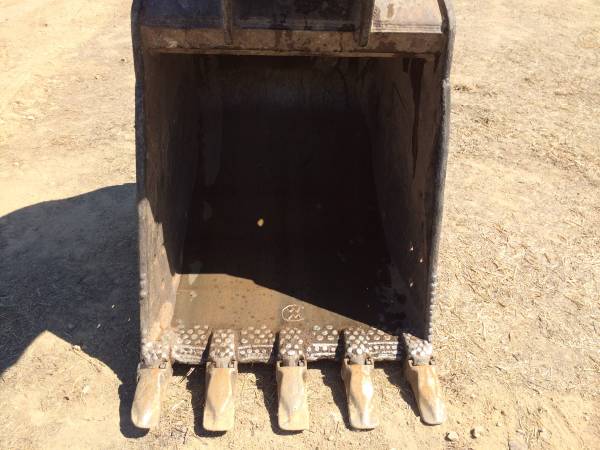

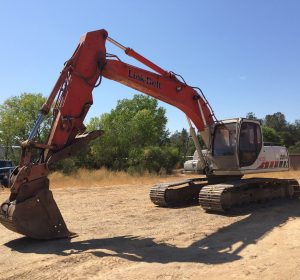

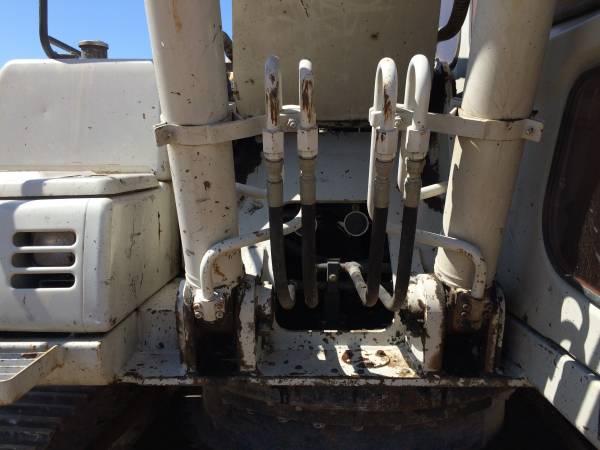

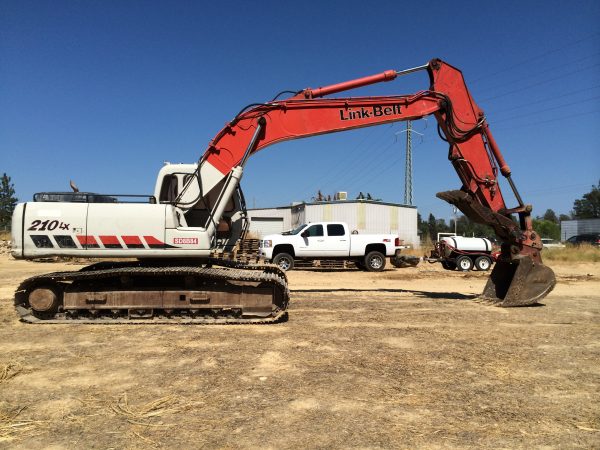

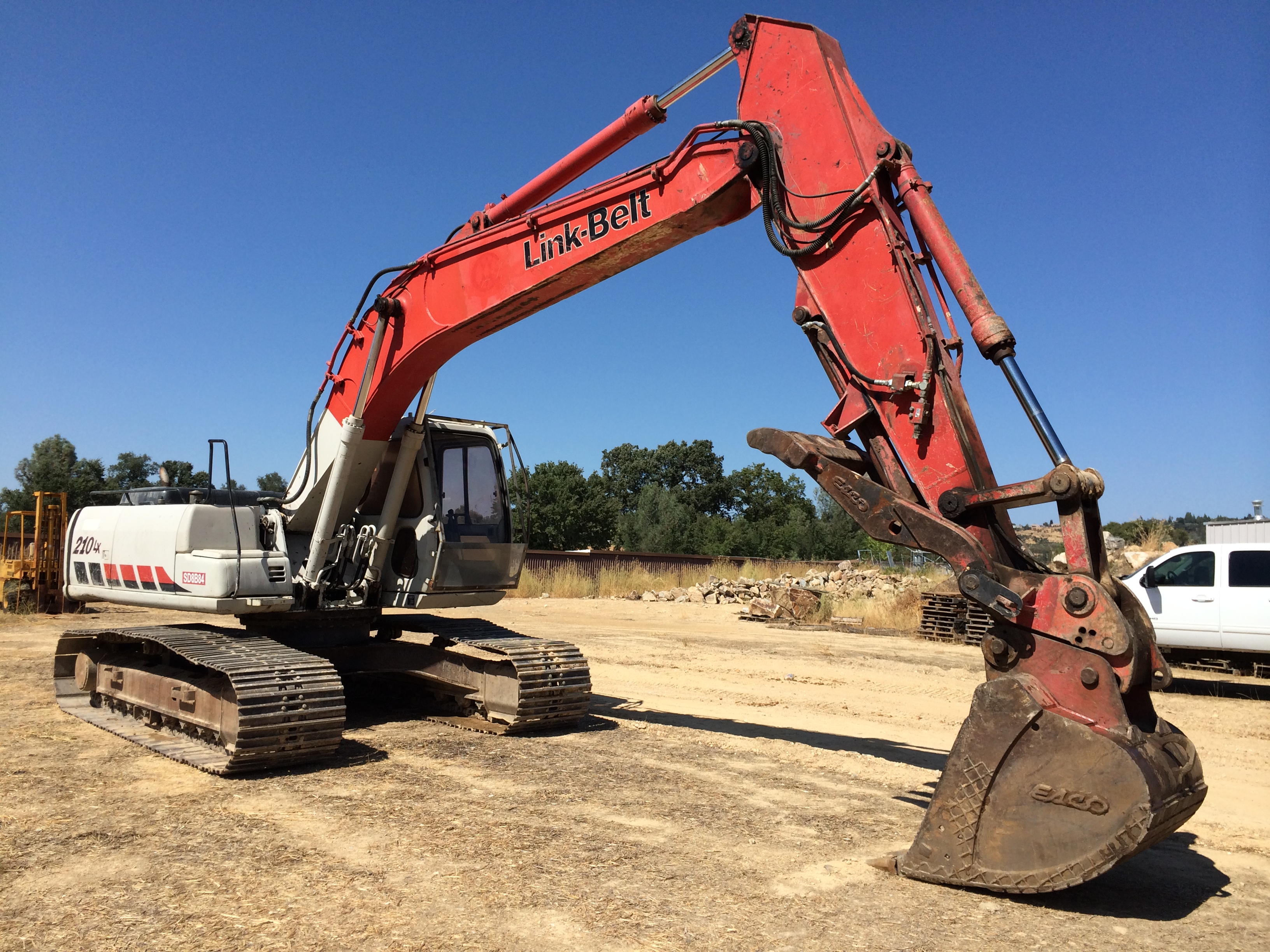

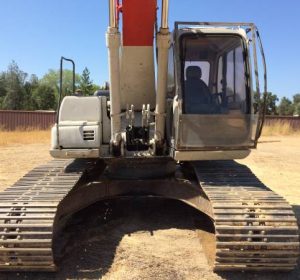

VERY CLEAN 2003 LINK-BELT 210LX CRAWLER EXCAVATOR, HYDRAULIC THUMB, 7500HRS, ORIGINAL PAINT, 42″ BUCKET, AUX HYDRAULICS, ISUZU MOTOR, PINS AND BUSHING ARE TIGHT, UC AT 70%, THIS IS A ONE OWNER UNIT! COME DEMO IT ON OUR YARD. INSPECTIONS ALWAYS WELCOME!

Hours: 7500
Location: Placerville, CA
Price: $53,500
A. SHIPPING LENGTH OF UNIT 30.8 ft in 9390 mm
C. SHIPPING HEIGHT OF UNIT 9.5 ft in 2910 mm
I. MAX CUTTING HEIGHT 31.7 ft in 9650 mm
J. MAX LOADING HEIGHT 22.4 ft in 6840 mm
K. MAX REACH ALONG GROUND 32.1 ft in 9790 mm
L. MAX VERTICAL WALL DIGGING DEPTH 19.9 ft in 6080 mm
M. MAX DIGGING DEPTH 22 ft in 6710 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 10.5 ft in 3190 mm
D. LENGTH OF TRACK ON GROUND 12 ft in 3660 mm
E. GROUND CLEARANCE 1.5 ft in 460 mm
G. HEIGHT TO TOP OF CAB 9.4 ft in 2880 mm
H. TAIL SWING RADIUS 8.9 ft in 2720 mm
O. COUNTERWEIGHT CLEARANCE 3.4 ft in 1040 mm
Undercarriage
F. TRACK GAUGE 7.8 ft in 2390 mm
N. SHOE SIZE 31.5 in 800 mm
SPECIFICATION

Engine
MAKE Isuzu
MODEL BB-6BG1T
NET POWER 138 hp 102.9 kw
POWER MEASURED @ 1950 rpm
DISPLACEMENT 396 cu in 6.5 L
TORQUE MEASURED @ 1600 rpm
MAX TORQUE 392 lb ft 531.5 Nm
ASPIRATION Turbocharged
NUMBER OF CYLINDERS 6
Operational
OPERATING WEIGHT 44800 lb 20320.9 kg
FUEL CAPACITY 89.8 gal 340 L
COOLING SYSTEM FLUID CAPACITY 7.1 gal 27 L
HYDRAUILC SYSTEM FLUID CAPACITY 54.4 gal 206 L
ENGINE OIL CAPACITY 6.3 gal 24 L
SWING DRIVE FLUID CAPACITY 1.2 gal 4.5 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 40 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4970 psi 34266.9 kPa
HYDRAULIC PUMP FLOW CAPACITY 106.2 gal/min 402 L/min
Swing Mechanism
SWING SPEED 11.9 rpm
SWING TORQUE 44840 lb ft 60794.9 Nm
Undercarriage
NUMBER OF SHOES PER SIDE 49
SHOE SIZE 31.5 in 800 mm
NUMBER OF CARRIER ROLLERS PER SIDE 2
NUMBER OF TRACK ROLLERS PER SIDE 8
GROUND PRESSURE 4.6 psi 32 kPa
MAX TRAVEL SPEED 3.4 mph 5.5 km/h
TRACK GAUGE 7.8 ft in 2390 mm
Buckets
REFERENCE BUCKET CAPACITY 1.1 yd3 0.83 m3
MINIMUM BUCKET CAPACITY 0.65 yd3 0.5 m3
MAXIMUM BUCKET CAPACITY 1.5 yd3 1.2 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 18’8″ (5700mm) / Stick 9’10” (3000mm)
SHIPPING HEIGHT OF UNIT 9.5 ft in 2910 mm
SHIPPING LENGTH OF UNIT 30.8 ft in 9390 mm
MAX DIGGING DEPTH 22 ft in 6710 mm
MAX REACH ALONG GROUND 32.1 ft in 9790 mm
MAX CUTTING HEIGHT 31.7 ft in 9650 mm
MAX LOADING HEIGHT 22.4 ft in 6840 mm
MAX VERTICAL WALL DIGGING DEPTH 19.9 ft in 6080 mm

Dimensions
WIDTH TO OUTSIDE OF TRACKS 10.5 ft in 3190 mm
HEIGHT TO TOP OF CAB 9.4 ft in 2880 mm
GROUND CLEARANCE 1.5 ft in 460 mm
COUNTERWEIGHT CLEARANCE 3.4 ft in 1040 mm
TAIL SWING RADIUS 8.9 ft in 2720 mm
LENGTH OF TRACK ON GROUND 12 ft in 3660 mm
