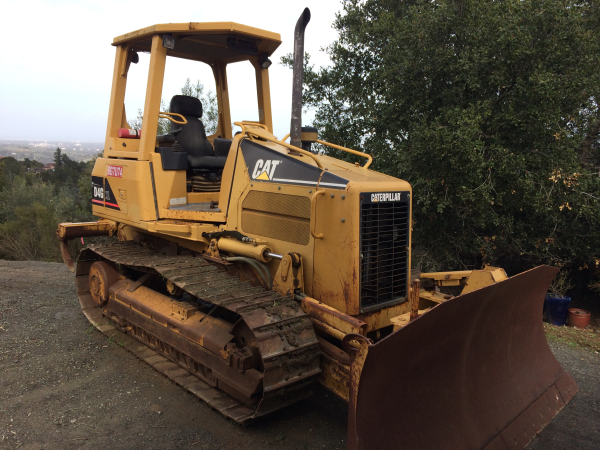

2003 CAT D4GXL Dozer(sold)

CONTRACTOR OWNED CAT D4GXL WITH ONLY 2900 ORIGINAL HOURS. UC ABOUT 85%, 3 SHANK RIPPER, 6 WAY BLADE, 87HP, OROPS, JOYSTICK CONTROLS, TIER 1 MOTOR, RUNS GREAT WITH NO ISSUES! JUST SERVICED! CALIFONRIA MACHINE ITS WHOLE LIFE
YEAR: 2003
MANUFACTURER: CATERPILLAR
MODEL: D4GXL
PRICE: $42500.00
LOCATION: PLACERVILLE, CA

SPECIFICATIONS CAT D4GXL

Dimensions

A. Length w/ Blade

13.2 ft in

4035 mm

B. Width Over Tracks

6.4 ft in

1959 mm

C. Height to Top of Cab

8.9 ft in

2718 mm

D. Length of Track on Ground

7.3 ft in

2211 mm

E. Ground Clearance

1.2 ft in

374 mm

F. Length w/o Blade

10.2 ft in

3103 mm

Undercarriage

G. Track Gauge

4.9 ft in

1499 mm

H. Standard Shoe Size

18 in

460 mm

Engine

Make

Caterpillar

Model

3046T

Gross Power

87 hp

65 kw

Net Power

80 hp

60 kw

Power Measured @

2200 rpm

Displacement

305 cu in

5 L

Number of Cylinders

6

Operational

Operating Weight

17317 lb

7855 kg

Fuel Capacity

48.6 gal

187 L

Cooling System Fluid Capacity

5.5 gal

21 L

Engine Oil Capacity

3.4 gal

13 L

Hydraulic Fluid Capacity

12 gal

46.5 L

Final Drives Fluid Capacity

3.9 gal

14.7 L

Operating Voltage

12 V

Alternator Supplied Amperage

120 amps

Transmission

Type

Hydrostatic

Number of Forward Gears

1

Number of Reverse Gears

1

Max Speed – Forward

5.6 mph

9 km/h

Max Speed – Reverse

6 mph

9.6 km/h

Undercarriage

Ground Pressure

5.5 psi

38 kPa

Ground Contact Area

3153 in2

2 m2

Standard Shoe Size

18 in

460 mm

Number of Shoes per Side

41

Number of Track Rollers per Side

7

Track Gauge

4.9 ft in

1499 mm

Hydraulic System

Relief Valve Pressure

2900 psi

20000 kPa

Pump Flow Capacity

16.1 gal/min

61.1 L/min

Standard Blade

Width

8.8 ft in

2671 mm

Height

40.5 in

1028 mm

Capacity

2.5 yd3

1.9 m3

Blade Angle (both directions)

25 degrees

Cutting Depth

22.4 in

568 mm

Dimensions

Length w/o Blade

10.2 ft in

3103 mm

Length w/ Blade

13.2 ft in

4035 mm

Width Over Tracks

6.4 ft in

1959 mm

Height to Top of Cab

8.9 ft in

2718 mm

Length of Track on Ground

7.3 ft in

2211 mm

Ground Clearance

1.2 ft in

374 mm
