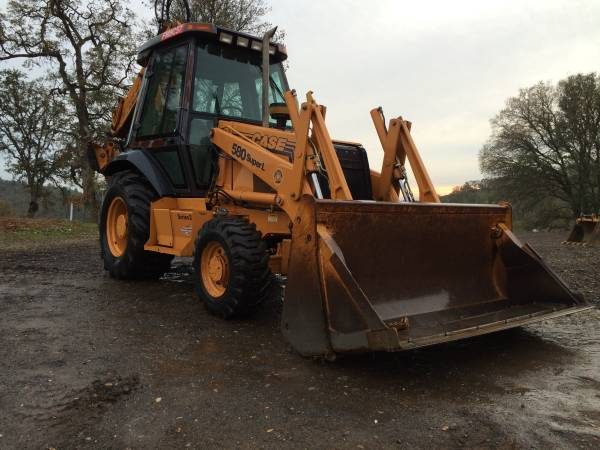

2003 Case 580SL Backhoe

2003 CASE 580 SUPER L, SERIES 2, LOADER BACKHOE, 4X4, 4600HRS, CAB WITH HEAT/AC AND RADIO, ESTICK, EXT HOE, MP BUCKET, CASE CONTROLS, TIER 2 ENGINE, OWNER OPERATOR RAN SINCE NEW, CASE MAINTAINED, VERY CLEAN AND TIGHT! COMES WITH 24″ BUCKET.

HOURS: 4600
LOCATION: PLACERVILLE CA
PRICE: 42500

Model………………………… Case 4T-390
Type ………….. 4-stroke, turbocharged
Cylinders …………………………………… 4
Fuel injection ……………………… Direct
Bore/Stroke……………….. 4.02″ x 4.72″
Displacement …………………….. 239 in3
Horsepower
Gross…………………… 91 @ 2200 rpm
Net……………………… 86 @ 2200 rpm
Maximum torque
Gross………….. 259 lb·ft @ 1400 rpm
Net …………….. 252 lb·ft @ 1400 rpm

Overall operating height ………………………………………….. 14’0″……………………. 14’3″
Bucket rollback @ groundline ……………………………………… 40° ……………………… 40°
Dump angle @ full height……………………………………………. 45° ……………………… 45°
Digging depth below grade –
Bucket flat ……………………………………………………………. 5.9″ …………………….. 6.8″
Clam open (dozing)…………………………………………………. NA …………………….. 4.4″
Dump clearance @ full height, 45° dump –
Bucket ………………………………………………………………… 8’10” …………………… 8.11″
Clam open……………………………………………………………… NA……………………… 9’8″
Dump reach @ full height, 45° dump –
Bucket ………………………………………………………………… 27.7″ …………………… 25.5″
Clam open……………………………………………………………… NA …………………… 11.9″
Reach from front axle centerline,
bucket on ground…………………………………………………. 75.2″ …………………… 72.7″
Lift capacity to full height……………………………………. 6,182 lb……………….. 5,514 lb
Height to bucket hinge pin raised …………………………….. 11’2″……………………. 11’2″
Breakout force (dump cylinders) …………………………. 9,667 lbf ……………. 10,294 lbf
Breakout force (lift cylinders) ……………………………… 9,453 lbf ……………… 8,859 lbf
Bucket cutting edge width ………………………………………….. 82″ ……………………… 82″
Maximum grading angle…………………………………………… 116° ……………………. 116°
Maximum clam opening……………………………………………… NA …………………… 38.3″
Moldboard height ………………………………………………………. NA …………………… 36.8″
Raising time to full height …………………………………… 5.34 sec……………….. 5.34 sec
Bucket dumping time ………………………………………….. 1.06 sec……………….. 1.06 sec
Lowering time, power down …………………………………. 2.44 sec……………….. 2.44 sec
Lowering time, return-to-dig………………………………… 3.17 sec……………….. 3.17 sec
