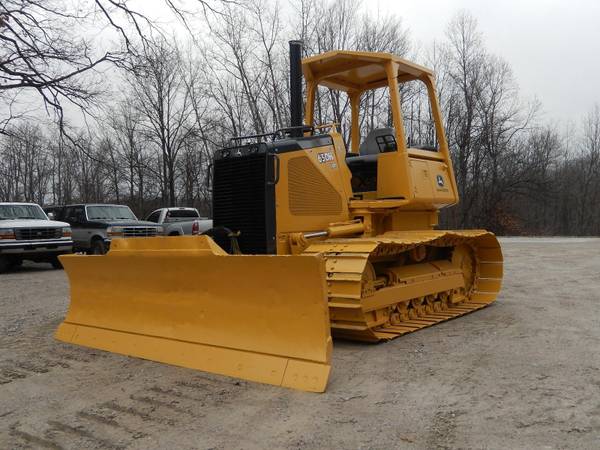

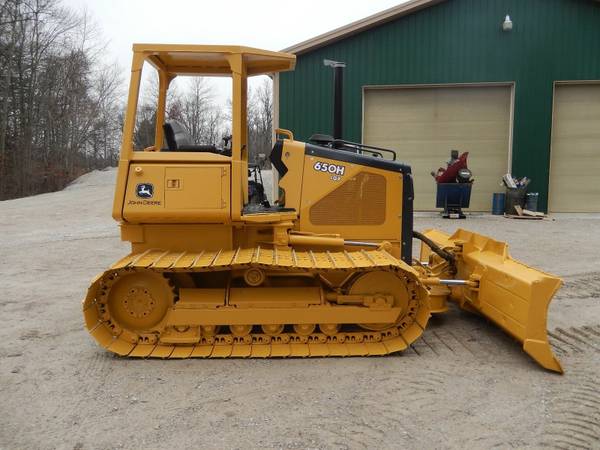

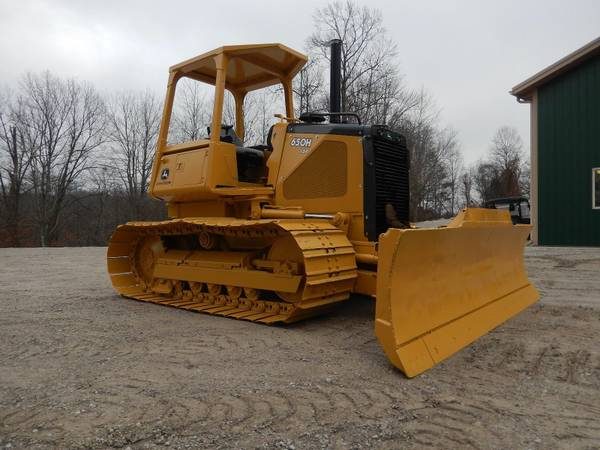

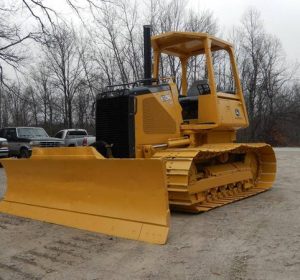

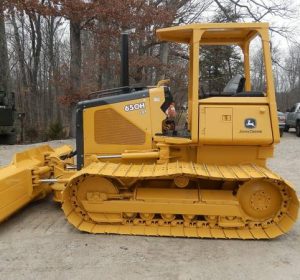

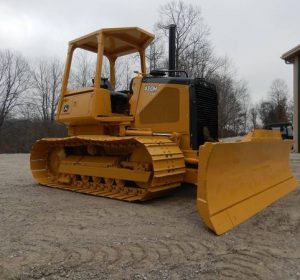

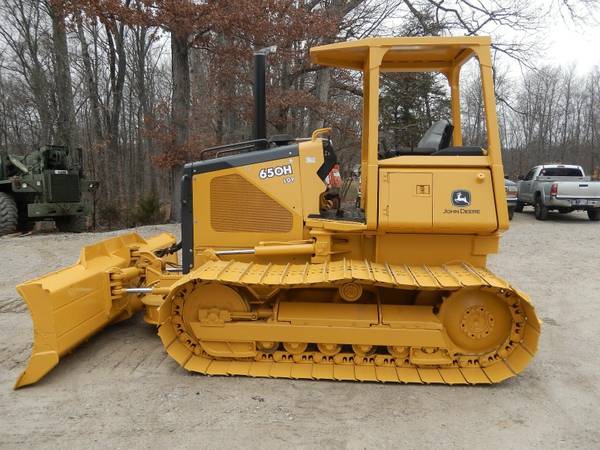

2002 Deere 650H Dozer(sold)

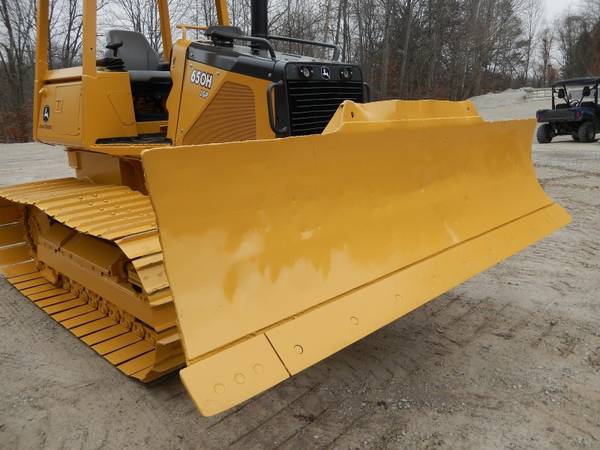

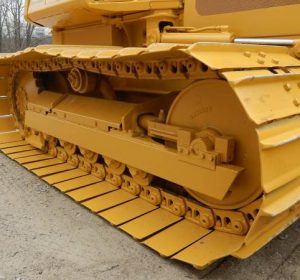

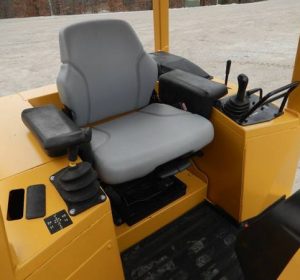

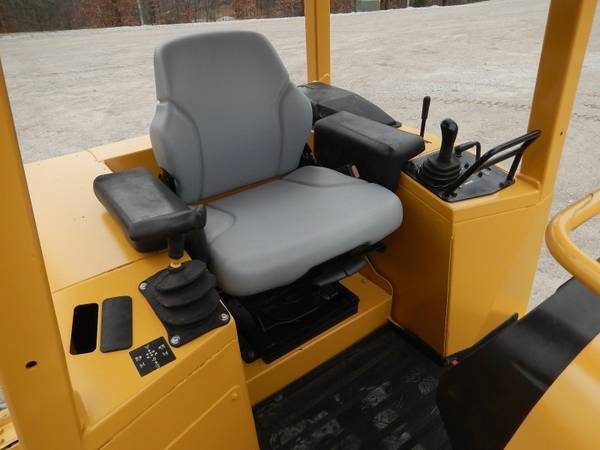

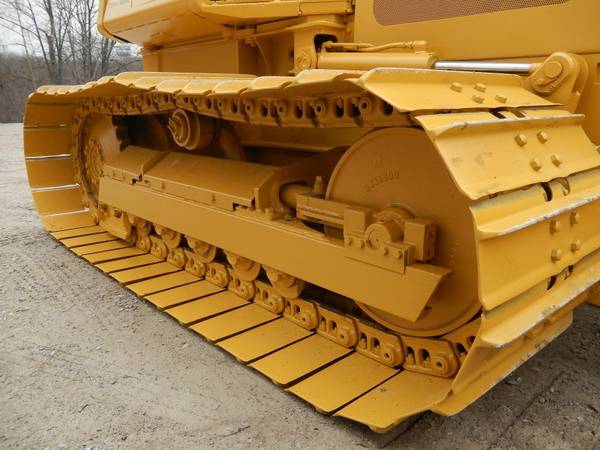

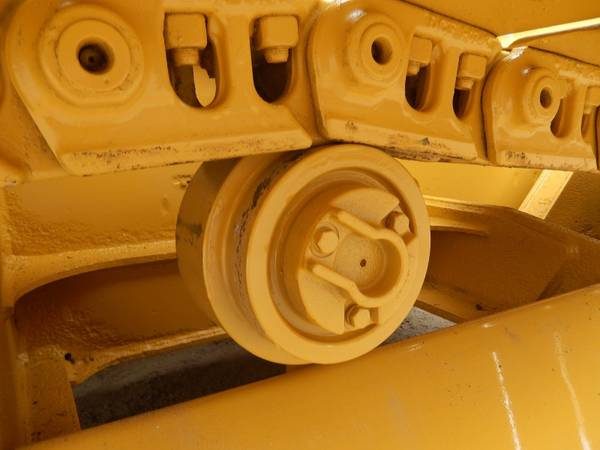

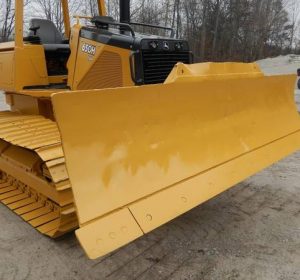

2002 DEERE 650H, PAT BLADE, JOYSTICK CONTROLS, 28″ PADS, JUST HAD A FULL SERVICE DONE, FRESH PAINT APPROX 50HRS AGO, RUNS GREAT WITH NO KNOWN ISSUES, UC WAS REPLACED 50HRS AGO AS WELL, PADS AT 60%, 90HP DEERE MOTOR, 5625 APPROX HOURS, ALL CYLINDERS EXCEPT TILT HAVE BEEN REBUILT,
YEAR: 2002
MANUFACTURER: DEERE
MODEL: 650H LGP
PRICE: $36500.00
LOCATION: PLACERVILLE, CA
SPECIFICATIONS DEERE 650H LGP

Dimensions

B. Width Over Tracks

8.1 ft in

2464 mm

C. Height to Top of Cab

9.1 ft in

2768 mm

D. Length of Track on Ground

7.3 ft in

2210 mm

E. Ground Clearance

1.2 ft in

363 mm

F. Length w/o Blade

13.3 ft in

4064 mm

Undercarriage

H. Standard Shoe Size

28 in

711 mm

Specification

Engine

Make

John Deere

Model

4045T

Net Power

90 hp

67.1 kw

Power Measured @

2200 rpm

Max Torque

316 lb ft

428.4 Nm

Displacement

276 cu in

4.5 L

Torque Measured @

1200 rpm

Aspiration

Altitude-compensating turbocharger

Number of Cylinders

4

Operational

Operating Weight

19100 lb

8660 kg

Fuel Capacity

47 gal

178 L

Cooling System Fluid Capacity

4.2 gal

16 L

Engine Oil Capacity

3.7 gal

14 L

Hydraulic Fluid Capacity

8.5 gal

32.2 L

Powertrain Fluid Capacity

11.3 gal

42.7 L

Final Drives Fluid Capacity

1.7 gal

6.6 L

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Transmission

Type

Dual-path, electronic-controlled, hydrostatic drive

Max Speed – Forward

5 mph

8 km/h

Max Speed – Reverse

5 mph

8 km/h

Undercarriage

Ground Pressure

3.9 psi

27 kPa

Ground Contact Area

4872 in2

3.1 m2

Standard Shoe Size

28 in

711 mm

Number of Shoes per Side

38

Number of Track Rollers per Side

6

Track Pitch

6.7 in

171 mm

Hydraulic System

Pump type

Gear

Relief Valve Pressure

3000 psi

20685 kPa

Pump Flow Capacity

15 gal/min

56.8 L/min

Standard Blade

Width

9.6 ft in

2921 mm

Height

32.5 in

826 mm

Capacity

2.3 yd3

1.8 m3

Blade Angle (both directions)

22.2 degrees

Cutting Depth

19.7 in

500 mm

Dimensions

Length w/o Blade

13.3 ft in

4064 mm

Width Over Tracks

8.1 ft in

2464 mm

Height to Top of Cab

9.1 ft in

2768 mm

Length of Track on Ground

7.3 ft in

2210 mm

Ground Clearance

1.2 ft in

363 mm
