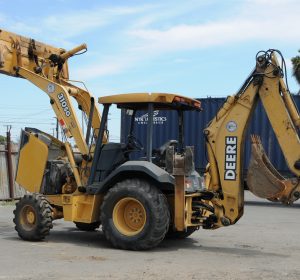

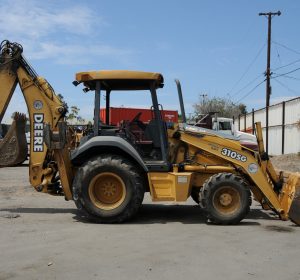

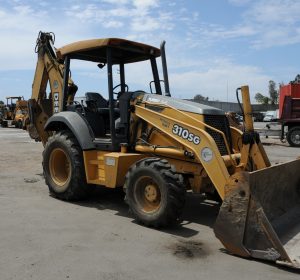

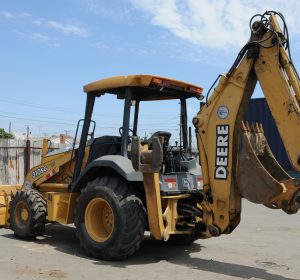

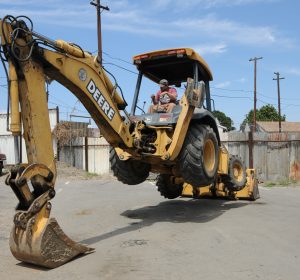

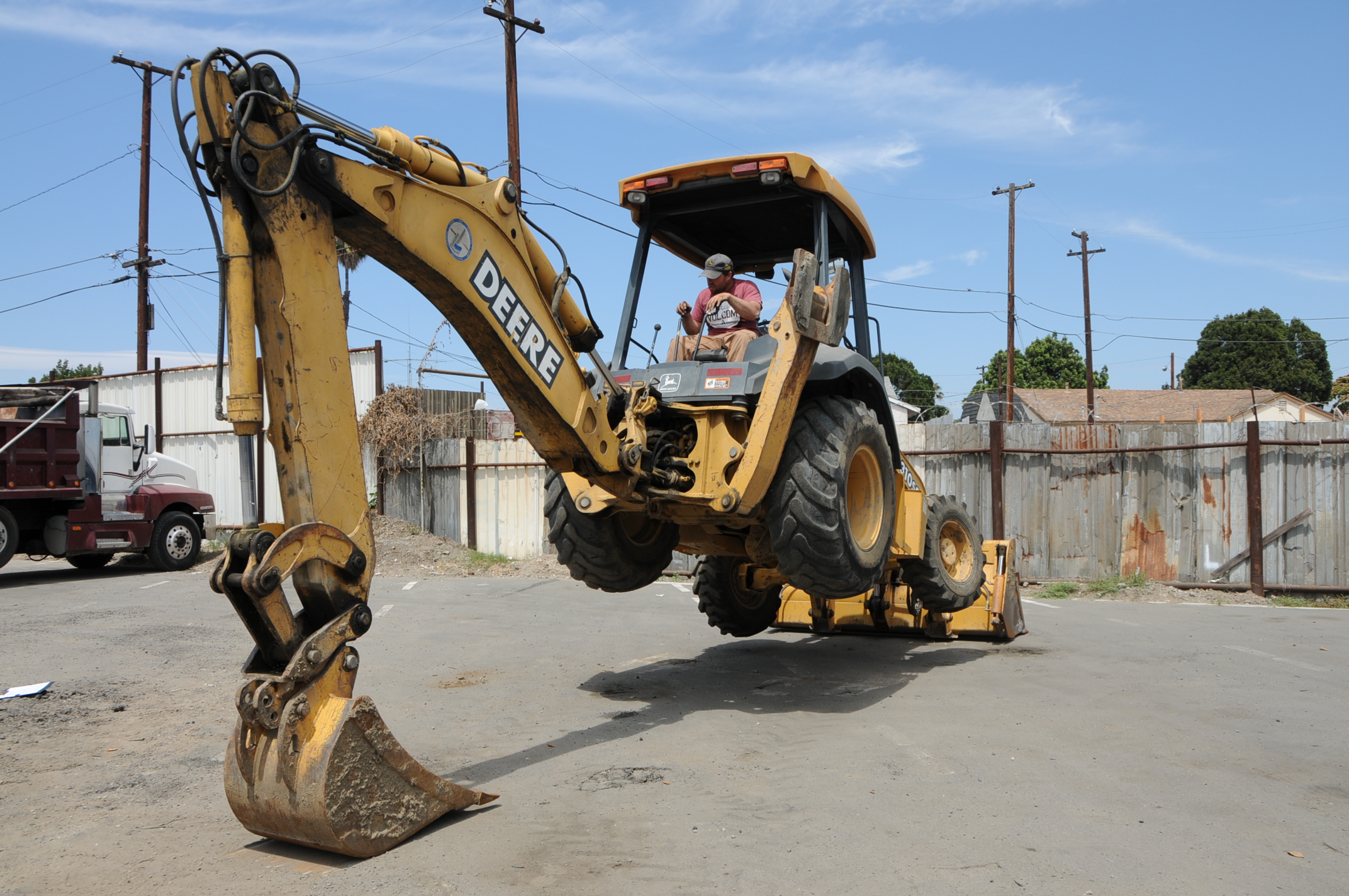

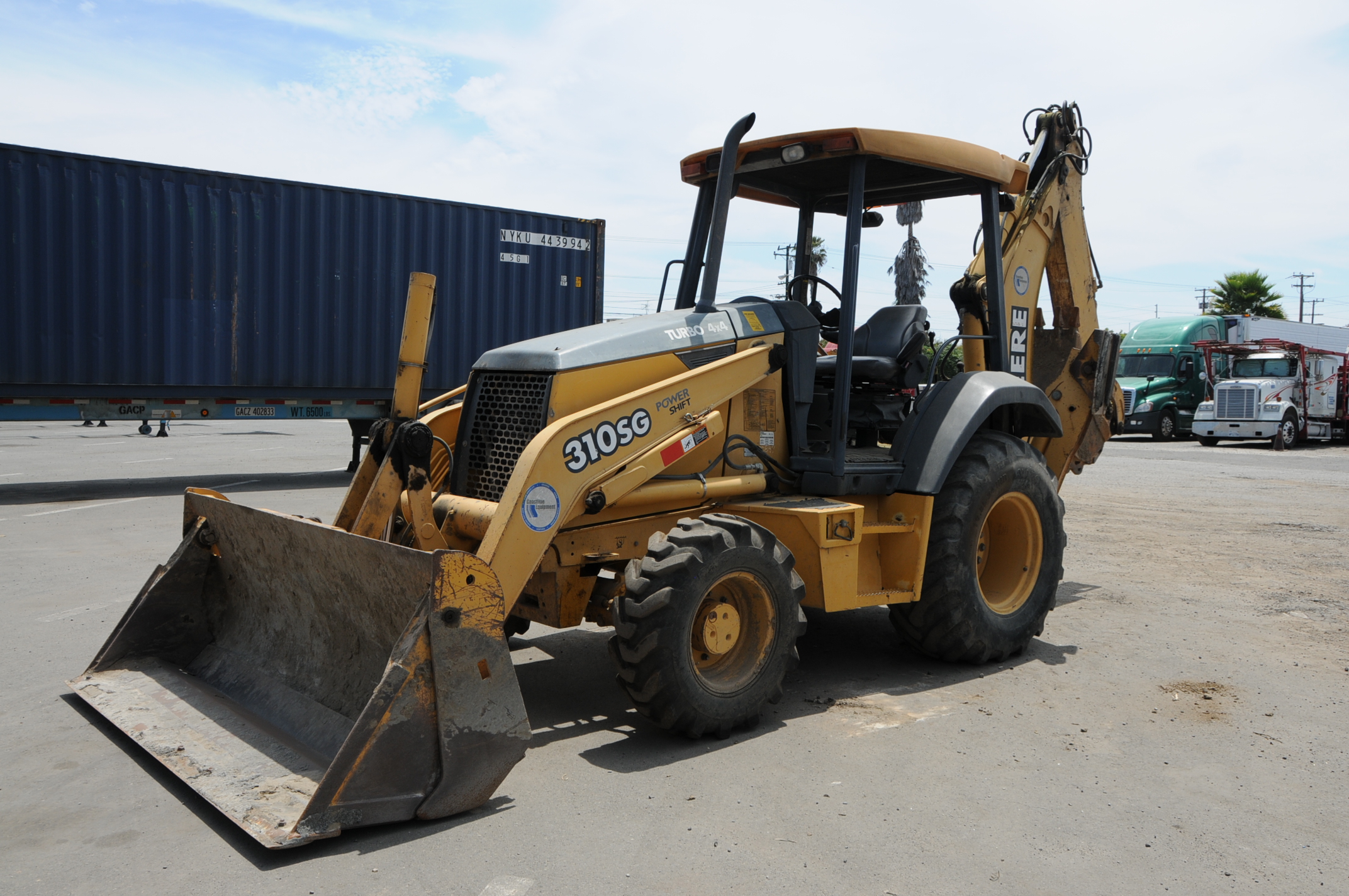

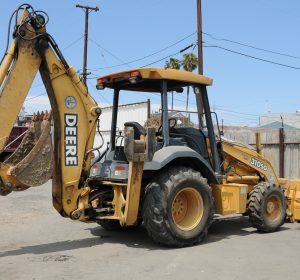

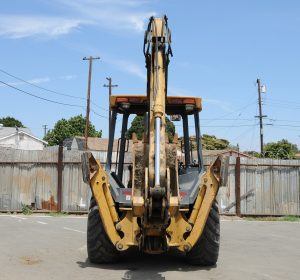

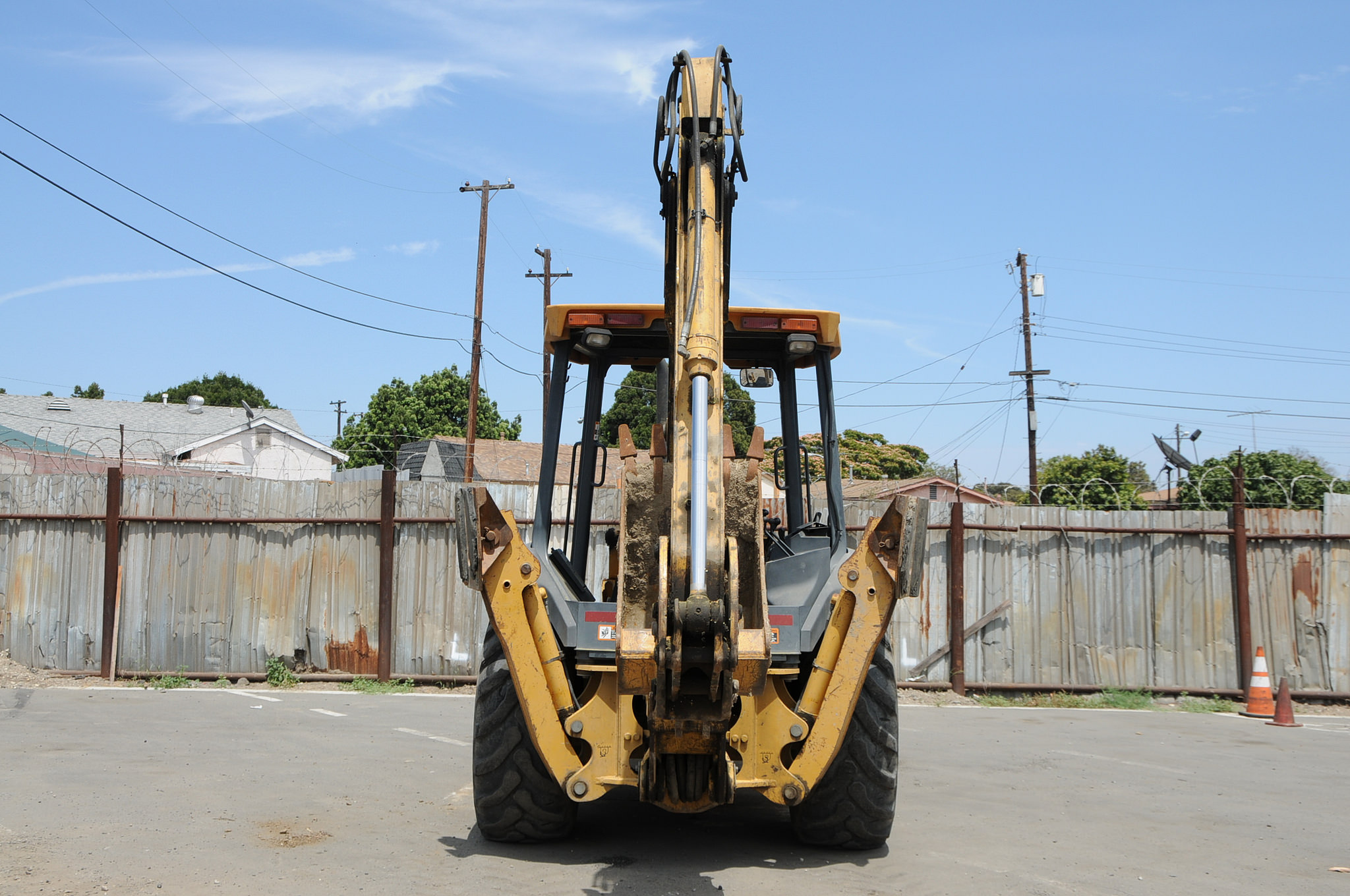

2001 Deere 310SG Backhoe(sold)

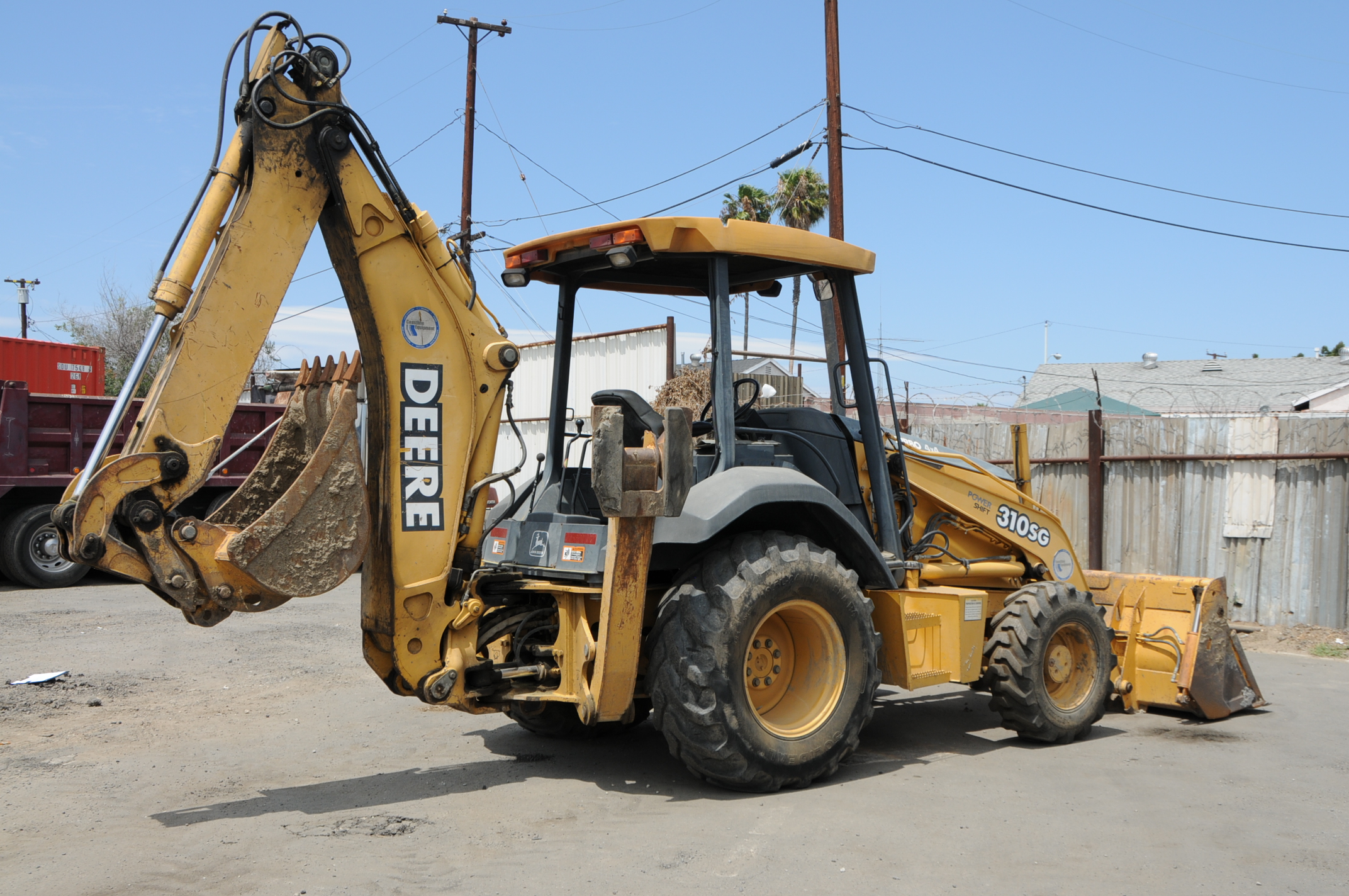

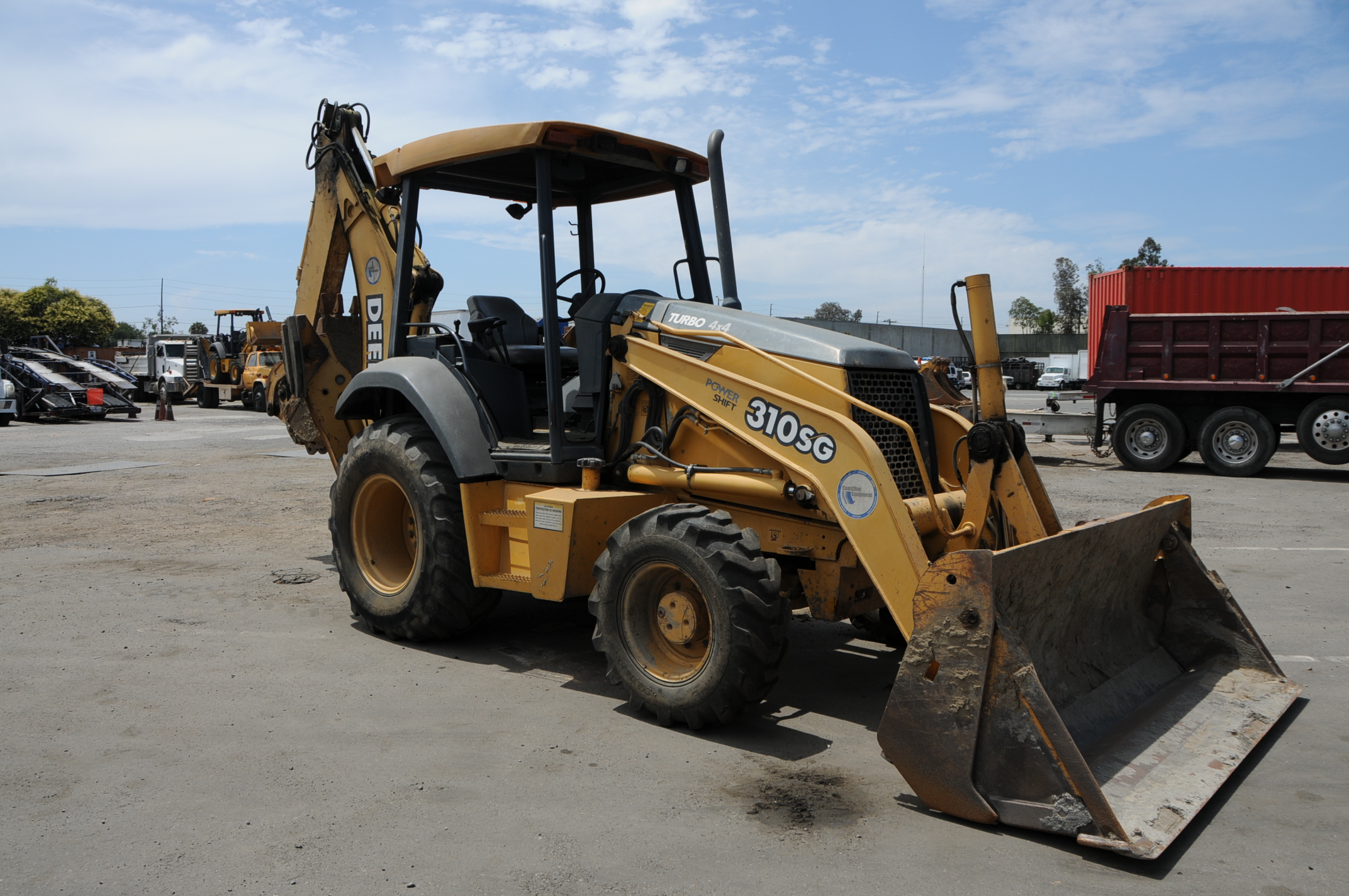

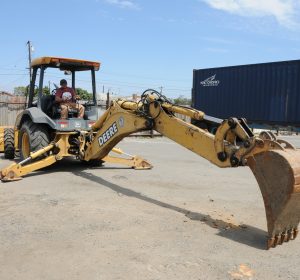

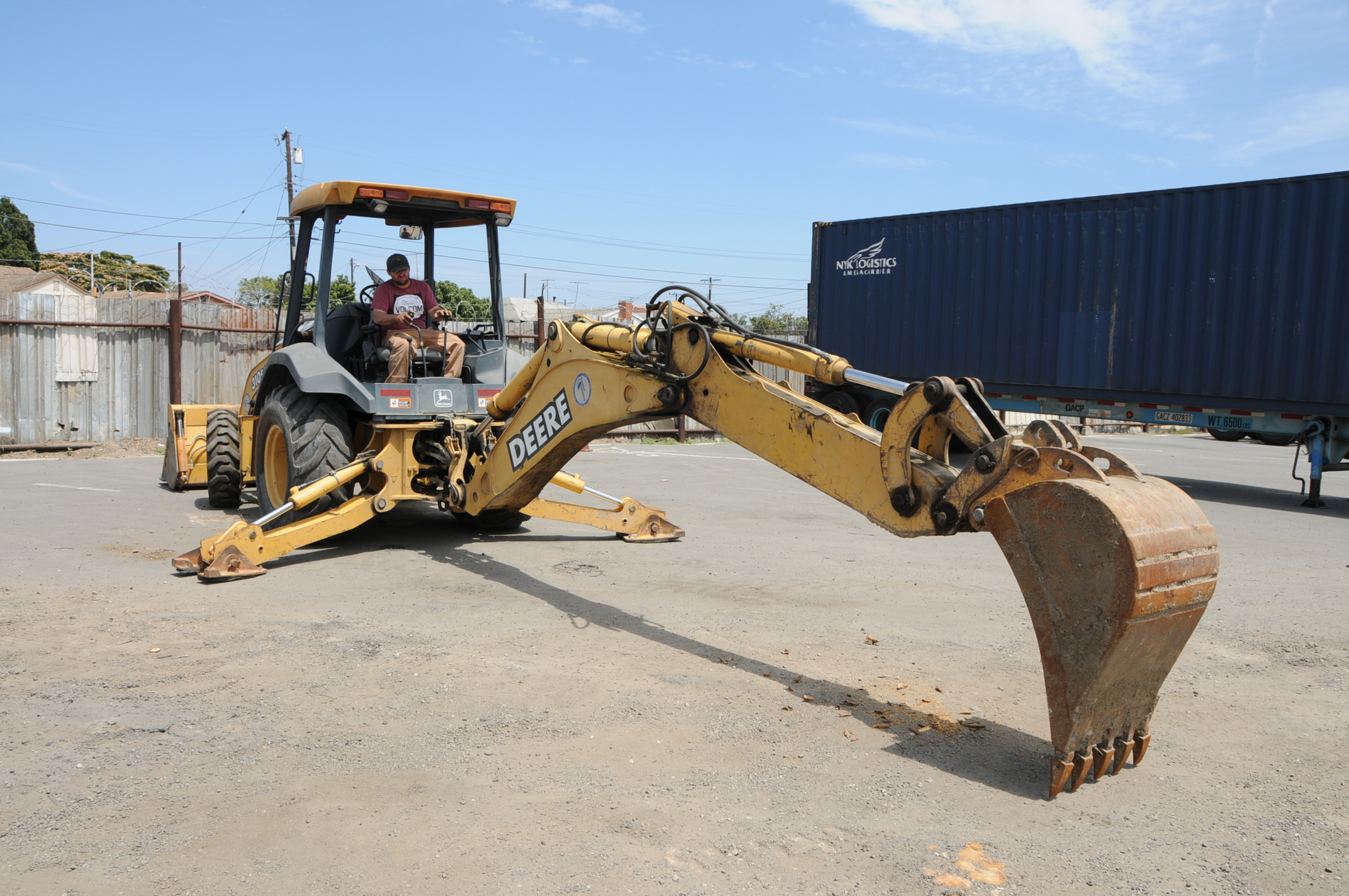

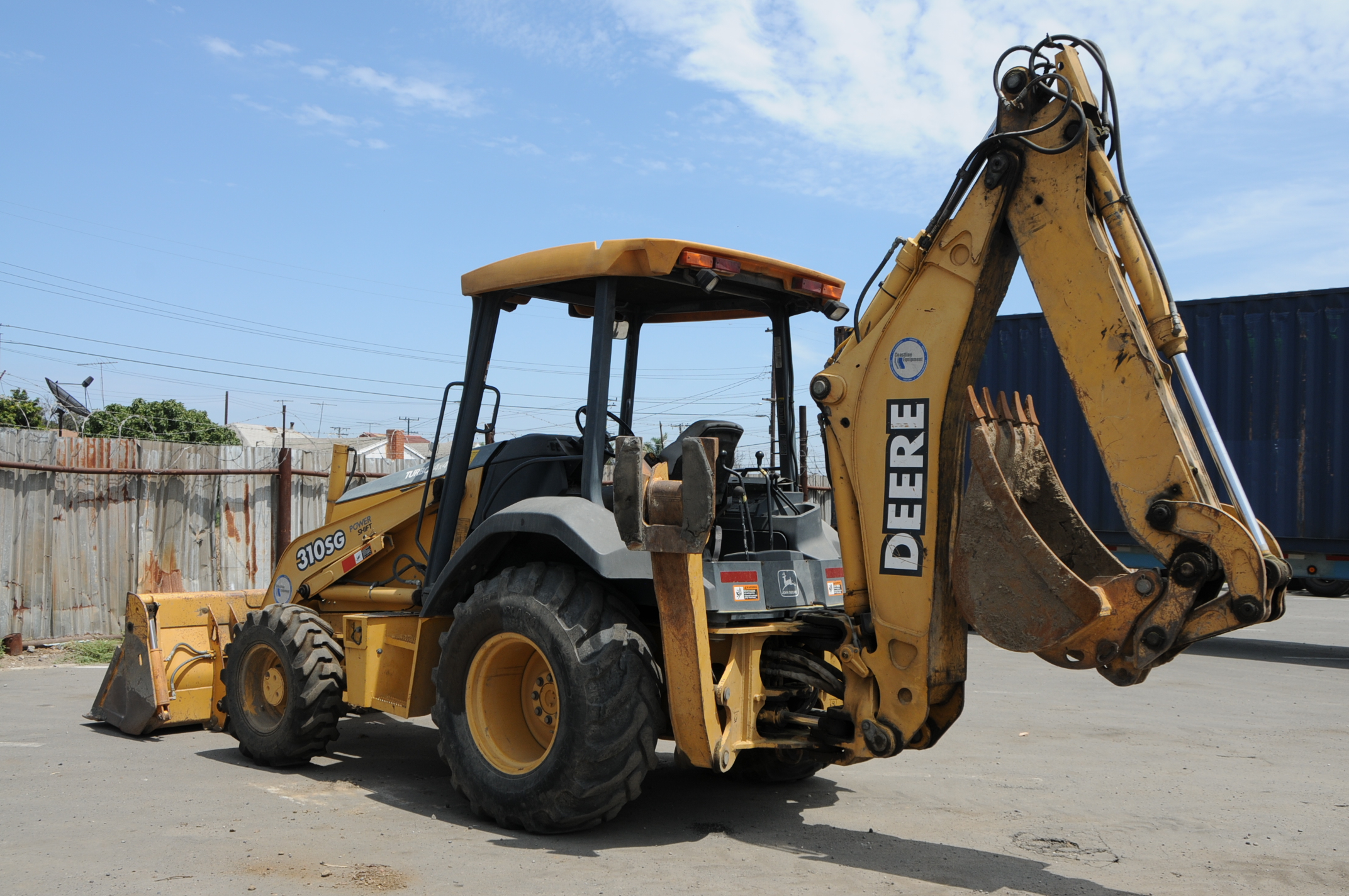

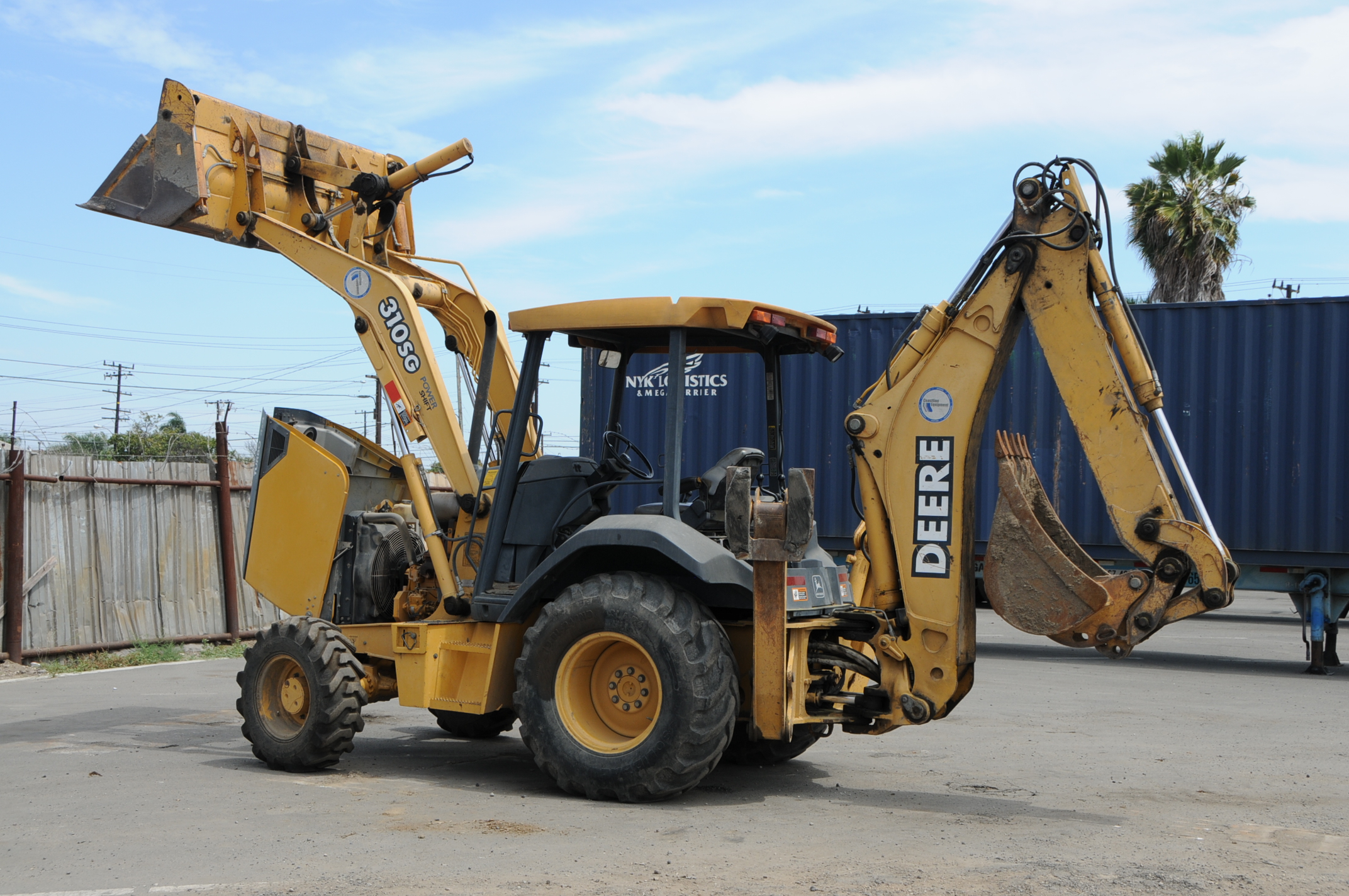

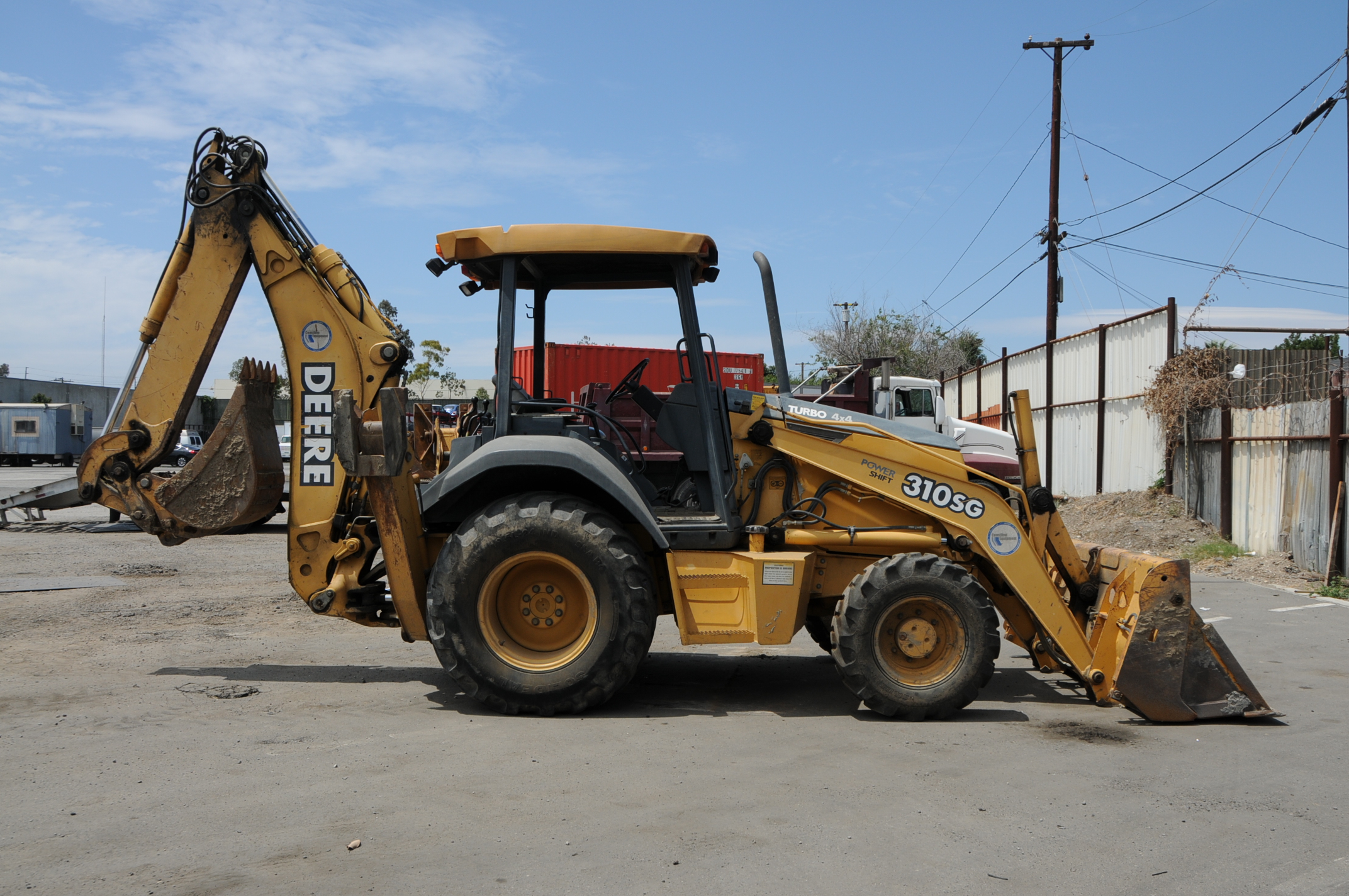

2001 Deere 310SG Backhoe

Hours:4,420

Location: Placerville, CA 95667

Price: $36,900

Tires: Front – 90% Rear – 70%

Backhoe
J. LOAD HEIGHT – STD 11.3 ft in 3430 mm
K. REACH FROM SWIVEL – STD 18.3 ft in 5560 mm
L. DIG DEPTH – STD 14.5 ft in 4420 mm
M. REACH AT LOAD HEIGHT – STD 21.8 ft in 6630 mm
Dimensions
A. TRANSPORT LENGTH 23.5 ft in 7160 mm
B. TRANSPORT WIDTH 7.2 ft in 2180 mm
C. TRANSPORT HEIGHT 11.5 ft in 3510 mm
D. WHEELBASE 6.9 ft in 2100 mm
E. GROUND CLEARANCE 1 ft in 305 mm
F. HEIGHT TO TOP OF CAB 9.2 ft in 2790 mm
Loader
G. CLEARANCE AT MAX DUMP HEIGHT 11.2 ft in 3400 mm
H. REACH AT MAX DUMP HEIGHT 3 ft in 911 mm
I. DIG DEPTH 5.8 in 147 mm
Specification

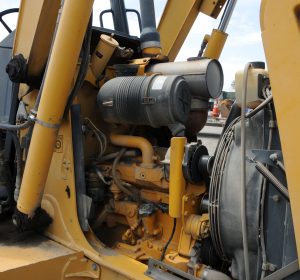

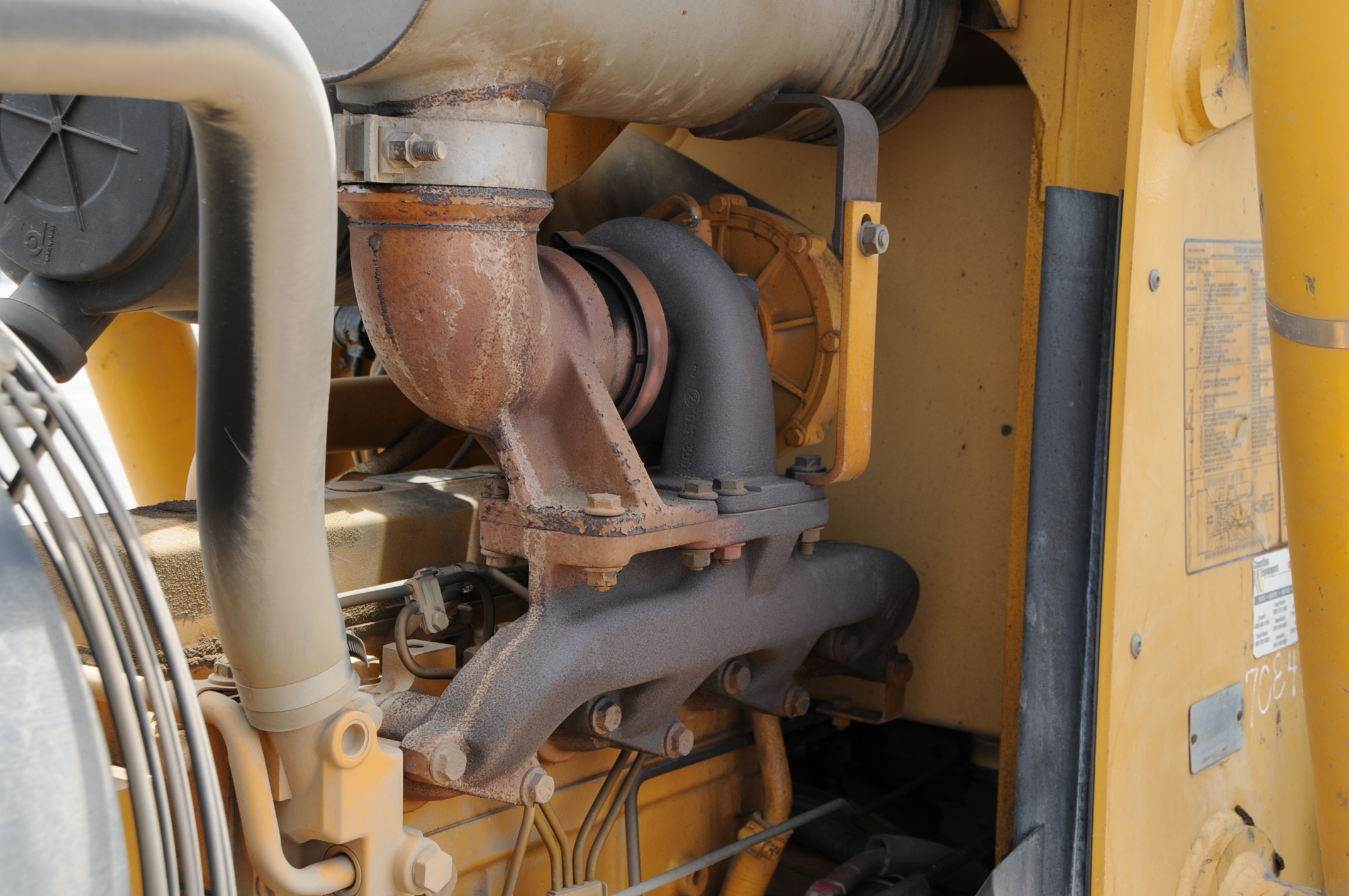

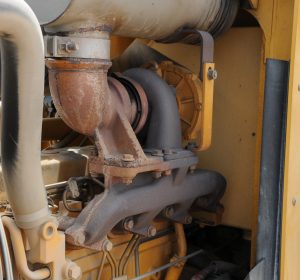

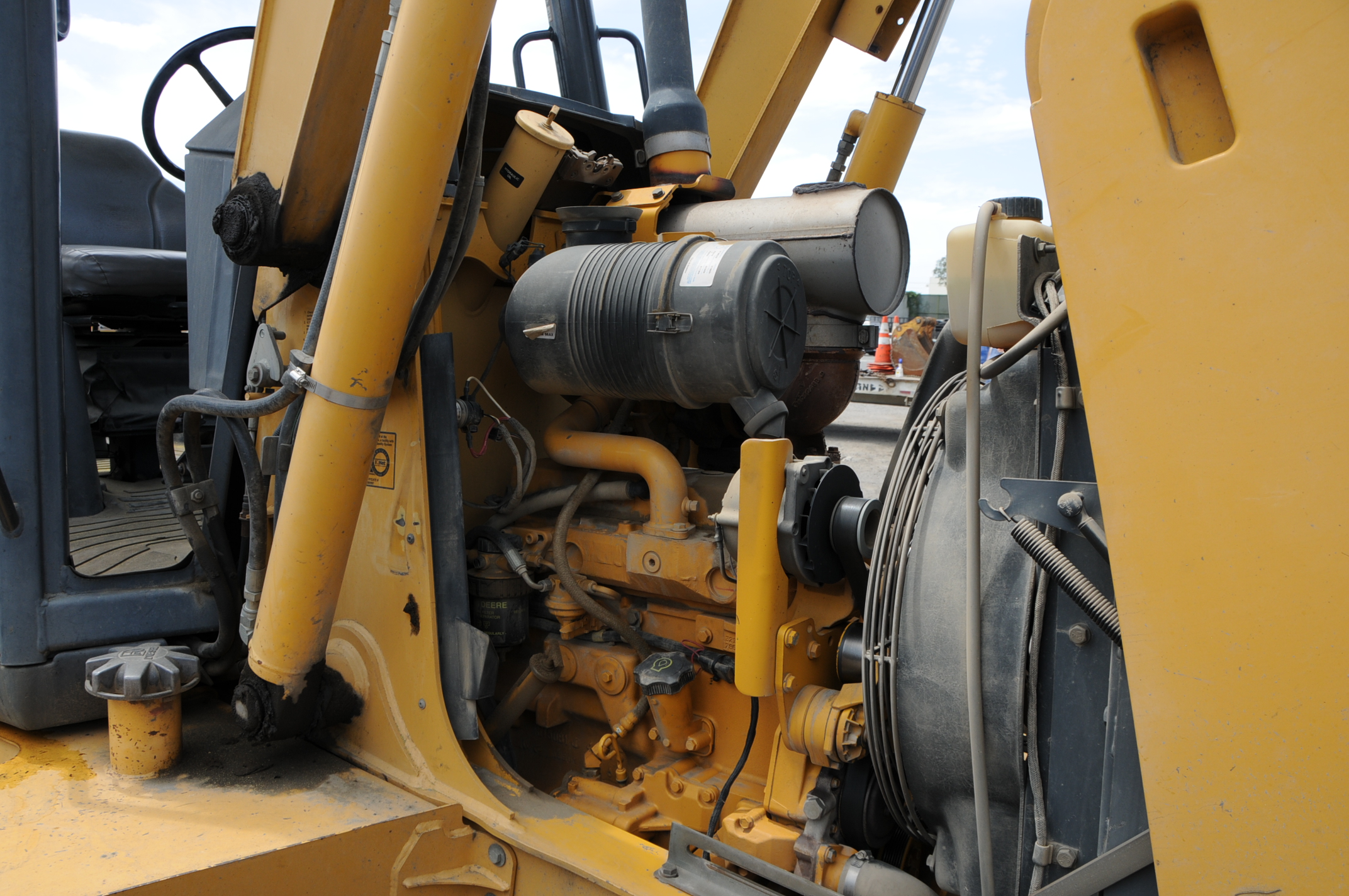

Engine
MAKE John Deere
MODEL 4045T
GROSS POWER 91 hp 67.9 kw
POWER MEASURED @ 2000 rpm
TORQUE MEASURED @ 1400 rpm
NET TORQUE RISE 36 %
NET MAX TORQUE 276 lb ft 374.2 Nm
ASPIRATION Turbocharged
Operational
OPERATING WEIGHT 2WD 13500 lb 6124 kg
OPERATING WEIGHT 4WD 13500 lb 6124 kg
MAX WEIGHT 15955 lb 7237 kg
FUEL CAPACITY 36 gal 136 L
HYDRAULIC SYSTEM FLUID CAPACITY 24 gal 91 L
OIL SYSTEM FLUID CAPACITY 3.4 gal 13 L
COOLING SYSTEM FLUID CAPACITY 4.2 gal 16 L
TRANSMISSION FLUID CAPACITY 4 gal 15 L
FRONT AXLE FLUID CAPACITY 2 gal 7.6 L
REAR AXLE FLUID CAPACITY 4.2 gal 16 L
TURNING RADIUS 11.8 ft in 3570 mm
TIRE SIZE FRONT – 2WD / 4WD 11L-15,8PRF3;11L-16,12PRF3;12.5/80
REAR TIRES SIZE 2WD/4WD 16.9-24,8PRR4;19.5L-24,8PRR4
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 65 amps
Transmission
TYPE 4-speed, helical cut gear, full-power-shifted
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED – FORWARD 20.5 mph 33 km/h
MAX SPEED REVERSE 20.5 mph 33 km/h

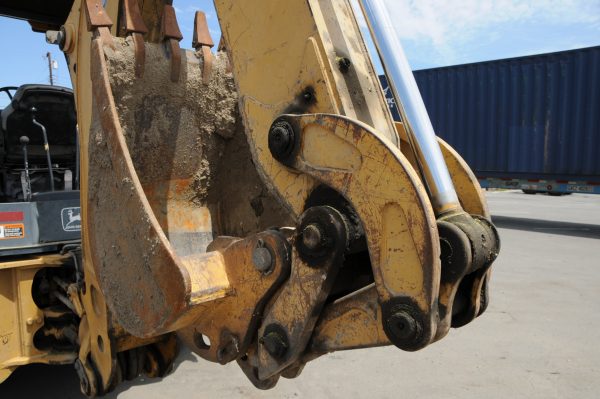

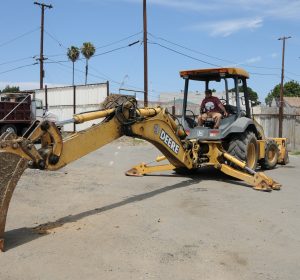

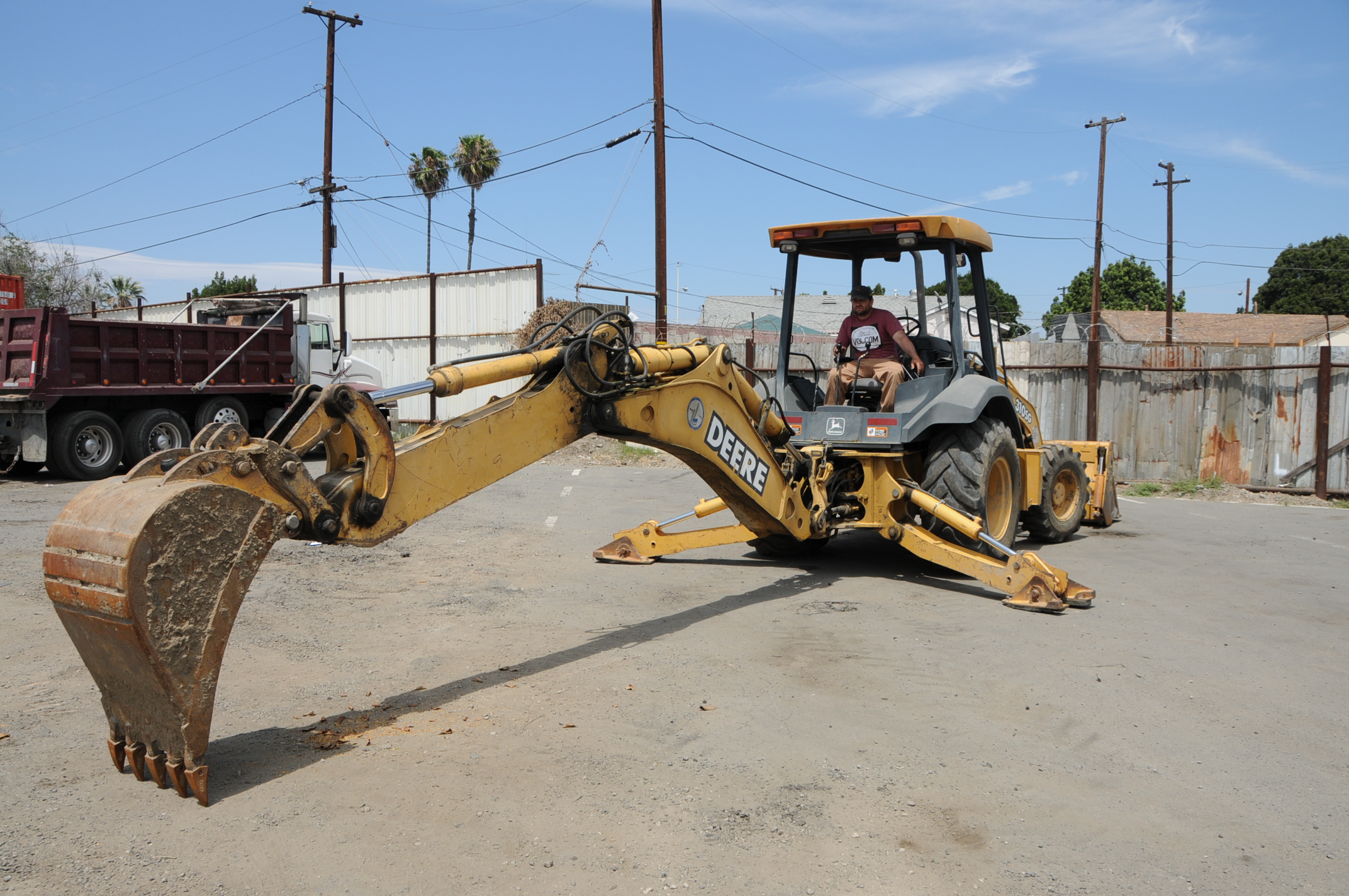

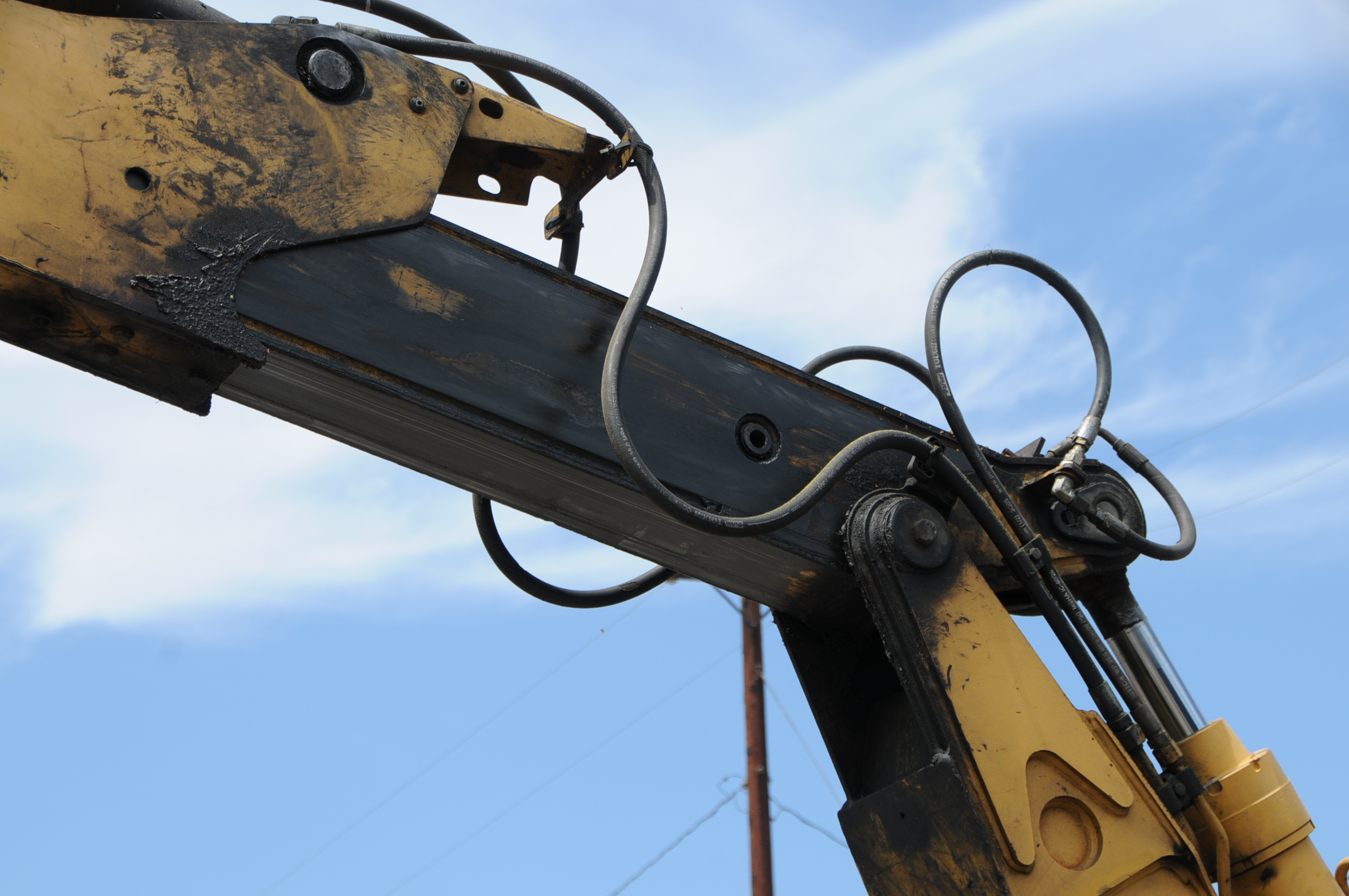

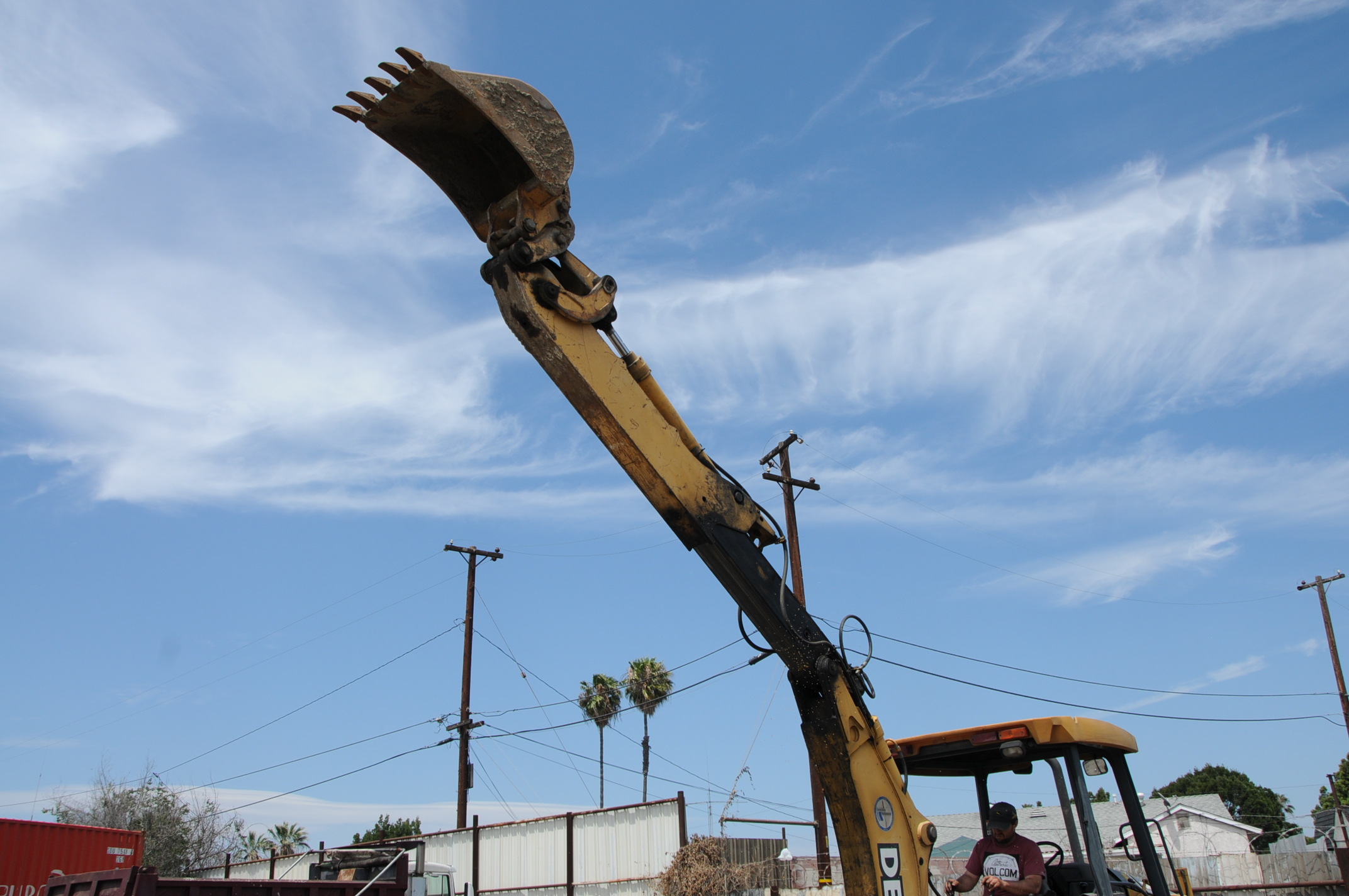

Backhoe
DIG DEPTH – STD 14.5 ft in 4420 mm
DIG DEPTH – EXT 18.4 ft in 5610 mm
REACH FROM SWIVEL – STD 18.3 ft in 5560 mm
REACH FROM SWIVEL – EXT 21.9 ft in 6680 mm
BUCKET DIG FORCE – STD 11990 lb 5438.6 kg
BUCKET DIG FORCE – EXT 12158 lb 5514.8 kg
LOAD HEIGHT – STD 11.3 ft in 3430 mm
LOAD HEIGHT – EXT 14.1 ft in 4290 mm
REACH AT LOAD HEIGHT – STD 21.8 ft in 6630 mm
REACH AT LOAD HEIGHT – EXT 25.3 ft in 7720 mm

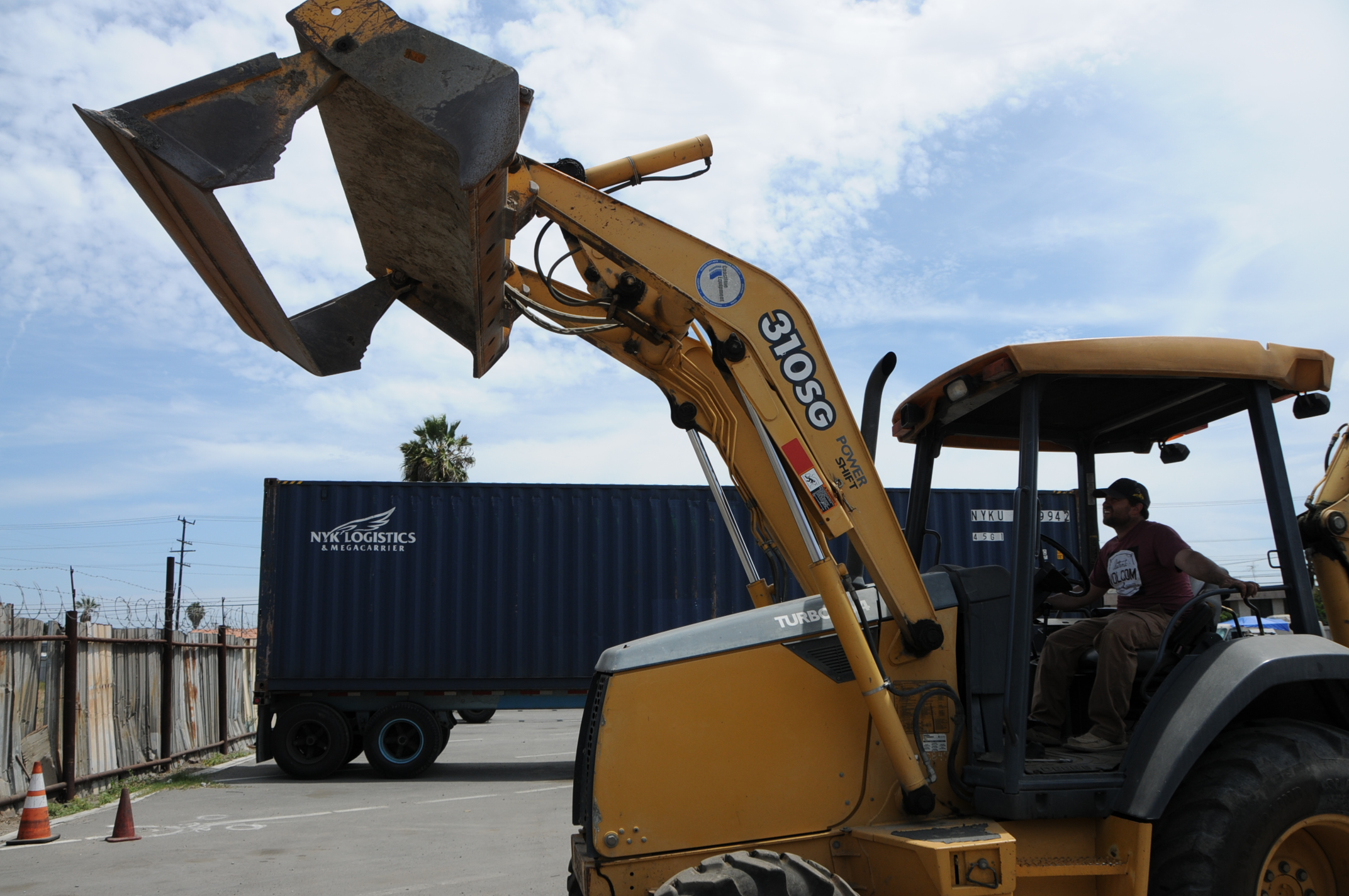

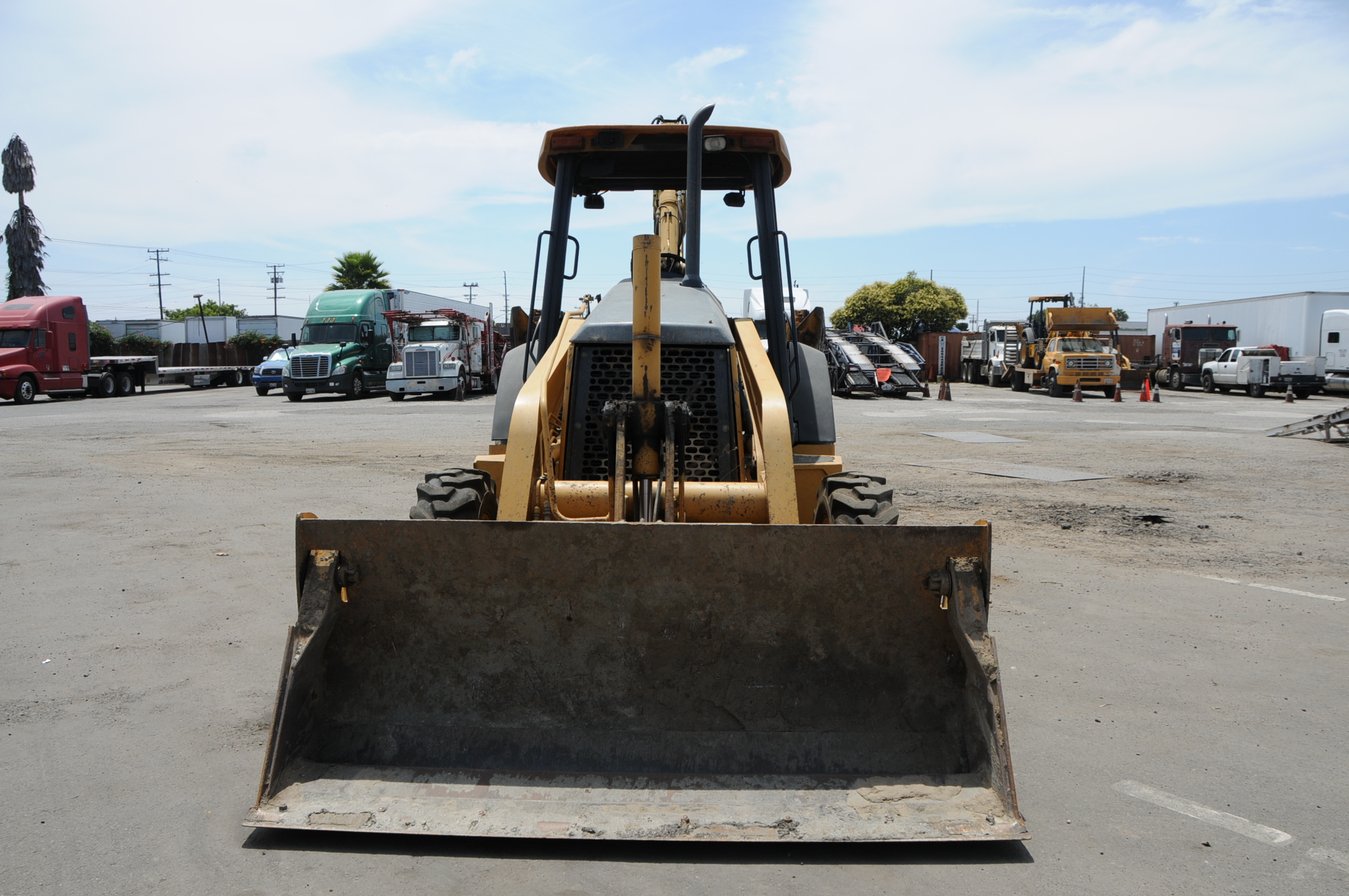

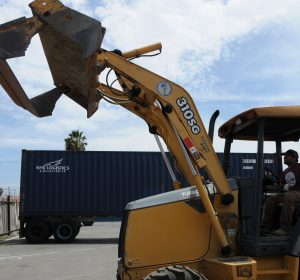

Loader
BUCKET CAPACITY 1.3 yd3 1 m3
BUCKET WIDTH 92 in 2390 mm
BUCKET BREAKOUT FORCE 10210 lb 45.4 kN
LIFT CAPACITY AT FULL HEIGHT 7340 lb 3332 kg
CLEARANCE AT MAX DUMP HEIGHT 11.2 ft in 3400 mm
REACH AT MAX DUMP HEIGHT 3 ft in 911 mm
DIG DEPTH 5.8 in 147 mm
Hydraulic
PUMP TYPE Gear, open center
PUMP FLOW CAPACITY 28 gal/min 106 L/min
RELIEF VALVE PRESSURE 3625 psi 25000 kPa
Dimensions
TRANSPORT LENGTH 23.5 ft in 7160 mm
TRANSPORT WIDTH 7.2 ft in 2180 mm
TRANSPORT HEIGHT 11.5 ft in 3510 mm
HEIGHT TO TOP OF CAB 9.2 ft in 2790 mm
WHEELBASE 6.9 ft in 2100 mm
GROUND CLEARANCE 1 ft in 305 mm
