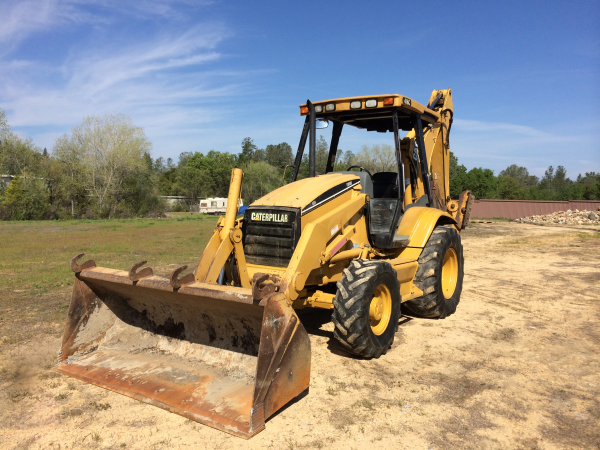

1998 CAT 416C Backhoe(sold)

1998 CATERPILLAR 416C 4X4, AUX HYD, ESTICK WITH 4 SPEED TRANSMISSION, QUICK CONNECT WITH 1 FT CAT BUCKET, 89″ GP BUCKET, 7000 ORIGINAL HOURS, 80HP CAT MOTOR, FIRES RIGHT UP EVERY TIME. MACHINE HARDLY EVEN SMOKES AT ALL UNDER LOAD AND HAS NO VISABLE BLOW BY. NEEDS A NEW BOOM LOCK CABLE. TIRES HAVE SOME LIFE LEFT. JUST INSTALLED A NEW BATTERY. JUST HAD A FULL SERVICE DONE. PINS HAVE SOME MINOR PLAY THAT IS TYPICAL FOR A MACHINE WITH 7K HOURS.

YEAR: 1998

MANUFACTURER: CATERPILLAR

MODEL: 416C

PRICE: $24000.00

LOCATION: SACRAMENTO, CA

SPECIFICATIONS CAT 416C LOADER BACKHOE

Backhoe
J. Load Height – Std
11.4 ft in
3483 mm
L. Dig Depth – Std
14.5 ft in
4420 mm
M. Reach at Load Height – Std
5.8 ft in
1764 mm
Dimensions
A. Transport Length
22.9 ft in
6980 mm
B. Transport Width
7.7 ft in
2352 mm
C. Transport Height
11.8 ft in
3585 mm
D. Wheelbase
6.9 ft in
2100 mm
E. Ground Clearance
0.97 ft in
297 mm
F. Height to Top of Cab
9.1 ft in
2770 mm
Loader
H. Reach at Max Dump Height
2.4 ft in
730 mm
I. Dig Depth
4.1 in
105 mm

Specification

Engine
Make
Caterpillar
Model
3054 DIT
Gross Power
78 hp
58.2 kw
Net Power
75 hp
55.9 kw
Displacement
243 cu in
4 L
Power Measured @
2200 rpm
Number of Cylinders
4
Operational
Operating Weight 2wd
13960 lb
6332.1 kg
Fuel Capacity
33.8 gal
128 L
Tire Size Front – 2wd / 4wd
11L-16, 12PR, F3
Rear Tires Size 2wd/4wd
16.9-24, 10 PR, R4
Transmission
Number of Forward Gears
4
Number of Reverse Gears
4
Max Speed – Forward
20.4 mph
32.8 km/h
Max Speed Reverse
20.4 mph
32.8 km/h
Backhoe
Dig Depth – Std
14.5 ft in
4420 mm
Dig Depth – Ext
18.2 ft in
5545 mm
Bucket Dig Force – Std
11700 lb
5307 kg
Bucket Dig Force – Ext
12065 lb
5472.6 kg
Load Height – Std
11.4 ft in
3483 mm
Load Height – Ext
13.9 ft in
4223 mm
Reach at Load Height – Std
5.8 ft in
1764 mm
Reach at Load Height – Ext
8.9 ft in
2706 mm
Loader
Bucket Capacity
0.99 yd3
0.76 m3
Bucket Width
89.1 in
2262 mm
Bucket Breakout Force
9030 lb
40.2 kN
Lift Capacity at Full Height
5780 lb
2621.8 kg
Reach at Max Dump Height
2.4 ft in
730 mm
Dig Depth
4.1 in
105 mm
Hydraulic
Pump Flow Capacity
43.1 gal/min
163 L/min
Dimensions
Transport Length
22.9 ft in
6980 mm
Transport Width
7.7 ft in
2352 mm
Transport Height
11.8 ft in
3585 mm
Height to Top of Cab
9.1 ft in
2770 mm
Wheelbase
6.9 ft in
2100 mm
Ground Clearance
0.97 ft in
297 mm
