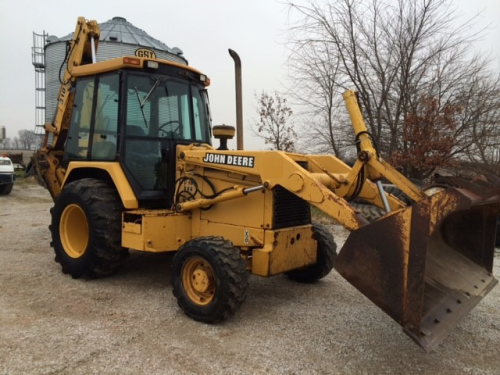

1997 Deere 310D Backhoe(sold)

CLEAN BACKHOE WITH 6,900 HOURS, WELL MAINTAINED, RECENT SERVICE, EROPS, 4X4, EXTEND A HOE, GOOD TIRES, $22,500

PRICE: 22,500
LOCATION: GREENVILLE, IL 62246
HOURS: 6900

Backhoe
J. LOAD HEIGHT – STD 11.3 ft in 3450 mm
K. REACH FROM SWIVEL – STD 17.6 ft in 3450 mm
L. DIG DEPTH – STD 14.5 ft in 4420 mm
M. REACH AT LOAD HEIGHT – STD 21 ft in 6400 mm
Dimensions
A. TRANSPORT LENGTH 22.6 ft in 6880 mm
B. TRANSPORT WIDTH 7 ft in 2120 mm
C. TRANSPORT HEIGHT 11.9 ft in 3630 mm
D. WHEELBASE 6.9 ft in 2100 mm
E. GROUND CLEARANCE 1.1 ft in 330 mm
F. HEIGHT TO TOP OF CAB 9 ft in 2750 mm
Loader
H. REACH AT MAX DUMP HEIGHT 2.8 ft in 855 mm
I. DIG DEPTH 6 in 150 mm
SPECIFICATION

Engine
MAKE John Deere
MODEL 4039D
NET POWER 70 hp 52.2 kw
GROSS POWER 74 hp 55.8 kw
DISPLACEMENT 239 cu in 3.9 L
POWER MEASURED @ 2200 rpm
NET TORQUE RISE 20 %
NET MAX TORQUE 192 lb ft 260 Nm
ASPIRATION Naturally aspirated
Operational
OPERATING WEIGHT 2WD 13600 lb 6169 kg
OPERATING WEIGHT 4WD 13600 lb 6169 kg
MAX WEIGHT 13600 lb 6169 kg
FUEL CAPACITY 34 gal 129 L
HYDRAULIC SYSTEM FLUID CAPACITY 21 gal 79 L
OIL SYSTEM FLUID CAPACITY 2.2 gal 8.5 L
COOLING SYSTEM FLUID CAPACITY 4.2 gal 16 L
TRANSMISSION FLUID CAPACITY 1.8 gal 7 L
TURNING RADIUS 11.8 ft in 3570 mm
TIRE SIZE FRONT – 2WD / 4WD 11L-15,8PRF3;11L-16,12PRF3/12-16.5,8PR;14-17.5,10PR,NHS
REAR TIRES SIZE 2WD/4WD 16.9-24,8PRR4;19.5L-24,8PRR4/19.5L-24,8PRR4;21L-24,10PRR4
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 95 amps
Transmission
TYPE 4-speed helical gear, synchronized in all four gears, collar shift transmission with hydraulic reverser
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED – FORWARD 20.8 mph 33.5 km/h
MAX SPEED REVERSE 18.8 mph 30.3 km/h
Backhoe
DIG DEPTH – STD 14.5 ft in 4420 mm
DIG DEPTH – EXT 18.3 ft in 5560 mm
REACH FROM SWIVEL – STD 17.6 ft in 3450 mm
REACH FROM SWIVEL – EXT 13.9 ft in 4240 mm
BUCKET DIG FORCE – STD 11570 lb 5248.1 kg
BUCKET DIG FORCE – EXT 11530 lb 5229.9 kg
LOAD AT MAX LIFT – STD 5200 lb 2358 kg
LOAD AT MAX LIFT – EXT 3050 lb 1383 kg
LOAD HEIGHT – STD 11.3 ft in 3450 mm
LOAD HEIGHT – EXT 13.9 ft in 4240 mm
REACH AT LOAD HEIGHT – STD 21 ft in 6400 mm
REACH AT LOAD HEIGHT – EXT 24.6 ft in 7500 mm
Loader
BUCKET CAPACITY 1.3 yd3 0.96 m3
BUCKET WIDTH 92 in 2340 mm
BUCKET BREAKOUT FORCE 9350 lb 41.6 kN
LIFT CAPACITY AT FULL HEIGHT 5700 lb 2585 kg
REACH AT MAX DUMP HEIGHT 2.8 ft in 855 mm
DIG DEPTH 6 in 150 mm
Hydraulic
PUMP TYPE Gear
PUMP FLOW CAPACITY 38 gal/min 144 L/min
RELIEF VALVE PRESSURE 2700 psi 18600 kPa
Dimensions
TRANSPORT LENGTH 22.6 ft in 6880 mm
TRANSPORT WIDTH 7 ft in 2120 mm
TRANSPORT HEIGHT 11.9 ft in 3630 mm
HEIGHT TO TOP OF CAB 9 ft in 2750 mm
WHEELBASE 6.9 ft in 2100 mm
GROUND CLEARANCE 1.1 ft in 330 mm
