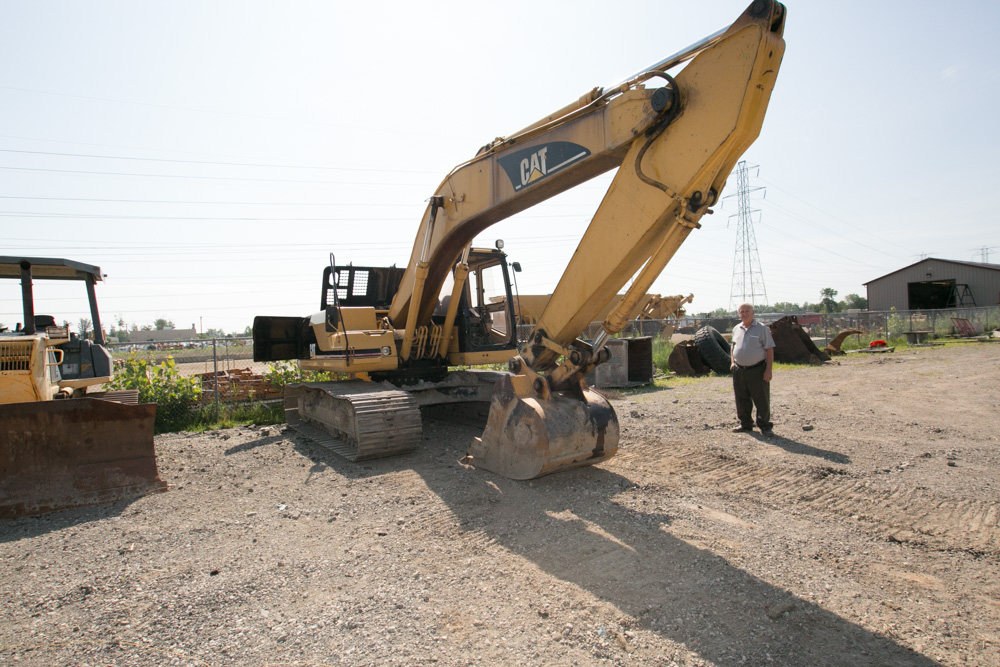

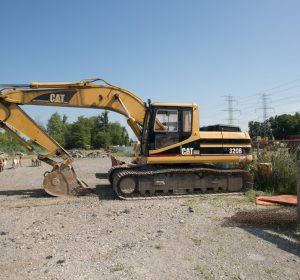

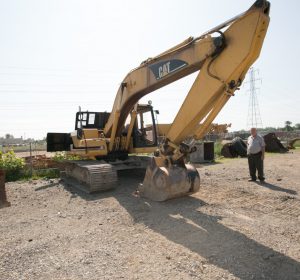

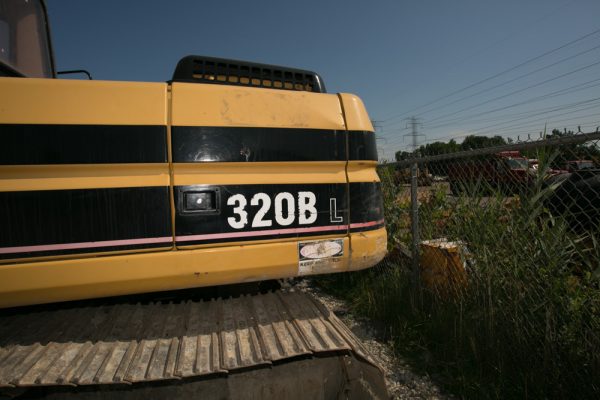

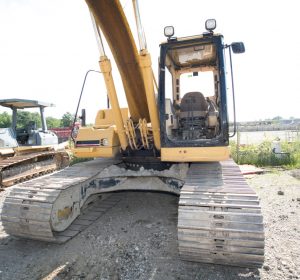

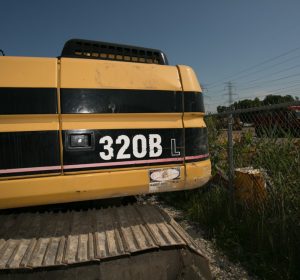

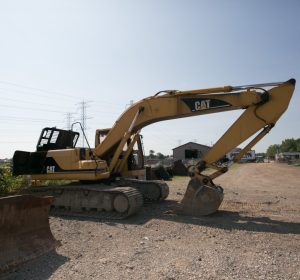

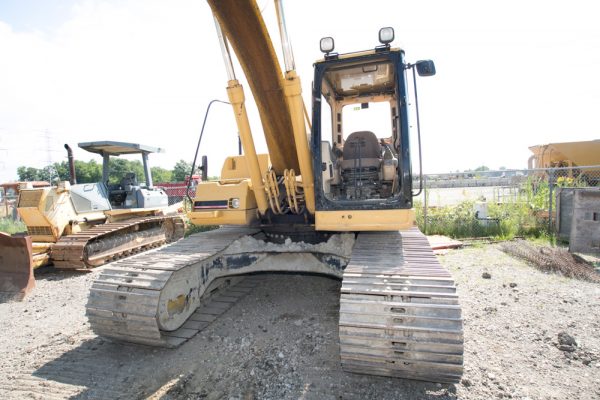

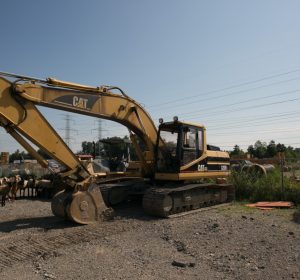

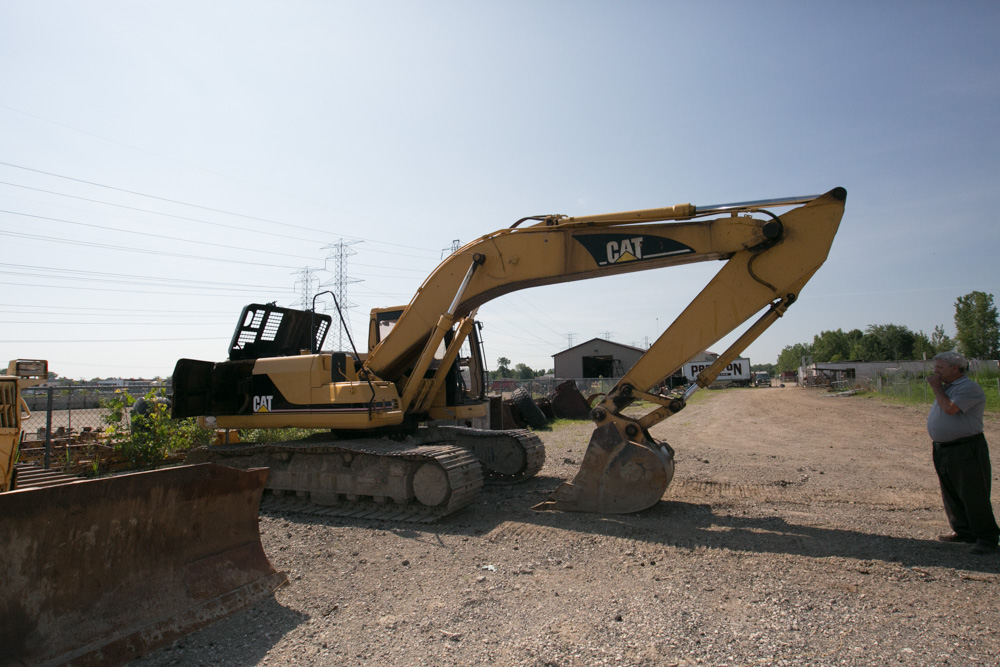

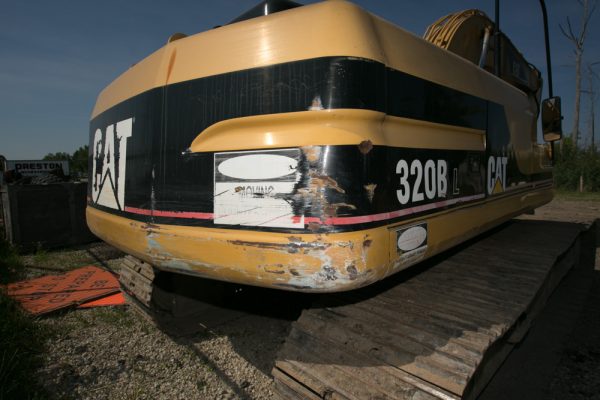

1997 CAT 320BL Excavator-(SOLD)

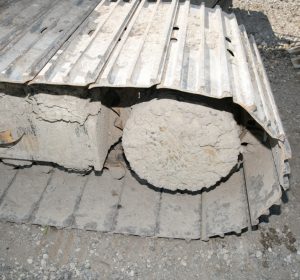

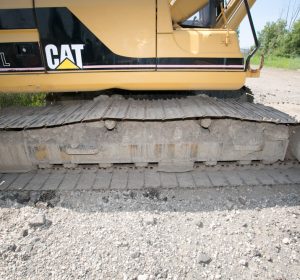

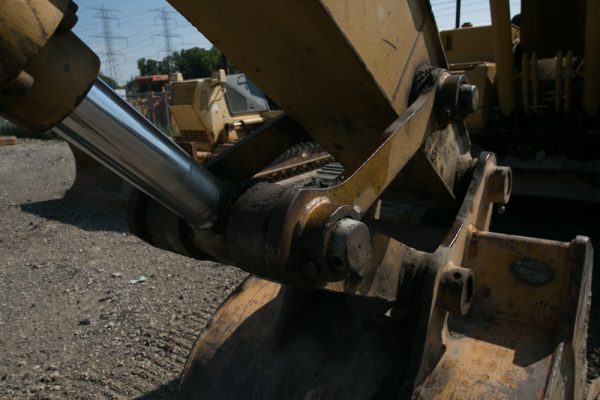

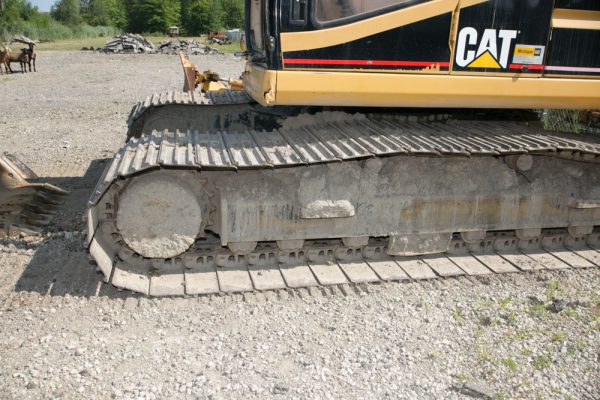

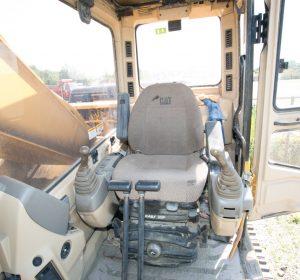

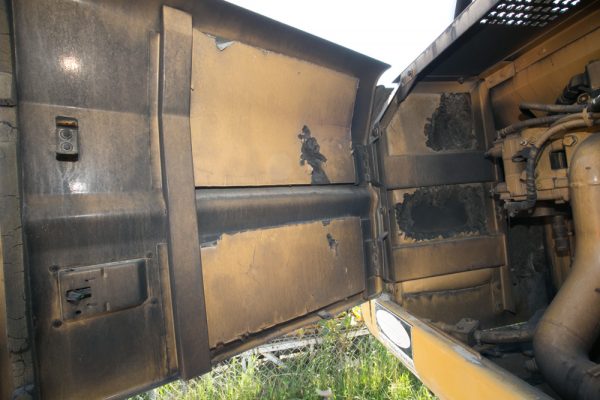

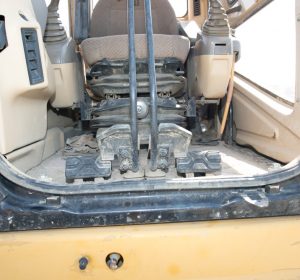

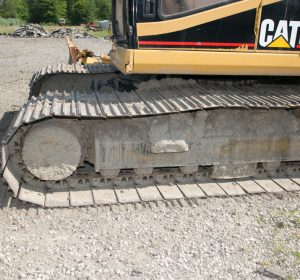

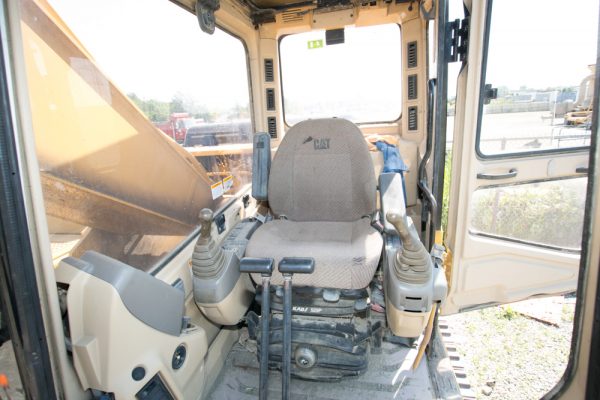

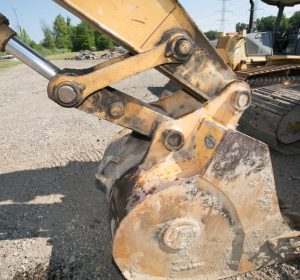

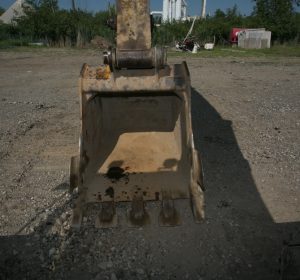

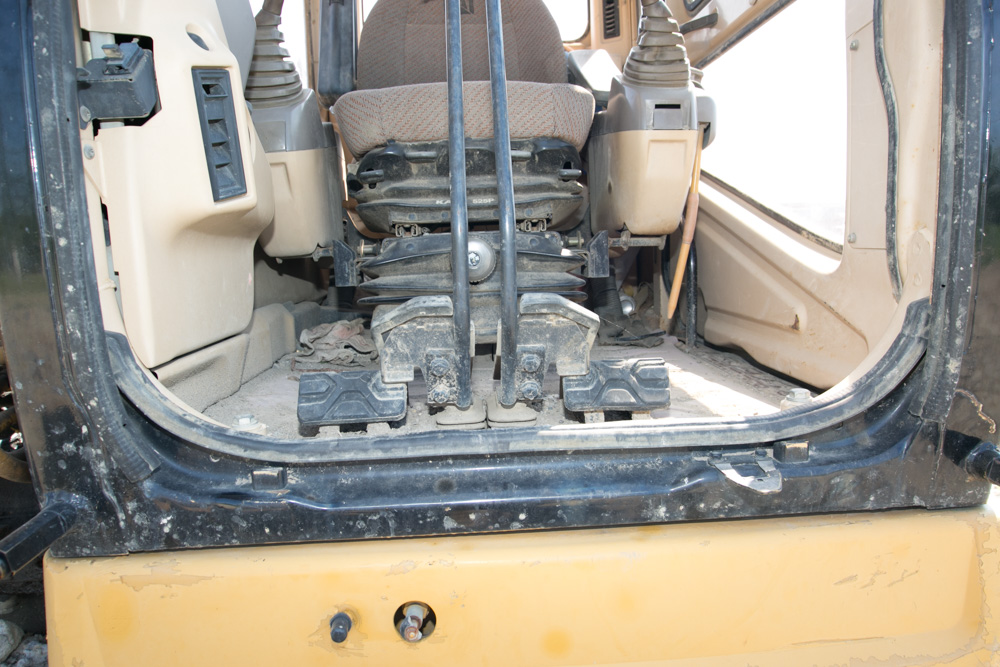

1997 CAT 320BL EXCAVATOR CAB WITH HEAT/AC, 36″ BUCKET, 9.7′ STICK, 31.5″ PADS, 70% UC, PROFESSIONALLY MAINTAINED, READY TO GO TO WORK! NEEDS A MUFFLER(HAS AN EXHAUST LEAK) INSPECTION REPORT AVAILABLE UPON REQUEST.

Price: $44,900

Location: Utica, MI

Hours: 9,600

Serial Number: 6CR00356

A. SHIPPING LENGTH OF UNIT 30.9 ft in 9420 mm
C. SHIPPING HEIGHT OF UNIT 11.3 ft in 3430 mm
I. MAX CUTTING HEIGHT 32 ft in 9750 mm
J. MAX LOADING HEIGHT 22.7 ft in 6930 mm
K. MAX REACH ALONG GROUND 34.9 ft in 10630 mm
L. MAX VERTICAL WALL DIGGING DEPTH 22.3 ft in 6810 mm
M. MAX DIGGING DEPTH 24.9 ft in 7580 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 10.4 ft in 3180 mm
D. LENGTH OF TRACK ON GROUND 12 ft in 3650 mm
E. GROUND CLEARANCE 1.6 ft in 475 mm
G. HEIGHT TO TOP OF CAB 9.6 ft in 2940 mm
H. TAIL SWING RADIUS 9 ft in 2750 mm
O. COUNTERWEIGHT CLEARANCE 3.4 ft in 1045 mm

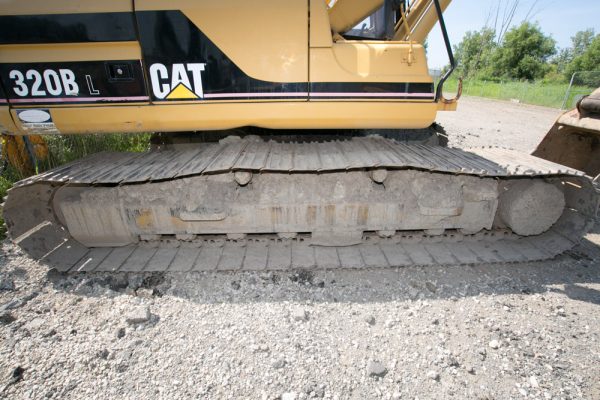

Undercarriage
F. TRACK GAUGE 7.8 ft in 2380 mm
N. SHOE SIZE 31.5 in 800 mm
Specification
Engine
MAKE Caterpillar
MODEL 3066T
GROSS POWER 134 hp 99.9 kw
NET POWER 128 hp 95.4 kw
POWER MEASURED @ 1800 rpm
DISPLACEMENT 389 cu in 6.4 L
ASPIRATION Turbocharged
NUMBER OF CYLINDERS 6
Operational
OPERATING WEIGHT 42769.7 lb 19400 kg
FUEL CAPACITY 89.8 gal 340 L
COOLING SYSTEM FLUID CAPACITY 6.6 gal 25 L
HYDRAUILC SYSTEM FLUID CAPACITY 58.1 gal 220 L
ENGINE OIL CAPACITY 5.4 gal 20.5 L
SWING DRIVE FLUID CAPACITY 1.6 gal 6 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4980 psi 34335.9 kPa
HYDRAULIC PUMP FLOW CAPACITY 97.7 gal/min 370 L/min
Swing Mechanism
SWING TORQUE 42050 lb ft 57012.1 Nm

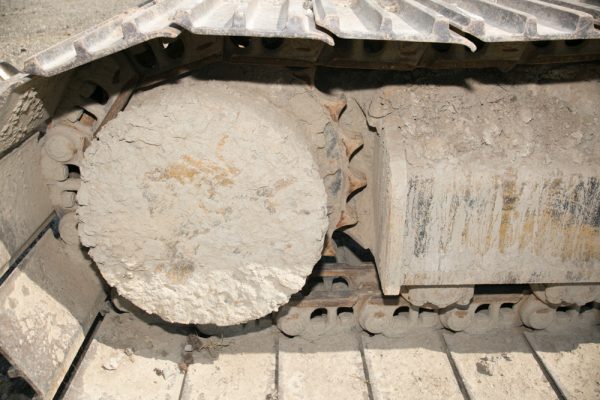

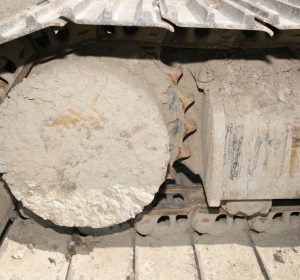

Undercarriage
SHOE SIZE 31.5 in 800 mm
MAX TRAVEL SPEED 3.4 mph 5.5 km/h
DRAWBAR PULL 39800 lb 177 kN
TRACK GAUGE 7.8 ft in 2380 mm

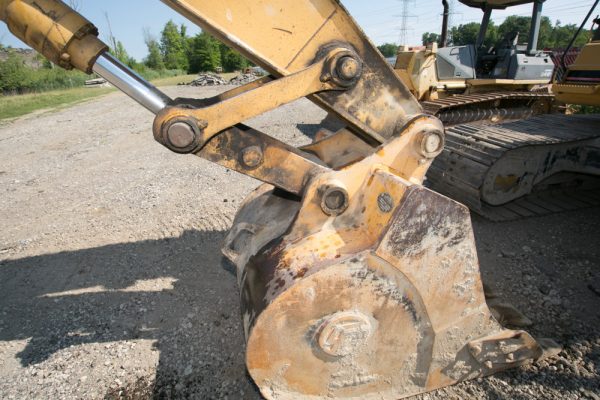

Buckets
REFERENCE BUCKET CAPACITY 1.2 yd3 0.92 m3
MINIMUM BUCKET CAPACITY 0.45 yd3 0.34 m3
MAXIMUM BUCKET CAPACITY 2 yd3 1.5 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 18’7″ (5680mm) / Stick 12’8″ (3900mm)
SHIPPING HEIGHT OF UNIT 11.3 ft in 3430 mm
SHIPPING LENGTH OF UNIT 30.9 ft in 9420 mm
MAX DIGGING DEPTH 24.9 ft in 7580 mm
MAX REACH ALONG GROUND 34.9 ft in 10630 mm
MAX CUTTING HEIGHT 32 ft in 9750 mm
MAX LOADING HEIGHT 22.7 ft in 6930 mm
MAX VERTICAL WALL DIGGING DEPTH 22.3 ft in 6810 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Boom 18’7″ (5680mm) / Stick 9’7″ (2900mm)
SHIPPING HEIGHT OF UNIT 9.6 ft in 2930 mm
SHIPPING LENGTH OF UNIT 31 ft in 9440 mm
MAX DIGGING DEPTH 21.8 ft in 6640 mm
MAX REACH ALONG GROUND 32.1 ft in 9780 mm
MAX CUTTING HEIGHT 31.1 ft in 9470 mm
MAX LOADING HEIGHT 21.6 ft in 6570 mm
MAX VERTICAL WALL DIGGING DEPTH 19.8 ft in 6040 mm
Boom/Stick Option (HEX) 3
BOOM/STICK OPTION (HEX) 3 Boom 18’7″ (5680mm) / Stick 8’2″ (2500mm)
SHIPPING HEIGHT OF UNIT 9.9 ft in 3010 mm
SHIPPING LENGTH OF UNIT 31 ft in 9460 mm
MAX DIGGING DEPTH 20.2 ft in 6150 mm
MAX REACH ALONG GROUND 30.5 ft in 9310 mm
MAX CUTTING HEIGHT 30.1 ft in 9160 mm
MAX LOADING HEIGHT 21.2 ft in 6460 mm
MAX VERTICAL WALL DIGGING DEPTH 17.5 ft in 5330 mm
Boom/Stick Option (HEX) 4
BOOM/STICK OPTION (HEX) 4 Boom 18’7″ (5680mm) / Stick 6’3″ (1900mm)
SHIPPING HEIGHT OF UNIT 10 ft in 3050 mm
SHIPPING LENGTH OF UNIT 31.1 ft in 9490 mm
MAX DIGGING DEPTH 18.5 ft in 5630 mm
MAX REACH ALONG GROUND 28.7 ft in 8760 mm
MAX CUTTING HEIGHT 28.8 ft in 8780 mm
MAX LOADING HEIGHT 19.6 ft in 5960 mm
MAX VERTICAL WALL DIG DEPTH 15.4 ft in 4680 mm
Boom/Stick Option (HEX) 5
BOOM/STICK OPTION (HEX) 5 Mass Boom 17’1″ (5200mm) / Stick 7’10” (2400mm)
SHIPPING HEIGHT OF UNIT 10 ft in 3050 mm
SHIPPING LENGTH OF UNIT 29.5 ft in 9000 mm
MAX DIGGING DEPTH 18.7 ft in 5700 mm
MAX REACH ALONG GROUND 28.7 ft in 8760 mm
MAX CUTTING HEIGHT 28.8 ft in 8770 mm
MAX LOADING HEIGHT 19.4 ft in 5920 mm
MAX VERTICAL WALL DIG DEPTH 16.1 ft in 4910 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 10.4 ft in 3180 mm
HEIGHT TO TOP OF CAB 9.6 ft in 2940 mm
GROUND CLEARANCE 1.6 ft in 475 mm
COUNTERWEIGHT CLEARANCE 3.4 ft in 1045 mm
TAIL SWING RADIUS 9 ft in 2750 mm
LENGTH OF TRACK ON GROUND 12 ft in 3650 mm
