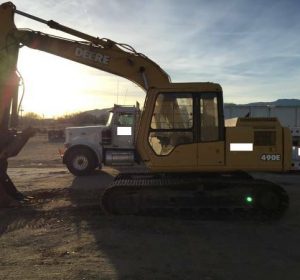

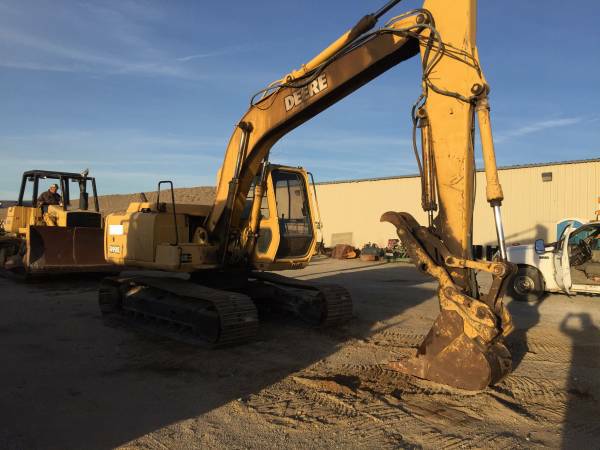

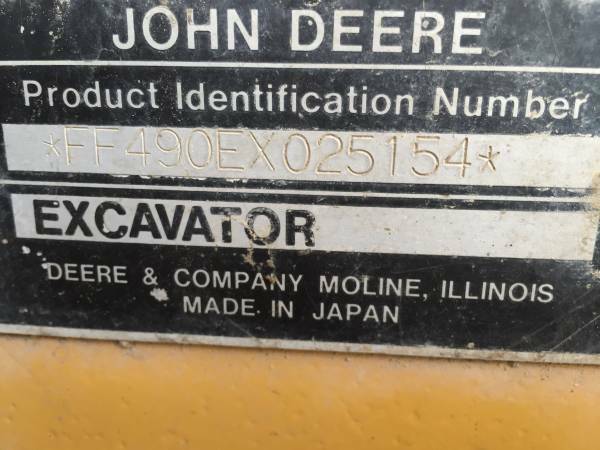

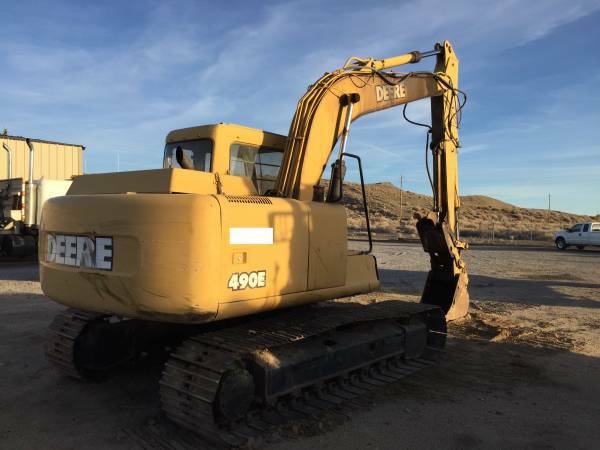

1996 Deere 490E Excavator(sold)

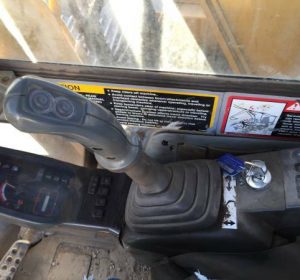

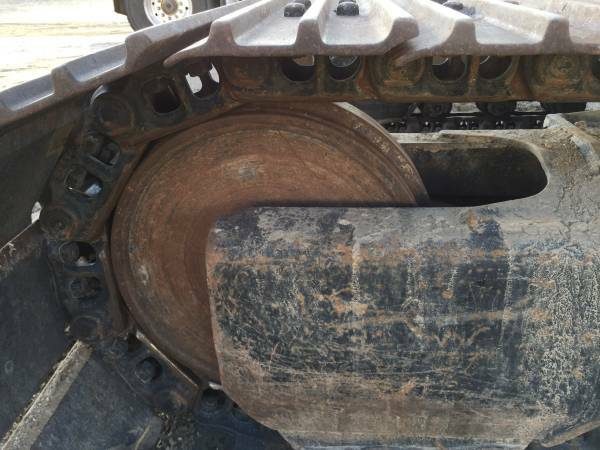

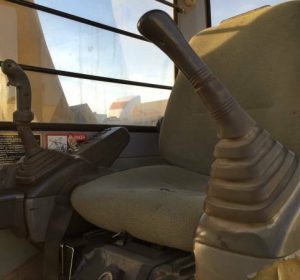

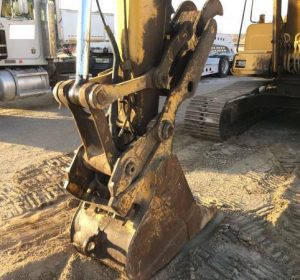

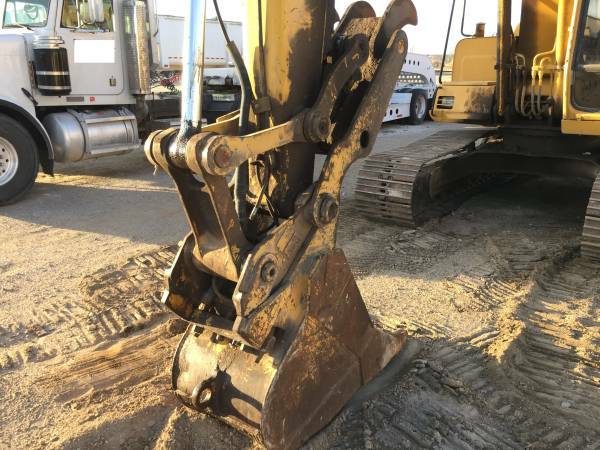

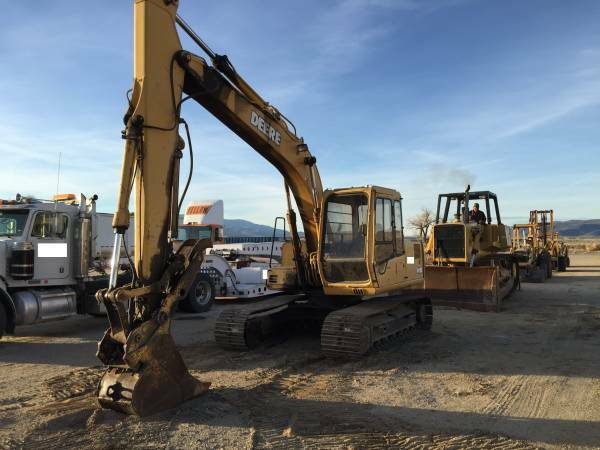

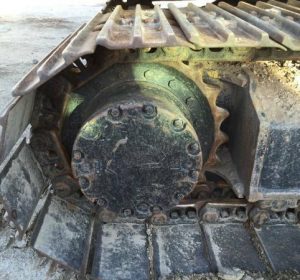

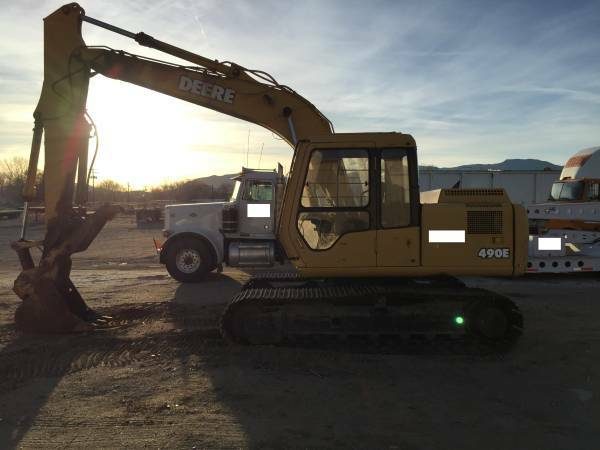

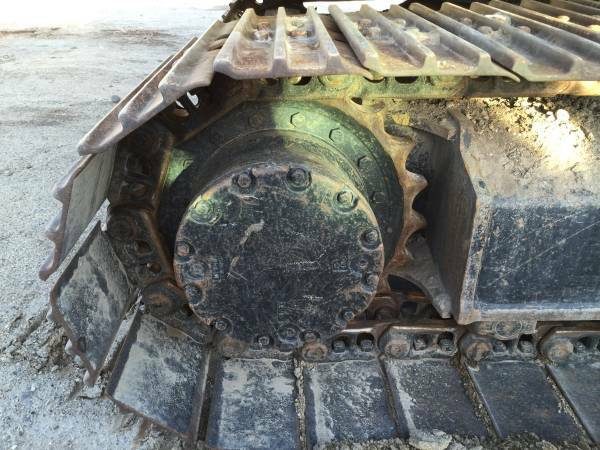

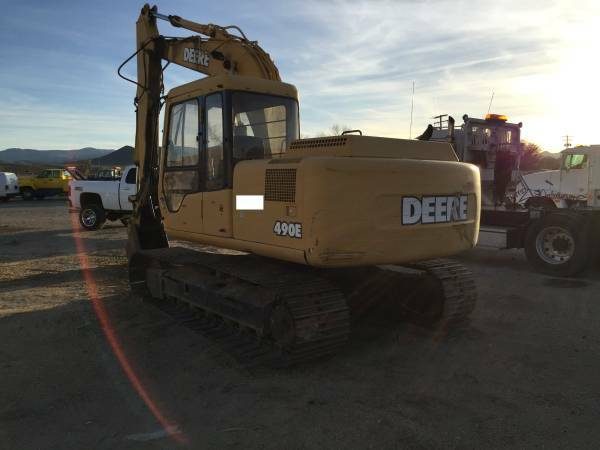

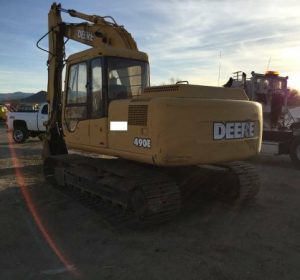

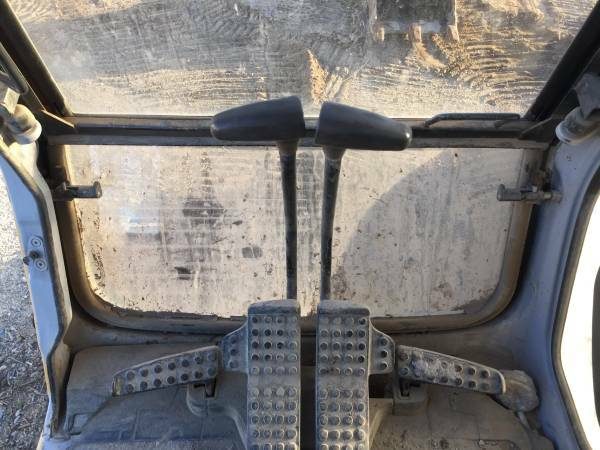

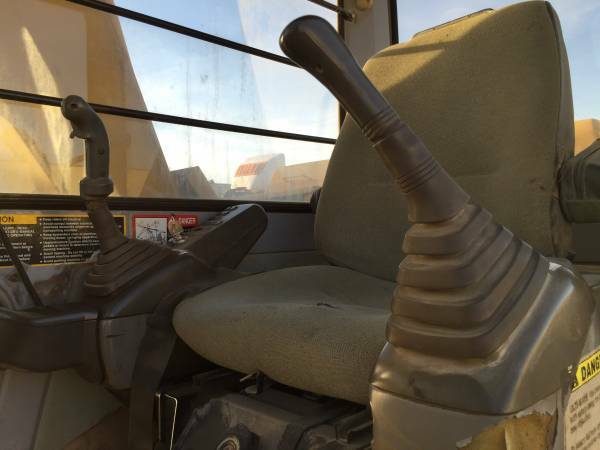

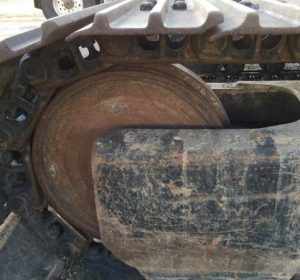

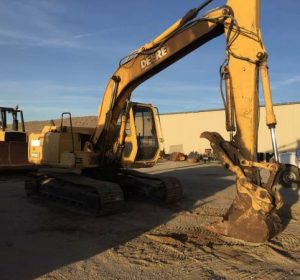

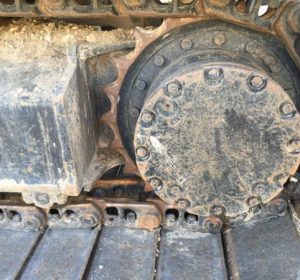

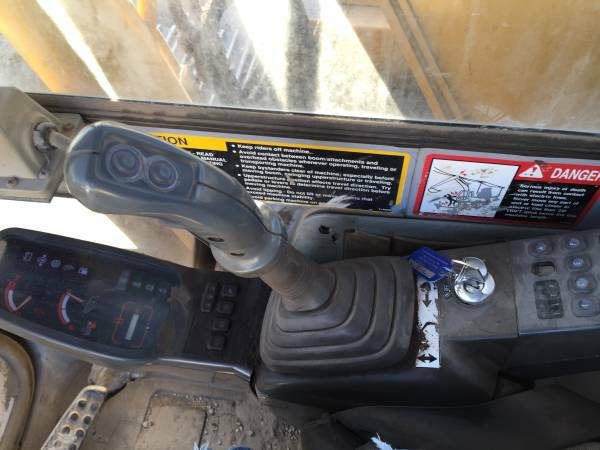

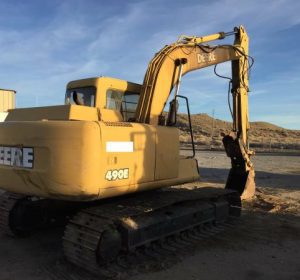

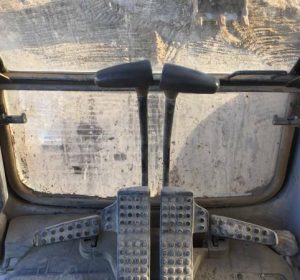

1996 DEERE 490E EXCAVATOR WITH 9800 ORIGINAL HOURS ON IT. IT HAS A CAB WITH HEAT/AC, JOYSTICK CONTROLS AND A HYDRAULIC THUMB. RUNS AND OPERATES GREAT. SOME RAMS ON STICK AND BOOM LEAK. PINS AND TURNTABLE ARE TIGHT WITH MINOR SLOP ON THE BUCKET PINS. COMES WITH BUCKET IN PICTURES. MACHINE WAS PROFESSIONALLY MAINTAINED ALL OF ITS LIFE. UC IS ABOUT 50%

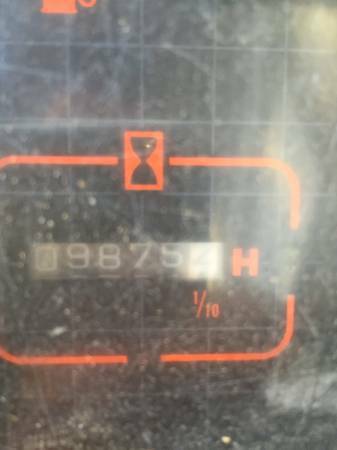

HOURS: 9800
LOCATION: PLACERVILLE, CA 95667
PRICE: $26,999

A. SHIPPING LENGTH OF UNIT 24.9 ft in 7580 mm
C. SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
I. MAX CUTTING HEIGHT 27.9 ft in 8510 mm
J. MAX LOADING HEIGHT 20.1 ft in 6120.4 mm
K. MAX REACH ALONG GROUND 26.7 ft in 8129 mm
L. MAX VERTICAL WALL DIGGING DEPTH 16.3 ft in 4977.4 mm
M. MAX DIGGING DEPTH 18.3 ft in 5562.6 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 8.8 ft in 2690 mm
D. LENGTH OF TRACK ON GROUND 9.4 ft in 2880 mm
E. GROUND CLEARANCE 1.4 ft in 432.8 mm
G. HEIGHT TO TOP OF CAB 8.8 ft in 2691.4 mm
H. TAIL SWING RADIUS 6.9 ft in 2110 mm
O. COUNTERWEIGHT CLEARANCE 2.9 ft in 890 mm
Undercarriage
F. TRACK GAUGE 6.5 ft in 1990 mm
N. SHOE SIZE 27.6 in 700 mm
SPECIFICATION

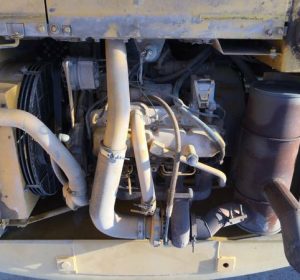

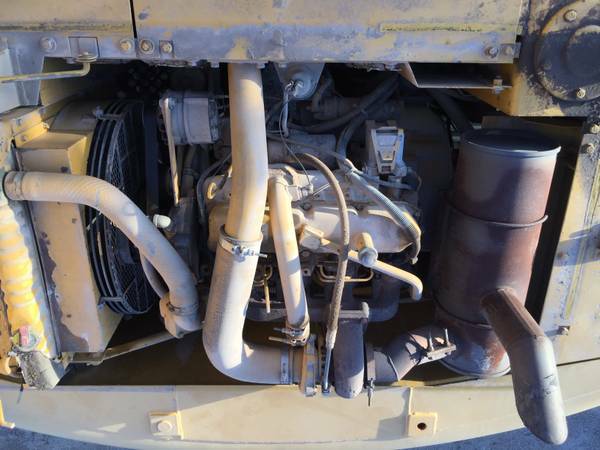

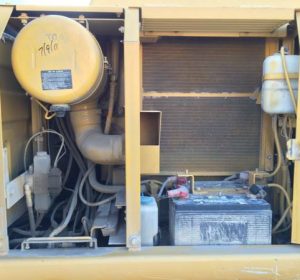

Engine
MAKE John Deere
MODEL 4045T
GROSS POWER 90 hp 67.1 kw
NET POWER 85 hp 63.4 kw
POWER MEASURED @ 2200 rpm
DISPLACEMENT 276 cu in 4.5 L
TORQUE MEASURED @ 1300 rpm
MAX TORQUE 252 lb ft 341.7 Nm
NUMBER OF CYLINDERS 4
ASPIRATION Turbocharger
Operational
OPERATING WEIGHT 26780 lb 12147.2 kg
FUEL CAPACITY 66 gal 249.8 L
COOLING SYSTEM FLUID CAPACITY 4 gal 15 L
HYDRAUILC SYSTEM FLUID CAPACITY 35.4 gal 134 L
ENGINE OIL CAPACITY 3.4 gal 13 L
SWING DRIVE FLUID CAPACITY 0.69 gal 2.6 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 45 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4980 psi 34335.9 kPa

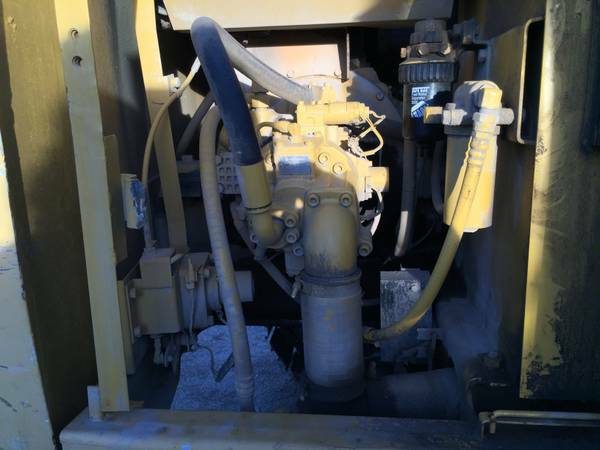

HYDRAULIC PUMP FLOW CAPACITY 52.3 gal/min 198 L/min
Swing Mechanism
SWING SPEED 11 rpm

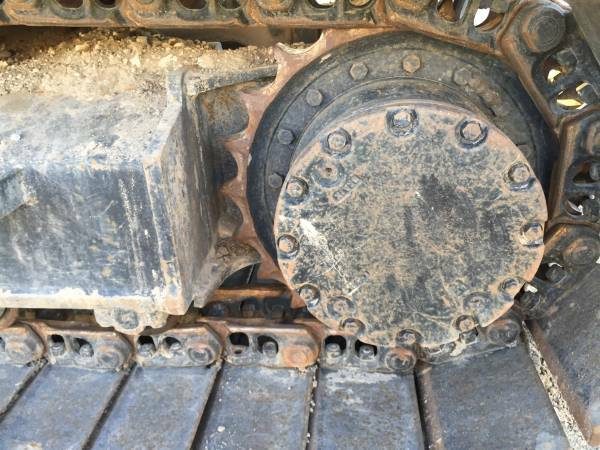

Undercarriage
NUMBER OF SHOES PER SIDE 44
SHOE SIZE 27.6 in 700 mm
NUMBER OF CARRIER ROLLERS PER SIDE 1
NUMBER OF TRACK ROLLERS PER SIDE 7
GROUND PRESSURE 3.9 psi 27.2 kPa
MAX TRAVEL SPEED 3.4 mph 5.5 km/h
DRAWBAR PULL 21200 lb 94.3 kN
TRACK GAUGE 6.5 ft in 1990 mm
Buckets
REFERENCE BUCKET CAPACITY 0.65 yd3 0.5 m3
MINIMUM BUCKET CAPACITY 0.34 yd3 0.26 m3
MAXIMUM BUCKET CAPACITY 1.6 yd3 1.2 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Arm Length 8ft.3in.(2.52m)
SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
SHIPPING LENGTH OF UNIT 24.9 ft in 7580 mm
MAX DIGGING DEPTH 18.3 ft in 5562.6 mm
MAX REACH ALONG GROUND 26.7 ft in 8129 mm
MAX CUTTING HEIGHT 27.9 ft in 8510 mm
MAX LOADING HEIGHT 20.1 ft in 6120.4 mm
MAX VERTICAL WALL DIGGING DEPTH 16.3 ft in 4977.4 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Arm Length 9ft 11in. (3.01m)
SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
SHIPPING LENGTH OF UNIT 24.9 ft in 7580 mm
MAX DIGGING DEPTH 19.9 ft in 6071.6 mm
MAX REACH ALONG GROUND 28.3 ft in 8610.6 mm
MAX CUTTING HEIGHT 29 ft in 8839.2 mm
MAX LOADING HEIGHT 21.2 ft in 6452.6 mm
MAX VERTICAL WALL DIGGING DEPTH 17.9 ft in 5462 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 8.8 ft in 2690 mm
HEIGHT TO TOP OF CAB 8.8 ft in 2691.4 mm
GROUND CLEARANCE 1.4 ft in 432.8 mm
COUNTERWEIGHT CLEARANCE 2.9 ft in 890 mm
TAIL SWING RADIUS 6.9 ft in 2110 mm
LENGTH OF TRACK ON GROUND 9.4 ft in 2880 mm
