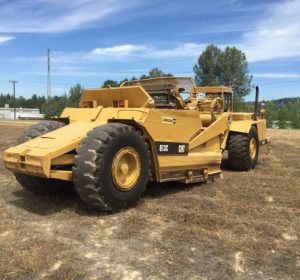

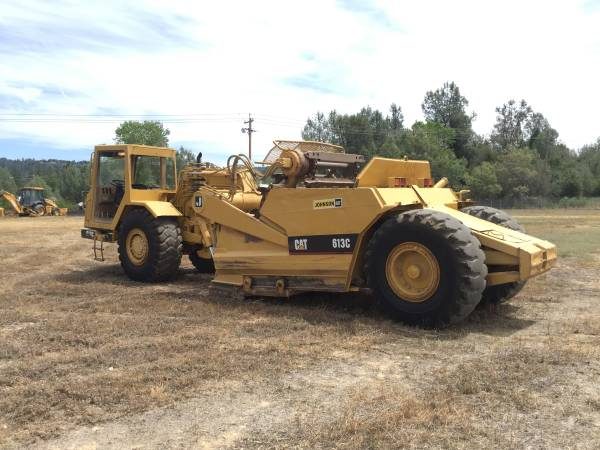

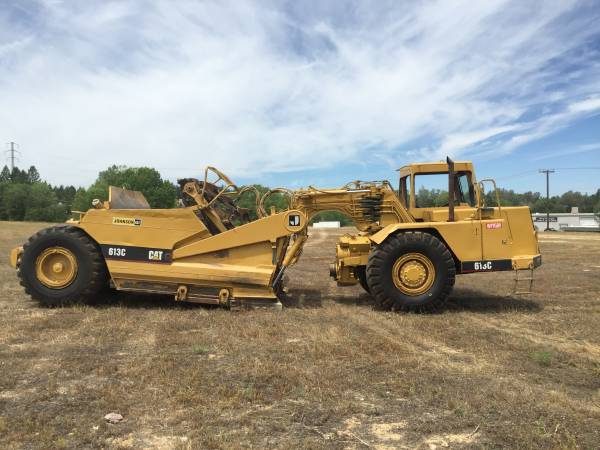

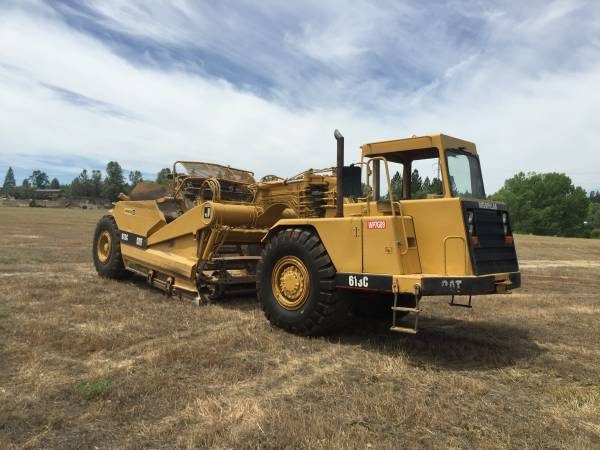

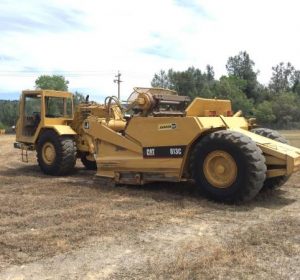

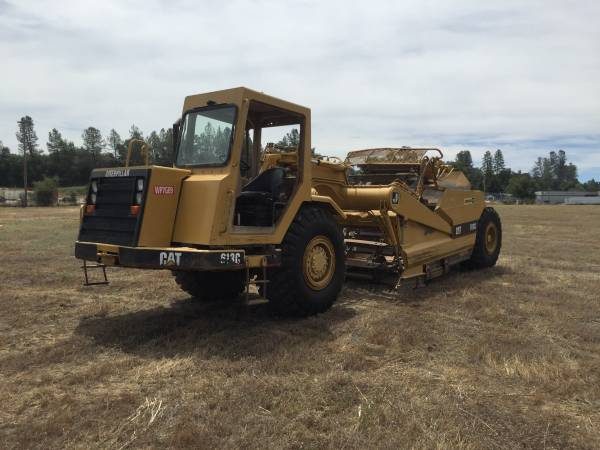

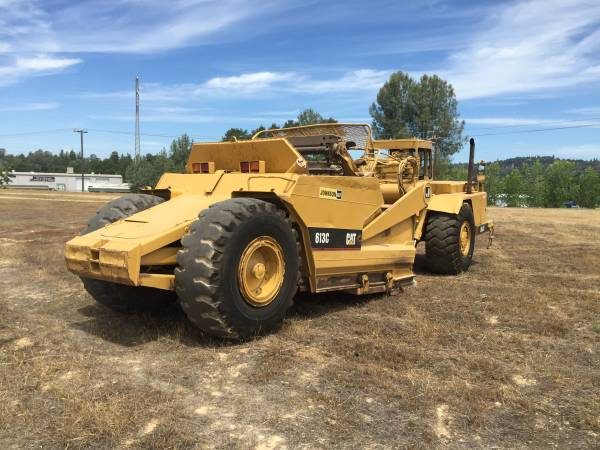

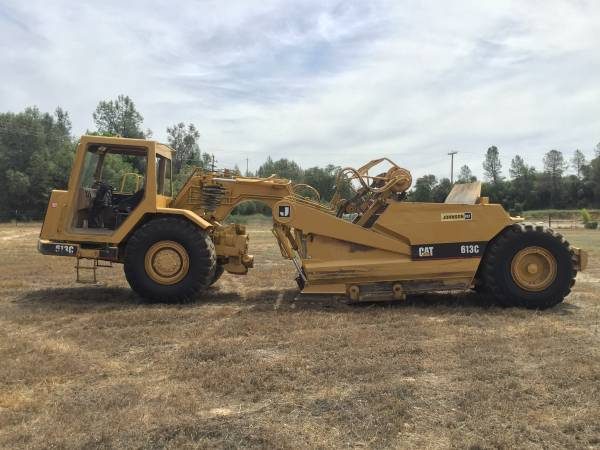

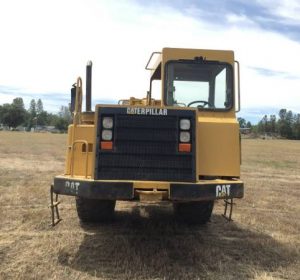

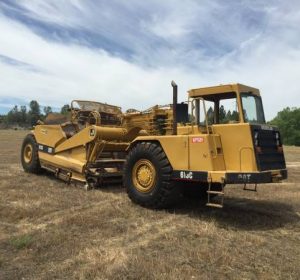

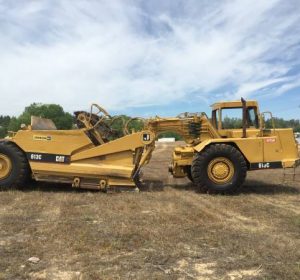

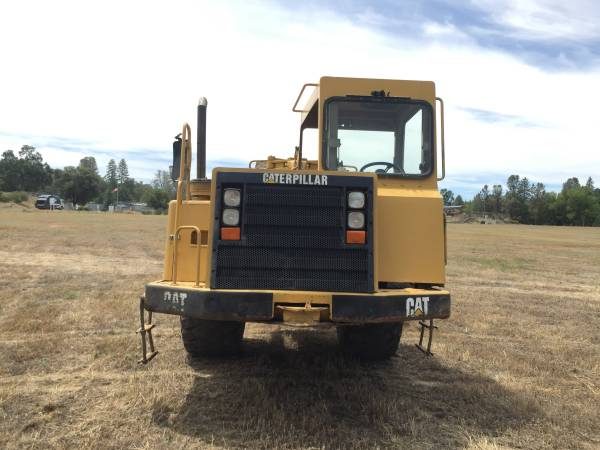

1995 CAT 613C SCRAPER(sold)

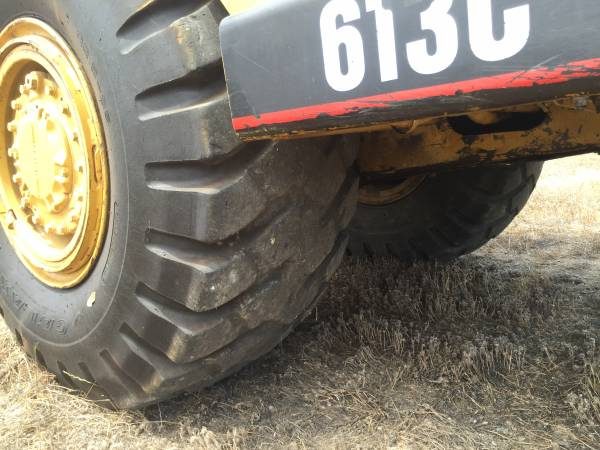

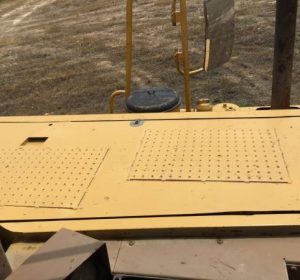

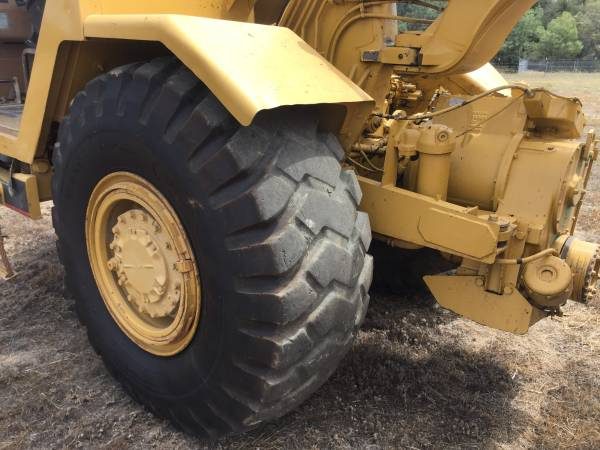

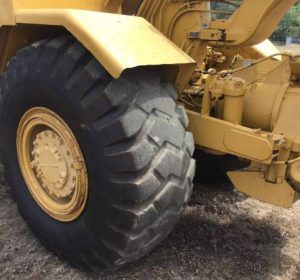

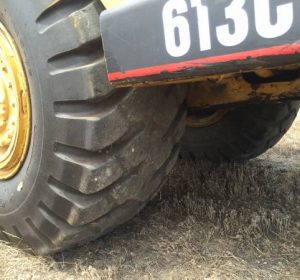

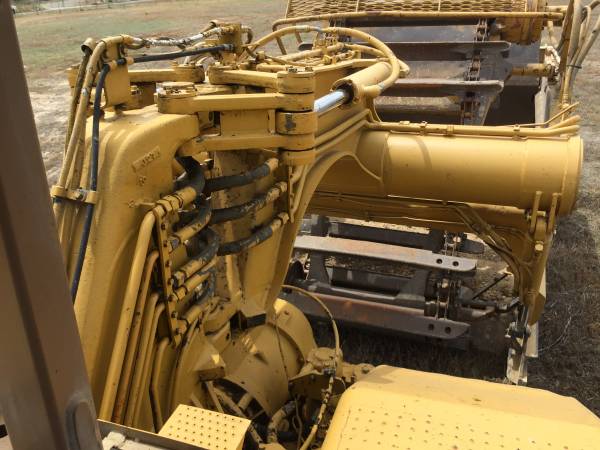

1995 CAT 613C SERIES 2 PADDLE WHEEL SCRAPER WITH 9800HRS, WE JUST INSTALLED NEW WEAR PLATES, CUTTING EDGES, HITCH PINS, AND NEW BRAKES VERY TIGHT SCRAPER. READY TO GO TO WORK. FRONT TIRES 85% REAR TIRES 50%.

HOURS: 9800
LOCATION: PLACERVILLE, CA
S/N: 8LJ01116
PRICE: 39,900

Dimensions
A. OVERALL LENGTH 32.8 ft in 10000 mm
B. OVERALL WIDTH 8 ft in 2440 mm
C. OVERALL HEIGHT 10.2 ft in 3100 mm
D. WHEELBASE 20.5 ft in 6260 mm
F. HEIGHT TO TOP OF CAB 9.6 ft in 2920 mm
SPECIFICATION

Tractor Engine
MAKE Caterpillar
MODEL CAT 3116
GROSS POWER 187 hp 139.4 kw
NET POWER 175 hp 130.5 kw
DISPLACEMENT 403 cu in 6.6 L
Scraper Engine
DISPLACEMENT 402.8 cu in 6.6 L
Operational
FUEL CAPACITY 66 gal 250 L
COOLING SYSTEM FLUID CAPACITY 10.2 gal 38.5 L
ENGINE OIL FLUID CAPACITY 5.3 gal 20 L
TRANSMISSION FLUID CAPACITY 9.2 gal 35 L
DIFFERENTIAL FLUID CAPACITY 5 gal 19 L
HYDRAULIC SYSTEM FLUID CAPACITY 26.4 gal 100 L
WHEEL COOLANT FLUID CAPACITY – EACH 1.5 gal 5.8 L
TIRE SIZE 23.5R25
Transmission
NUMBER OF FORWARD GEARS 6
NUMBER OF REVERSE GEARS 1
MAX SPEED FORWARD 21.8 mph 35.1 km/h
MAX SPEED REVERSE 2.2 mph 3.5 km/h
Weights
TOTAL OPERATING – EMPTY 33651.4 lb 15264 kg
FRONT AXEL – EMPTY 21100.4 lb 9571 kg
REAR AXEL – EMPTY 12550.9 lb 5693 kg
TOTAL OPERATING – LOADED 60051.7 lb 27239 kg
FRONT AXEL – LOADED 29438.3 lb 13353 kg
REAR AXEL – LOADED 30613.4 lb 13886 kg
Bowl
RATED PAYLOAD 26400.4 lb 11975 kg
STRUCK CAPACITY 8.9 yd3 6.8 m3
MAX DEPTH OF CUT 14.6 in 370 mm
WIDTH OF CUT 7.7 ft in 2350 mm
Dimensions
OVERALL LENGTH 32.8 ft in 10000 mm
OVERALL WIDTH 8 ft in 2440 mm
HEIGHT TO TOP OF CAB 9.6 ft in 2920 mm
OVERALL HEIGHT 10.2 ft in 3100 mm
WHEELBASE 20.5 ft in 6260 mm
