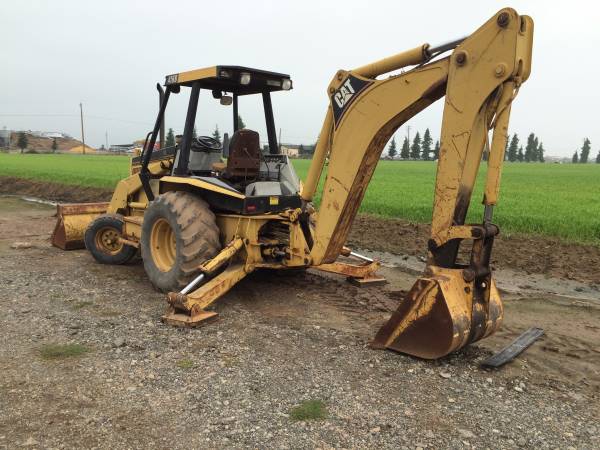

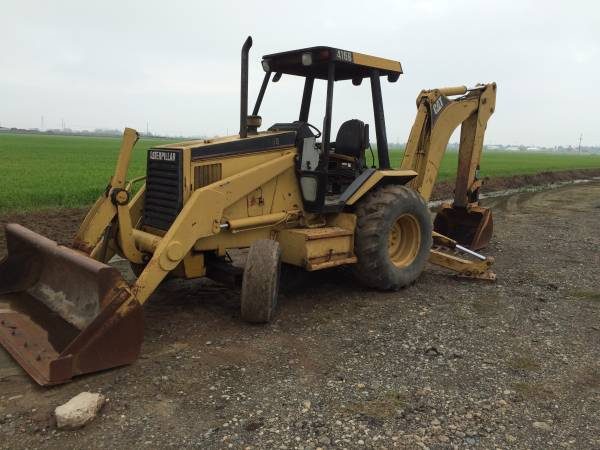

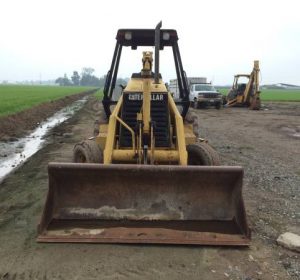

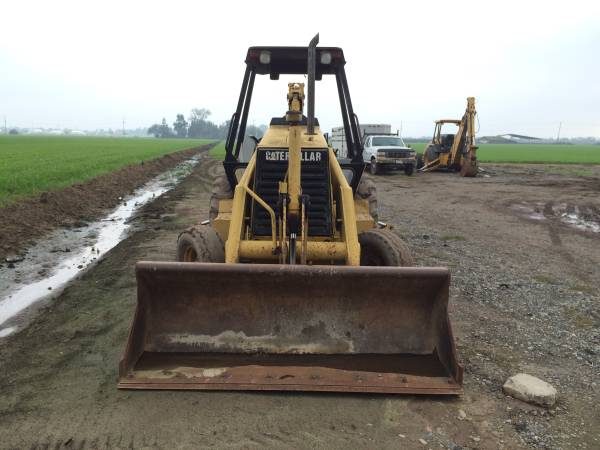

1994 CAT 416B Backhoe(sold)

1994 CAT 416B 2WD LOADER BACKHOE WITH ONLY 5000 ORIGINAL HOURS, GP BUCKET, STRAIGHT STICK, RUNS GREAT. CHEAP PRICE FOR A GOOD RUNNING BACKHOE

PRICE: $13,900
LOCATION: PLACERVILLE, CA 95667
HOURS: 5000

Backhoe
J. LOAD HEIGHT – STD 10.9 ft in 3335 mm
K. REACH FROM SWIVEL – STD 17.8 ft in 5413 mm
L. DIG DEPTH – STD 14.2 ft in 4330 mm
M. REACH AT LOAD HEIGHT – STD 7.2 ft in 2195 mm
Dimensions
A. TRANSPORT LENGTH 22.4 ft in 6838 mm
B. TRANSPORT WIDTH 7.4 ft in 2262 mm
C. TRANSPORT HEIGHT 11.3 ft in 3448 mm
D. WHEELBASE 6.9 ft in 2100 mm
E. GROUND CLEARANCE 0.97 ft in 297 mm
F. HEIGHT TO TOP OF CAB 8.9 ft in 2719 mm
Loader
G. CLEARANCE AT MAX DUMP HEIGHT 8.7 ft in 2637 mm
H. REACH AT MAX DUMP HEIGHT 2.3 ft in 704 mm
I. DIG DEPTH 4.2 in 107 mm
SPECIFICATION

Engine
MAKE Perkins
MODEL 4.2
NET POWER 61.7 hp 46 kw
GROSS POWER 67.1 hp 50 kw
DISPLACEMENT 235.6 cu in 3.9 L
POWER MEASURED @ 2400 rpm
NUMBER OF CYLINDERS 4
Operational
OPERATING WEIGHT 2WD 13706.1 lb 6217 kg
OPERATING WEIGHT 4WD 13970.7 lb 6337 kg
FUEL CAPACITY 28 gal 106 L
HYDRAULIC SYSTEM FLUID CAPACITY 20.9 gal 79 L
OIL SYSTEM FLUID CAPACITY 1.8 gal 7 L
COOLING SYSTEM FLUID CAPACITY 5.5 gal 21 L
TRANSMISSION FLUID CAPACITY 2.6 gal 10 L
FRONT AXLE FLUID CAPACITY 2 gal 7.5 L
REAR AXLE FLUID CAPACITY 4.9 gal 18.5 L
TURNING RADIUS 12.8 ft in 3905 mm
TIRE SIZE FRONT – 2WD / 4WD 11L-16 10PR/10.5-20 10PR
REAR TIRES SIZE 2WD/4WD 16.9-24 8PR/ 19.5L-24 8PR
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 52 amps
Transmission
TYPE fully synchromesh
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED – FORWARD 19.7 mph 31.7 km/h
MAX SPEED REVERSE 19.8 mph 31.8 km/h
Backhoe
DIG DEPTH – STD 14.2 ft in 4330 mm
DIG DEPTH – EXT 18.5 ft in 5636 mm
REACH FROM SWIVEL – STD 17.8 ft in 5413 mm
REACH FROM SWIVEL – EXT 21.9 ft in 6661 mm
BUCKET DIG FORCE – STD 10440 lb 4735.5 kg
BUCKET DIG FORCE – EXT 10260 lb 4653.9 kg
LOAD AT MAX LIFT – STD 3439.2 lb 1560 kg
LOAD AT MAX LIFT – EXT 2149.5 lb 975 kg
LOAD HEIGHT – STD 10.9 ft in 3335 mm
LOAD HEIGHT – EXT 13.3 ft in 4044 mm
REACH AT LOAD HEIGHT – STD 7.2 ft in 2195 mm
REACH AT LOAD HEIGHT – EXT 10.4 ft in 3174 mm
Loader
BUCKET CAPACITY 0.99 yd3 0.76 m3
BUCKET WIDTH 89.1 in 2262 mm
BUCKET BREAKOUT FORCE 7508.6 lb 33.4 kN
LIFT CAPACITY AT FULL HEIGHT 5249.2 lb 2381 kg
CLEARANCE AT MAX DUMP HEIGHT 8.7 ft in 2637 mm
REACH AT MAX DUMP HEIGHT 2.3 ft in 704 mm
DIG DEPTH 4.2 in 107 mm
Hydraulic
PUMP TYPE Variable flow
PUMP FLOW CAPACITY 28.5 gal/min 108 L/min
RELIEF VALVE PRESSURE 2700 psi 18615.8 kPa
Dimensions
TRANSPORT LENGTH 22.4 ft in 6838 mm
TRANSPORT WIDTH 7.4 ft in 2262 mm
TRANSPORT HEIGHT 11.3 ft in 3448 mm
HEIGHT TO TOP OF CAB 8.9 ft in 2719 mm
WHEELBASE 6.9 ft in 2100 mm
GROUND CLEARANCE 0.97 ft in 297 mm
