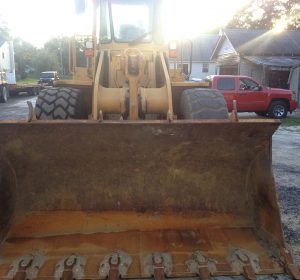

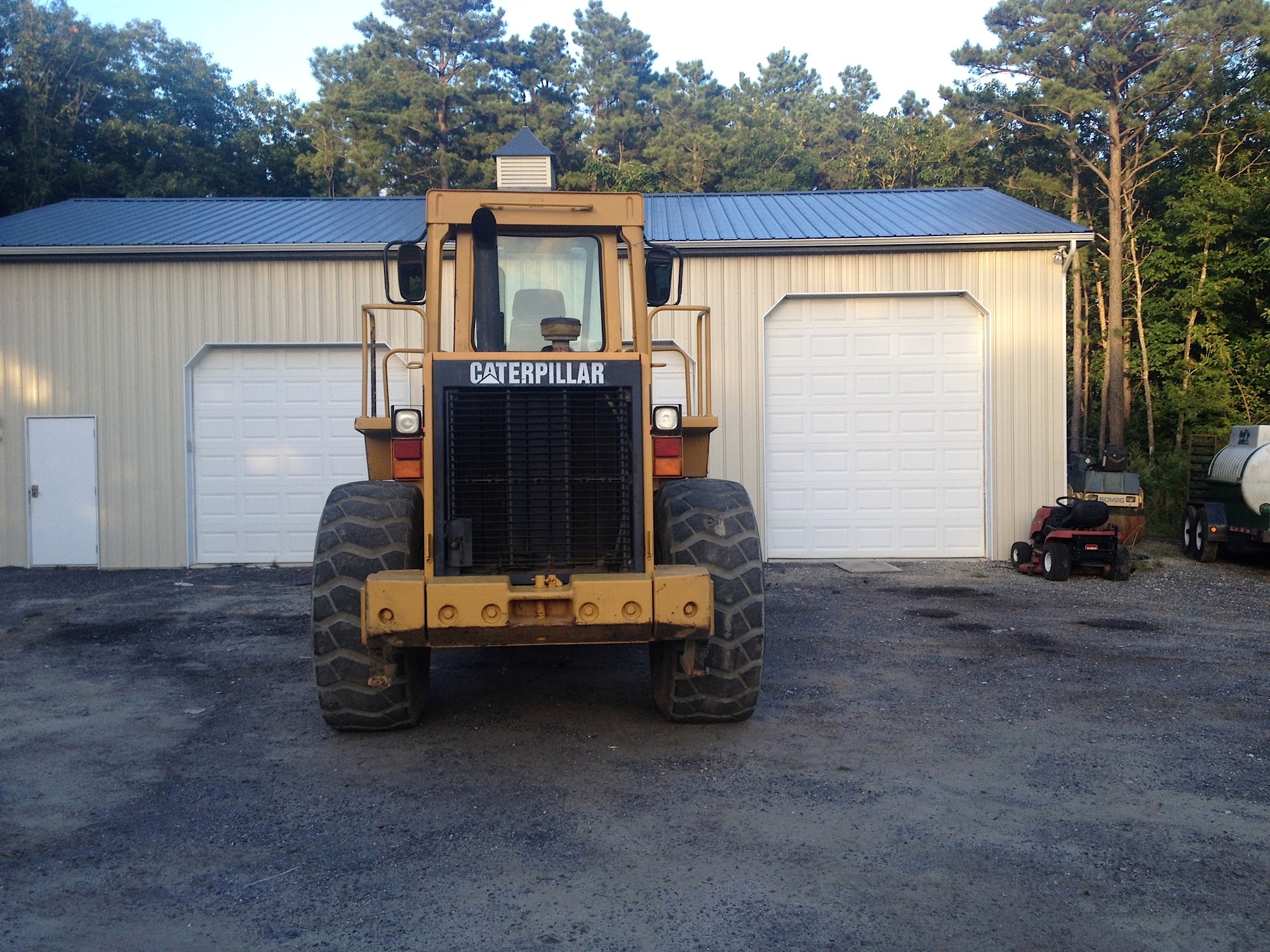

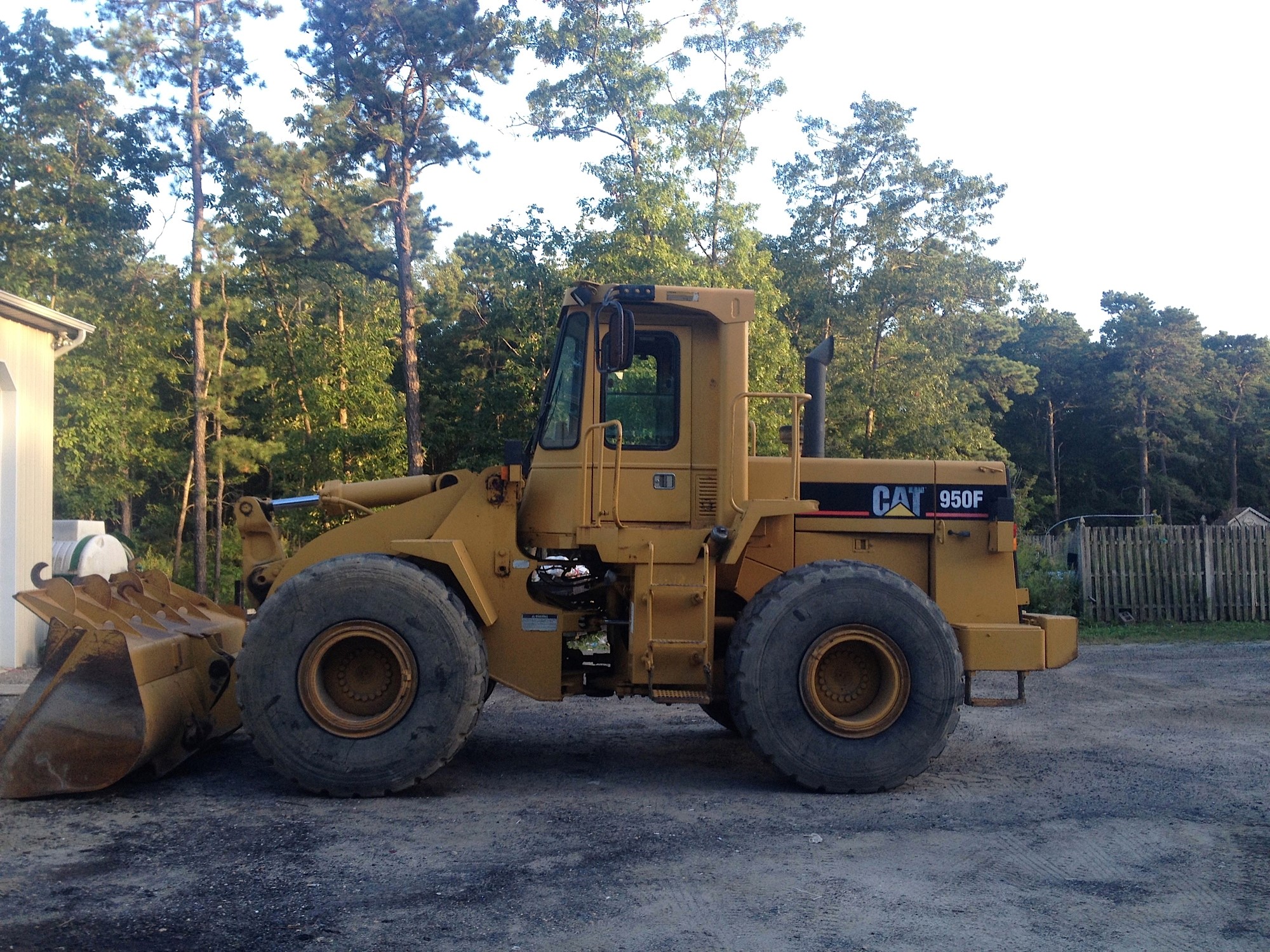

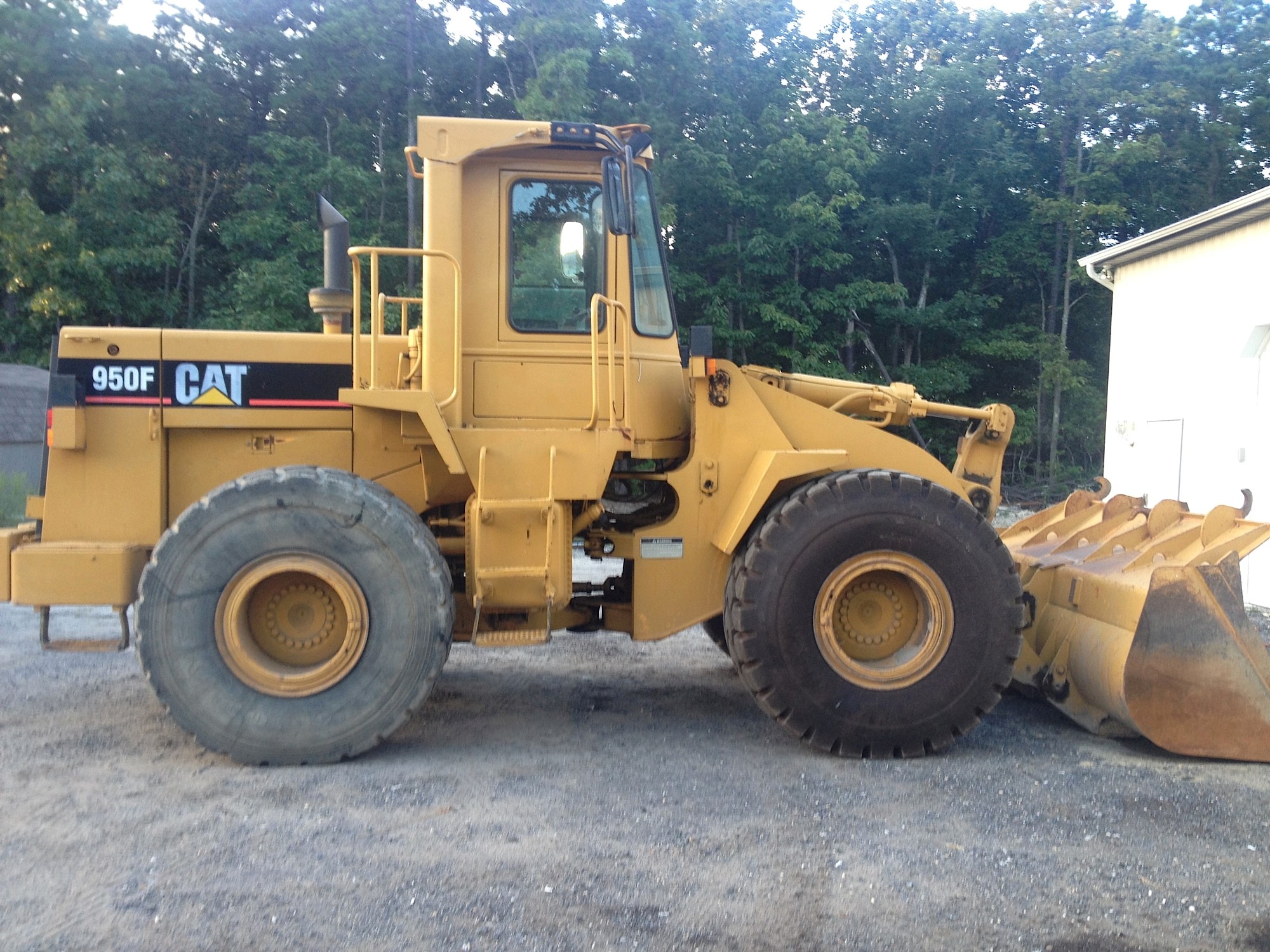

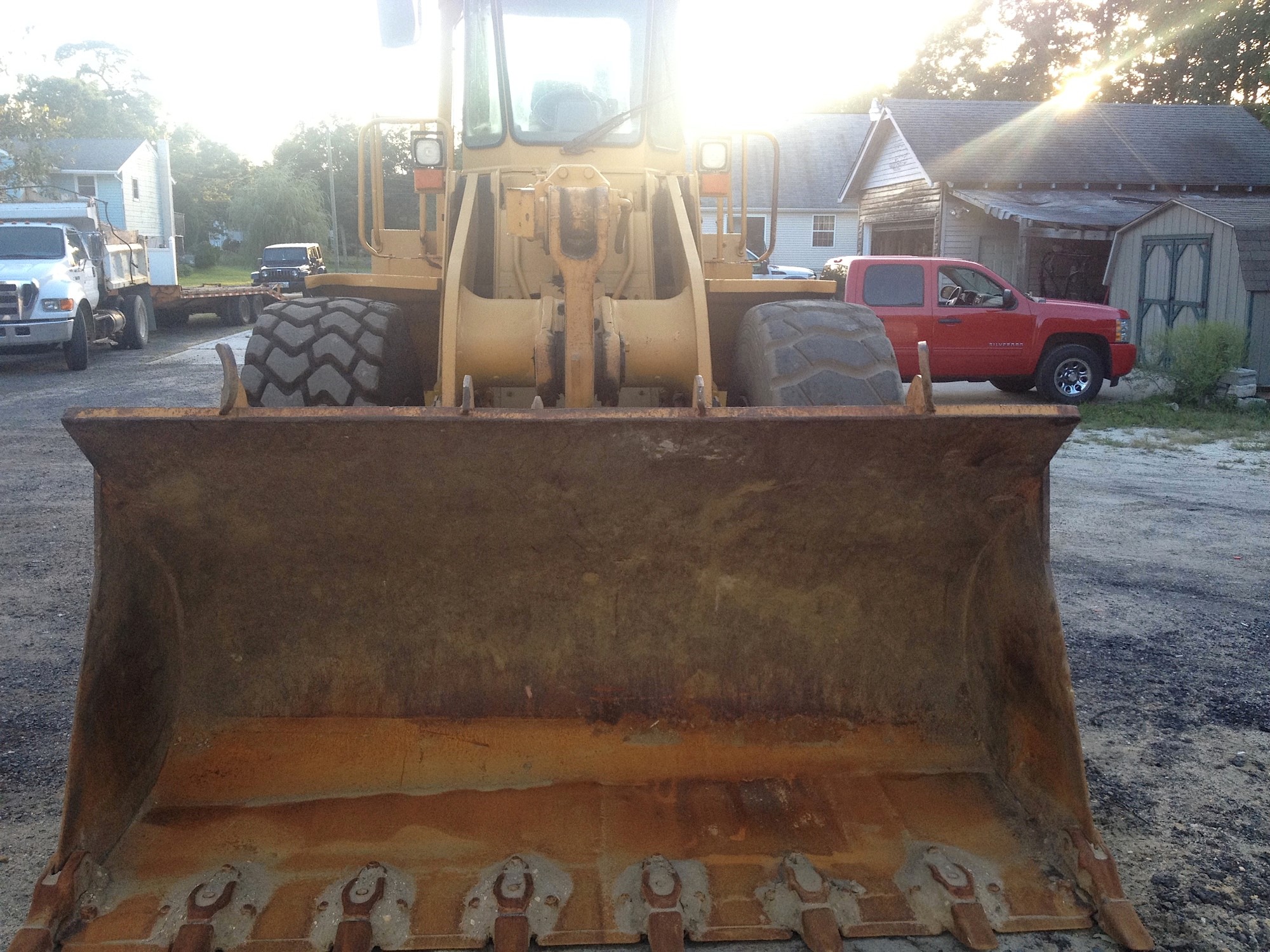

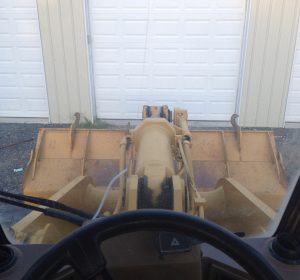

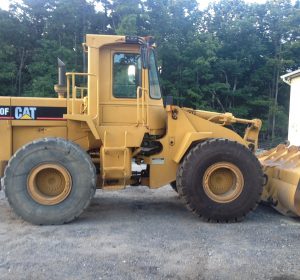

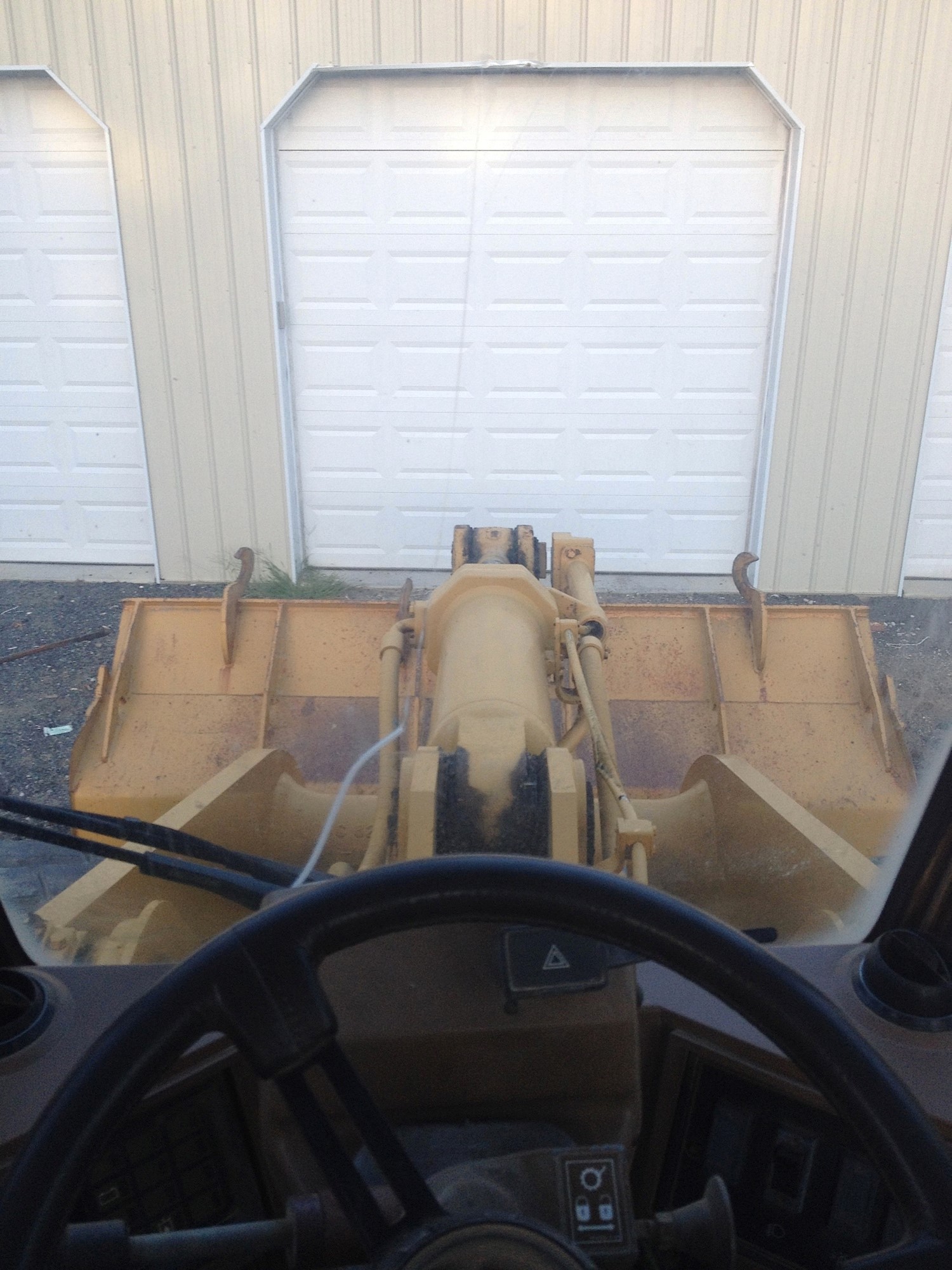

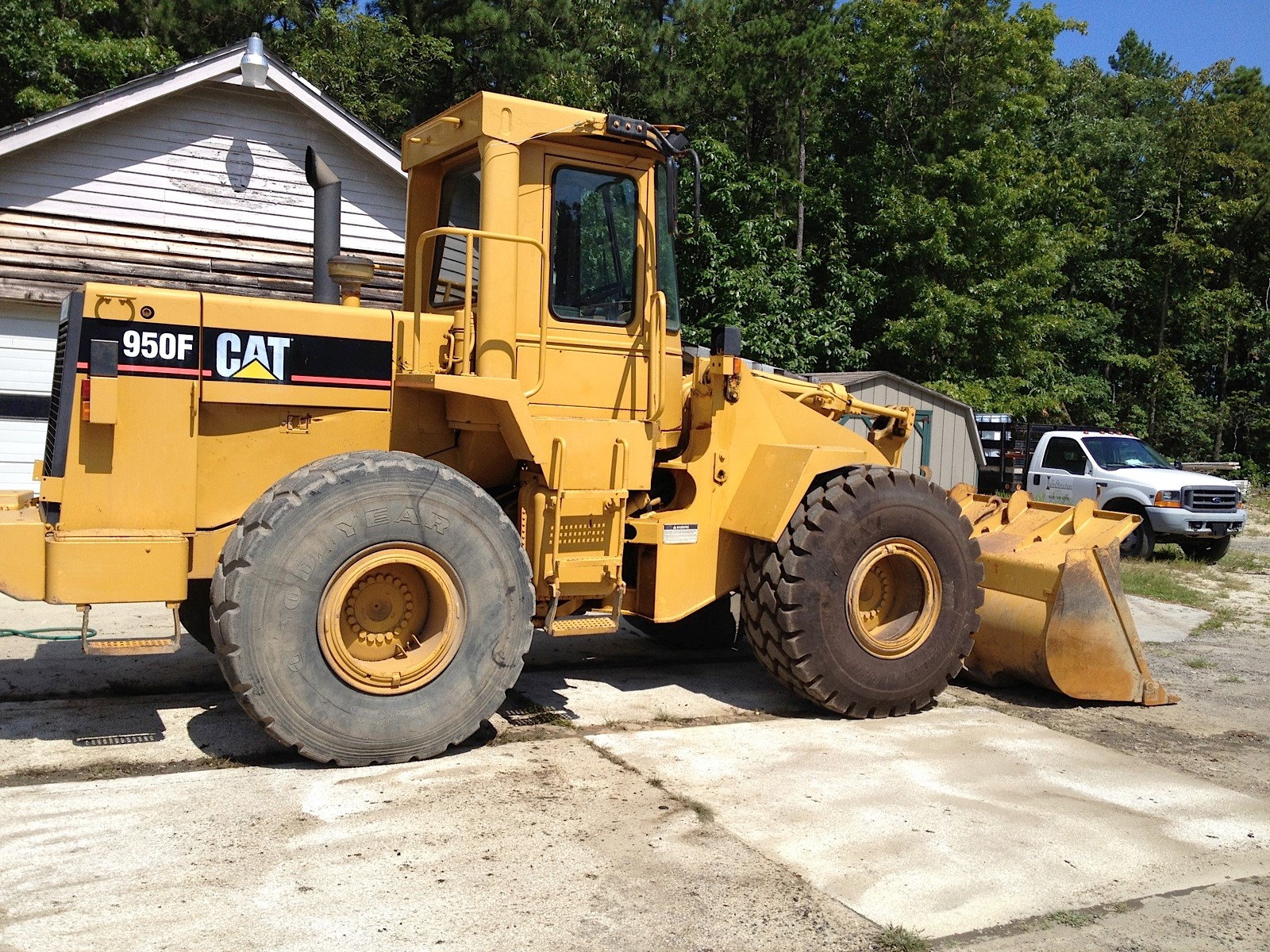

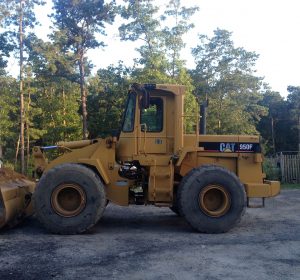

1992 CAT 950F Wheel Loader(sold)

1992 CAT 950F Wheel Loader

Location: New Jersey
Price: $49,900
Hours: 11,000
EROPS

CAT 950F Specs

Bucket
G. DUMP CLEARANCE AT MAX RAISE 9.6 ft in 2941 mm
Dimensions
A. LENGTH WITH BUCKET ON GROUND 25.2 ft in 7689 mm
B. WIDTH OVER TIRES 9 ft in 2753 mm
C. HEIGHT TO TOP OF CAB 11.5 ft in 3520 mm
D. WHEELBASE 10.4 ft in 3180 mm
E. GROUND CLEARANCE 1.6 ft in 474 mm
F. HINGE PIN – MAX HEIGHT 13 ft in 3953 mm
H. REACH AT MAX LIFT AND DUMP 3.6 ft in 1103 mm
SPECIFICATION

Engine
MAKE Caterpillar
MODEL 3116
NET POWER 170 hp 126.8 kw
GROSS POWER 180 hp 134.2 kw
POWER MEASURED @ 2200 rpm
DISPLACEMENT 402.8 cu in 6.6 L
NUMBER OF CYLINDERS 6
ASPIRATION Turbocharged
Operational
OPERATING WEIGHT 34678.7 lb 15730 kg
FUEL CAPACITY 58.6 gal 222 L
HYDRAUILC SYSTEM FLUID CAPACITY 40.4 gal 153 L
ENGINE OIL FLUID CAPACITY 5.3 gal 20 L
COOLING SYSTEM FLUID CAPACITY 12.9 gal 49 L
TRANSMISSION FLUID CAPACITY 9 gal 34 L
FRONT AXLE/DIFF FLUID CAPACITY 9.5 gal 36 L
REAR AXLE/DIFF FLUID CAPACITY 9.5 gal 36 L
STATIC TIPPING WEIGHT 23243.3 lb 10543 kg
TURNING RADIUS 21.1 ft in 6419 mm
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
REAR AXLE OSCILLATION 26 degrees
TIRE SIZE 23.5-25 12PR
Transmission
TYPE Planetary powershift
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED – FORWARD 24.4 mph 39.3 km/h
MAX SPEED – REVERSE 26.7 mph 43 km/h
Hydraulic System
RELIEF VALVE PRESSURE 3000 psi 20684.3 kPa
PUMP FLOW CAPACITY 62.6 gal/min 237 L/min
RAISE TIME 6.6 sec
DUMP TIME 2.2 sec
LOWER TIME 3 sec
Bucket
BREAKOUT FORCE 35801 lb 159.3 kN
DUMP CLEARANCE AT MAX RAISE 9.6 ft in 2941 mm
BUCKET WIDTH 9.2 ft in 2811 mm
BUCKET CAPACITY – HEAPED 3.8 yd3 2.9 m3
BUCKET CAPACITY – STRUCK 3.3 yd3 2.5 m3
Dimensions
LENGTH WITH BUCKET ON GROUND 25.2 ft in 7689 mm
WIDTH OVER TIRES 9 ft in 2753 mm
HEIGHT TO TOP OF CAB 11.5 ft in 3520 mm
GROUND CLEARANCE 1.6 ft in 474 mm
WHEELBASE 10.4 ft in 3180 mm
HINGE PIN – MAX HEIGHT 13 ft in 3953 mm
REACH AT MAX LIFT AND DUMP 3.6 ft in 1103 mm
