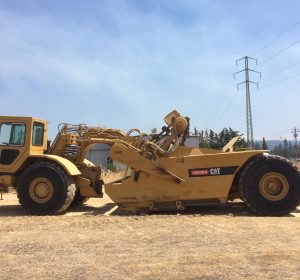

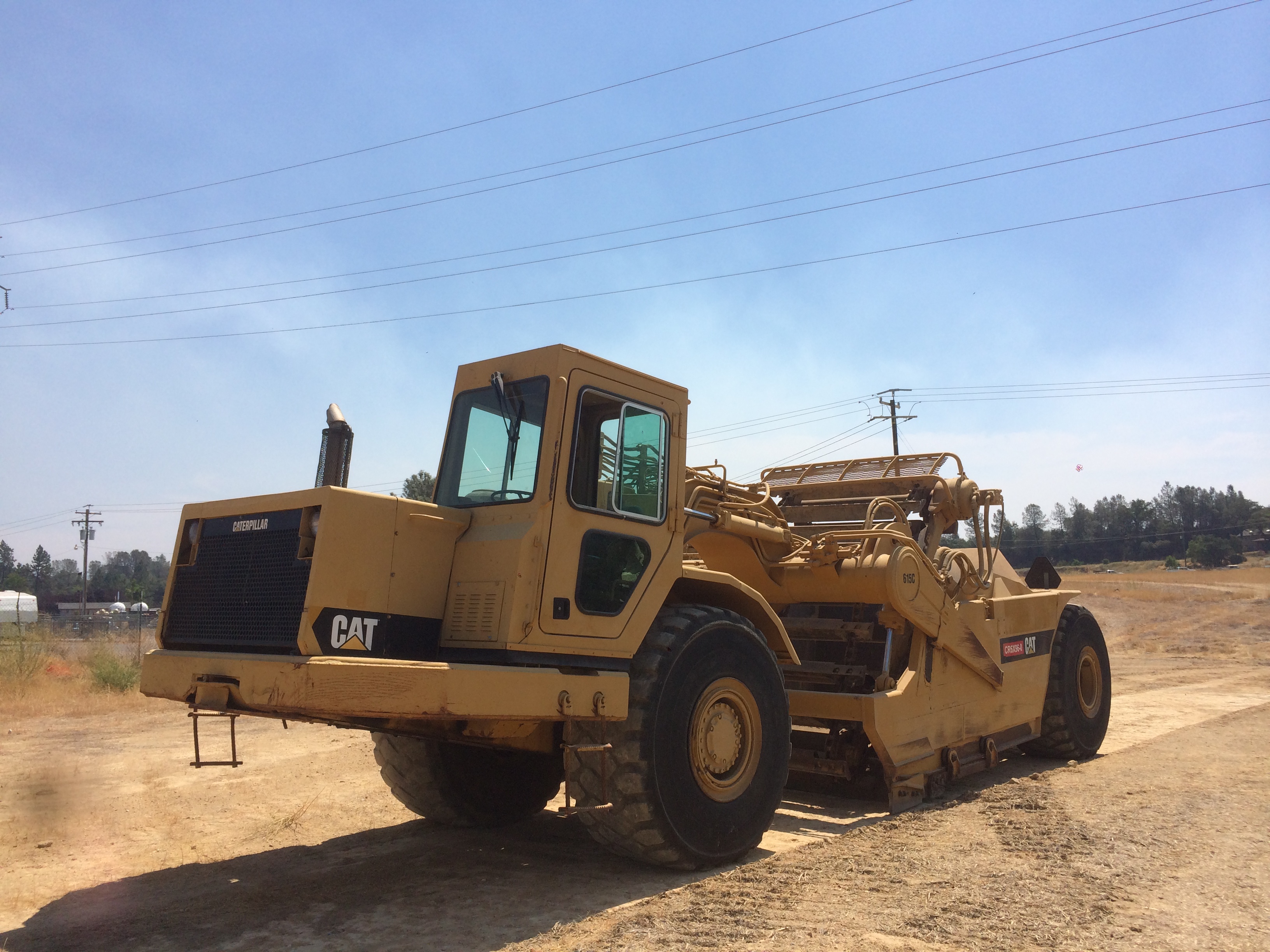

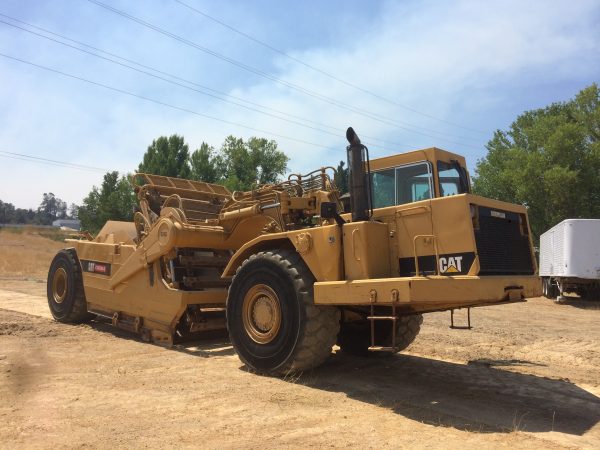

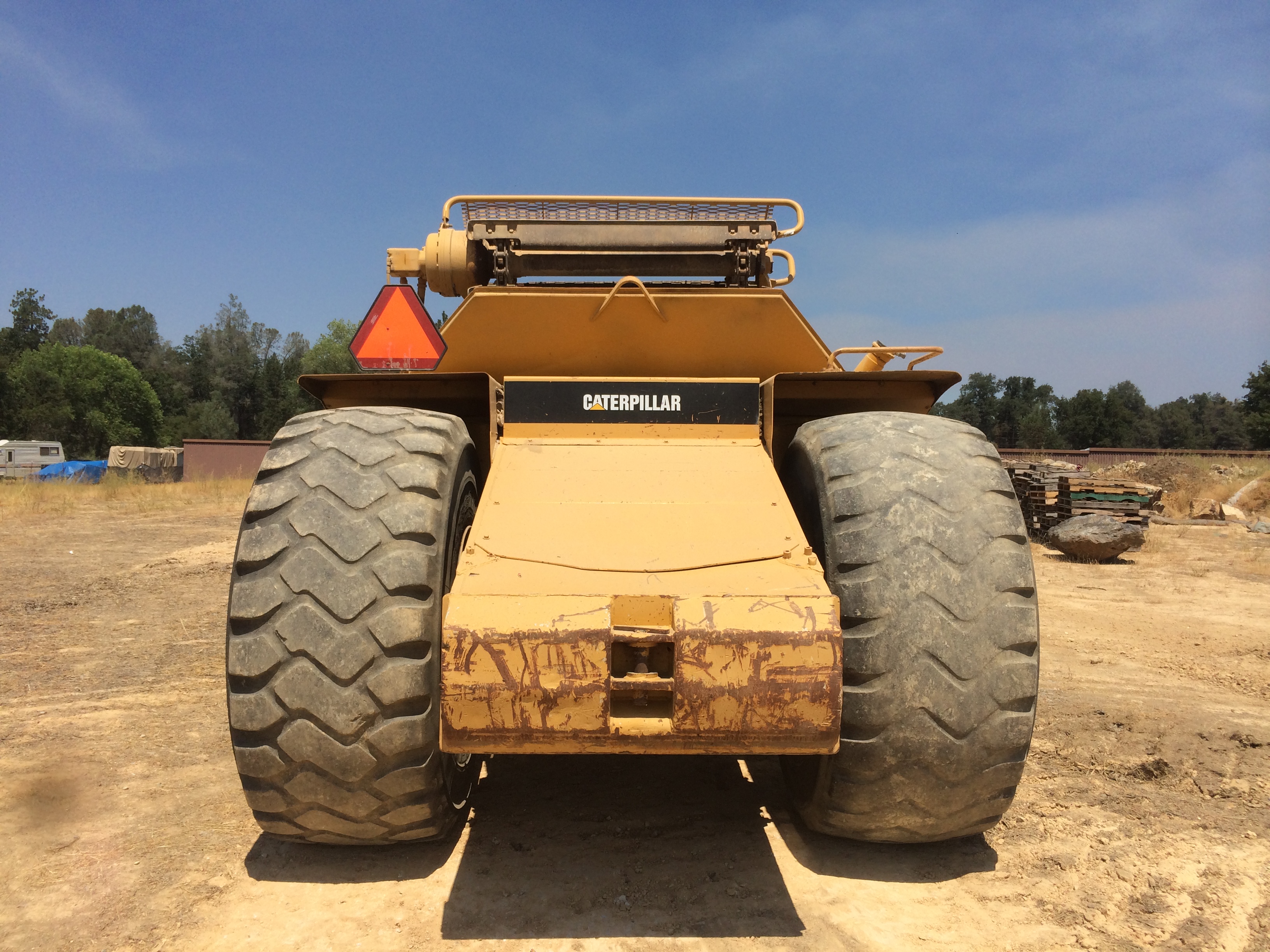

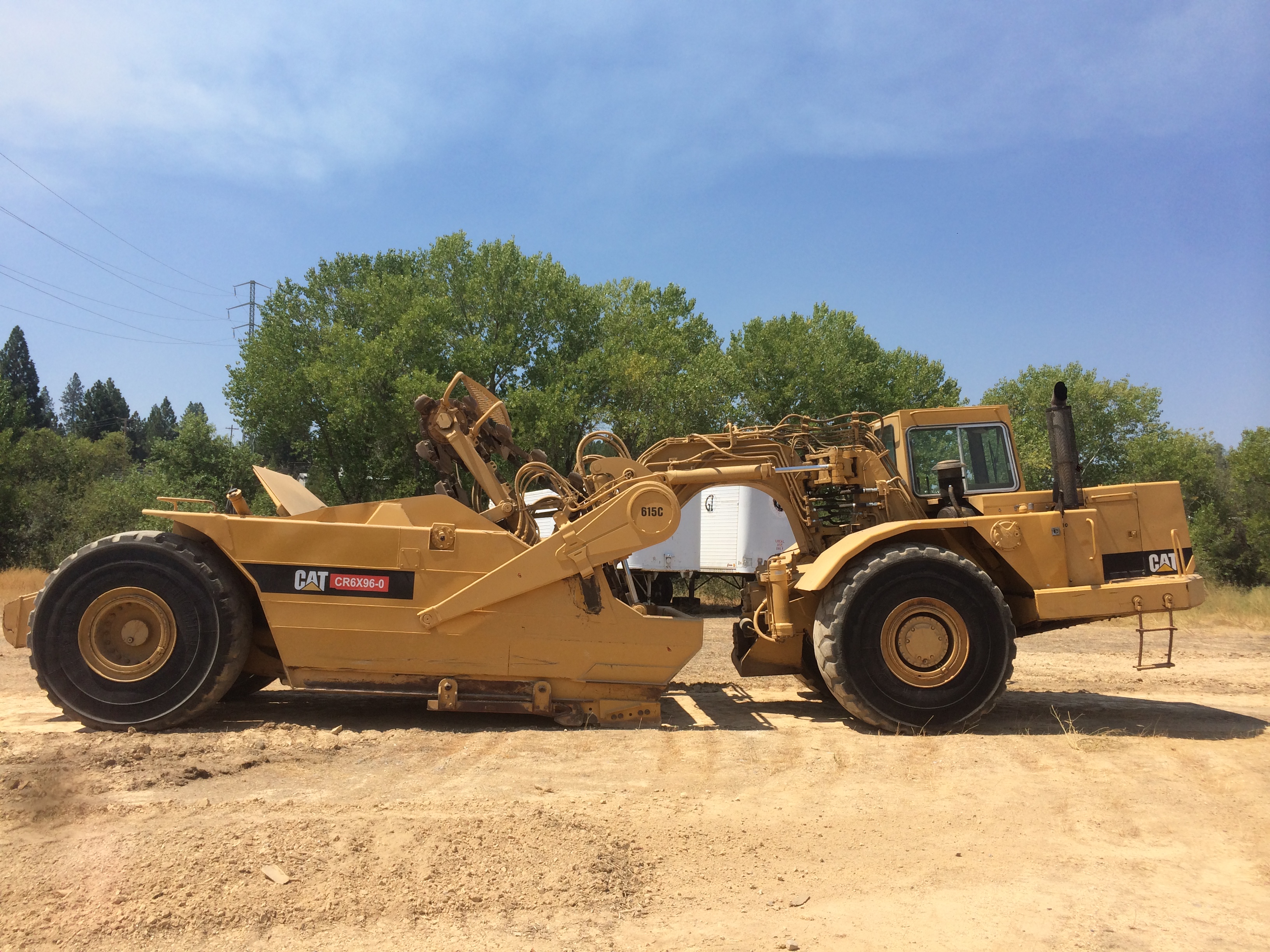

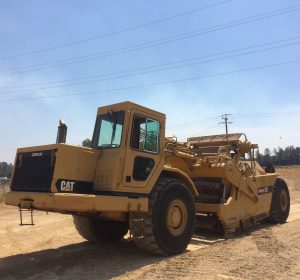

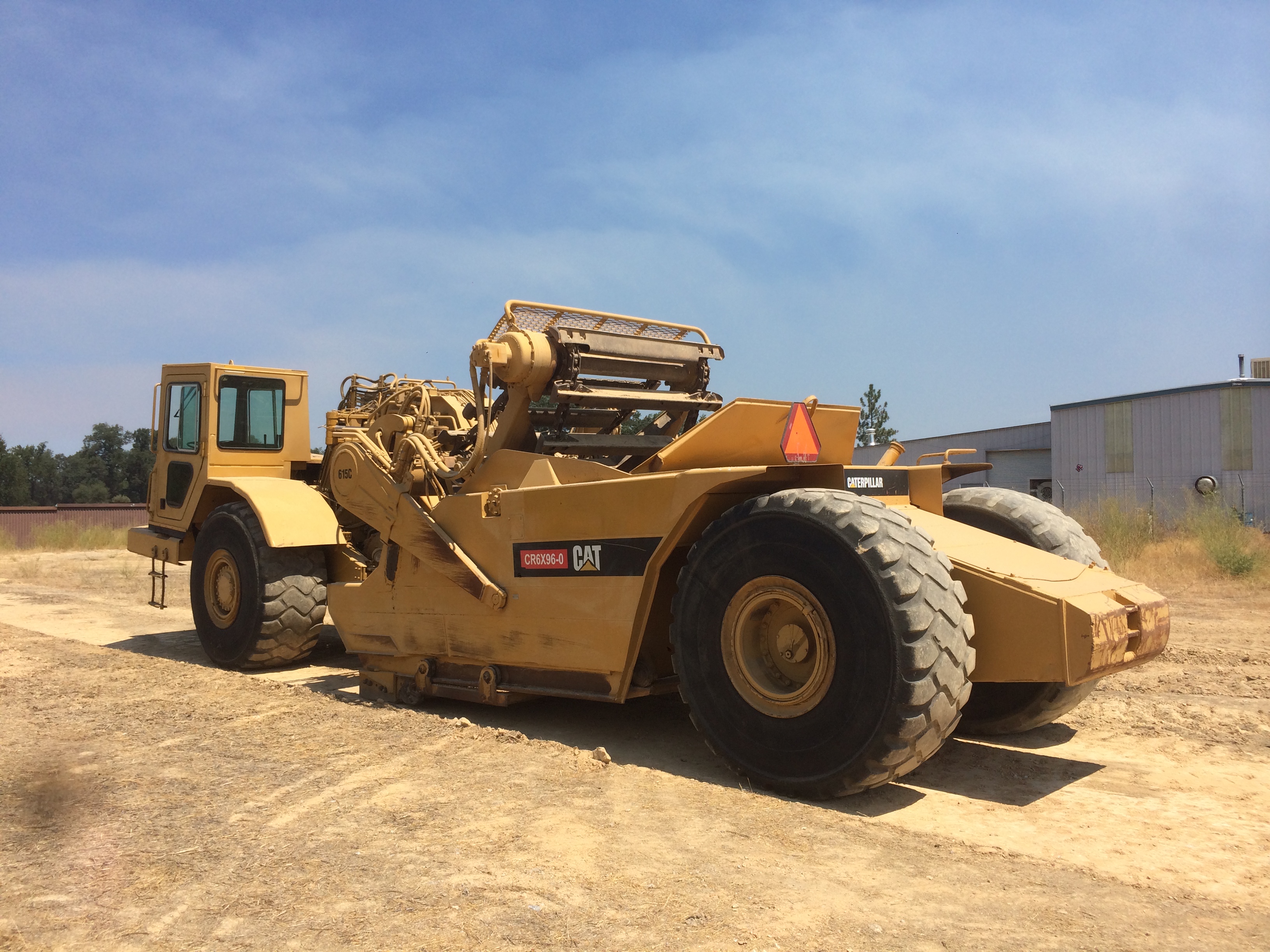

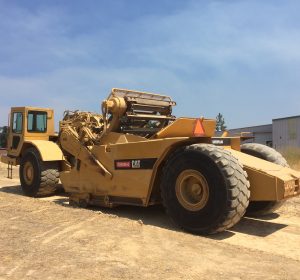

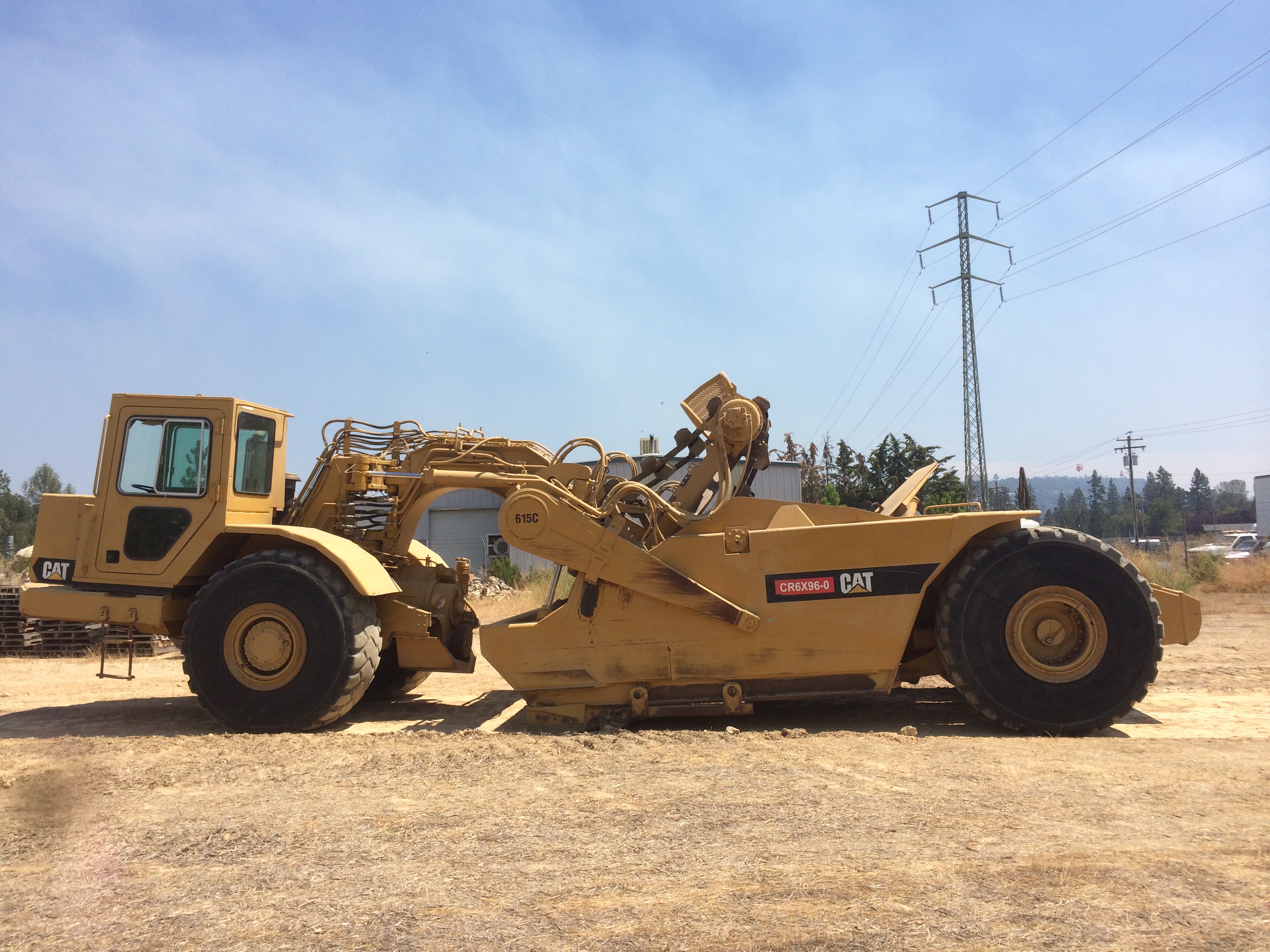

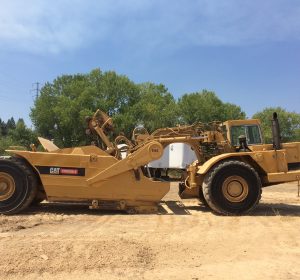

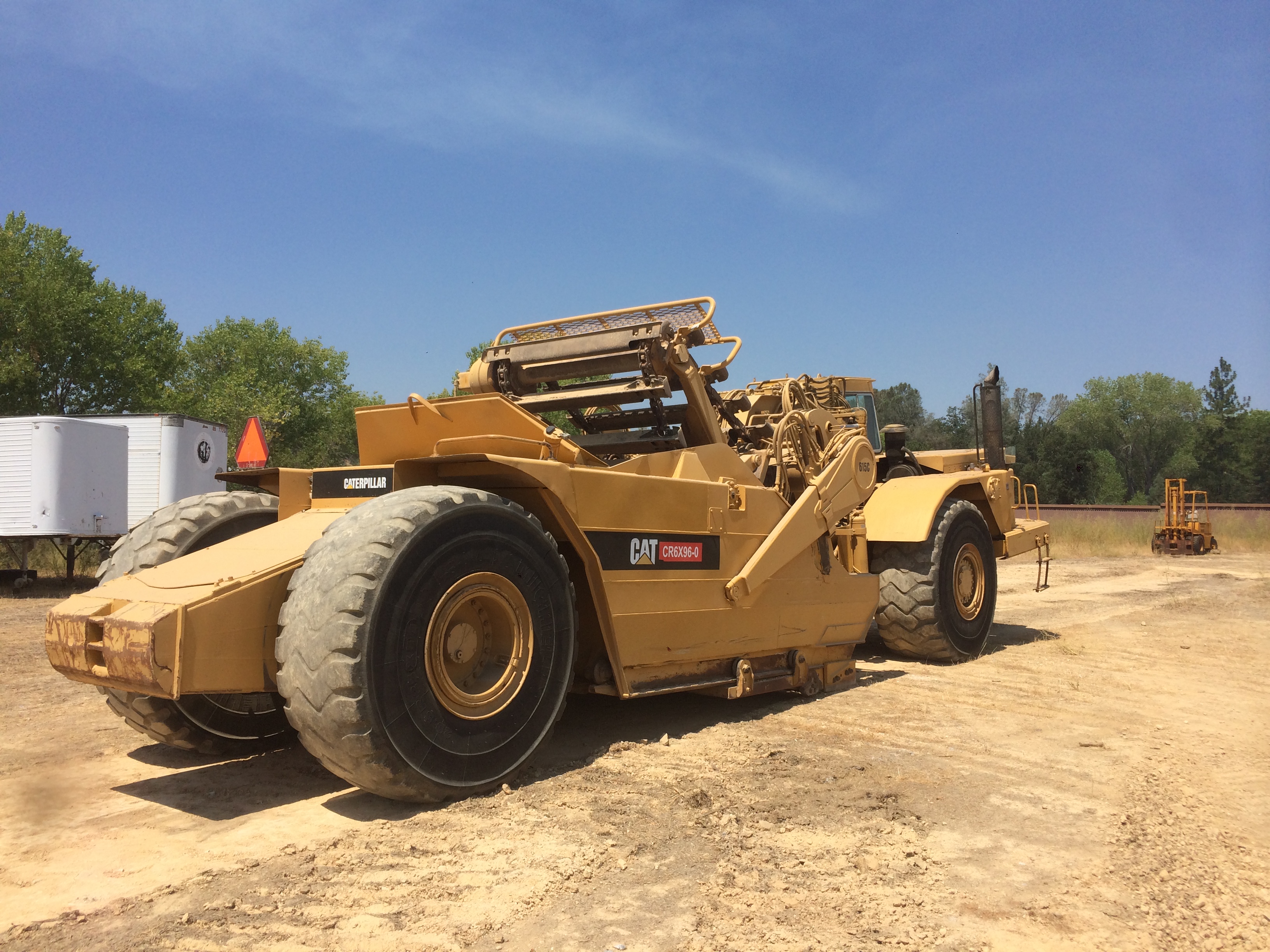

1991 CAT 615C Scraper(sold)

1991 CAT 615C  SCRAPER ELEVATING MOTOR 12400 HOURS, ENCLOSED CAB, A/C, CAT 3306 ENGINE, ELEVATOR, REAR PUSH BLOCK

1991 CAT 615C Scraper Dimensions

A. Overall Length

38.1 ft in

11600 mm

B. Overall Width

10 ft in

3048 mm

C. Overall Height

11.8 ft in

3589 mm

D. Wheelbase

22.9 ft in

6995 mm

Specification

Tractor Engine

Make

Caterpillar

Model

3306

Gross Power

265 hp

197.6 kw

Displacement

640.7 cu in

10.5 L

Operational

Fuel Capacity

105.4 gal

399 L

Tire Size

26.5-25 26PR (E-2)

Transmission

Number of Forward Gears

6

Max Speed Forward

29.2 mph

47 km/h

Weights

Total Operating – empty

50715.1 lb

23004 kg

Front Axel – empty

40064.6 lb

18173 kg

Rear Axel – empty

10650.5 lb

4831 kg

Total Operating – Loaded

89119.7 lb

40424 kg

Front Axel – loaded

47234 lb

21425 kg

Rear Axel – loaded

41885.6 lb

18999 kg

Bowl

Rated Payload

38404.5 lb

17420 kg

Heaped Capacity

16 yd3

12.2 m3

Max Depth of Cut

16.3 in

414 mm

Width of Cut

9.5 ft in

2890 mm

Elevator

Number of Flights

18

Dimensions

Overall Length

38.1 ft in

11600 mm

Overall Width

10 ft in

3048 mm

Overall Height

11.8 ft in

3589 mm

Wheelbase

22.9 ft in

6995 mm
