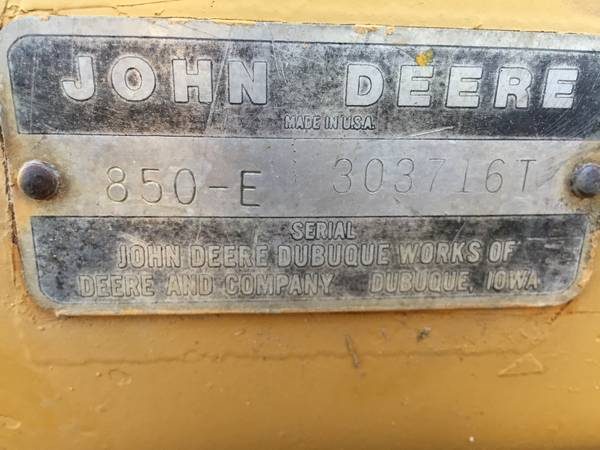

1989 Deere 850E Dozer (sold)

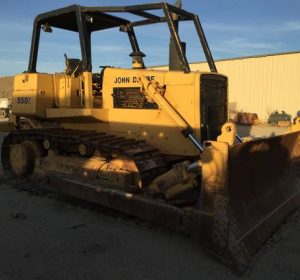

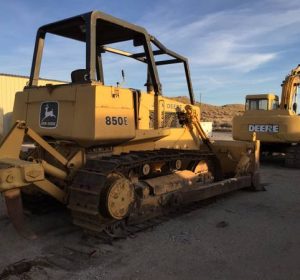

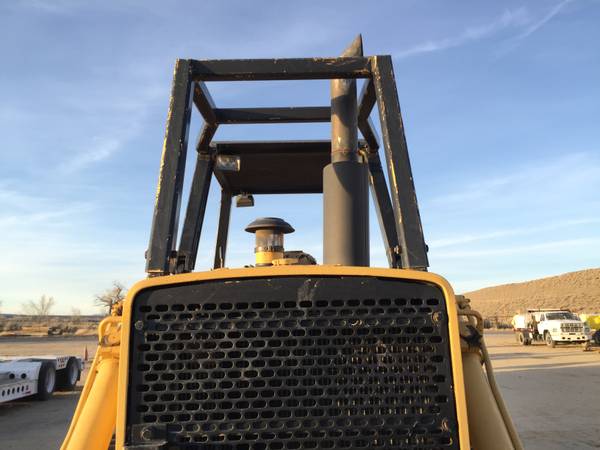

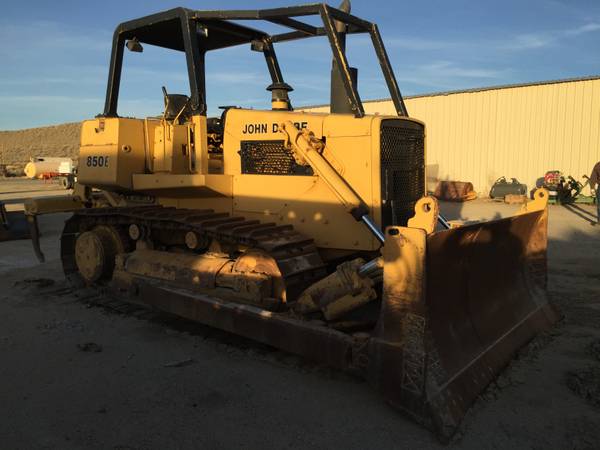

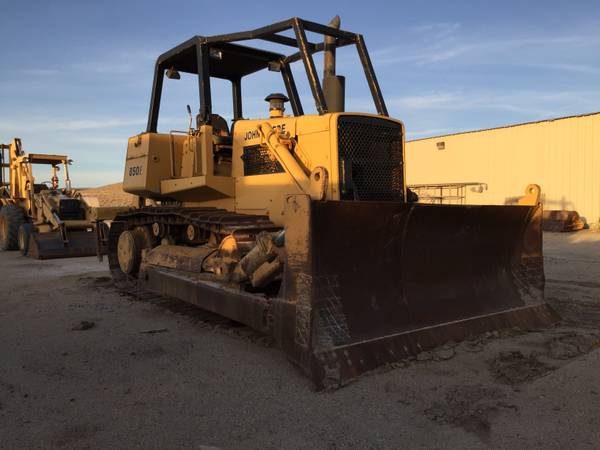

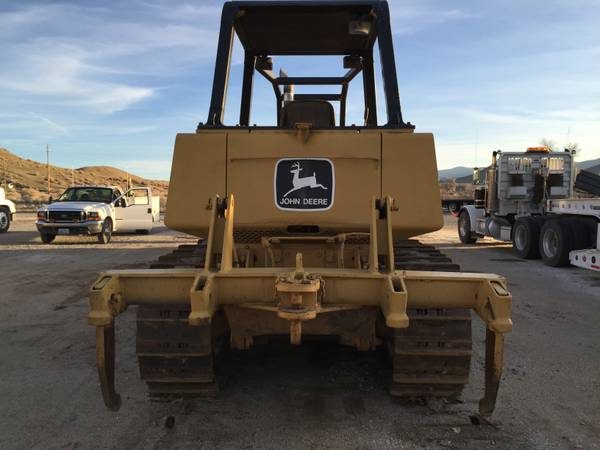

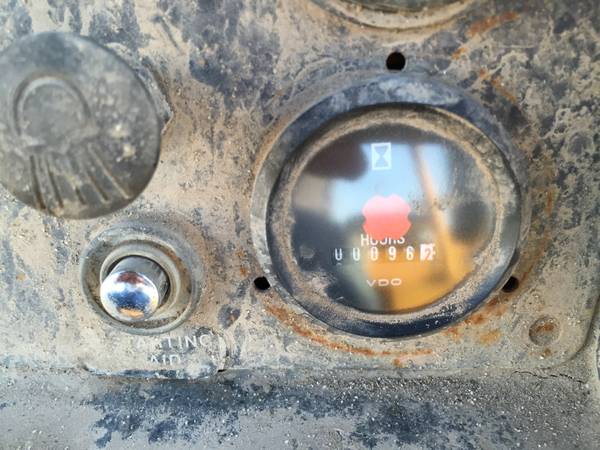

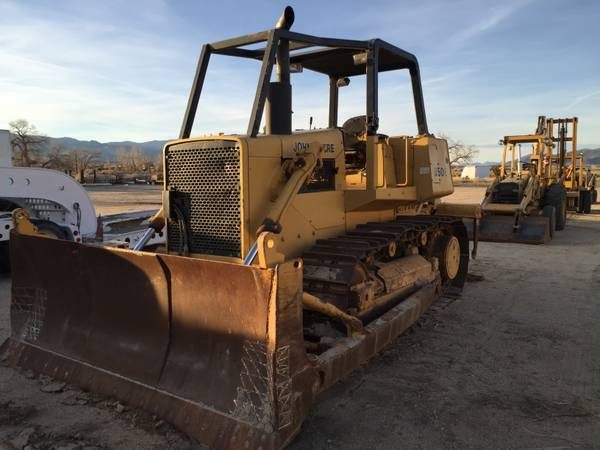

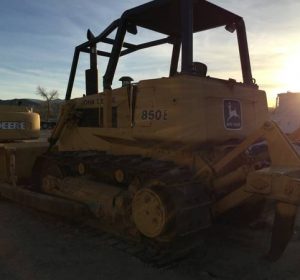

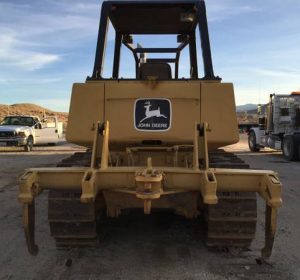

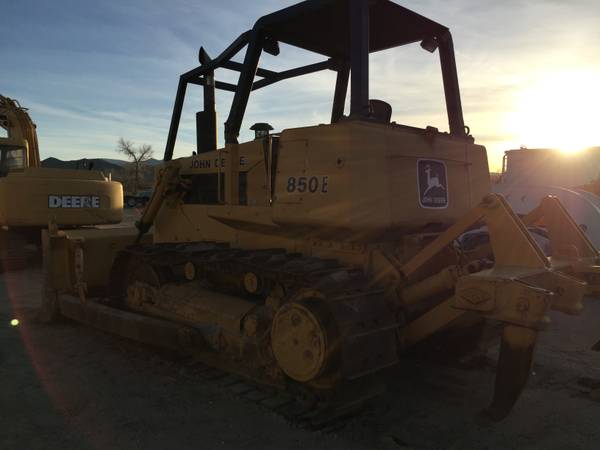

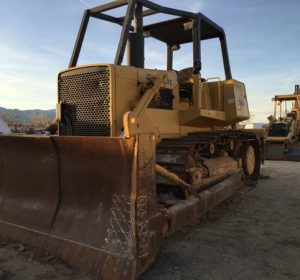

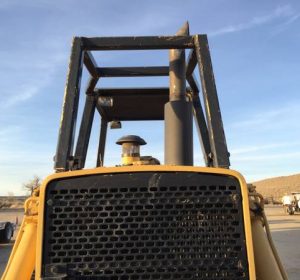

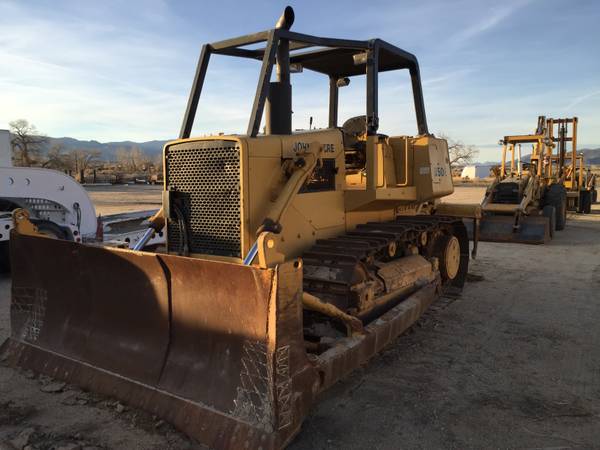

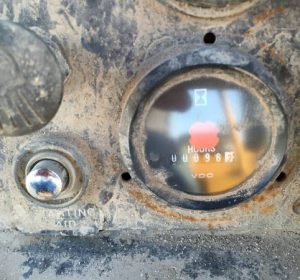

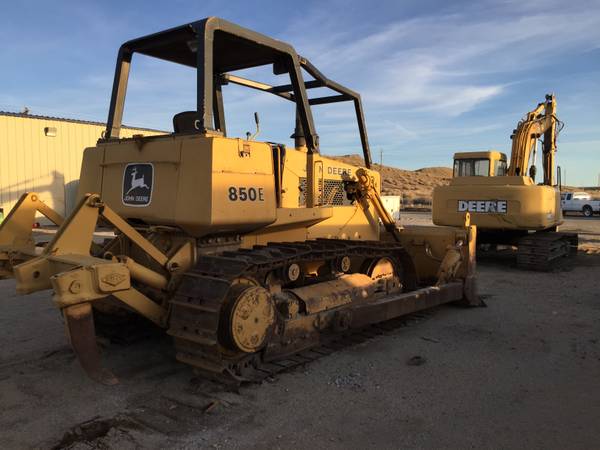

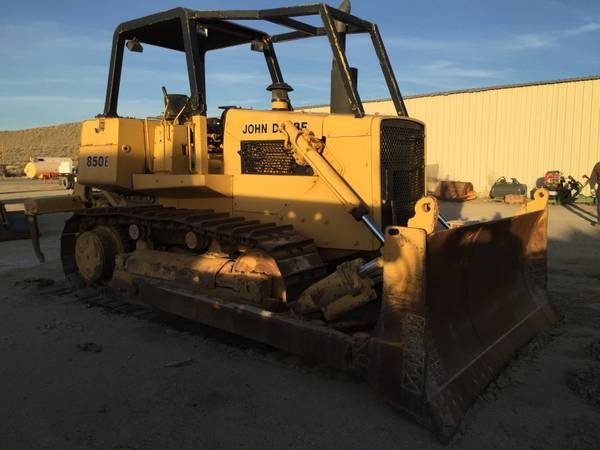

1989 JOHN DEERE 850E CRAWLER DOZER. IT HAS A STRAIGHT BLADE WITH SINGLE TILT, MS RIPPER, UC 75%, OROPS, 24″ PADS, METER READS 90HRS(8698 PRIOR TO METER CHANGE) RUNS GREAT WITH NO ISSUES. VERY CLEAN FOR THE YEAR. LOTS OF POWER

• LOCATION: PLACERVILLE, CA
• HOURS: 8,800
• PRICE: 29,999

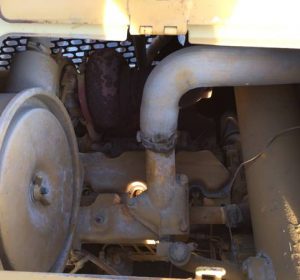

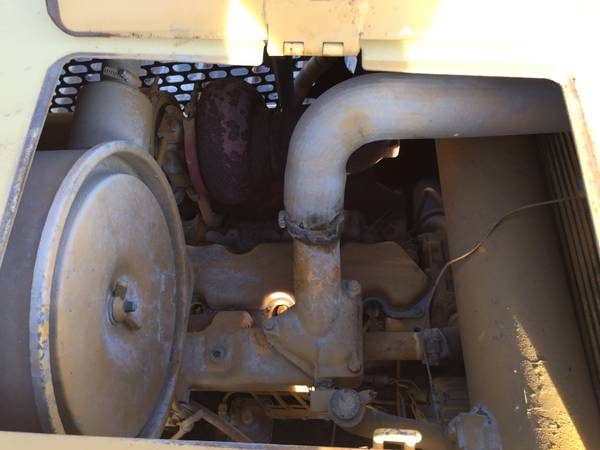

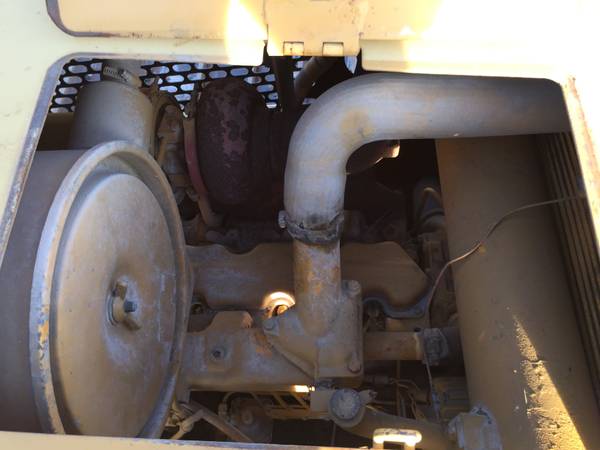

Engine
Make John Deere
Model 6466A
Gross Power 175 hp 130.5 kw
Net Power 165 hp 123 kw
Power Measured @ 1800 rpm
Max Torque 578 lb ft 783.7 Nm
Displacement 466 cu in 7.6 L
Torque Measured @ 1200 rpm
Number of Cylinders 6
Aspiration Turbocharged
Operational
Operating Weight 39315 lb 17833 kg
Fuel Capacity 82 gal 310.4 L
Cooling System Fluid Capacity 9 gal 34 L
Hydraulic Fluid Capacity 35 gal 132.5 L
Powertrain Fluid Capacity 8.5 gal 32.2 L
Final Drives Fluid Capacity 3.5 gal 13.2 L
Operating Voltage 24 V
Alternator Supplied Amperage 40 amps
Transmission
Type Automatic, dual-path, hydrostatic drive
Max Speed – Forward 6.5 mph 10.5 km/h
Max Speed – Reverse 6.5 mph 10.5 km/h

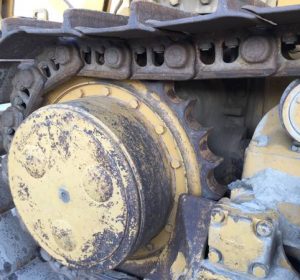

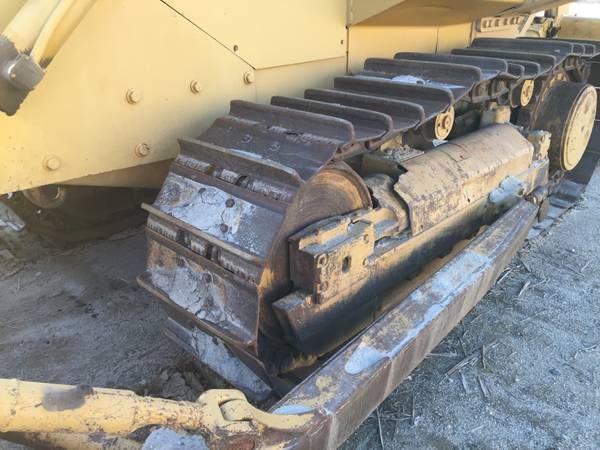

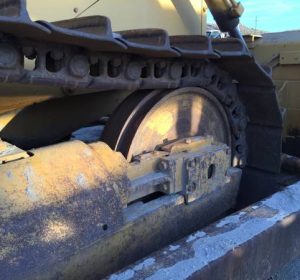

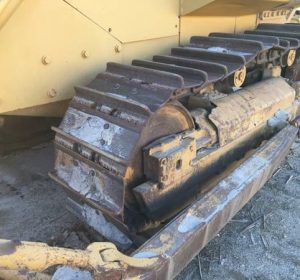

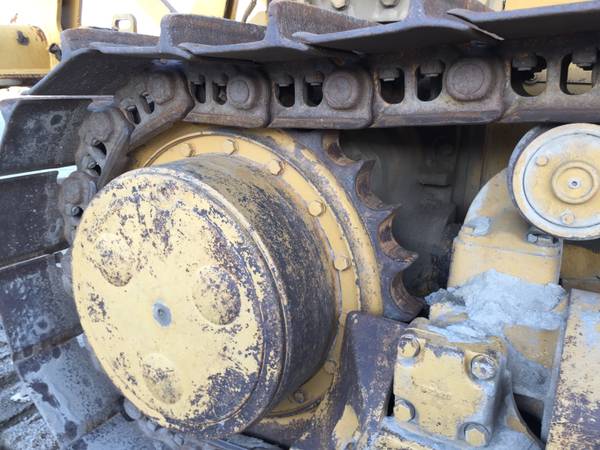

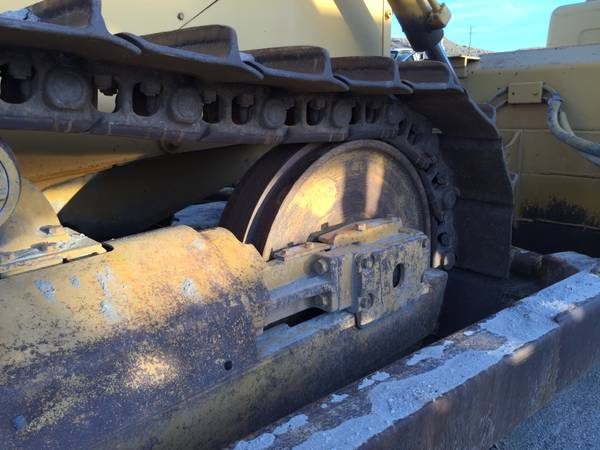

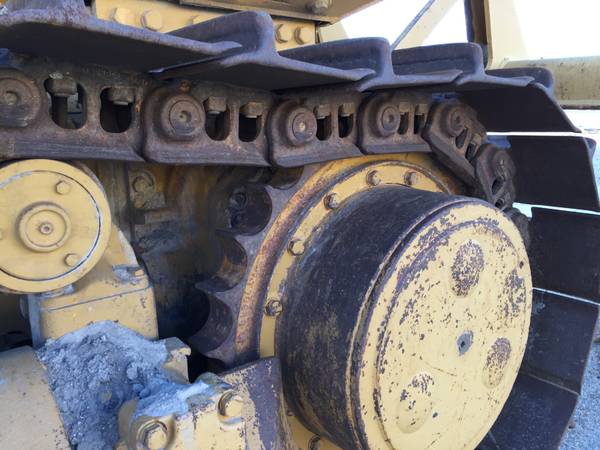

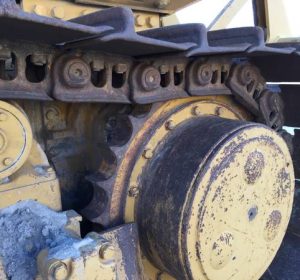

Undercarriage
Ground Pressure 7.7 psi 52.7 kPa
Ground Contact Area 5136 in2 3.3 m2
Standard Shoe Size 24 in 610 mm
Number of Shoes per Side 40
Number of Track Rollers per Side 2
Hydraulic System
Pump type Vane
Relief Valve Pressure 2250 psi 15514 kPa
Pump Flow Capacity 44 gal/min 166 L/min

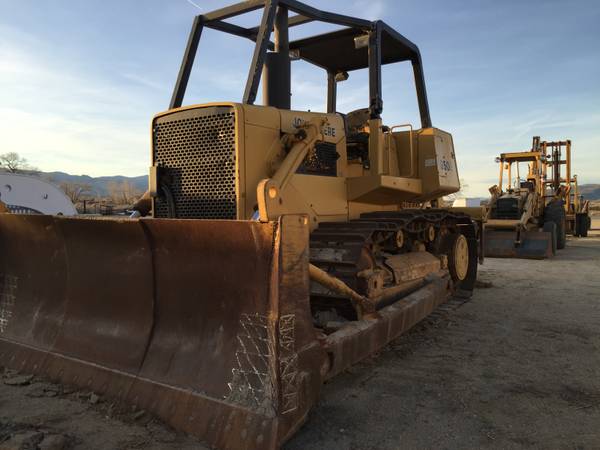

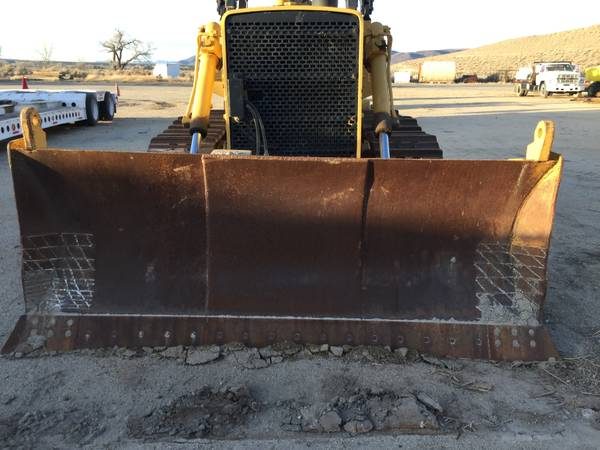

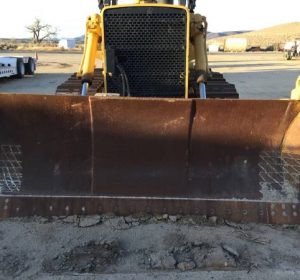

Standard Blade
Width 10.6 ft in 3226 mm
Height 42 in 1067 mm
Capacity 3.9 yd3 3 m3
Blade Angle (both directions) 25 degrees
Cutting Depth 20.6 in 523 mm
Dimensions
Height to Top of Cab 10.5 ft in 3200 mm
Length of Track on Ground 8.9 ft in 2720 mm
Ground Clearance 1.4 ft in 417 mm
